  1. Materials and Resources Session 5 May 10, 2011 6:30 – 8:00 pm

  2. Course Outline • Session 1 – Introduction to LEED • Session 2 - Sites • Session 3- Water + Regional & Innov. Design • Session 4 – Energy • Session 5 - Materials • Session 6- Indoor Environmental Quality • Session 7- Review, Case Study, Pretest USGBC Arkansas

  3. Introductions Landscape Architect LEED AP BD+C LEED Consultant, Comfort Systems Energy Group Vice Chair, USGBC AR Project Manager LEED AP BD&C Green Advantage Practitioner Certified Professional Constructor Former USGBC AR Steering Committee Emerging Professionals Chair Jay Holstead Lance Wright USGBC Arkansas

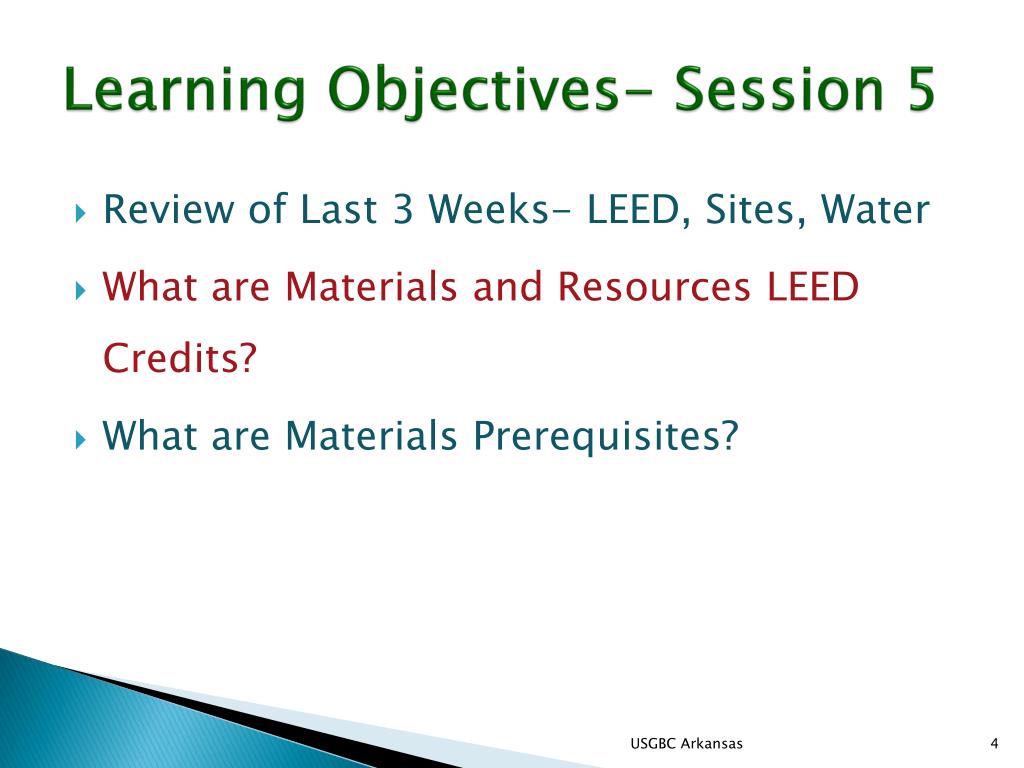

  4. Learning Objectives- Session 5 • Review of Last 3 Weeks- LEED, Sites, Water • What are Materials and Resources LEED Credits? • What are Materials Prerequisites? USGBC Arkansas

  5. Review of Session 1: LEED • LEED Professional Credentials • LEED Project Certification • Benefits of Project Certification USGBC Arkansas

  6. LEED Accredited Professionals- 3 levels USGBC Arkansas

  7. LEED Rating Systems USGBC Arkansas

  8. Review of Session 2: Sustainable Sites 26 possible Points • Prerequisite 1 Construction Activity Pollution Prevention Required • Credit 1 Site Selection 1 • Credit 2 Development Density and Community Connectivity 5 • Credit 3 Brownfield Redevelopment 1 • Credit 4.1 Alternative Transportation—Public Transportation Access 6 • Credit 4.2 Alternative Transportation—Bicycle Storage and Changing Rooms 1 • Credit 4.3 Alternative Transportation—Low-Emitting and Fuel-Efficient Vehicles 3 • Credit 4.4 Alternative Transportation—Parking Capacity 2 • Credit 5.1 Site Development—Protect or Restore Habitat 1 • Credit 5.2 Site Development—Maximize Open Space 1 • Credit 6.1 Stormwater Design—Quantity Control 1 • Credit 6.2 Stormwater Design—Quality Control 1 • Credit 7.1 Heat Island Effect—Non roof 1 • Credit 7.2 Heat Island Effect—Roof 1 • Credit 8 Light Pollution Reduction 1 USGBC Arkansas

  9. Review of Session 3: Water Efficiency- 10 pts • Prerequisite 1 Water Use Reduction Required • Credit 1 Water Efficient Landscaping 2-4 pts • Credit 2 Innovative Wastewater Technologies 2 • Credit 3 Water Use Reduction 2-4 pts USGBC Arkansas

  10. LEED Credits USGBC Arkansas

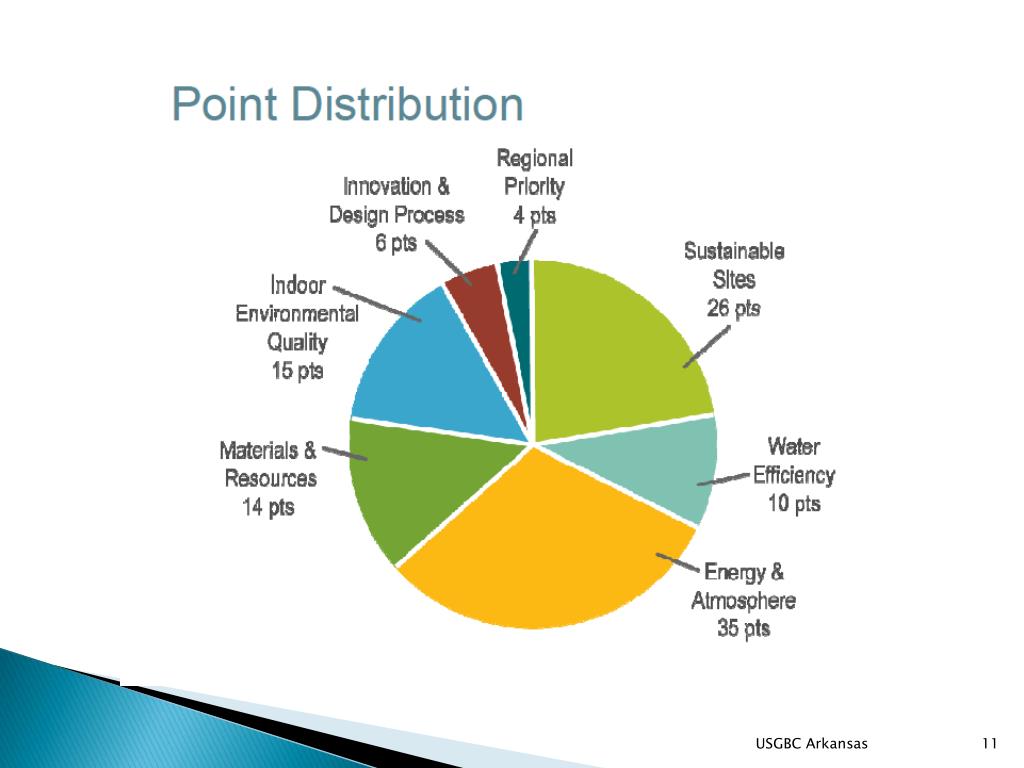

  11. USGBC Arkansas

  12. Materials and Resources: Credit Goals • Reduce the amount of materials needed • Use materials with less environmental impact • Reduce and manage waste USGBC Arkansas

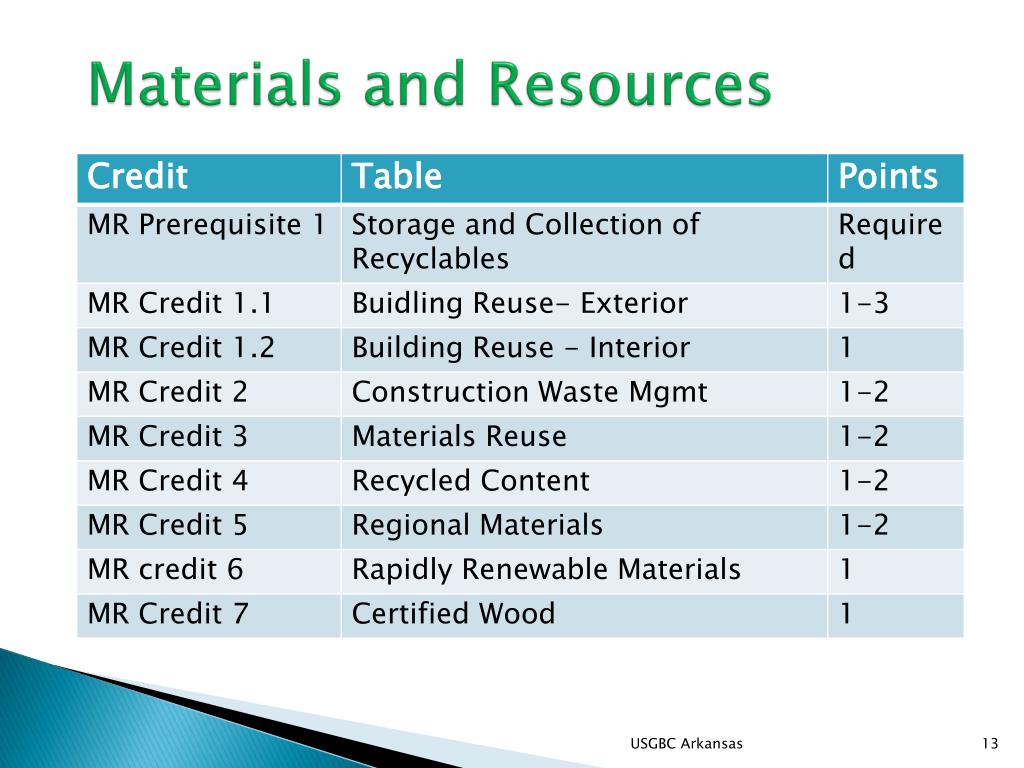

  13. Materials and Resources USGBC Arkansas

  14. USGBC Arkansas

  15. Make convenient Make visible, use sized slots USGBC Arkansas

  16. MR Credit 1.1 Building Reuse Exterior Green Earth Pharmacy, Little Rock, LEED Gold Maintain Existing Roof, Walls, and Floor USGBC Arkansas

  17. USGBC Arkansas

  18. MR Credit 1.2 Building Reuse Interior Antique Tin Ceiling Tiles Save old doors Historic marble floors USGBC Arkansas

  19. USGBC Arkansas

  20. MR Calculations Explanation of how to calculate surface area USGBC Arkansas

  21. MR Credit 2Construction Waste Management Small Site Large Site USGBC Arkansas

  22. USGBC Arkansas

  23. MR Credit 3Materials Reuse USGBC Arkansas

  24. USGBC Arkansas

  25. MR Credit 3Materials Reuse Garver Offices, NLR, LEED Gold, Purchased most office furniture at foreclosure auction USGBC Arkansas

  26. USGBC Arkansas

  27. USGBC Arkansas

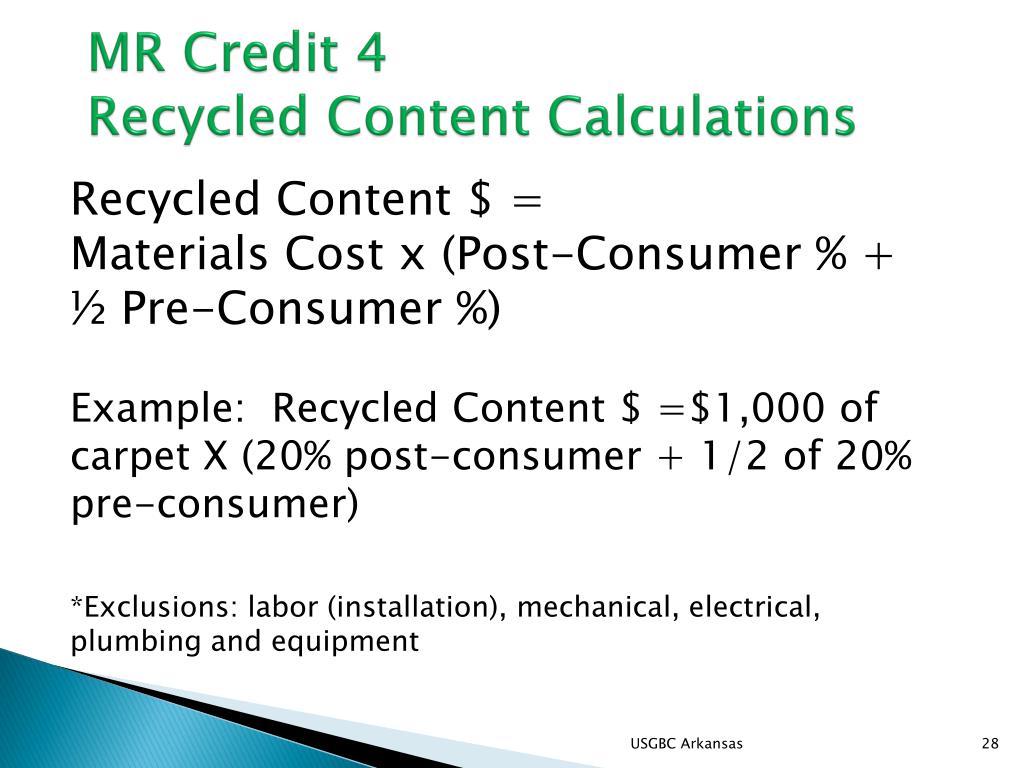

  28. MR Credit 4 Recycled Content Calculations Recycled Content $ = Materials Cost x (Post-Consumer % + ½ Pre-Consumer %) Example: Recycled Content $ =$1,000 of carpet X (20% post-consumer + 1/2 of 20% pre-consumer) *Exclusions: labor (installation), mechanical, electrical, plumbing and equipment USGBC Arkansas

  29. USGBC Arkansas

  30. MR Credit 5 Regional Materials 500 Mile Radius from Little Rock USGBC Arkansas

  31. USGBC Arkansas

  32. MR Credit 5 Buy Local- Produced in AR Aluminum Brick Concrete Cement Lumber Flooring Office Furniture Rock Steel Sheet Rock Wood Trim Windows USGBC Arkansas

  33. MR Credit 6 Rapidly Renewable Materials Bamboo Cork USGBC Arkansas

  34. USGBC Arkansas

  35. USGBC Arkansas

  36. USGBC Arkansas

  37. MR Credit 7 Certified Wood USGBC Arkansas

  38. Case Study Nabholz, Little Rock, LEED NC Silver USGBC Arkansas

  39. Discussion: What is the Life Cycle of these products? • 2 x 4 Lumber • Carpet • Brick • Concrete • Copy Paper • Laptop Computer USGBC Arkansas

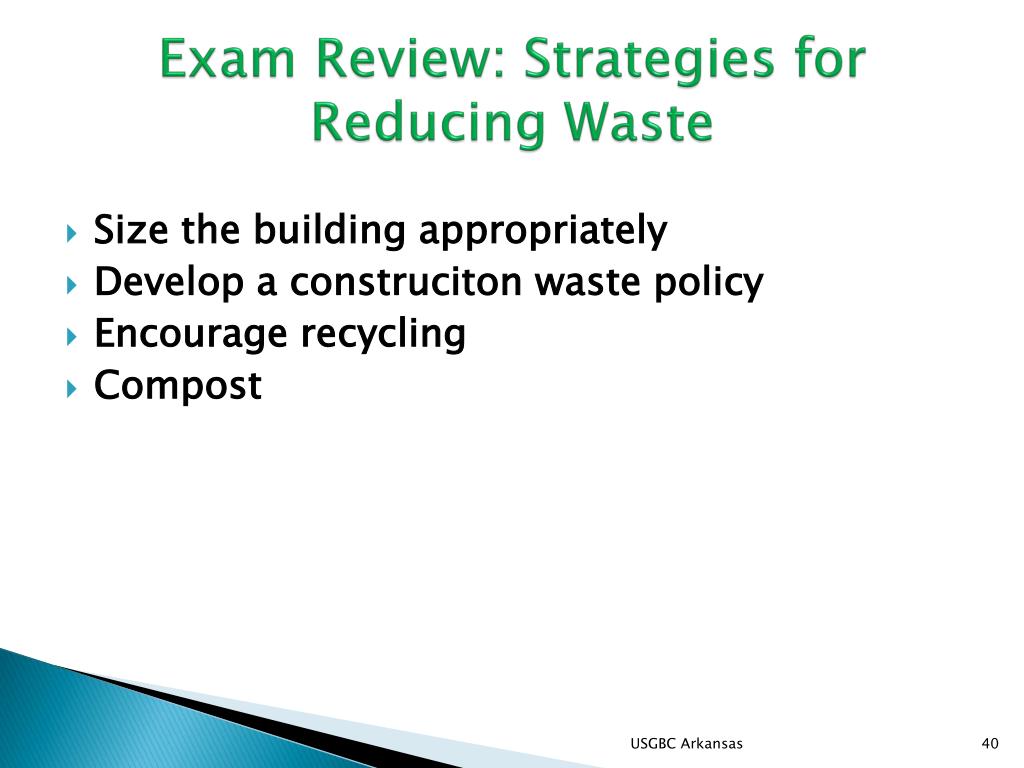

  40. Exam Review: Strategies for Reducing Waste • Size the building appropriately • Develop a construciton waste policy • Encourage recycling • Compost USGBC Arkansas

  41. Exam Review: Strategies to promote SustaniablePurchsing • During Construction • Develop a consturciton purchasing policy • Specify green materials • Specify green interiors • During Operation • Developp a sustiainble purchasing policy • S[ecofocu green materials • Specify green electronic equipment- ENERGY STAR USGBC Arkansas

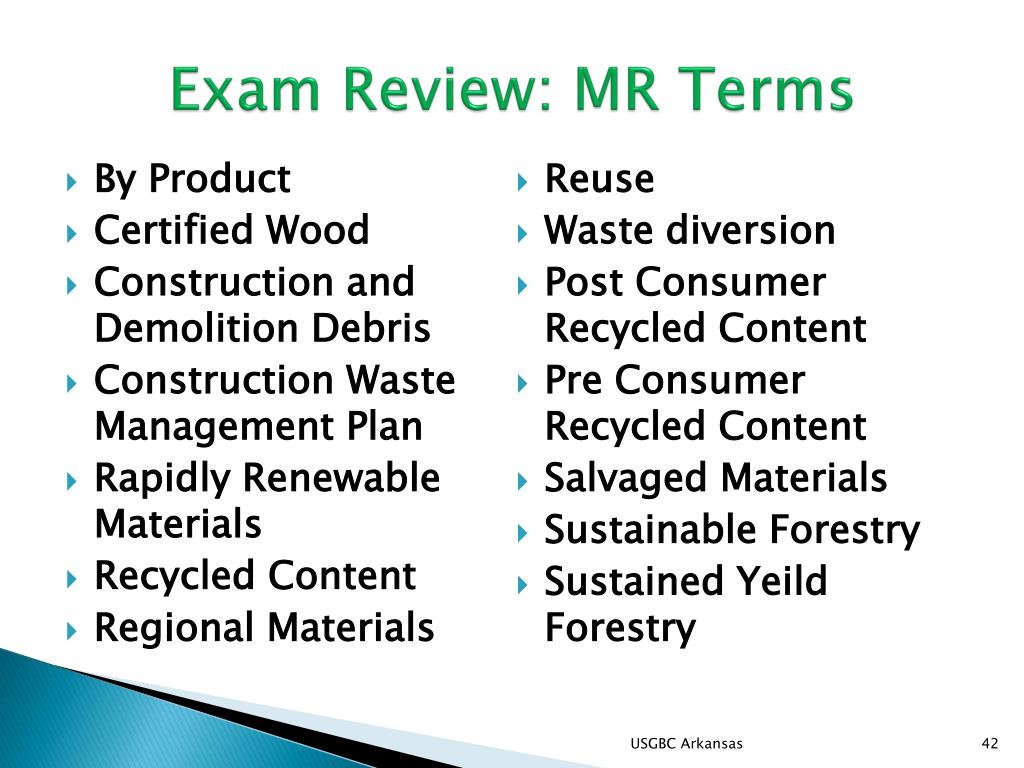

  42. Exam Review: MR Terms • By Product • Certified Wood • Construction and Demolition Debris • Construction Waste Management Plan • Rapidly Renewable Materials • Recycled Content • Regional Materials • Reuse • Waste diversion • Post Consumer Recycled Content • Pre Consumer Recycled Content • Salvaged Materials • Sustainable Forestry • Sustained Yeild Forestry USGBC Arkansas

  43. Questions? USGBC Arkansas
