The microgrid solution at 29 palms

The MicroGrid Solution at 29 Palms

General Electric & MAGTFTC MCAGCC PWD

February 12, 2012

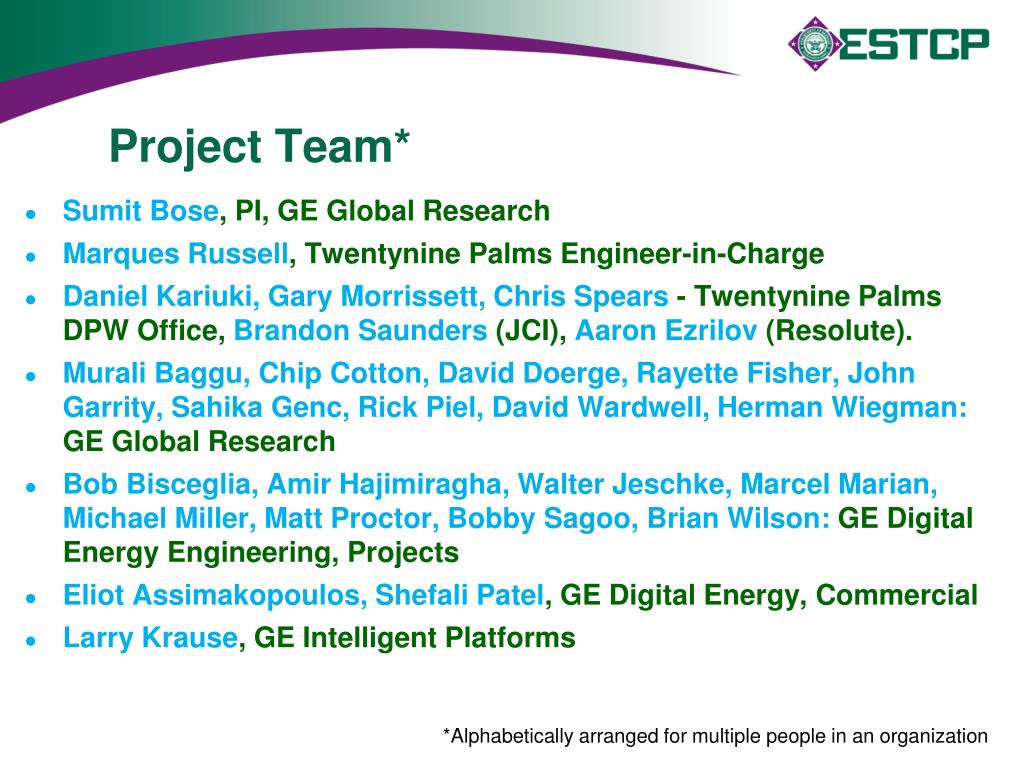

Project team
Project Team*

  • Sumit Bose, PI, GE Global Research

  • Marques Russell, Twentynine Palms Engineer-in-Charge

  • Daniel Kariuki, Gary Morrissett, Chris Spears - Twentynine Palms DPW Office, Brandon Saunders (JCI), Aaron Ezrilov (Resolute).

  • Murali Baggu, Chip Cotton, David Doerge, Rayette Fisher, John Garrity, Sahika Genc, Rick Piel, David Wardwell, Herman Wiegman: GE Global Research

  • Bob Bisceglia, Amir Hajimiragha, Walter Jeschke, Marcel Marian, Michael Miller, Matt Proctor, Bobby Sagoo, Brian Wilson: GE Digital Energy Engineering, Projects

  • Eliot Assimakopoulos, Shefali Patel, GE Digital Energy, Commercial

  • Larry Krause, GE Intelligent Platforms

*Alphabetically arranged for multiple people in an organization


Magtftc mcagcc
MAGTFTC / MCAGCC

  • Marine Air Ground Task Force Training Command / Marine Corps Air Ground Combat Center


Magtftc mcagcc1
MAGTFTC / MCAGCC

MCLB

Barstow


Mission statements
Mission Statements

  • MAGTFTC: Manages the MAGTF Training Program (TP) and conducts service-level MAGTF combined arms training in order to enhance the combat readiness of the operating forces and support the Commandant of the Marine Corps’ responsibilities to national security.

  • MCAGCC: Provides and manages facilities, service and support to forces and families permanently assigned or participating in training aboard the Combat Center in order to ensure readiness of the MAGTF as well as the welfare of personnel and families.


Estcp ge demonstration
ESTCP/GE Demonstration

  • 2 year, $2 million contract

  • MCAGCC is leading the Marine Corps and Navy in the areas of energy efficiency and security

  • MCAGCC long range plan parallels scope

  • Most of the infrastructure required for an effective MicroGrid already exists



Possible Loads

Warehouses





Key assets
Key Assets

Bulk Grid

Electrical Distribution

AA-Sub

EE-Sub

CHP

Joshua

Heights

N-Sub

Fairway

Heights

HQ

Chilled Water

Loop

Chillers

CH

Boilers

BESS

CoGen1

Battery

Energy

Storage

Critical Loads

Heat

Recovery

+/-

HTHW

PV

Photovoltaic Arrays


Phase 1 technical highlights
Phase 1: Technical Highlights

Advanced Energy Management for Distribution-based Resources: Completed all the following new features of microgrid:

  • Optimal Dispatch of Distributed Energy Resources (DER) both during grid-connected and islanded conditions – development complete

  • Dispatch capability of electrical and thermal assets - completed

  • Built-in hooks of future enhancements like new CHP, new PV and energy storage (more things to optimize) - completed

  • Interface of GE equipment with Legacy Systems from JCI, Rockwell etc.

  • Testing in mixed type of communication media: wireless, Ethernet

  • Testing Mixed type of protocols: Modbus, Bacnet, RSLinx

  • Mixed mode of operations: Advisory, Automated, Manual and Legacy

  • Initial Building Energy Management interface using Cimplicity completed


Introduction optimal dispatch
Introduction – Optimal Dispatch


U90 and peripherals
U90+ and Peripherals

  • Front Panel HMI

  • Annunciator

  • Setup Program

  • User Interface

  • Viewpoint Monitoring


Communications cyber security
Communications & Cyber Security

Analytics

(As Needed)

Microsoft

SQL

Server

Proficy CIMPLICITY

COM

Data Storage

ODBC

Point Management

OPC Client

Modbus

(Slave)

OPC Client

OPC Client

CMCS

(Application Server)

FactoryTalk®

Enervista

Integrator

Industrial Gateway

Server

BACnet

Modbus (Master)

Rockwell

Proprietary

BACnet

CCS PLC

U90+

JCI NAE

SMART PANELS

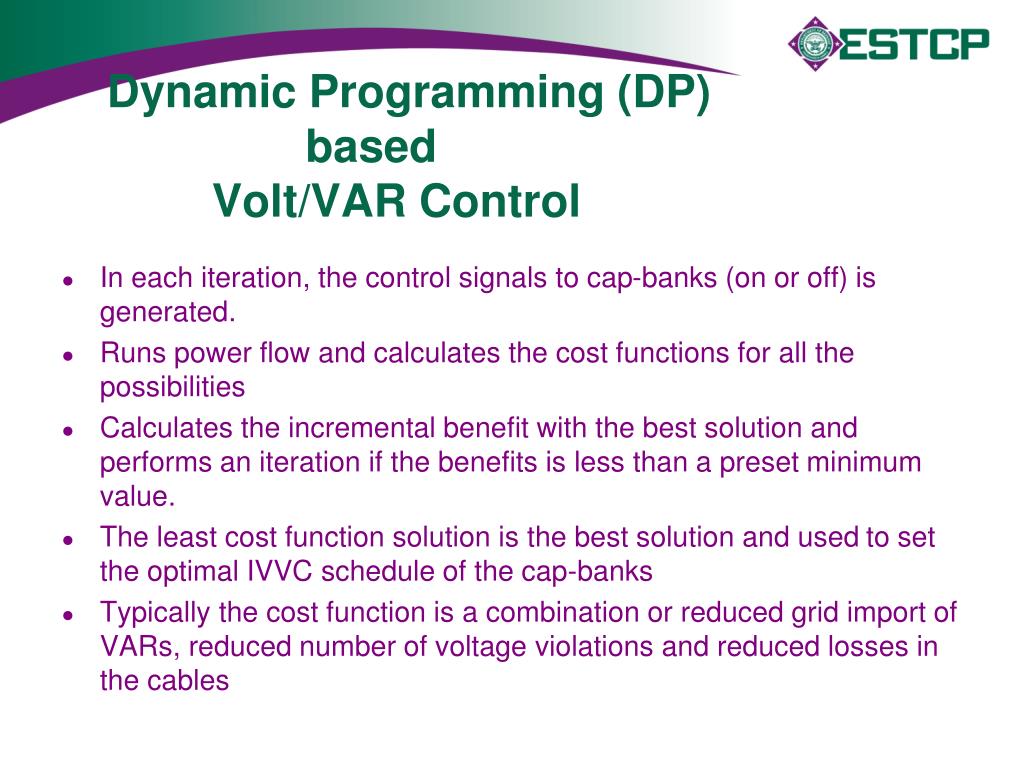

Dynamic programming dp based volt var control
Dynamic Programming (DP) based Volt/VAR Control

  • In each iteration, the control signals to cap-banks (on or off) is generated.

  • Runs power flow and calculates the cost functions for all the possibilities

  • Calculates the incremental benefit with the best solution and performs an iteration if the benefits is less than a preset minimum value.

  • The least cost function solution is the best solution and used to set the optimal IVVC schedule of the cap-banks

  • Typically the cost function is a combination or reduced grid import of VARs, reduced number of voltage violations and reduced losses in the cables

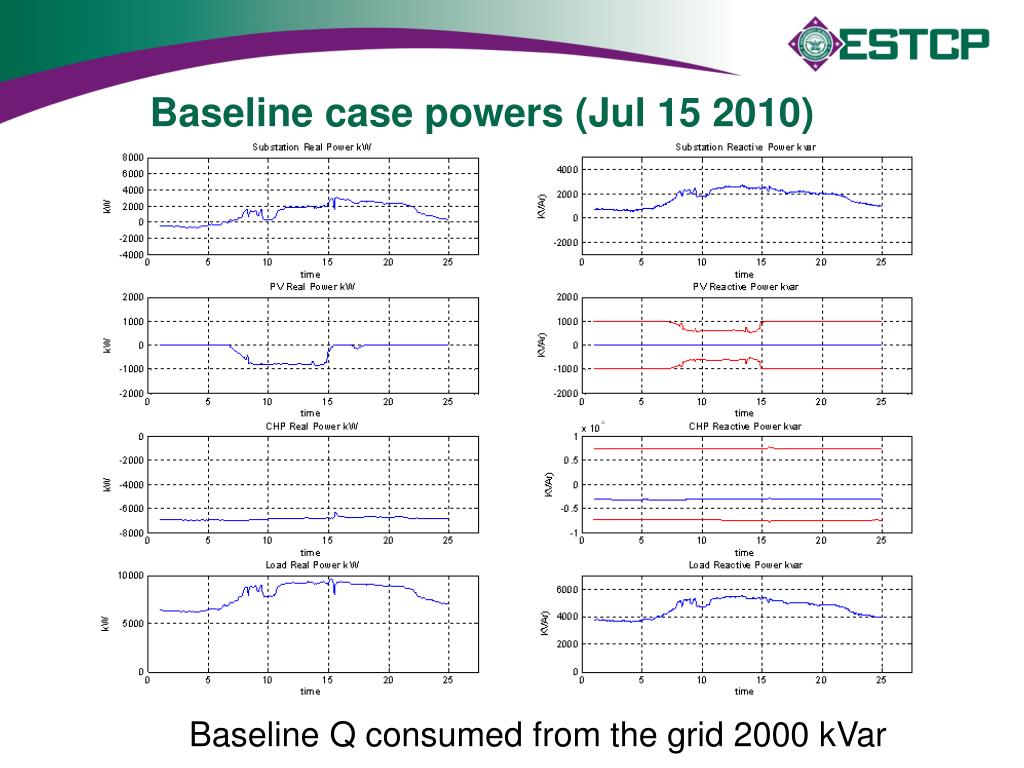

Baseline case powers jul 15 2010
Baseline case powers (Jul 15 2010)

Baseline Q consumed from the grid 2000 kVar


Baseline case voltages jul 15 2010

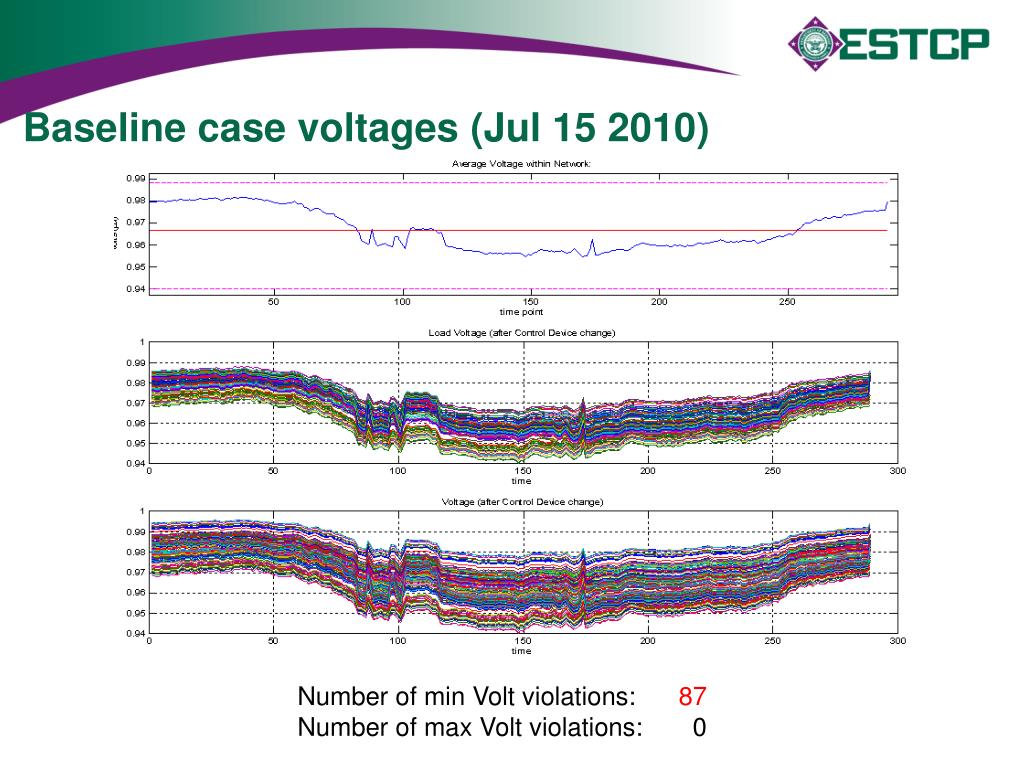

Baseline case voltages (Jul 15 2010)

Number of min Volt violations: 87

Number of max Volt violations: 0


Baseline case voltages aug 15 2010
Baseline case Voltages (Aug 15 2010)

Number of min Volt violations: 1005

Number of max Volt violations: 0

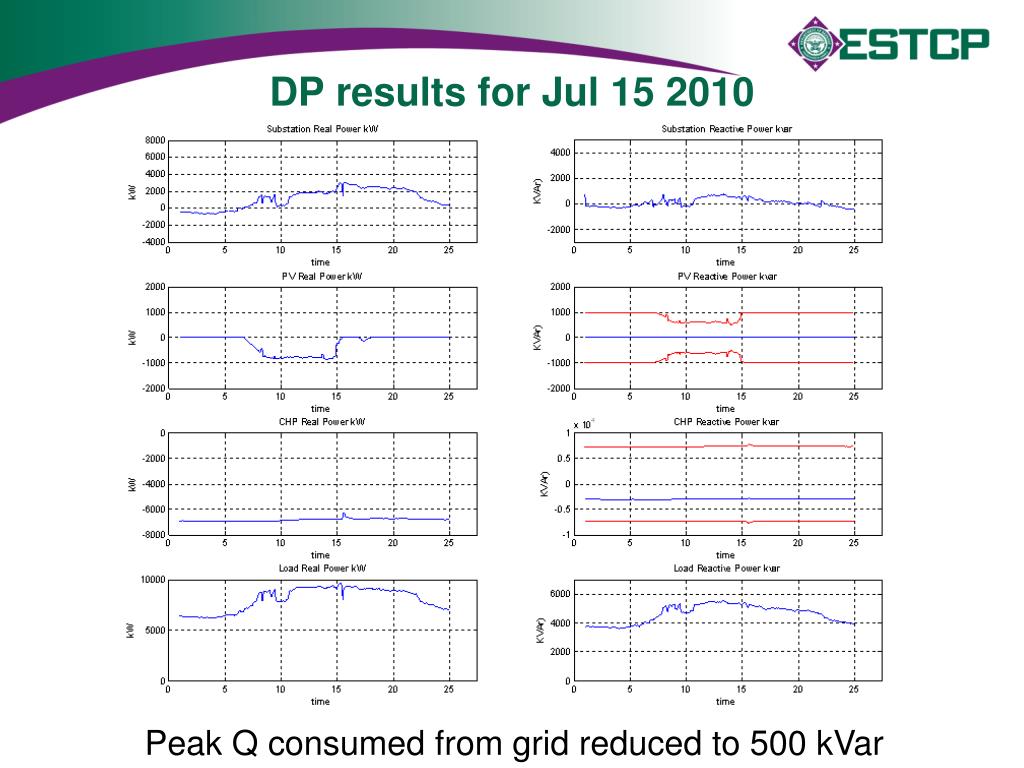

Dp results for jul 15 2010
DP results for Jul 15 2010

Peak Q consumed from grid reduced to 500 kVar


Results of dp on voltages jul 15 2010

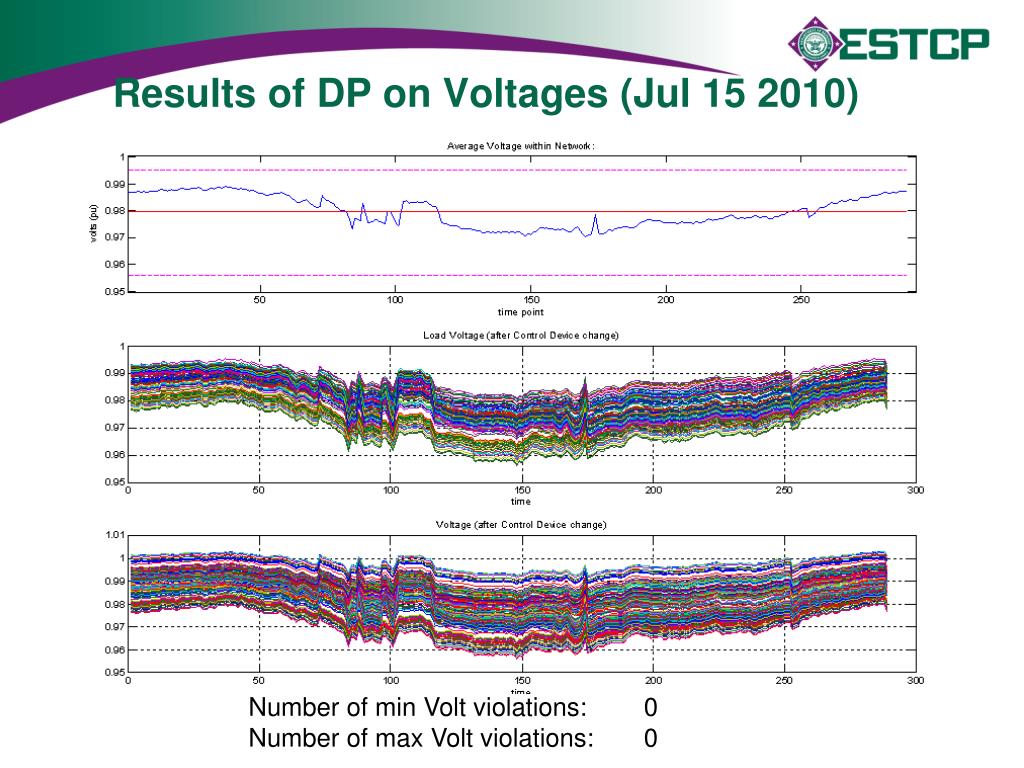

Results of DP on Voltages (Jul 15 2010)

Number of min Volt violations: 0

Number of max Volt violations: 0

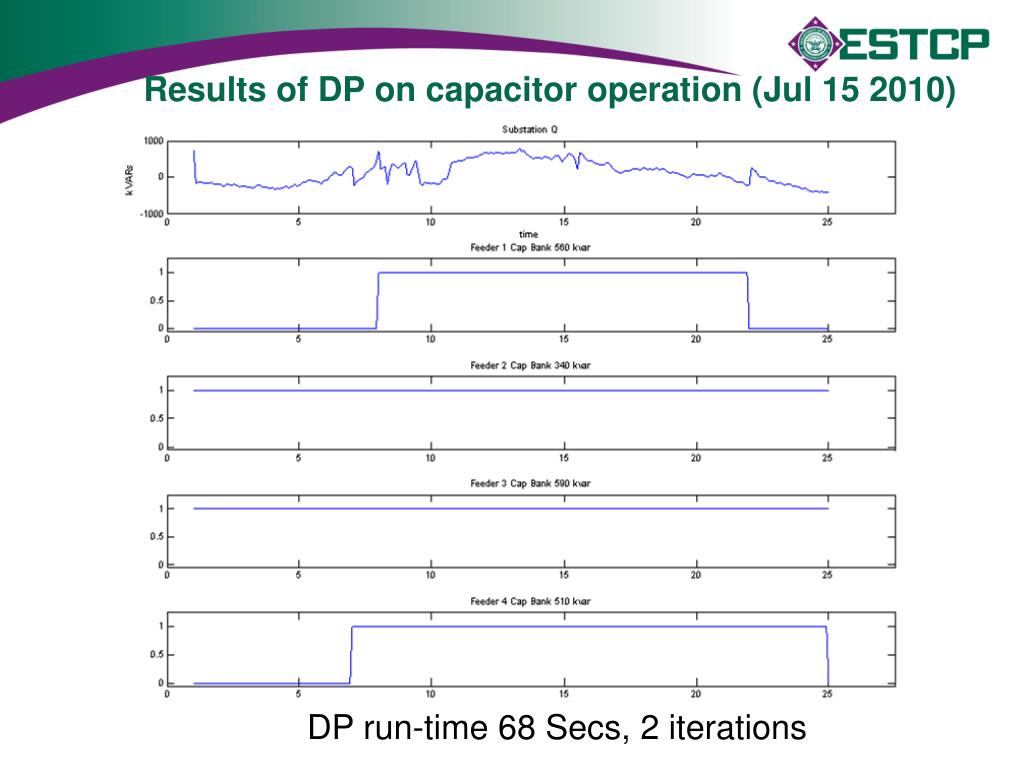

Results of dp on capacitor operation jul 15 2010
Results of DP on capacitor operation (Jul 15 2010)

DP run-time 68 Secs, 2 iterations

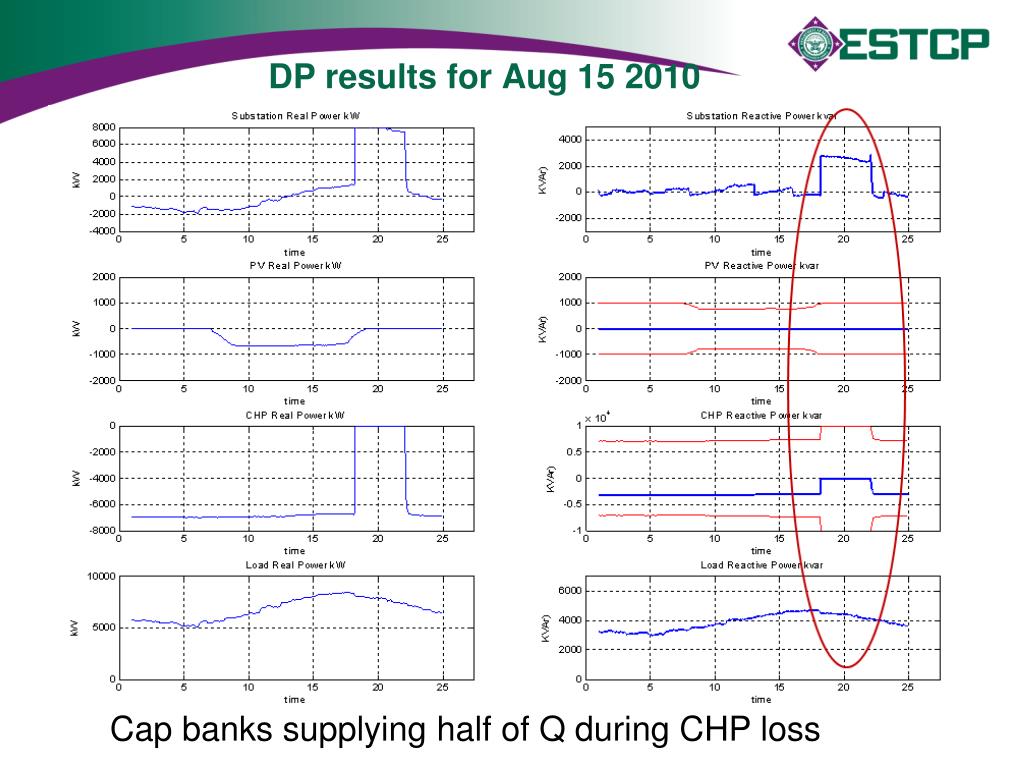

Dp results for aug 15 2010
DP results for Aug 15 2010

Cap banks supplying half of Q during CHP loss


Results of dp on voltages aug 15 2010
Results of DP on Voltages (Aug 15 2010)

Number of min Volt violations: 162

Number of max Volt violations: 0


Results of dp on capacitor operation aug 15 2010
Results of DP on capacitor operation (Aug 15 2010)

DP run-time 69 seconds, 2 iterations



Phase iii battery energy storage system
Phase III – Battery Energy Storage System

  • 1.5 year, $2 million contract

  • DurathonTM sodium metal halide technology

    • High temperature capable (up to 50*C ambient w/o derating)

    • High Cycle life (2400 cycles to -8% energy delivery)

    • Modular and Scalable architecture, grow with the load

  • Proposal: a Durathon equipped BESS

    • 1000 kVA apparent power rating

    • 576 kWh energy storage

    • Option for a total of 1.2MWh energy storage

    • Volt/VAR, phase imbalance, and real power injection capable

    • Grid-Tie

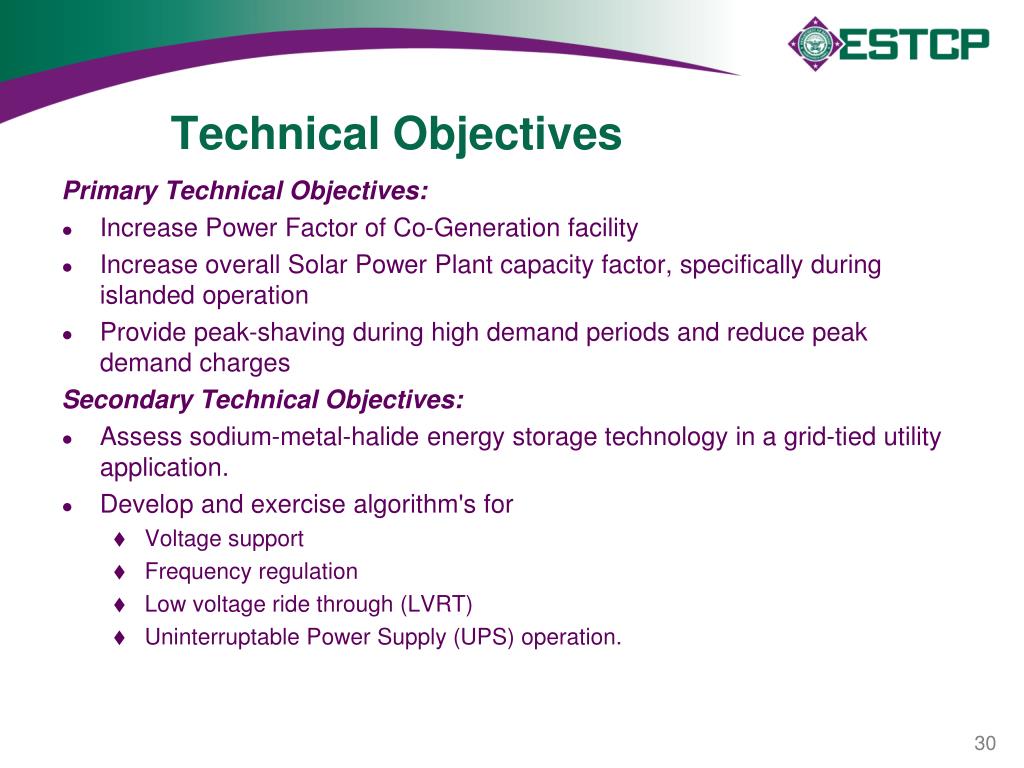

Technical objectives
Technical Objectives

Primary Technical Objectives:

  • Increase Power Factor of Co-Generation facility

  • Increase overall Solar Power Plant capacity factor, specifically during islanded operation

  • Provide peak-shaving during high demand periods and reduce peak demand charges

    Secondary Technical Objectives:

  • Assess sodium-metal-halide energy storage technology in a grid-tied utility application.

  • Develop and exercise algorithm's for

    • Voltage support

    • Frequency regulation

    • Low voltage ride through (LVRT)

    • Uninterruptable Power Supply (UPS) operation.
