  1. Office Communication SolutionsIP Networking Infrastructure 3BN 69070 4154 TCASA Ed.1 December 2007

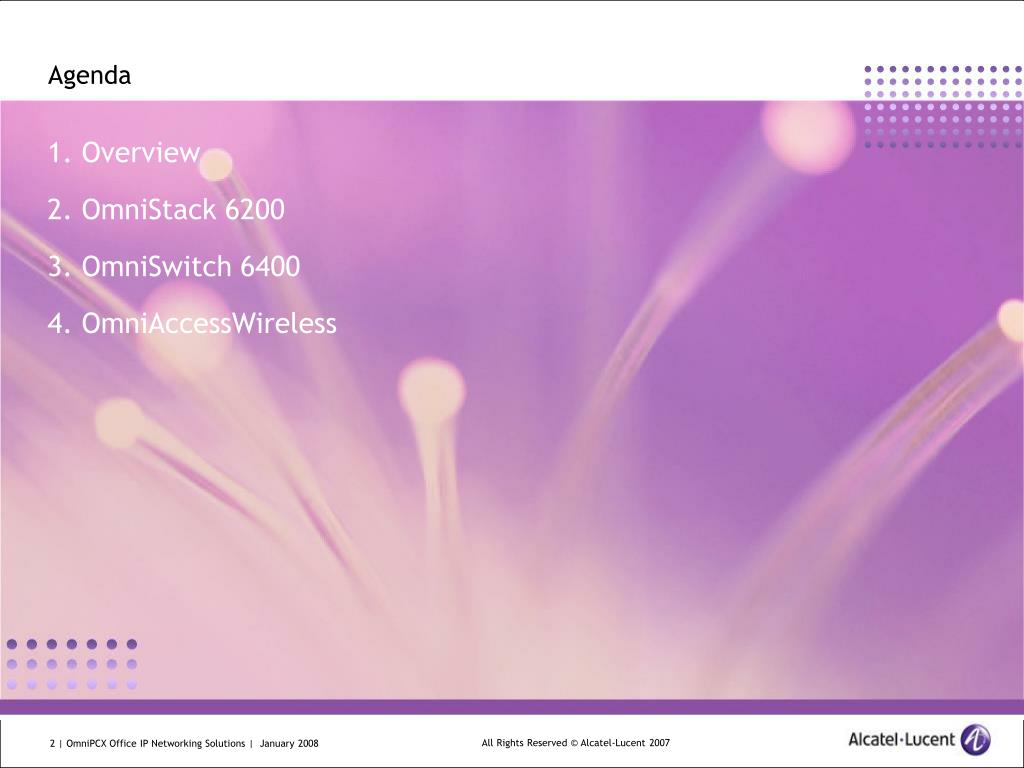

  2. Agenda • Overview • OmniStack 6200 • OmniSwitch 6400 • OmniAccessWireless

  3. 1 Overview

  4. Alcatel-Lucent IP Networking Portfolio WLAN Aggregation LAN Core LAN WAN/MAN Access LAN OmniStack 6200 OmniSwitch 6600 7 450/7750 OmniAccess 700 OmniSwitch 7000 OmniSwitch 9000 OmniAccess WLAN OmniSwitch 6400 (*) OmniSwitch 6800 Consistency of network services OmniVista 2500/2700 VitalSuite Brick OmniAccess SafeGuard VitalQIP (*) Available Q3 2008

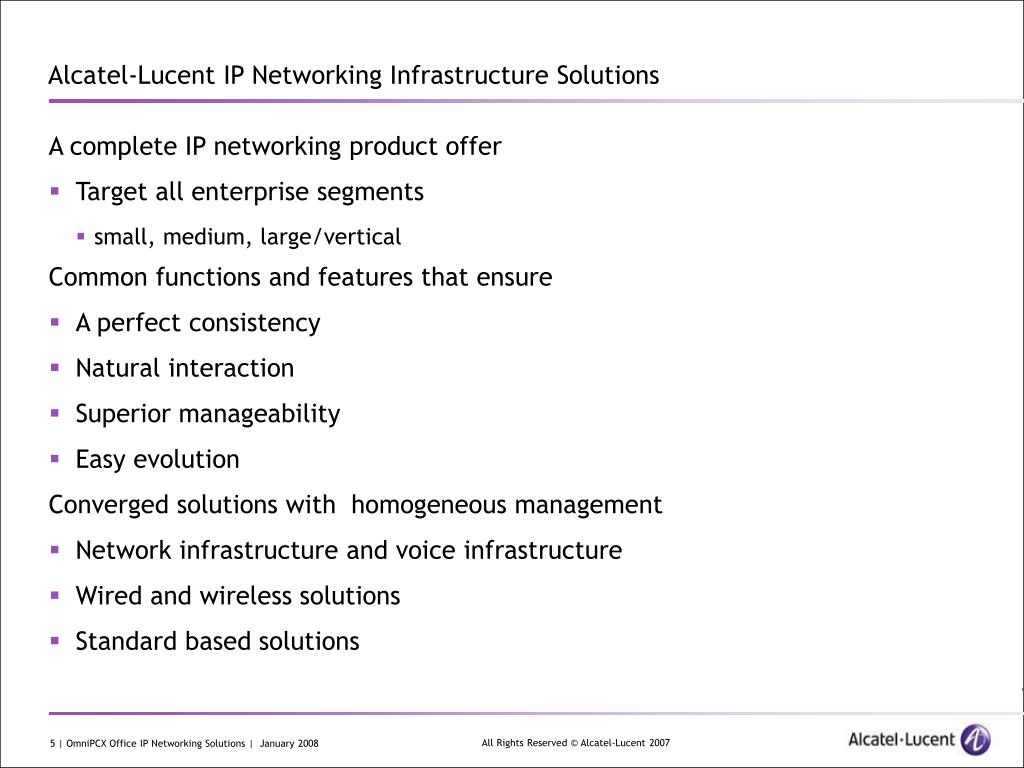

  5. Alcatel-Lucent IP Networking Infrastructure Solutions • A complete IP networking product offer • Target all enterprise segments • small, medium, large/vertical • Common functions and features that ensure • A perfect consistency • Natural interaction • Superior manageability • Easy evolution • Converged solutions with homogeneous management • Network infrastructure and voice infrastructure • Wired and wireless solutions • Standard based solutions

  6. An Offer addressing the SMB market • LAN access • OmniStack 6200 : Layer 2+ switches • OmniSwitch 6400 : Layer 3 Gigabit switches • Available Q3 2008 • WLAN access • OmniAccessWireless 4302 and 4308 : WLAN switches • OmniAccessWireless 60AP, 61AP, 65AP : a/b/g indoor access points • OmniAccessWireless 85AP : a/b/g outdoor access point • Available Q3 2008 • OmniAccessWireless 120AP, 121AP, 124AP, 125AP : a/b/g/n indoor access points • Available Q3 2008

  7. Customer Benefits of Moving to IP Communication Solutions Simplification • Manage one infrastructure instead of two ! • No need to separate cabling for your telephone and your data network • A single supplier and support contact Stagger your costs • Manage software instead of Hardware • Less components to maintain • Flat cost for PSTN calls Easy to evolve • Easier to add new applications • Increase productivity with new collaboration applications Scalable solution • Sizes changes ? No need to change you Communication server hardware, just add IP ports and phones.

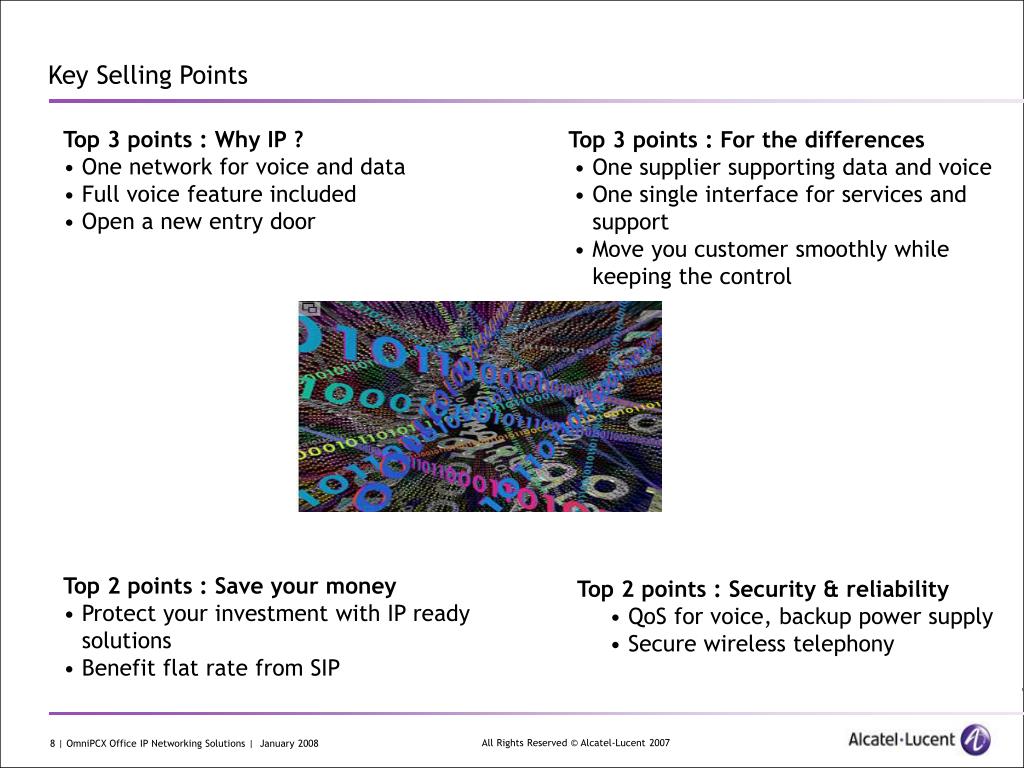

  8. Key Selling Points Top 3 points : Why IP ? • One network for voice and data • Full voice feature included • Open a new entry door Top 3 points : For the differences • One supplier supporting data and voice • One single interface for services and support • Move you customer smoothly while keeping the control Top 2 points : Save your money • Protect your investment with IP ready solutions • Benefit flat rate from SIP Top 2 points : Security & reliability • QoS for voice, backup power supply • Secure wireless telephony

  9. 2 OmniStack 6200

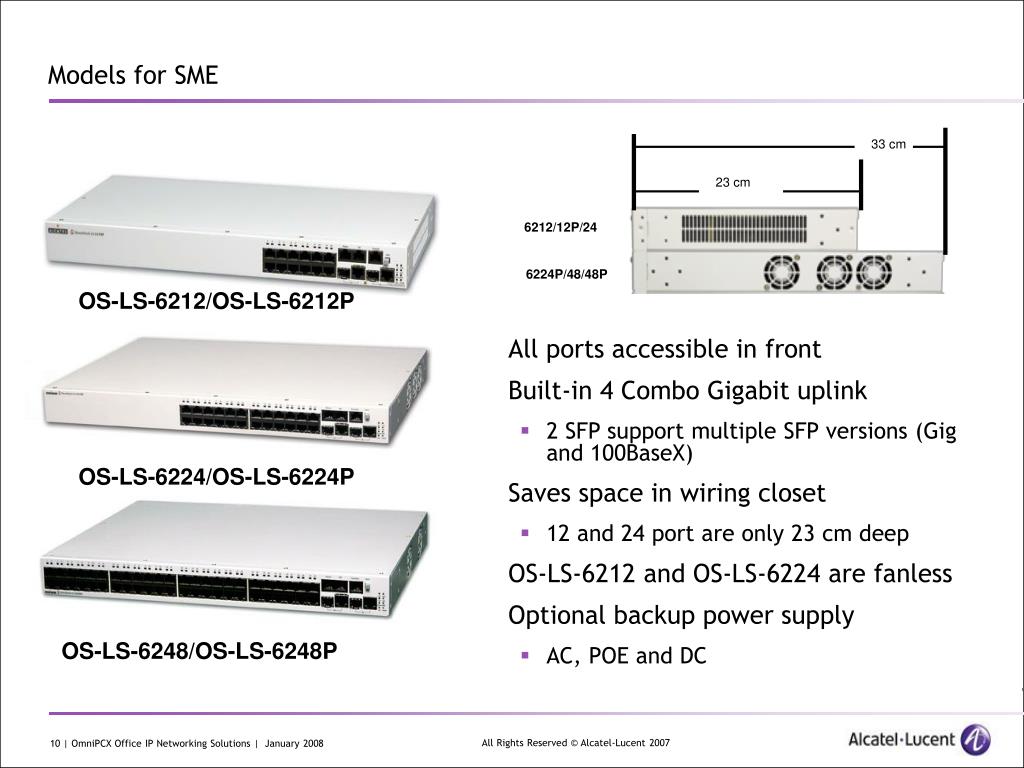

  10. 33 cm 23 cm 6212/12P/24 6224P/48/48P Models for SME OS-LS-6212/OS-LS-6212P • All ports accessible in front • Built-in 4 Combo Gigabit uplink • 2 SFP support multiple SFP versions (Gig and 100BaseX) • Saves space in wiring closet • 12 and 24 port are only 23 cm deep • OS-LS-6212 and OS-LS-6224 are fanless • Optional backup power supply • AC, POE and DC OS-LS-6224/OS-LS-6224P OS-LS-6248/OS-LS-6248P

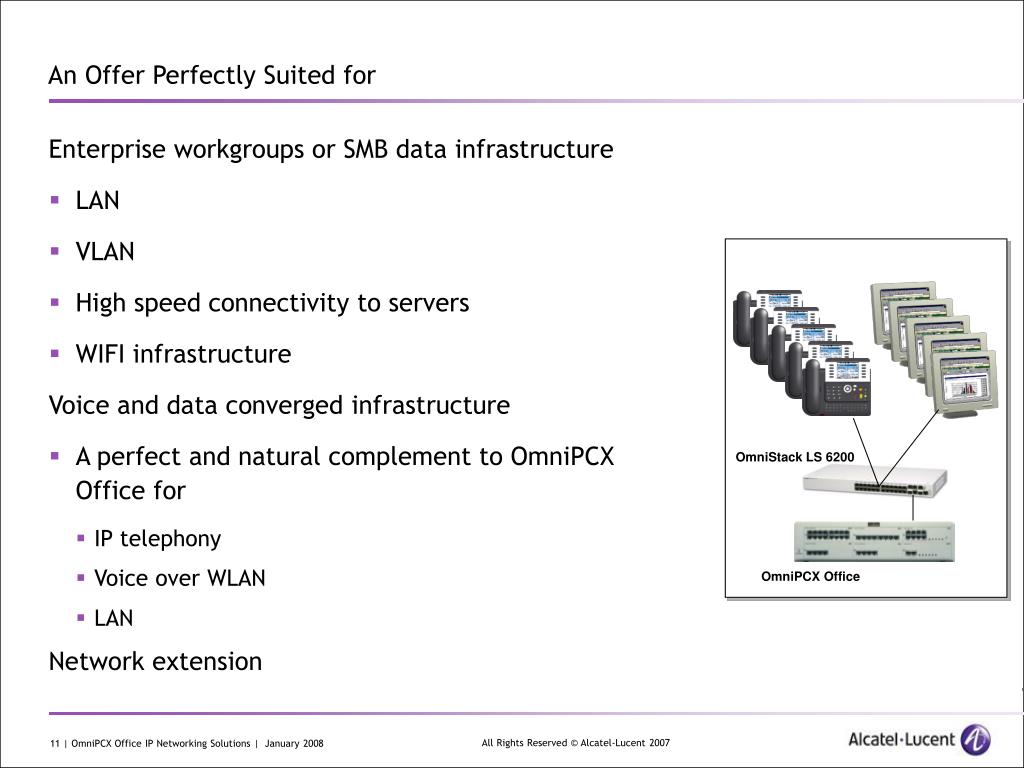

  11. An Offer Perfectly Suited for • Enterprise workgroups or SMB data infrastructure • LAN • VLAN • High speed connectivity to servers • WIFI infrastructure • Voice and data converged infrastructure • A perfect and natural complement to OmniPCX Office for • IP telephony • Voice over WLAN • LAN • Network extension OmniStack LS 6200 OmniPCX Office

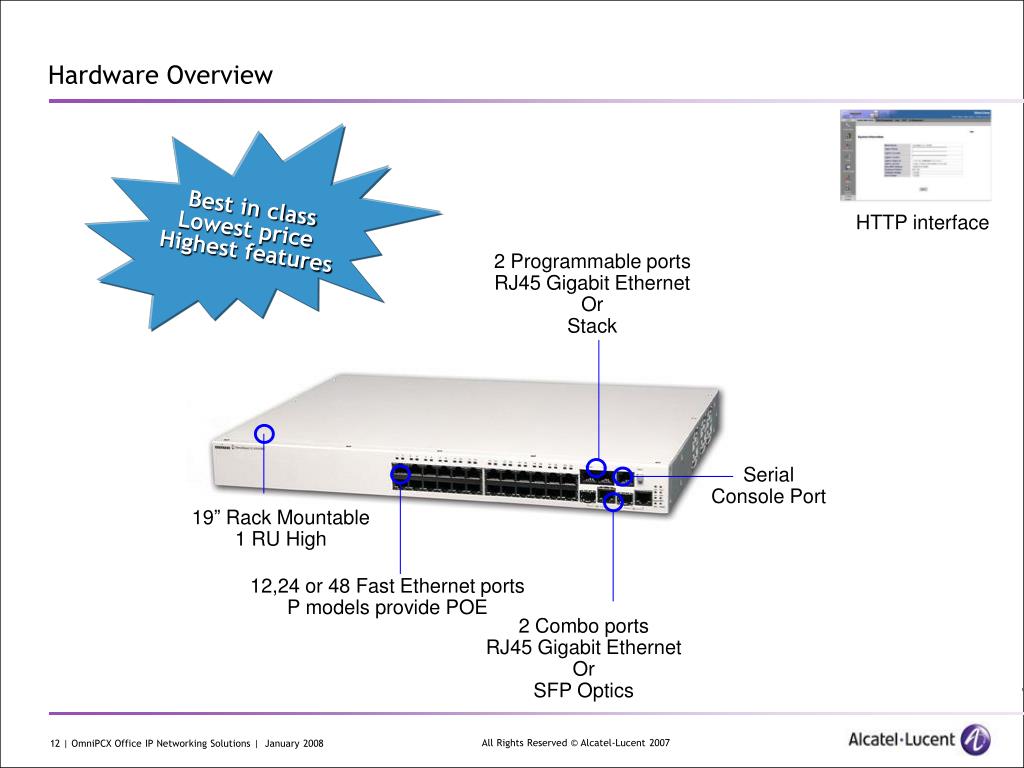

  12. Hardware Overview Best in classLowest price Highest features HTTP interface 2 Programmable ports RJ45 Gigabit Ethernet Or Stack Serial Console Port 19” Rack Mountable 1 RU High 12,24 or 48 Fast Ethernet ports P models provide POE 2 Combo ports RJ45 Gigabit Ethernet Or SFP Optics

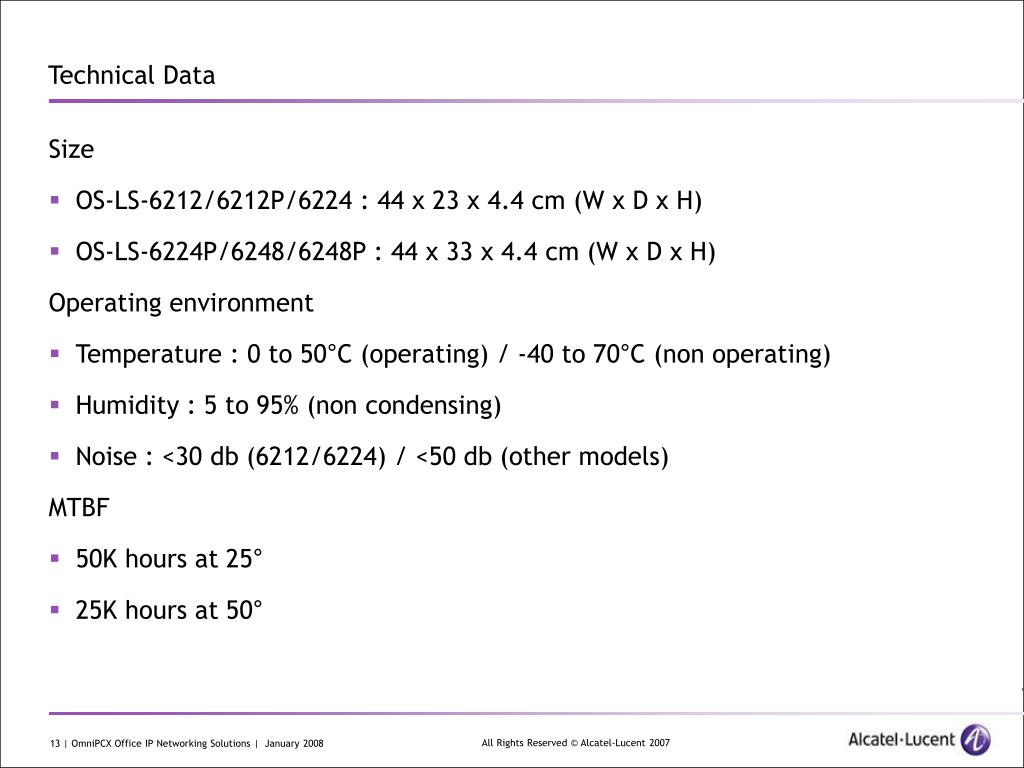

  13. Technical Data • Size • OS-LS-6212/6212P/6224 : 44 x 23 x 4.4 cm (W x D x H) • OS-LS-6224P/6248/6248P : 44 x 33 x 4.4 cm (W x D x H) • Operating environment • Temperature : 0 to 50°C (operating) / -40 to 70°C (non operating) • Humidity : 5 to 95% (non condensing) • Noise : <30 db (6212/6224) / <50 db (other models) • MTBF • 50K hours at 25° • 25K hours at 50°

  14. Features Overview (1) • Stackable edge switch • x12, x24, x48 RJ-45 ports 10/100 • Non POE on OS-LS-6212/6224/6248 • POE on OS-LS-6212P/6224P/6248P • x2 combo ports, consists in • x2 10/1000/1000 RJ-45 ports • x2 mini-GBIC ports (supports Gigabit or 100FX SFP optical transceiver) • 2 x 10/100/1000 RJ-45 stacking ports • Can be used as network ports in standalone configuration • Performance • 12/12P/24/24P models : 12.8 Gbps • 48/48P models : 17.6 Gbps

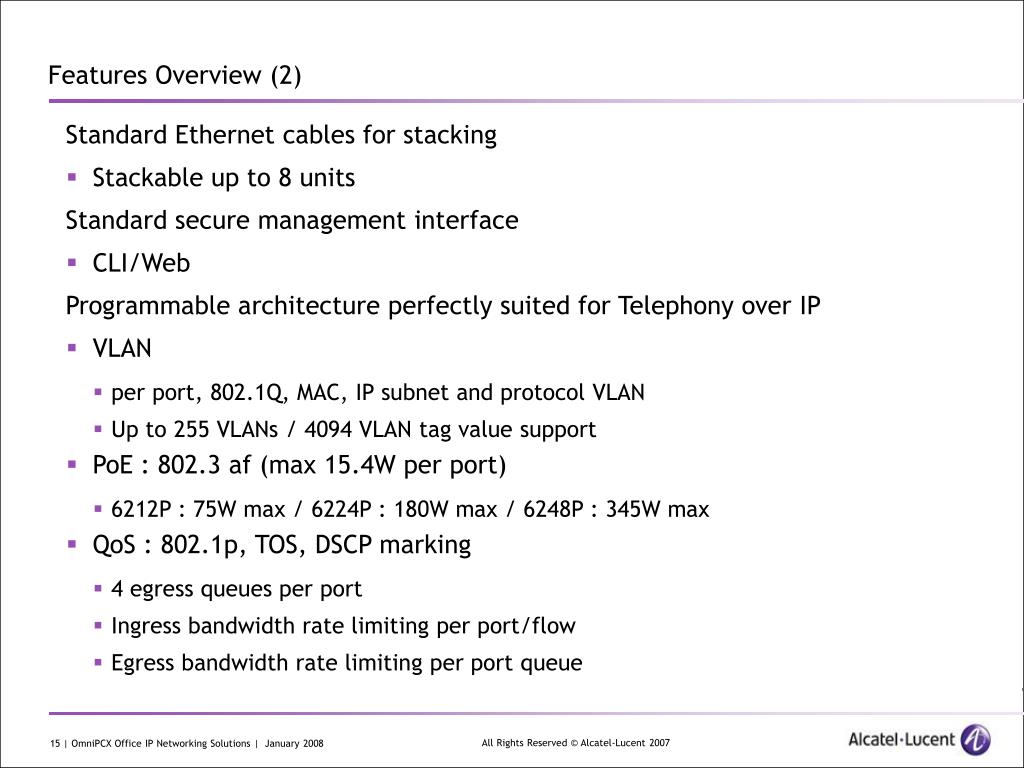

  15. Features Overview (2) • Standard Ethernet cables for stacking • Stackable up to 8 units • Standard secure management interface • CLI/Web • Programmable architecture perfectly suited for Telephony over IP • VLAN • per port, 802.1Q, MAC, IP subnet and protocol VLAN • Up to 255 VLANs / 4094 VLAN tag value support • PoE : 802.3 af (max 15.4W per port) • 6212P : 75W max / 6224P : 180W max / 6248P : 345W max • QoS : 802.1p, TOS, DSCP marking • 4 egress queues per port • Ingress bandwidth rate limiting per port/flow • Egress bandwidth rate limiting per port queue

  16. Advanced Security (1) • Access Control with best in class VLAN classifiers • 802.1x port based user authentication • With multiple host mode • Transparent 802.1x BPDU forwarding when 802.1x control is done by a different device or equipment in the network • MAC-based authentication for non 802.1x capable devices • MAC, protocol and IP subnet based VLANs provide the granularity (Quarantine) needed for secure network access • Easy way to separate voice and data • Optimized segmentation for content based services in triple-play implementations • Private VLAN edge or port mapping • Guest VLAN providing limited network access for unauthorized clients • MAC address lockdown • Allows only known devices to have network access

  17. Advanced Security (2) • Network Edge Security • Port mapping prevents unwanted communication or eavesdropping in places like college dorms or between end-customers in triple-play networks • DHCP Snooping allows IP address allocation, control and protection • Dynamic ARP Spoofing and IP Source Guard protection • High availability with Spanning Tree Protection (STP) • STP root guard to prevent an unauthorized device from becoming root of a spanning tree • 802.1d spanning tree for loop free topology and link redundancy • 802.1w rapid recovery spanning tree, allows sub-second failover to redundant link • 802.1s multiple spanning tree • Fast forwarding mode on user ports to by-pass 30s delay for spanning tree • Broadcast storm control

  18. Advanced Security (3) • Advanced Access Control Lists (ACL) filtering capability • Per port, MAC SA/DA, IP SA/DA, ICMP type/code, Ethertype, TCP/UDP port • To filter out unwanted traffic including denial of service attacks • Provides first line of defense against network attacks and viruses • Secure Shell (SSH), Secure Socket Layer (SSL) and SNMPv3 • For encrypted remote management • RADIUS and TACACS+ administration authentication • Prevents unauthorized switch management

  19. Simplified Manageability (1) • Auto negotiating 10/100/1000 ports speed and duplex setting • Auto MDI/MDIX automatically configures transmit and receive signals to support straight through and crossover cabling • OmniStack LS 6200 element management • Industry standard CLI reduces training costs and speeds up deployment for better OPEX • Web-based element manager GUI provides an easy point and click way to configure features • SSH (Telnet), SSL (http), SNMPv3 support for secure management • Radius and TACACS+ central database for user authentication

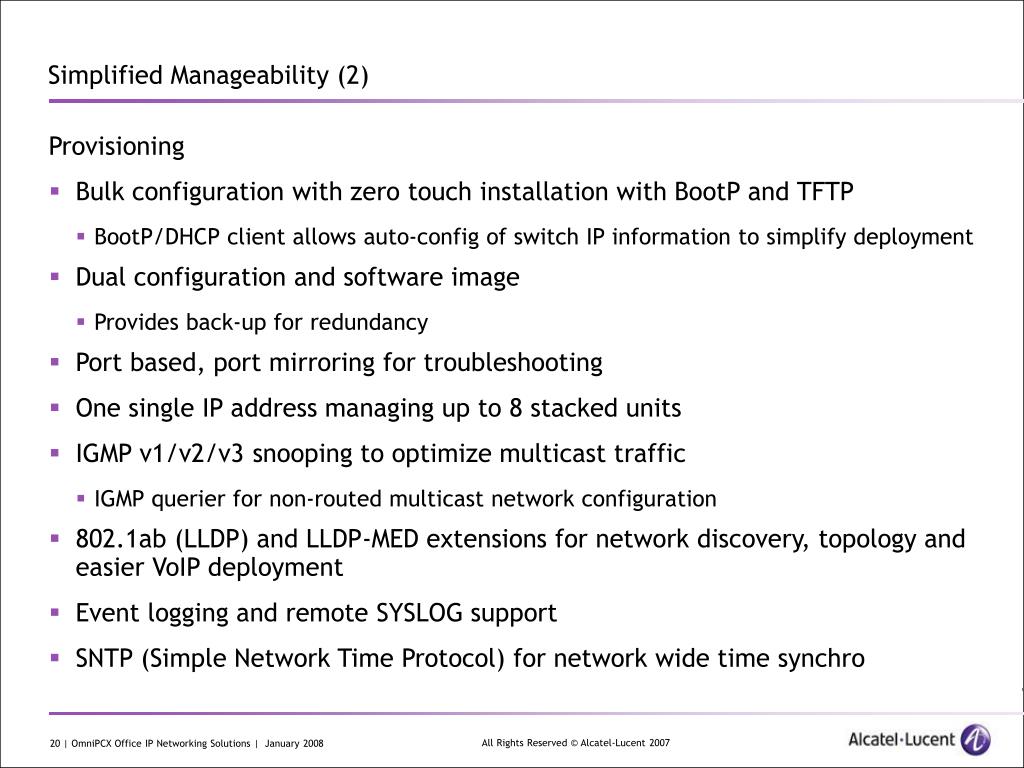

  20. Simplified Manageability (2) • Provisioning • Bulk configuration with zero touch installation with BootP and TFTP • BootP/DHCP client allows auto-config of switch IP information to simplify deployment • Dual configuration and software image • Provides back-up for redundancy • Port based, port mirroring for troubleshooting • One single IP address managing up to 8 stacked units • IGMP v1/v2/v3 snooping to optimize multicast traffic • IGMP querier for non-routed multicast network configuration • 802.1ab (LLDP) and LLDP-MED extensions for network discovery, topology and easier VoIP deployment • Event logging and remote SYSLOG support • SNTP (Simple Network Time Protocol) for network wide time synchro

  21. Proof Points • Availability & Security • Hardware redundancy (PS, stack, mgt.) • Network redundancy (802.1w, 802.3ad) • Access/traffic control (authentication 802.1X, MAC @ lockdown, ACL) • Performance/Pricing • The PoE offer • Service fees applied to the net price for 3 years • "All-in-one" product • Specifications • Stackable (4Gb/s, RJ45) • Full 12/24/48 ports version • 12 and 24 ports version are fan-less Convergence • Power over Ethernet 802.3af • Quality of Service (Layer 3) • End-to-end-solution with OXO /WLAN

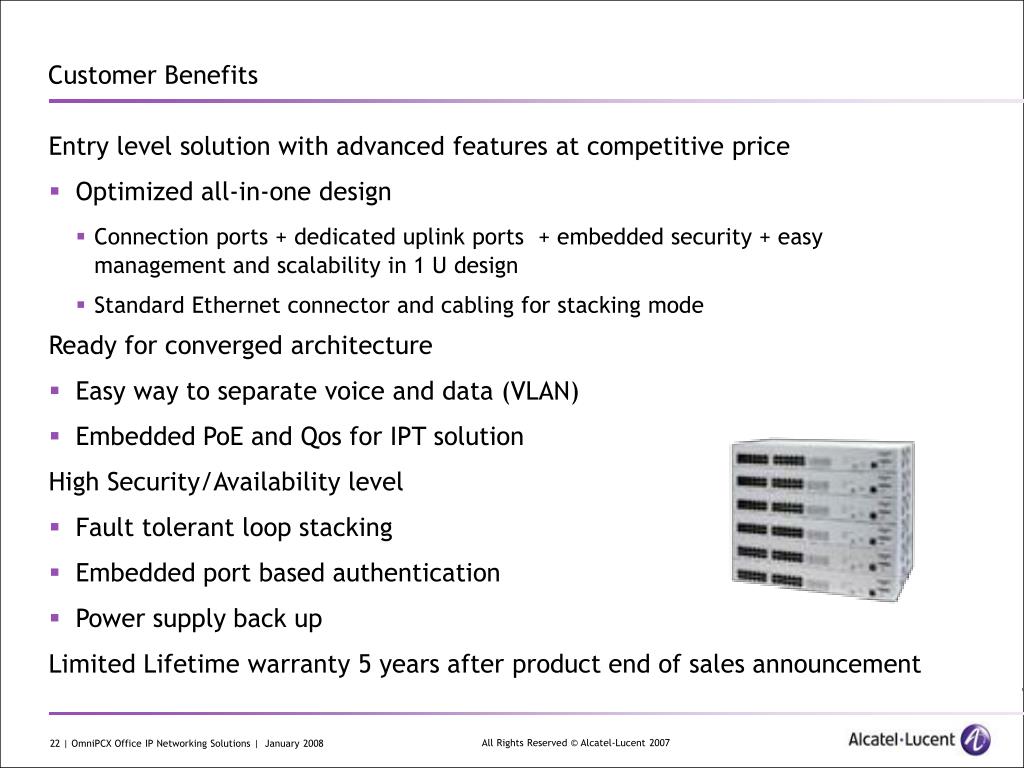

  22. Customer Benefits • Entry level solution with advanced features at competitive price • Optimized all-in-one design • Connection ports + dedicated uplink ports + embedded security + easy management and scalability in 1 U design • Standard Ethernet connector and cabling for stacking mode • Ready for converged architecture • Easy way to separate voice and data (VLAN) • Embedded PoE and Qos for IPT solution • High Security/Availability level • Fault tolerant loop stacking • Embedded port based authentication • Power supply back up • Limited Lifetime warranty 5 years after product end of sales announcement

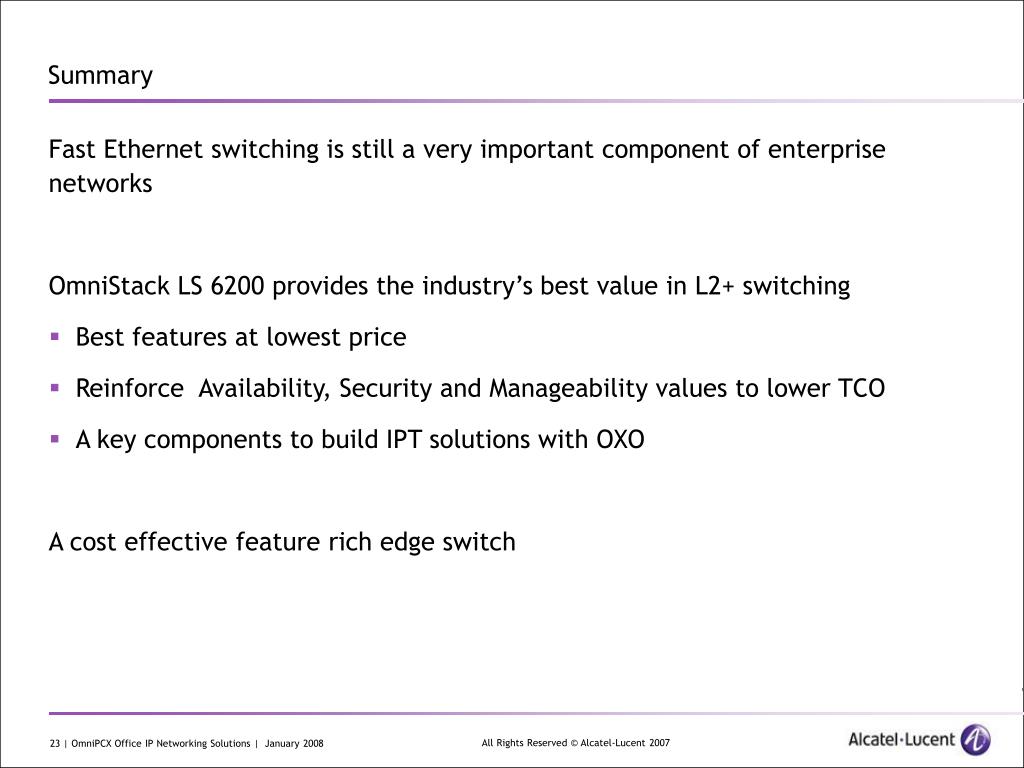

  23. Summary • Fast Ethernet switching is still a very important component of enterprise networks • OmniStack LS 6200 provides the industry’s best value in L2+ switching • Best features at lowest price • Reinforce Availability, Security and Manageability values to lower TCO • A key components to build IPT solutions with OXO • A cost effective feature rich edge switch

  24. 3 OmniSwitch 6400

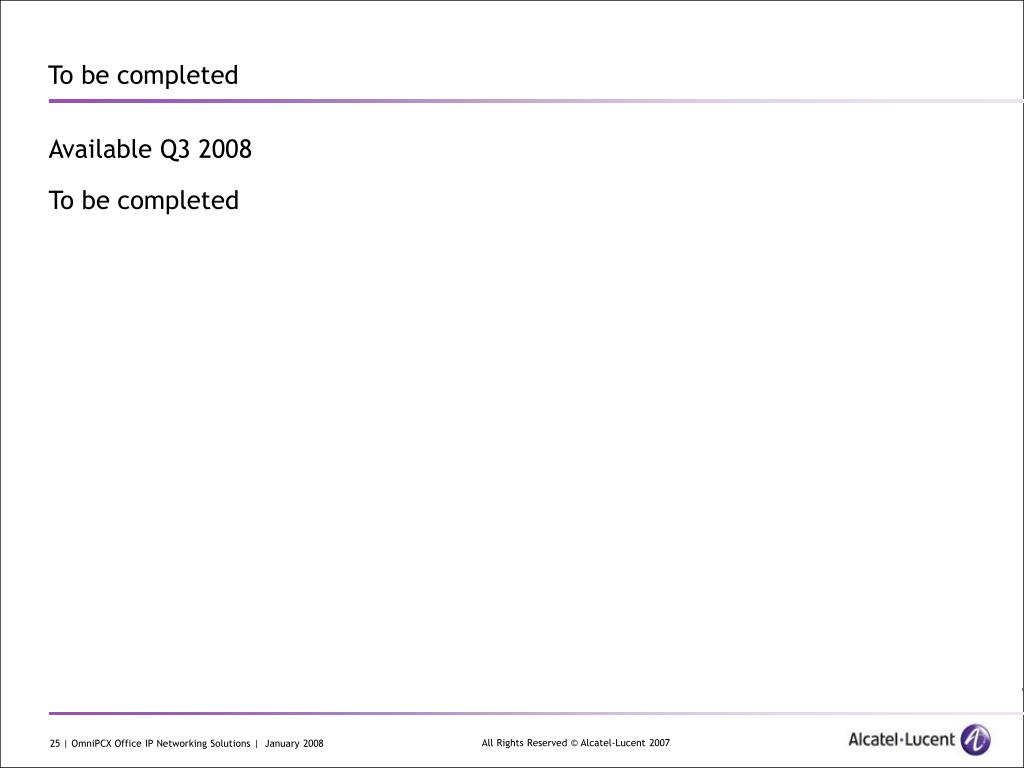

  25. To be completed • Available Q3 2008 • To be completed

  26. 4 OmniAccessWireless

  27. SMB Offer • Wireless LAN switches • OmniAccessWireless 4302 : up to 6 access points • Up to 8 access points in Q2 2008 • OmniAccessWireless 4308T : up to 16 access points • Access points • OAW 60AP, OAW 61AP, OAW65AP : indoor access points • OAW 85AP : outdoor access point • Available Q3 2008 OmniAccess WLAN 4302 OmniAccess 4308 AP 60 AP 61 AP 65

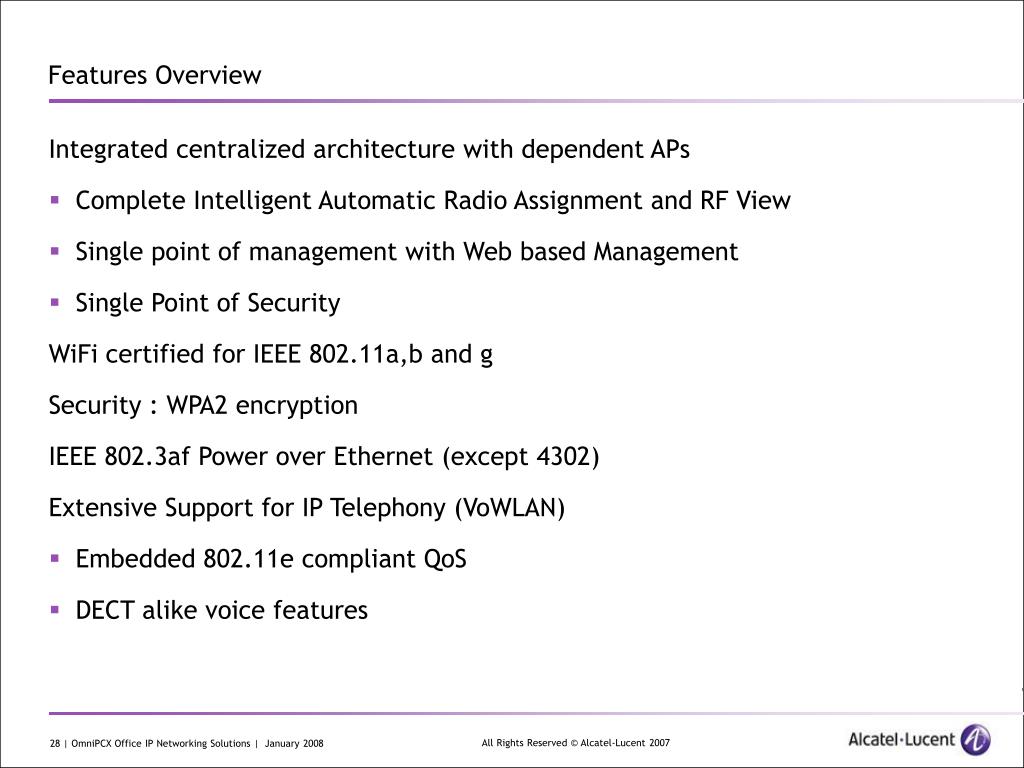

  28. Features Overview • Integrated centralized architecture with dependent APs • Complete Intelligent Automatic Radio Assignment and RF View • Single point of management with Web based Management • Single Point of Security • WiFi certified for IEEE 802.11a,b and g • Security : WPA2 encryption • IEEE 802.3af Power over Ethernet (except 4302) • Extensive Support for IP Telephony (VoWLAN) • Embedded 802.11e compliant QoS • DECT alike voice features

  29. OAW 4302-SMB WLAN Switch • Capacity • 6 Access Points (8 AP in Q2 2008) • 100 Users • Performance • 1 Gbps Clear / 200 Mbps Crypto • Interfaces • 1 x WAN 10/100 Ethernet (RJ-45) • Auto-Sensing MDI/MDX • 1 x LAN 10/100/1000 Ethernet (RJ-45) • Auto-Sensing MDI/MDX • 1 x RJ-45 Serial Console Port • Programmable Architecture • Control & Data Planes • Network Processor Core • Hardware-Accelerated Engine Dedicated Network Processor Dedicated Hardware-Accelerated Crypto FPGA Dedicated Control Processor Serial Console Port Status LEDs 1 x 10/100 RJ-45 Ethernet WAN Port Sub 19” Desktop Form Factor 1 x 10/100/1000 RJ-45 Ethernet LAN Port

  30. OAW 4308T-SMB WLAN Switch Dedicated Network Processor • Capacity • 16 Access Points • 256 Associated wireless devices • Performance • 800 Mbps Clear / 200 Mbps Crypto • Interfaces • 8 x Fast Ethernet Port (RJ-45) • 802.3af PoE support • 1 x Gigabit Ethernet Port (RJ-45) • 1 x Serial Console Port (RJ-45) • Programmable Architecture • Control & Data Planes • Network Processor Core • Hardware-Accelerated Engine Dedicated Hardware-Accelerated Crypto FPGA 1RU 19” Enclosure Dedicated Control Processor 802.3af PoE Serial Console Port Port Status LEDs 1 x Gigabit Ethernet 8 x Fast Ethernet

  31. OAW AP60 & AP61 Single Radio / Multi-Band Access Points • Supported Applications • 802.11a or b/g Access Point • 802.11a/b/g Air Monitor • Dense AP Deployments • Remote / Home Office, Air Monitoring • Features • Software Configurable Radio • Multi-band 802.11a or b/g Operation • Supports Radio Signal Diversity • 10/100Base-T RJ-45 Interface • 802.3af PoE Power Sourcing • Serial Console over Ethernet • 5VDC Power Input (multi-region AC kits) • Detachable or integrated Antenna • UL 2043 Plenum & EN60601 Medical Cert. • Small Form Factor OAW-AP60 Detachable Antenna Interfaces 10/100Ethernet Port with 802.3af PoE Integral High-Gain, Omni- Directional Antenna AC Power Single, Multi-Mode 802.11a or b/g Radio AC Power OAW-AP61

  32. OAW AP65 Dual Radio / Multi-Band Access Point • Supported Applications • 802.11a/b/g Access Point • 802.11a/b/g Air Monitor • Remote / Branch Office Deployment • High Density, High-Performance • Features • Software Configurable Radio • Multi-band 802.11a/b/g Operation • Supports Radio Signal Diversity • 10/100Base-T RJ-45 Interface • 802.3af PoE Power Sourcing • 5VDC Power Input (multi-region AC kits) • Integrated Antenna • UL 2043 Plenum & EN60601 Medical Cert. • Ultra Compact Form Factor Integral Adjustable, Dual Tri-band Antenna Dual Radio, Simultaneous 802.11a/b/g 5VDC Power Input Integrated 15/16” Ceiling Tile Rail Clips (Rear) 10/100 RJ-45 Ethernet Port Supports 802.3af PoE & SoE (Rear)

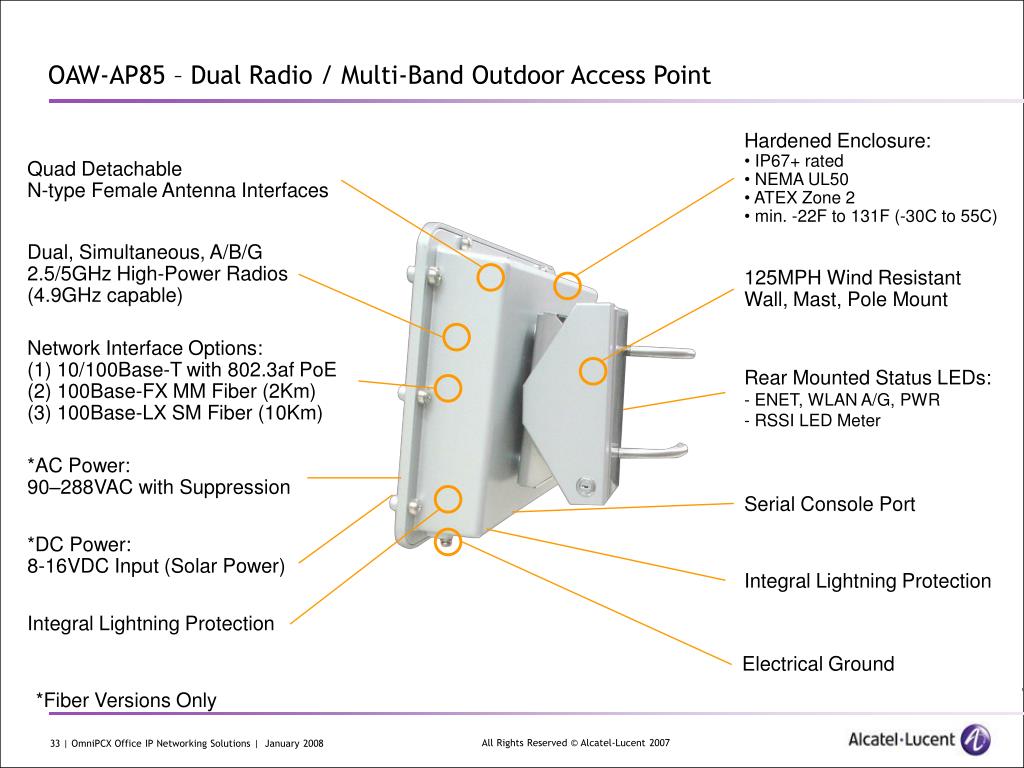

  33. OAW-AP85 – Dual Radio / Multi-Band Outdoor Access Point Hardened Enclosure: • IP67+ rated • NEMA UL50 • ATEX Zone 2 • min. -22F to 131F (-30C to 55C) Quad Detachable N-type Female Antenna Interfaces Dual, Simultaneous, A/B/G 2.5/5GHz High-Power Radios (4.9GHz capable) 125MPH Wind Resistant Wall, Mast, Pole Mount Network Interface Options: (1) 10/100Base-T with 802.3af PoE (2) 100Base-FX MM Fiber (2Km) (3) 100Base-LX SM Fiber (10Km) Rear Mounted Status LEDs: - ENET, WLAN A/G, PWR - RSSI LED Meter *AC Power: 90–288VAC with Suppression Serial Console Port *DC Power: 8-16VDC Input (Solar Power) Integral Lightning Protection Integral Lightning Protection Electrical Ground *Fiber Versions Only

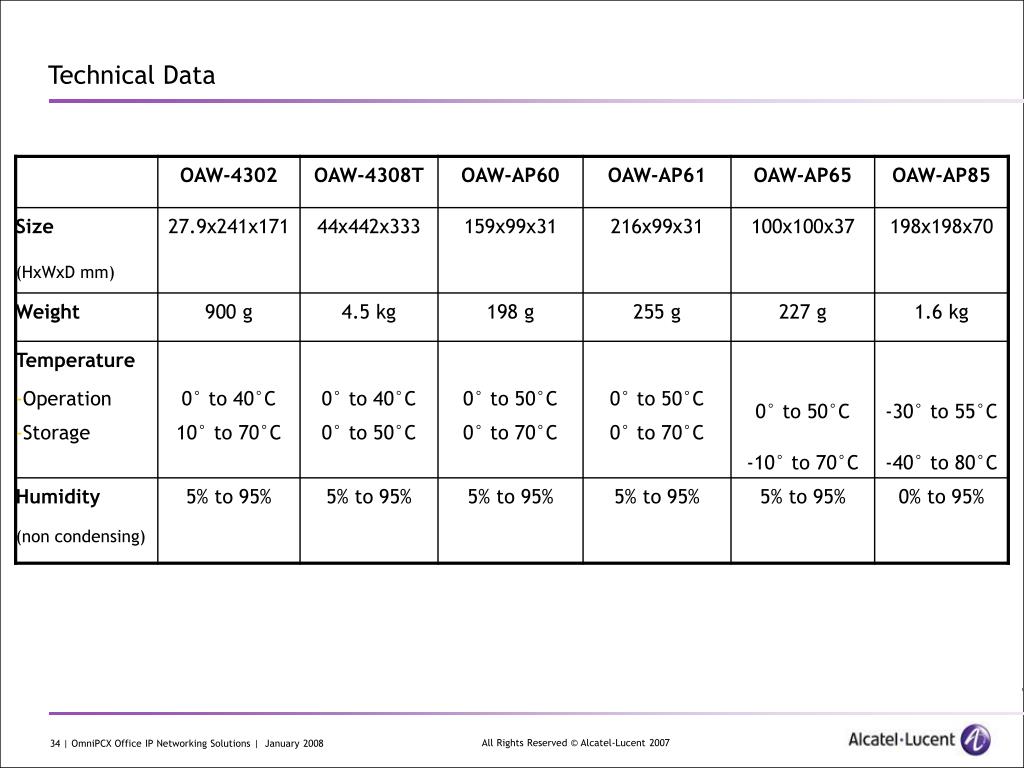

  34. Technical Data

  35. Quality of Service • Embedded QoS in SMB version of 4302/4308T • Integrated Voice Software Module • Restricted to mono-switch environments • If multi-switch : SVP server is mandatory • 802.11e QoS : • Voice packets priority : WMM • Bandwidth management : CAC (Call Admission Control) / TSPEC • Battery/Power Saving : U-APSD • Seamless wired-wireless QoS integration • 802.1 p/Q (voice priority/VLAN tagging) • IP DiffServ/TOS

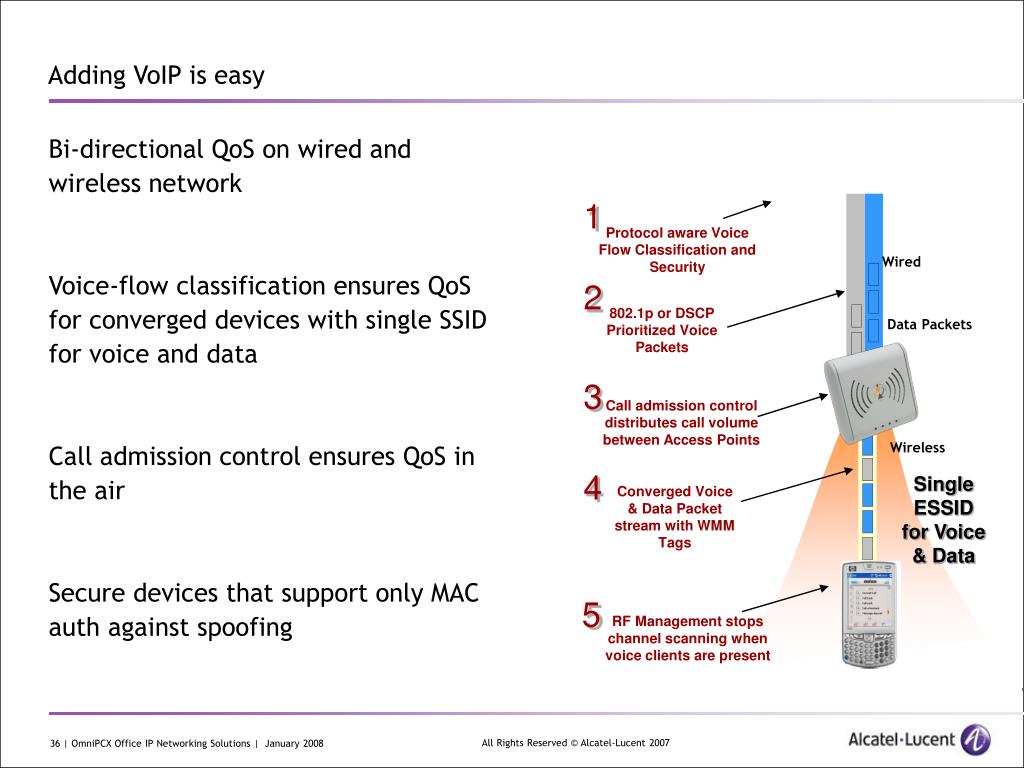

  36. Adding VoIP is easy • Bi-directional QoS on wired and wireless network • Voice-flow classification ensures QoS for converged devices with single SSID for voice and data • Call admission control ensures QoS in the air • Secure devices that support only MAC auth against spoofing 1 Protocol aware Voice Flow Classification and Security Wired 2 802.1p or DSCP Prioritized Voice Packets Data Packets 3 Call admission control distributes call volume between Access Points Wireless 4 Single ESSID for Voice & Data Converged Voice & Data Packet stream with WMM Tags 5 RF Management stops channel scanning when voice clients are present

  37. Security • Integrated ICSA-compliant Stateful Firewall • Traffic control based on user identity • Source and destination NAT • Detailed firewall traffic logs for for usage auditing • Role-based Access Control • Built-in Client Integrity • Centralized 802.11i Security • Supported encryption protocols : AES-CCMP (WPA2), AES-CBC, DES, Triple-DES, WEP (64 or 128 bits), TKIP (WPA1), MPPE (PPTP), SSL (128 bits) • Universal authentication • 802.1x, RSA SecureID, PPP/L2TP & IPSec/XAAUTH for VPN access, RADIUS snooping, MAC address authentication • Wireless intrusion protection to protect against wireless attacks • Rogue access point detection and containment services

  38. Built-in Management Centralized Wireless Controller An easy-to Solution • Easy to set up • Zero-touch deployment model • Real-time Coverage Maps • Adaptive Radio Management • Automatic channel & power selection • Interference detection and avoidance • Coverage hole detection • Reuses existing structured cabling • Easy to manage • Centralized configuration and Monitoring • Web-based management • Manage multiple mobility controllers without external management system • Integrated Packet Capture for easy troubleshooting

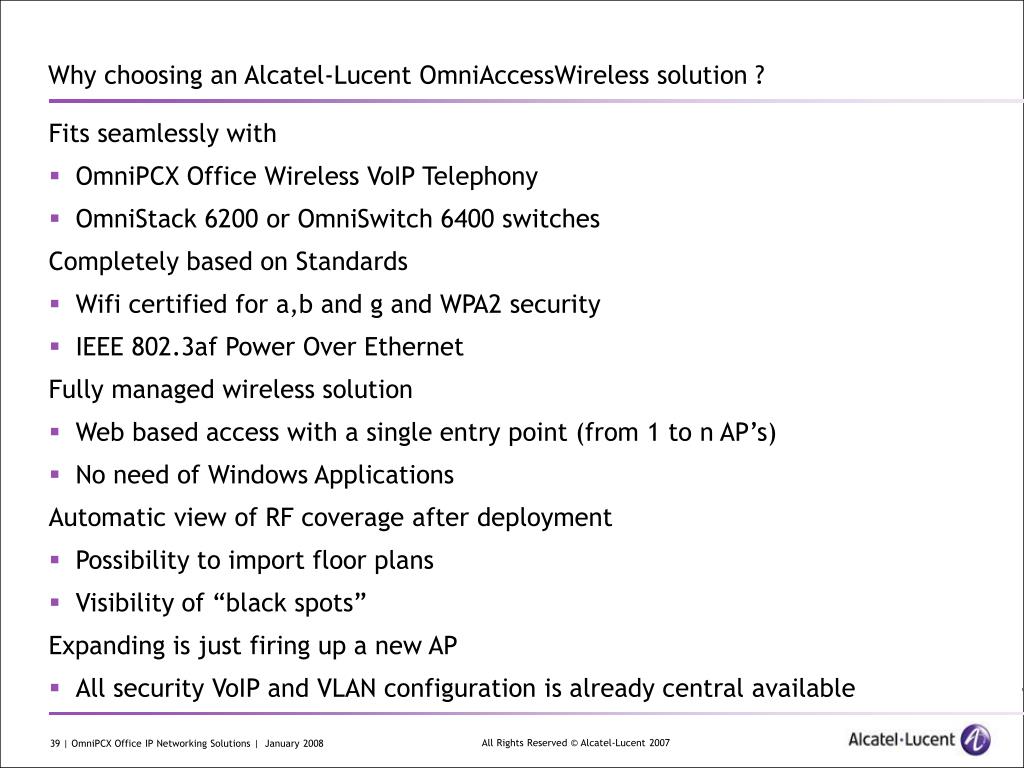

  39. Why choosing an Alcatel-Lucent OmniAccessWireless solution ? • Fits seamlessly with • OmniPCX Office Wireless VoIP Telephony • OmniStack 6200 or OmniSwitch 6400 switches • Completely based on Standards • Wifi certified for a,b and g and WPA2 security • IEEE 802.3af Power Over Ethernet • Fully managed wireless solution • Web based access with a single entry point (from 1 to n AP’s) • No need of Windows Applications • Automatic view of RF coverage after deployment • Possibility to import floor plans • Visibility of “black spots” • Expanding is just firing up a new AP • All security VoIP and VLAN configuration is already central available

  40. Proof Points • Availability & Security • Centralized 802.11i Security • Rogue Detection Services • Performance/Pricing • "All-in-one" product • Easy deployment • Simplified extension • DECT alike features • Specifications • Centralized architecture • Simplest RF Planning Tool • Zero-touch AP Deployment Model • Real time Coverage Maps • Centralized configuration and Monitoring • Convergence • Power over Ethernet 802.3af • Quality of Service • Voice-flow classification ensures QoS for converged devices with single SSID for voice and data • Battery saving features

  41. www.alcatel-lucent.com
