  1. Predicates and quantifiers Chapter 8 Formal Specification using Z

  2. Predicates • A predicate is a logical statement that depends on a value or values. When a predicate is applied to a particular value it becomes a proposition. For example: • prime(x) • depends on some numeric value of x • prime(7) • is a true proposition; the only devisors of 7 are 1 and 7. • Prime(6) is a false proposition; 6 can be divided by 2,3. • A predicate can be viewed as a propositional function, that for some set of arguments returns to either true or false

  3. Quantifiers • Consider the following statements: • All cats have tails. • Some people like cake. • Everyone gets a break once in a while. • All these statements indicate how frequently certain things are true. In predicate calculus we use quantifiers in this context.

  4. Universal Quantifier • The Universal Quantifier is written : A and is pronounced ‘for all’. It is often used in the form : Adeclaration | constraint predicate Which states the for the declarations given, restricted to certain values (the constraint), the predicate holds.

  5. Universal Quantifier • The constraint may be omitted. • The declaration introduces a typical element that is then optionally constrained or restricted in some some way: For example: Ai: N| i < 10 i2 < 100 Which states that for all natural numbers less than 10 their square is less that 100 . Constraint Predicate Separators

  6. Universal Quantifier • A universal quantifier can be viewed as a chain of conjunctions. So: Ai: N| i < 10 i2 < 100 is equivalent to: 02 < 100 L 12 < 100 L . . L 92 < 100 If the set of values over which the variable is universally quantified is empty, then the quantification is defined as true. Ai: N| 0 i < 0 i2 < 100 is true.

  7. Existential Quantifier • The Existential Quantifier is written : E and is pronounced ‘there exists’. It is often used in the form : Edeclaration | constraint predicate The declaration introduces a typical element that is then optionally constrained or restricted in some way: For example: E i: N| i < 10 i2 < 100

  8. Existential Quantifier • There may be more than one value of i for which this is true, in the previous example there are ten values, 0 to 9, that satisfy the predicate. Another example: Even(x) E k: Z k * 2 = x The existential quantifier can be considered as a chain of disjunctions (ors). If the set of values over which the variable is existentially quantified is empty, then the quantification is defined as false. Ei: N| 0 i < 0 i2 < 100

  9. Unique Quantifier • The unique quantifier is similar to the existential quantifier except that it states that there exists only one value for which the predicate is true. It is written as: E1 • An example: E1i: N| i < 1 0 i2 < 100  i2 > 80

  10. Unique Quantifier • The previous unique quantifier example is equivalent to saying that the predicate holds for i, but there is no value j for which it holds This is written as: E1i: N| i < 1 0 i2 < 100  i2 > 80  E1i: N| i < 1 0 i2 < 100  i2 > 80  ¬(Ej: N| j < 1 0 i j j2 < 100  j2 > 80)

  11. Counting Quantifier • Some notations use a counting quantifier that counts for how many values of a variable the predicate holds. In Z this is not needed, we use set comprehension instead.

  12. Set Comprehension • Set Comprehension: • It is possible to give the value of a set by giving a condition (a predicate) which must hold true for every member of the set. The general form is: • {declaration | constraint expression} • SetA ::= {x:Z | Even(x) x*x}

  13. Set Comprehension • {declaration | constraint expression} • The declaration is for a typical element and it gives the element’s name and type. • The constraint restricts the possible values of the typical element. It is a logical expression which must be true for that value of the typical element to be included. • The expression indicates the value to be held in the set

  14. Set Comprehension • SetA ::= {x:Z | Even(x) x*x} • The above defines a set of type integer. The value of x is constrained to be even. Each element will be the square of an even integer. • SetB ::= {x:Z | Even(x) x} • The above defines a set of type integer. The value of x is constrained to be even. Each element will be an even integer.

  15. Ranges of numbers • We have already introduced m..n. This is shorthand for • {i:Z | m i  n i i}

  16. Relationship between Logic and Set Theory • There is a direct relationship between some of the operations of logic and operations on sets: • [X] any set S,T: PX • S  T == {x:X | x S  x  T x} • S  T == {x:X | x S  x  T x} • S \ T == {x:X | x S  x  T x}

  17. Summary of Quantifier Ax:T P for all x of type T, P is true. E x:T P there exists an x of type T, such that P is true. E1x :T P there exists a unique x of type T, such that P is true.

  18. Summary of Quantifier {D | P t} The set of t’s declared by D where P is true.

  19. Mixing Quantifiers • What is the precedence or associativity used. Is forAll(x),forAll(y) equivalent to forAll(y),forAll(x)? • Assuming standard notation, they are read left to right; two universal quantifiers following one another commute (just like multiplication a*b=b*a).

  20. Mixing Quantifiers • Likewise, if you have two existential quantifiers, they commute, because • Exists(x),Exists(y), p(x,y) • is true if and only if • Exists(y),Exists(x), p(x,y) • is true.

  21. Mixing Quantifiers • But if you have mixed universal and existential quantifiers, you have to be careful. If you write A(x), E(y), p(x,y) • that means that for each x, there exists a y, which may depend on x, for which p(x,y) is true. • But if you write E(y), A(x), p(x,y) • you are saying that there is a y which works for any given x (including y=x), that make p(x,y) true.

  22. Mixing Quantifiers

  23. Mixing Quantifiers

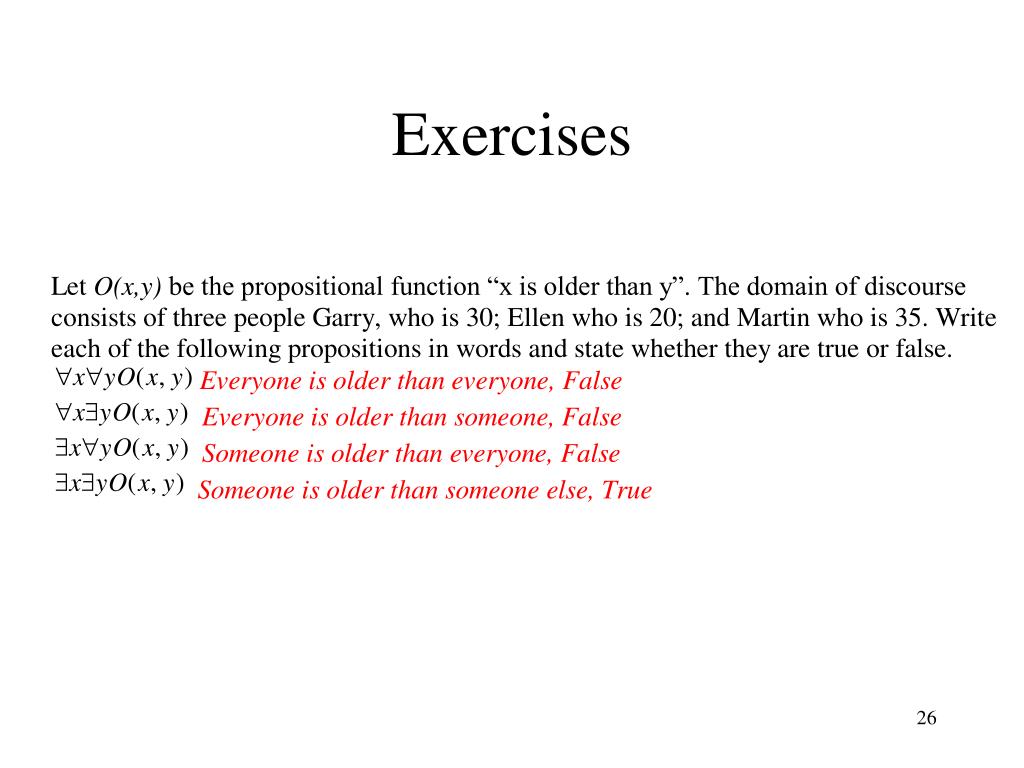

  24. Exercises Let O(x,y) be the predicate (or propositional function) “x is older than y”. The domain of discourse consists of three people Garry, who is 30; Ellen who is 20; and Martin who is 35. Write each of the following propositions in words and state whether they are true or false.

  25. Exercises

  26. Exercises

  27. Exercise

  28. Exercise
