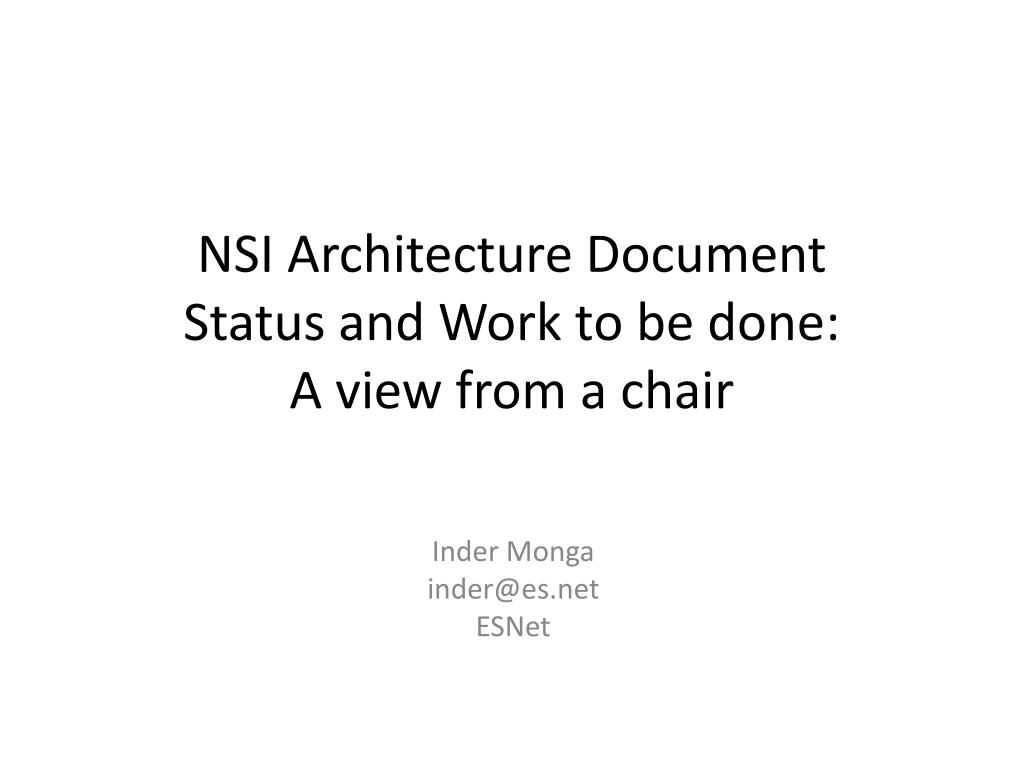

NSI Architecture DocumentStatus and Work to be done:A view from a chair

Inder Monga

inder@es.net

ESNet


Goal of the architecture doc
Goal of the Architecture Doc.

  • Promote uniform understanding of the motivations behind the NSI interface within OGF and beyond OGF (within other standard bodies)

  • Requirements that drive formation of consistent protocols/service interface specifications.


Nsi architecture specification
NSI Architecture Specification

  • Four high-level sections

    • Context and Motivation

      • Why NSI? How does it fit in with the rest of the well-established network concepts?

    • Terminology and Concepts

      • New language to discuss architecture and interactions

    • Architecture

      • Lots of stuff here

    • NSA Block Diagram and interactions

    • Service interactions with other “network” services

    • Requirements on provisionable services

    • Security, Fault tolerance, Multi-domain..

  • Implementation and Deployment Use Cases

    • Case studies on possible deployments of NSI interface and NSA.

    • Application examples using NSI


Table of contents existing doc
Table of Contents (existing doc)

Context and motivation

2.1Background

2.2Introducing the Service Plane

2.2.1 OGF Working Groups and documents

2.2.2 Other Standards Groups

Needs description of Service plane and how it fits in with current understanding of Mangement, Control and Data/Transport Plane


Service plane
Service Plane

The ServicePlane refers to the set of systems and processes that are geared towards providing services to users and maintaining state on those services. The Service plane will generally rely on the functions of the ControlPlane and/or ManagementPlane to effect actual changes on the DataPlane. In addition, the ServicePlane will typically maintain databases on current and future service instantiations and coordinate associated workflow processes.


Service plane1
Service Plane

cv

cv

cv


Service plane and nsi larger than just connections

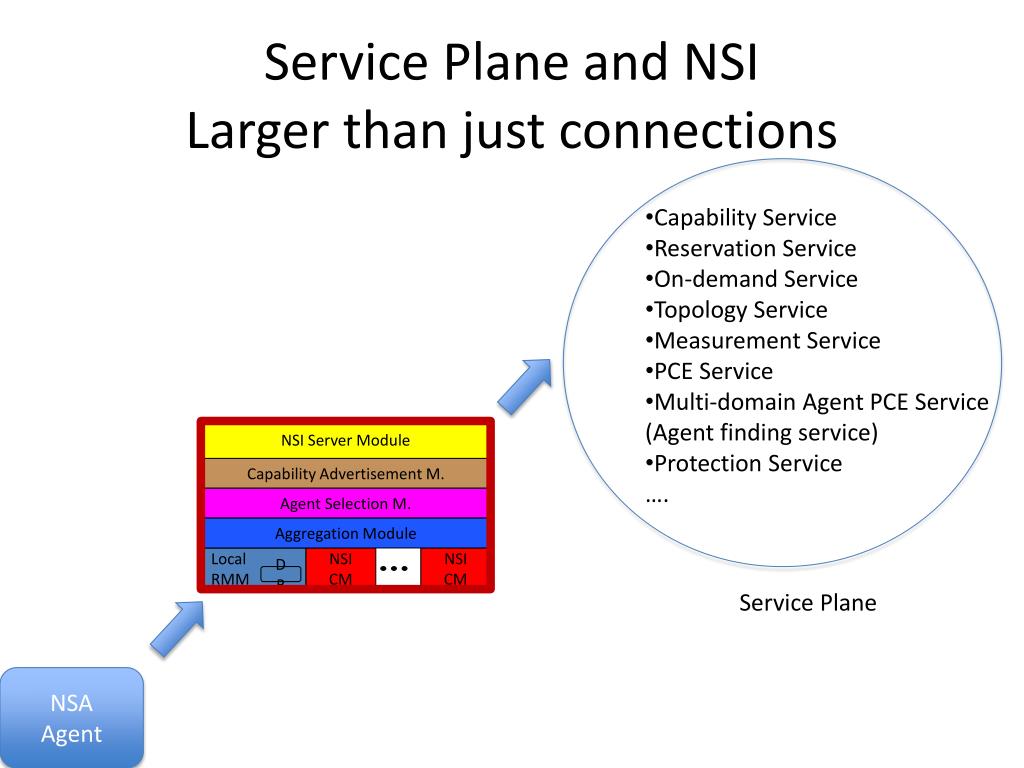

Service Plane and NSILarger than just connections

  • Capability Service

  • Reservation Service

  • On-demand Service

  • Topology Service

  • Measurement Service

  • PCE Service

  • Multi-domain Agent PCE Service(Agent finding service)

  • Protection Service

  • ….

NSI Server Module

Capability Advertisement M.

Agent Selection M.

Aggregation Module

Local

RMM

NSI

CM

NSI

CM

DB

Service Plane

NSA

Agent


Nsa block architecture

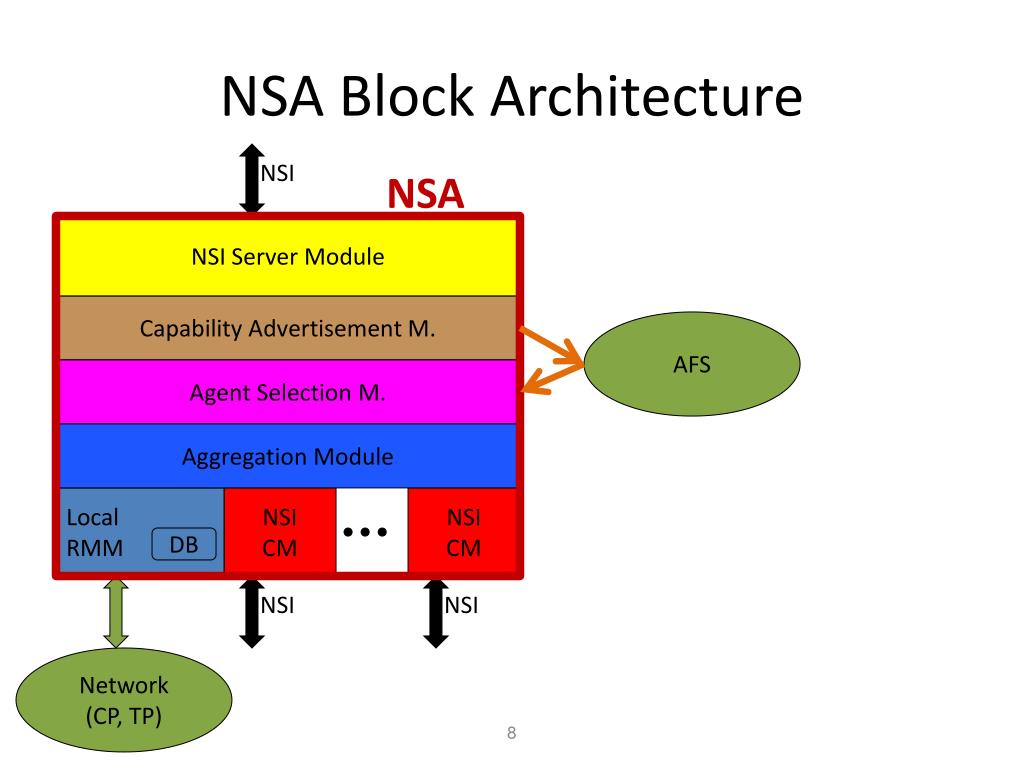

NSA Block Architecture

NSA

NSI Server Module

Capability Advertisement M.

AFS

Agent Selection M.

Aggregation Module

Local

RMM

NSI

CM

NSI

CM

DB

NSI

NSI

NSI

Network

(CP, TP)

8


Standards bodies and where do they fit
Standards Bodies and where do they fit!


Terminology and concepts section
Terminology and Concepts section

Introduction and Overview 5

3.1Service Plane Concepts 5

3.1.1 Transport Resource 5

3.1.2 Network Service Agent 6

3.1.3 Network Resource 6

3.1.4 Requestor Agent 6

3.1.5 Network Service Interface (NSI) 6

3.2Infrastructure terminology and description 7

3.3Transport plane overview and naming description 11

3.4Use NML model and naming where possible

Need to nail down the terminology ASAP based on working group at OGF 27

NSI create the terminology and take it to NML


Architecture
Architecture

NSI operations 21

5.1Basic operations. 21

5.1.1 Operations of reservation service 21

5.1.2 Operations of on-demand service 22

5.2Reservation parameters 22

5.3Support of preemption 24

5.4Support of policy 24

5.5Resources vs connections 24

Needs to be significantly modified. It should have “Services” offered, impact of that service on NSI operations, and block diagram/other dependencies in the network.


Architecture contd

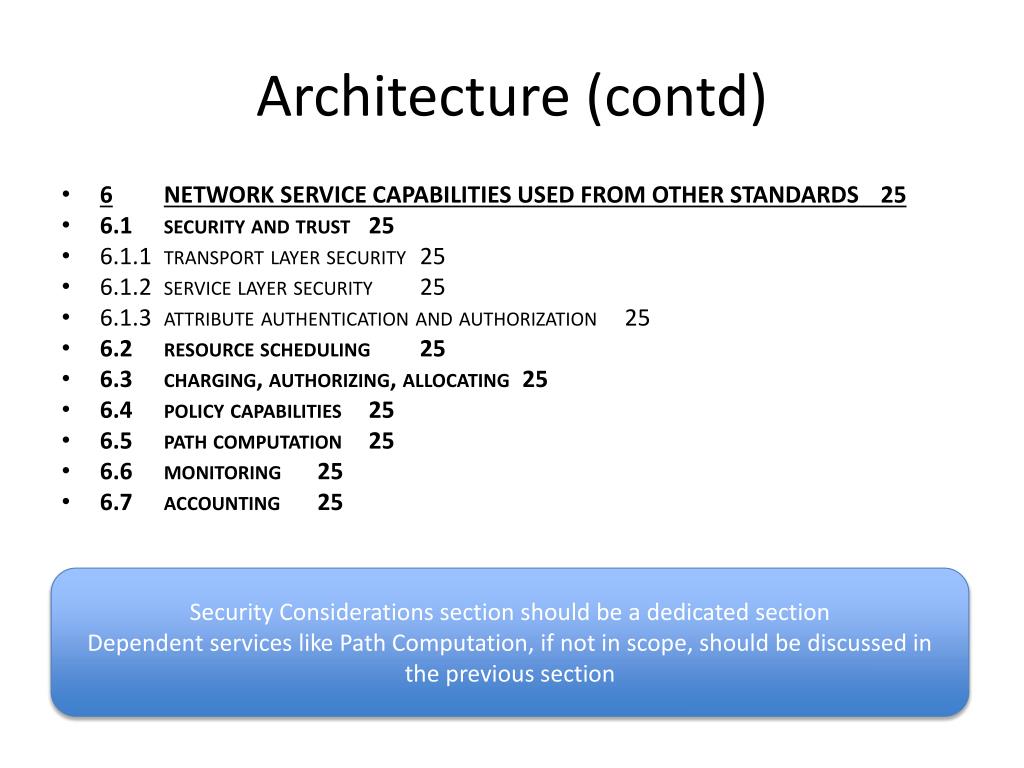

Architecture (contd)

  • 6Network Service capabilities used from other standards 25

  • 6.1security and trust 25

  • 6.1.1 transport layer security 25

  • 6.1.2 service layer security 25

  • 6.1.3 attribute authentication and authorization 25

  • 6.2resource scheduling 25

  • 6.3charging, authorizing, allocating 25

  • 6.4policy capabilities 25

  • 6.5path computation 25

  • 6.6monitoring 25

  • 6.7accounting 25

Security Considerations section should be a dedicated section

Dependent services like Path Computation, if not in scope, should be discussed in the previous section


Architecture contd1
Architecture (contd.)

  • 8Fault handling 27

  • 8.1Protection 27

  • 8.1.1 Common Redundancy Strategies 27

  • 8.1.2 Technology dependence 32

  • 8.2 32

  • 8.3Inter-domain (End-to-End) Protection 32

  • 8.4Connection Restoration 33

The contents of this section needs to move to appendix or integrated with operational issues. The failure implications of the agents themselves need to be discussed in this section.


Implementation and deployment use cases

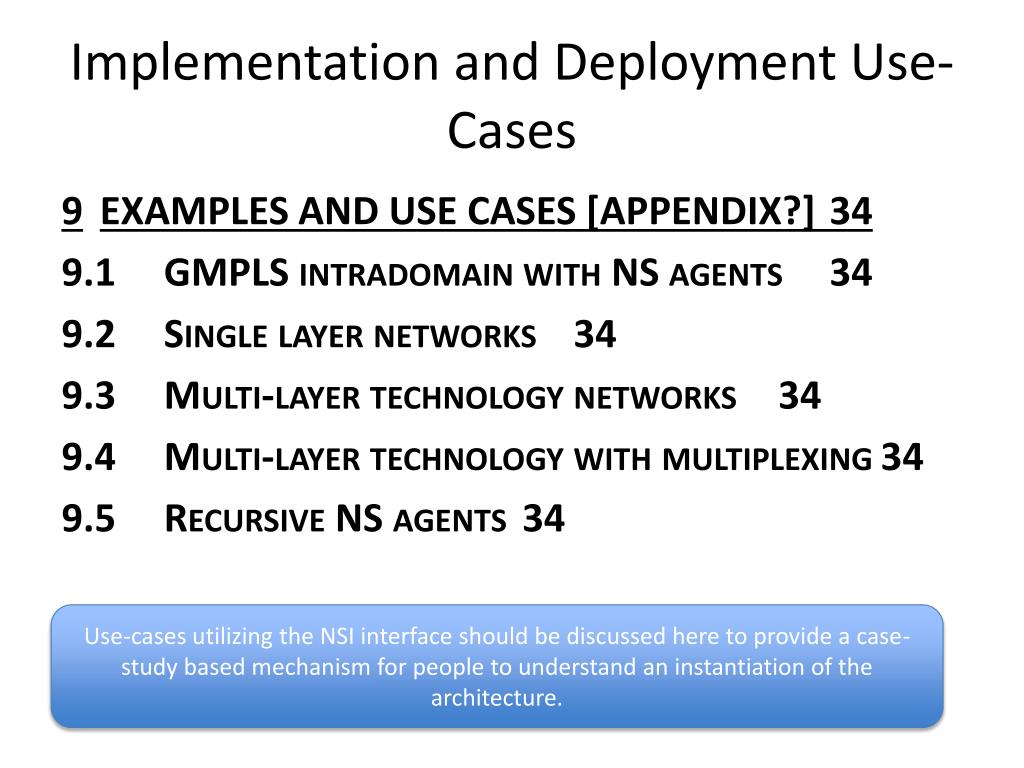

Implementation and Deployment Use-Cases

9Examples and use cases [appendix?] 34

9.1GMPLS intradomain with NS agents 34

9.2Single layer networks 34

9.3Multi-layer technology networks 34

9.4Multi-layer technology with multiplexing 34

9.5Recursive NS agents 34

Use-cases utilizing the NSI interface should be discussed here to provide a case-study based mechanism for people to understand an instantiation of the architecture.


Proposed timeline architecture doc

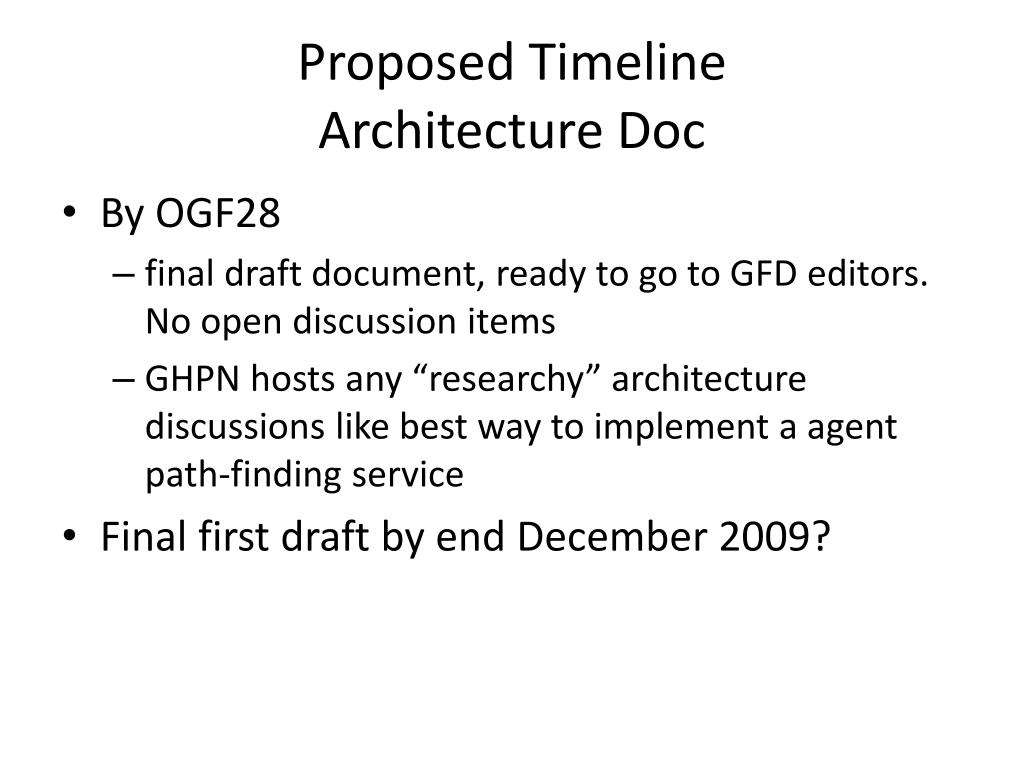

Proposed Timeline Architecture Doc

  • By OGF28

    • final draft document, ready to go to GFD editors. No open discussion items

    • GHPN hosts any “researchy” architecture discussions like best way to implement a agent path-finding service

  • Final first draft by end December 2009?
