Schrodinger Wave Equation

Schrodinger Wave Equation. Schrodinger equation is the first (and easiest) works for non-relativistic spin-less particles (spin added ad-hoc) guess at form: conserve energy, well-behaved, predictive, consistent with l =h/p free particle waves. Schrodinger Wave Equation.

Download Presentation

Schrodinger Wave Equation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

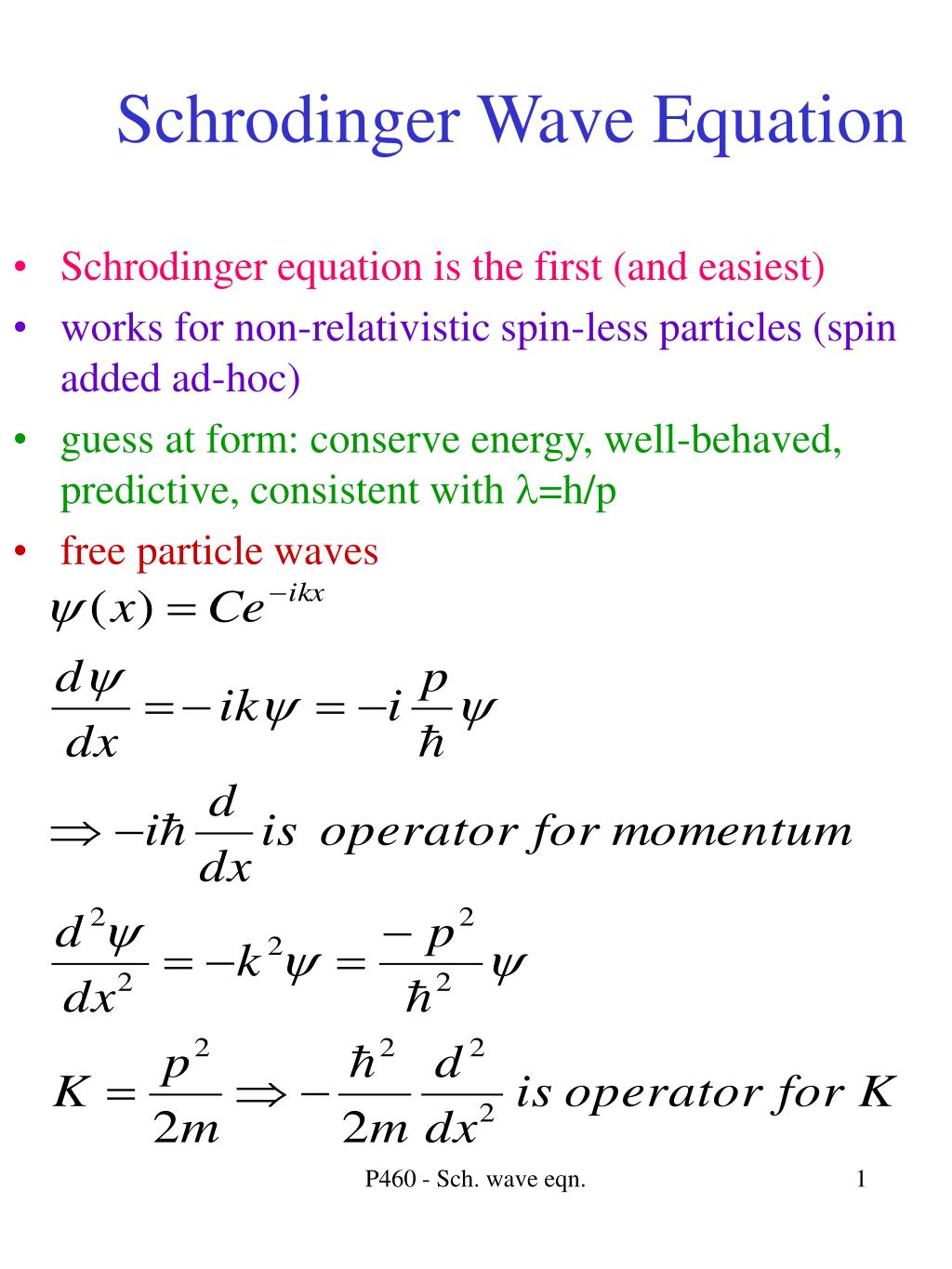

  1. Schrodinger Wave Equation • Schrodinger equation is the first (and easiest) • works for non-relativistic spin-less particles (spin added ad-hoc) • guess at form: conserve energy, well-behaved, predictive, consistent with l=h/p • free particle waves P460 - Sch. wave eqn.

  2. Schrodinger Wave Equation • kinetic + potential = “total” energy K + U = E • with operator form for momentum and K gives Giving 1D time-dependent SE For 3D: P460 - Sch. wave eqn.

  3. Operators • Operators transform one function to another. Some operators have eigenvalues and eigenfunctions Only some functions are eigenfunctions. Only some values are eigenvalues In x-space or t-space let p or E be represented by the operator whose eigenvalues are p or E P460 - Sch. wave eqn.

  4. Interpret wave function as probability amplitude for being in interval dx P460 - Sch. wave eqn.

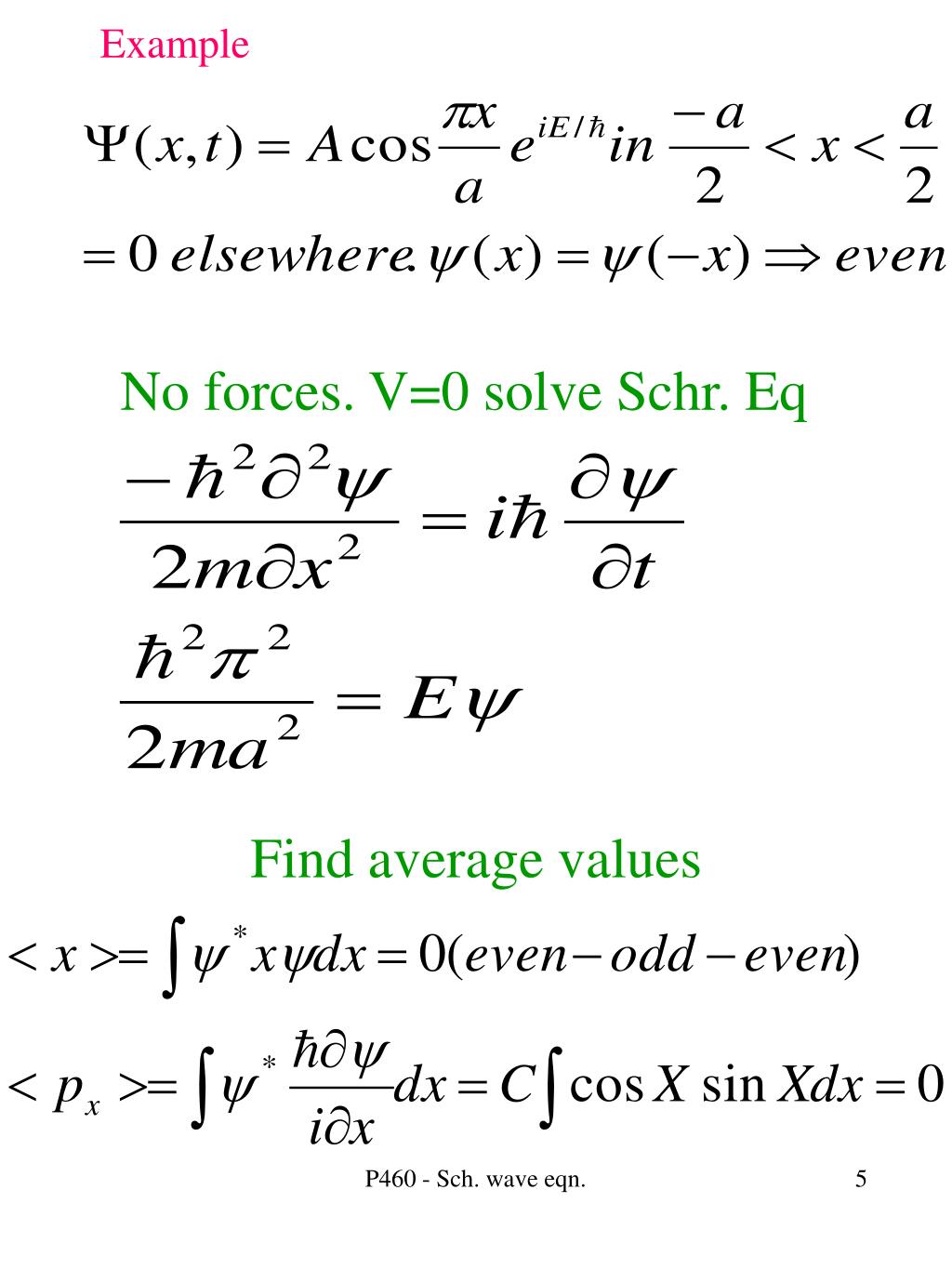

  5. Example No forces. V=0 solve Schr. Eq Find average values P460 - Sch. wave eqn.

  6. P460 - Sch. wave eqn.

  7. Solving Schrodinger Equation • If V(x,t)=v(x) than can separate variables G is separation constant valid any x or t Gives 2 ordinary diff. Eqns. P460 - Sch. wave eqn.

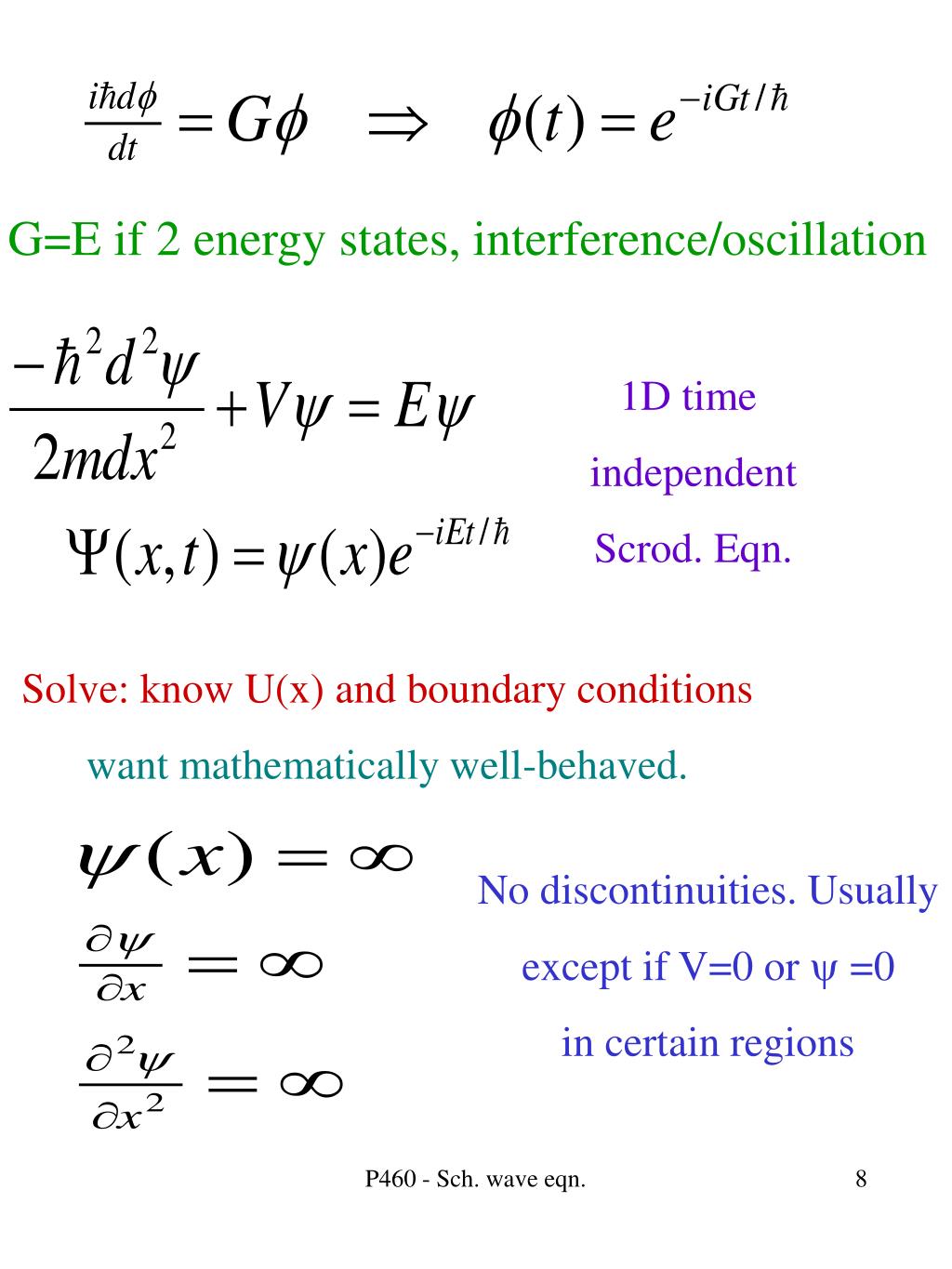

  8. G=E if 2 energy states, interference/oscillation 1D time independent Scrod. Eqn. Solve: know U(x) and boundary conditions want mathematically well-behaved. No discontinuities. Usually except if V=0 or y =0 in certain regions P460 - Sch. wave eqn.

  9. Solutions to Schrod Eqn • Gives energy eigenvalues and eigenfunctions (wave functions). These are quantum states. • Linear combinationsof eigenfunctions are also solutions P460 - Sch. wave eqn.

  10. Solutions to Schrod Eqn • Linear combinationsof eigenfunctions are also solutions. Asuume two energies • assume know wave function at t=0 • at later times the state can oscillate between the two states P460 - Sch. wave eqn.

  11. The normalization of a wave function doesn’t change with time (unless decays). From Griffiths: Use S.E. to substitute for J(x,t) is the probability current. Tells rate at which probability is “flowing” past point x substitute into integral and evaluate The wave function must go to 0 at infinity and so this is equal 0 P460 - Sch. wave eqn.
