Experiment 1

Experiment 1:

STRUCTURE, INTERMOLECULAR FORCES AND SOLUBILITY


Objectives

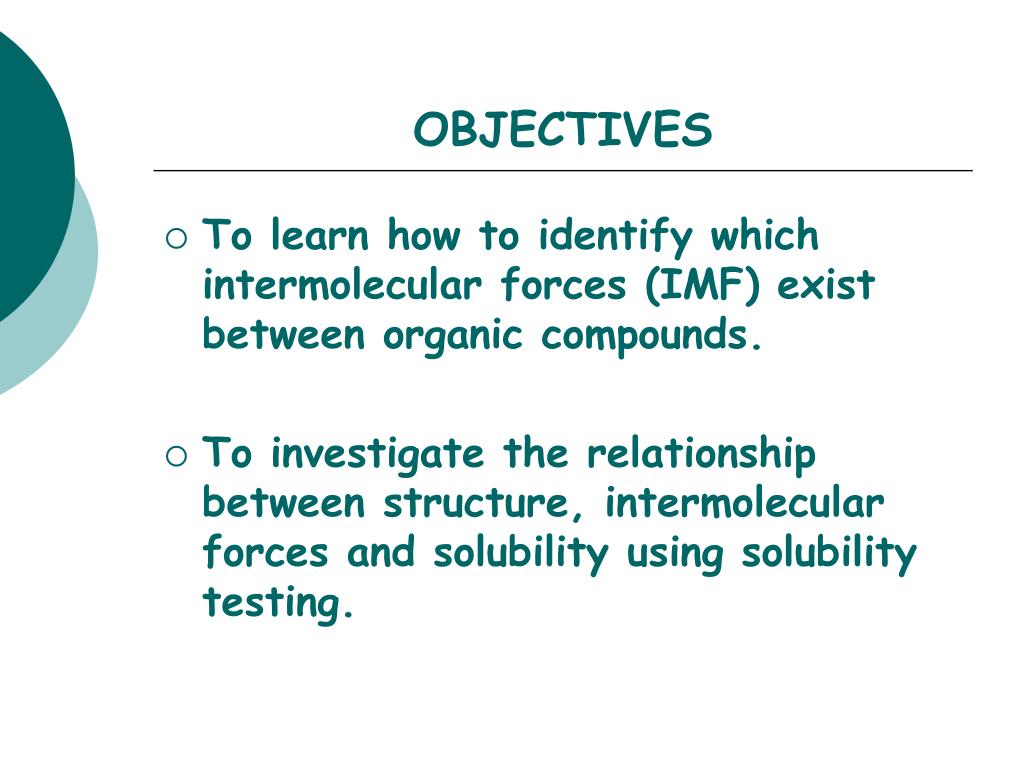

OBJECTIVES

  • To learn how to identify which intermolecular forces (IMF) exist between organic compounds.

  • To investigate the relationship between structure, intermolecular forces and solubility using solubility testing.


Role of imf

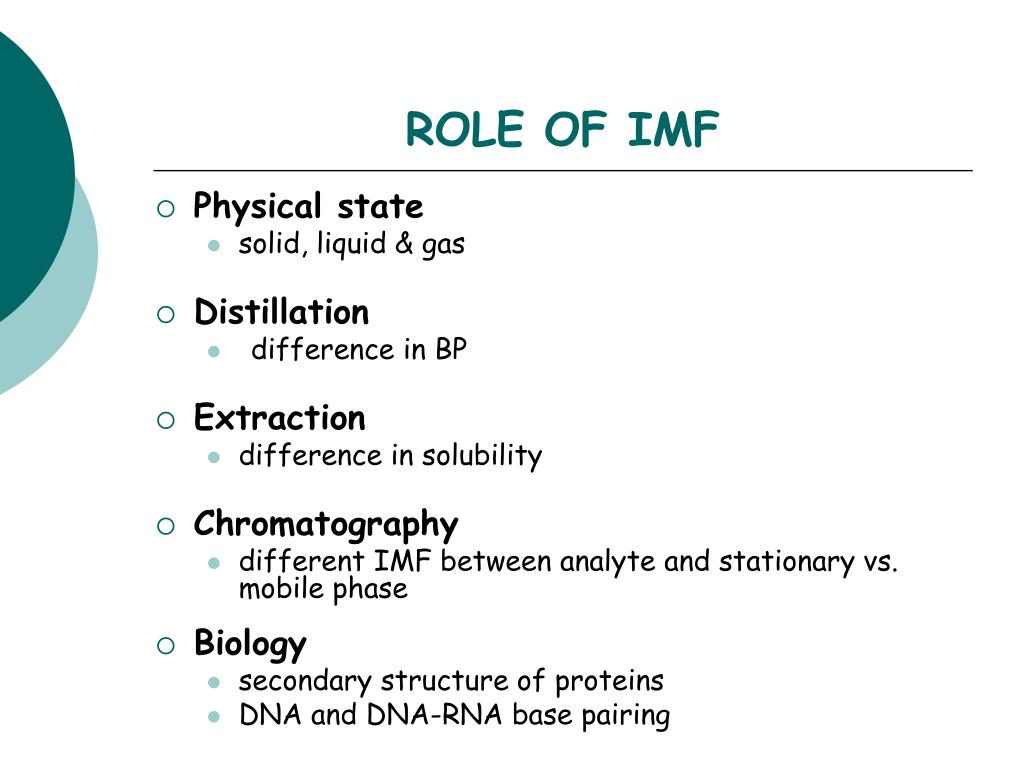

ROLE OF IMF

  • Physical state

    • solid, liquid & gas

  • Distillation

    • difference in BP

  • Extraction

    • difference in solubility

  • Chromatography

    • different IMF between analyte and stationary vs. mobile phase

  • Biology

    • secondary structure of proteins

    • DNA and DNA-RNA base pairing


Types of imf
TYPES OF IMF

  • London Dispersion Forces

  • Dipole-Dipole Forces

  • Hydrogen Bonding

    • Acceptors

    • Donors

  • Ion-dipole Forces


London dispersion forces

d -

--------------

d -

d +

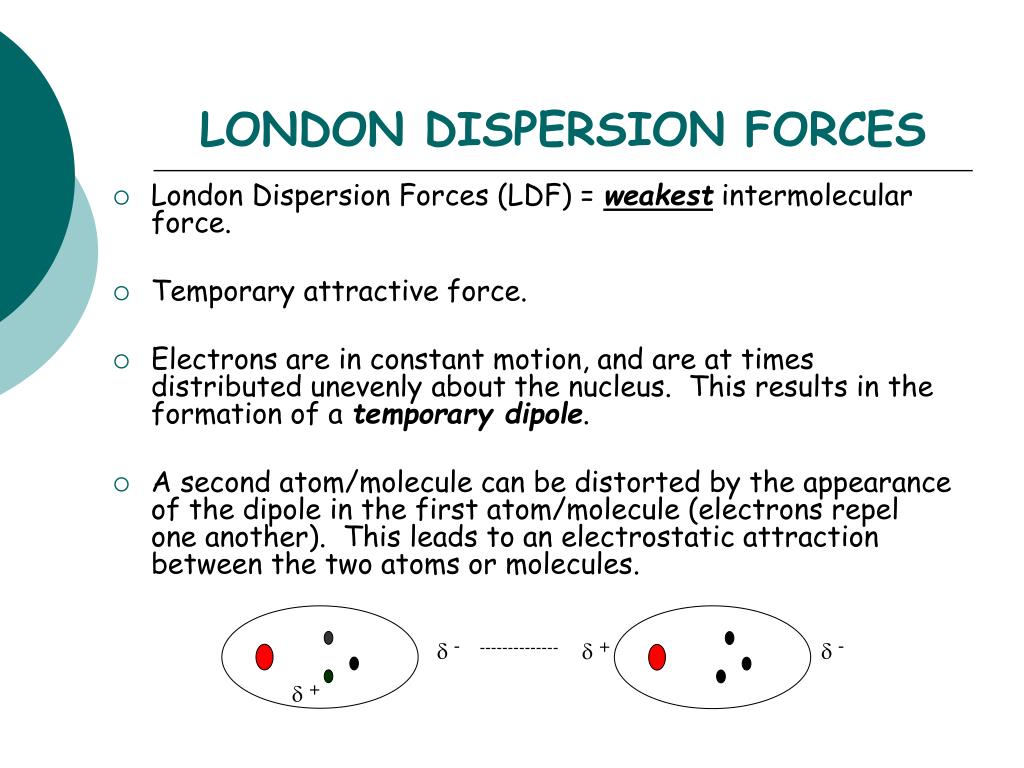

LONDON DISPERSION FORCES

  • London Dispersion Forces (LDF) = weakest intermolecular force.

  • Temporary attractive force.

  • Electrons are in constant motion, and are at times distributed unevenly about the nucleus. This results in the formation of a temporary dipole.

  • A second atom/molecule can be distorted by the appearance of the dipole in the first atom/molecule (electrons repel one another). This leads to an electrostatic attraction between the two atoms or molecules.

d +


London dispersion forces1

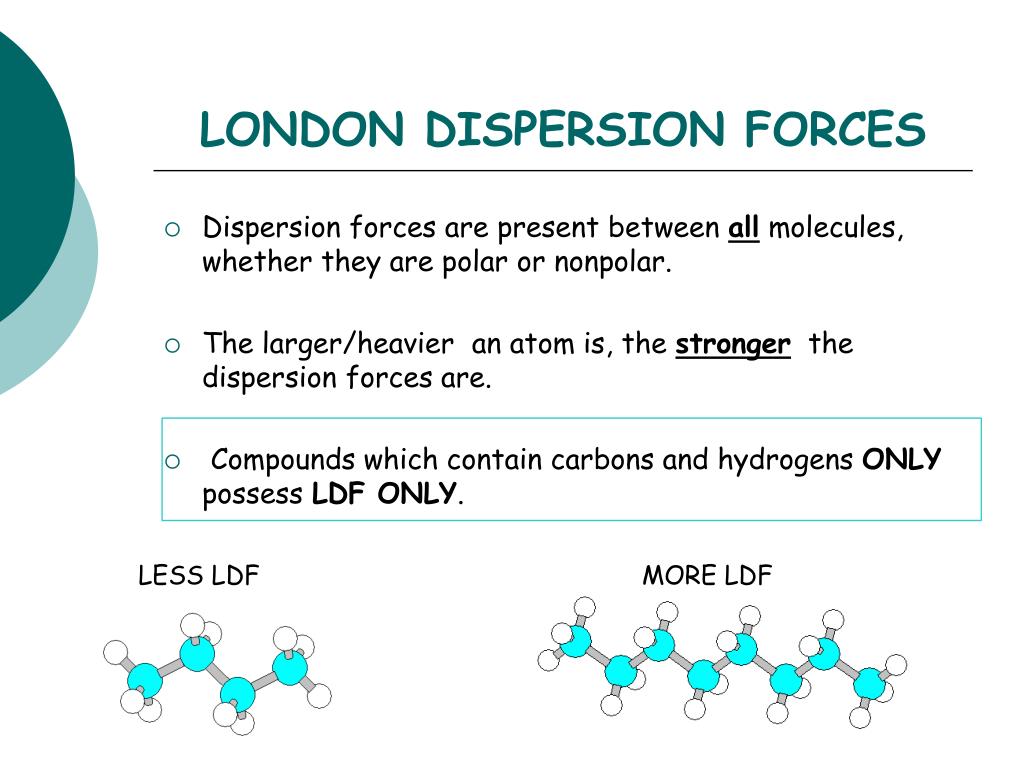

LONDON DISPERSION FORCES

  • Dispersion forces are present between all molecules, whether they are polar or nonpolar.

  • The larger/heavier an atom is, the stronger the dispersion forces are.

  • Compounds which contain carbons and hydrogens ONLY possess LDF ONLY.

LESS LDF

MORE LDF


Dipole dipole forces

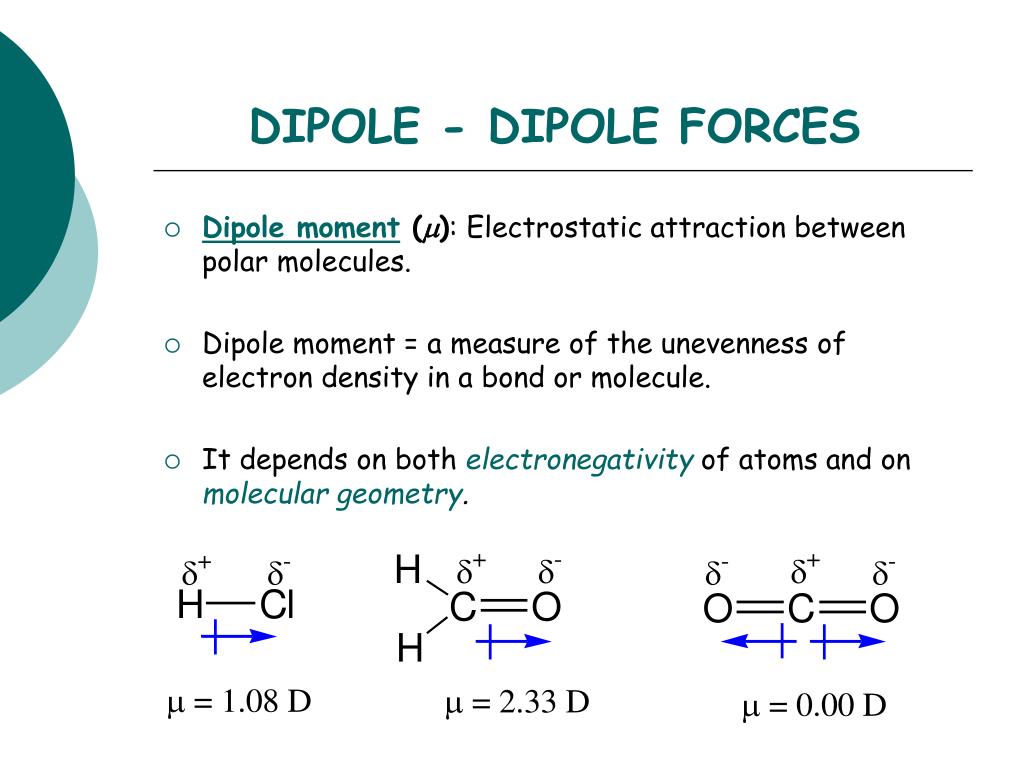

DIPOLE - DIPOLE FORCES

  • Dipole moment(m):Electrostatic attraction between polar molecules.

  • Dipole moment = a measure of the unevenness of electron density in a bond or molecule.

  • It depends on both electronegativityof atoms and on molecular geometry.


Dipole dipole forces1

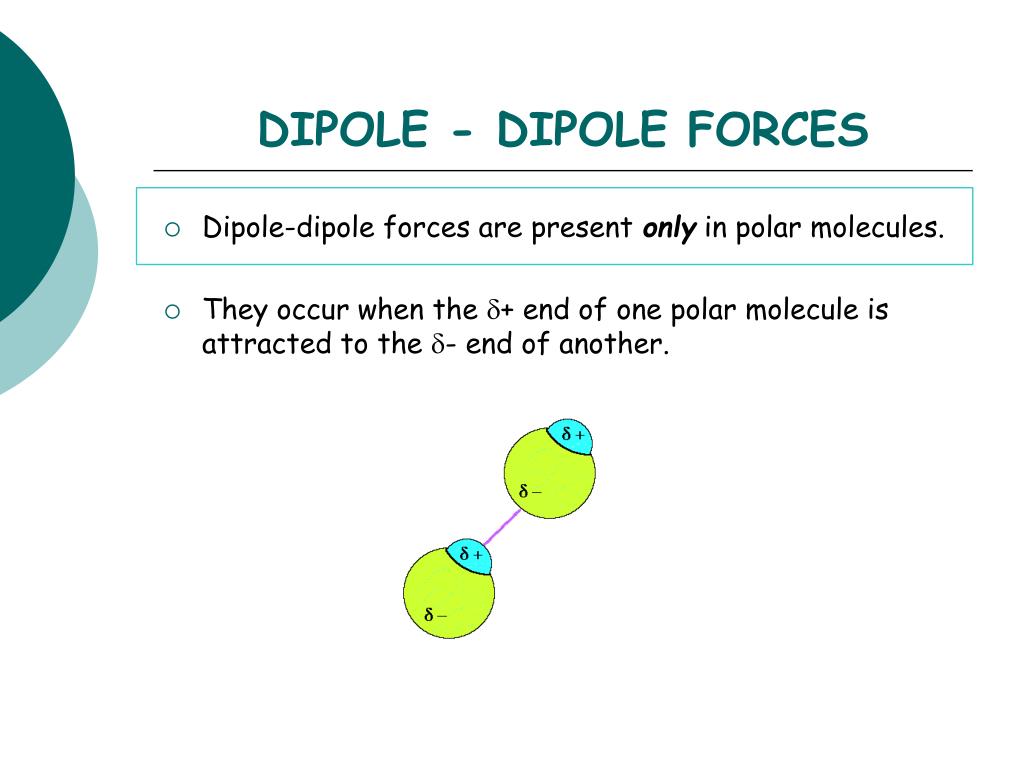

DIPOLE - DIPOLE FORCES

  • Dipole-dipole forces are present only in polar molecules.

  • They occur when the d+ end of one polar molecule is attracted to the d- end of another.


Hydrogen bonding

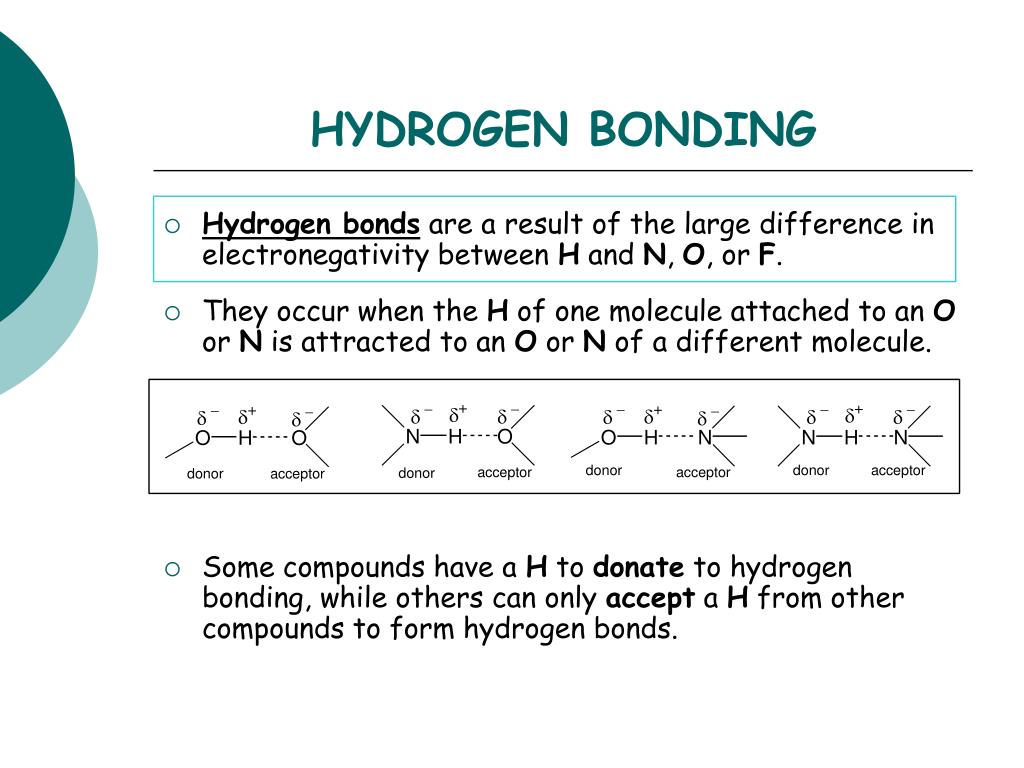

HYDROGEN BONDING

  • Hydrogen bonds are a result of the large difference in electronegativity between H and N, O, or F.

  • They occur when the H of one molecule attached to an O or N is attracted to an O or N of a different molecule.

  • Some compounds have a H to donate to hydrogen bonding, while others can only accept a H from other compounds to form hydrogen bonds.


Hydrogen bonding1

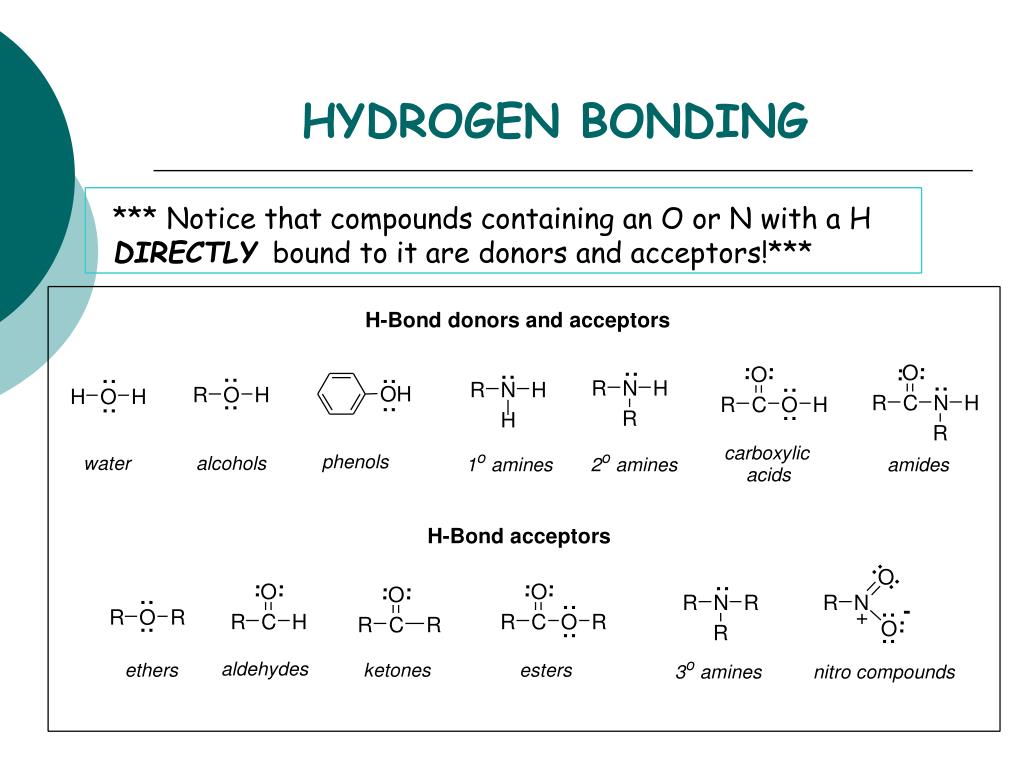

HYDROGEN BONDING

*** Notice that compounds containing an O or N with a H DIRECTLY bound to it are donors and acceptors!***


Ion dipole

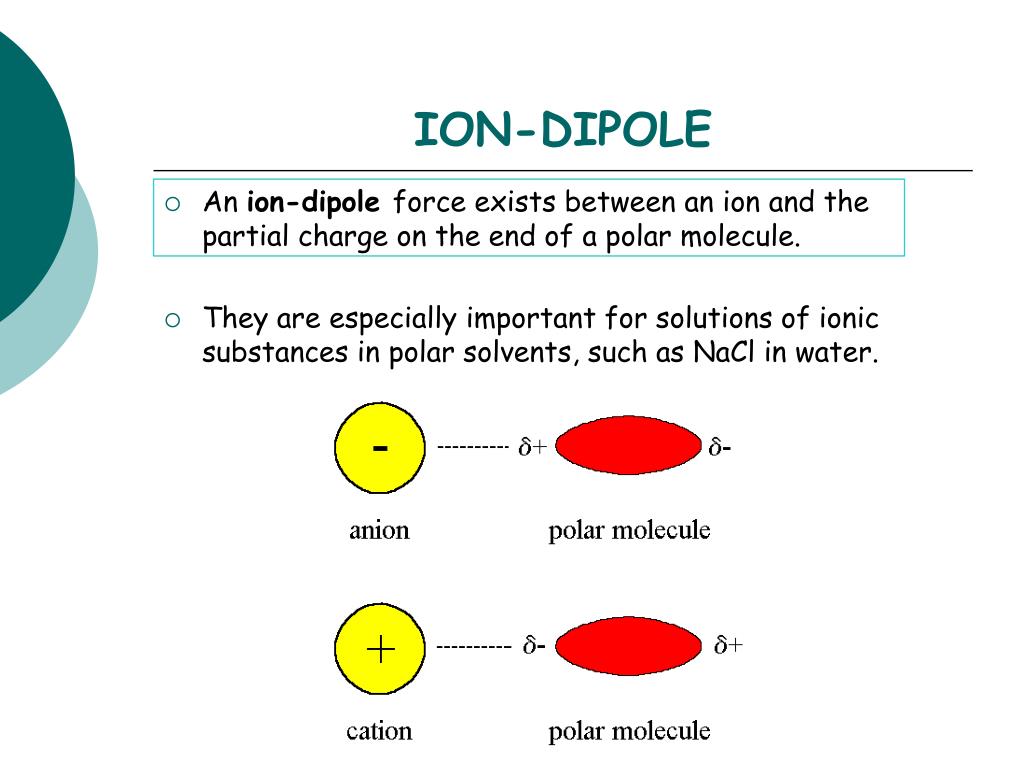

ION-DIPOLE

  • An ion-dipole force exists between an ion and the partial charge on the end of a polar molecule.

  • They are especially important for solutions of ionic substances in polar solvents, such as NaCl in water.


Overview
OVERVIEW

  • A: Test solubility of compounds in hexane and water.

  • B: Test solubility of organic liquids in water.

  • C: Test solubility of alcohols in hexane and water.

  • D: Test solubility of organic solids in diethyl ether, water, acidic and basic solutions.


Table 1 1

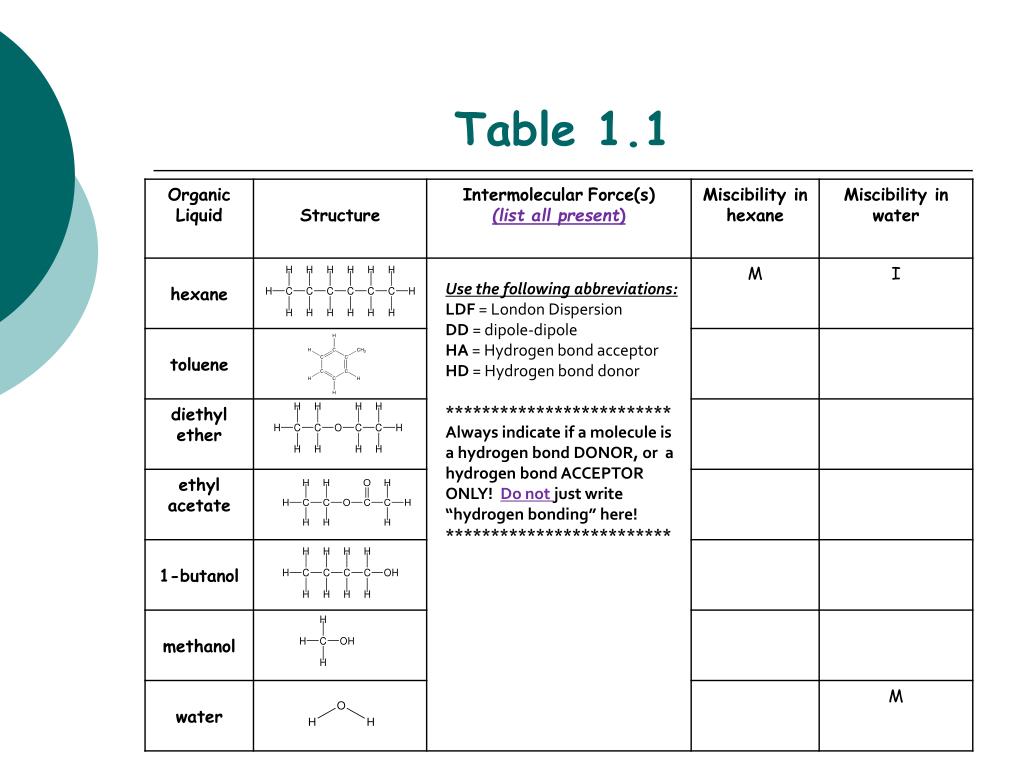

Table 1.1

Use the following abbreviations:

LDF = London Dispersion

DD = dipole-dipole

HA = Hydrogen bond acceptor

HD = Hydrogen bond donor

*************************Always indicate if a molecule is a hydrogen bond DONOR, or a hydrogen bond ACCEPTOR ONLY! Do not just write “hydrogen bonding” here!

*************************





Imf flow chart
IMF FLOW CHART

Interacting molecules

or ions

NO

NO

YES

NO

Are polar molecules involved?

Are ions involved?

Are polar

molecules and ions both present?

YES

DIPOLE-DIPOLE

Ex: CH3Cl

YES

NO

YES

Are hydrogen atoms bonded to N, O, or F atoms?

IONIC BONDING

Ex: NaCl

LDF

ONLY

Ex: CH3CH3

ION-DIPOLE

Ex: NaCl in H2O

NO

YES

HYDROGEN BOND

Acceptor

Ex: CH3OCH3

HYDROGEN BOND

Donor

Ex: H2O, NH3


Safety concerns

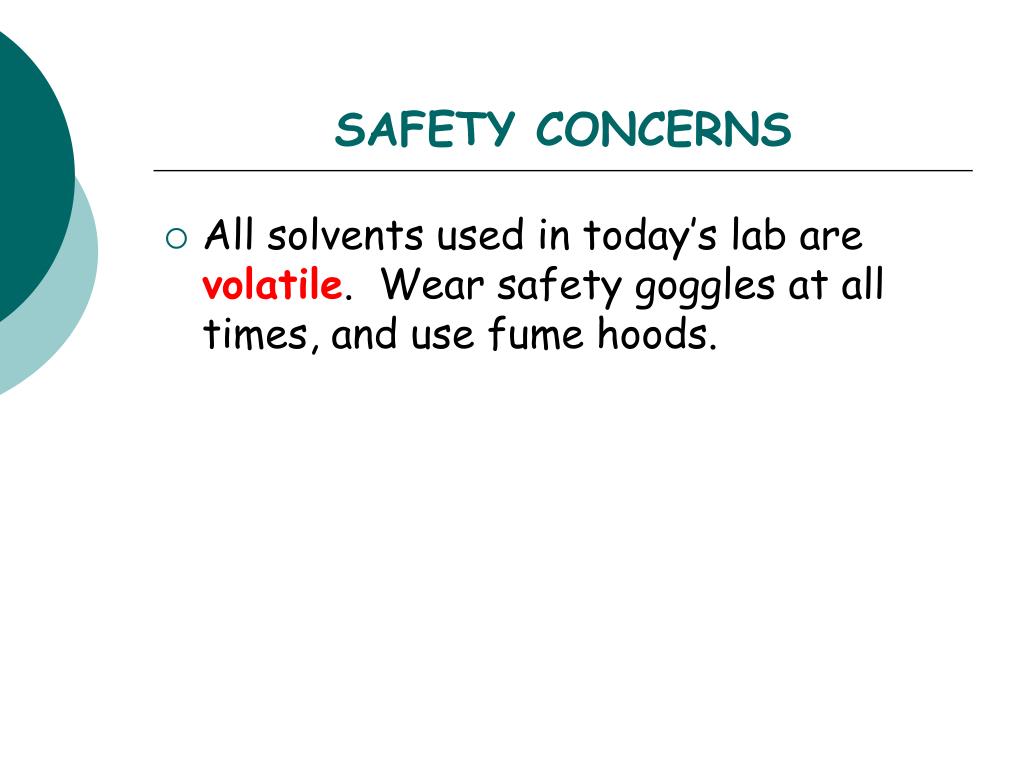

SAFETY CONCERNS

  • All solvents used in today’s lab are volatile. Wear safety goggles at all times, and use fume hoods.


Waste disposal

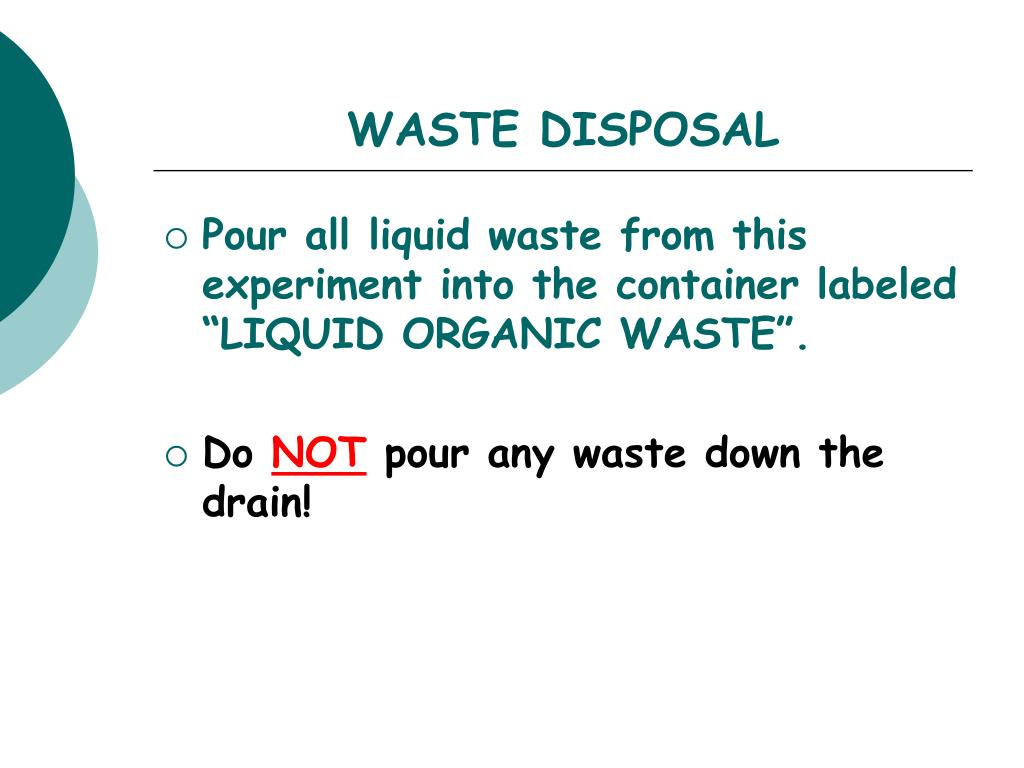

WASTE DISPOSAL

  • Pour all liquid waste from this experiment into the container labeled “LIQUID ORGANIC WASTE”.

  • Do NOT pour any waste down the drain!


Laboratory notebook pre lab
LABORATORY NOTEBOOK(Pre-lab)

  • OBJECTIVE (Must clearly state…)

    • What you will evaluate

    • How you will evaluate it

  • TABLE OF PHYSICAL DATA (Complete the following table using MSDS sheets from a site listed on WWW Links ONLY. Wikipedia is unacceptable)

  • REFERENCE TO PROCEDURE (Must include…)

    • Full title including edition and authors

    • page numbers where actual procedure can be found


Laboratory notebook in lab

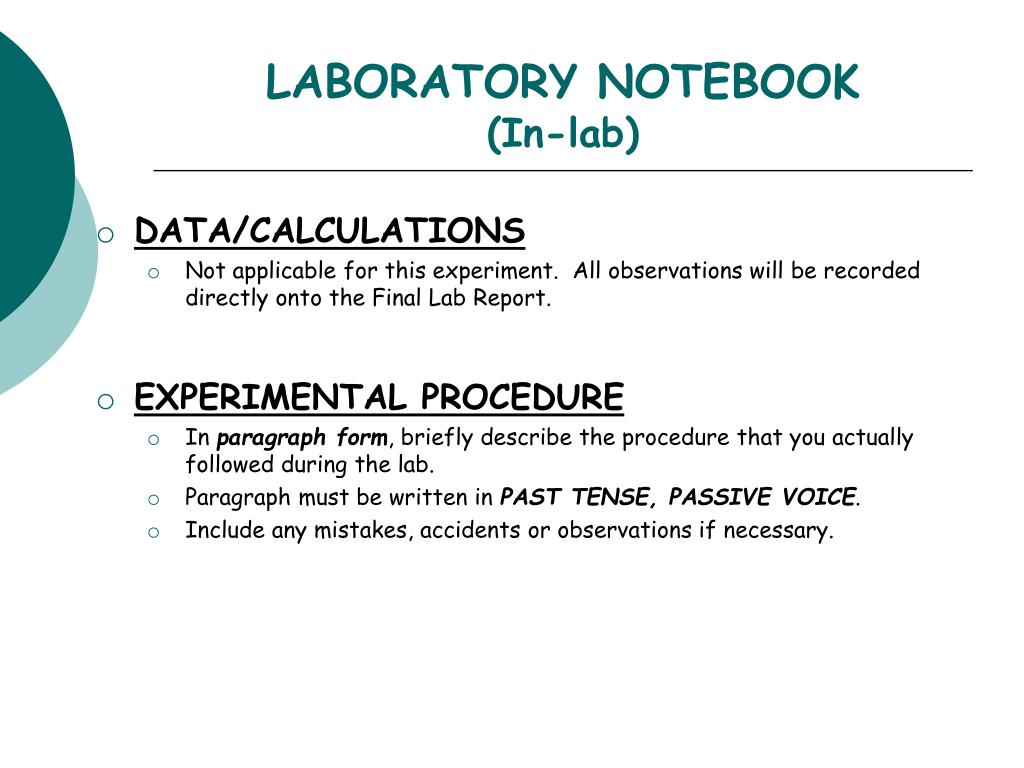

LABORATORY NOTEBOOK(In-lab)

  • DATA/CALCULATIONS

    • Not applicable for this experiment. All observations will be recorded directly onto the Final Lab Report.

  • EXPERIMENTAL PROCEDURE

    • In paragraph form, briefly describe the procedure that you actually followed during the lab.

    • Paragraph must be written in PAST TENSE, PASSIVE VOICE.

    • Include any mistakes, accidents or observations if necessary.
