  1. Chapter 15 Special Senses: Vision

  2. Accessory structures of the eye • Lacrimal apparatus • Lacrimal glands • Superior and lateral in each eye • Produces tears • Several small ducts liberate the tear continually • Excretory ducts

  3. Lacrimal Apparatus • Lacrimal canal • Medial in each eye • Lacrimal sac • Nasolacrimal duct • Tears • Salt solution • Contains lysozyme and antibodies • Cleanse, protect, moisten and lubricate the eye ball

  4. Accessory structures of the eye • Palpebrae • Lateral canthus • Medial canthus • Caruncle – contains sweat and sebaceous glands

  5. Accessory structures of the eye • Eyelashes • Ciliary glands • Modified sweat glands between the eyelashes • Meibomian or tarsal glands • Posterior to the eyelashes. Secrete oil

  6. Accessory structures of the eye • Sty • Acute inflammation of the ciliary or meibomian gland • Chalazio • Chronic inflammation of the meibomian gland

  7. Accessory structures of the eye • Conjunctiva • Palpebral • Ocular or bulbar • It is a mucosa that secretes mucus • Conjunctivites • Inflamation of the conjunctiva • Extrinsic muscles of the eye • Control eye movement

  8. Internal Anatomy of the eye • Outer fibrous tunic • Dense avascular connective tissue • Sclera • Cornea • Transparent, anterior most portion

  9. Internal Anatomy of the eye • Middle vascular tunic (uvea) • Iris • Colored part of the eye • Smooth muscle acting as a diaphragm • Ciliary body • Ciliary muscles – control the shape of the lens • Ciliary processes – secretes aqueous humor • Suspensory ligaments

  10. Internal Anatomy of the eye • Choroid • Posteriormost part • Contain melanin • Tapetum lucidum (only in animals) • Inner sensory tunic (Retina) • Pigmented layer • Covers the choroid

  11. Internal Anatomy of the eye • Neural layer • Rods – photoreceptors cells for dim light. Perceives gray tones • Cones – photoreceptors cells for color. They need high amount of light • Optic disc – blind spot. Emergency of the optic nerve • Macula lutea – high concentration of cones. • Fovea

  12. Internal Anatomy of the eye • Lens • Held by the suspensory ligaments. Attaches to the ciliary body. • Catarats – lens become opaque and hard

  13. Internal Anatomy of the eye • Anterior segment • Aqueous humor – clear fluid formed by the ciliary process. It provides nutrients for the lens and cornea. • Scleral venus sinus (canal of Schlemm) – absorbs the aqueous humor • Glaucoma – increased intraocular pressure • Posterior segment • Vitreous humor – helps to keep the retina in place

  14. The Sectional Anatomy of the Eye Figure 17.4a, b

  15. Microscopic anatomy of the retina • Pigmented epithelial layer • Located between the choroid and neural layer • Neural layer • Photoreceptors – rods and cones • Bipolar neurons • Ganglion neurons

  16. Microscopic anatomy of the retina

  17. Visual Pathways to the brain • Optic nerve • Optic chiasma • It is the crossing of the fibers of the optic nerve • Optic tract • Thalamus • Optic radiation • Visual cortex – located on the occipital lobe

  18. Visual Tests and Experiments • Blind Spot • When the image fall on the optic disc

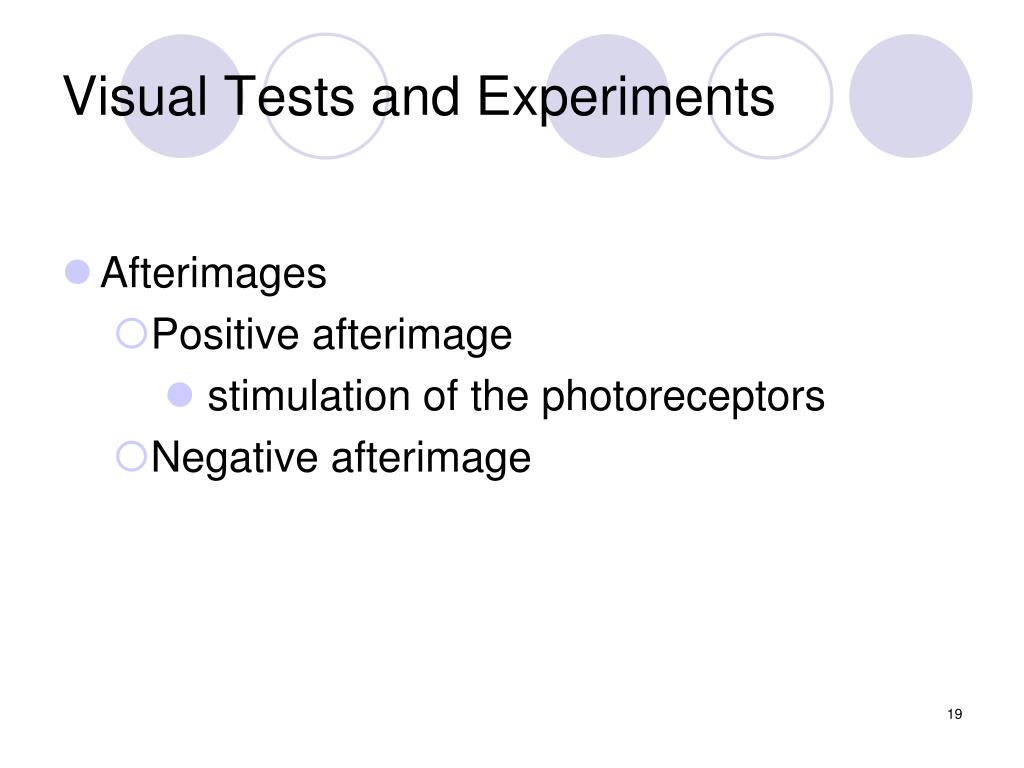

  19. Visual Tests and Experiments • Afterimages • Positive afterimage • stimulation of the photoreceptors • Negative afterimage

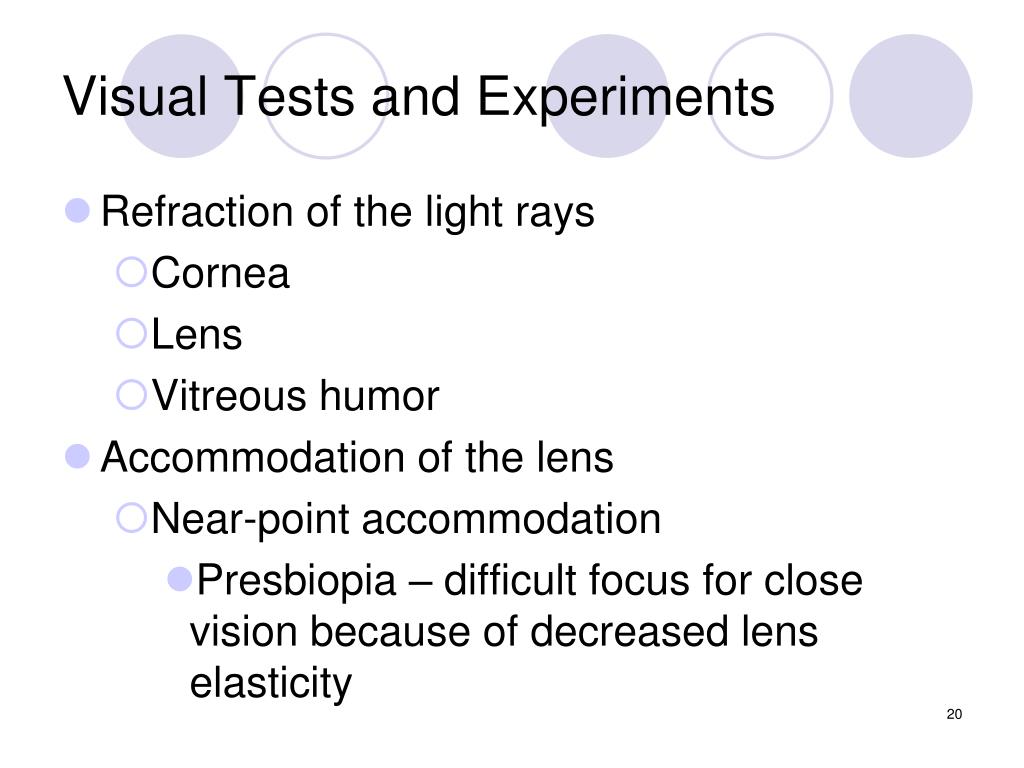

  20. Visual Tests and Experiments • Refraction of the light rays • Cornea • Lens • Vitreous humor • Accommodation of the lens • Near-point accommodation • Presbiopia – difficult focus for close vision because of decreased lens elasticity

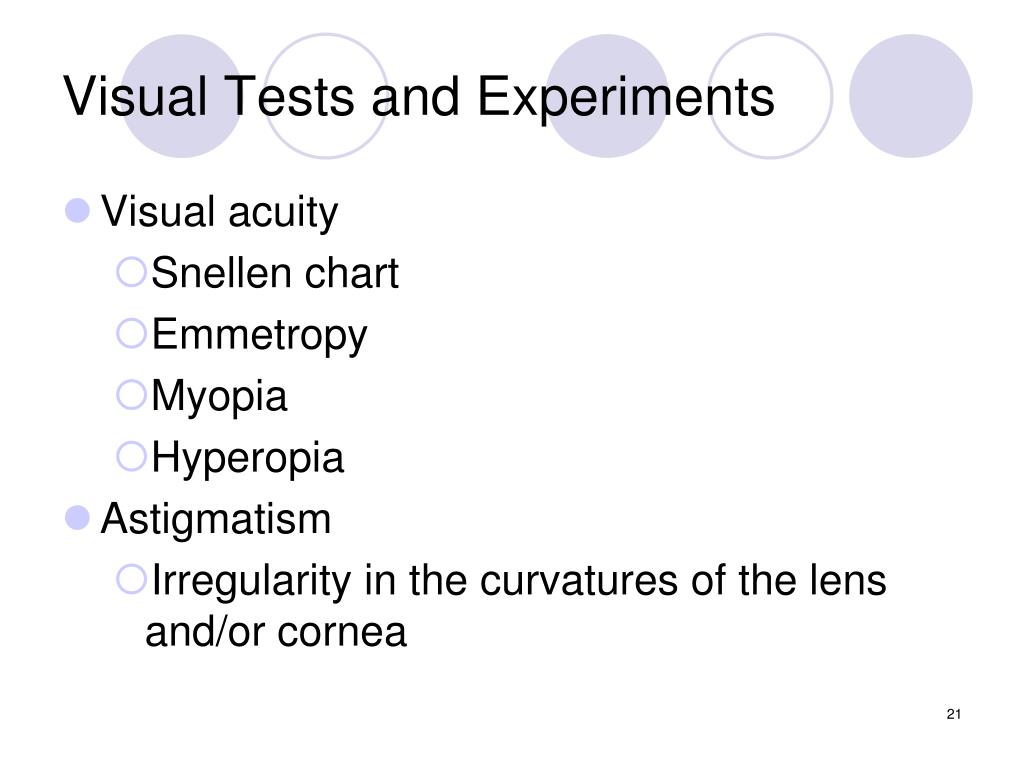

  21. Visual Tests and Experiments • Visual acuity • Snellen chart • Emmetropy • Myopia • Hyperopia • Astigmatism • Irregularity in the curvatures of the lens and/or cornea

  22. Visual Tests and Experiments • Color blindness • Three cone types- red, green and blue • Binocular vision • Three dimensional vision • Accuracy of locating objects • Depth perception • Panoramic vision

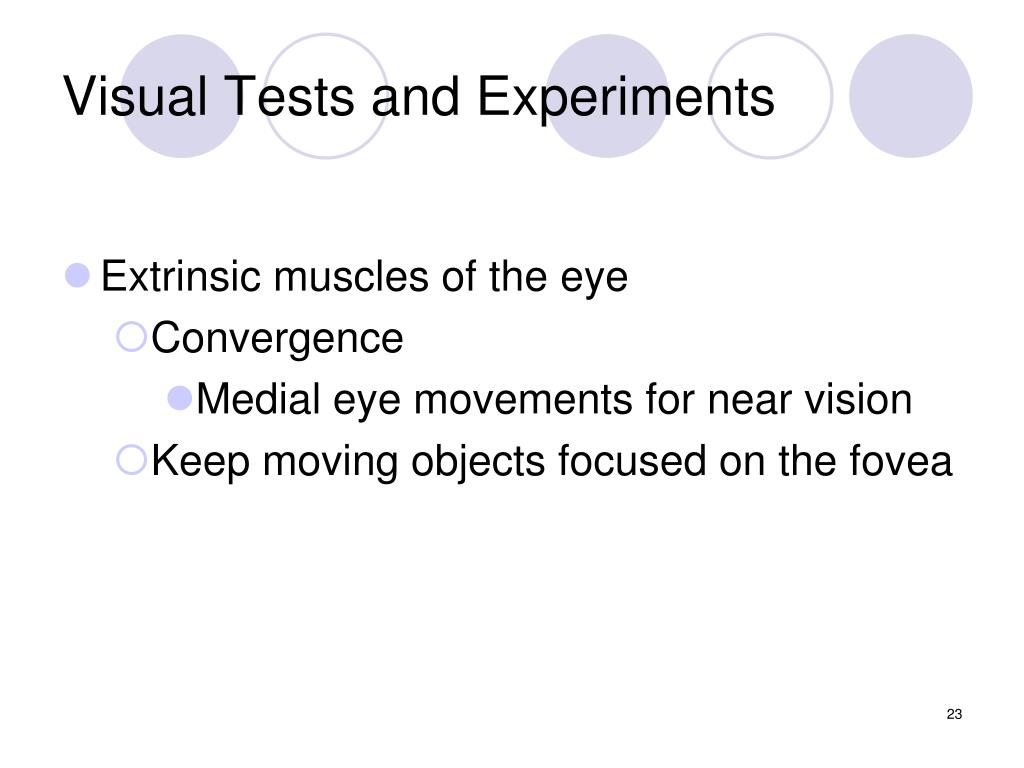

  23. Visual Tests and Experiments • Extrinsic muscles of the eye • Convergence • Medial eye movements for near vision • Keep moving objects focused on the fovea

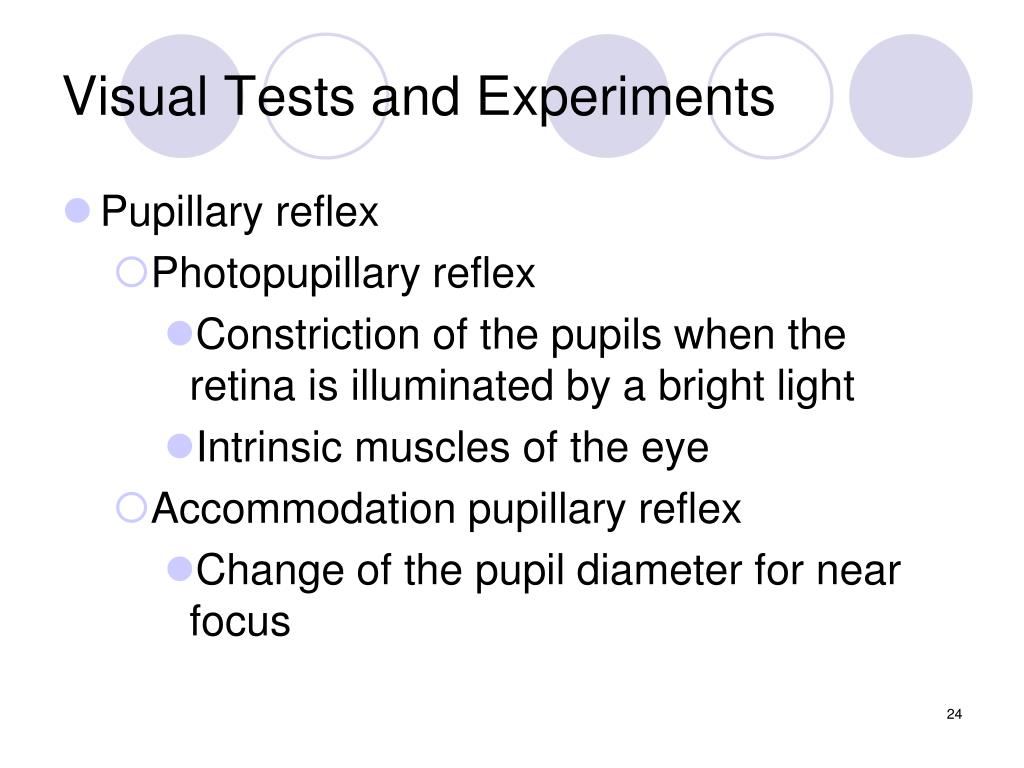

  24. Visual Tests and Experiments • Pupillary reflex • Photopupillary reflex • Constriction of the pupils when the retina is illuminated by a bright light • Intrinsic muscles of the eye • Accommodation pupillary reflex • Change of the pupil diameter for near focus

  25. Eye Dissection • WHOLE EYE • Cornea • Sclera • Optic nerve • Extrinsic muscles

  26. Eye Dissection • FRONTAL CUT • Humors: aqueous, vitreous • Lens • Ciliary body • Iris • Pupil • Choroid • Retina • Posterior cavity
