Exploring Jupiter with Radio Waves

Exploring Jupiter with Radio Waves. W. S. Kurth The University of Iowa Iowa City, IA. Juno Science Objectives. Origin Determine O/H ratio (water abundance) and constrain core mass to decide among alternative theories of origin. Interior

cargan
Download Presentation

Exploring Jupiter with Radio Waves

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Exploring Jupiter with Radio Waves W. S. Kurth The University of Iowa Iowa City, IA

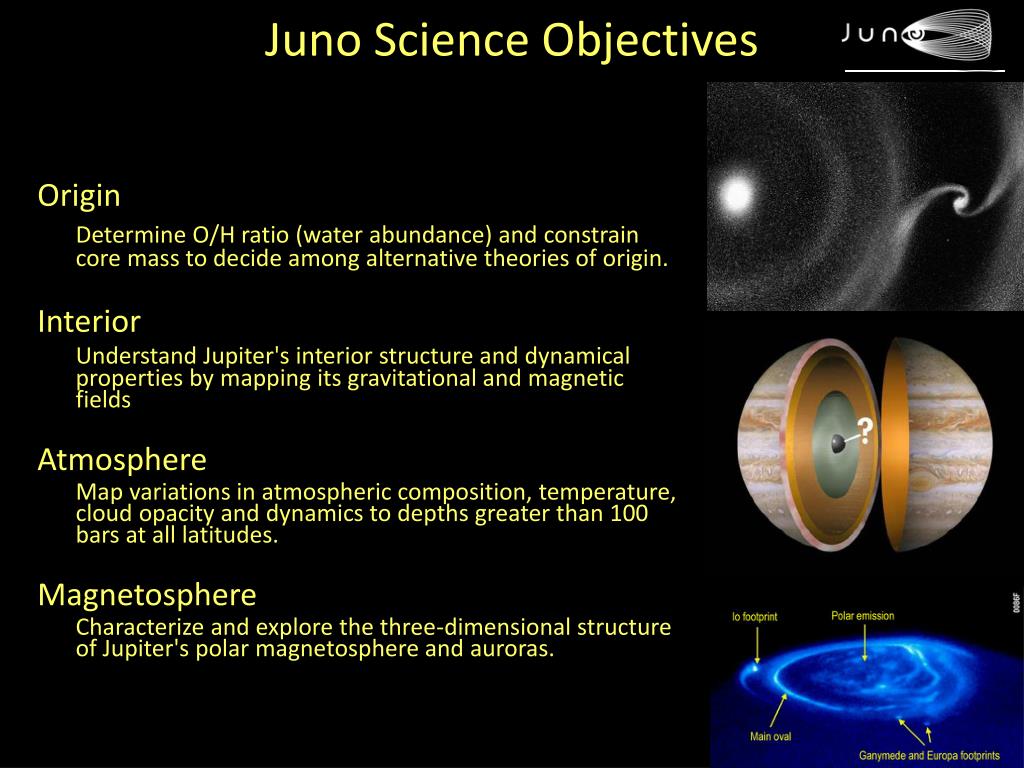

  2. Juno Science Objectives Origin Determine O/H ratio (water abundance) and constrain core mass to decide among alternative theories of origin. Interior Understand Jupiter's interior structure and dynamical properties by mapping its gravitational and magnetic fields Atmosphere Map variations in atmospheric composition, temperature, cloud opacity and dynamics to depths greater than 100 bars at all latitudes. Magnetosphere Characterize and explore the three-dimensional structure of Jupiter's polar magnetosphere and auroras.

  3. A Useful Analogy (hopefully) Vibrating string = Plasma Sound Waves = Radio Waves

  4. History: Before Spacecraft Measurements • Jovian decametric radiation (auroral) discovered from ground-based measurements in 1955 (Burke and Franklin) • Period (IAU) 9h 55m 29.37 +/- 0.04s • Maximum frequency of decametric radiation (39.5 MHz) yields estimate of magnetic field strength (14.1 Gauss) • Study of decimetric radiation (from the radiation belts) provided information on the tilt of the magnetic dipole (about 10 degrees) from the rotation axis and with a small offset from the center. • Io influence on Jupiter’s decametric radiation (Bigg, 1964)

  5. Jupiter’s Magnetosphere Solar Wind

  6. Periodicities in radio emissions allow us to determine the rotation period of a planet.

  7. Bigg’s discovery of an Io influence on the visibility of Jovian radio emissions foreshadowed the Voyager discovery of volcanoes on Io in 1979.

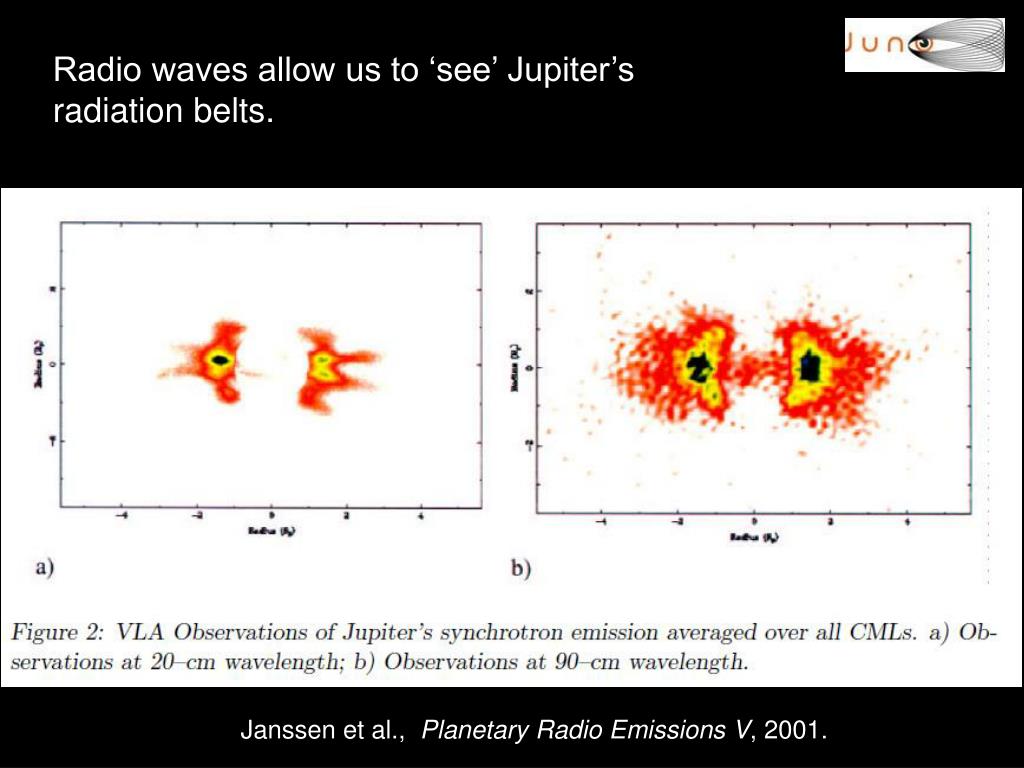

  8. Radio waves allow us to ‘see’ Jupiter’s radiation belts. Janssen et al., Planetary Radio Emissions V, 2001.

  9. Auroras are a visible manifestation of a magnetized planet’s interaction with it’s space environment.

  10. Jupiter has the brightest auroras in the solar system.

  11. Juno will provide an opportunity to determine how Jupiter’s auroras are generated.

  12. Jupiter produces a veritable ‘zoo’ of radio emissions.

  13. Auroral radio emissions are composed of a plethora of fine structure.

  14. Juno will allow us to fly through the source of Jupiter’s auroral radio emissions.

  15. Radio waves allow us to look for lightning in Jupiter’s atmosphere.

  16. Radio Planets: Comparing Earth & Jupiter

  17. Galopeau et al., Planetary Radio Emissions VI, 2005 Gurnett and Goertz, J. Geophys. Res., 1981.

  18. Both Earth and Jupiter produce intense radio emissions as part of the process of generating auroras. Earth de Feraudy et al., Planetary Radio Emissions V, 2001. Ladreiter & LeBlanc, Planetary Radio Emissions III, 1991.
