Electronic Direction Finding

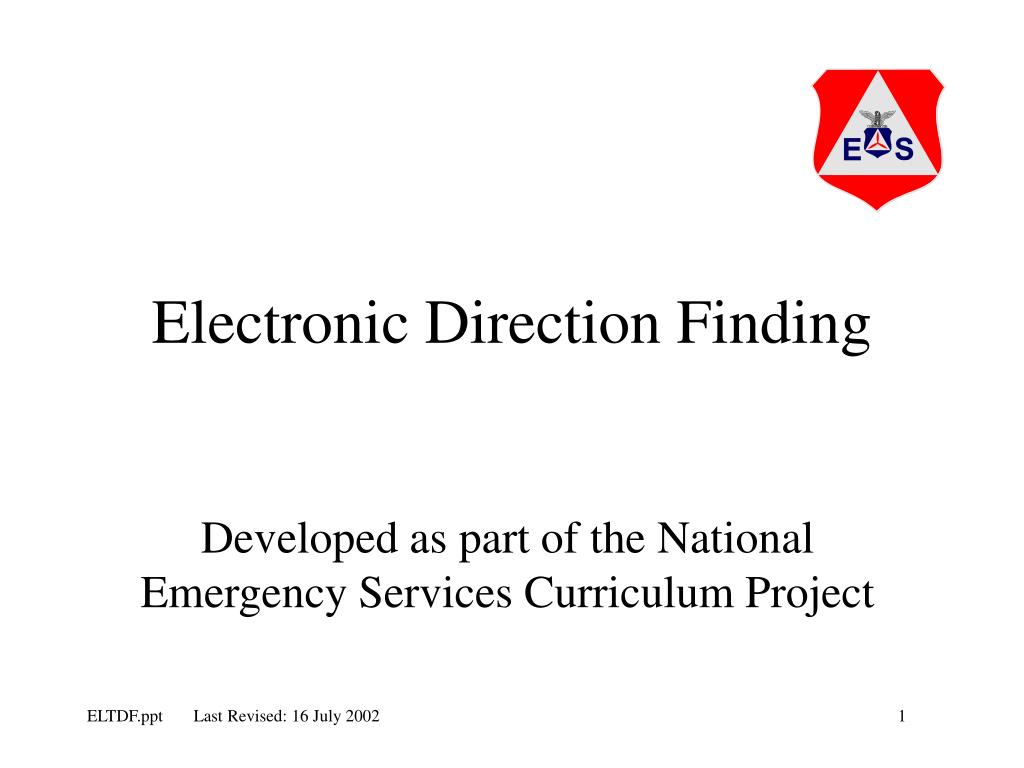

Developed as part of the National Emergency Services Curriculum Project

how the mission starts
How the Mission Starts
  • ELT set off by plane crashing, or EPIRB goes off when ship sinks or when either is accidentally set off
    • 97 to 99 percent of all ELT missions are false alarms
  • SARSAT or COSPAS receives the signal
  • The satellite transmits the mirror locations of the target to a Local User Terminal (LUT)
how the mission starts continued
How the Mission Starts Continued
  • The LUT forwards the information to the Mission Control Center so that the appropriate Rescue Coordination Center can be notified
  • AFRCC, at Langley AFB, calls the mission coordinator or designee who proceeds with the callout
distress beacon frequencies

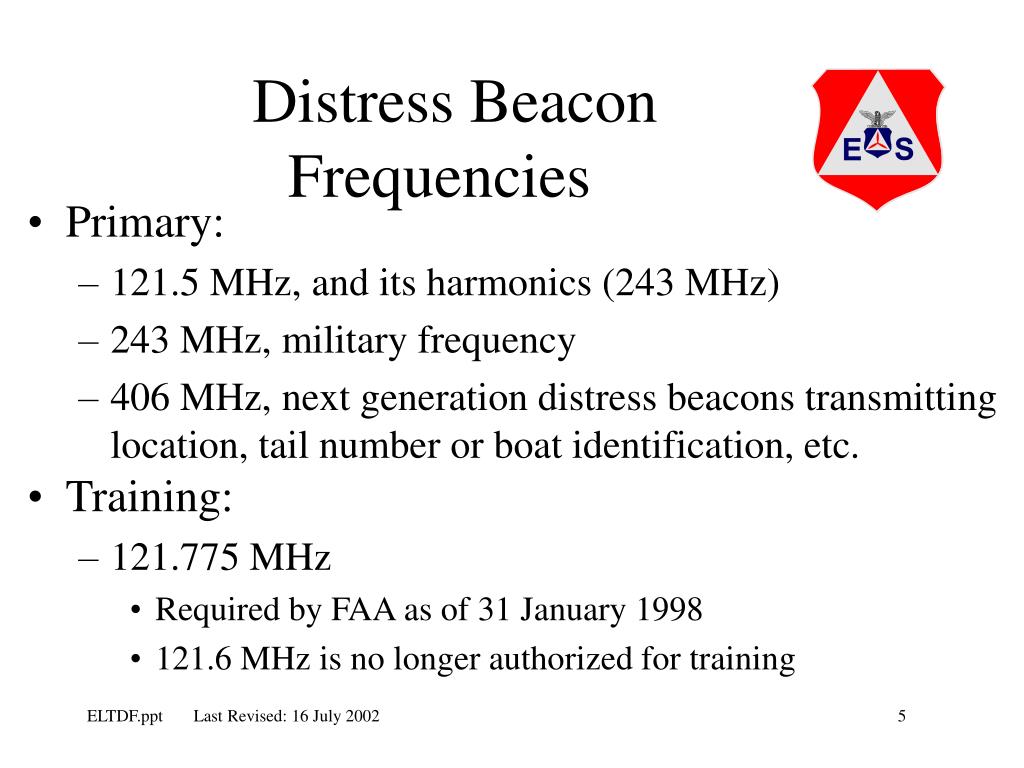

Distress Beacon Frequencies
  • Primary:
    • 121.5 MHz, and its harmonics (243 MHz)
    • 243 MHz, military frequency
    • 406 MHz, next generation distress beacons transmitting location, tail number or boat identification, etc.
  • Training:
    • 121.775 MHz
      • Required by FAA as of 31 January 1998
      • 121.6 MHz is no longer authorized for training
l per components
L-Per Components

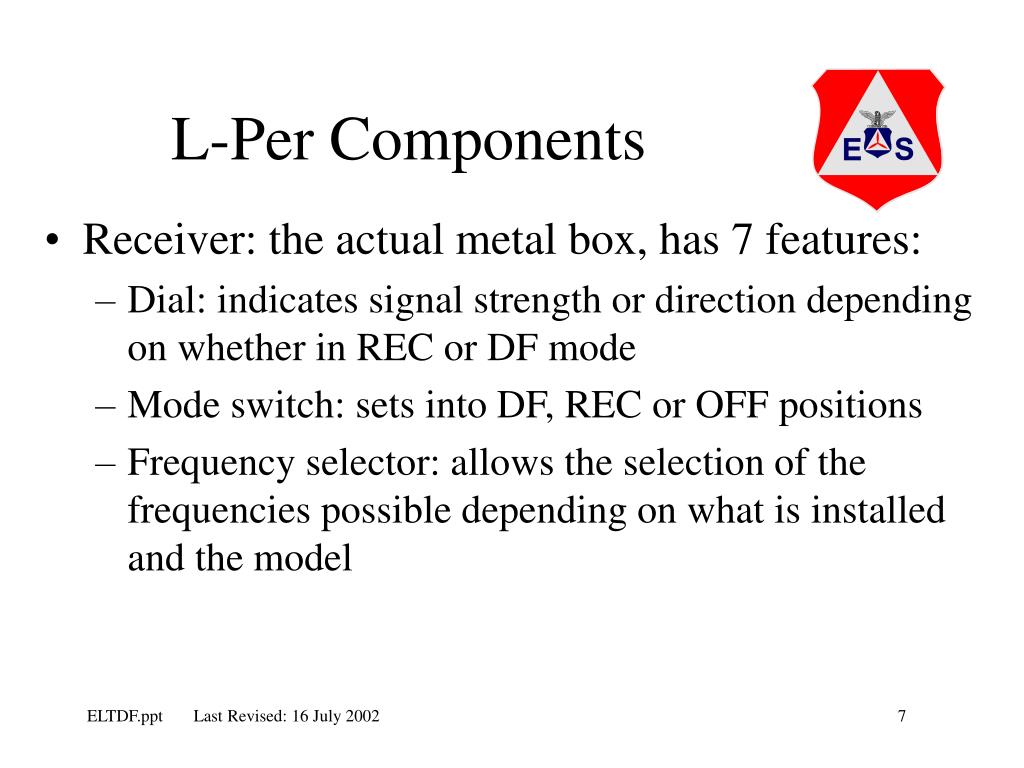

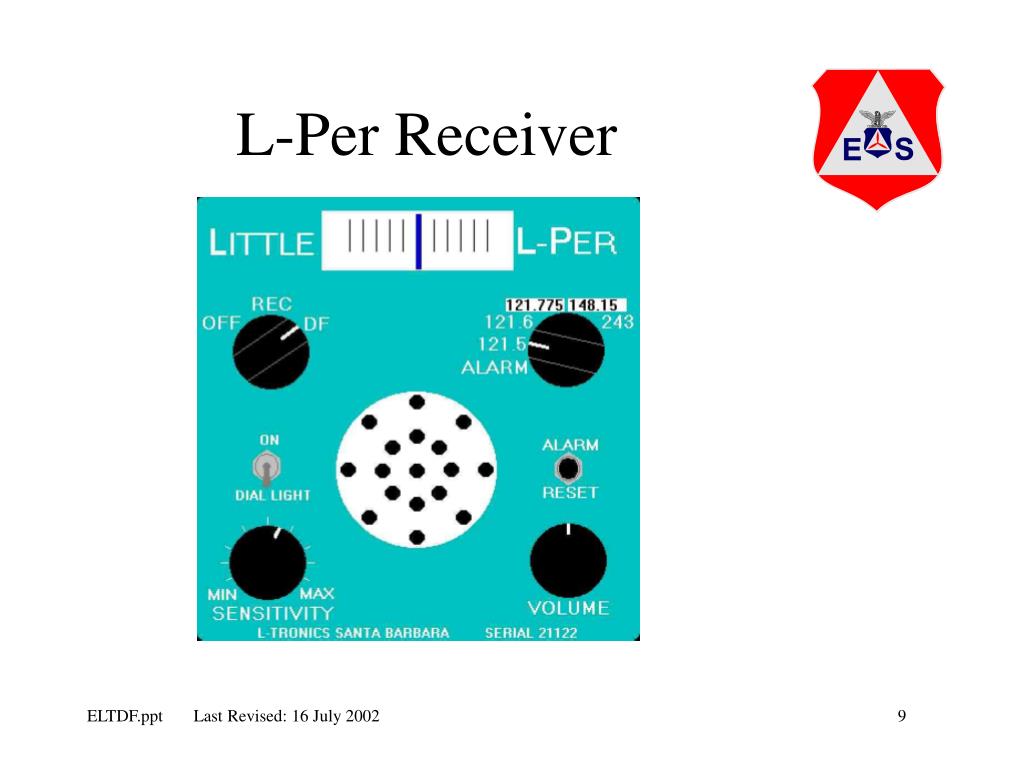

  • Receiver: the actual metal box, has 7 features:
    • Dial: indicates signal strength or direction depending on whether in REC or DF mode
    • Mode switch: sets into DF, REC or OFF positions
    • Frequency selector: allows the selection of the frequencies possible depending on what is installed and the model
l per components continued
L-Per Components Continued

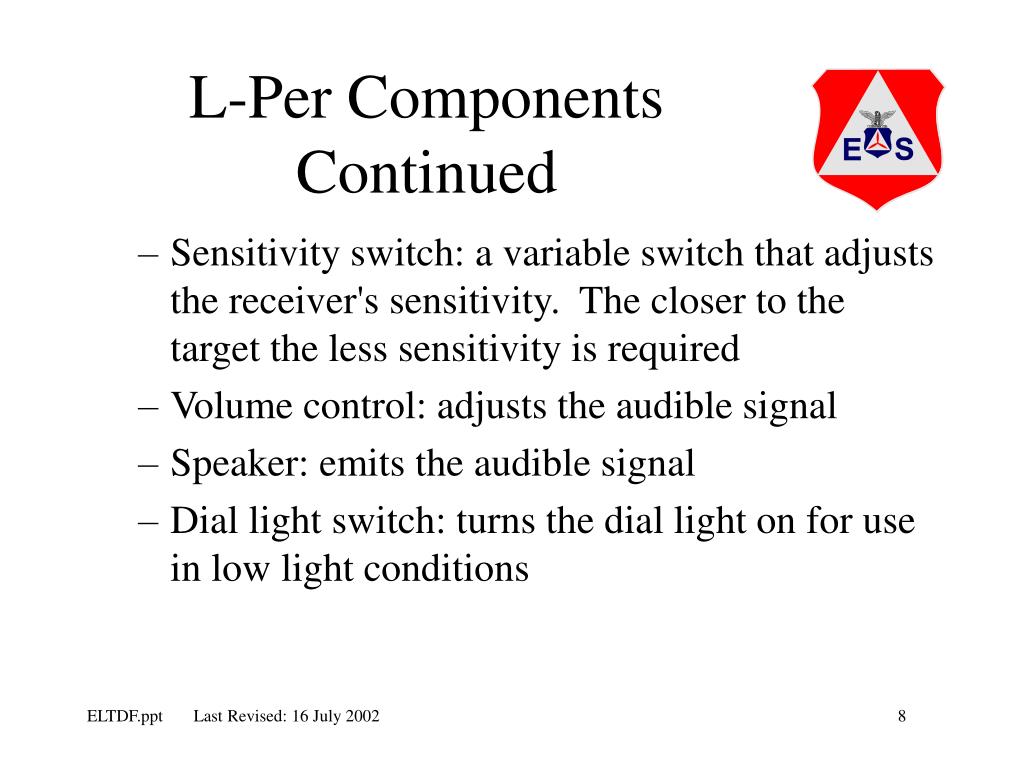

  • Sensitivity switch: a variable switch that adjusts the receiver's sensitivity. The closer to the target the less sensitivity is required
  • Volume control: adjusts the audible signal
  • Speaker: emits the audible signal
  • Dial light switch: turns the dial light on for use in low light conditions
slide10

L-Per Components Continued

  • Mast
    • The two piece wooden vertical mast is joined in the middle by a bolt and wing nut, allowing the mast to be folded for storage or while the unit is carried through the woods.
      • Make sure to hold the mast on both levels because the L-Per tends to be a knuckle-buster.
    • The coaxial cable for connecting the radio to the antenna, and mounting screws for attaching the receiver to the mast are mounted to the mast.
l per components continued11

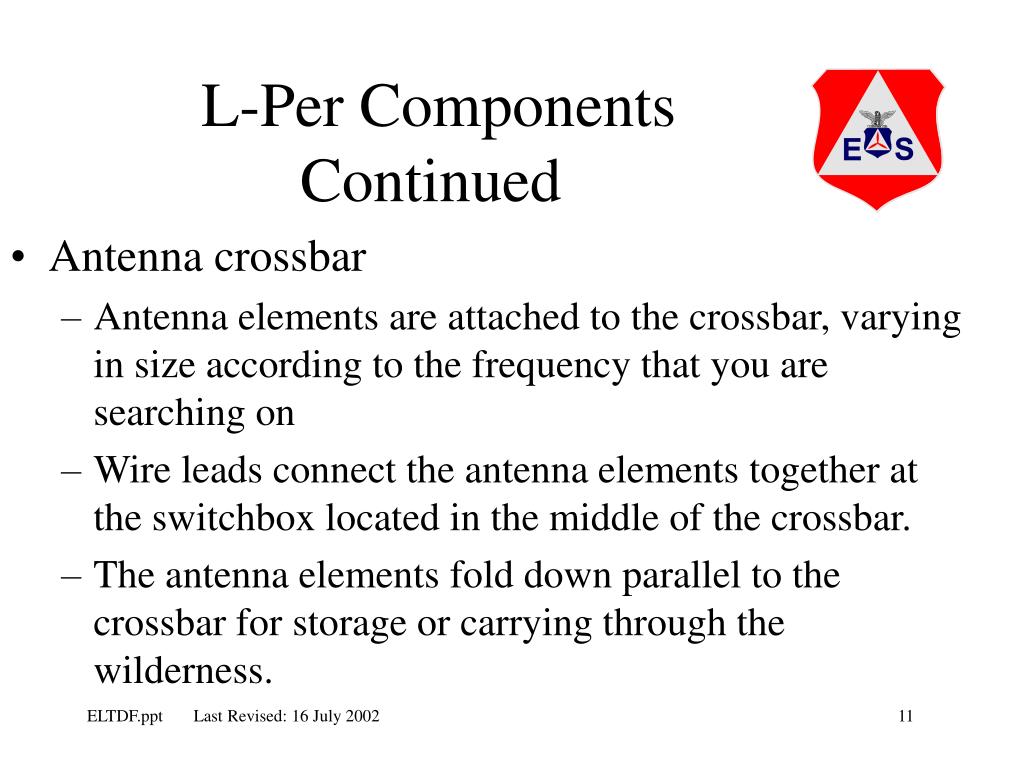

L-Per Components Continued
  • Antenna crossbar
    • Antenna elements are attached to the crossbar, varying in size according to the frequency that you are searching on
    • Wire leads connect the antenna elements together at the switchbox located in the middle of the crossbar.
    • The antenna elements fold down parallel to the crossbar for storage or carrying through the wilderness.
l per in df mode
L-Per in DF Mode

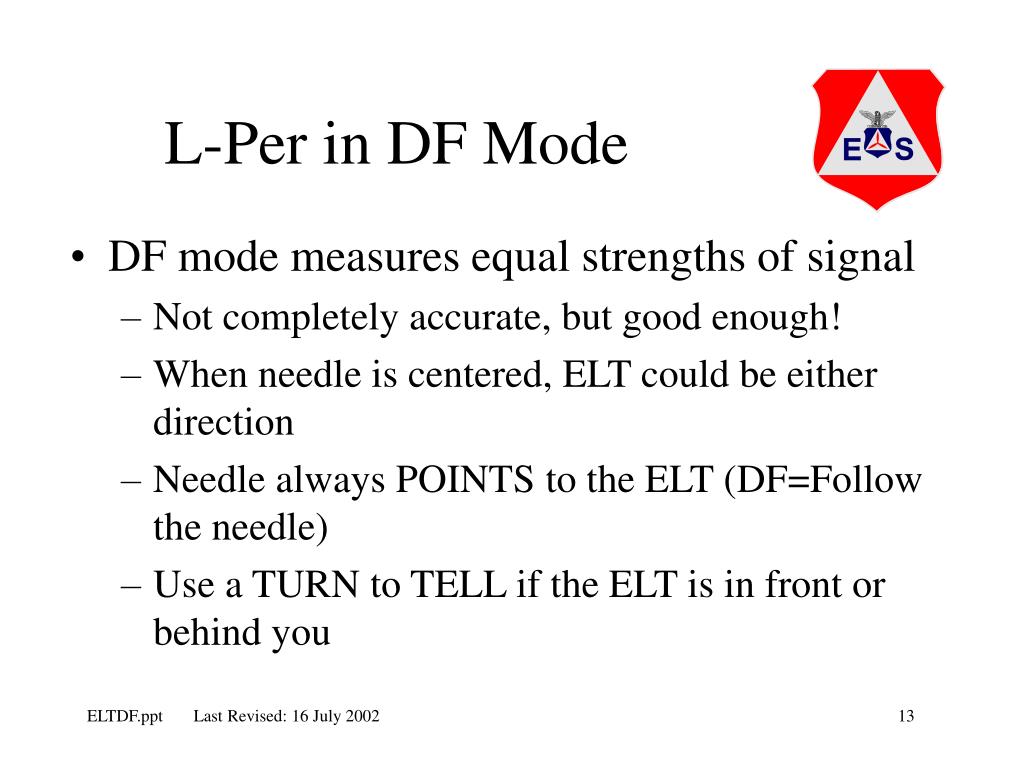

  • DF mode measures equal strengths of signal
    • Not completely accurate, but good enough!
    • When needle is centered, ELT could be either direction
    • Needle always POINTS to the ELT (DF=Follow the needle)
    • Use a TURN to TELL if the ELT is in front or behind you
l per in rec mode
L-Per in REC Mode
  • Receive Mode Measures Signal Strength only
    • Signal comes from the direction of the arrows on the antenna (to your left)
l per in rec mode continued
L-Per in REC Mode Continued
  • Use it with multiple centers (more than 2) to verify strongest path
    • Due Reflections
    • That’s most likely the true direction to the ELT
tracker operating instructions
Tracker Operating Instructions

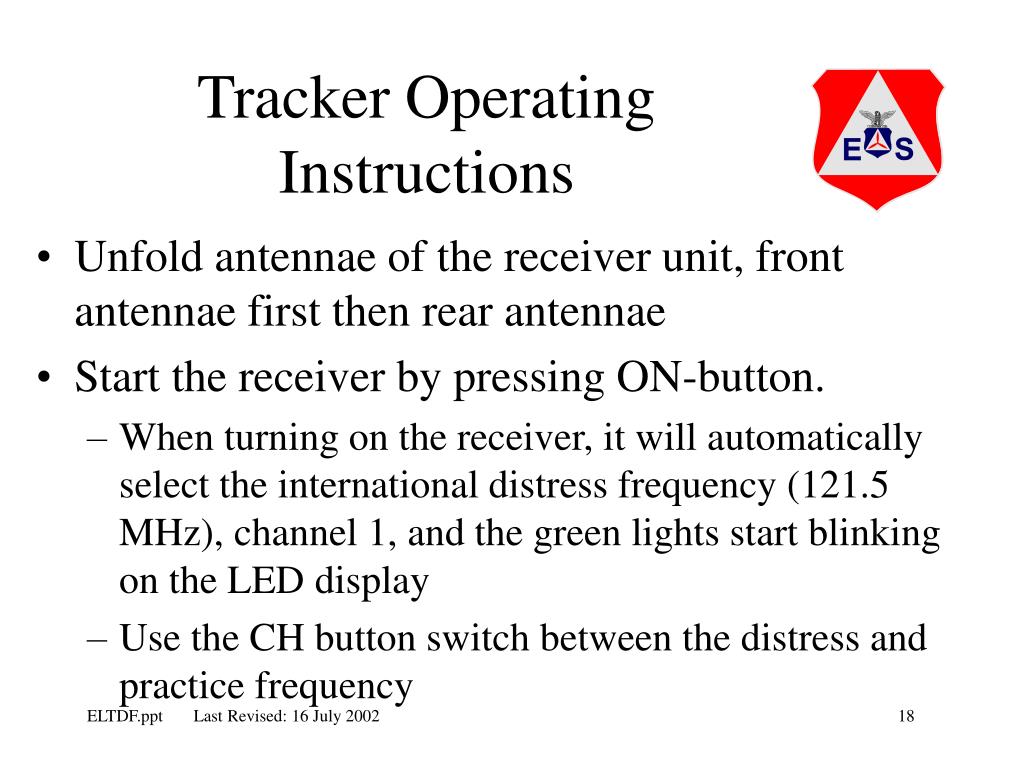

  • Unfold antennae of the receiver unit, front antennae first then rear antennae
  • Start the receiver by pressing ON-button.
    • When turning on the receiver, it will automatically select the international distress frequency (121.5 MHz), channel 1, and the green lights start blinking on the LED display
    • Use the CH button switch between the distress and practice frequency
tracker operating instructions continued
Tracker Operating Instructions Continued
  • By Pressing the MAN button you can choose manual operation instead of automatic.
    • The MAN light will be lit when this mode has been selected
    • Receiver sensitivity can be adjusted in the manual mode
  • In manual or automatic mode, the LED display reflects signal strength in the direction of the signal beacon
body shielding
Body Shielding
  • A method of beating reflections at close range
  • Can use L-Per
  • Radio Shack JETSTREAM radio is better and CHEAP!
  • Body blocks out the signal
    • Called a NULL
    • Null should be at your BACK
body shielding continued
Body Shielding Continued

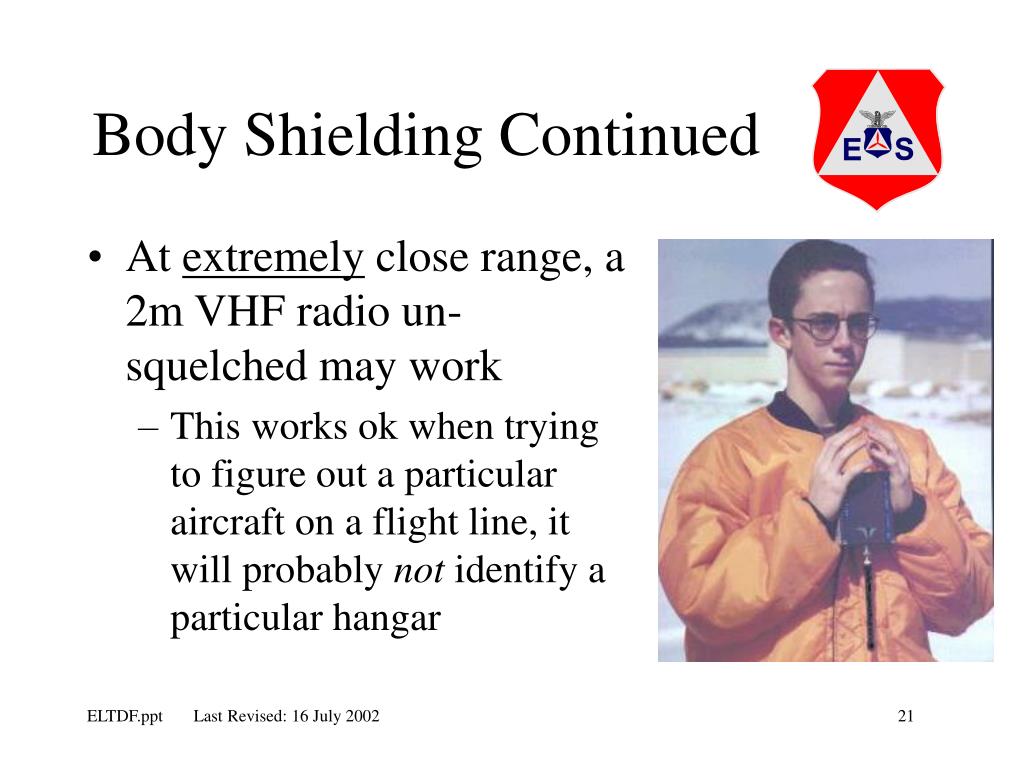

  • At extremely close range, a 2m VHF radio un-squelched may work
    • This works ok when trying to figure out a particular aircraft on a flight line, it will probably not identify a particular hangar
line of sight transmission
Line of Sight Transmission
  • ELTs are limited to Line of Sight propagation and reflections
  • You don’t always need to hear the ELT
    • Carrier wave may be broadcasting with no audible sweep
what else can affect an elt signal
What Else Can Affect An ELT Signal?
  • Power lines
  • Fence Line (signal can follow)
  • Reflections off of obstacles
  • Hangars
  • Moving Target
  • Not using the Equipment Properly - See Picture at Right What’s wrong with this?
set up the equipment completely
Set Up the Equipment Completely

Open the Antennae Fully for use in the field

reflections
Reflections
  • To beat reflections
    • Check sensitivity often
    • Use REC mode
      • Usually strongest signal is not a reflection
    • Use the rubber ducky antenna when sensitivity is low
    • Re-trace your steps if necessary, going back to locations of strong signal strength
triangulation
Triangulation
  • Documenting team movements is logical, and can allow the team to locate the distress beacon sooner
triangulation continued
Triangulation Continued
  • You must be able to receive the signal
    • Center up DF unit on the signal
    • Take the magnetic bearing (shoot an azimuth)
    • Correct for magnetic variation
      • East is least, West is best
    • Plot your bearings (draw a line) on map
    • The ELT should be where the lines cross!
what information is needed for the ic
What information is needed for the IC?
  • Make
  • Model and Model #
  • Manufacturer
  • Location Description
  • Approximate location (Latitude & Longitude)
  • Owner
  • Tail Number or Boat Name and Number
  • Time Found and Time Shut-off
what information is needed for the ic continued
What information is needed for the IC? Continued
  • Switch Position on ELT or EPIRB: ON, OFF, or ARM
  • Manufacture Date
  • Battery Expiration Date
  • Information which could indicate reason for accidental or justified activation of ELT or EPIRB
  • NOTE: If you can’t get certain information, don’t worry, the AFRCC understands
electronic direction finding tasks

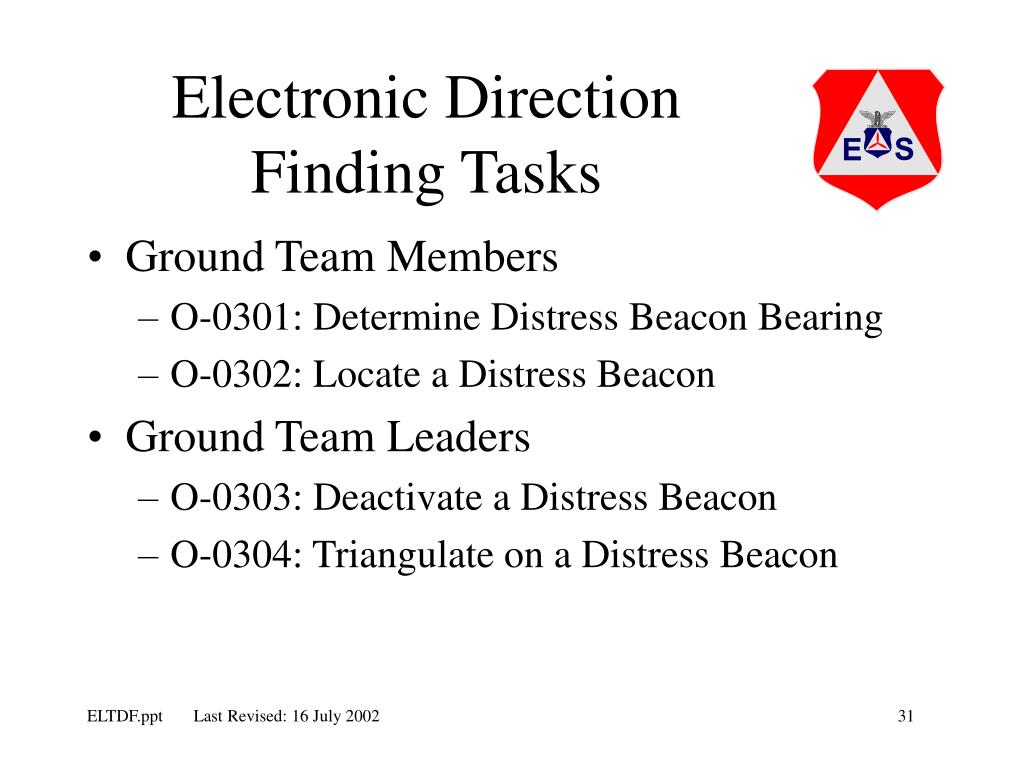

Electronic Direction Finding Tasks
  • Ground Team Members
    • O-0301: Determine Distress Beacon Bearing
    • O-0302: Locate a Distress Beacon
  • Ground Team Leaders
    • O-0303: Deactivate a Distress Beacon
    • O-0304: Triangulate on a Distress Beacon
