  1. GROUNDING SYSTEM OF HV/MV SUBSTATIONS FORMED THROUGH CABLE LINES WITH INSULATED METAL SHEATH

  2. OUTHGOING MV CABLE LINE WITH INSULATED METAL SHEAT

  3. EQUIVALENT CIRCUIT FORMED THROUGH THE METAL SHEATS OF A CABLE LINE WITH INSULATED METAL SHEAT

  4. APPLIED NOTATIONS HAVE THE FOLLOWING MEANING

  5. ANALYTICAL EXPRESSION FOR GROUNDING IMPEDANCE AT THE BEGINNING OF THE CABLE LINE

  6. ANALYTICAL EXPRESSION FOR THE ACTIVE CABLE LINE LENGTH AND FOR ESTIMATION OF THE AREA COVERED BY THE SPONTANEOUSLY FORMED GROUNDING SYSTEM L’a- active cable line lengthexpressed in relation to the length of average cable line section.

  7. ANALYTICAL EXPRESSION FOR THE CASE WHEN THE FIRST LINE SECTION IS SIGNIFICANTLY DIFFERENT IN COMPARISON WITH THE AVERAGE ONE

  8. ACTIVE LENGTH AND GROUNDING IMPEDANCE OF THE CABLE LINE AS A FUNCTION OF THE GROUNDING IMPEDANCE OF THE SUPPLIED MV/LV SUBSTATIONS

  9. CABLE LINES BELONGING TO ONE OF THE PRIMARY DIRECTIONS AND THEIR SIMPLIFICATION USED IN THE PROCEDURE OF METHOD DEVELOPMENT

  10. DESCRIPTION OF THE METHOD OF CALCULATION

  11. ANALYTICAL EXPRESSIONS FOR THE GROUNDING SYSTEM IMPEDANCE AND FOR THE TRANSFERRED POTENTIAL

  12. ADDITIONAL NUMERICAL DATA NECESSARY FOR THE USAGE OF THE PRACTICAL EXAMPLE CONSIDERED IN THE FORMER CASE • total length of each of the cable lines is 4 km • - each line supplies nine 10/0.4 kV substations • - value of the grounding impedance |Zt| is: 1.0 Ω. • self-impedance of tree cable line metal sheaths: • (0.100 + j 0.135) Ω.

  13. MAIN CALCULATION RESULTS

  14. TESTING AND EVALUATING OF GROUNDING SYSTEM FOR SUBSTATIONS LOCATED IN URBAN AREAS

  15. TESTING CIRCUIT

  16. MEANING OF THE USED NOTATIONS

  17. FIRST CASE:TEST CURRENTCIRCULATES THROUGH THEENTIRE FEEDING LINE LENGTH

  18. SECOND CASE:TEST CURRENT PASSES ONLY THROUGH THE FEEDING LINE SECTION BETWEEN TESTED AND THE NEAREST TRANSIT SUBSTATION

  19. MEANING OF THE USED NOTATIONS

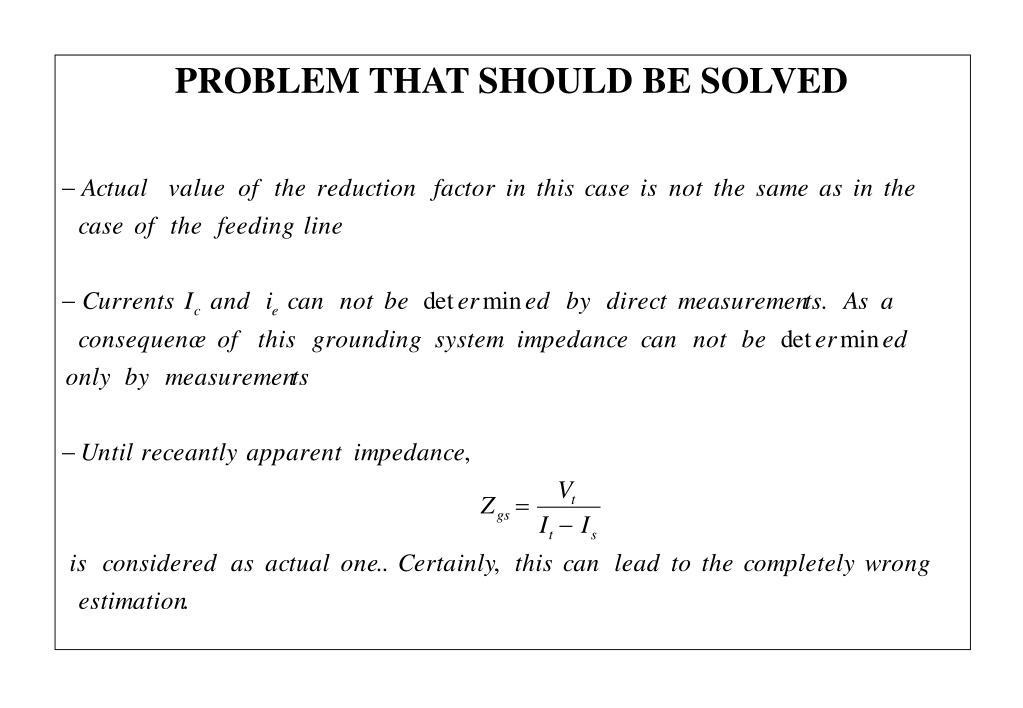

  20. PROBLEM THAT SHOULD BE SOLVED

  21. GEOMETRICAL SHAPE AND SPACE DISPOSITIONOF THE FICTITIOUS CONDUCTOR

  22. ANALYTICAL EXPRESSIONS FOR THE RELEVANT IMPEDANCES

  23. DETERMINATION OF THE ACTUAL GROUNDING SYSTEM IMPEDANCE

  24. PRELIMINARY ESTIMATION OF THE SAFETY CONDITIONS

  25. CONCLUSIONS • Presented analytical procedure enables observing the whole grounding problem of distribution HV/MV substations into an realistic frame work. • It was shown that the part of the ground fault current passing through the earth is dramaticaly smaller than it was considered until recently. • 3. General conditions for solving grounding problem of distribution HV/MV substations located in urban and suburban areas are much better than it was considered until recently.
