Objective

Learn how to graph linear equations in slope-intercept form and graph linear inequalities using different methods. Understand parallel and perpendicular lines. Practice graphing linear equations and inequalities.

cantonio
Download Presentation

Objective

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

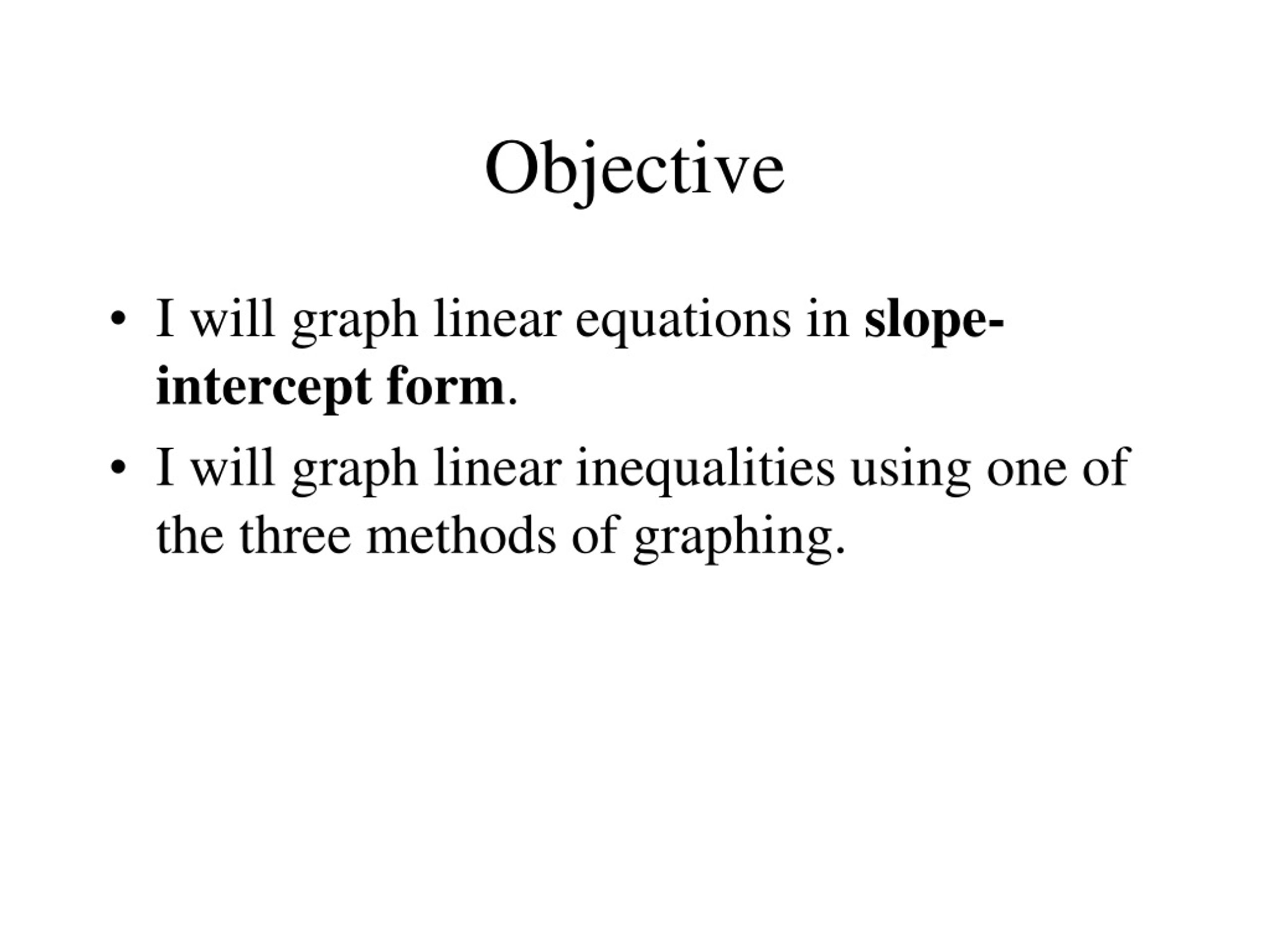

  1. Objective • I will graph linear equations in slope-intercept form. • I will graph linear inequalities using one of the three methods of graphing.

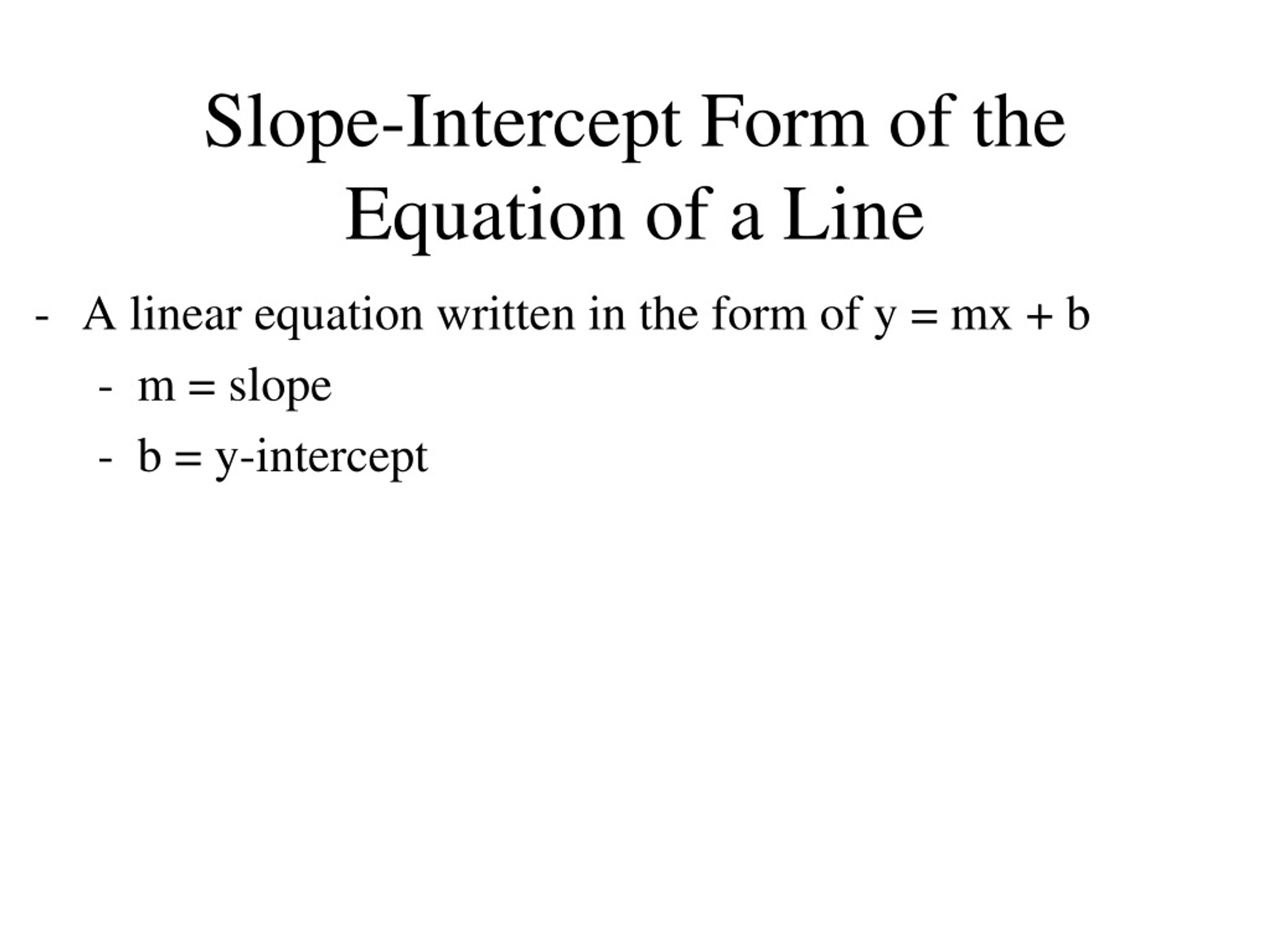

  2. Slope-Intercept Form of the Equation of a Line • A linear equation written in the form of y = mx + b • m = slope • b = y-intercept

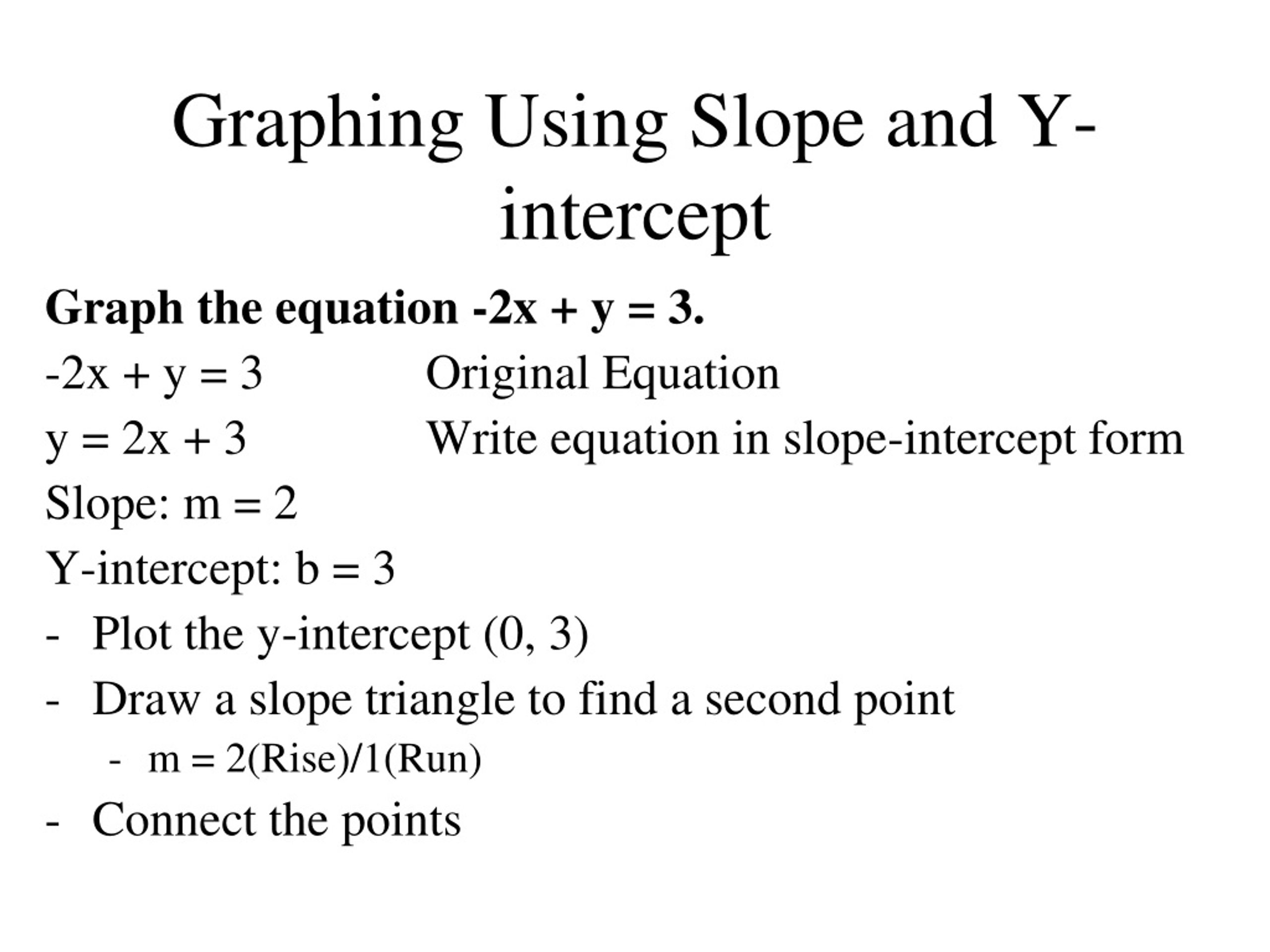

  3. Graphing Using Slope and Y-intercept Graph the equation -2x + y = 3. -2x + y = 3 Original Equation y = 2x + 3 Write equation in slope-intercept form Slope: m = 2 Y-intercept: b = 3 • Plot the y-intercept (0, 3) • Draw a slope triangle to find a second point • m = 2(Rise)/1(Run) • Connect the points

  4. Guided Practice • Graph the equation using slope-intercept form. 1. 6x - y = 1

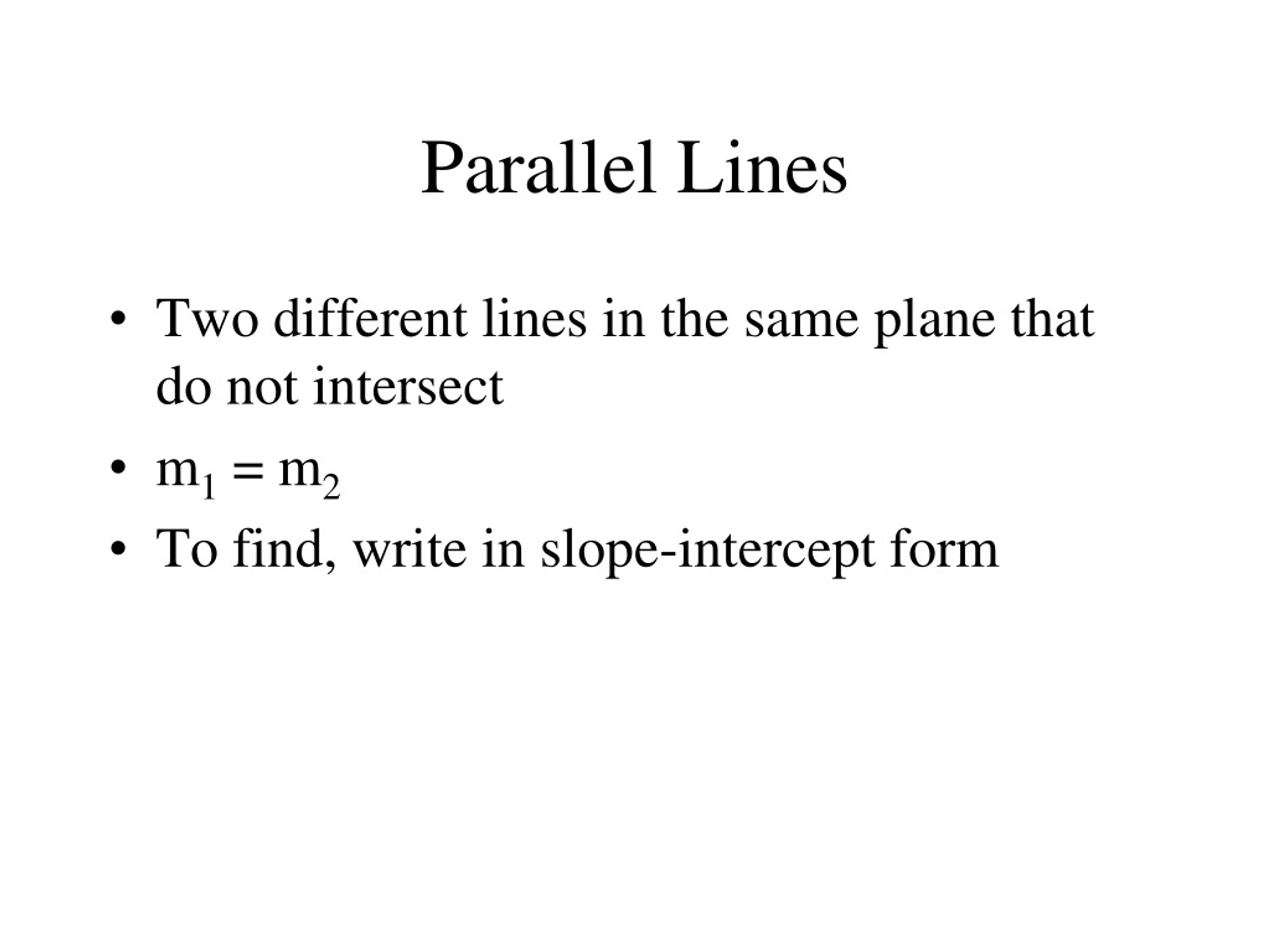

  5. Parallel Lines • Two different lines in the same plane that do not intersect • m1 = m2 • To find, write in slope-intercept form

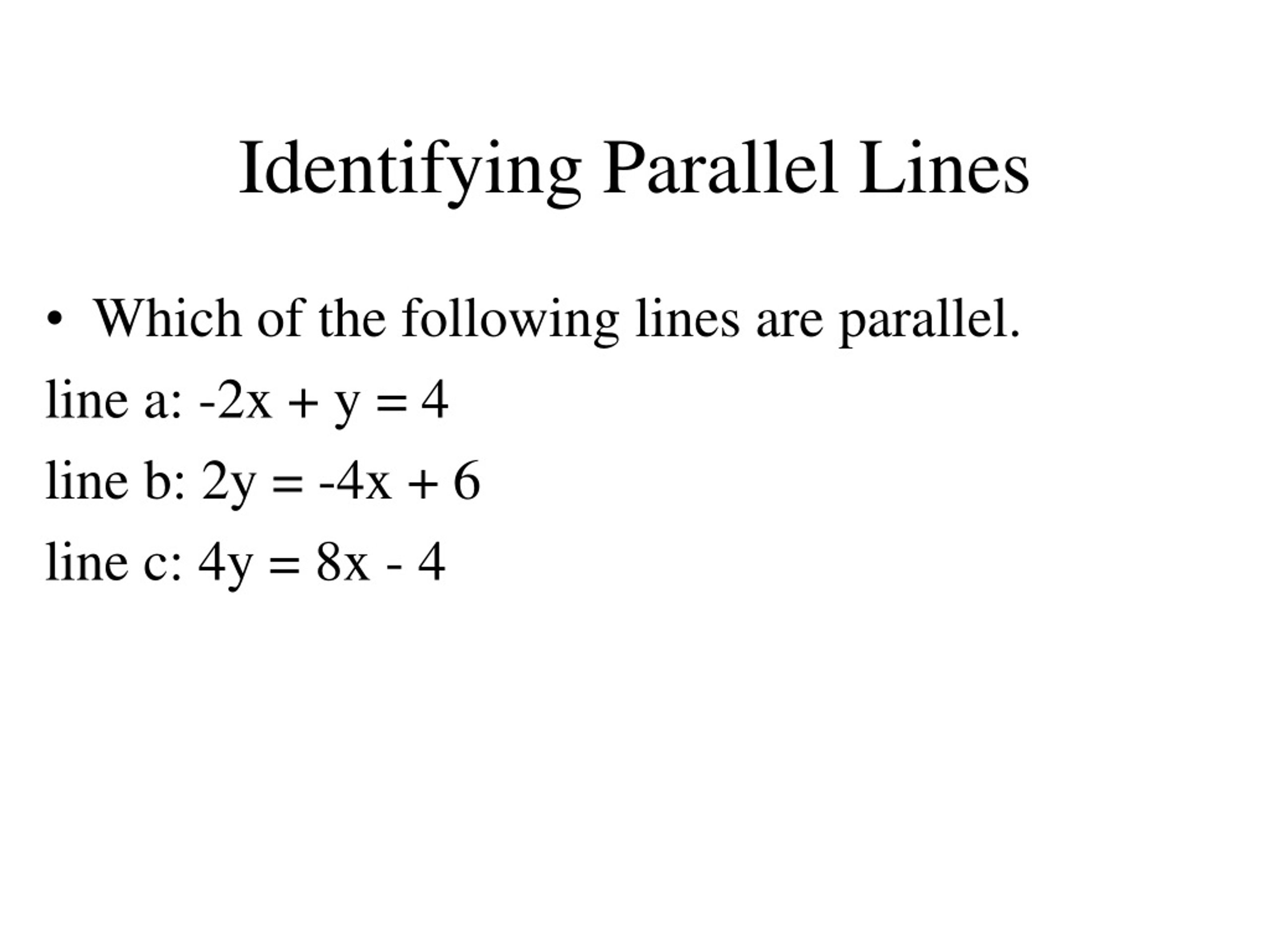

  6. Identifying Parallel Lines • Which of the following lines are parallel. line a: -2x + y = 4 line b: 2y = -4x + 6 line c: 4y = 8x - 4

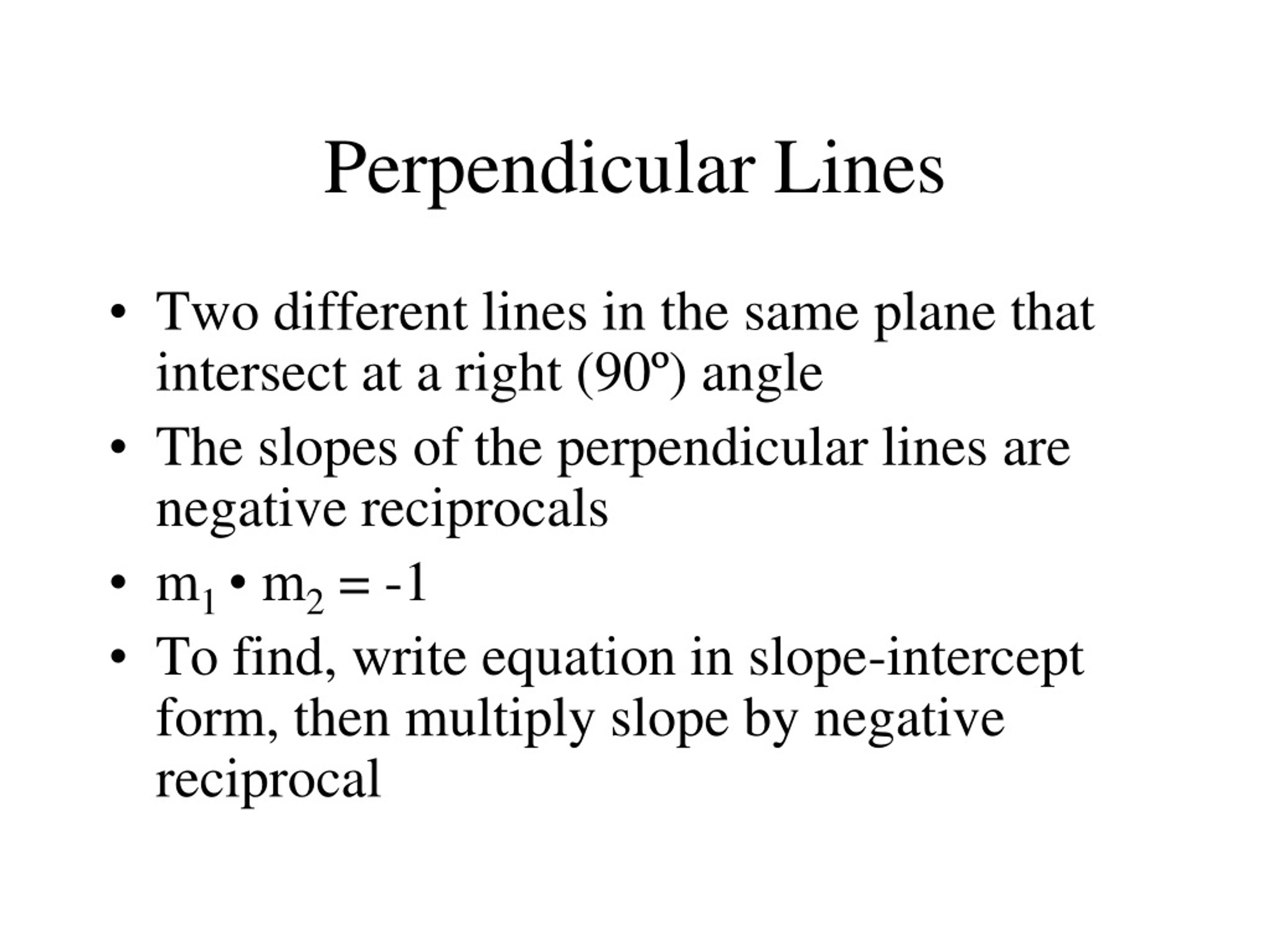

  7. Perpendicular Lines • Two different lines in the same plane that intersect at a right (90º) angle • The slopes of the perpendicular lines are negative reciprocals • m1 • m2 = -1 • To find, write equation in slope-intercept form, then multiply slope by negative reciprocal

  8. Finding a Perpendicular Line • Find the slope of the line perpendicular to 2y = 6x + 8. 2y = 6x + 8 y = 3x + 4 Slope-Intercept Form m1 = 3

  9. Guided Practice 1. Find the slope of the line parallel and perpendicular to the following line. 2x + 4y = 12

  10. Graphing Linear Inequalities • Use one of the three methods learned for graphing linear equations (table, intercepts, or slope-intercept form) • < - use a dotted line and shade below line • > - use a dotted line and shade above line • ≤ - use a solid line and shade above line • ≥ - use a solid line and shade above line

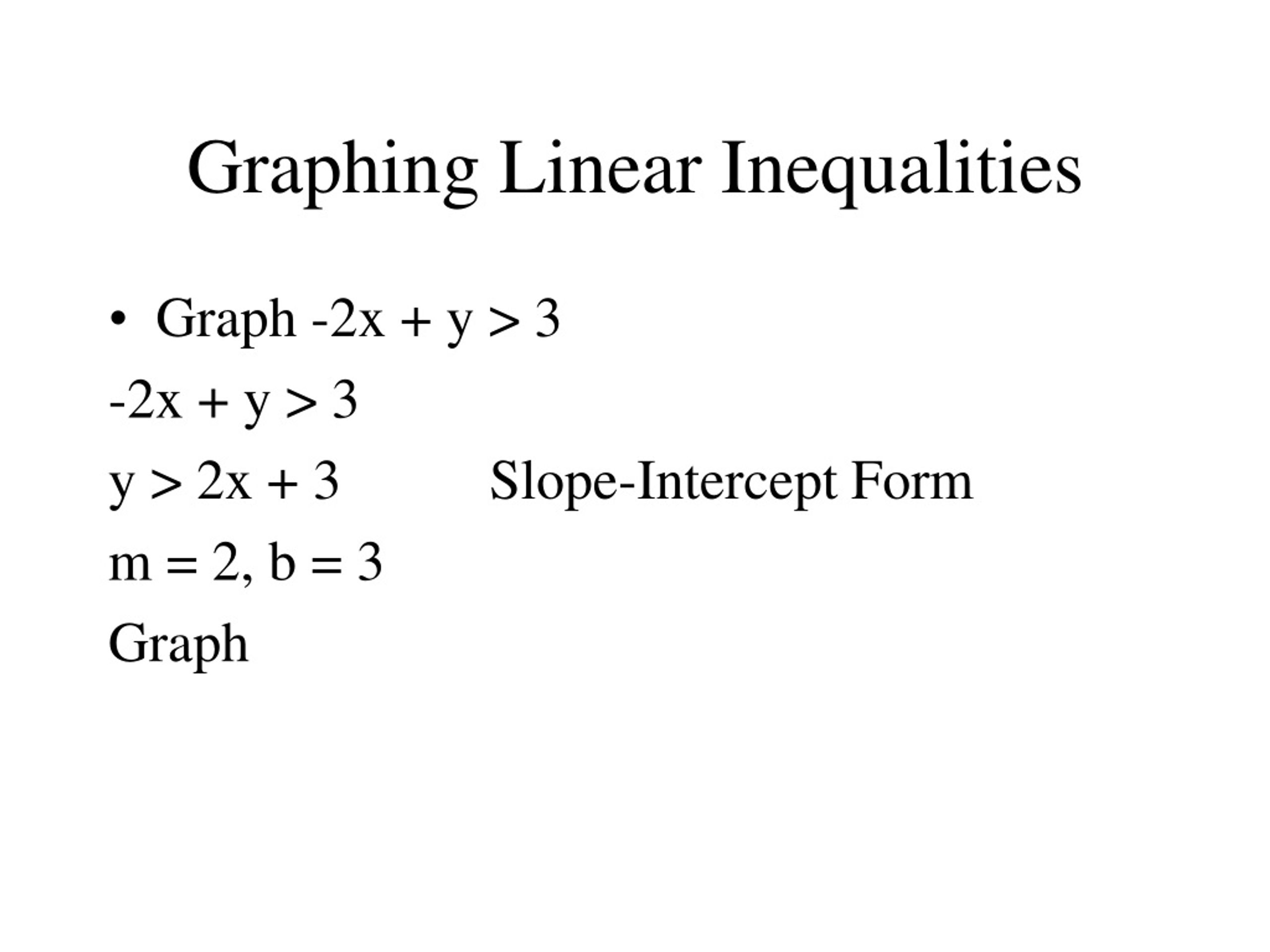

  11. Graphing Linear Inequalities • Graph -2x + y > 3 -2x + y > 3 y > 2x + 3 Slope-Intercept Form m = 2, b = 3 Graph

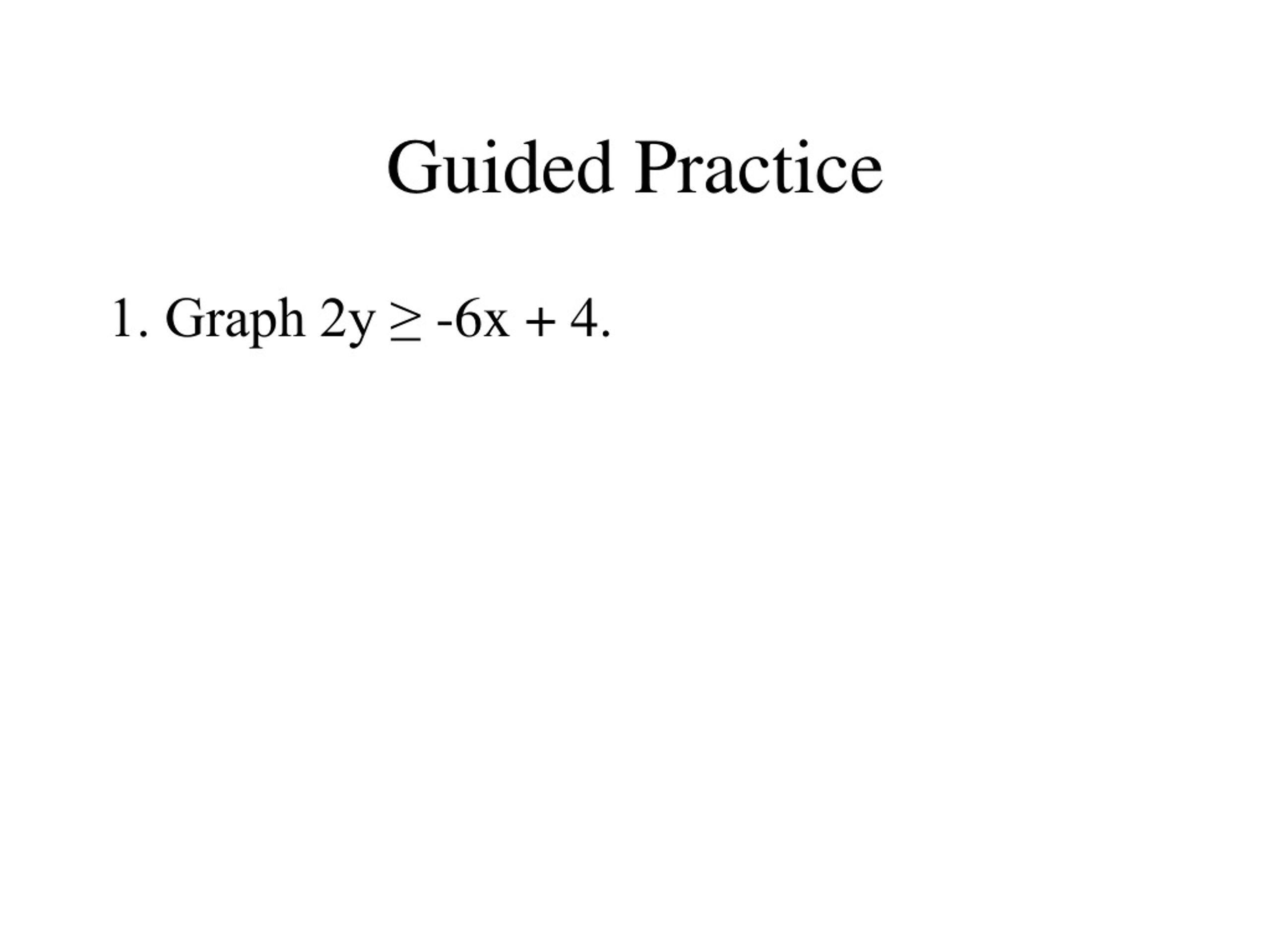

  12. Guided Practice 1. Graph 2y ≥ -6x + 4.

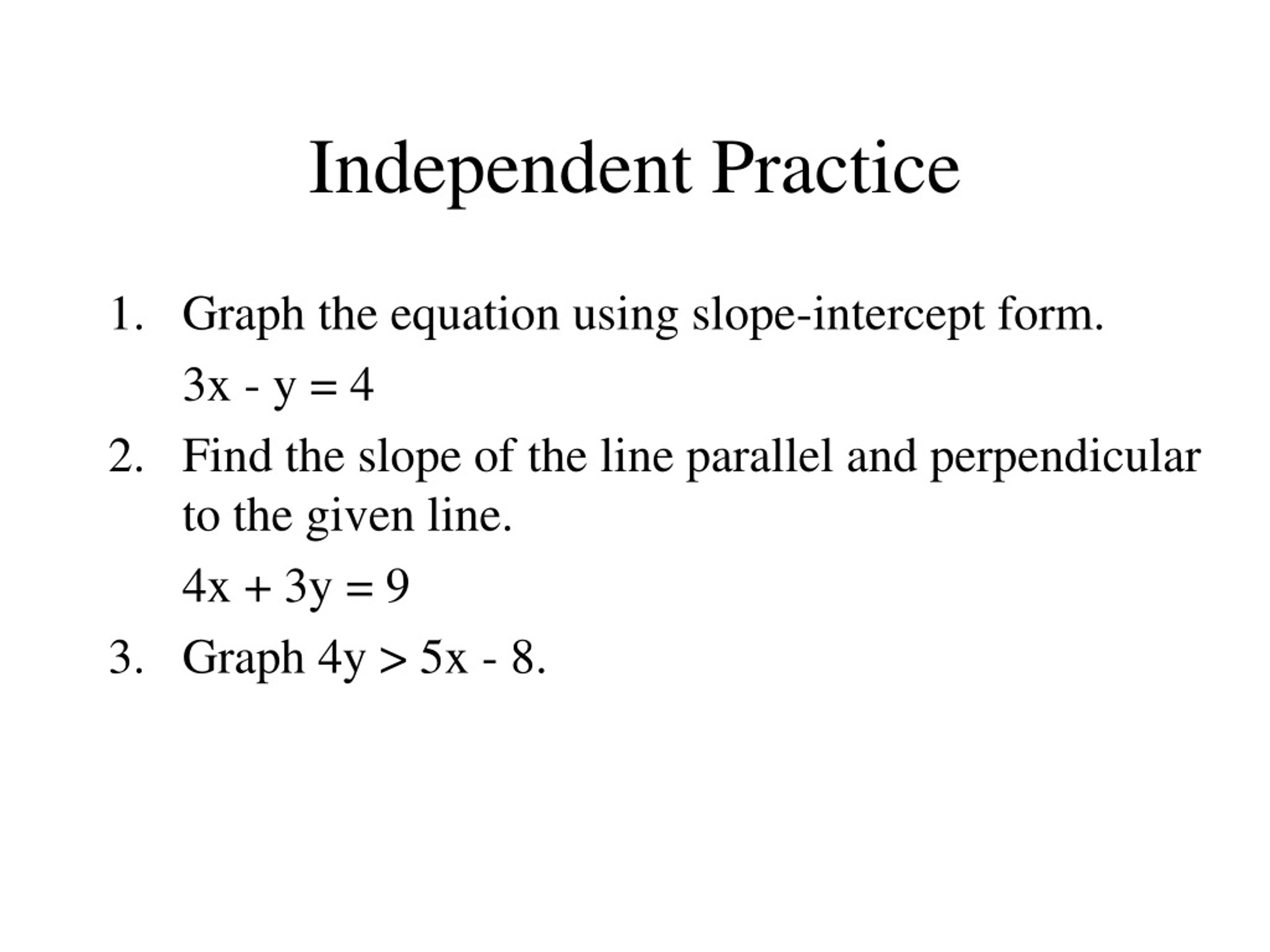

  13. Independent Practice • Graph the equation using slope-intercept form. 3x - y = 4 • Find the slope of the line parallel and perpendicular to the given line. 4x + 3y = 9 3. Graph 4y > 5x - 8.
