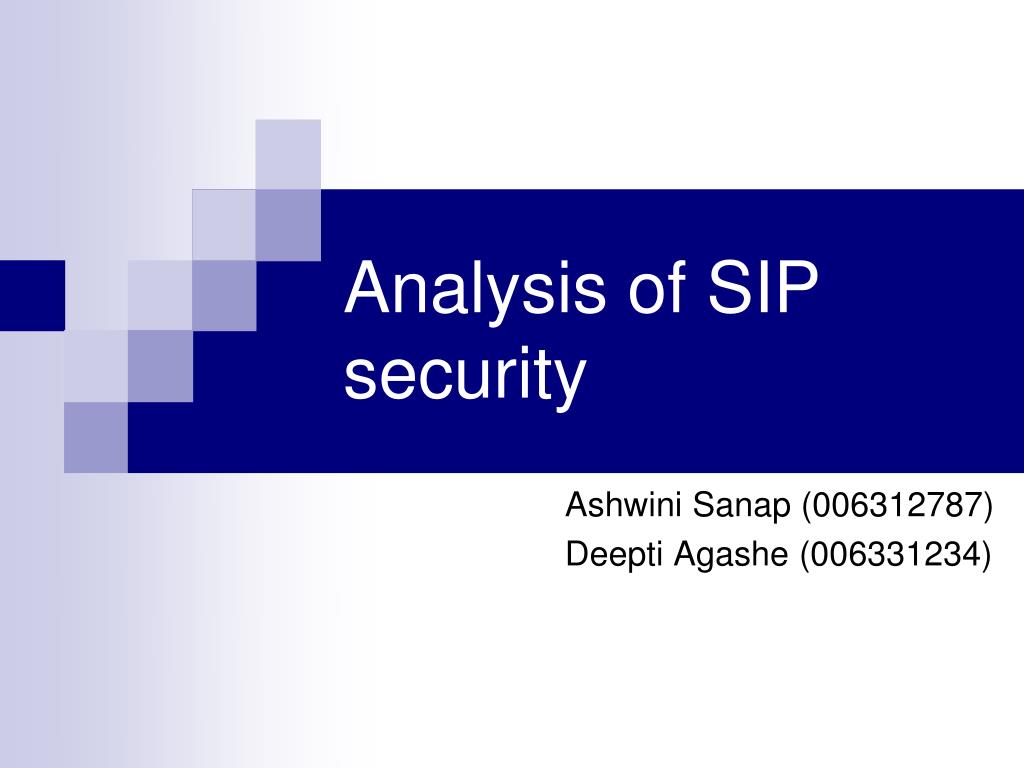

  1. Analysis of SIP security Ashwini Sanap (006312787) Deepti Agashe (006331234)

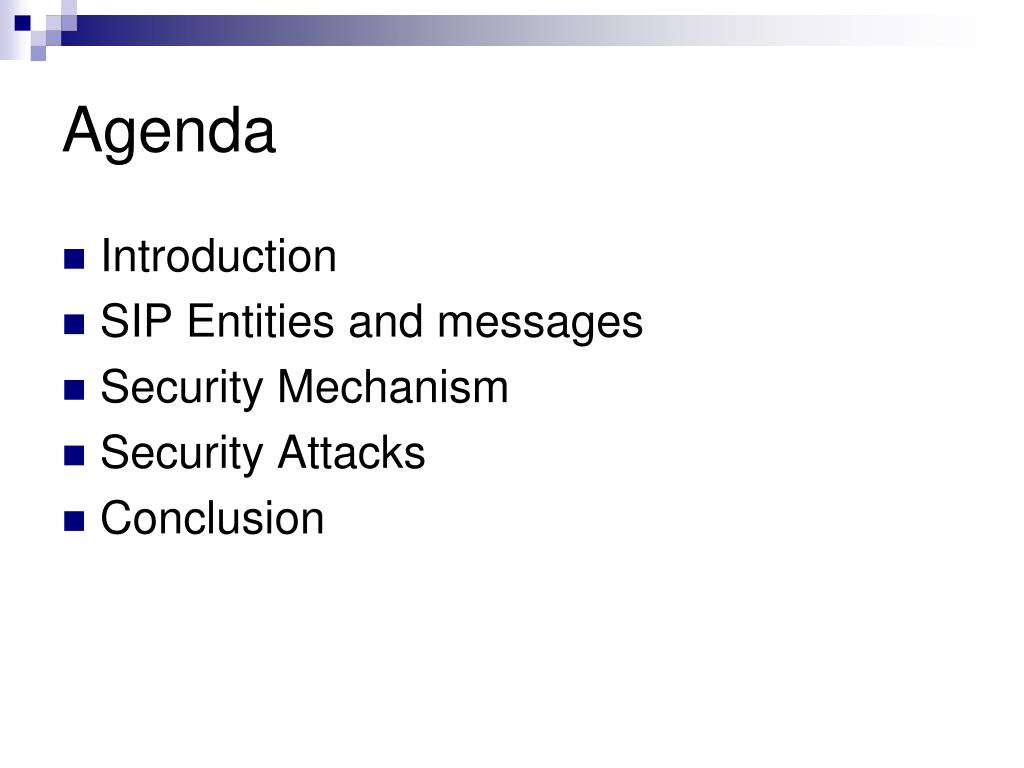

  2. Agenda • Introduction • SIP Entities and messages • Security Mechanism • Security Attacks • Conclusion

  3. Introduction • Session Initiation Protocol (SIP) • Application Layer Signaling Protocol • Create, Terminate and Manage Session • Similar to HTTP (Request/Response) • SIP Identity (URI)

  4. SIP Entities and Messages

  5. Security Mechanisms

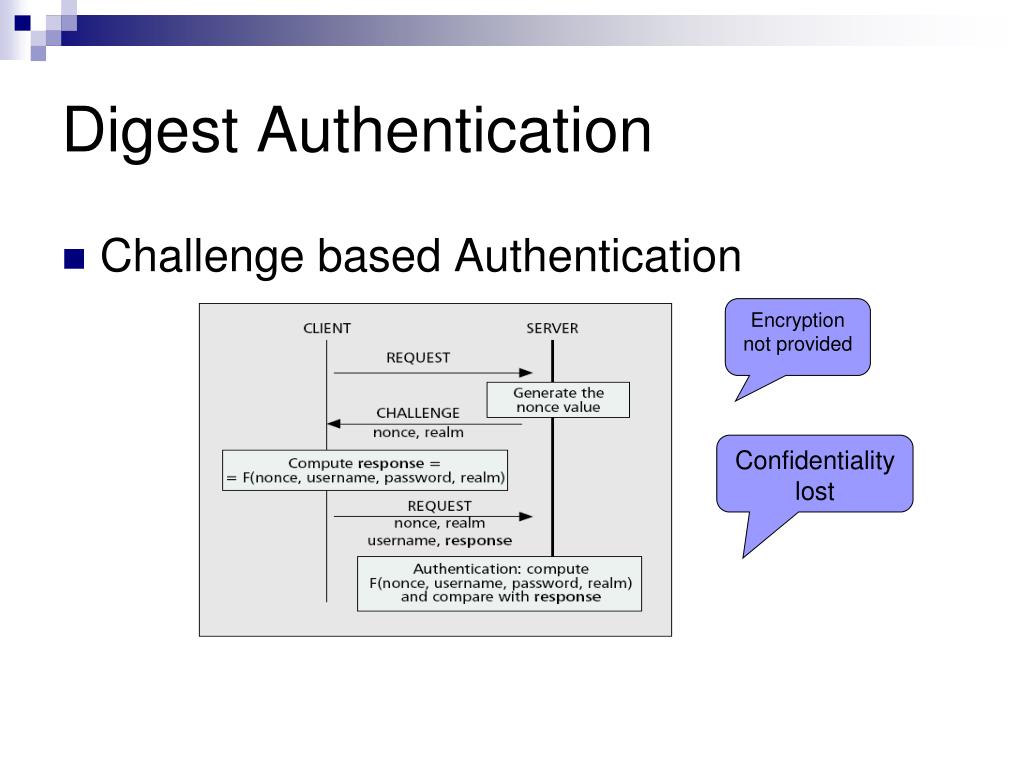

  6. Digest Authentication • Challenge based Authentication Encryption not provided Confidentiality lost

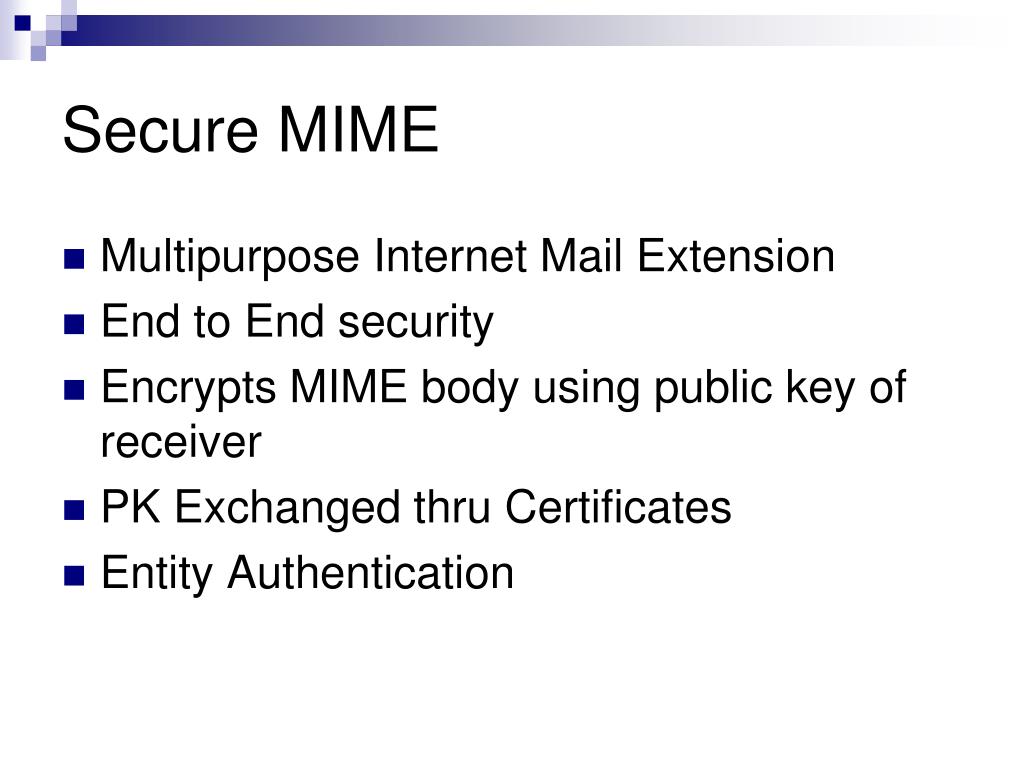

  7. Secure MIME • Multipurpose Internet Mail Extension • End to End security • Encrypts MIME body using public key of receiver • PK Exchanged thru Certificates • Entity Authentication

  8. Transport Layer Security (TLS) • TCP->TLS • SIPS (Similar to HTTPS) • SIPS ensures parameters passed securely • SRTP ensures media is also secured • SIPS+SRTP = Protection

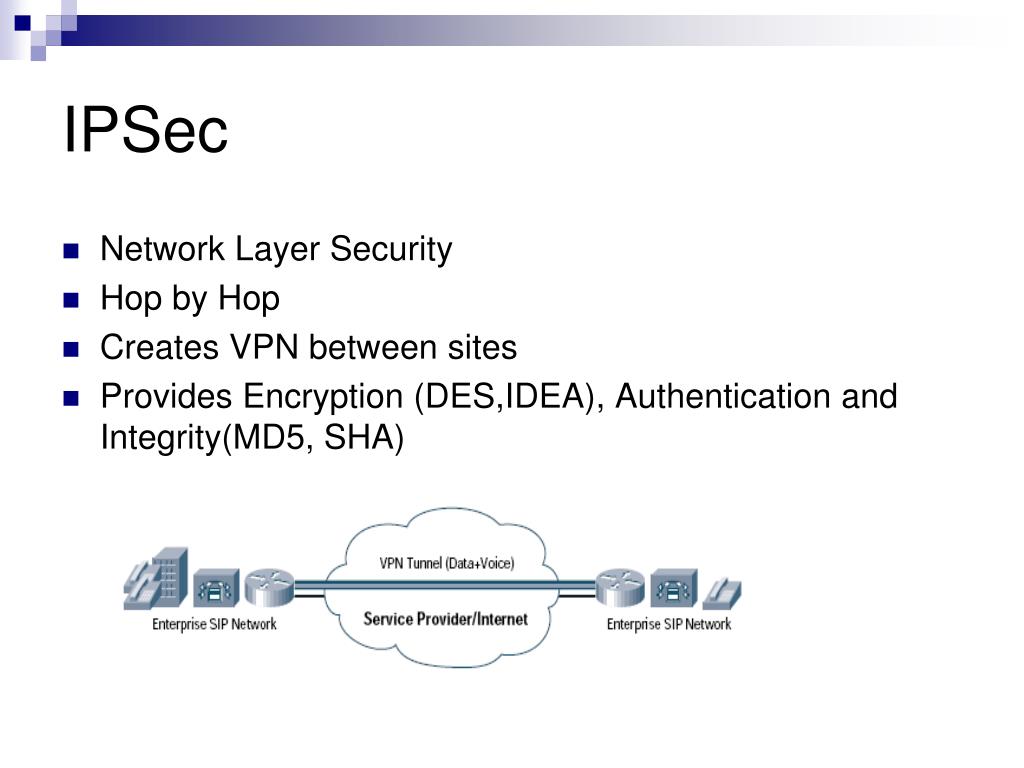

  9. IPSec • Network Layer Security • Hop by Hop • Creates VPN between sites • Provides Encryption (DES,IDEA), Authentication and Integrity(MD5, SHA)

  10. SIP Based network attacks • Registration Hijacking • Authenticate originators of requests

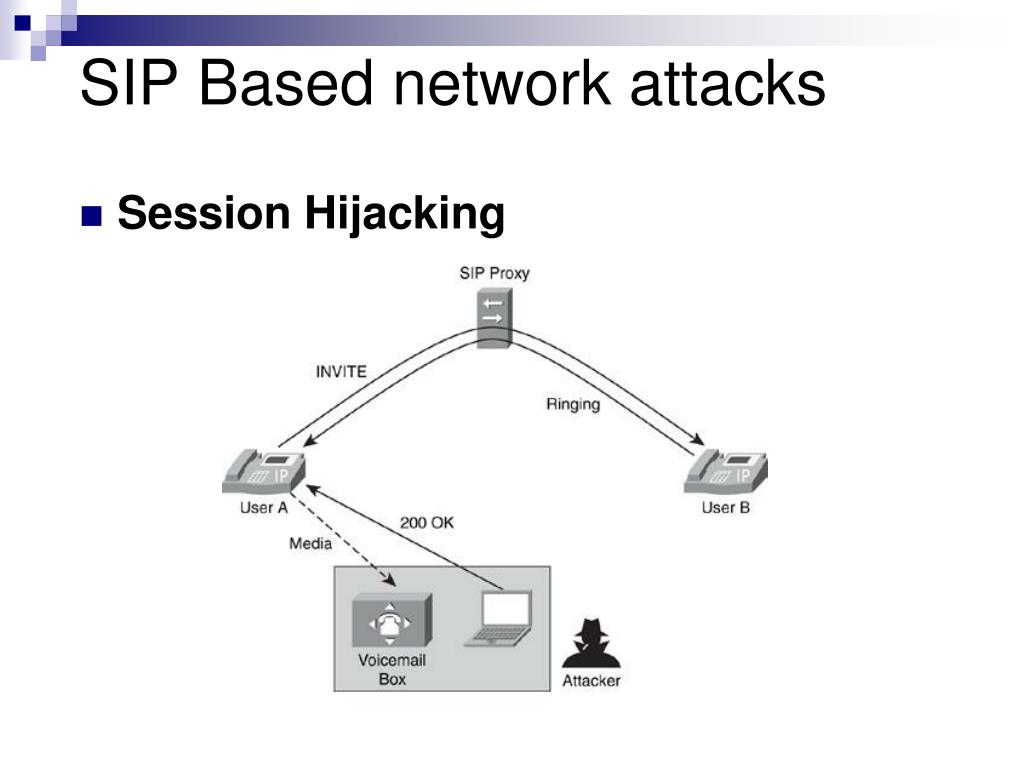

  11. SIP Based network attacks Session Hijacking

  12. SIP Based network attacks Impersonating a Server

  13. SIP Based network attacks : Tearing Down Sessions

  14. SIP Based network attacks : • Other attacks include : • Tampering with Message Bodies • Denial of Service and Amplification • Bots and DDOS Attacks

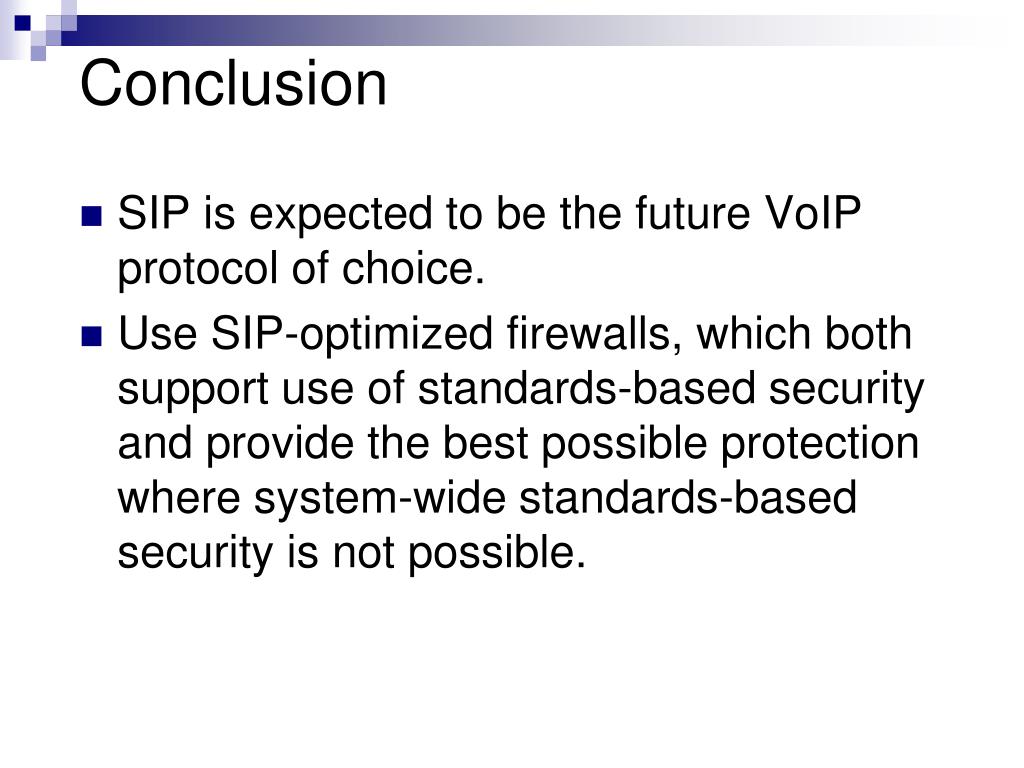

  15. Conclusion SIP is expected to be the future VoIP protocol of choice. Use SIP-optimized firewalls, which both support use of standards-based security and provide the best possible protection where system-wide standards-based security is not possible.
