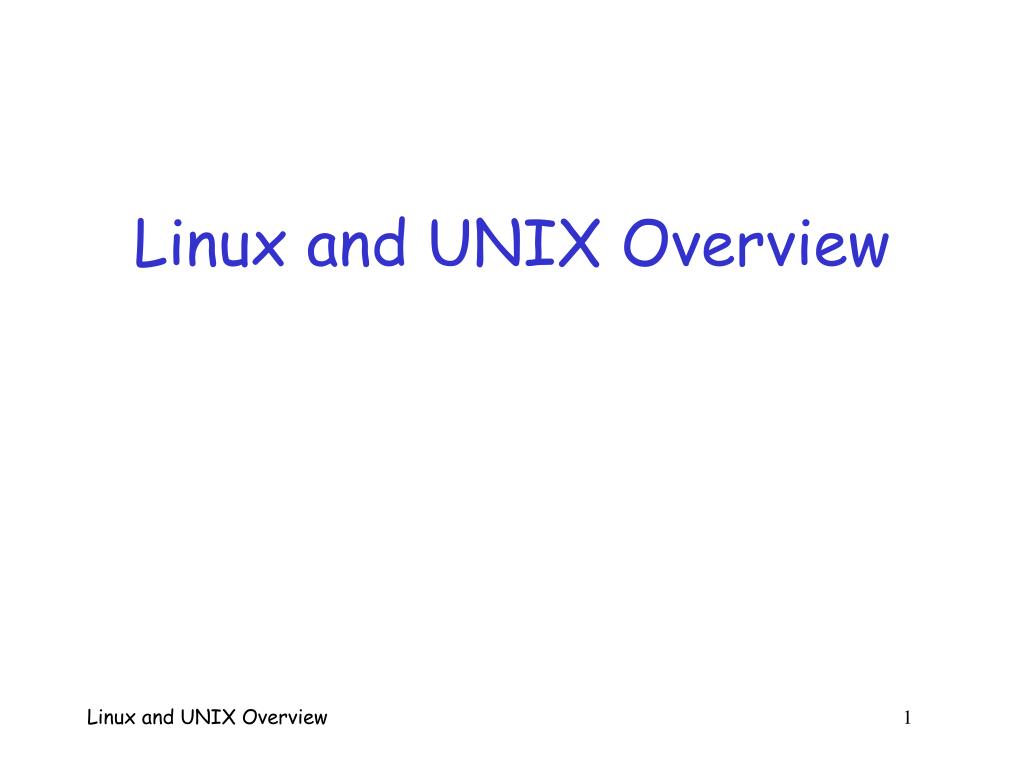

  1. Linux and UNIX Overview Linux and UNIX Overview 1

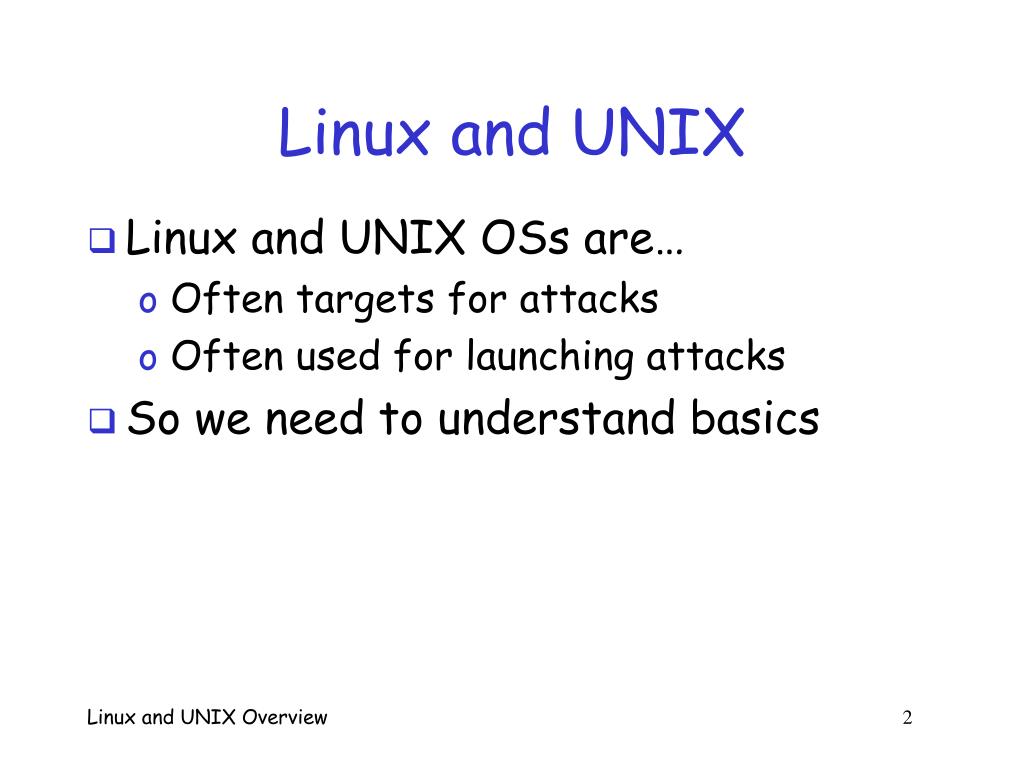

  2. Linux and UNIX • Linux and UNIX OSs are… • Often targets for attacks • Often used for launching attacks • So we need to understand basics Linux and UNIX Overview 2

  3. UNIX • A “beautiful but strange beast” • Developed as research project by AT&T • More than 35 years old • Internet was built on UNIX • Recently, popular for desktops, etc. Linux and UNIX Overview 3

  4. UNIX • It’s beautiful because… • It’s powerful • Millions of people have worked on it • Huge numbers of useful tools • “Been around the block” more than once • Closely associated with open source • Admins can find lots of useful tools Linux and UNIX Overview 4

  5. UNIX • Strange because so many UNIX OSs • Popular variants include • Solaris by Sun • MacOS by Apple • HP-UX by HP • IRIX by sgi • AIX by IBM • FreeBSD, free open source • OpenBSD, “the #1 most secure” OS Linux and UNIX Overview 5

  6. UNIX • Differences between UNIX variants • File systems organization • System calls, commands, command options, etc. • Two main “lines” of UNIX • AT&T and BSD • But some UNIXs are combinations Linux and UNIX Overview 6

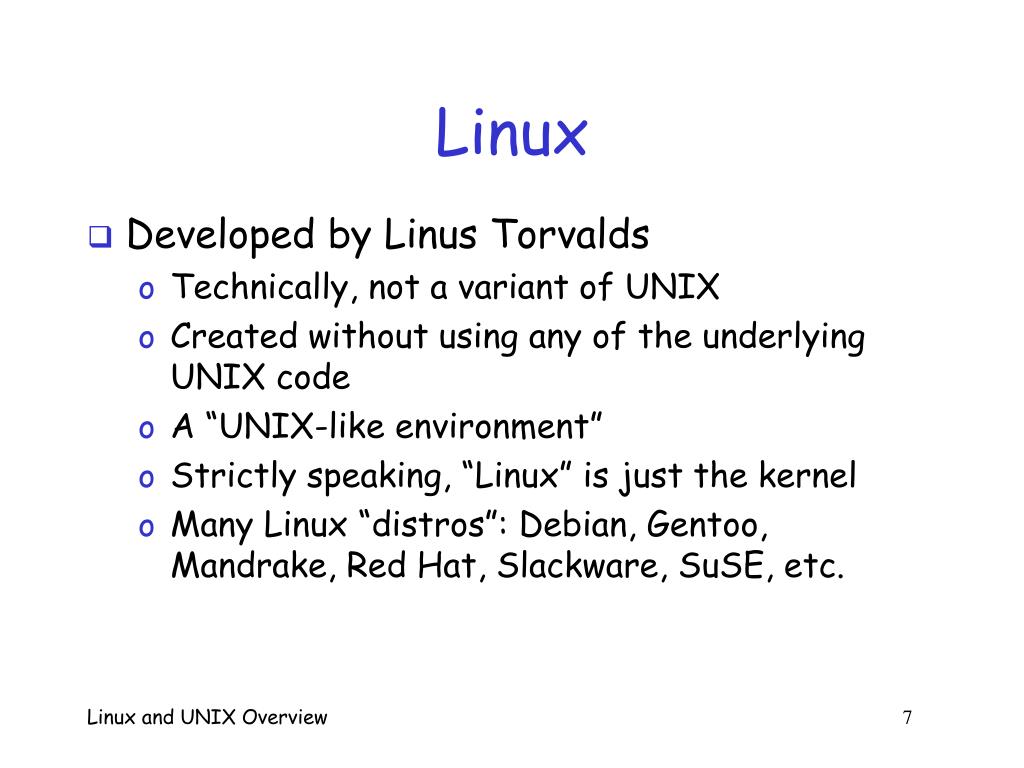

  7. Linux • Developed by Linus Torvalds • Technically, not a variant of UNIX • Created without using any of the underlying UNIX code • A “UNIX-like environment” • Strictly speaking, “Linux” is just the kernel • Many Linux “distros”: Debian, Gentoo, Mandrake, Red Hat, Slackware, SuSE, etc. Linux and UNIX Overview 7

  8. UNIX • Here, generic UNIX/Linux concepts • Things that apply to most UNIX/Linux • UNIX also strange because • Not designed for ease of use • Think command line, not GUI • Ironically, much simpler than Windows… • If you think Windows is easier, you don’t know Linux… • …and you don’t know Windows Linux and UNIX Overview 8

  9. UNIX • Here, we focus on generic “UNIX” • Things that apply to most variants • Book use “UNIX”, “Linux” interchangeably • Here, we only scratch the surface • For more info • Linux Administration Handbook, by Nemeth • Man pages Linux and UNIX Overview 9

  10. Architecture • File system • Like traveling thru a city… • Directories are like signs leading you to “buildings” (files) • Many things treated as files • Devices, elements of processes, files Linux and UNIX Overview 10

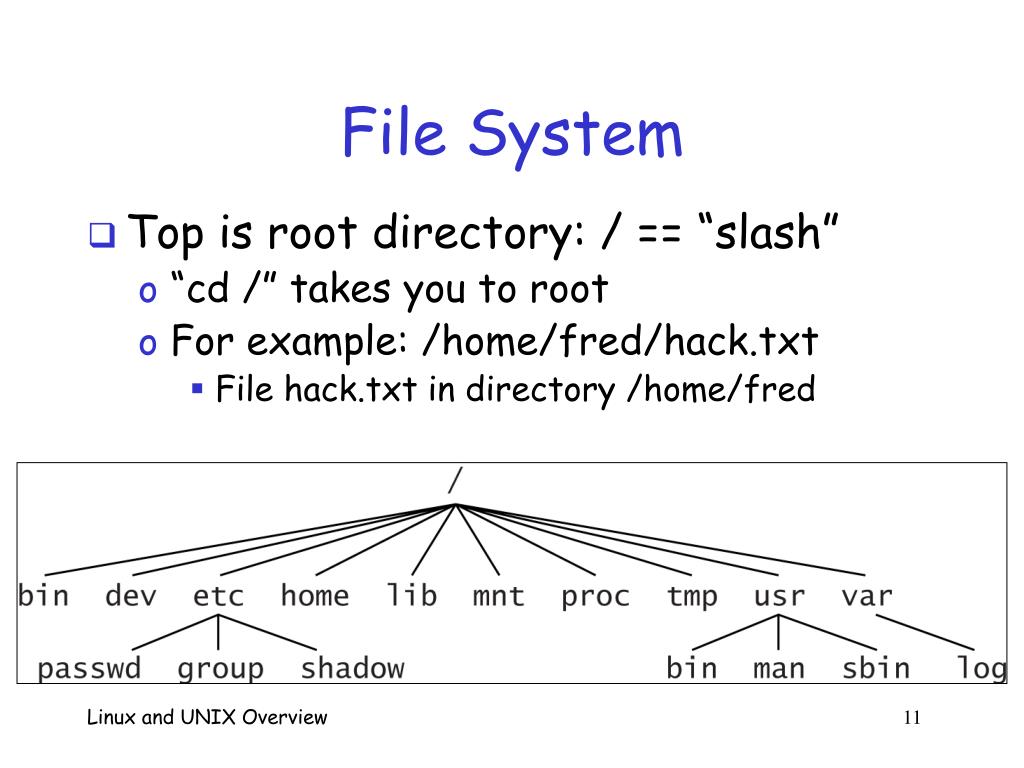

  11. File System • Top is root directory: / == “slash” • “cd /” takes you to root • For example: /home/fred/hack.txt • File hack.txt in directory /home/fred Linux and UNIX Overview 11

  12. Important Directories • / == root (top level), called “slash” • /bin, /sbin == critical system exe’s • /dev == devices, terminal, CD, etc. • /etc == system config files • Accounts, pwds, network addresses, etc. • /home == user directories Linux and UNIX Overview 12

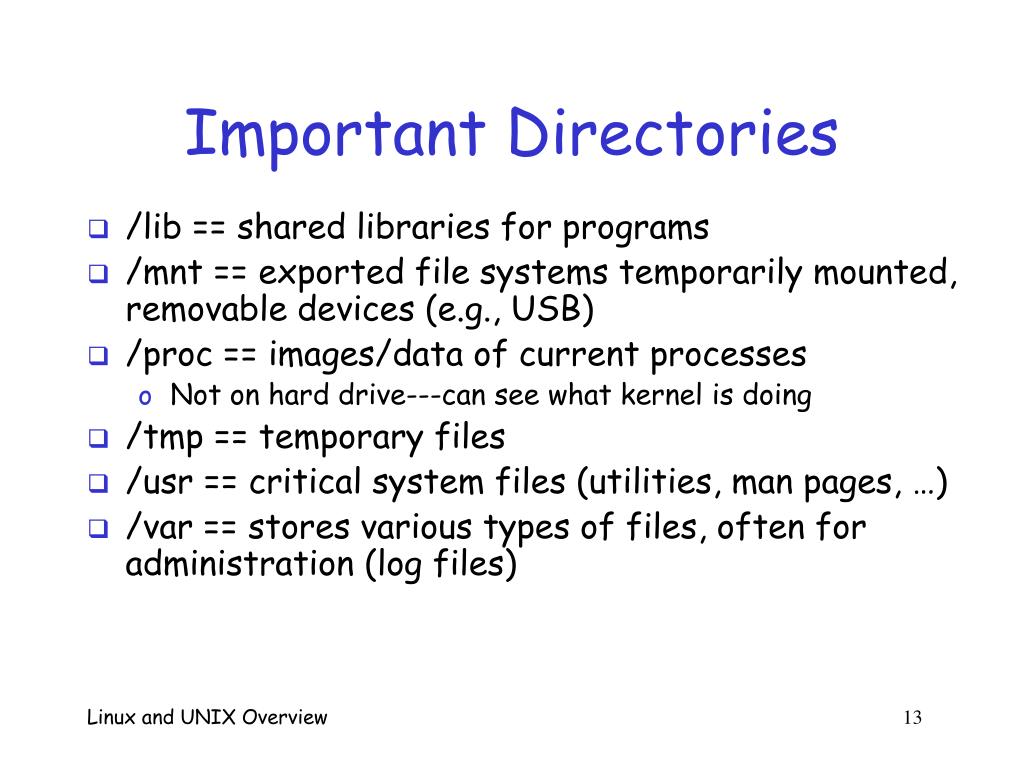

  13. Important Directories • /lib == shared libraries for programs • /mnt == exported file systems temporarily mounted, removable devices (e.g., USB) • /proc == images/data of current processes • Not on hard drive---can see what kernel is doing • /tmp == temporary files • /usr == critical system files (utilities, man pages, …) • /var == stores various types of files, often for administration (log files) Linux and UNIX Overview 13

  14. Important Directories • “.” is current directory • “..” is parent directory • One level up • “ls” lists all files in directory • “ls -a” lists “.” and “..” too Linux and UNIX Overview 14

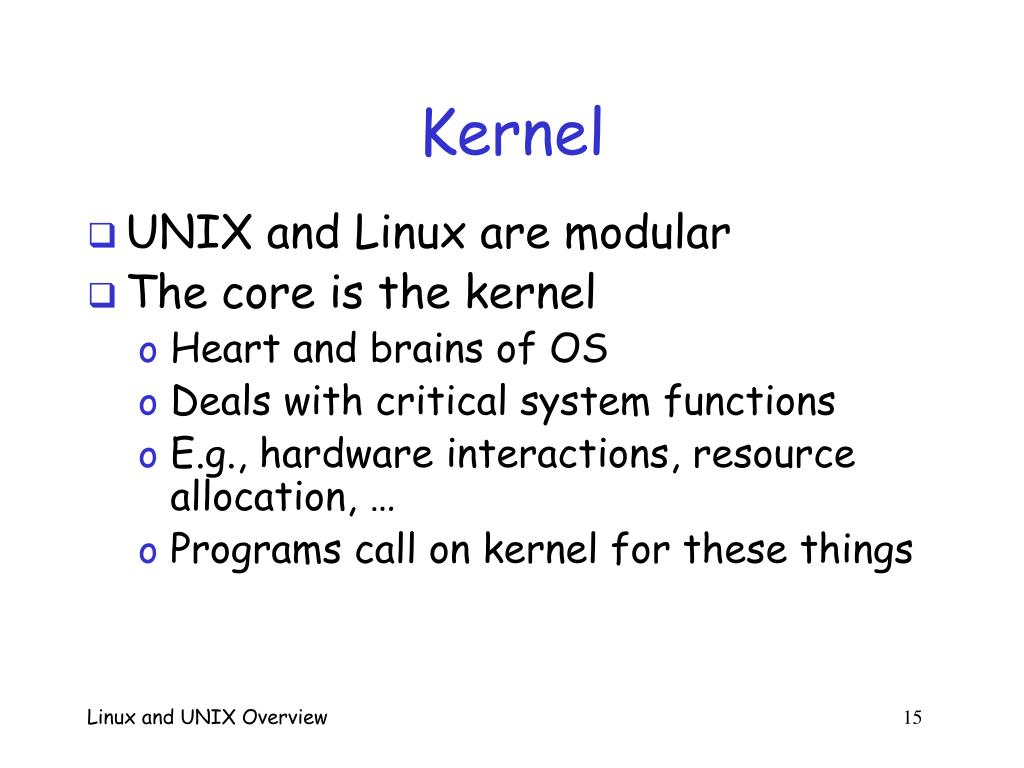

  15. Kernel • UNIX and Linux are modular • The core is the kernel • Heart and brains of OS • Deals with critical system functions • E.g., hardware interactions, resource allocation, … • Programs call on kernel for these things Linux and UNIX Overview 15

  16. Processes • For program, kernel starts a process • Process is like a “bubble that contains the guts of a running program” • Kernel creates bubble, inflates it and tries to keep bubbles from popping each other • User programs, admin tools, services (e.g., Web, email) are processes • May be 100s to 1000s of active processes • Kernel juggles these into CPU, manages memory Linux and UNIX Overview 16

  17. Processes • High level view of architecture Linux and UNIX Overview 17

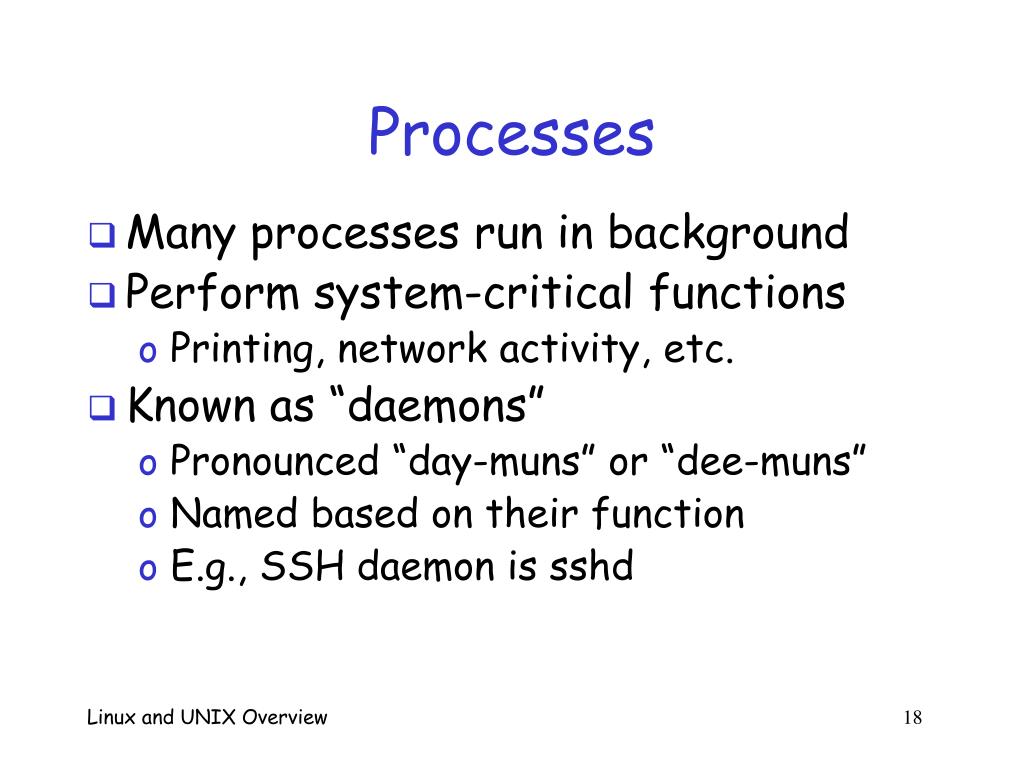

  18. Processes • Many processes run in background • Perform system-critical functions • Printing, network activity, etc. • Known as “daemons” • Pronounced “day-muns” or “dee-muns” • Named based on their function • E.g., SSH daemon is sshd Linux and UNIX Overview 18

  19. Automatic Processes • Booting: kernel starts init daemon • Finishes boot process • Init starts many network processes • Httpd --- Web server, for http/https • Sshd --- SSH service • Sendmail --- common UNIX email server • NFS --- Network File System for sharing files between UNIX systems Linux and UNIX Overview 19

  20. Network Services • Network service listens to network • Web server listens on TCP port 80 • Email server listens on TCP port 25 • Wait for incoming traffic • Lots of email/Web traffic, so they listen constantly • What about, say, FTP? Linux and UNIX Overview 20

  21. Network Services • To improve efficiency… • “Internet daemon” listens for uncommon services • inetd (“I-Net-D”) or xinetd • When traffic arrives, inetd activates appropriate service • Uncommon services: echo, chargen, ftpd, telnetd, rsh, rlogin, TFTP, … Linux and UNIX Overview 21

  22. inetd • File /etc/inetd.conf tells inted what services to listen for: must specify • Service name --- e.g., telnet (defined in /etc/services) • Socket type --- type of connection? • Protocol --- usually tcp or udp • Wait status --- process handles multiple connection or not • User Name --- name services should run as • Server program and arguments • inetd.conf is target of attacks Linux and UNIX Overview 22

  23. inetd • Relationship between inetd and other daemons Linux and UNIX Overview 23

  24. cron • Cron daemon • Schedule programs to run at predetermined times • For example, backup files at 3am • Attackers also like cron • E.g., shut down critical service at a particular time as part of back door Linux and UNIX Overview 24

  25. Processes • Can also start processes manually • “path” is searched for command • To see path: echo $path • Dangerous to have “.” in path • Why? Linux and UNIX Overview 25

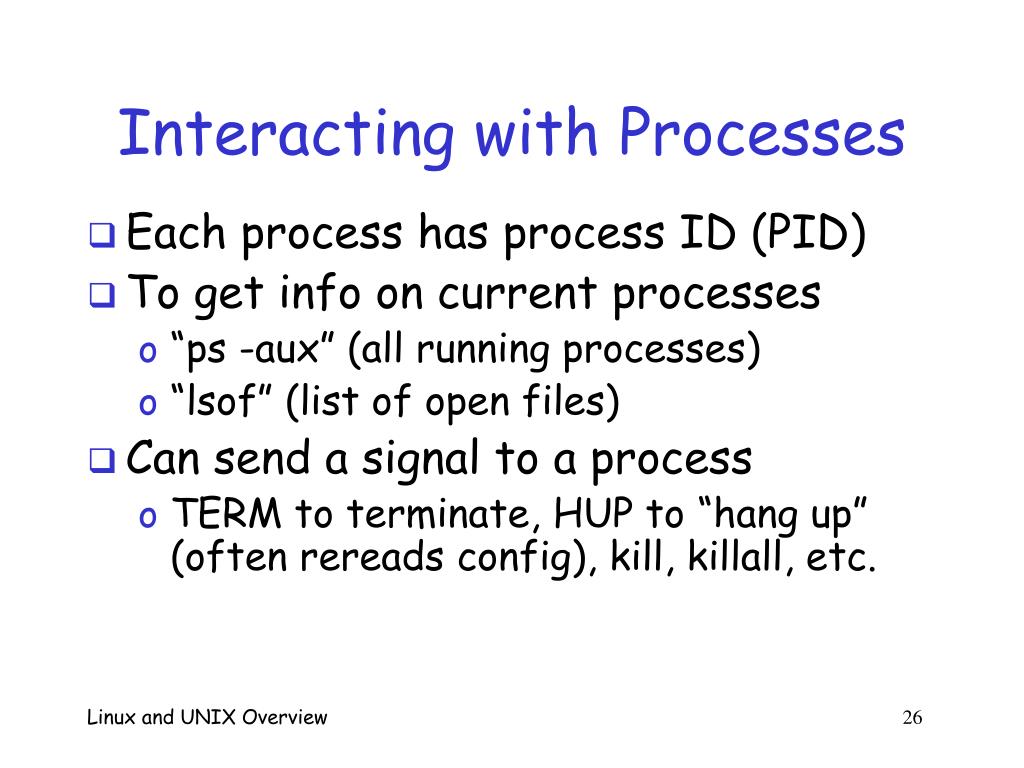

  26. Interacting with Processes • Each process has process ID (PID) • To get info on current processes • “ps -aux” (all running processes) • “lsof” (list of open files) • Can send a signal to a process • TERM to terminate, HUP to “hang up” (often rereads config), kill, killall, etc. Linux and UNIX Overview 26

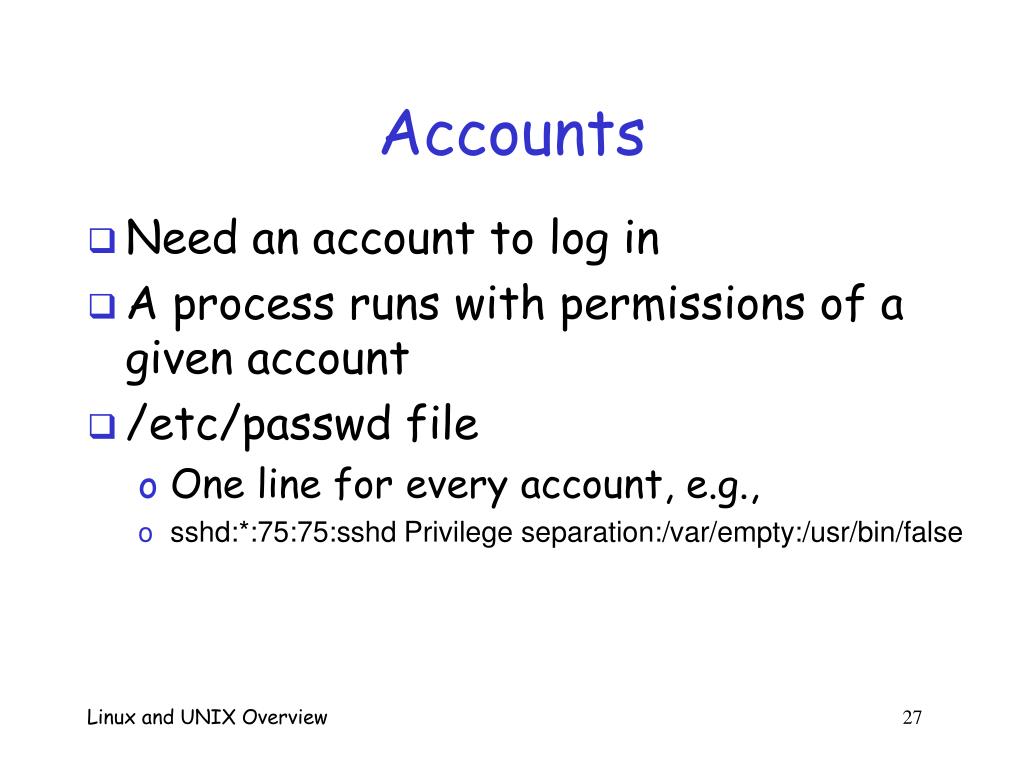

  27. Accounts • Need an account to log in • A process runs with permissions of a given account • /etc/passwd file • One line for every account, e.g., • sshd:*:75:75:sshd Privilege separation:/var/empty:/usr/bin/false Linux and UNIX Overview 27

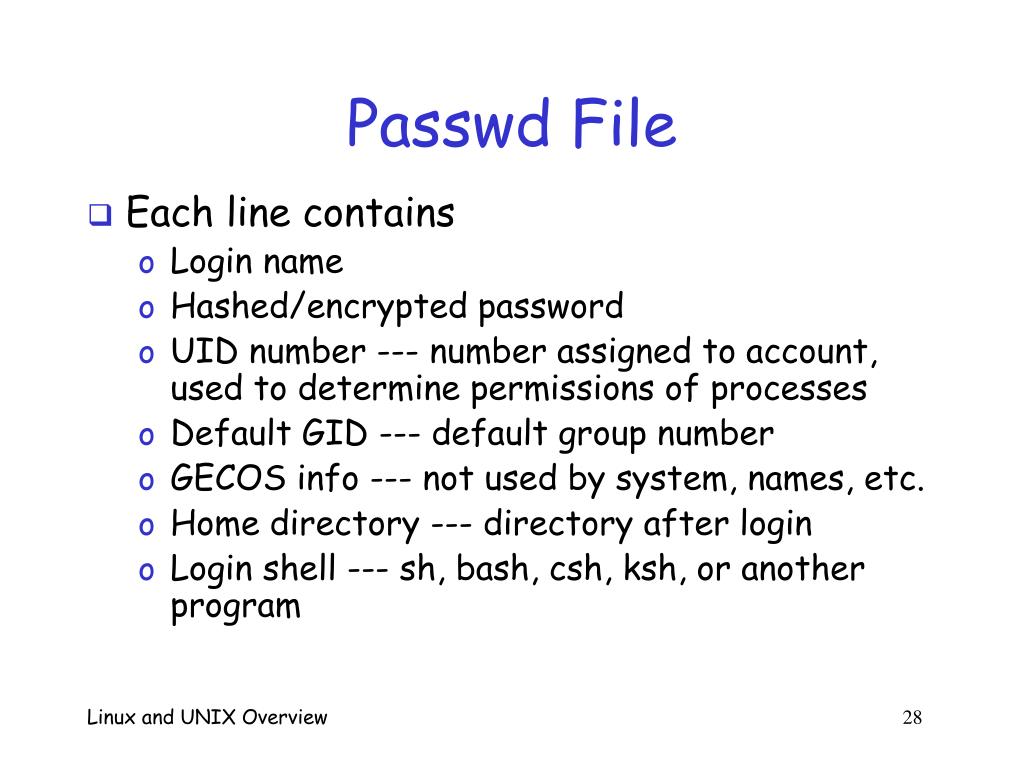

  28. Passwd File • Each line contains • Login name • Hashed/encrypted password • UID number --- number assigned to account, used to determine permissions of processes • Default GID --- default group number • GECOS info --- not used by system, names, etc. • Home directory --- directory after login • Login shell --- sh, bash, csh, ksh, or another program Linux and UNIX Overview 28

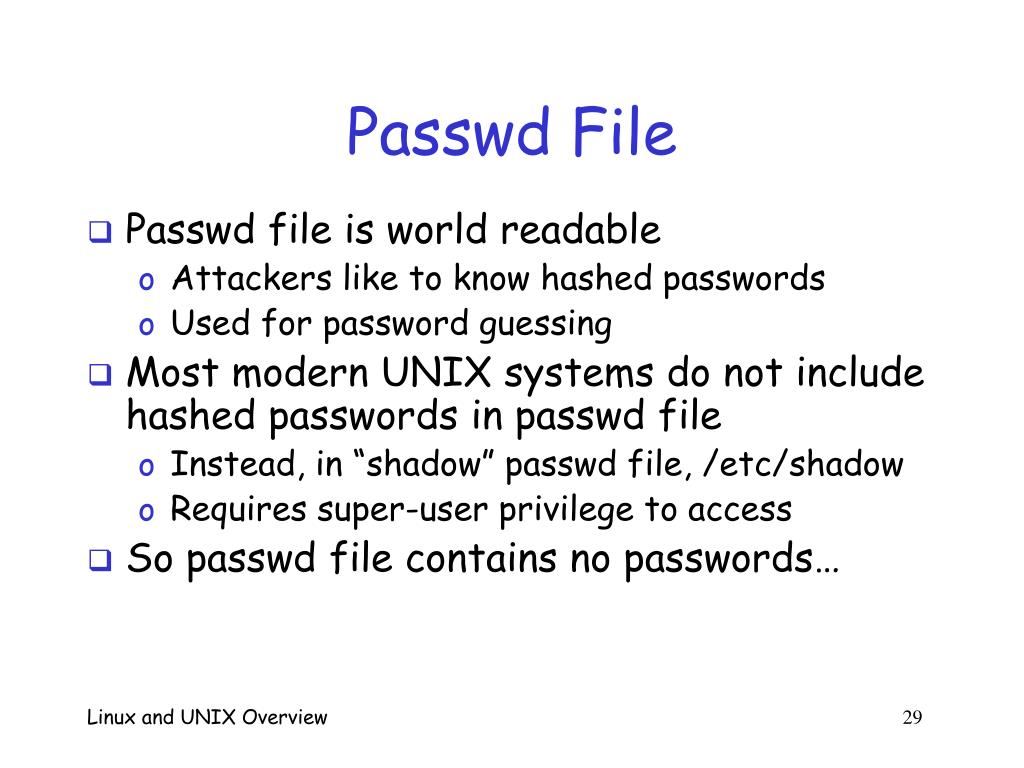

  29. Passwd File • Passwd file is world readable • Attackers like to know hashed passwords • Used for password guessing • Most modern UNIX systems do not include hashed passwords in passwd file • Instead, in “shadow” passwd file, /etc/shadow • Requires super-user privilege to access • So passwd file contains no passwords… Linux and UNIX Overview 29

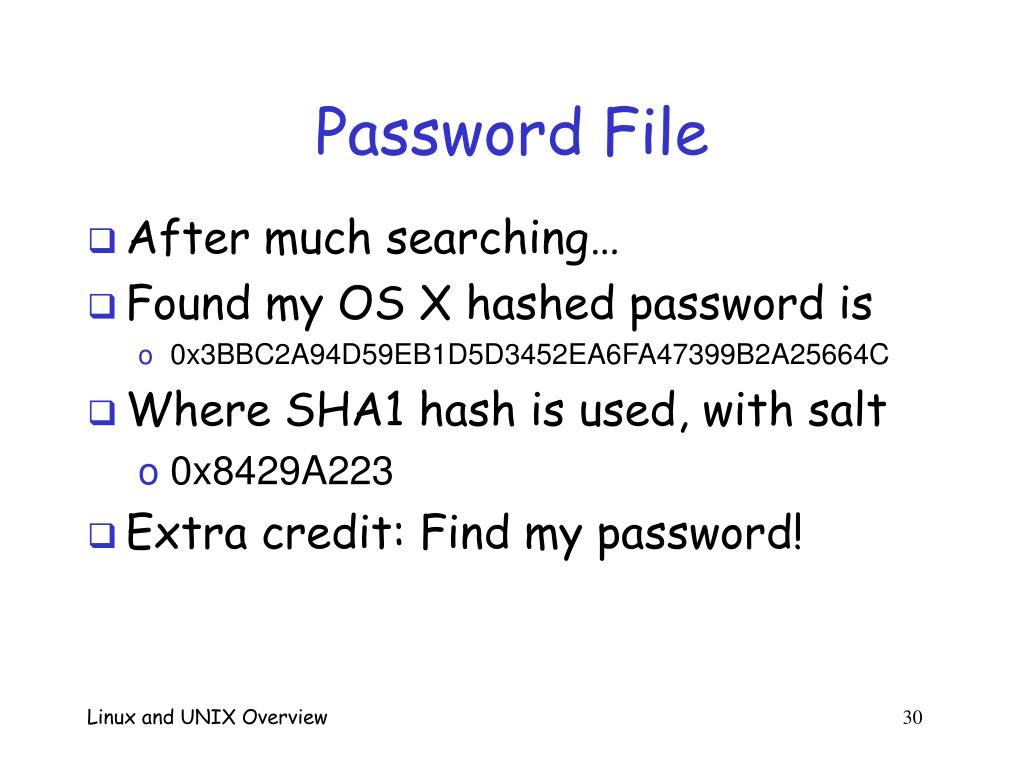

  30. Password File • After much searching… • Found my OS X hashed password is • 0x3BBC2A94D59EB1D5D3452EA6FA47399B2A25664C • Where SHA1 hash is used, with salt • 0x8429A223 • Extra credit: Find my password! Linux and UNIX Overview 30

  31. Groups • Group users together • Assign permission to the group • Stored in file /etc/group, format is • Group name • Hashed group password --- never used • GID number --- used by the system instead of group name • Group members --- by login names Linux and UNIX Overview 31

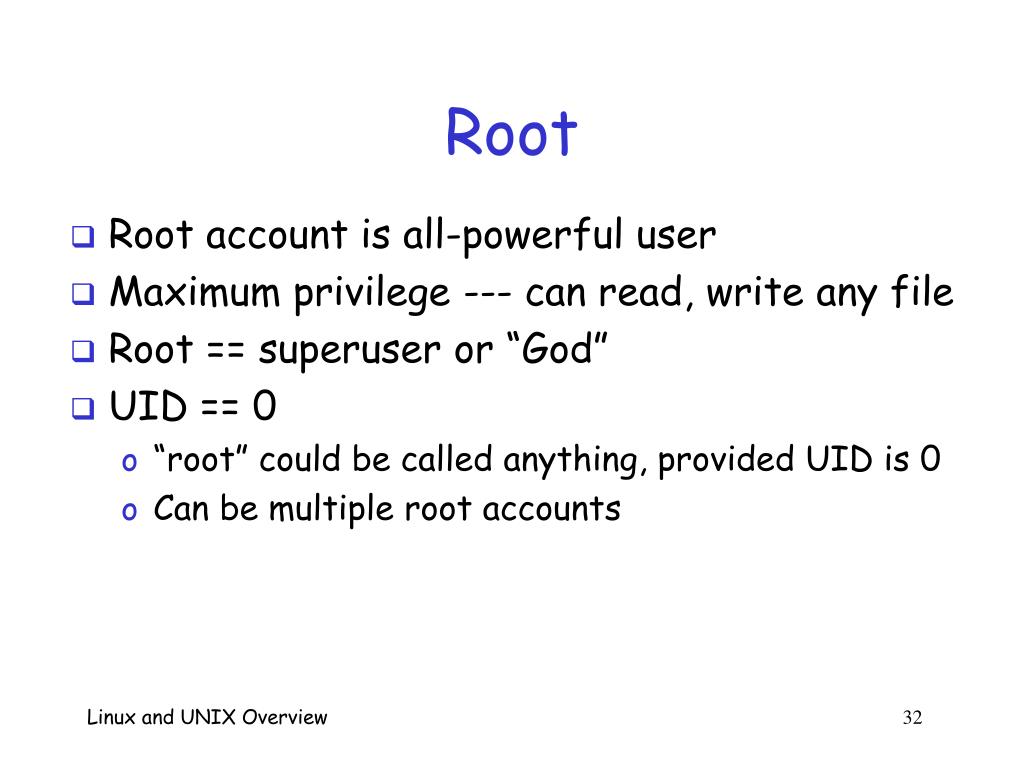

  32. Root • Root account is all-powerful user • Maximum privilege --- can read, write any file • Root == superuser or “God” • UID == 0 • “root” could be called anything, provided UID is 0 • Can be multiple root accounts Linux and UNIX Overview 32

  33. Permissions • Every file has an owner and group • Owner (or root) sets permissions • Permissions: owner, group, everybody • For each of the 3, read, write, execute • Use “ls -l” to see permissions -rw-r--r-- 1 markstam markstam 767 Feb 6 19:31 cs286.txt drwxr-xr-x 40 markstam markstam 1360 Jan 25 17:33 docs Linux and UNIX Overview 33

  34. Permissions Linux and UNIX Overview 34

  35. Permissions • Change permissions using chmod • “change modes” • Give new permissions in octal • For example: chmod 745 foo • This corresponds to: rwxr--r-x Linux and UNIX Overview 35

  36. SetUID • Sometimes user needs to access file and they do not have permissions • Example: to change password (assuming hashes stored in shadow file) • SetUID == Set User ID • Use this so program will execute with permission of it’s owner • As opposed to permission of user executing it • Password changing program: SetUID root Linux and UNIX Overview 36

  37. SetUID • Gives “common” users lots of power • OK if used in controlled way for specific tasks • SetUID permissions appear before 9 standard permission bits • In fact, 3 additional bits • SetUID, SetGID, “sticky bit” • For example: chmod 4745 foo • Shows up in “ls -l” as an s: -r-sr-xr-x 1 root wheel 75636 Jan 11 2007 /usr/bin/passwd Linux and UNIX Overview 37

  38. SetUID • Attackers like SetUID programs • May be possible to exploit flaws in code (buffer overflow) to elevate privilege • New/modified SetUID programs may be evidence of attack Linux and UNIX Overview 38

  39. Trust Relationships • That is, trust between machines • Can specify which machines to trust Bob trusts Alice Linux and UNIX Overview 39

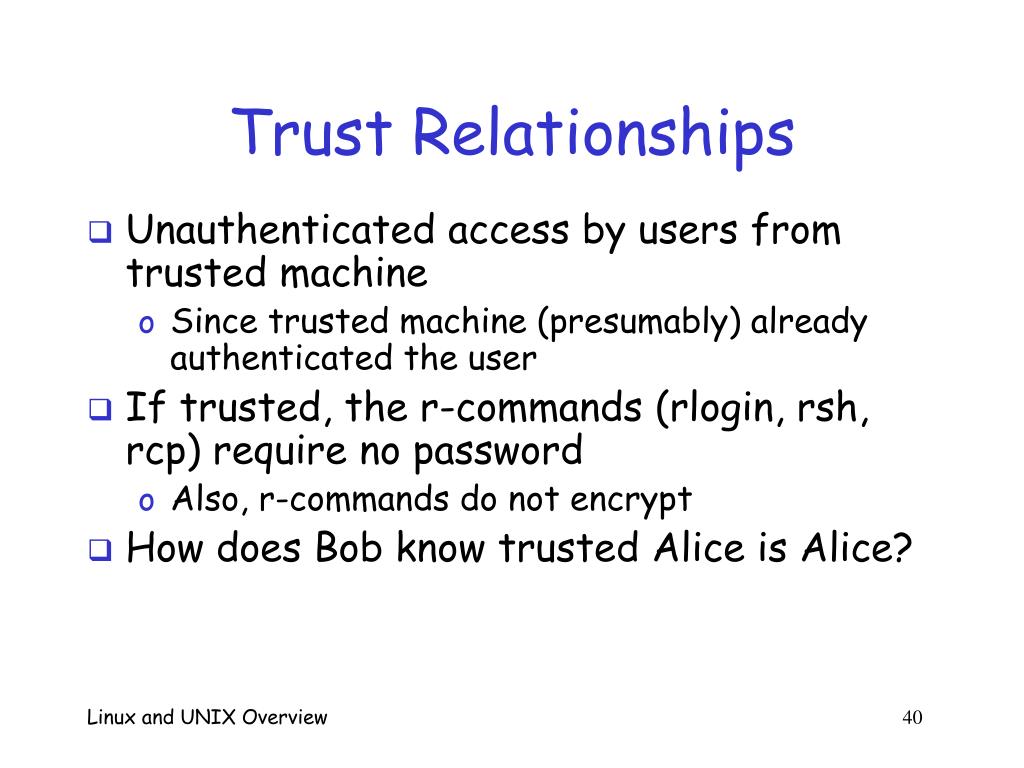

  40. Trust Relationships • Unauthenticated access by users from trusted machine • Since trusted machine (presumably) already authenticated the user • If trusted, the r-commands (rlogin, rsh, rcp) require no password • Also, r-commands do not encrypt • How does Bob know trusted Alice is Alice? Linux and UNIX Overview 40

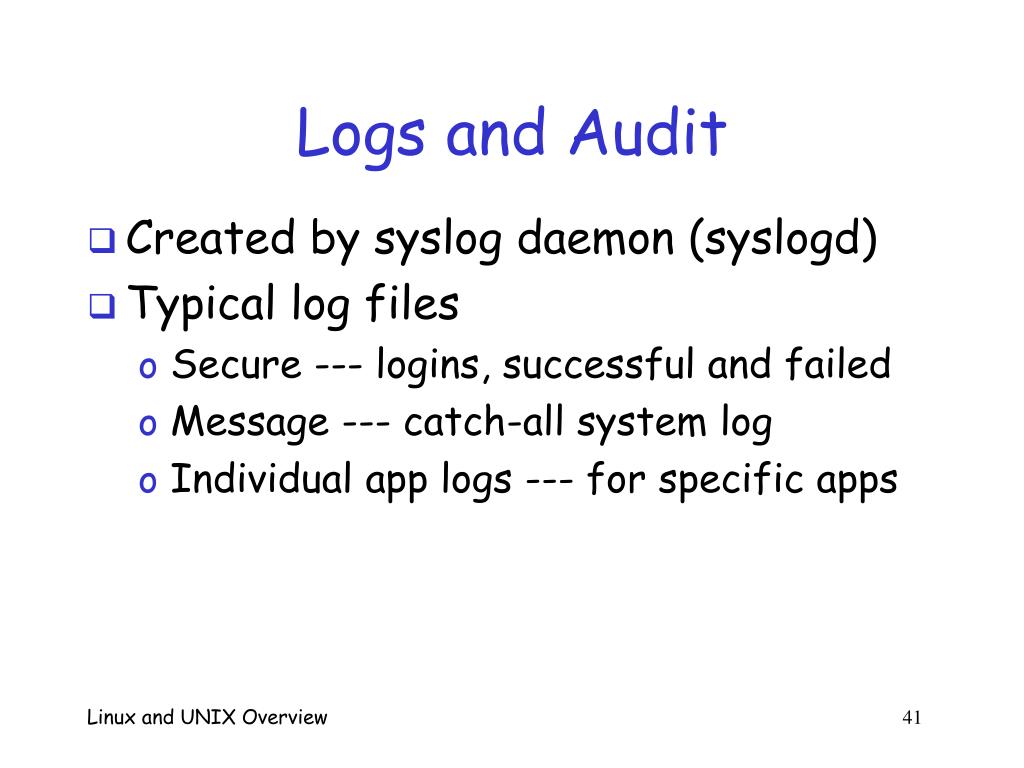

  41. Logs and Audit • Created by syslog daemon (syslogd) • Typical log files • Secure --- logins, successful and failed • Message --- catch-all system log • Individual app logs --- for specific apps Linux and UNIX Overview 41

  42. Logs and Audit • Forensic info also logged • Attackers like to cover their tracks • To do so, may need to manipulate… • utmp --- who is logged in • wtmp --- record of all logins and logouts • lastlog --- time and location of each user’s most recent login Linux and UNIX Overview 42

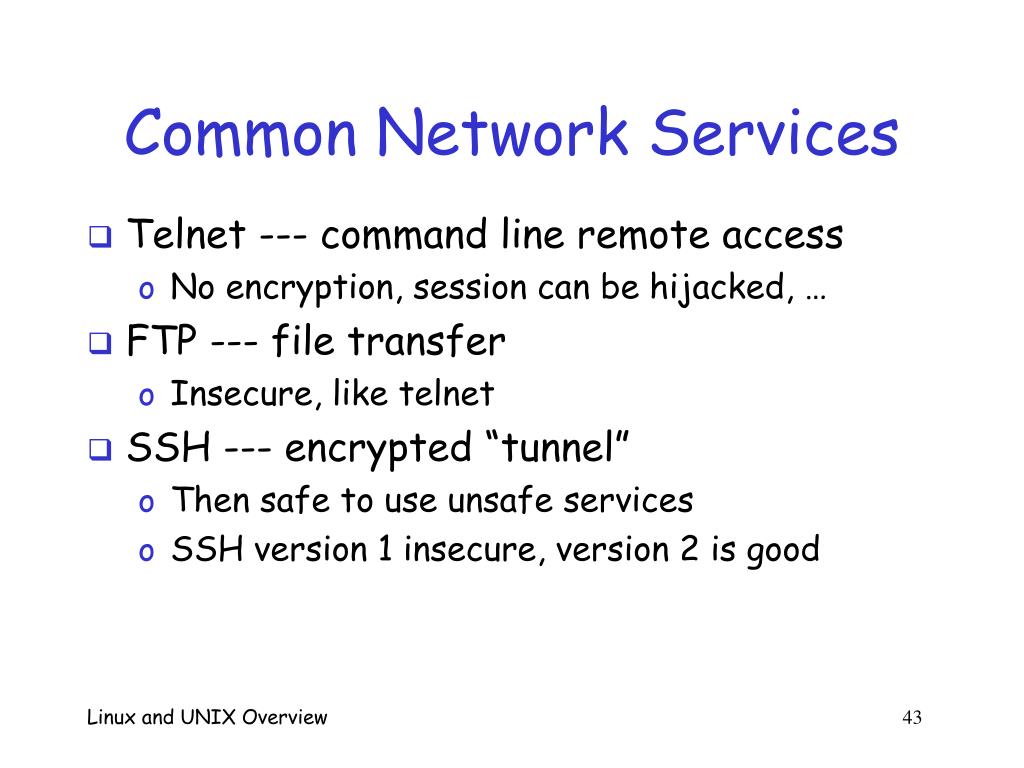

  43. Common Network Services • Telnet --- command line remote access • No encryption, session can be hijacked, … • FTP --- file transfer • Insecure, like telnet • SSH --- encrypted “tunnel” • Then safe to use unsafe services • SSH version 1 insecure, version 2 is good Linux and UNIX Overview 43

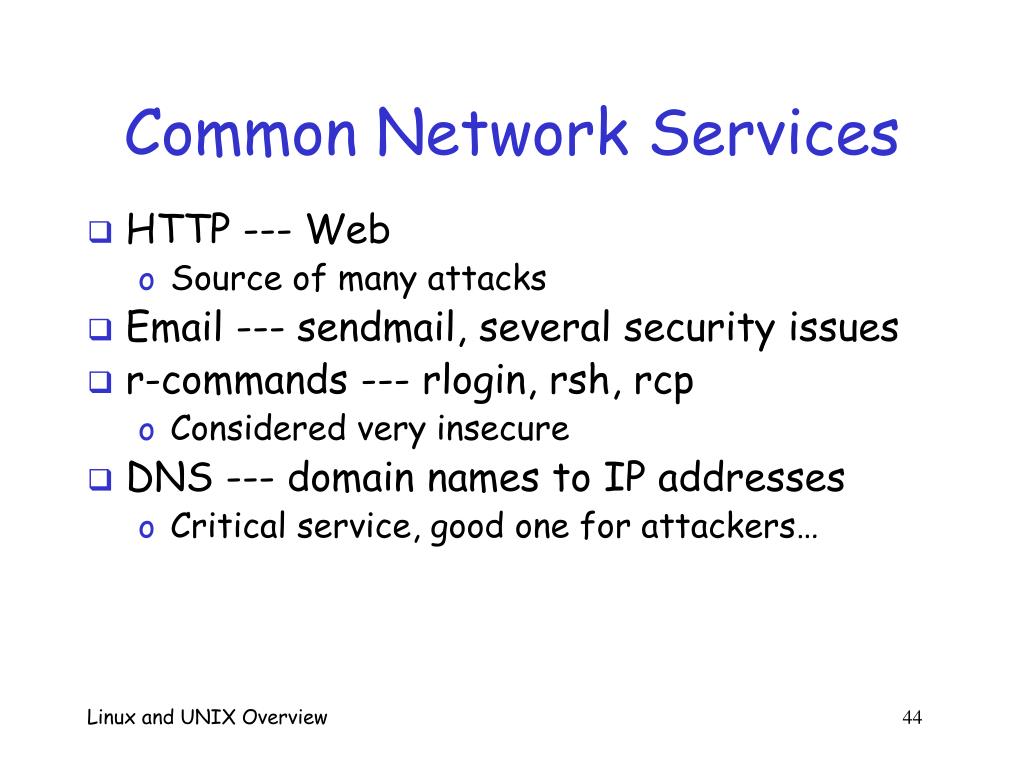

  44. Common Network Services • HTTP --- Web • Source of many attacks • Email --- sendmail, several security issues • r-commands --- rlogin, rsh, rcp • Considered very insecure • DNS --- domain names to IP addresses • Critical service, good one for attackers… Linux and UNIX Overview 44

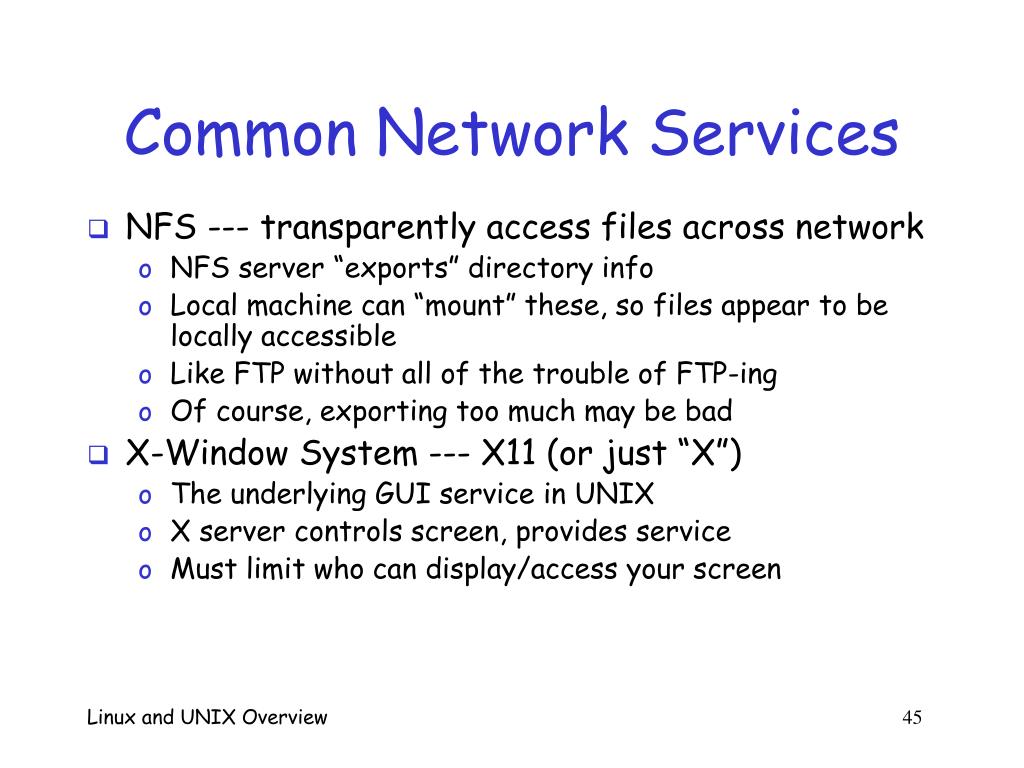

  45. Common Network Services • NFS --- transparently access files across network • NFS server “exports” directory info • Local machine can “mount” these, so files appear to be locally accessible • Like FTP without all of the trouble of FTP-ing • Of course, exporting too much may be bad • X-Window System --- X11 (or just “X”) • The underlying GUI service in UNIX • X server controls screen, provides service • Must limit who can display/access your screen Linux and UNIX Overview 45

  46. Conclusion • UNIX/Linux • Popular OSs • More than 30 years old • Fundamental part of Internet • Widely used OSs • Platform of choice for many attackers Linux and UNIX Overview 46

  47. Summary Linux and UNIX Overview 47
