Presentation Transcript
06 06 07 07 11 07

06/06/07 – 07/11/07

BIM

Building Information Modeling


06 06 07 07 11 07

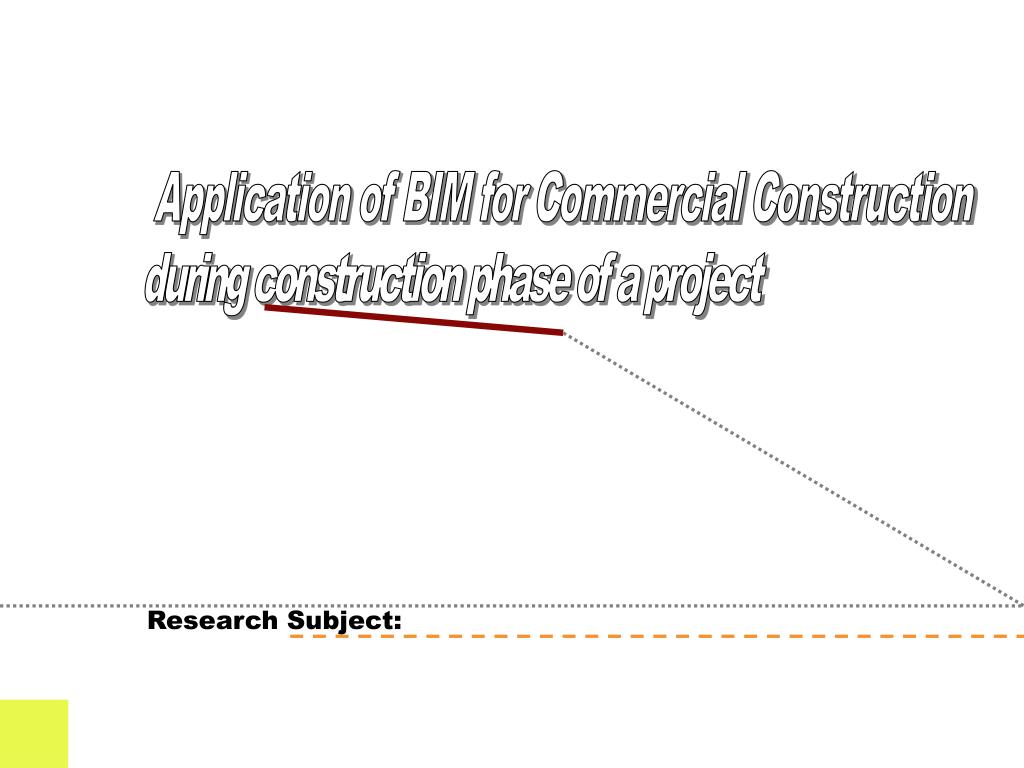

Application of BIM for Commercial Construction

during construction phase of a project

Research Subject:


06 06 07 07 11 07

Review of Literature:

Image Courtesy: http://www.architecture.com.au/departurelounge/VVS_modell_1024.jpg


06 06 07 07 11 07

Review of Literature:

Image Courtesy: http://accuracyandaesthetics.com/wp-content/uploads/2007/05/multipletypes.jpg


06 06 07 07 11 07

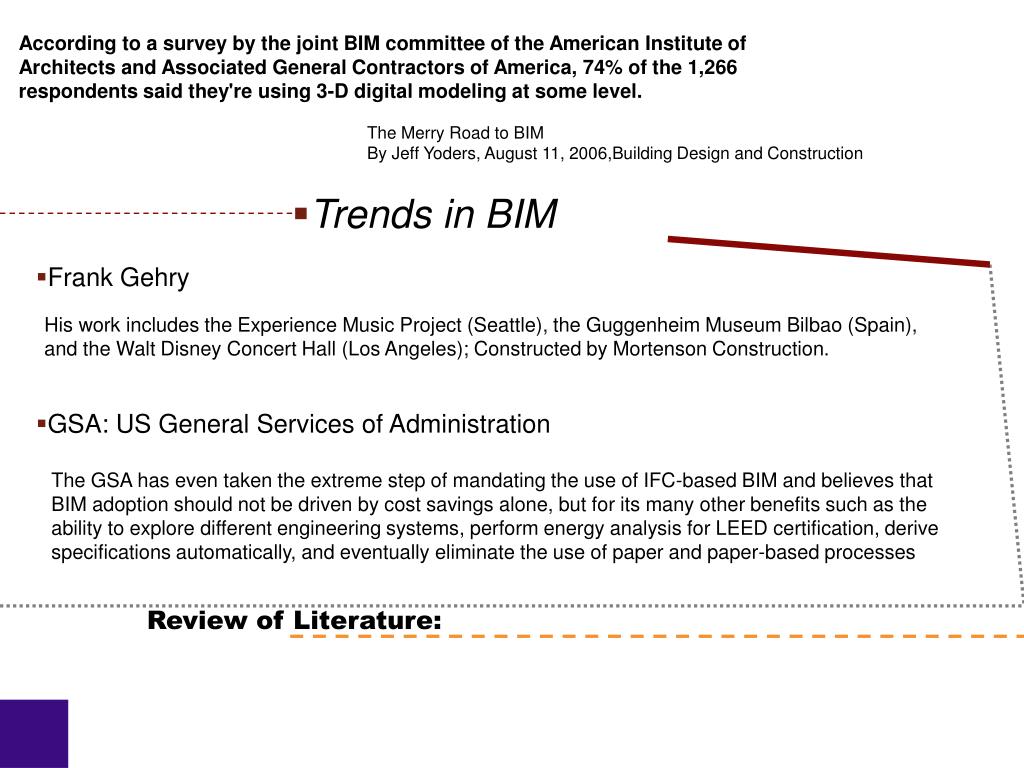

According to a survey by the joint BIM committee of the American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

The Merry Road to BIM

By Jeff Yoders, August 11, 2006,Building Design and Construction

  • Trends in BIM

  • Frank Gehry

His work includes the Experience Music Project (Seattle), the Guggenheim Museum Bilbao (Spain), and the Walt Disney Concert Hall (Los Angeles); Constructed by Mortenson Construction.

  • GSA: US General Services of Administration

The GSA has even taken the extreme step of mandating the use of IFC-based BIM and believes that BIM adoption should not be driven by cost savings alone, but for its many other benefits such as the ability to explore different engineering systems, perform energy analysis for LEED certification, derive specifications automatically, and eventually eliminate the use of paper and paper-based processes

Review of Literature:


06 06 07 07 11 07

  • Trends in BIM American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

  • Freedom Tower : SOM

  • Eureka Tower: Fender Katsalidis Australia

Review of Literature:

Image Courtesy: http://www.sh.xinhuanet.com/2007-05/14/xin_4105041415370462036615.jpg

Image Courtesy: http://images.google.com/images?svnum=10&um=1&hl=en&rls=com.microsoft%3Aen-us%3AIE-Address&rlz=1I7TSHA&q=freedom+tower


06 06 07 07 11 07

  • Case Study American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

  • SHSU Academic Building 5 @ Huntsville, Texas:

  • Designed by WHR Architects

  • Constructed by SpawGlass Construction

  • Project Start Date: 15 May 2007

  • Project End Date: 26 September 2008

  • Project Duration: 16 Months

The project is a 4 story high building with a basement and penthouse level

Research Case:


06 06 07 07 11 07

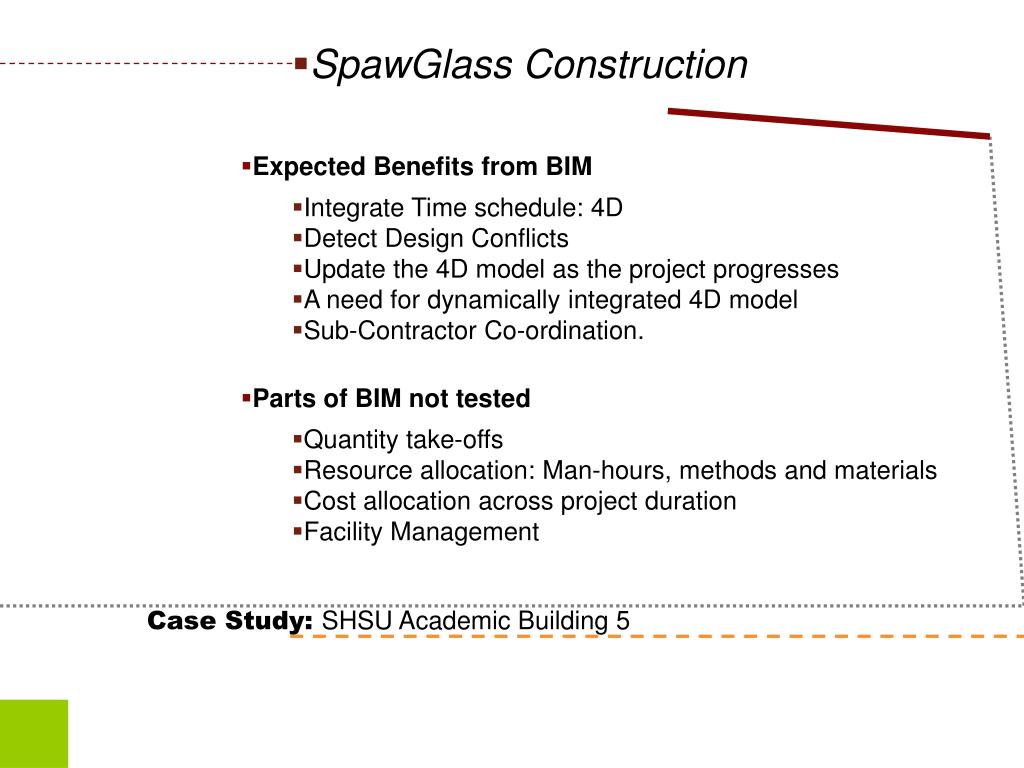

  • SpawGlass Construction American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

  • Expected Benefits from BIM

  • Integrate Time schedule: 4D

  • Detect Design Conflicts

  • Update the 4D model as the project progresses

  • A need for dynamically integrated 4D model

  • Sub-Contractor Co-ordination.

  • Parts of BIM not tested

  • Quantity take-offs

  • Resource allocation: Man-hours, methods and materials

  • Cost allocation across project duration

  • Facility Management

Case Study: SHSU Academic Building 5


06 06 07 07 11 07

  • Constructor 2007 American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

Modeling Interface

Scheduling and Generating reports

Estimating Interface

Cost reports

Plays a 5D real time- space file.

Case Study: SHSU Academic Building 5


06 06 07 07 11 07

  • Model Transfer American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

  • Expected Transfer using IFC extension file

  • Convert Revit file to IFC file

  • Open IFC file in Constructor 2007

  • Add schedule in constructor

  • Create the sequencing file in Presenter 2007

  • Issues encountered

  • IFC Conversion is a time-consuming process

  • Unexpected scaling of elements in Constructor

Case Study: SHSU Academic Building 5


06 06 07 07 11 07

  • Challenges American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

  • Creation of second BIM model with necessary details to integrate all scheduling activities.

Case Study: SHSU Academic Building 5


06 06 07 07 11 07

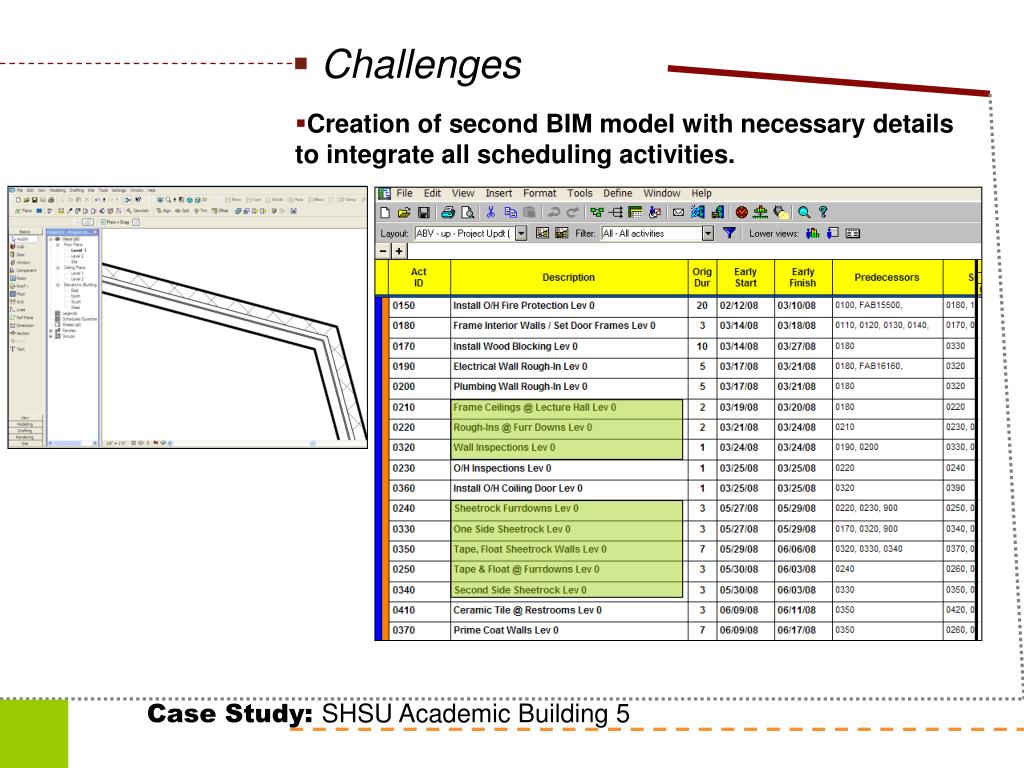

  • Challenges American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

  • Creation of second BIM model with necessary details to integrate all scheduling activities.

Case Study: SHSU Academic Building 5


06 06 07 07 11 07

  • Challenges American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

  • Creation of second BIM model with necessary details to integrate all scheduling activities.

Case Study: SHSU Academic Building 5


06 06 07 07 11 07

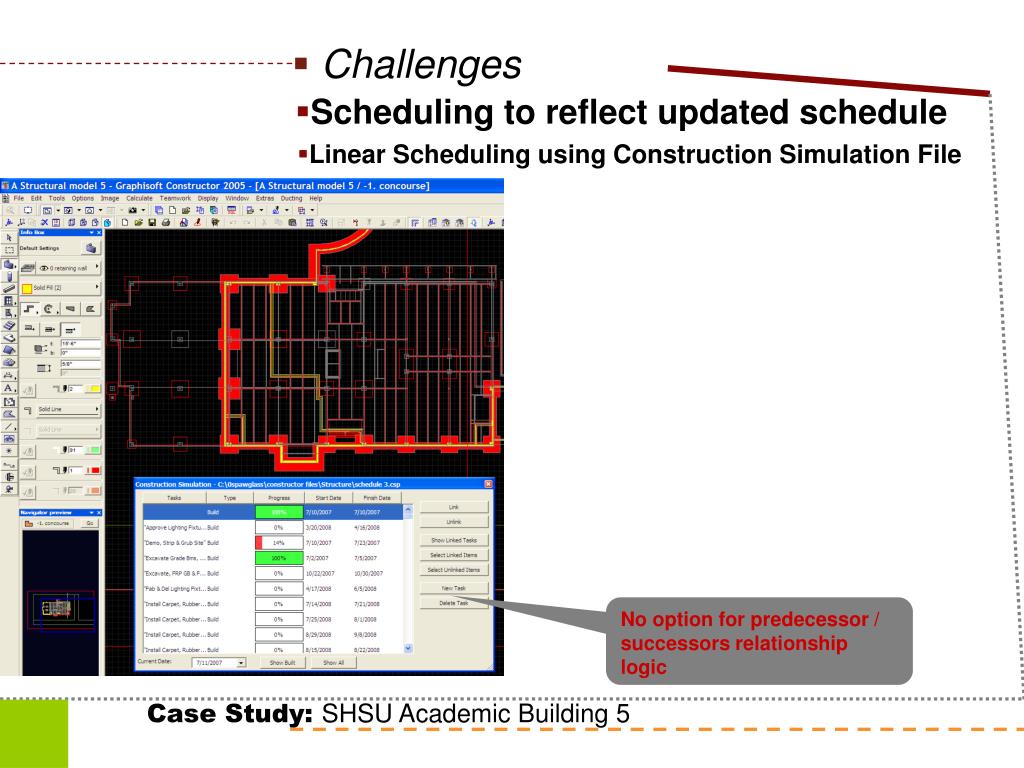

  • Challenges American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

  • Scheduling to reflect updated schedule

  • Linear Scheduling using Construction Simulation File

No option for predecessor / successors relationship logic

Case Study: SHSU Academic Building 5


06 06 07 07 11 07

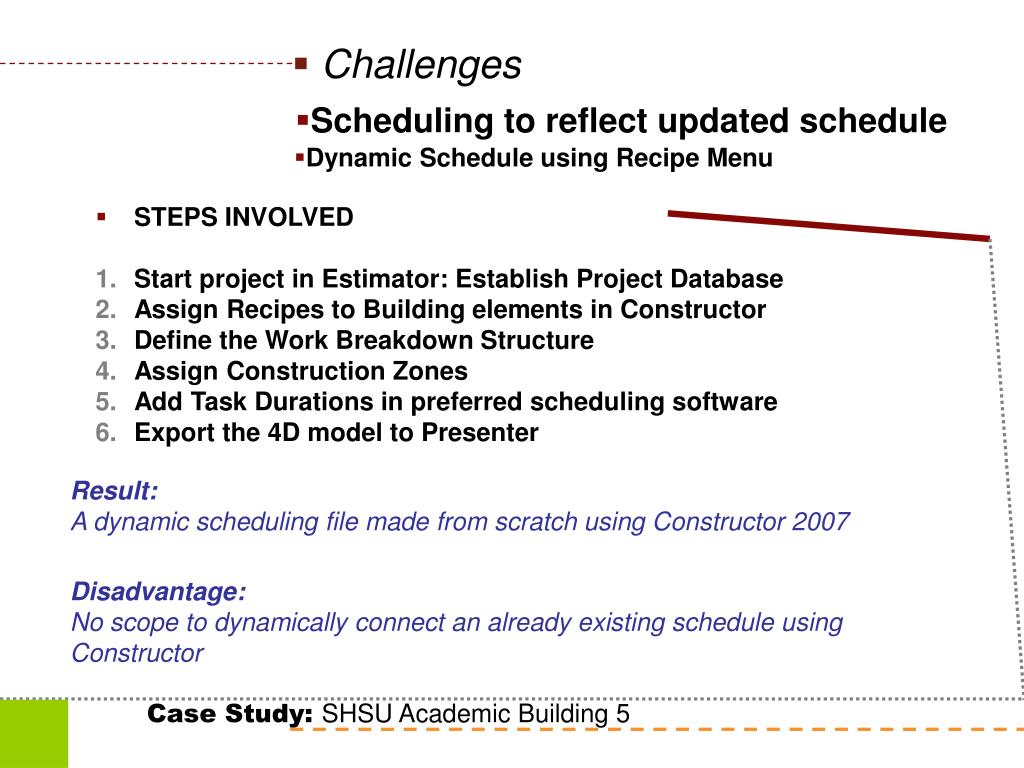

  • Challenges American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

  • Scheduling to reflect updated schedule

  • Dynamic Schedule using Recipe Menu

  • STEPS INVOLVED

  • Start project in Estimator: Establish Project Database

  • Assign Recipes to Building elements in Constructor

  • Define the Work Breakdown Structure

  • Assign Construction Zones

  • Add Task Durations in preferred scheduling software

  • Export the 4D model to Presenter

Result:

A dynamic scheduling file made from scratch using Constructor 2007

Disadvantage:

No scope to dynamically connect an already existing schedule using Constructor

Case Study: SHSU Academic Building 5


06 06 07 07 11 07

  • Navisworks – American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level. (Currently under tests)

  • Scheduling to reflect updated schedule

  • Dynamic Schedule using Recipe Menu

  • STEPS INVOLVED

  • Convert Constructor/Revit file to Navisworks file format

  • Link an already existing schedule to Navisworks

  • Assign building elements to task components

  • Play real time-space interactive animation file

Result:

A dynamic scheduling file made from existing schedule. Contractor need not change traditional ways of conducting business

Disadvantage:

Navisworks does not let the user draw additional components. One needs to use Revit+Navisworks OR Constructor+Navisworks.

Case Study: SHSU Academic Building 5


06 06 07 07 11 07

  • BIM issues identified so far. American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

Case Study: SHSU Academic Building 5


06 06 07 07 11 07

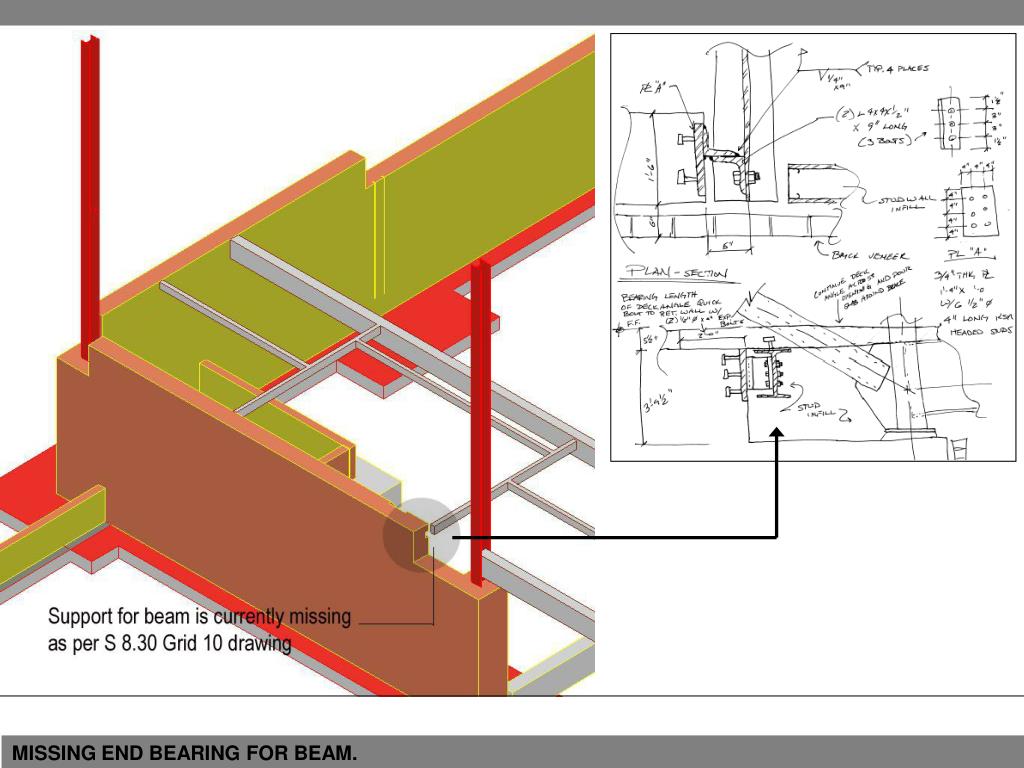

MISSING END BEARING FOR BEAM. American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.


06 06 07 07 11 07

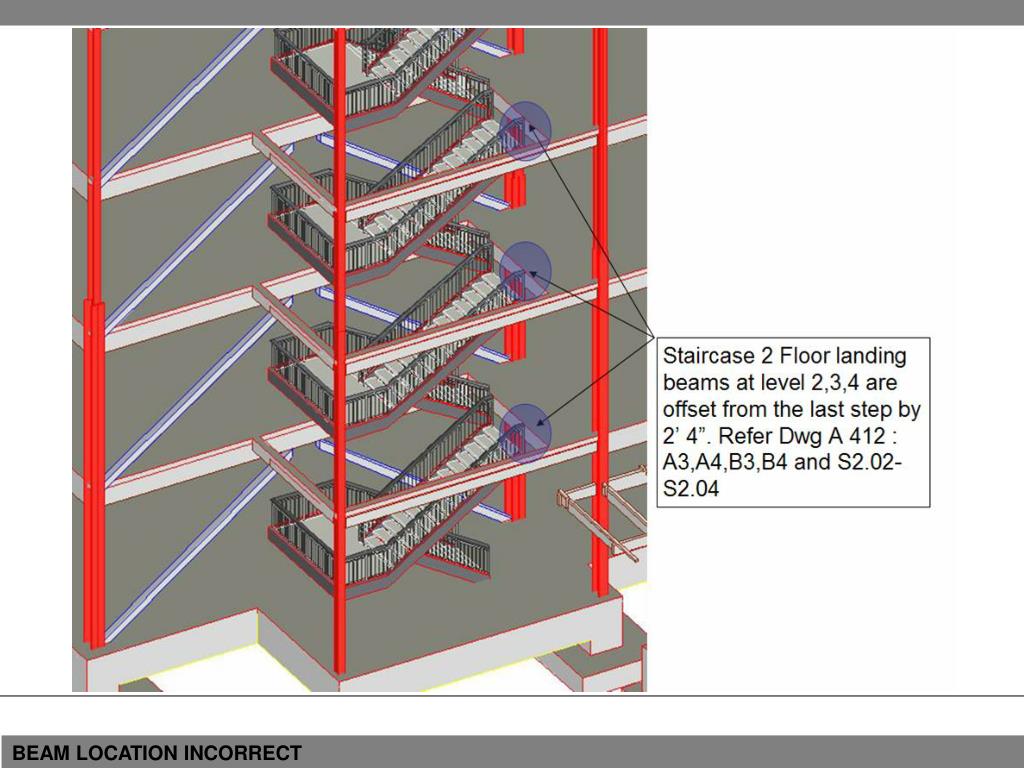

BEAM LOCATION INCORRECT American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.


06 06 07 07 11 07

Clarify detail A6 on A 301. American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

Is there a concrete section behind the MS beam ?

DRAWING INFORMATION CONFLICTS


06 06 07 07 11 07

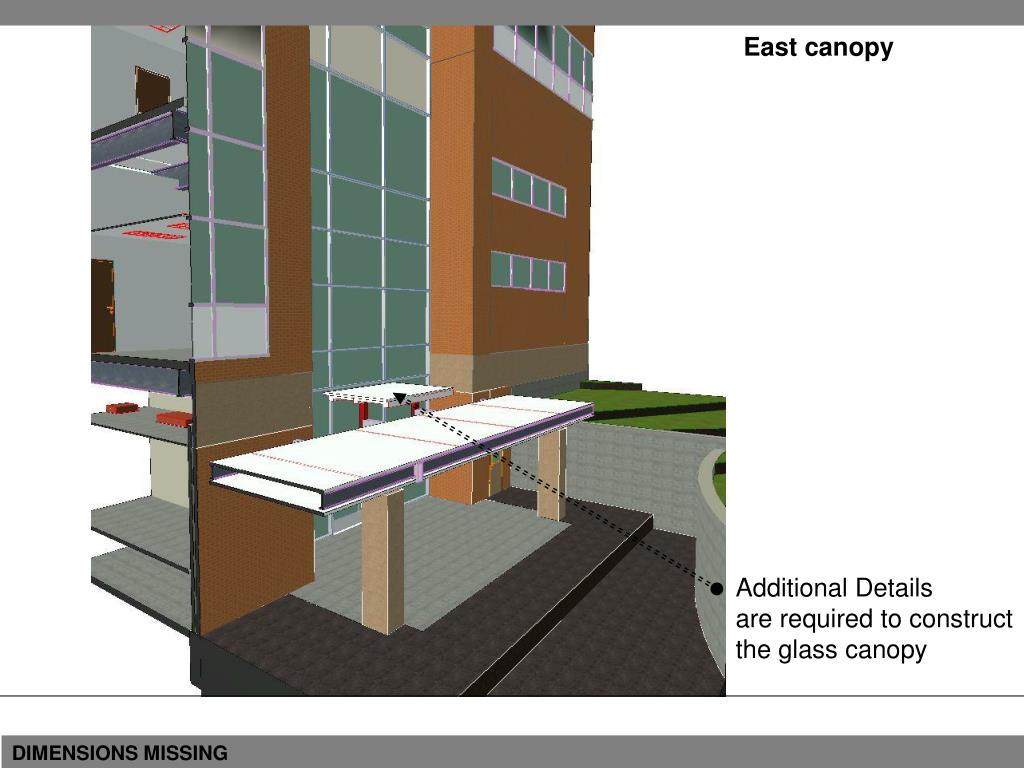

East canopy American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

Additional Details

are required to construct

the glass canopy

DIMENSIONS MISSING


06 06 07 07 11 07

  • Work to be done American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

Phase 1: Modeling of Architectural/ Structural Elements

Phase 2: Test Scheduling Connectivity using Constructor/ Revit

Phase 3: Test Scheduling Connectivity using Navisworks

Phase 4: Modeling and scheduling of MEP elements

Phase 5: FinalReports

Case Study: SHSU Academic Building 5


06 06 07 07 11 07

  • THANK- YOU ! American Institute of Architects and Associated General Contractors of America, 74% of the 1,266 respondents said they're using 3-D digital modeling at some level.

  • Thanks to:

  • CIAC

  • Dr Julian Kang: T.A.M.U

  • Mr. Micheal Emmons, Mr. Brandon Meyers & Mr. Richard Evans: SpawGlass Construction

  • WHR Construction
