Performance Analysis of LAN/WAN Systems Against One-Way Delay in Token Ring and CSMA/CD

This study investigates the performance of various Local Area Network (LAN) and Wide Area Network (WAN) protocols, emphasizing the effects of one-way delay measured at 50 times the slot time (Ts). It compares systems such as X.25, Token Ring, and different protocols like CSMA/CD and Aloha under specific traffic conditions, including the handling of both shared media loads and token passing techniques. The analysis includes graphical representations of performance metrics, aiding in the understanding of network efficiency and delay characteristics.

candace-pena
Download Presentation

Performance Analysis of LAN/WAN Systems Against One-Way Delay in Token Ring and CSMA/CD

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

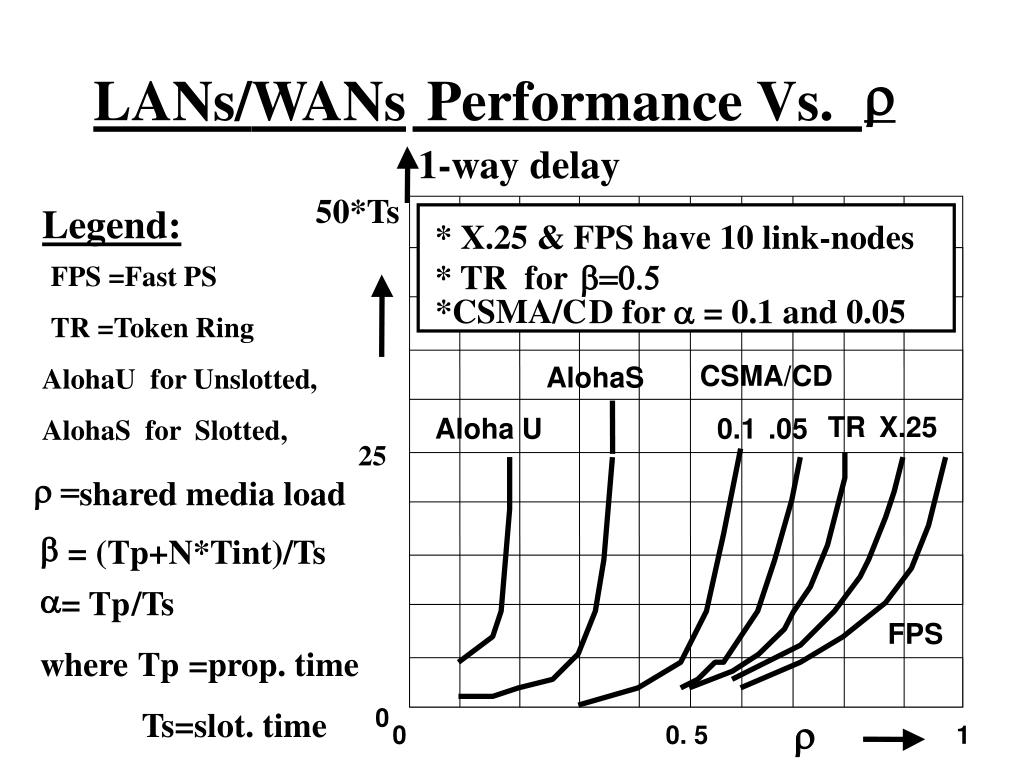

  1. r LANs/ WANs Performance Vs. 1-way delay 50*Ts Legend: * X.25 & FPS have 10 link-nodes b=0.5 * TR for FPS =Fast PS *CSMA/C D for a = 0.1 and 0.05 TR =Token Ring CSMA/CD AlohaS AlohaU for Unslotted , TR X.25 Aloha U 0.1 .05 AlohaS for Slotted, 25 r = shared media load b = ( Tp +N*Tint)/Ts a = Tp /Ts FPS where Tp =prop. time 0 Ts=slot. time r 0 0. 5 1

  2. Class Assignments 1. Redraw Figure 4.4 for r =0.75 2. Redraw Figure 4.5 for r =0.75
