exploring interfaces and filesystems
Exploring interfaces and filesystems

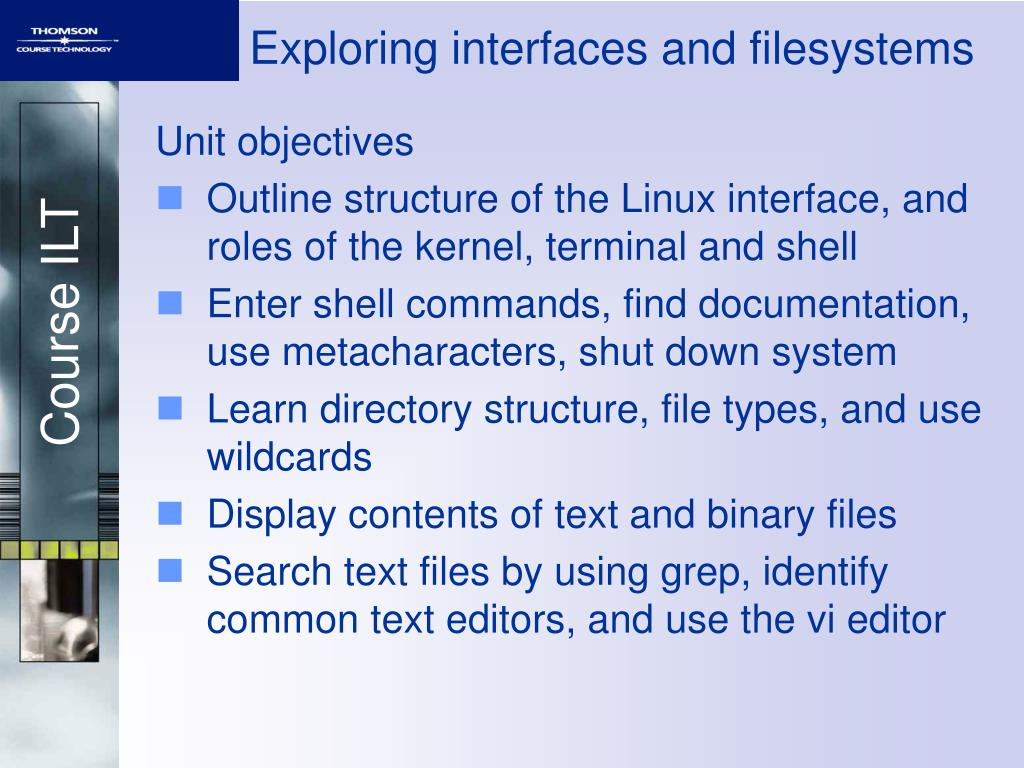

Unit objectives

  • Outline structure of the Linux interface, and roles of the kernel, terminal and shell
  • Enter shell commands, find documentation, use metacharacters, shut down system
  • Learn directory structure, file types, and use wildcards
  • Display contents of text and binary files
  • Search text files by using grep, identify common text editors, and use the vi editor
topic a
Topic A
  • Topic A: Linux interfaces
  • Topic B: Basic shell commands
  • Topic C: Files and directories
  • Topic D: Displaying the contents of files
  • Topic E: Searching and editing text files
shells terminals and the kernel

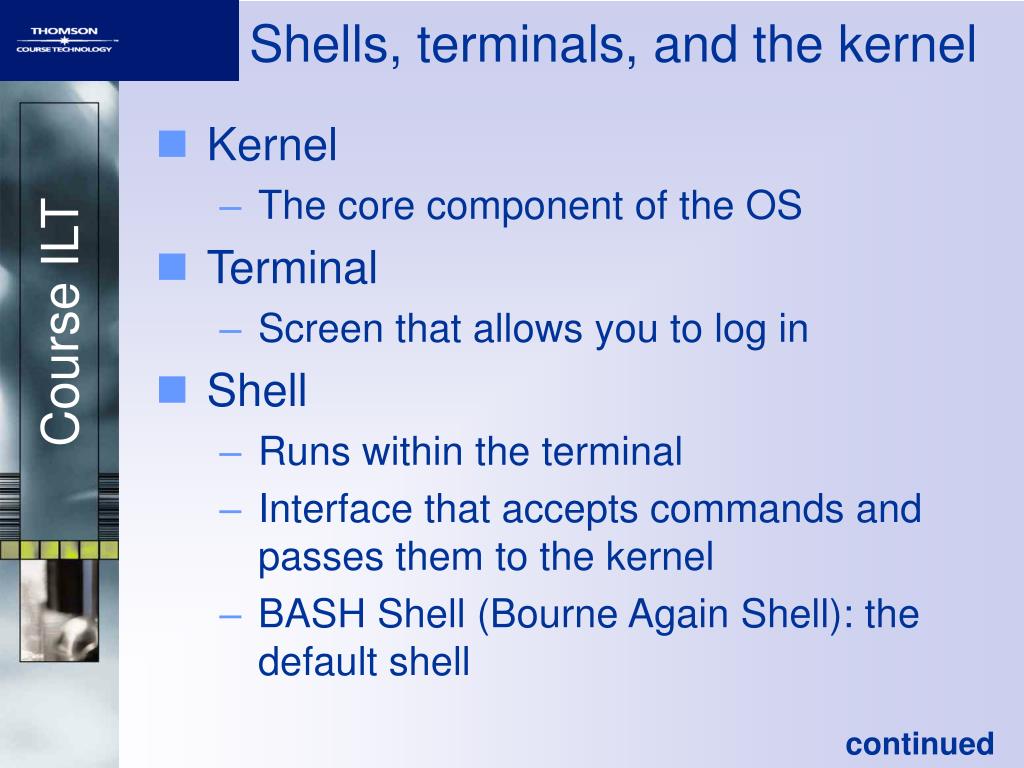

Shells, terminals, and the kernel
  • Kernel
    • The core component of the OS
  • Terminal
    • Screen that allows you to log in
  • Shell
    • Runs within the terminal
    • Interface that accepts commands and passes them to the kernel
    • BASH Shell (Bourne Again Shell): the default shell

continued

exercise a 1

Exercise A-1

Discussing terminals and shells

topic b
Topic B
  • Topic A: Linux interfaces
  • Topic B: Basic shell commands
  • Topic C: Files and directories
  • Topic D: Displaying the contents of files
  • Topic E: Searching and editing text files
basic shell commands

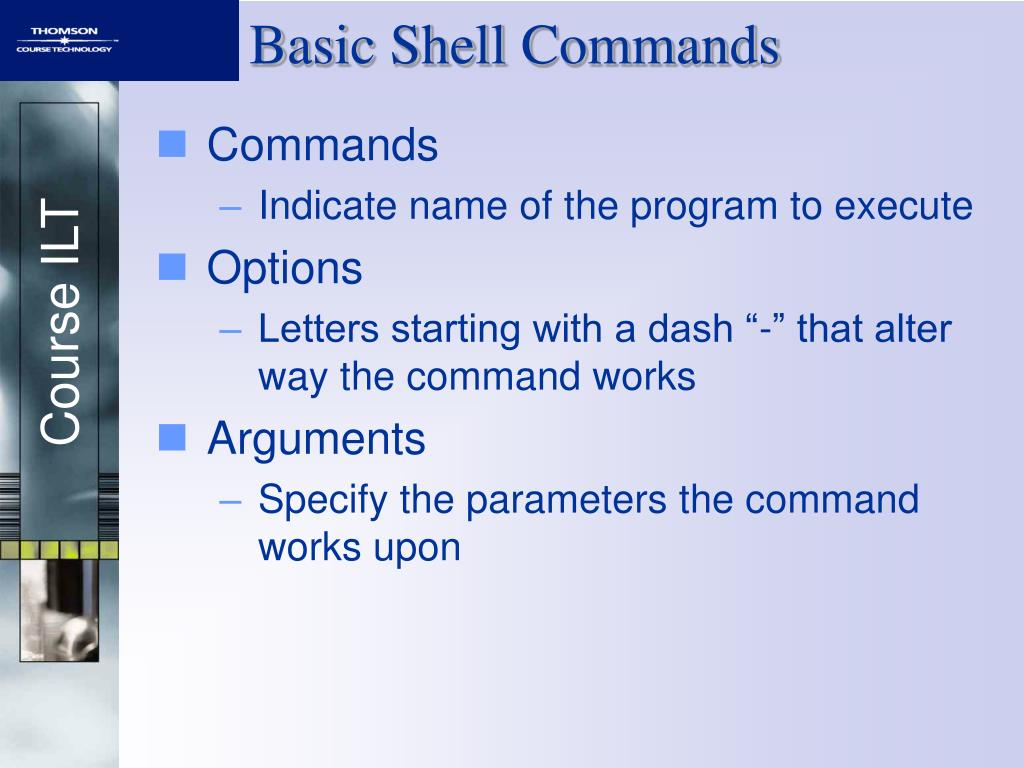

Basic Shell Commands
  • Commands
    • Indicate name of the program to execute
  • Options
    • Letters starting with a dash “-” that alter way the command works
  • Arguments
    • Specify the parameters the command works upon
shell metacharacters

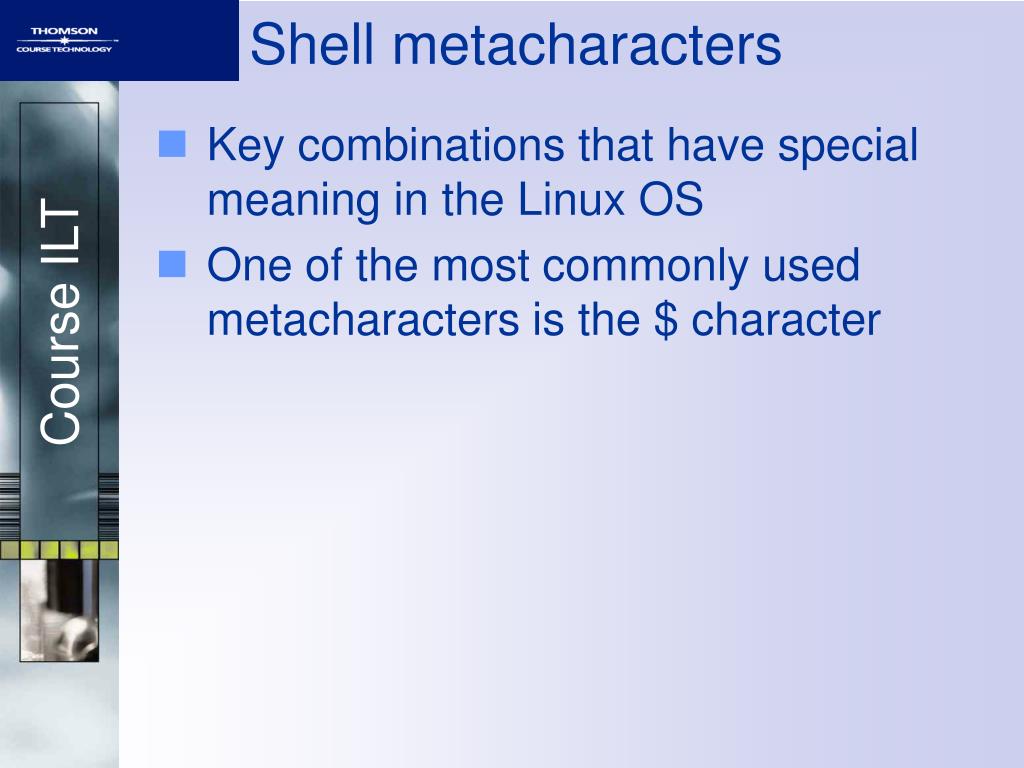

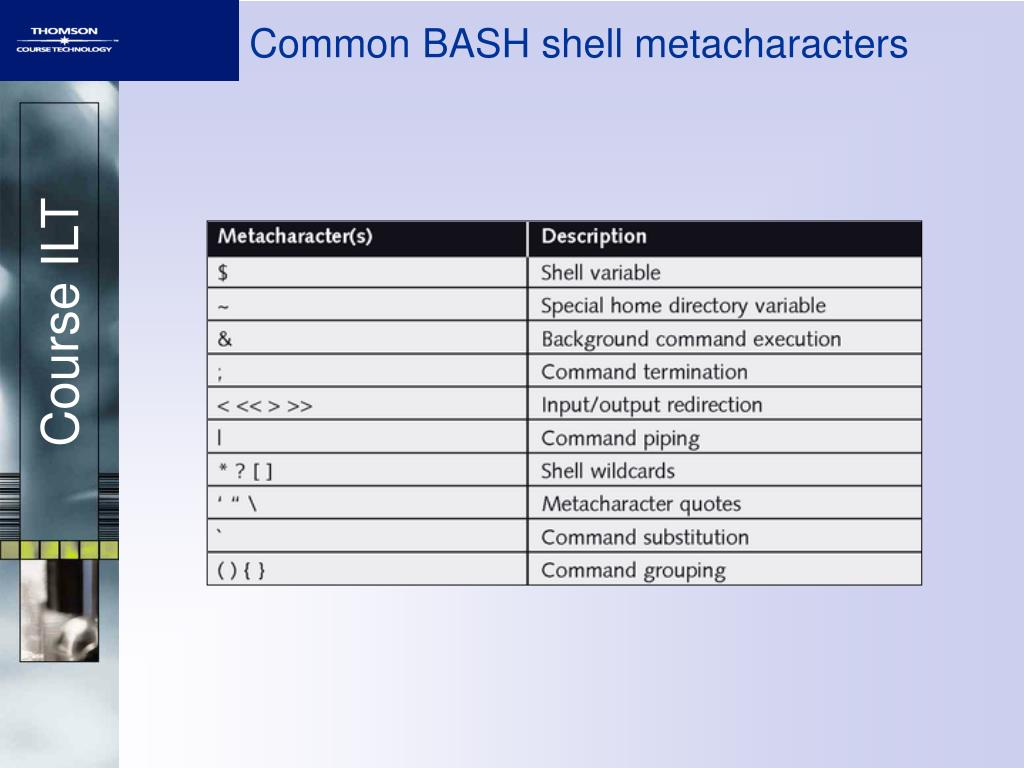

Shell metacharacters
  • Key combinations that have special meaning in the Linux OS
  • One of the most commonly used metacharacters is the $ character
activity b 1

Activity B-1

Using shell commands and metacharacters

getting command help
Getting command help

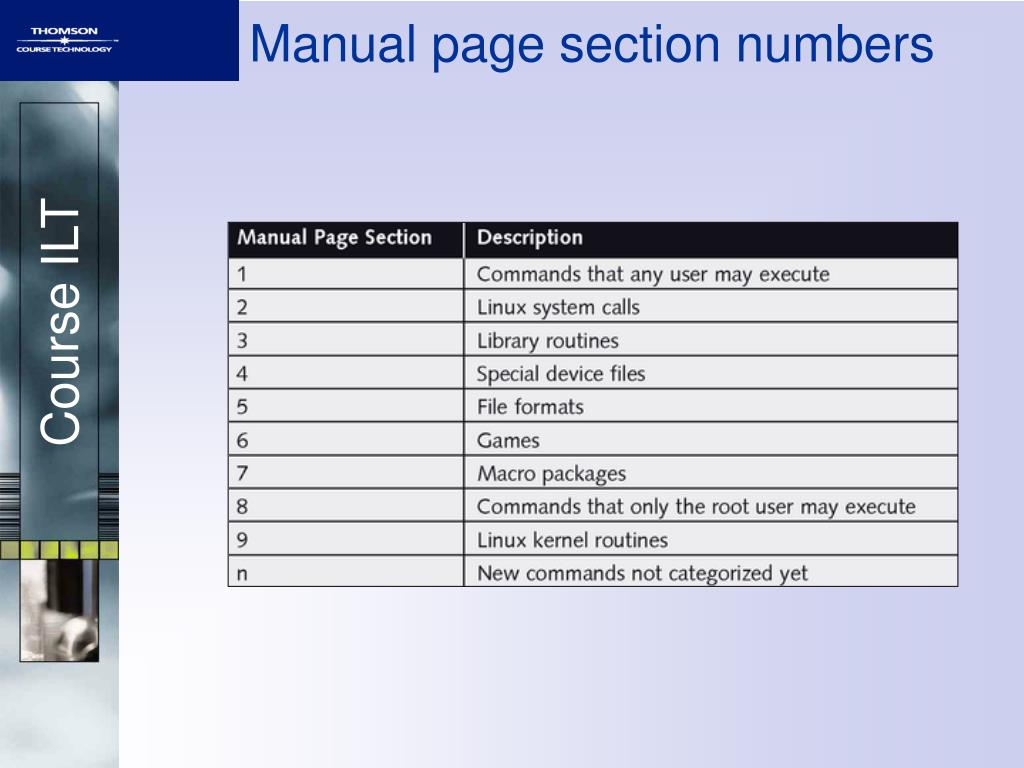

  • Manual pages
    • Commonly referred to as man pages
    • Documents the command’s function and the syntax it accepts
activity b 2

Activity B-2

Getting help

activity b 3

Activity B-3

Shutting down the system

topic c

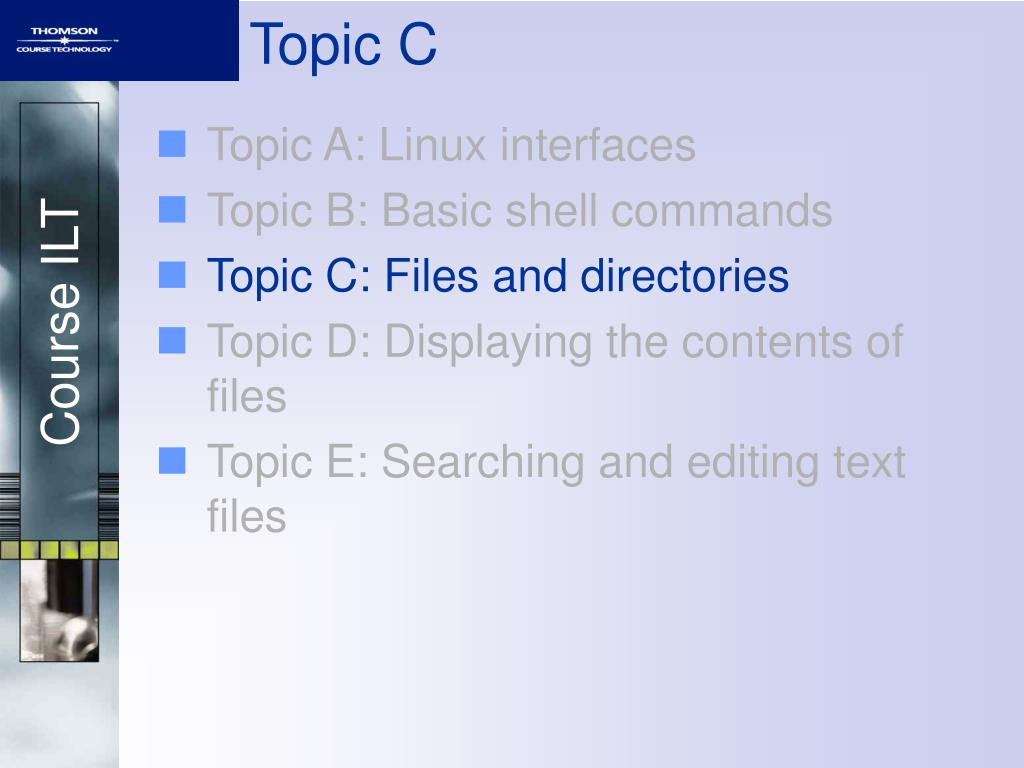

Topic C
  • Topic A: Linux interfaces
  • Topic B: Basic shell commands
  • Topic C: Files and directories
  • Topic D: Displaying the contents of files
  • Topic E: Searching and editing text files
the linux directory structure1

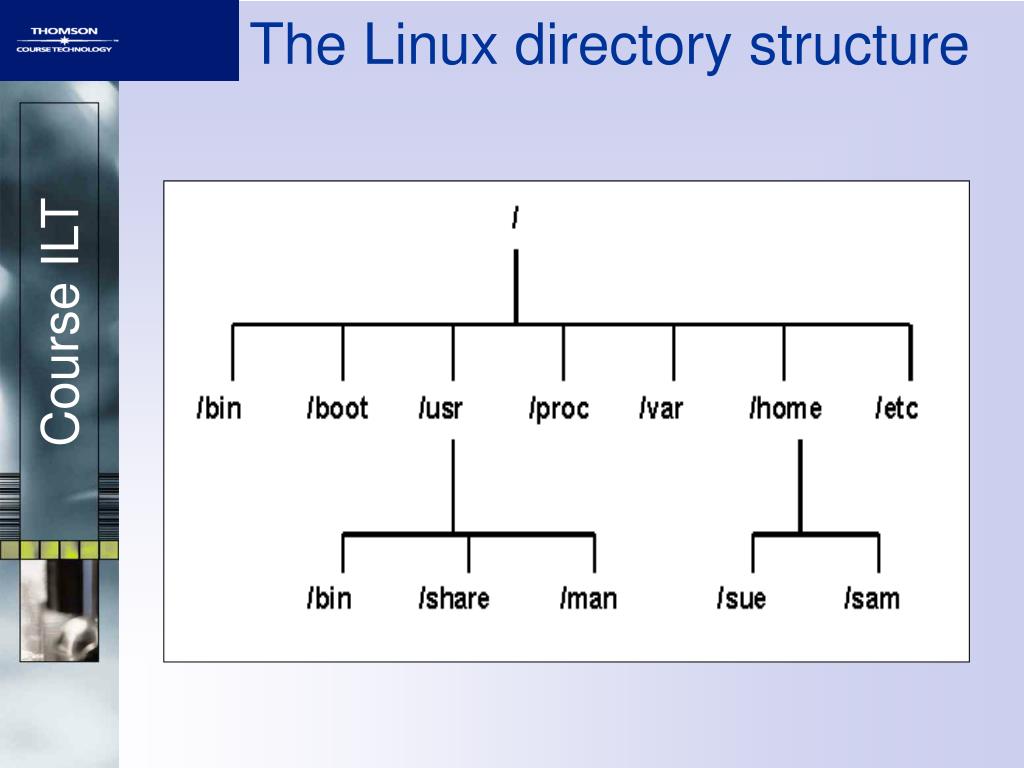

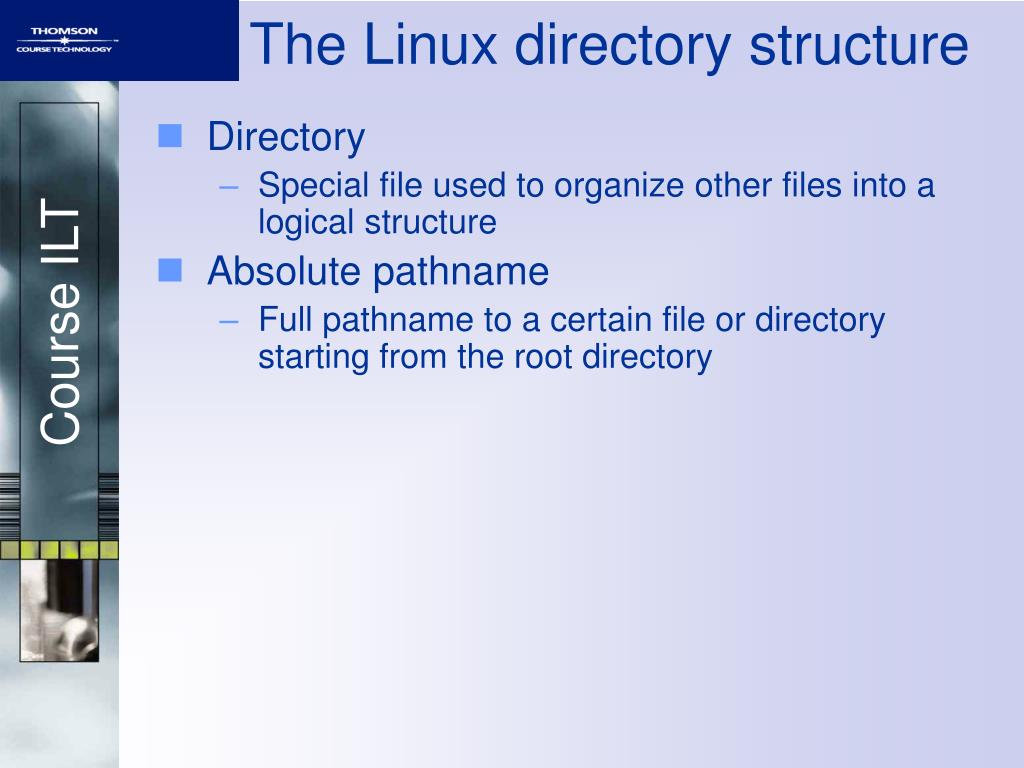

The Linux directory structure
  • Directory
    • Special file used to organize other files into a logical structure
  • Absolute pathname
    • Full pathname to a certain file or directory starting from the root directory
home directory

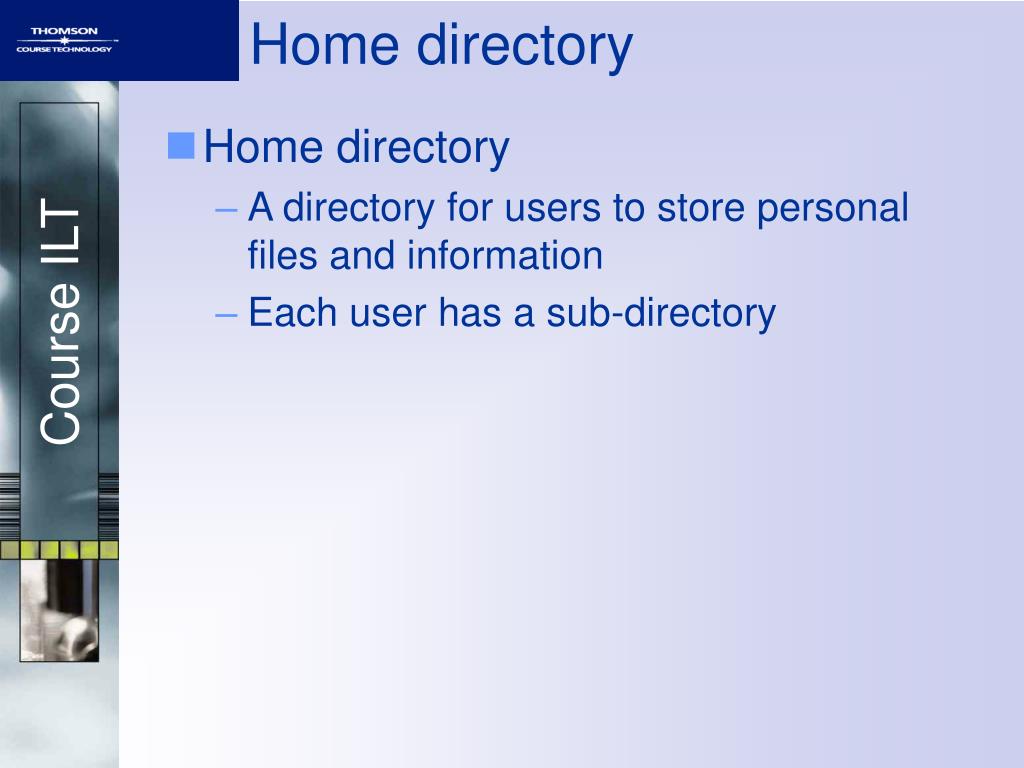

Home directory
  • Home directory
    • A directory for users to store personal files and information
    • Each user has a sub-directory
changing directories

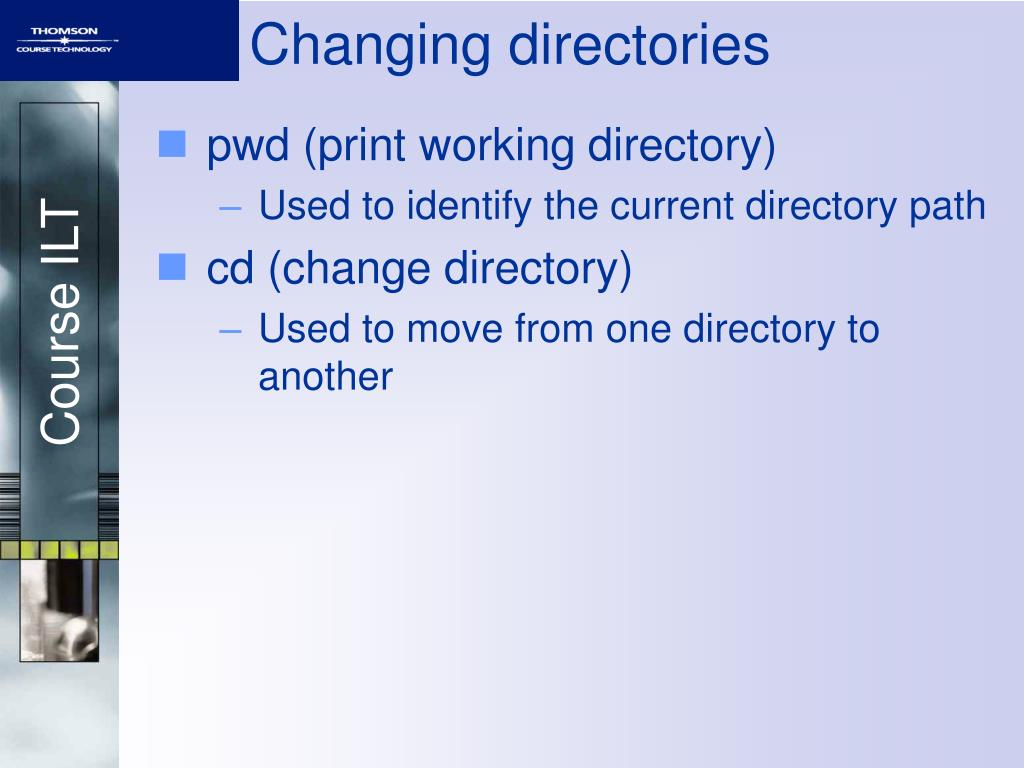

Changing directories
  • pwd (print working directory)
    • Used to identify the current directory path
  • cd (change directory)
    • Used to move from one directory to another
the metacharacter and relative paths

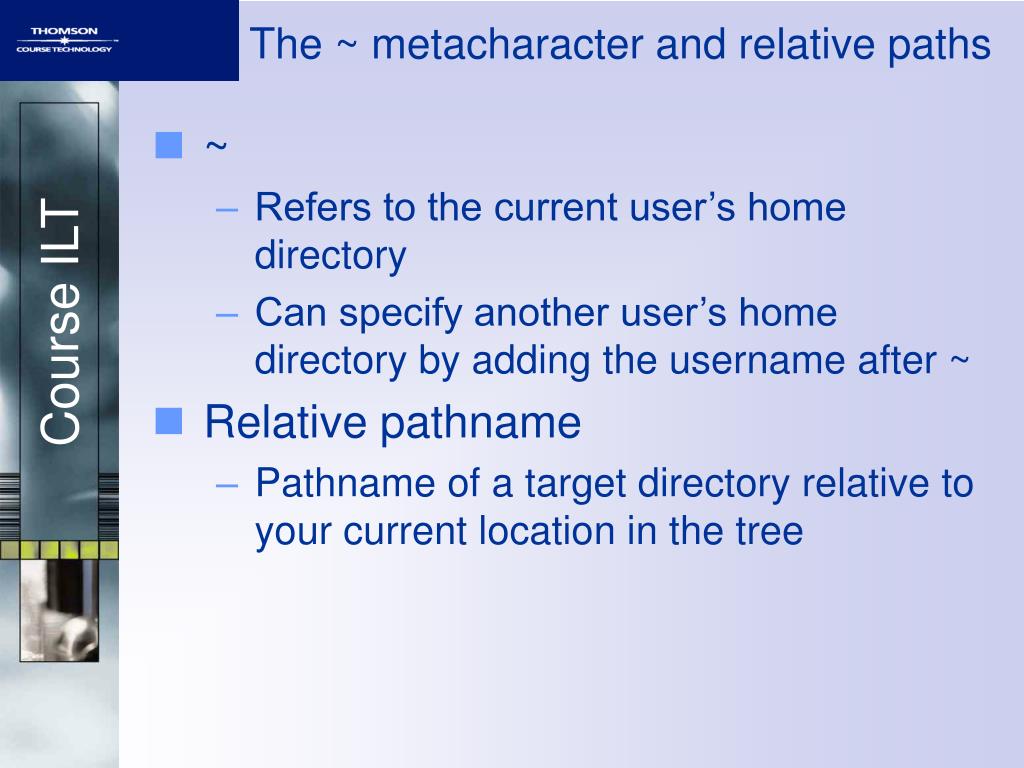

The ~ metacharacter and relative paths
  • ~
    • Refers to the current user’s home directory
    • Can specify another user’s home directory by adding the username after ~
  • Relative pathname
    • Pathname of a target directory relative to your current location in the tree
tab completion
Tab-completion
  • Tab-completion
    • Fills in the remaining characters of a unique filename or directory name when you press the Tab key
activity c 1

Activity C-1

Logging on and navigating the file structure

file types

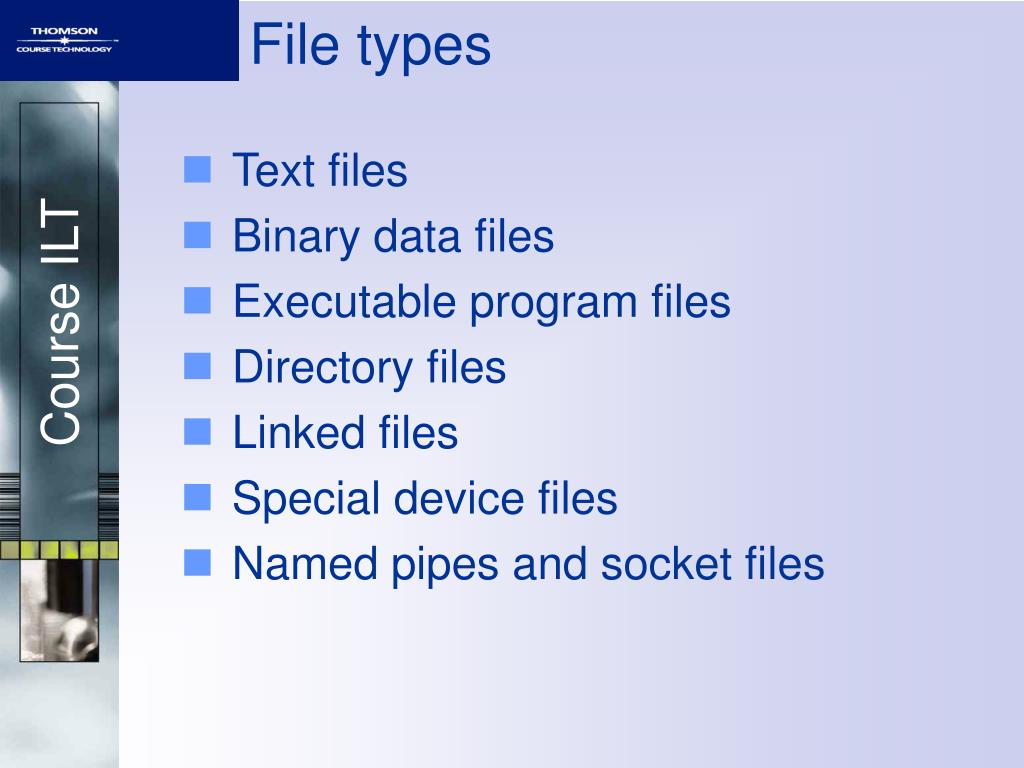

File types
  • Text files
  • Binary data files
  • Executable program files
  • Directory files
  • Linked files
  • Special device files
  • Named pipes and socket files
filenames
Filenames
  • Filename
    • User-friendly identifier given to a file
  • Filename suffixes
    • Identifiers following a dot (.) at the end of a filename
    • used to denote the type of the file
the ls command

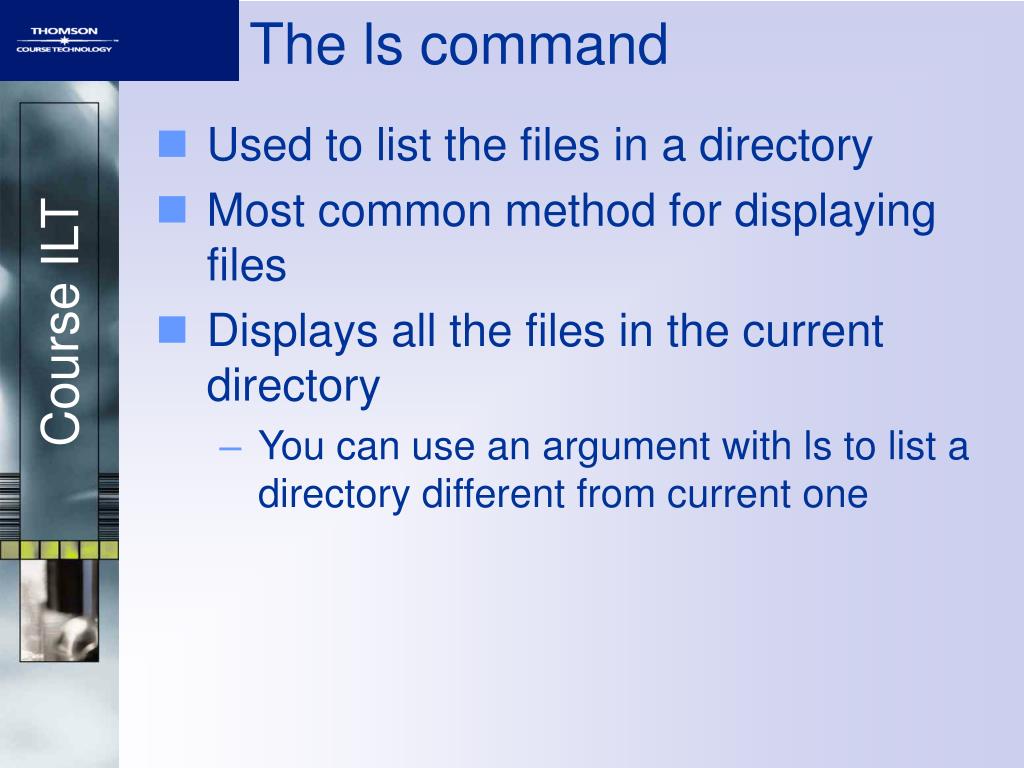

The ls command
  • Used to list the files in a directory
  • Most common method for displaying files
  • Displays all the files in the current directory
    • You can use an argument with ls to list a directory different from current one
ls f file type characters

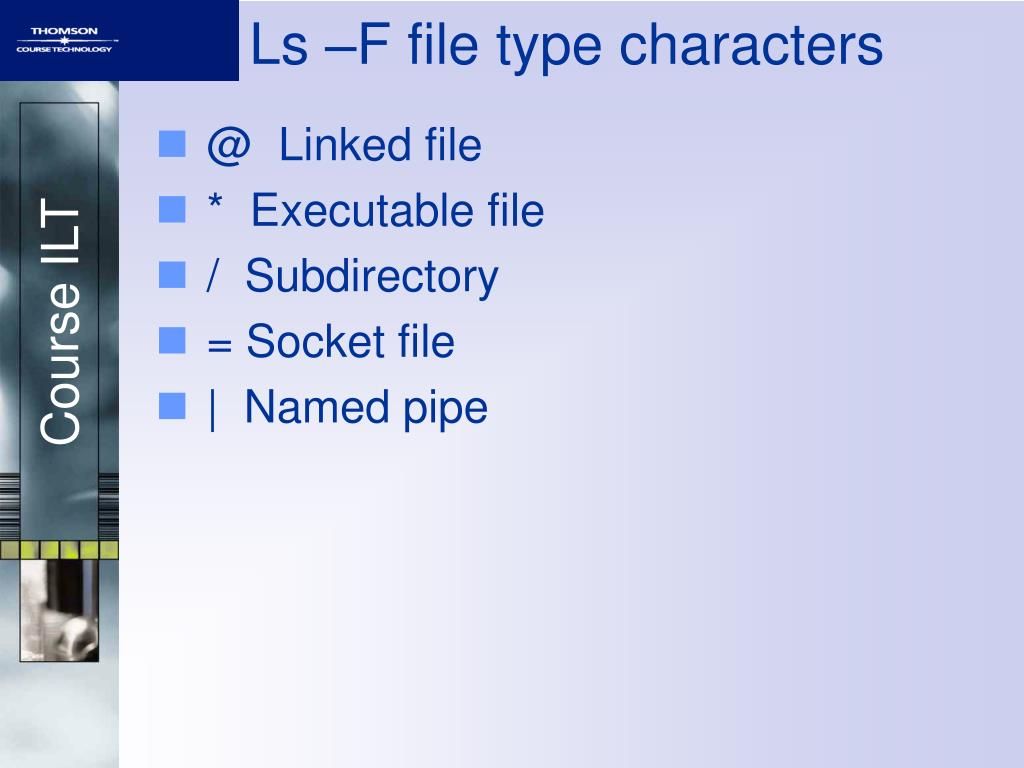

Ls –F file type characters
  • @ Linked file
  • * Executable file
  • / Subdirectory
  • = Socket file
  • | Named pipe
the file command
The file command
  • File command
    • Displays detailed information about any file
    • Works with multiple files
    • Uses * to include all files in a directory
hidden files
Hidden files
  • Hidden files
    • Files that are not normally displayed with common filesystem commands
    • represent important configuration files or program directories
activity c 2

Activity C-2

Examining files and file types

wildcard metacharacters

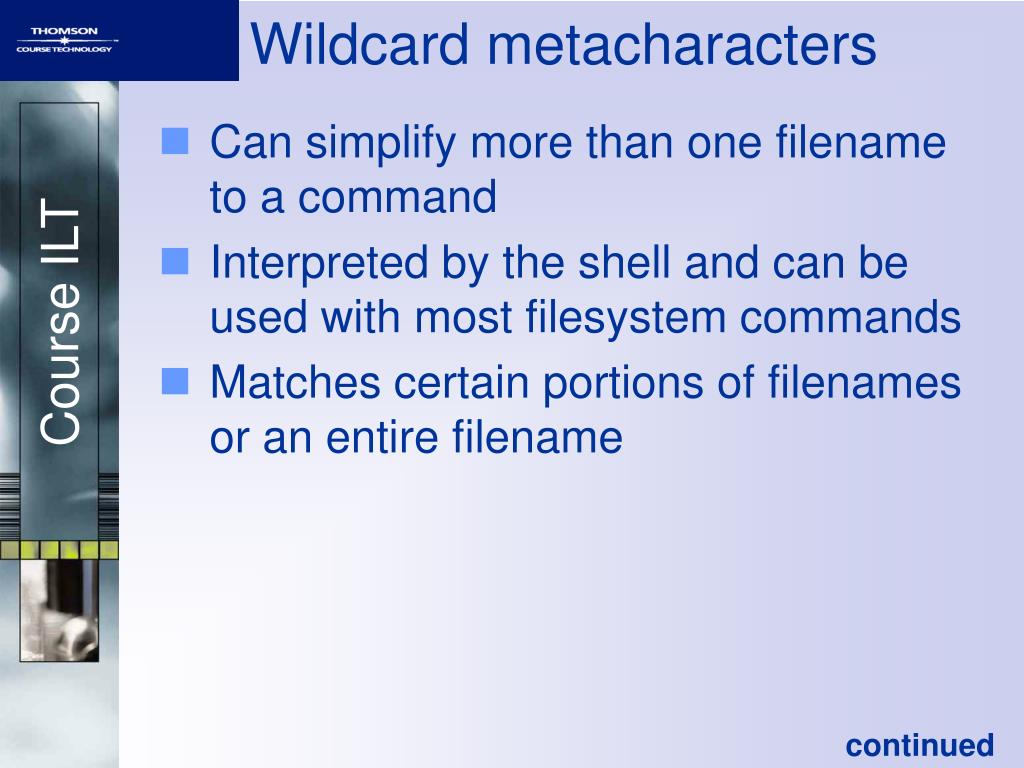

Wildcard metacharacters
  • Can simplify more than one filename to a command
  • Interpreted by the shell and can be used with most filesystem commands
  • Matches certain portions of filenames or an entire filename

continued

activity a 3

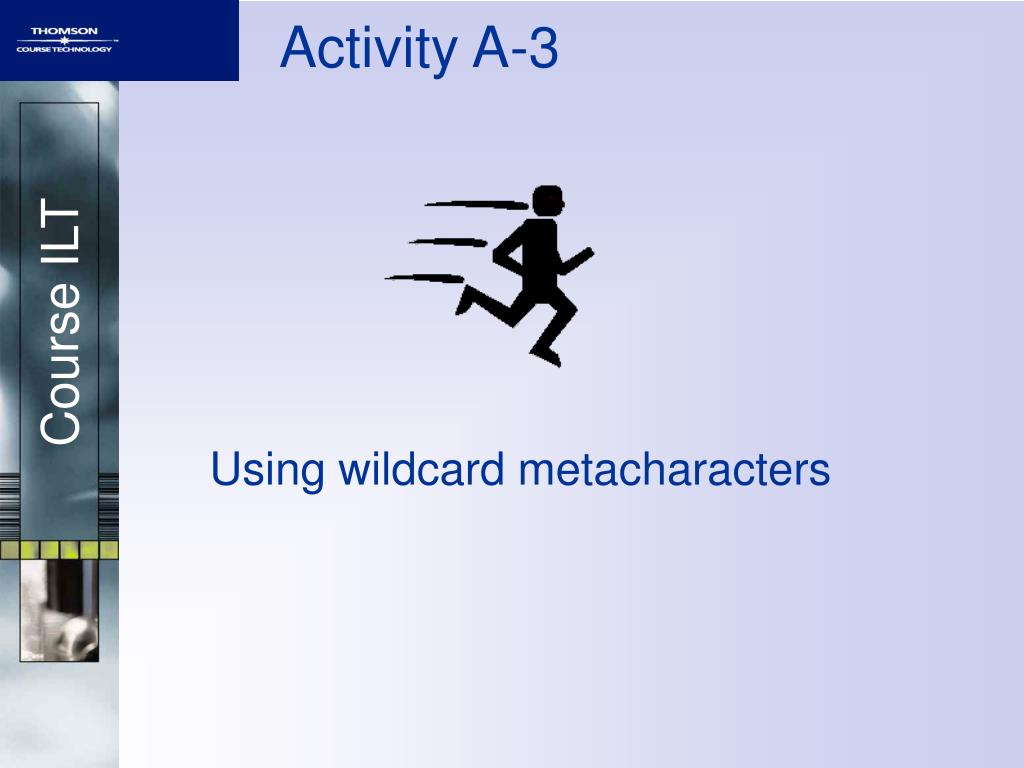

Activity A-3

Using wildcard metacharacters

topic d

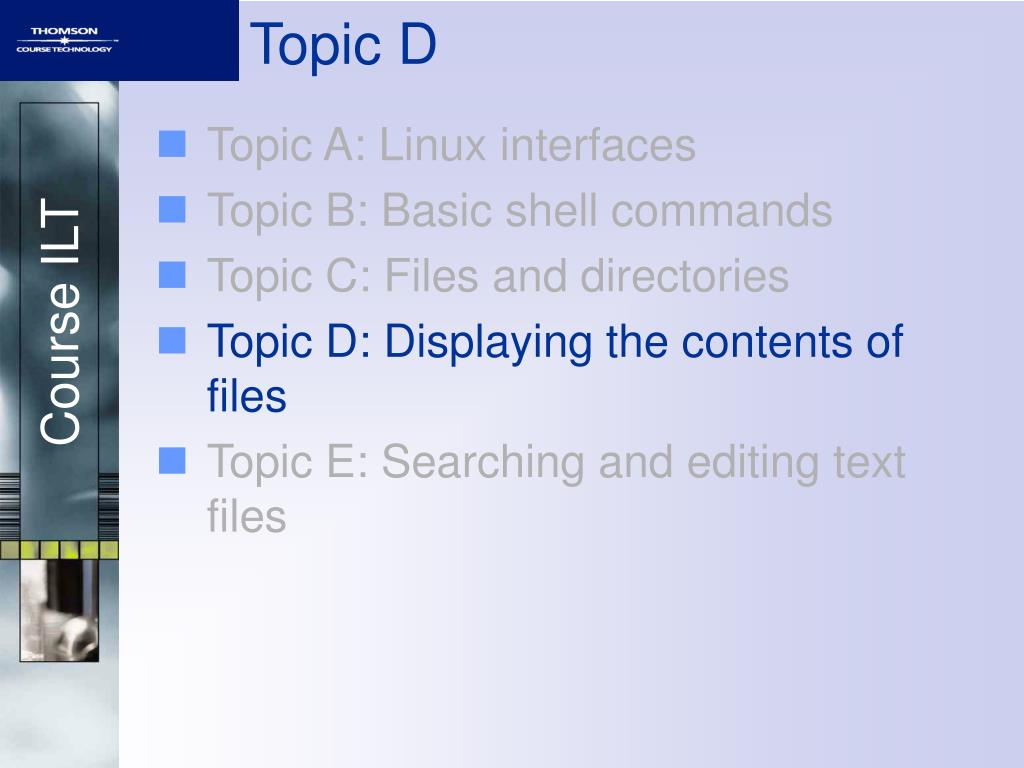

Topic D
  • Topic A: Linux interfaces
  • Topic B: Basic shell commands
  • Topic C: Files and directories
  • Topic D: Displaying the contents of files
  • Topic E: Searching and editing text files
displaying content of text files

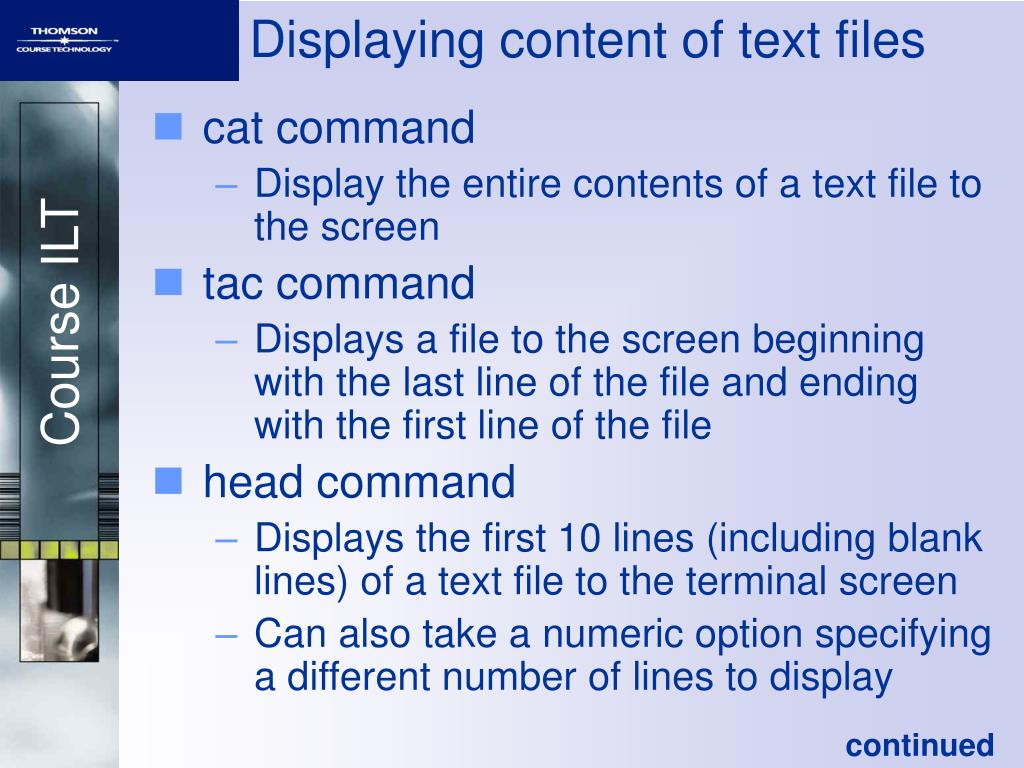

Displaying content of text files
  • cat command
    • Display the entire contents of a text file to the screen
  • tac command
    • Displays a file to the screen beginning with the last line of the file and ending with the first line of the file
  • head command
    • Displays the first 10 lines (including blank lines) of a text file to the terminal screen
    • Can also take a numeric option specifying a different number of lines to display

continued

displaying content of text files continued
Displaying content of text files, continued
  • tail command
    • By default, displays the last 10 lines (including blank lines) of a text file to the terminal screen
    • Can also take a numeric option specifying a different number of lines to display
other text file viewing commands
Other text file viewing commands
  • more command
    • Displays a text file page-by-page and line-by-line
    • Gets its name from the pg command once used on UNIX system
  • less command
    • Displays a text file page-by-page
    • Use the cursor keys to navigate the file
activity d 1

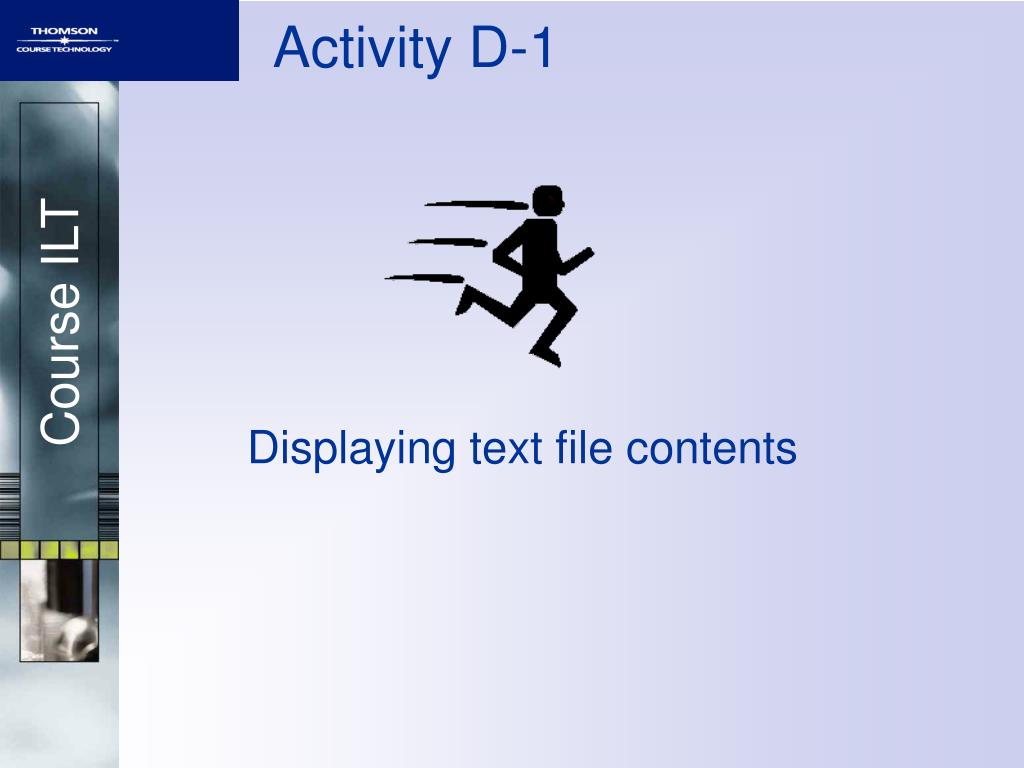

Activity D-1

Displaying text file contents

displaying the contents of binary files

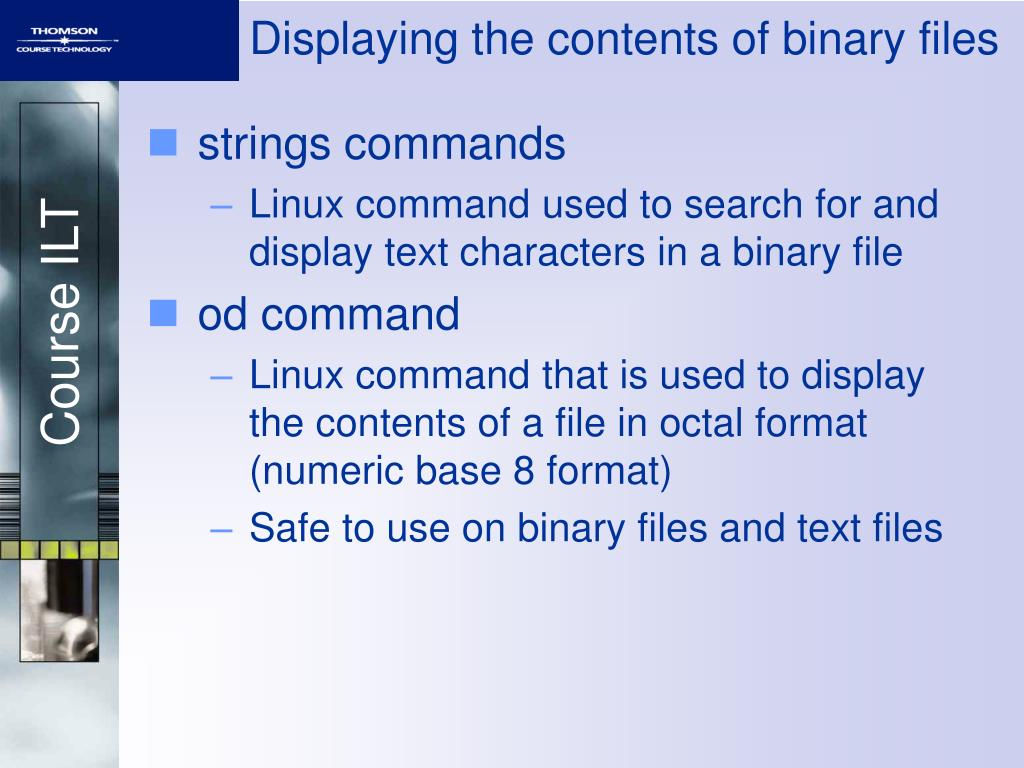

Displaying the contents of binary files
  • strings commands
    • Linux command used to search for and display text characters in a binary file
  • od command
    • Linux command that is used to display the contents of a file in octal format (numeric base 8 format)
    • Safe to use on binary files and text files
activity d 2

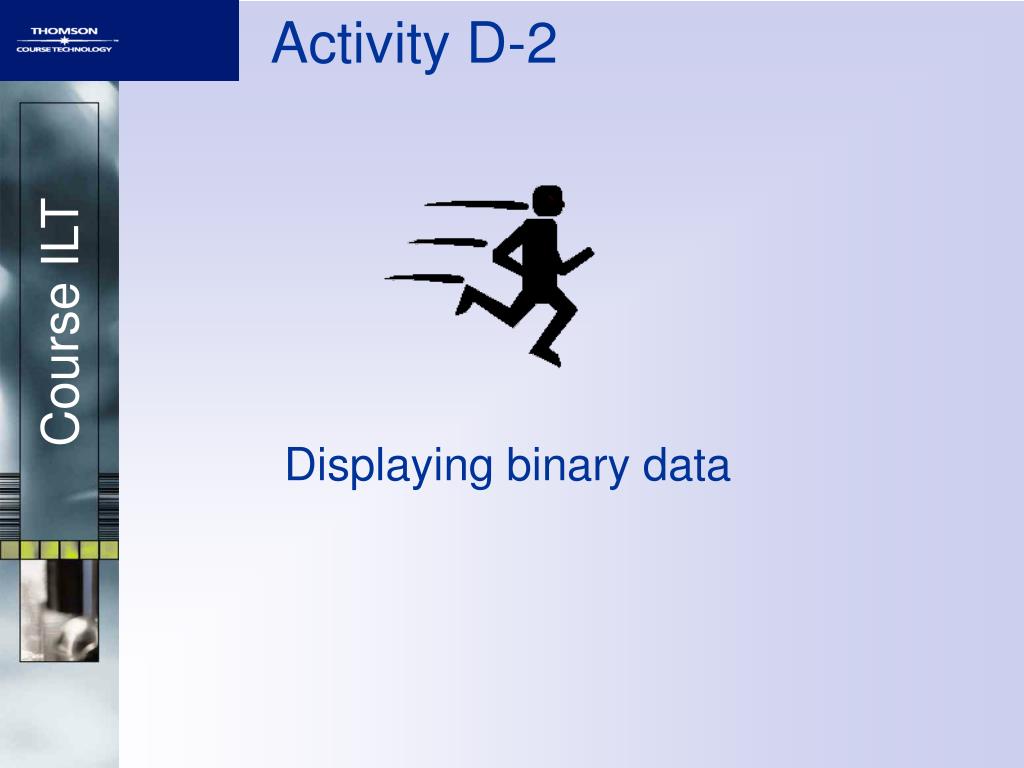

Activity D-2

Displaying binary data

topic e

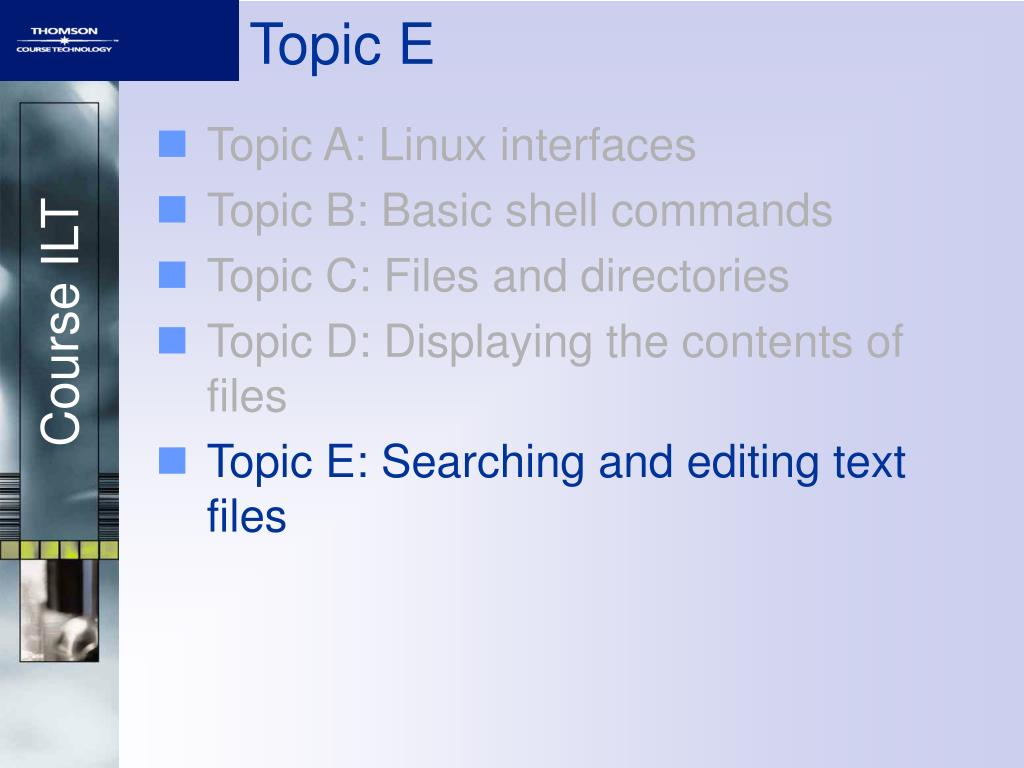

Topic E
  • Topic A: Linux interfaces
  • Topic B: Basic shell commands
  • Topic C: Files and directories
  • Topic D: Displaying the contents of files
  • Topic E: Searching and editing text files
searching for text within files

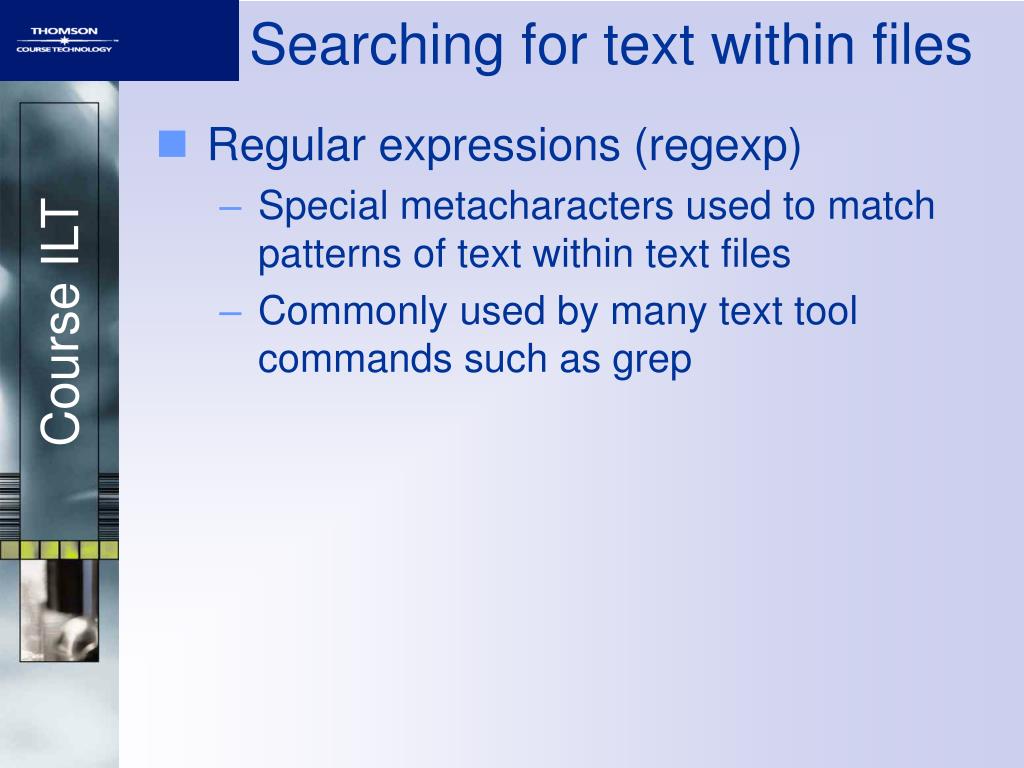

Searching for text within files

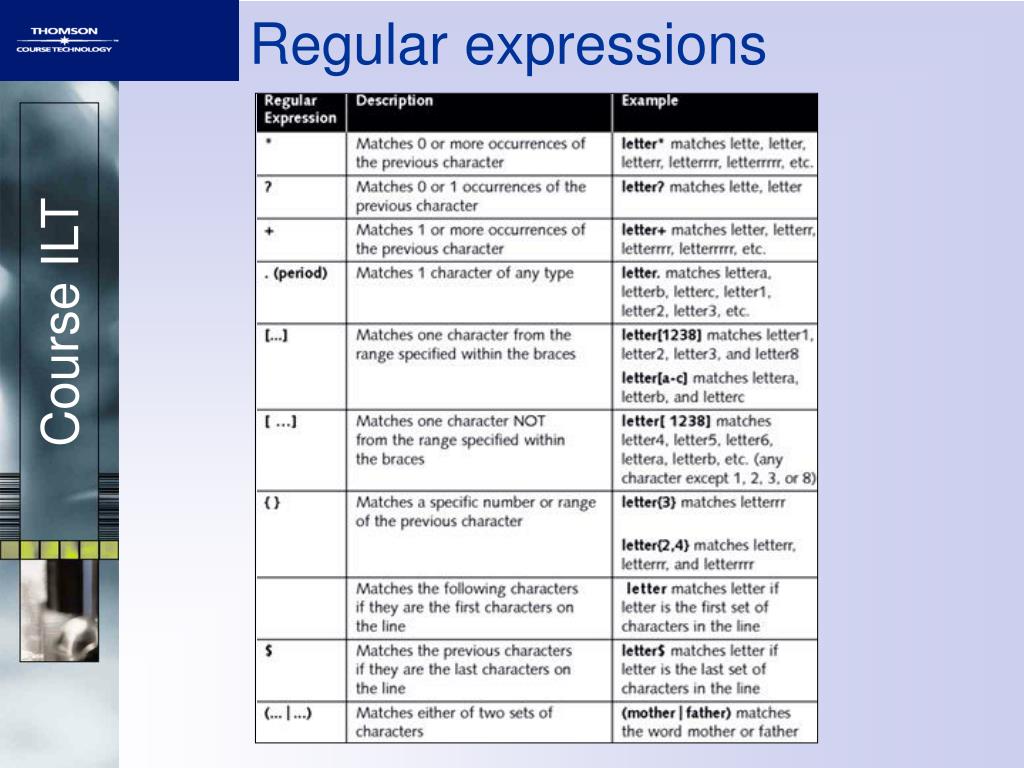

  • Regular expressions (regexp)
    • Special metacharacters used to match patterns of text within text files
    • Commonly used by many text tool commands such as grep
regular expressions and wildcards

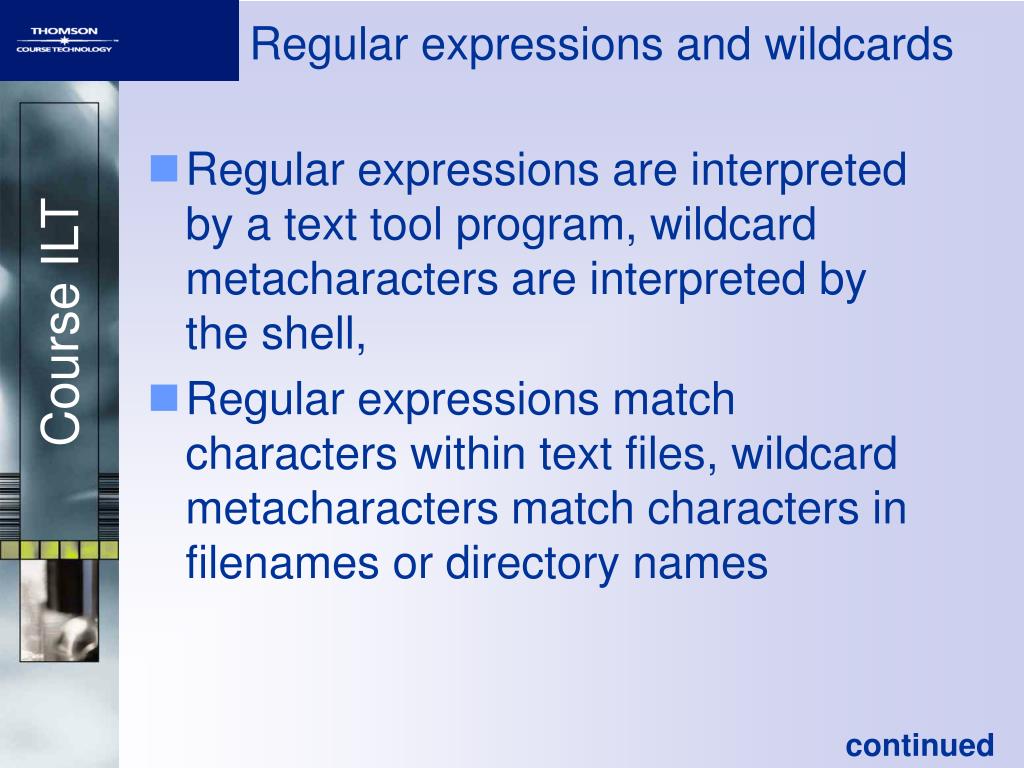

Regular expressions and wildcards
  • Regular expressions are interpreted by a text tool program, wildcard metacharacters are interpreted by the shell,
  • Regular expressions match characters within text files, wildcard metacharacters match characters in filenames or directory names

continued

regular expressions and wildcards continued

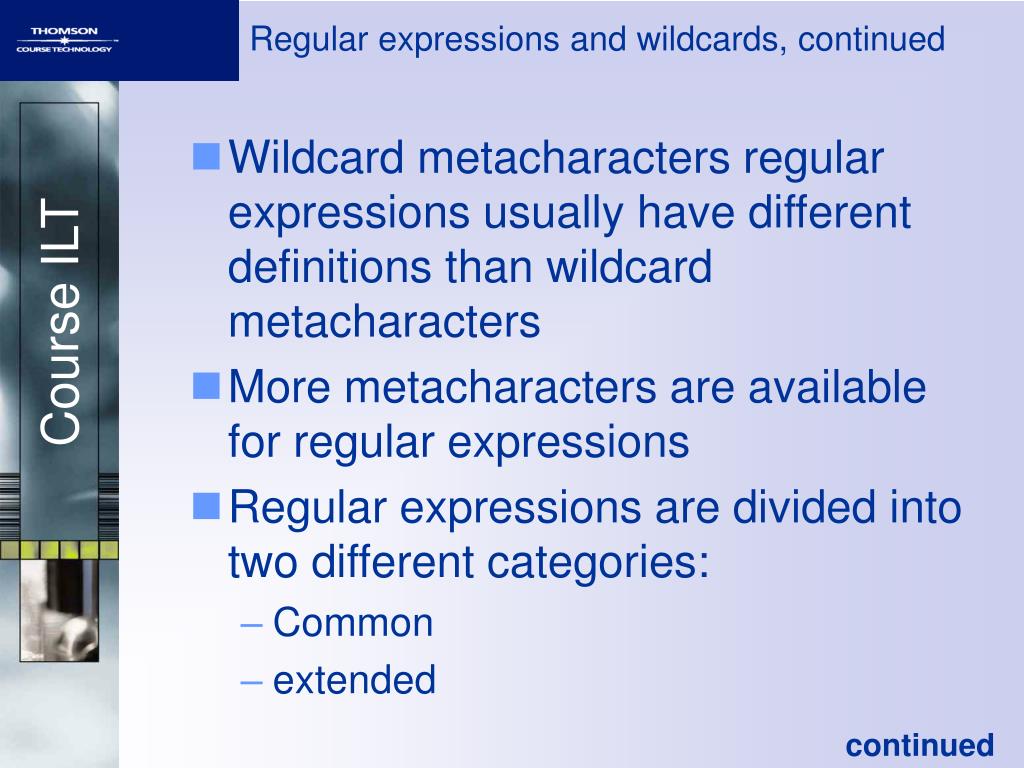

Regular expressions and wildcards, continued
  • Wildcard metacharacters regular expressions usually have different definitions than wildcard metacharacters
  • More metacharacters are available for regular expressions
  • Regular expressions are divided into two different categories:
    • Common
    • extended

continued

the grep command
The grep command
  • Grep
    • Displays lines in a text file that match a common regular expression
  • Egrep
    • Displays text that match extended regular expressions
  • Fgrep
    • Does not interpret regular expressions
    • Returns results faster than the egrep command
activity e 1

Activity E-1

Using regular expressions in grep and egrep

the vi editor
The vi editor
  • One of the oldest and most popular text editors available for Linux and UNIX operating systems
    • vim – an improved version for Linux
    • Not easy, but portable
  • The vi editor is called bi-modal as it functions in two modes
    • Command mode
      • Perform editing tasks not related to inserting text
    • Insert mode
      • Allows inserting text into the document
activity e 2

Activity E-2

Using the vi editor

activity e 3

Activity E-3

Exploring vi options

other common text editors
Other common text editors
  • Pico (PIne COmposer) editor
  • Mcedit editor (Midnight Commander Editor)
  • Emacs (Editor MAcroS) editor
  • Xemacs editor
emacs editor
Emacs editor
  • Alternative to the vi editor that offers equal functionality
  • Not an easy-to-use editor as you must memorize several key combinations to work effectively

continued

gedit editor
Gedit editor
  • gedit editor
    • Text editor for the GNOME desktop
exercise e 4

Exercise E-4

Discussing common text editors

unit summary
Unit summary
  • Explored the components of the user interface
  • Used the shell to execute commands and use shell metacharacters
  • Learned about filesystems and files, and used shell wildcards to specify multiple file names
  • Displayed the contents of text files and binary files
  • Searched text files for regular expressions by using grep, and identified common editors
  • Used the vi editor
