  1. Lexical Analysis Lecture 2 Mon, Jan 19, 2004

  2. Tokens • A token has a type and a value. • Types include ID, NUM, ASSGN, LPAREN, etc. • Values are used primarily with identifiers and numbers. • If we read “count”, the type is ID and the value is “count”. • If we read “123.45”, the type is NUM and the value is “123.45”.

  3. Analyzing Tokens • Each type of token can be described by a regular expression. (Why?) • Therefore, the set of all tokens can be described by a regular expression. (Why?) • Regular expressions are accepted by DFAs. • Therefore, the tokens can be processed and accepted by a DFA.

  4. Regular Expressions • The set of all regular expressions may be defined in two parts. • The basic part. •  represents the language {}. • a represents the language {a} for every a  . • Call these languages L() and L(a), respectively.

  5. Regular Expressions • The recursive part. • Let r and s denote regular expressions. • r | s represents the language L(r)  L(s). • rs represents the language L(r)L(s). • r* represents the language L(r)*. • In other words • L(r | s) = L(r)  L(s). • L(rs) = L(r)L(s). • L(r*) = L(r)*.

  6. Example: Identifiers • Identifiers in C++ can be represented by a regular expression. • r = A | B | … | Z | a | b | … | z • s = 0 | 1 | … | 9 • t = r(r | s)*

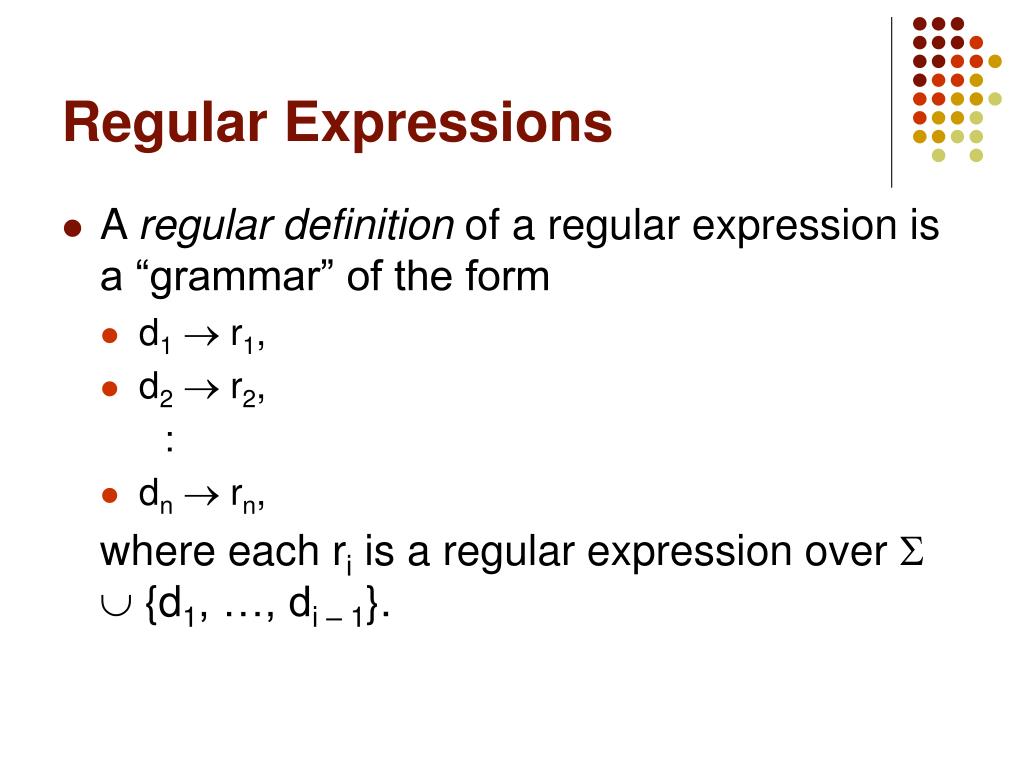

  7. Regular Expressions • A regulardefinition of a regular expression is a “grammar” of the form • d1 r1, • d2 r2, : • dn rn, where each ri is a regular expression over   {d1, …, di – 1}.

  8. Regular Expressions • Note that this definition does not allow recursively defined tokens. • In other words, di cannot be defined in terms of di, even indirectly.

  9. Example: Identifiers • We may now describe C++ identifiers as follows. • letter  A | B | … | Z | a | b | … | z • digit  0 | 1 | … | 9 • id  letter(letter | digit)*

  10. Lexical Analysis • After writing a regular expression for each kind of token, we may combine them into one big regular expression describing all tokens. • id  letter(letter | digit)* • num  digit(digit)* • relop  < | > | == | != | >= | <= • token  id | num | relop | …

  11. Transition Diagrams • A regular expression may be represented by a transition diagram. • The transition diagram provides a good guide to writing a lexical analyzer program.

  12. letter | digit letter id: digit digit num: letter letter | digit token: digit digit Example: Transition Diagram

  13. Transition Diagrams • Unfortunately, it is not that simple. • At what point may we stop in an accepting state? • Do not read “count” as 5 identifiers: “c”, “o”, “u”, “n”, “t”. • When we stop in an accepting state, we must be able to determine the type of token processed. • Did we read the ID token “count” or did we read the IF token “if”?

  14. = ! < = = = ==: !=: <=: Transition Diagrams • Consider transitions diagrams to accept relational operators ==, !=, <, >, <=, and >=. and so on.

  15. 2 = | ! = 1 4 relop: < | > = 3 Transition Diagrams • Combine them into a single transition diagram.

  16. Transition Diagrams • When we reach an accepting state, how can we tell which operator was processed?. • In general, we design the diagram so that each kind of token has its own accepting state.

  17. Transition Diagrams • If we reach accepting state #3, how do we decide whether to continue to accepting state #4? • We read characters until the current character does not match any pattern. • Then we “back up” to the previous accepting state (if there is one) and accept the token.

  18. = = other relop: ! = other < other = other other > = other Transition Diagrams
