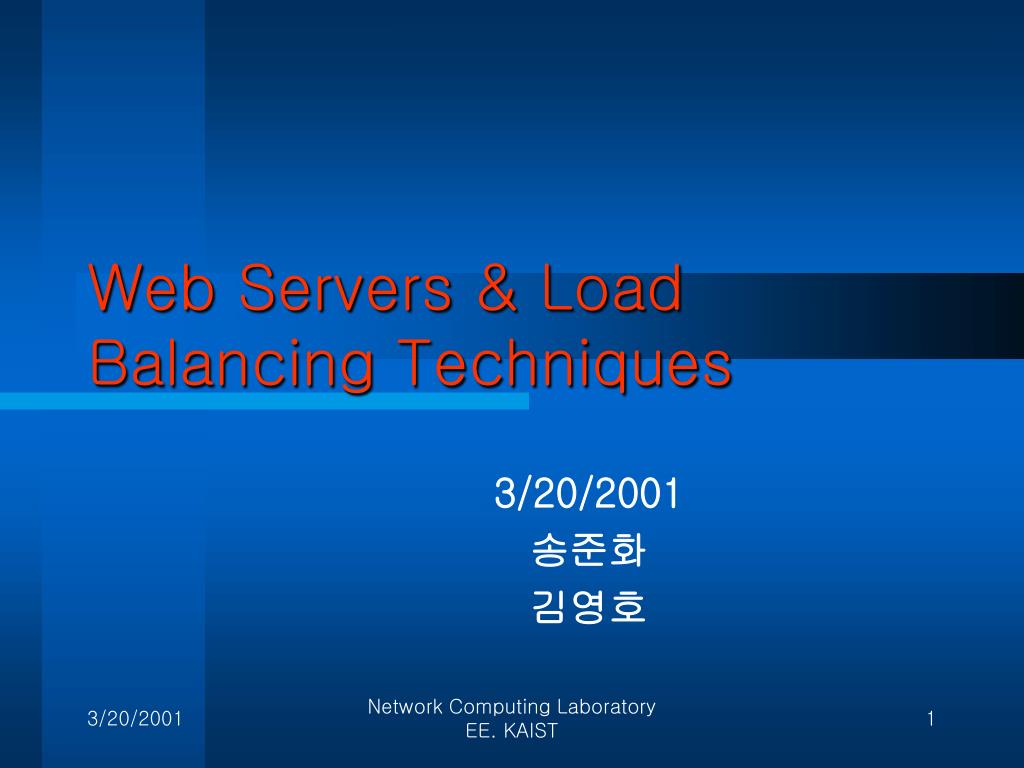

Web Servers & Load Balancing Techniques

3/20/2001

송준화

김영호

Network Computing Laboratory EE. KAIST

part i web servers

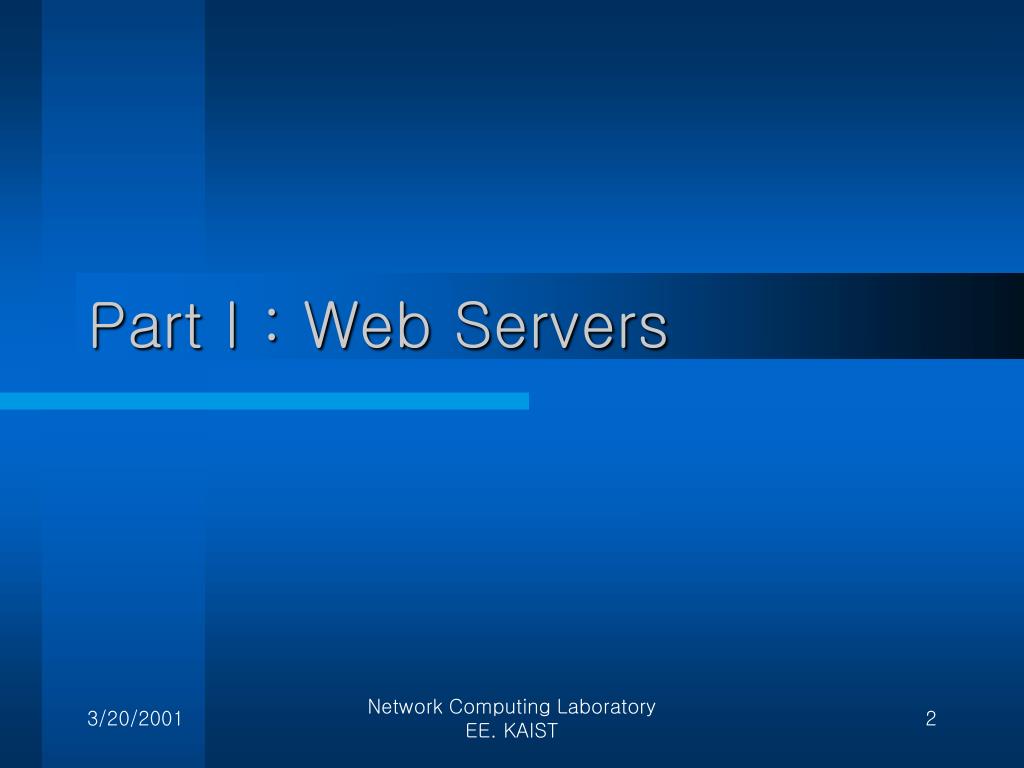

Part I : Web Servers

Network Computing Laboratory EE. KAIST

overview

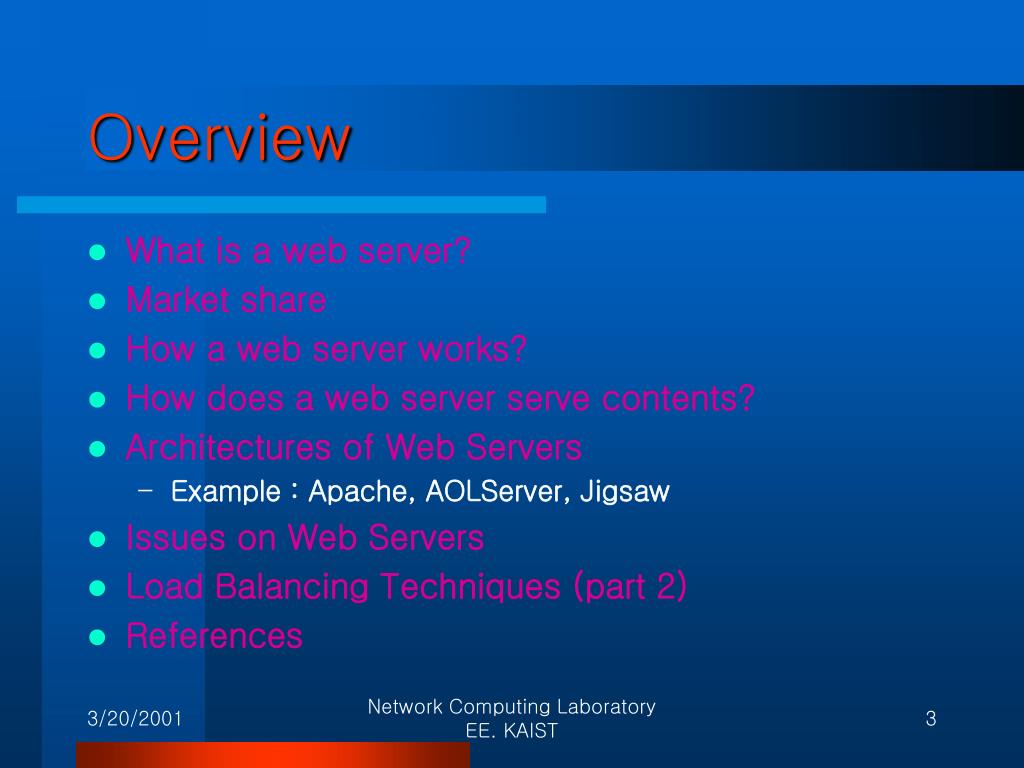

Overview
  • What is a web server?
  • Market share
  • How a web server works?
  • How does a web server serve contents?
  • Architectures of Web Servers
    • Example : Apache, AOLServer, Jigsaw
  • Issues on Web Servers
  • Load Balancing Techniques (part 2)
  • References

Network Computing Laboratory EE. KAIST

what is a web server

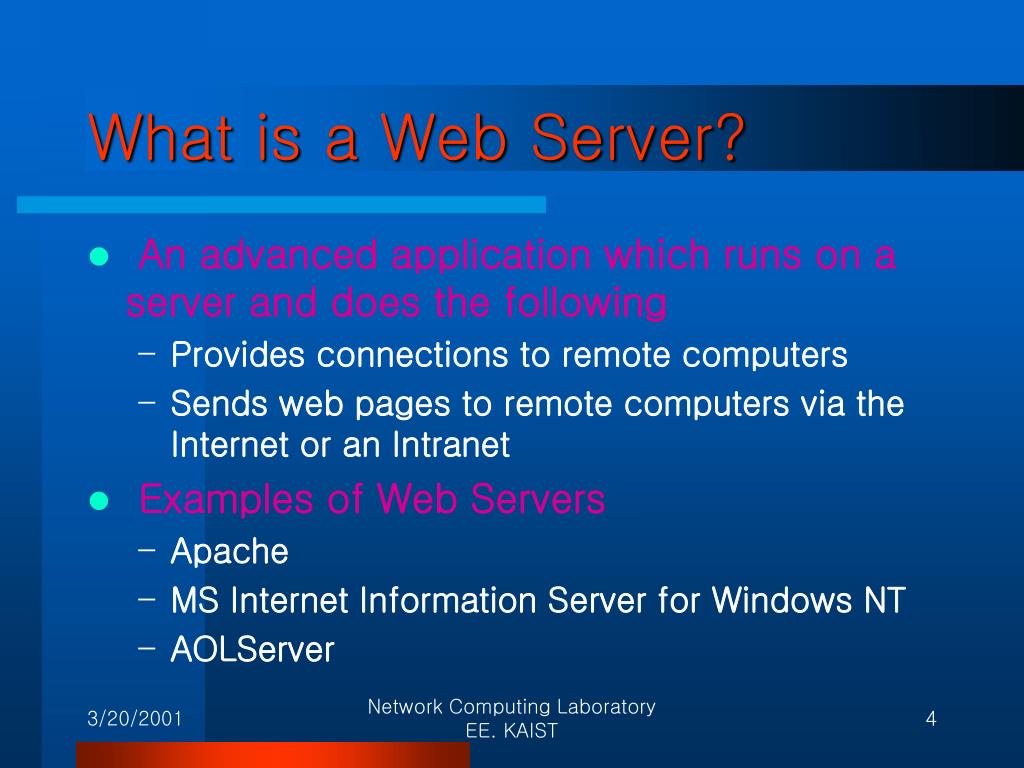

What is a Web Server?
  • An advanced application which runs on a server and does the following
    • Provides connections to remote computers
    • Sends web pages to remote computers via the Internet or an Intranet
  • Examples of Web Servers
    • Apache
    • MS Internet Information Server for Windows NT
    • AOLServer

Network Computing Laboratory EE. KAIST

market share

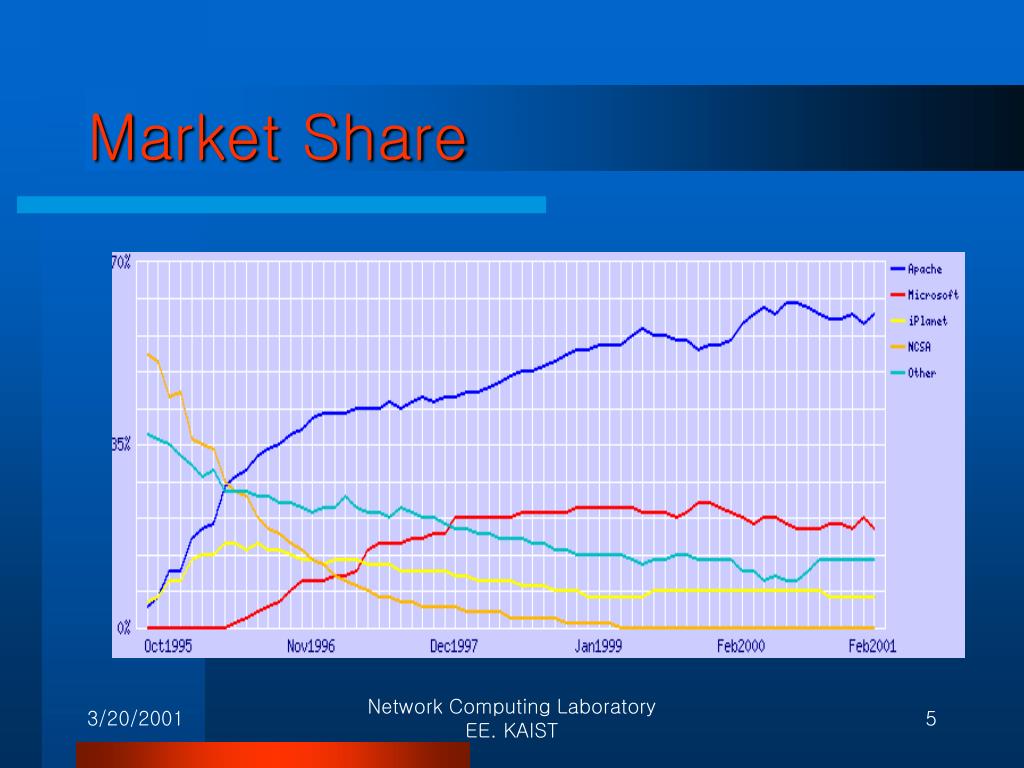

Market Share

Network Computing Laboratory EE. KAIST

how does a web server work
How does a Web Server Work?

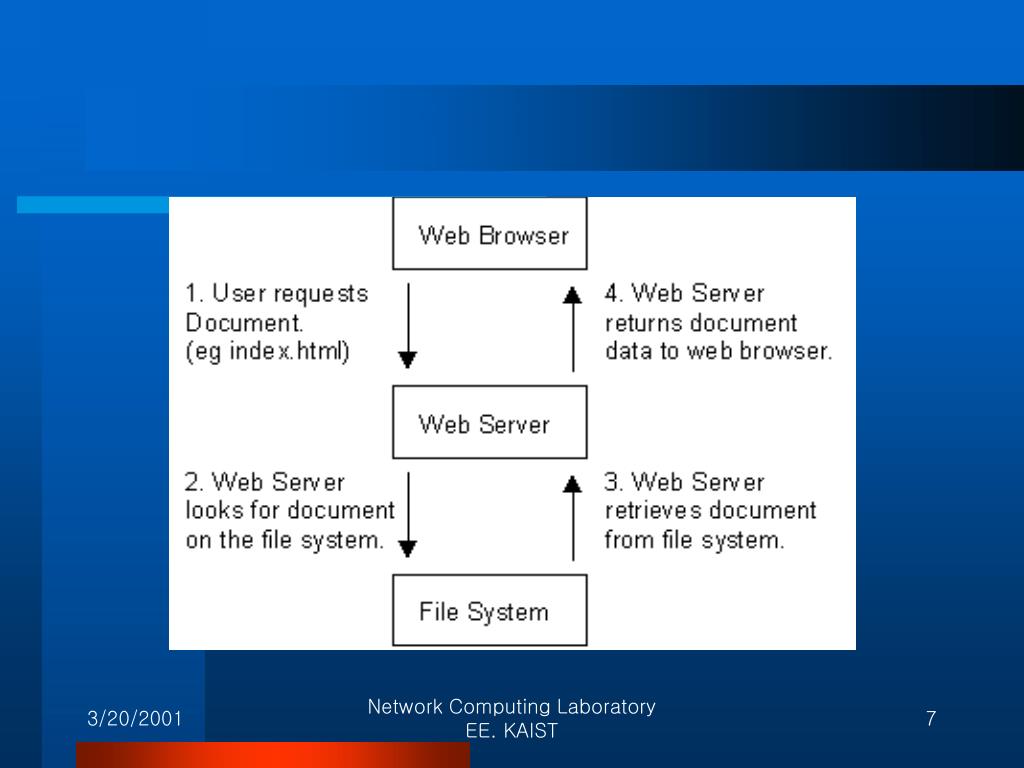

  • Static Contents
    • Web server receives a request for a Web page such as http://www.kaist.ac.kr/index.html
    • Server maps URL to a local file on the host server.
    • The server then loads this file from disk and serves it out across the network to the user's Web browser.

Network Computing Laboratory EE. KAIST

slide8

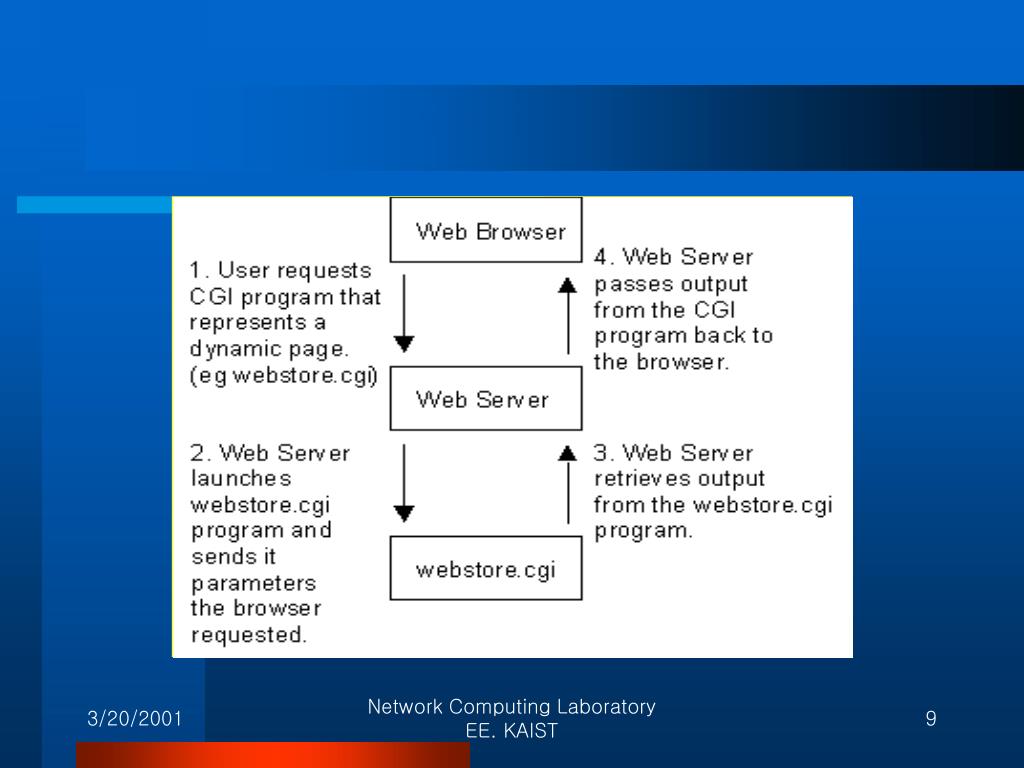

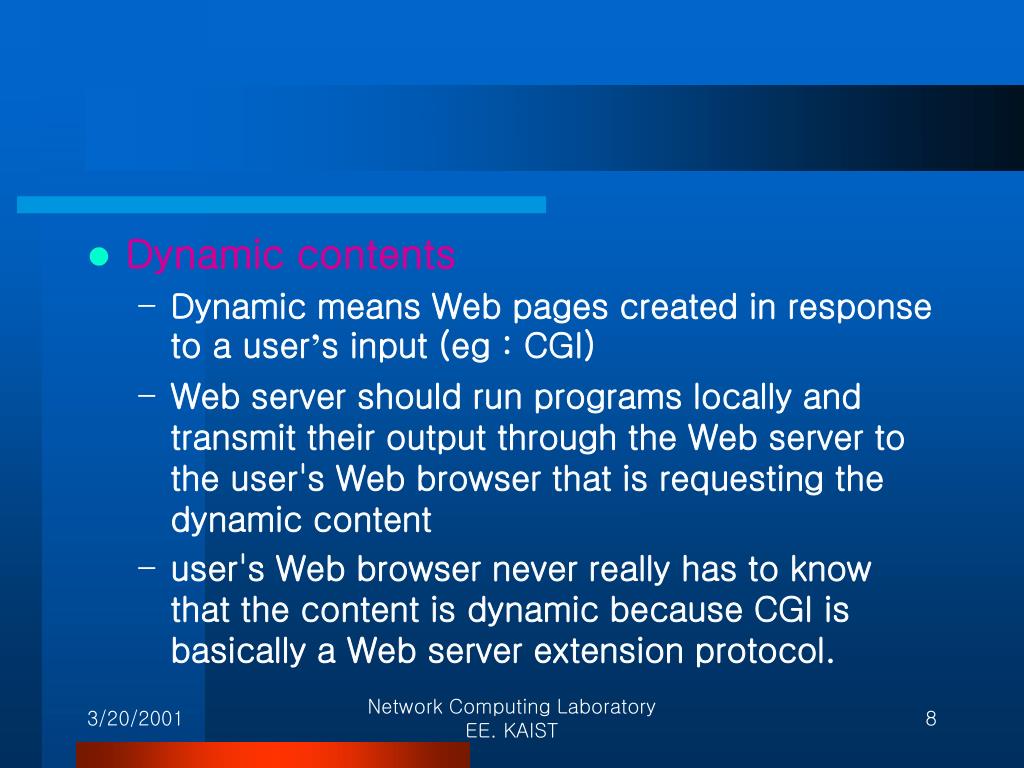

Dynamic contents
    • Dynamic means Web pages created in response to a user’s input (eg : CGI)
    • Web server should run programs locally and transmit their output through the Web server to the user's Web browser that is requesting the dynamic content
    • user's Web browser never really has to know that the content is dynamic because CGI is basically a Web server extension protocol.

Network Computing Laboratory EE. KAIST

how does a web server serve contents

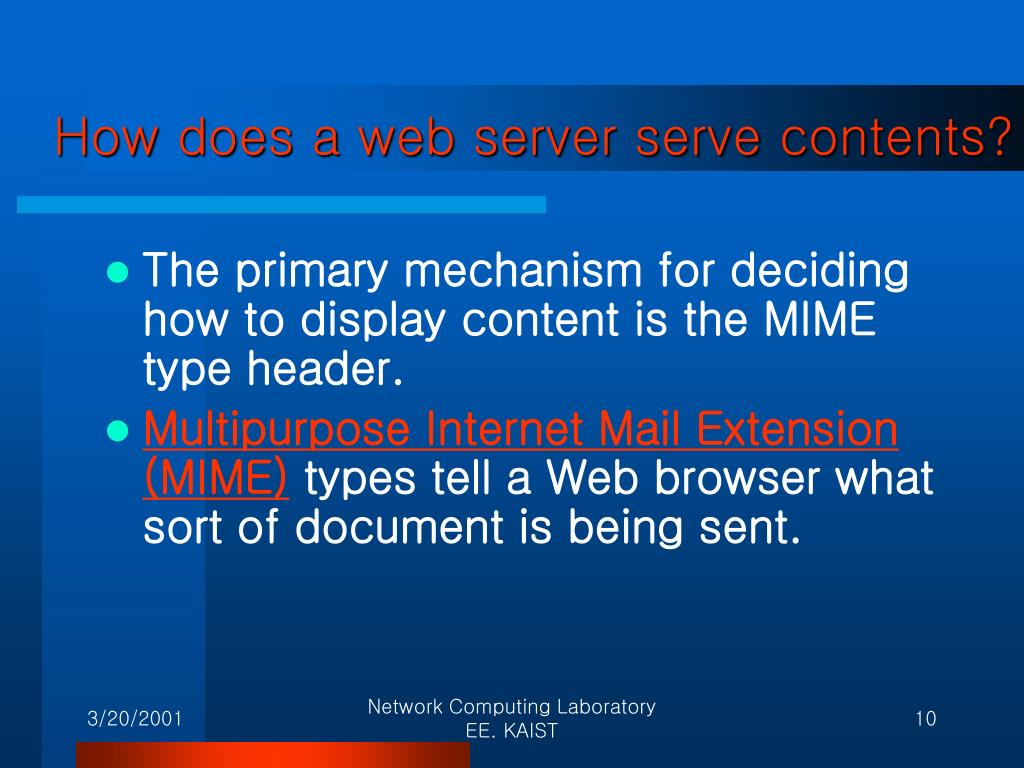

How does a web server serve contents?
  • The primary mechanism for deciding how to display content is the MIME type header.
  • Multipurpose Internet Mail Extension (MIME) types tell a Web browser what sort of document is being sent.

Network Computing Laboratory EE. KAIST

slide11

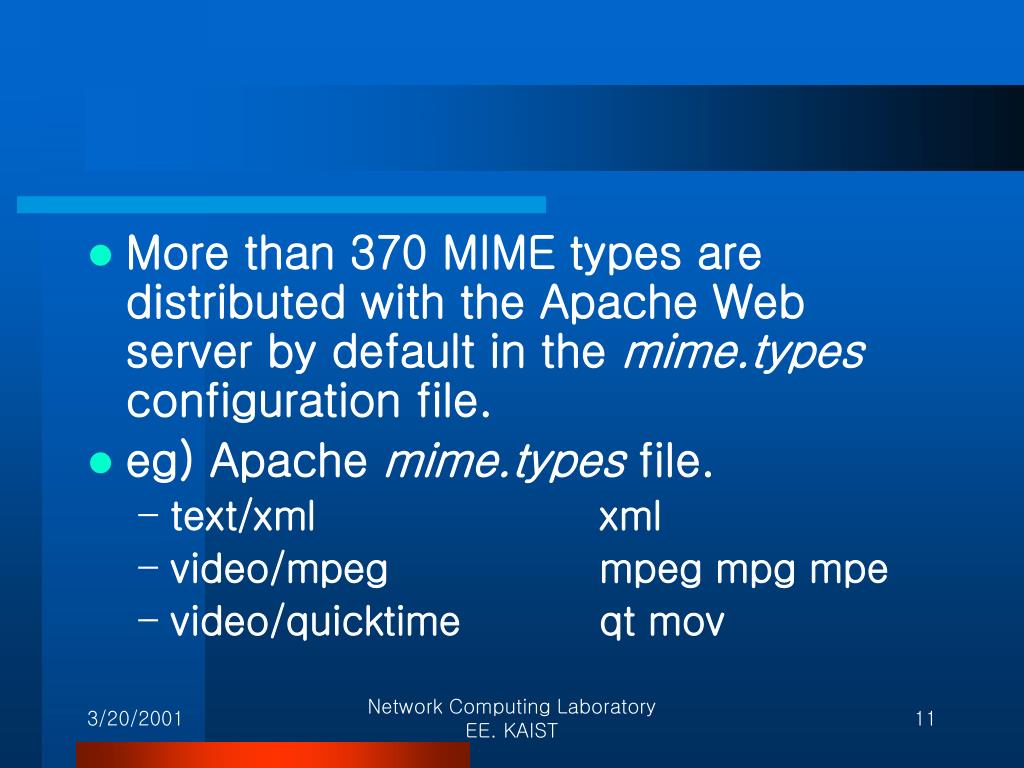

More than 370 MIME types are distributed with the Apache Web server by default in the mime.types configuration file.
  • eg) Apache mime.types file.
    • text/xml xml
    • video/mpeg mpeg mpg mpe
    • video/quicktime qt mov

Network Computing Laboratory EE. KAIST

slide12

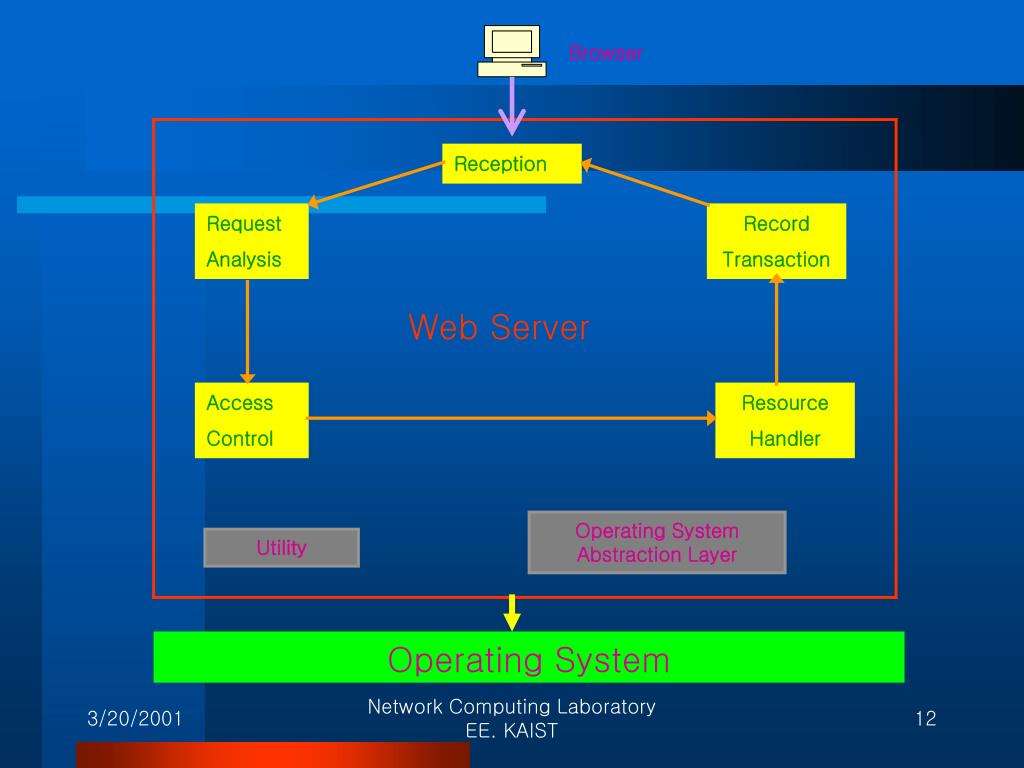

Browser

Reception

Request

Analysis

Record

Transaction

Web Server

Access

Control

Resource

Handler

Operating System Abstraction Layer

Utility

Operating System

Network Computing Laboratory EE. KAIST

architecture of web server

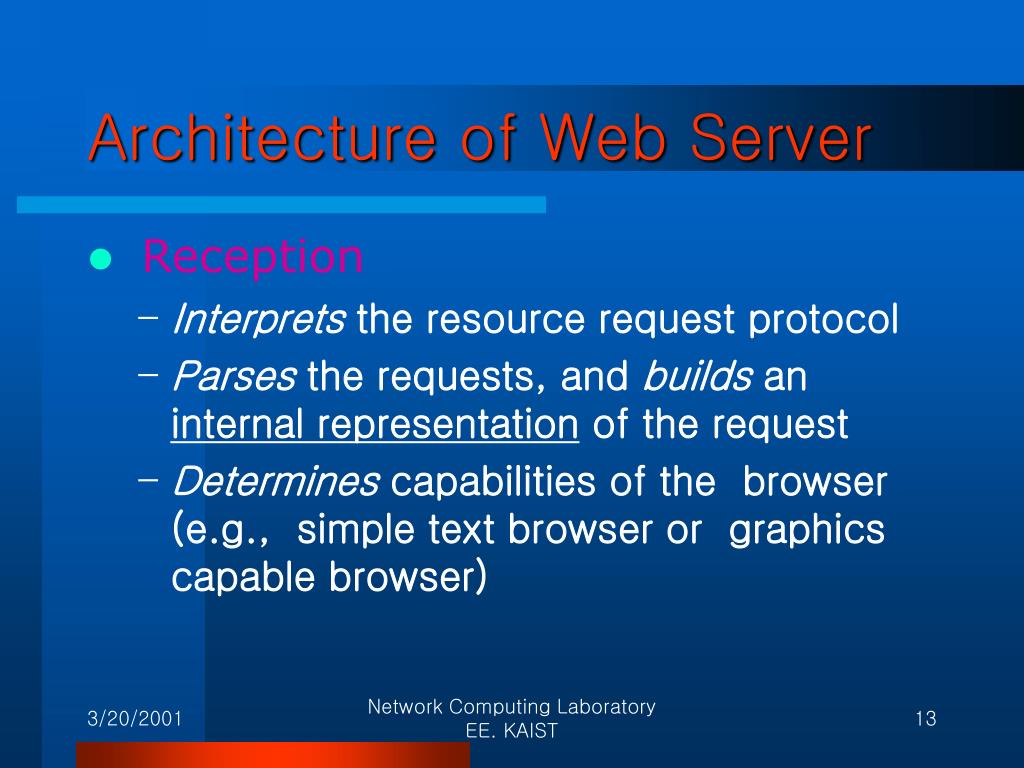

Architecture of Web Server
  • Reception
    • Interprets the resource request protocol
    • Parses the requests, and builds an internal representation of the request
    • Determines capabilities of the browser (e.g., simple text browser or graphics capable browser)

Network Computing Laboratory EE. KAIST

slide14

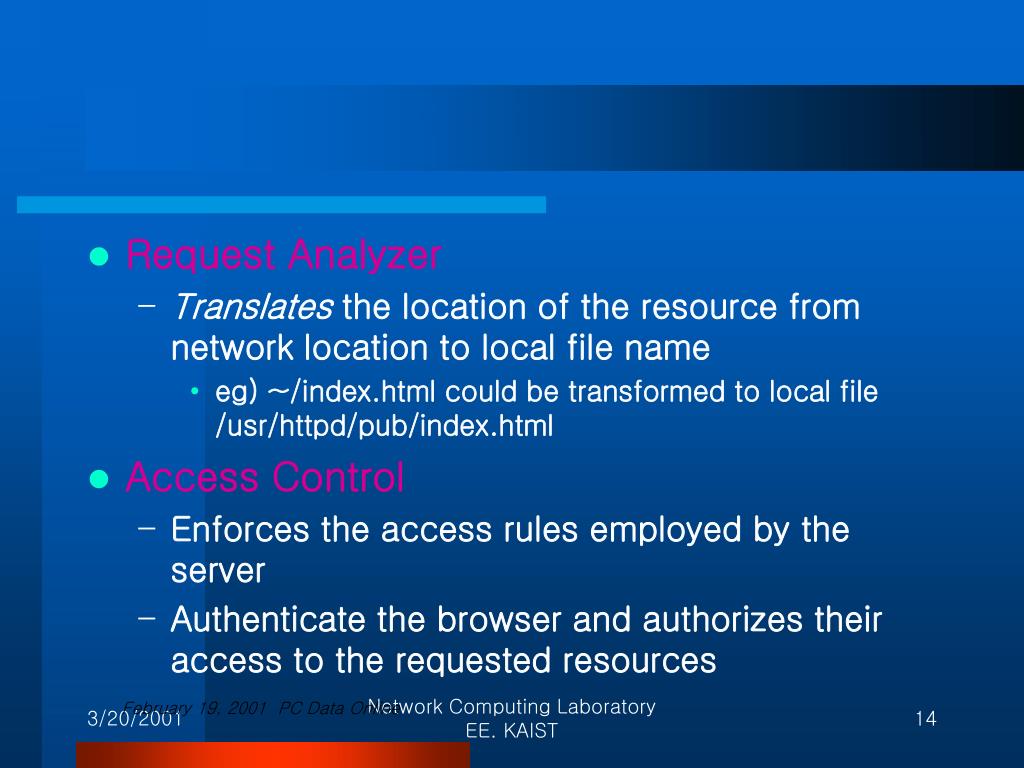

Request Analyzer
    • Translates the location of the resource from network location to local file name
      • eg) ~/index.html could be transformed to local file /usr/httpd/pub/index.html
  • Access Control
    • Enforces the access rules employed by the server
    • Authenticate the browser and authorizes their access to the requested resources

February 19, 2001 PC Data Online

Network Computing Laboratory EE. KAIST

slide15

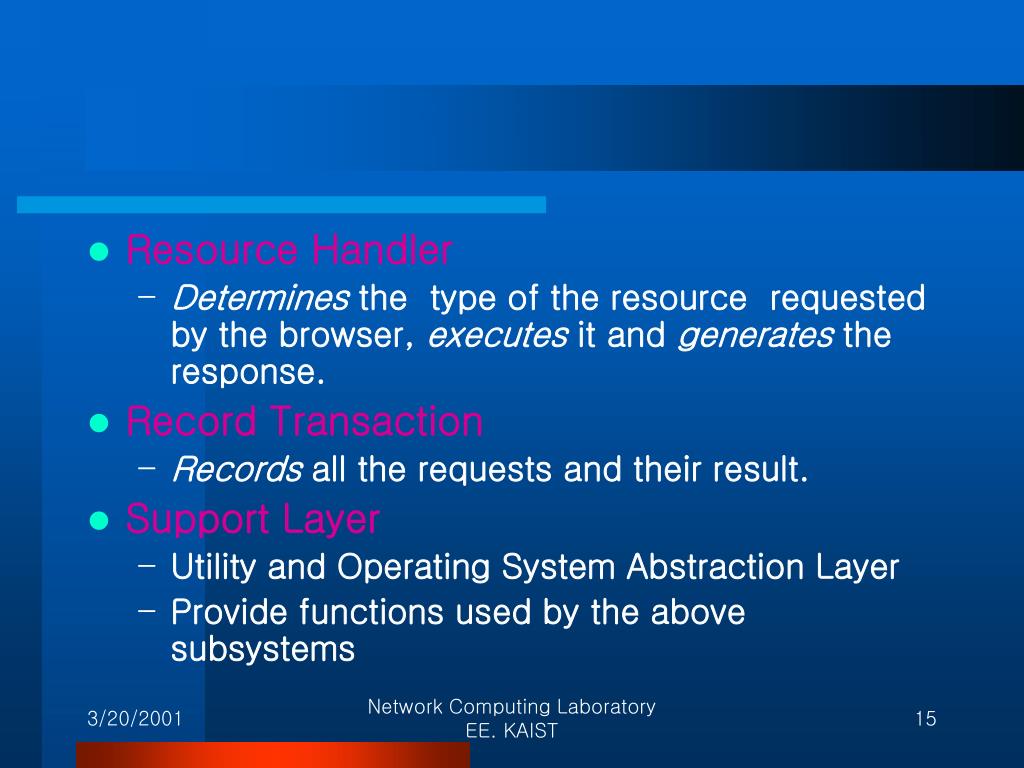

Resource Handler
    • Determines the type of the resource requested by the browser, executes it and generates the response.
  • Record Transaction
    • Records all the requests and their result.
  • Support Layer
    • Utility and Operating System Abstraction Layer
    • Provide functions used by the above subsystems

Network Computing Laboratory EE. KAIST

slide16
Utility subsystem
    • Contains functions that are used by all other subsystems.
    • It has functions for manipulating strings or URLs and many commonly used functions
  • Operating System Abstraction Layer
    • Encapsulates the OS specific functionality to facilitate the porting of the server to different platforms

Network Computing Laboratory EE. KAIST

example 1 apache

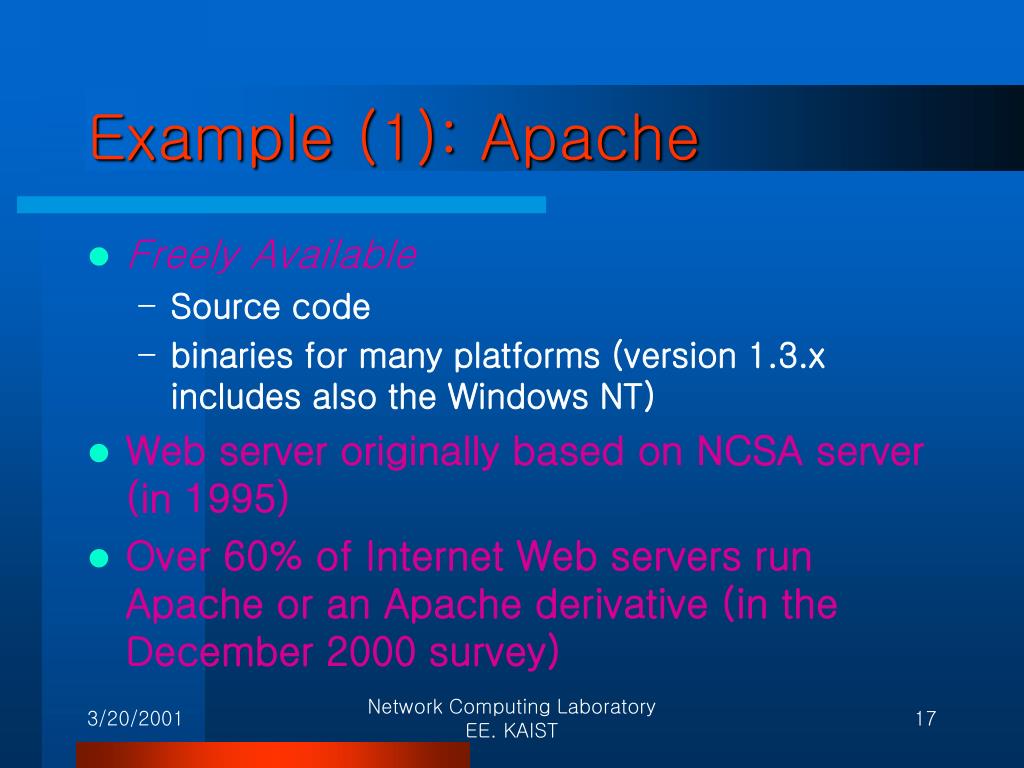

Example (1): Apache
  • Freely Available
    • Source code
    • binaries for many platforms (version 1.3.x includes also the Windows NT)
  • Web server originally based on NCSA server (in 1995)
  • Over 60% of Internet Web servers run Apache or an Apache derivative (in the December 2000 survey)

Network Computing Laboratory EE. KAIST

slide18

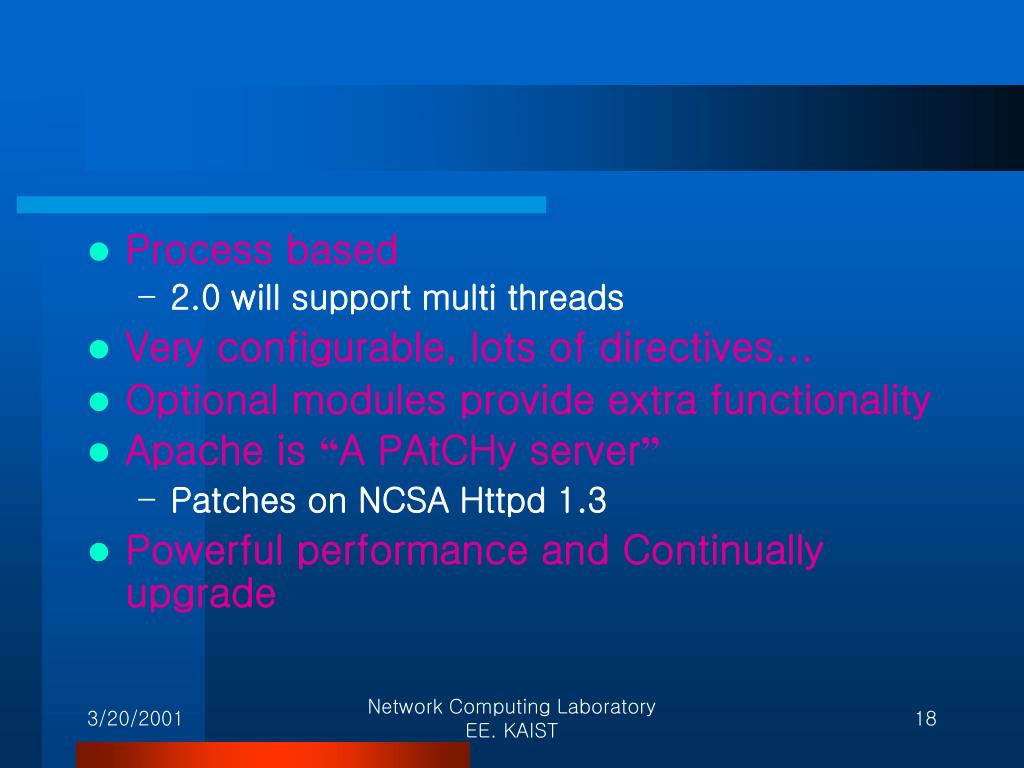

Process based
    • 2.0 will support multi threads
  • Very configurable, lots of directives...
  • Optional modules provide extra functionality
  • Apache is “A PAtCHy server”
    • Patches on NCSA Httpd 1.3
  • Powerful performance and Continually upgrade

Network Computing Laboratory EE. KAIST

slide19

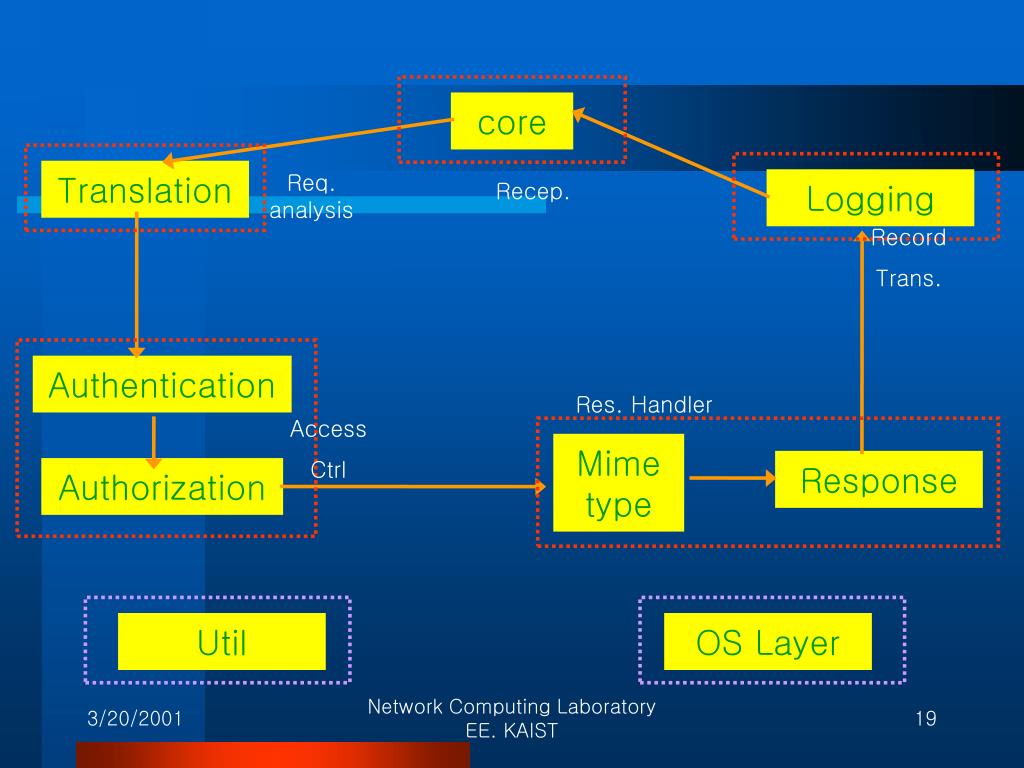

core

Translation

Req. analysis

Recep.

Logging

Record

Trans.

Authentication

Res. Handler

Access

Ctrl

Mime type

Response

Authorization

Util

OS Layer

Network Computing Laboratory EE. KAIST

apache

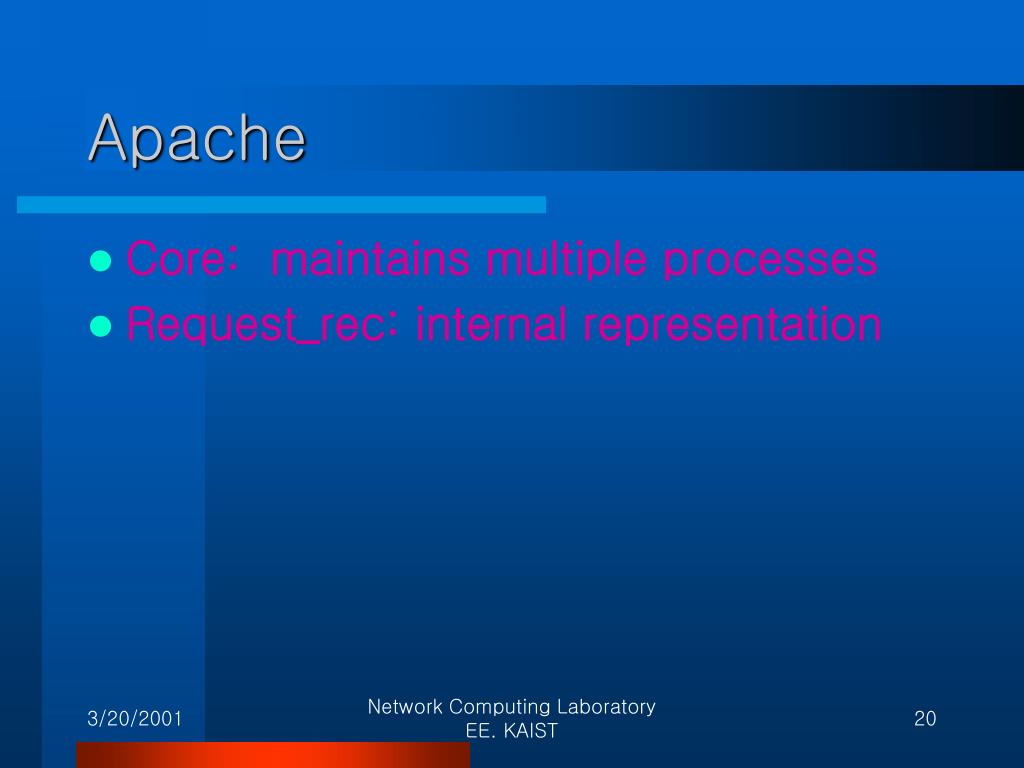

Apache
  • Core: maintains multiple processes
  • Request_rec: internal representation

Network Computing Laboratory EE. KAIST

example 2 aolserver

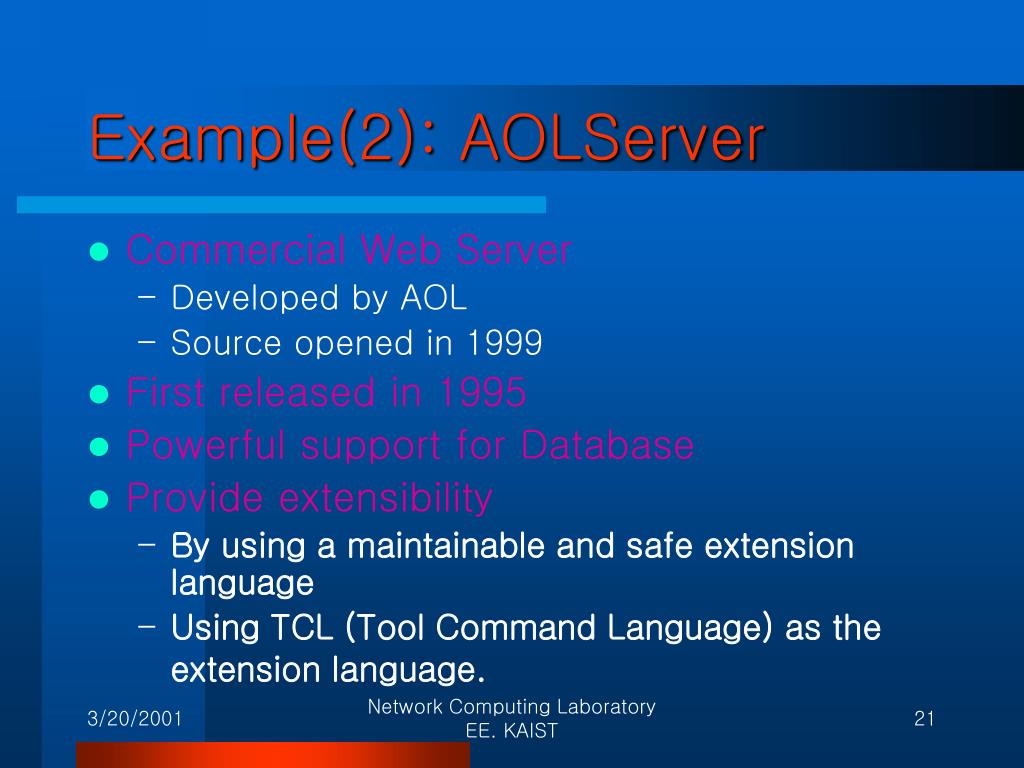

Example(2): AOLServer
  • Commercial Web Server
    • Developed by AOL
    • Source opened in 1999
  • First released in 1995
  • Powerful support for Database
  • Provide extensibility
    • By using a maintainable and safe extension language
    • Using TCL (Tool Command Language) as the extension language.

Network Computing Laboratory EE. KAIST

slide22

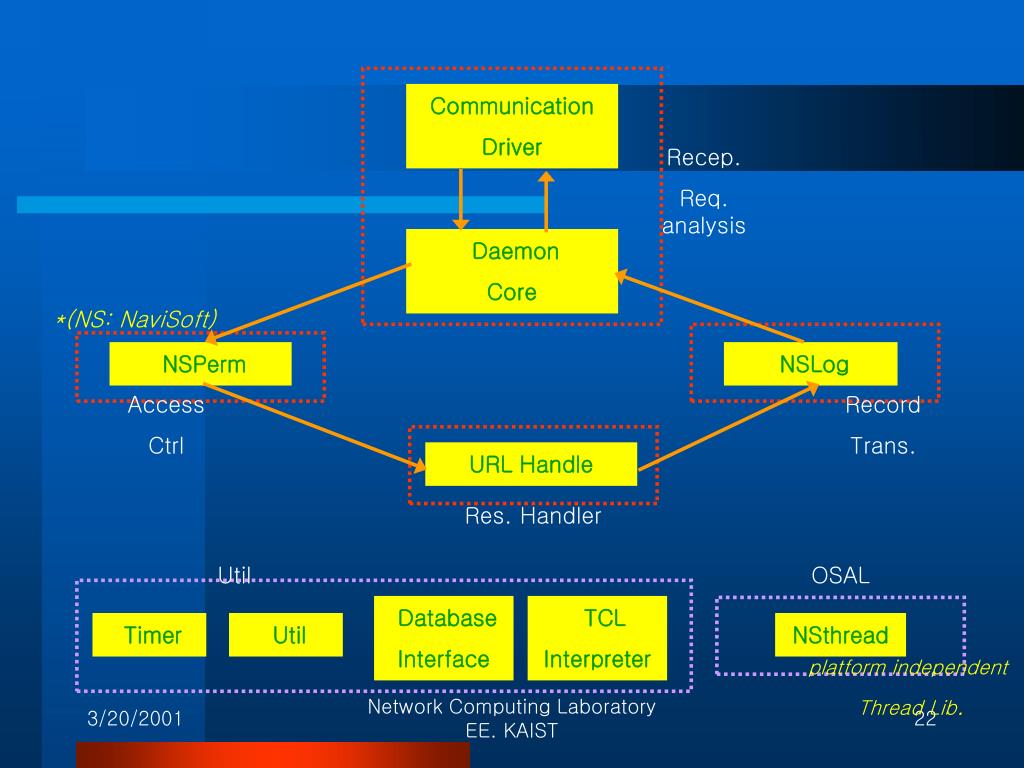

Communication

Driver

Recep.

Req. analysis

Daemon

Core

*(NS: NaviSoft)

NSPerm

NSLog

Access

Ctrl

Record

Trans.

URL Handle

Res. Handler

Util

OSAL

Database

Interface

TCL

Interpreter

Timer

Util

NSthread

platform independent

Thread Lib.

Network Computing Laboratory EE. KAIST

aolserver

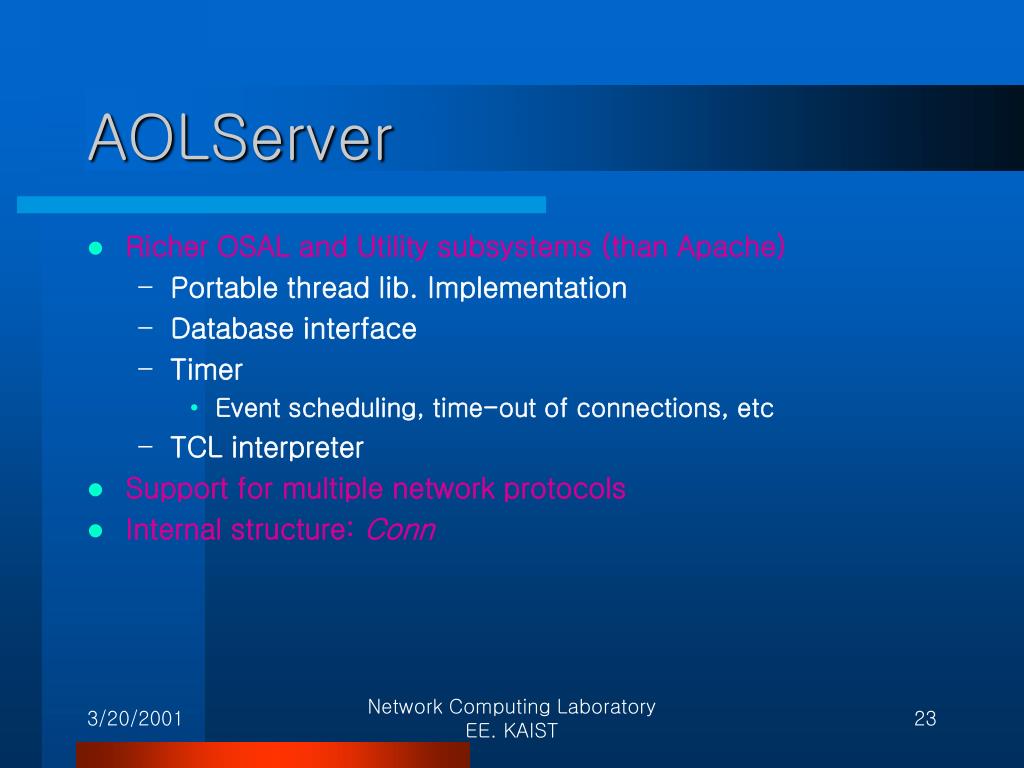

AOLServer
  • Richer OSAL and Utility subsystems (than Apache)
    • Portable thread lib. Implementation
    • Database interface
    • Timer
      • Event scheduling, time-out of connections, etc
    • TCL interpreter
  • Support for multiple network protocols
  • Internal structure: Conn

Network Computing Laboratory EE. KAIST

jigsaw

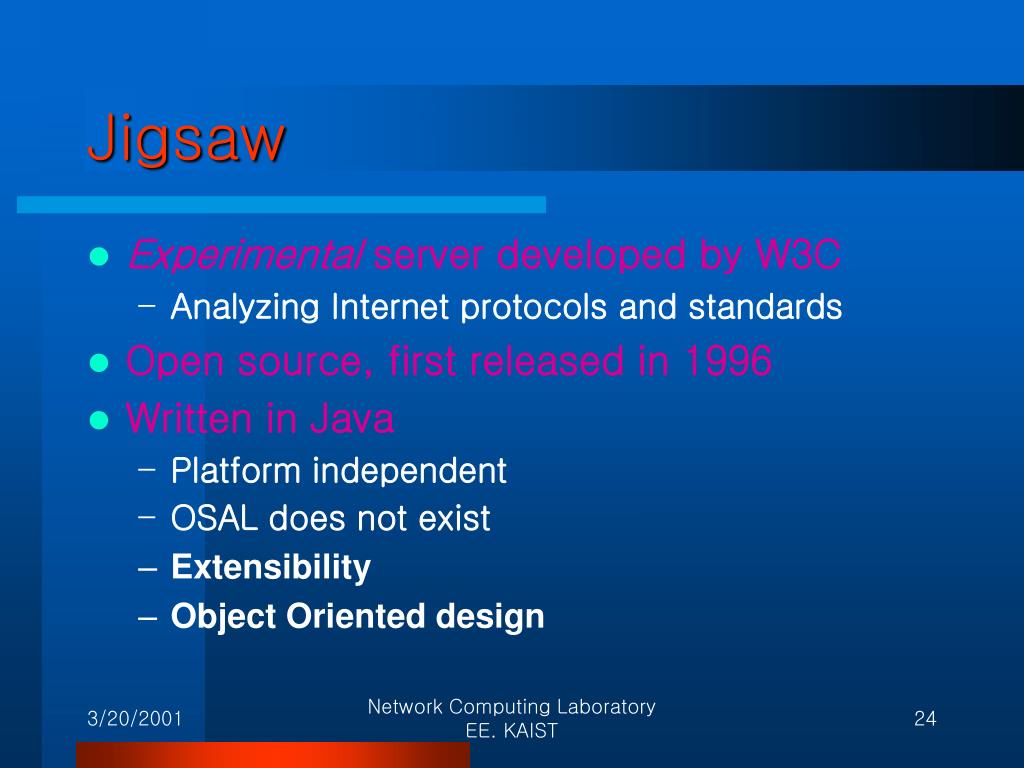

Jigsaw
  • Experimental server developed by W3C
    • Analyzing Internet protocols and standards
  • Open source, first released in 1996
  • Written in Java
    • Platform independent
    • OSAL does not exist
    • Extensibility
    • Object Oriented design

Network Computing Laboratory EE. KAIST

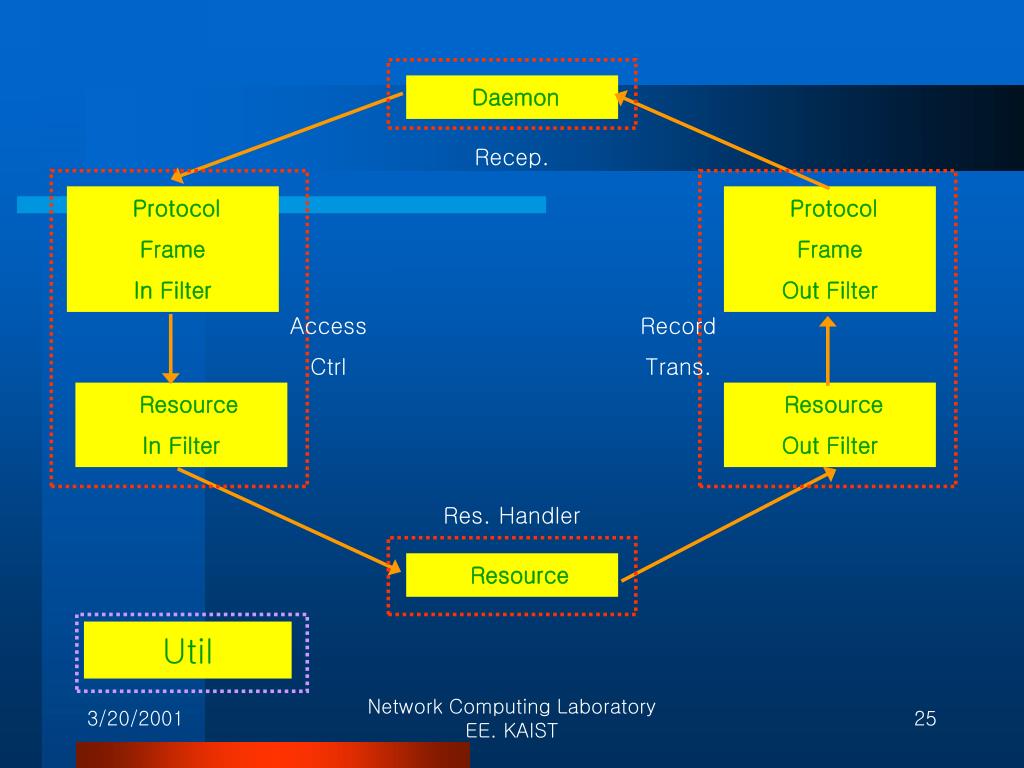

slide25

Daemon

Recep.

Protocol

Frame

In Filter

Protocol

Frame

Out Filter

Access

Ctrl

Record

Trans.

Resource

In Filter

Resource

Out Filter

Res. Handler

Resource

Util

Network Computing Laboratory EE. KAIST

jigsaw1
Jigsaw
  • Daemon: maintains a thread pool for concurrency
  • Filters: for different experiments???

Network Computing Laboratory EE. KAIST

issues on web server

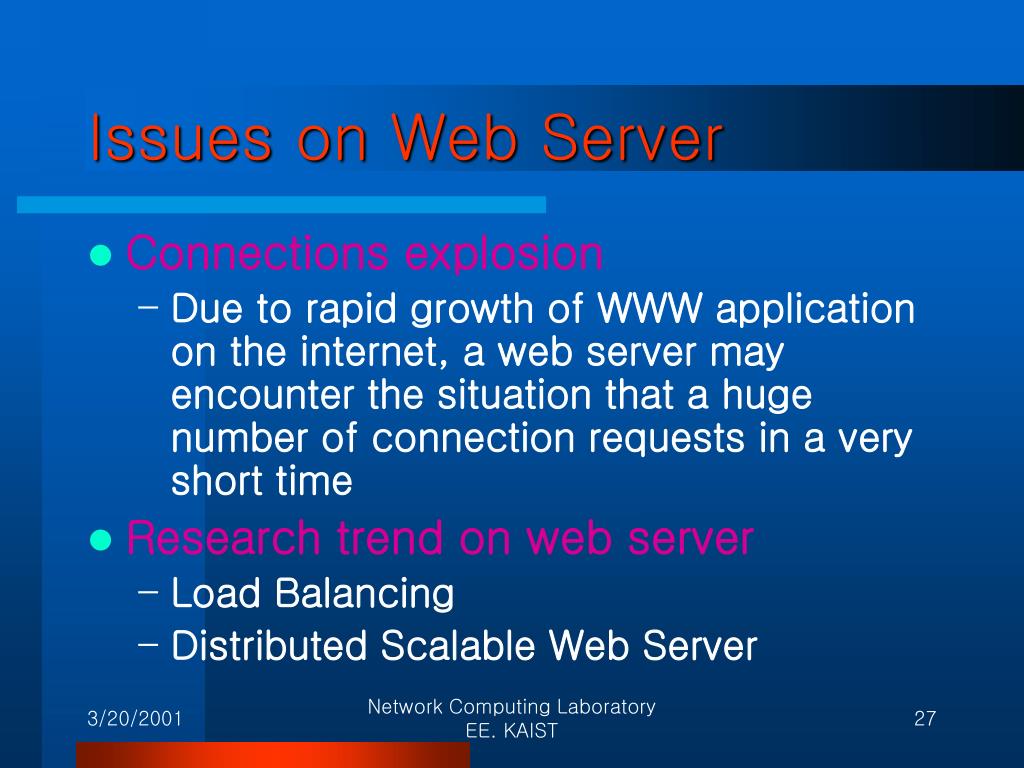

Issues on Web Server
  • Connections explosion
    • Due to rapid growth of WWW application on the internet, a web server may encounter the situation that a huge number of connection requests in a very short time
  • Research trend on web server
    • Load Balancing
    • Distributed Scalable Web Server

Network Computing Laboratory EE. KAIST

part ii load balancing techniques

Part II : Load Balancing Techniques

Junehwa Song

Young Ho Kim

Network Computing Laboratory EE. KAIST

load balancing technique

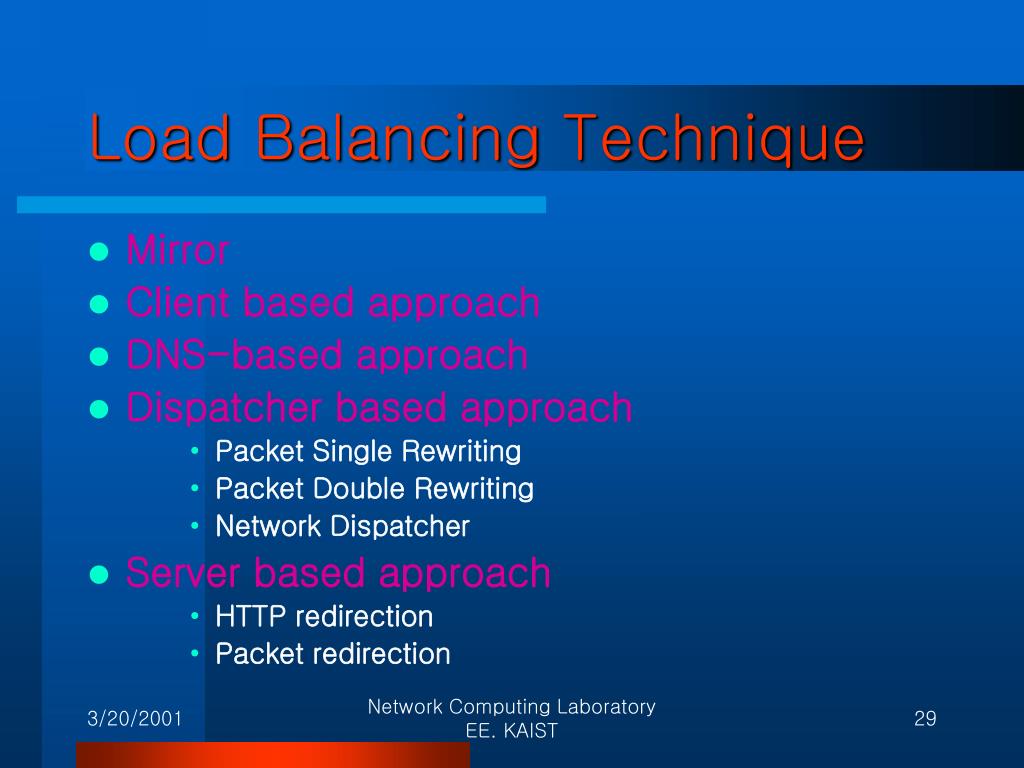

Load Balancing Technique
  • Mirror
  • Client based approach
  • DNS-based approach
  • Dispatcher based approach
      • Packet Single Rewriting
      • Packet Double Rewriting
      • Network Dispatcher
  • Server based approach
      • HTTP redirection
      • Packet redirection

Network Computing Laboratory EE. KAIST

mirror

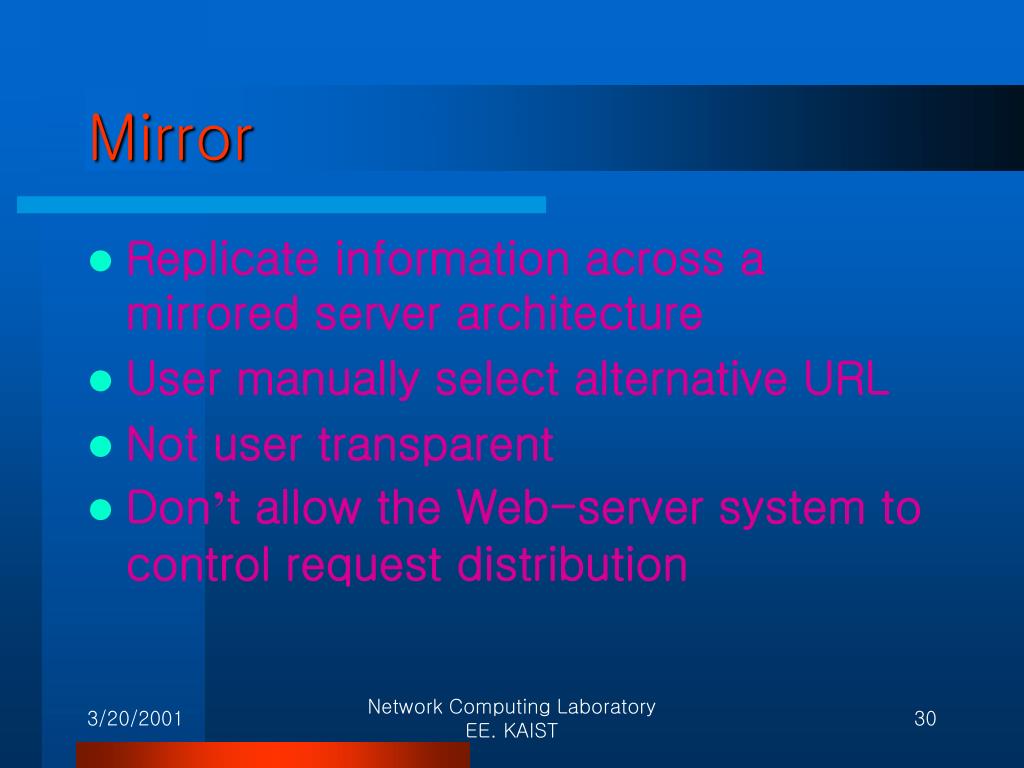

Mirror
  • Replicate information across a mirrored server architecture
  • User manually select alternative URL
  • Not user transparent
  • Don’t allow the Web-server system to control request distribution

Network Computing Laboratory EE. KAIST

client based approach

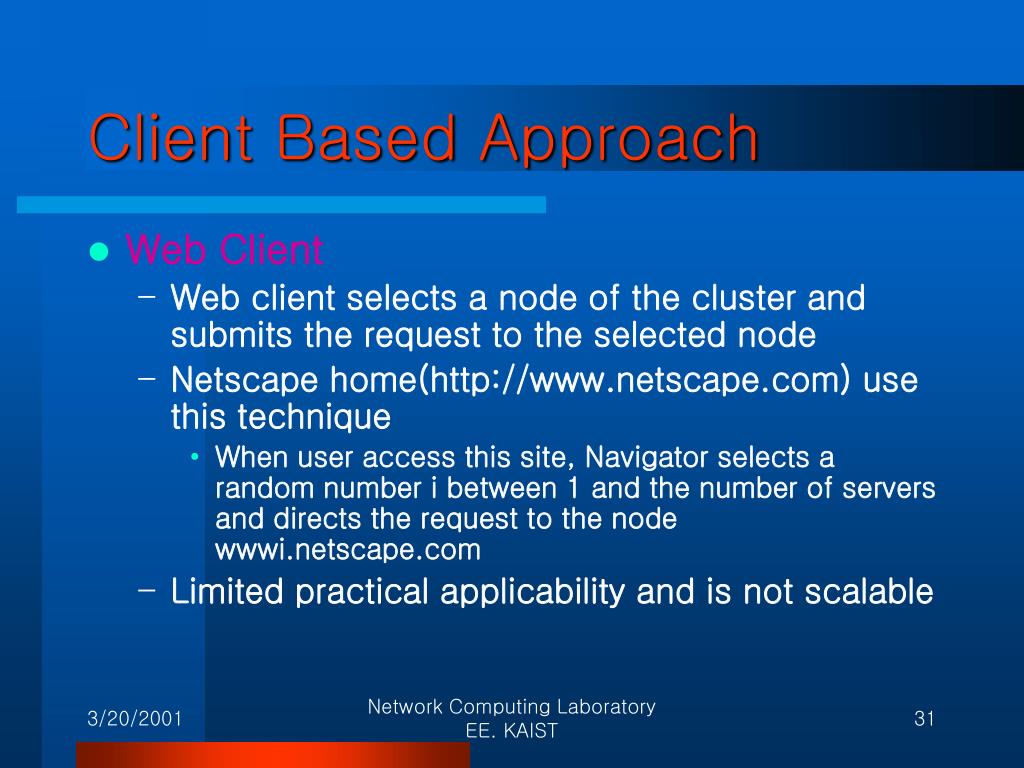

Client Based Approach
  • Web Client
    • Web client selects a node of the cluster and submits the request to the selected node
    • Netscape home(http://www.netscape.com) use this technique
      • When user access this site, Navigator selects a random number i between 1 and the number of servers and directs the request to the node wwwi.netscape.com
    • Limited practical applicability and is not scalable

Network Computing Laboratory EE. KAIST

slide32

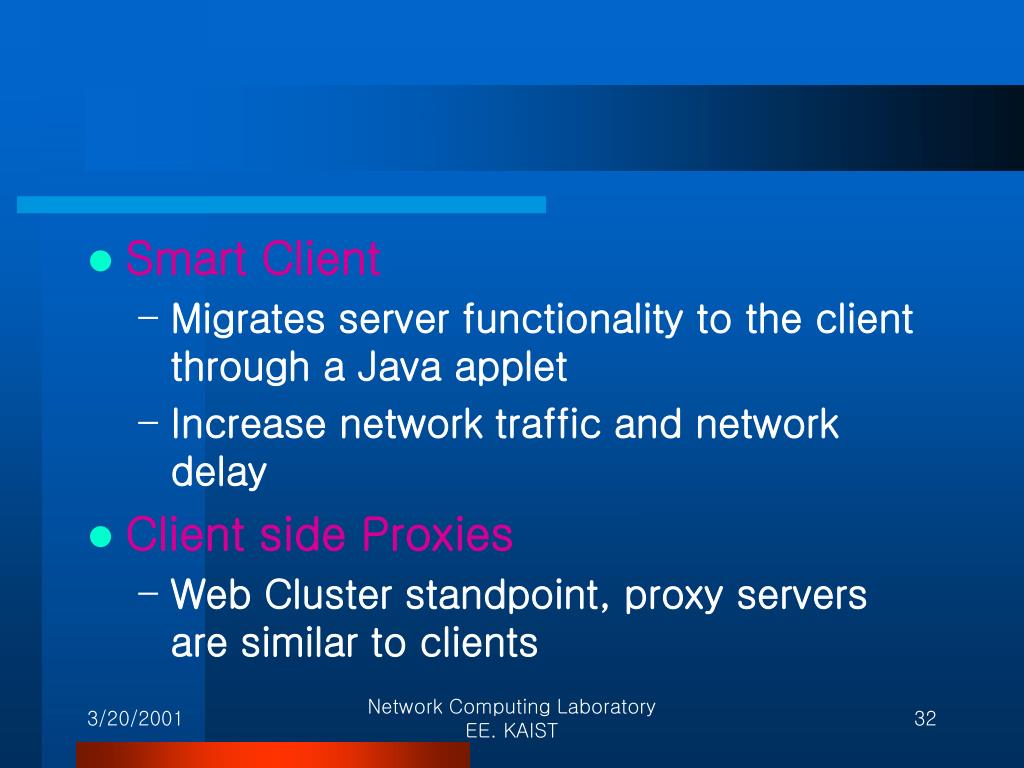

Smart Client
    • Migrates server functionality to the client through a Java applet
    • Increase network traffic and network delay
  • Client side Proxies
    • Web Cluster standpoint, proxy servers are similar to clients

Network Computing Laboratory EE. KAIST

dns based approach
DNS Based Approach
  • DNS server maps the domain name to multiple IP address
  • Returning more than one IP address for the hostname or returning a different IP address for each DNS request it receives (Round robin)
  • User transparent
  • Simple and easy to implement

Network Computing Laboratory EE. KAIST

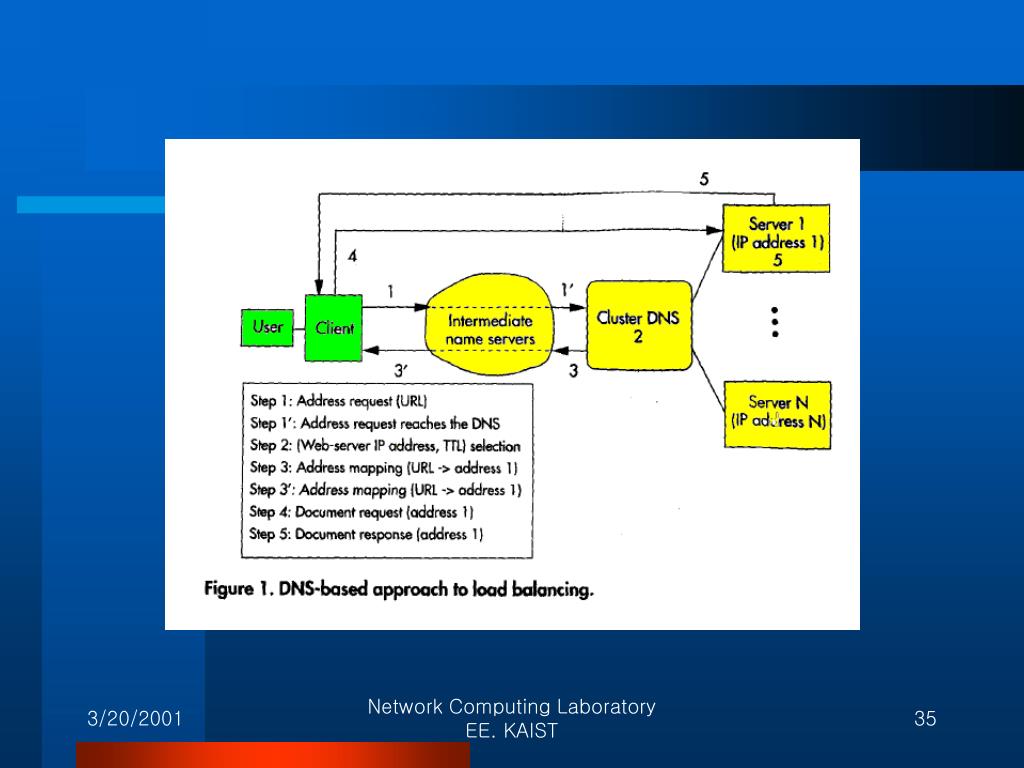

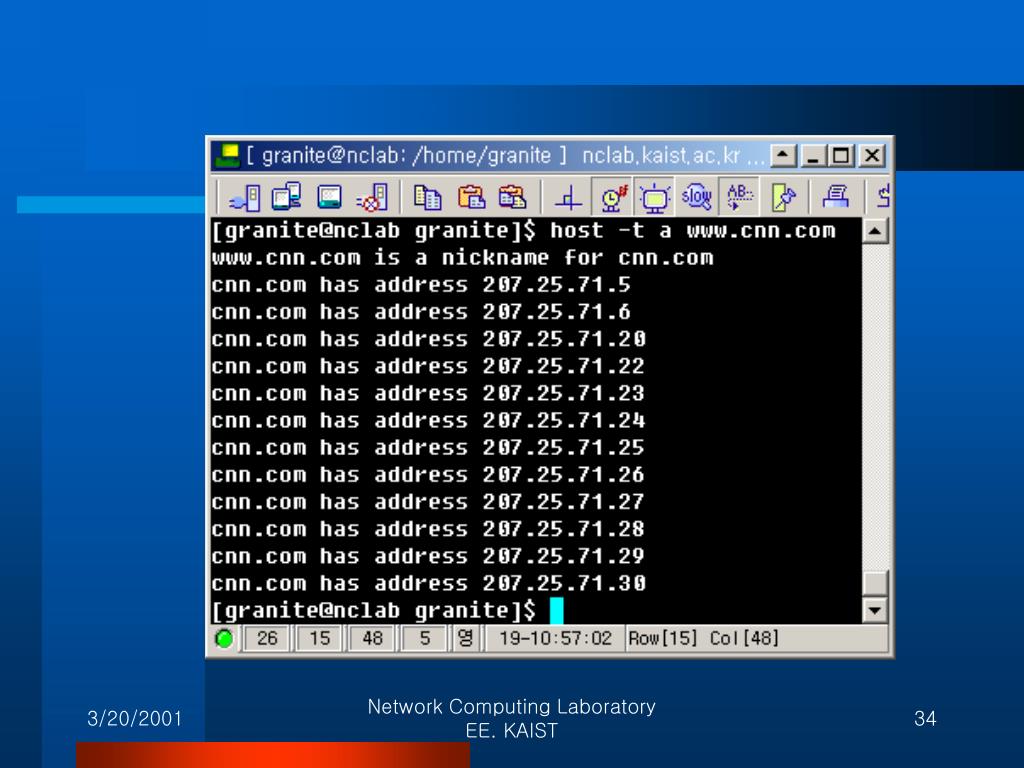

slide36

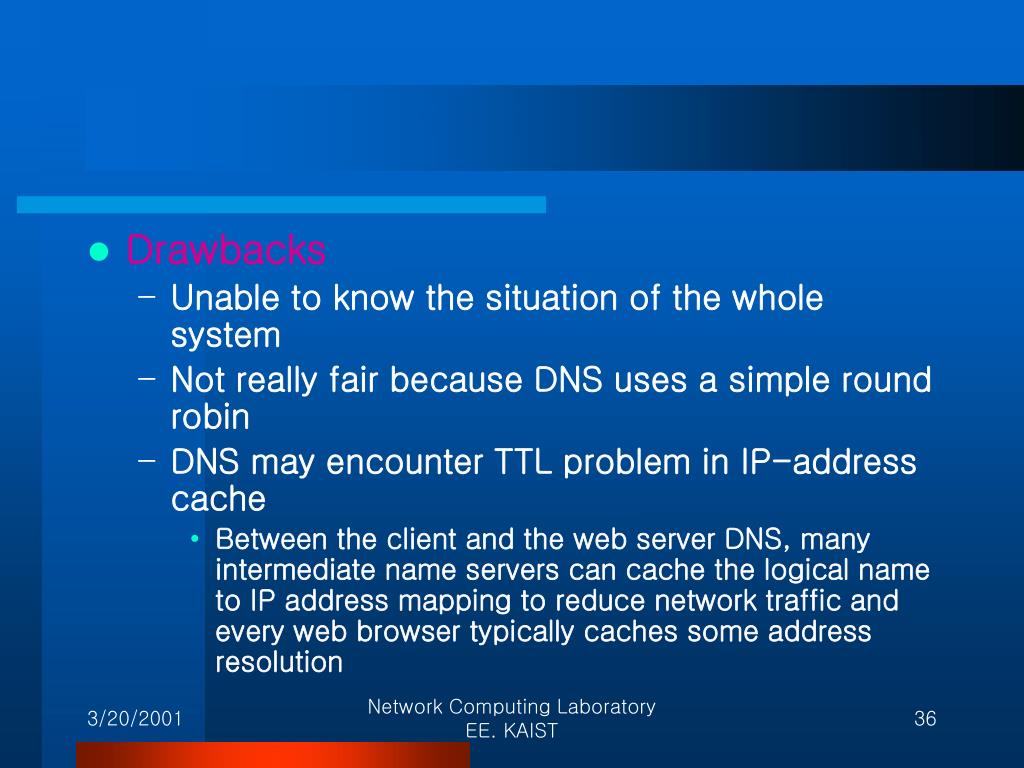

Drawbacks
    • Unable to know the situation of the whole system
    • Not really fair because DNS uses a simple round robin
    • DNS may encounter TTL problem in IP-address cache
      • Between the client and the web server DNS, many intermediate name servers can cache the logical name to IP address mapping to reduce network traffic and every web browser typically caches some address resolution

Network Computing Laboratory EE. KAIST

slide37
Because of address caching, each address can cause a burst of future requests to the selected server and quickly obsolete the current load information
  • Many DNS based solutions to this problem
    • System-Stateless algorithms
    • Server-State-based algorithms
    • Client-State-based algorithms
    • Adaptive TTL Algorithms

Network Computing Laboratory EE. KAIST

dispatcher based approach

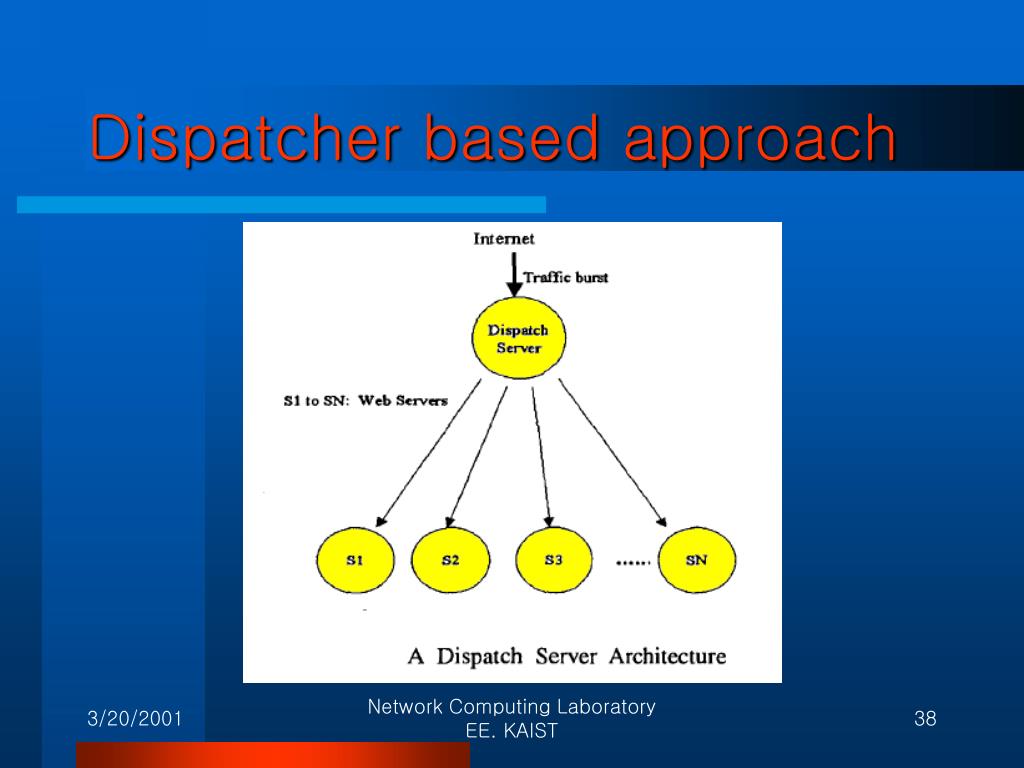

Dispatcher based approach

Network Computing Laboratory EE. KAIST

slide39

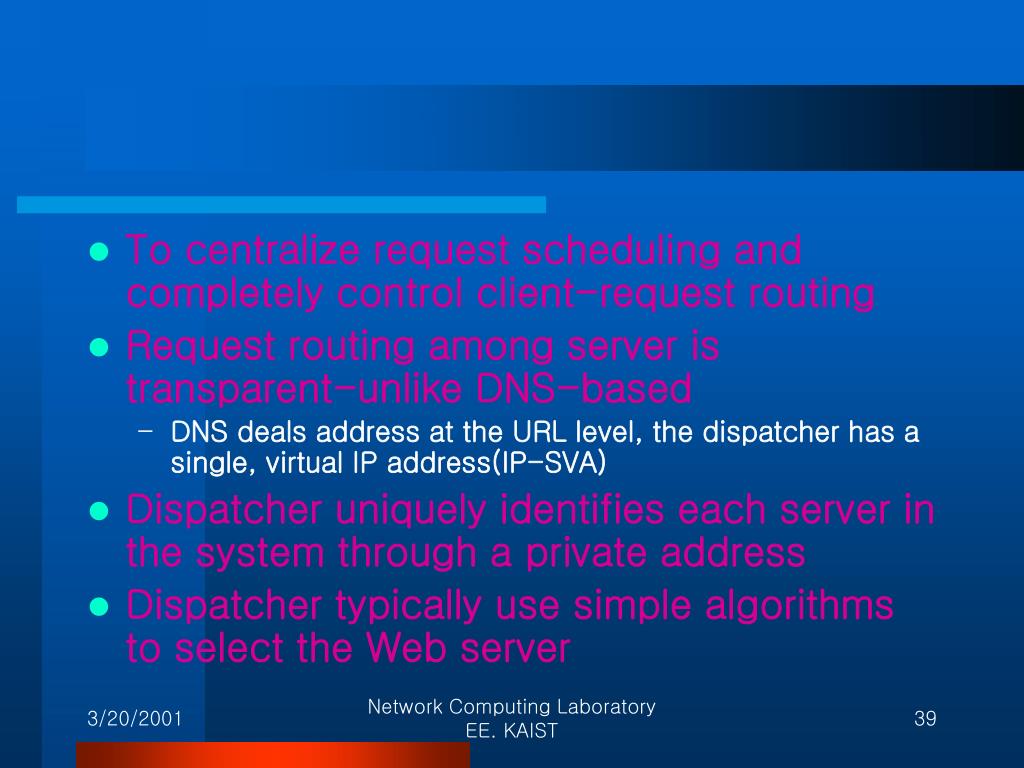

To centralize request scheduling and completely control client-request routing
  • Request routing among server is transparent-unlike DNS-based
    • DNS deals address at the URL level, the dispatcher has a single, virtual IP address(IP-SVA)
  • Dispatcher uniquely identifies each server in the system through a private address
  • Dispatcher typically use simple algorithms to select the Web server

Network Computing Laboratory EE. KAIST

packet single rewriting

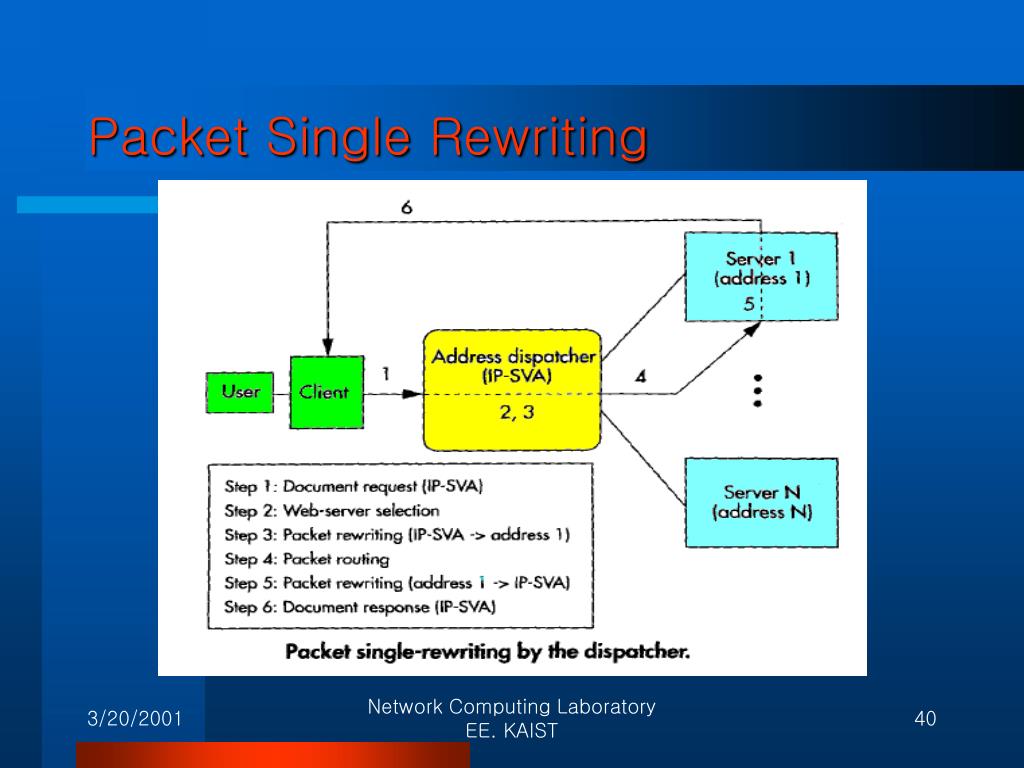

Packet Single Rewriting

Network Computing Laboratory EE. KAIST

slide41

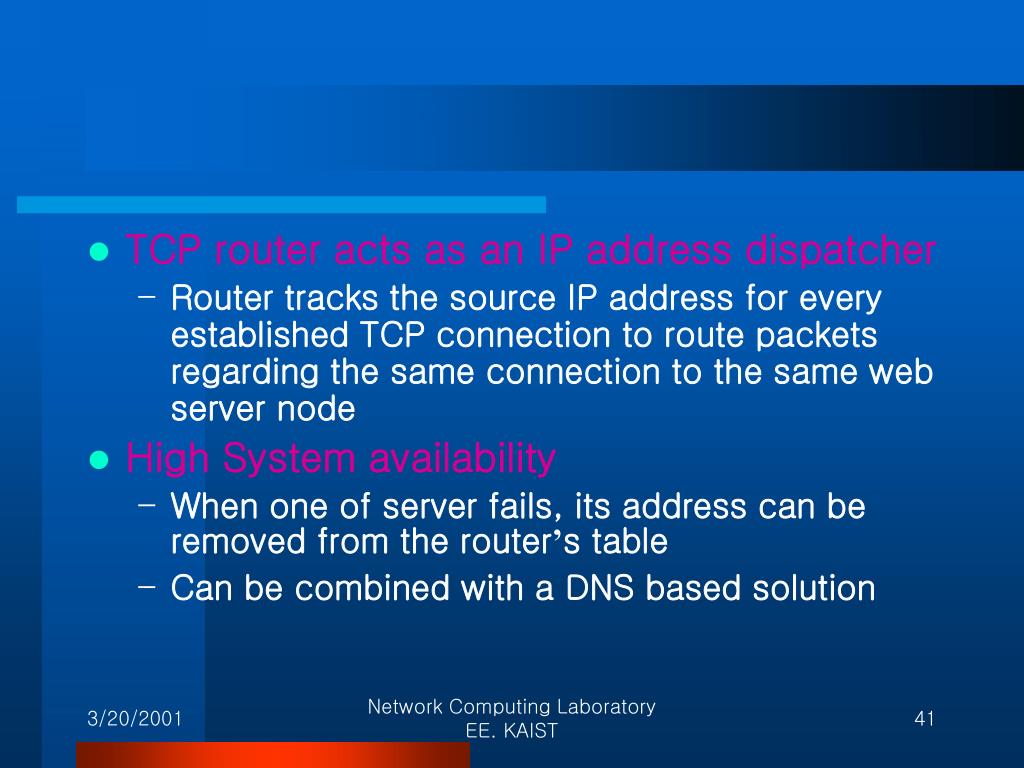

TCP router acts as an IP address dispatcher
    • Router tracks the source IP address for every established TCP connection to route packets regarding the same connection to the same web server node
  • High System availability
    • When one of server fails, its address can be removed from the router’s table
    • Can be combined with a DNS based solution

Network Computing Laboratory EE. KAIST

packet double rewriting
Packet Double Rewriting

Network Computing Laboratory EE. KAIST

slide43
Two solution using this approach
    • Magicrouter
    • Cisco System’s Local Director
  • Because outgoing packets typically outnumber incoming request packets, dispatcher becomes bottleneck

Network Computing Laboratory EE. KAIST

network dispatcher
Network Dispatcher
  • Extends the basic TCP router mechanism work with both LANs and WANs
  • Dispatcher forward packets to the selected server using its physical address without IP modification

Network Computing Laboratory EE. KAIST

slide45

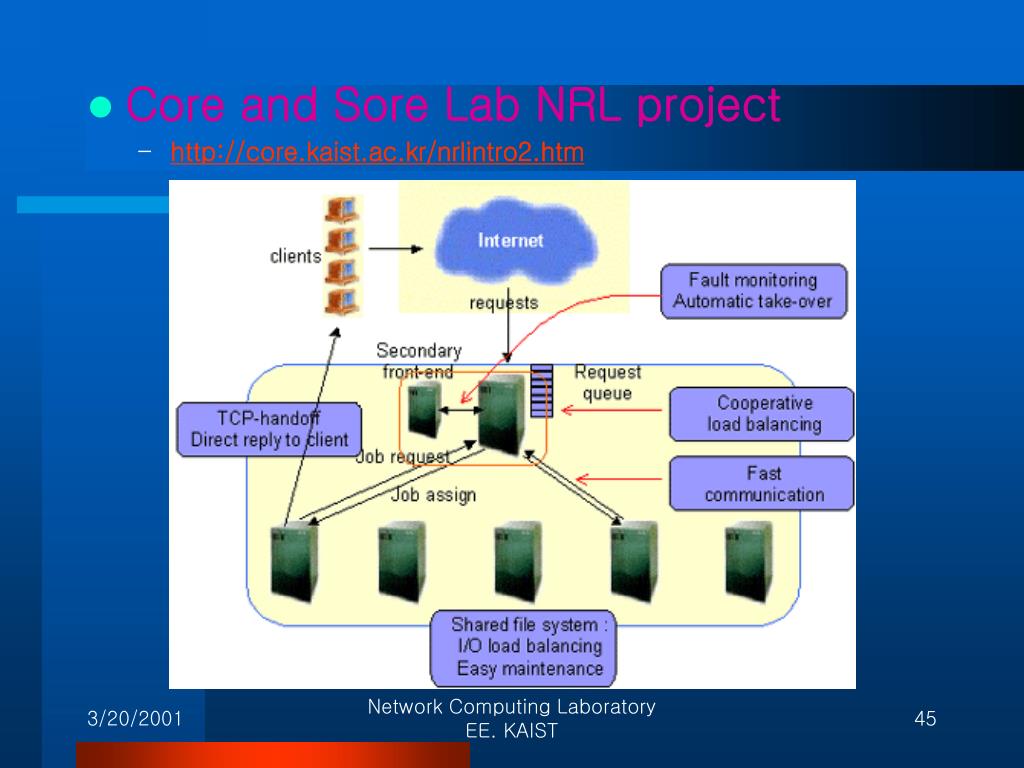

Core and Sore Lab NRL project
    • http://core.kaist.ac.kr/nrlintro2.htm

Network Computing Laboratory EE. KAIST

server based approach

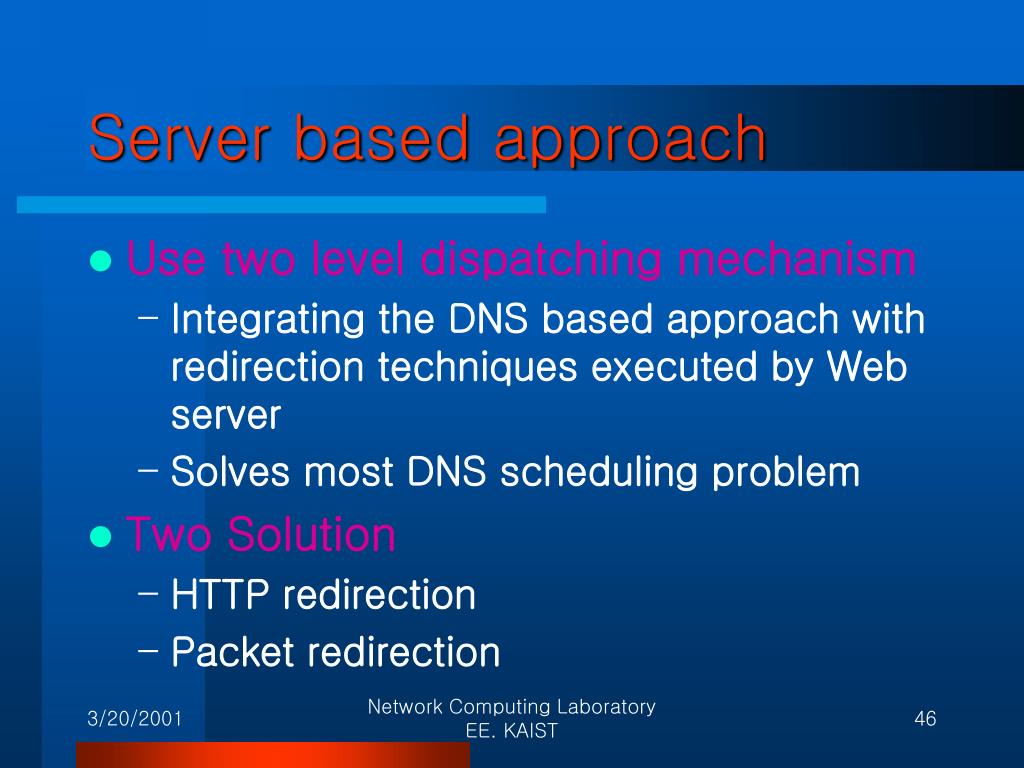

Server based approach
  • Use two level dispatching mechanism
    • Integrating the DNS based approach with redirection techniques executed by Web server
    • Solves most DNS scheduling problem
  • Two Solution
    • HTTP redirection
    • Packet redirection

Network Computing Laboratory EE. KAIST

http redirection

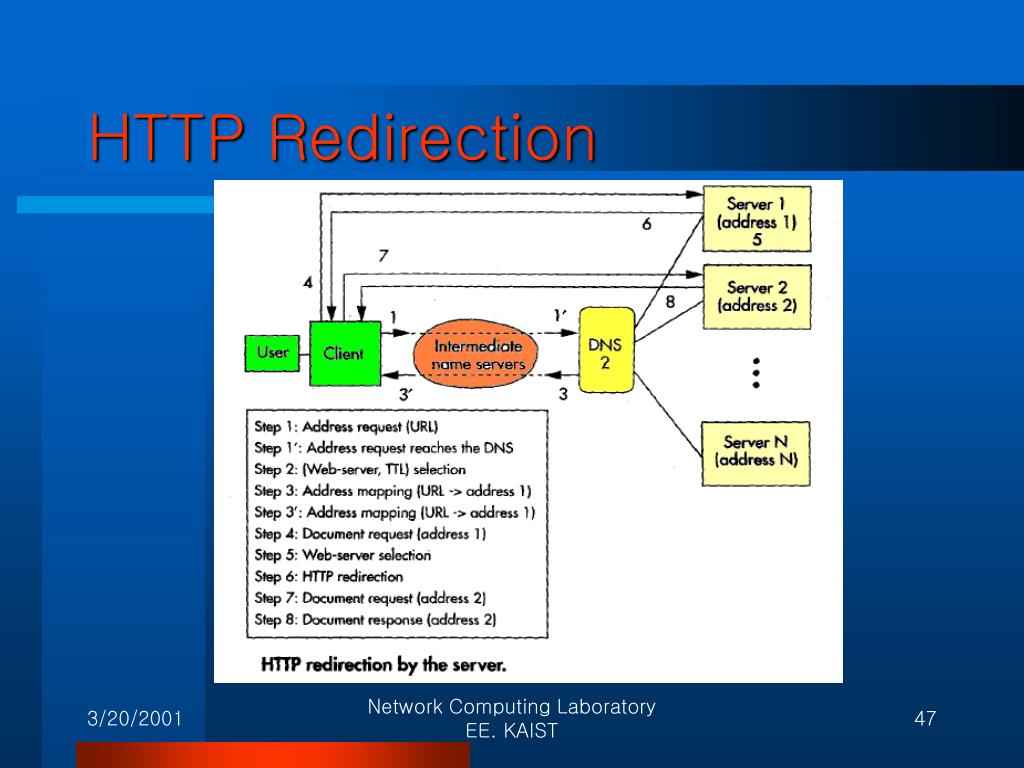

HTTP Redirection

Network Computing Laboratory EE. KAIST

slide48

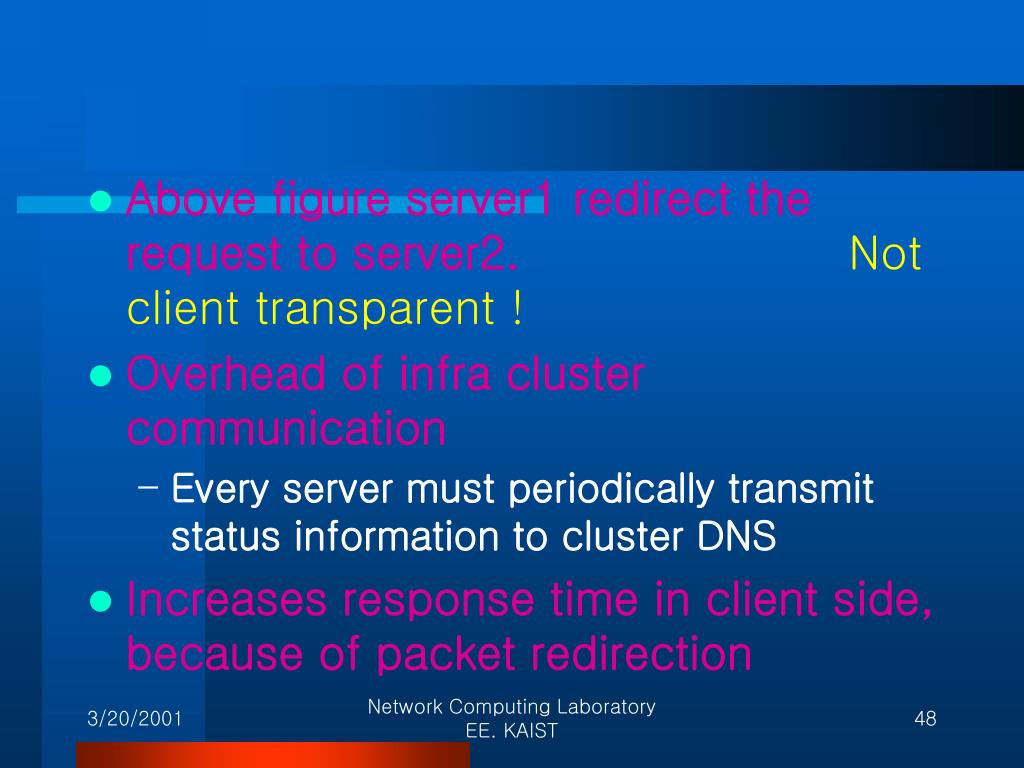

Above figure server1 redirect the request to server2. Not client transparent !
  • Overhead of infra cluster communication
    • Every server must periodically transmit status information to cluster DNS
  • Increases response time in client side, because of packet redirection

Network Computing Laboratory EE. KAIST

packet redirection

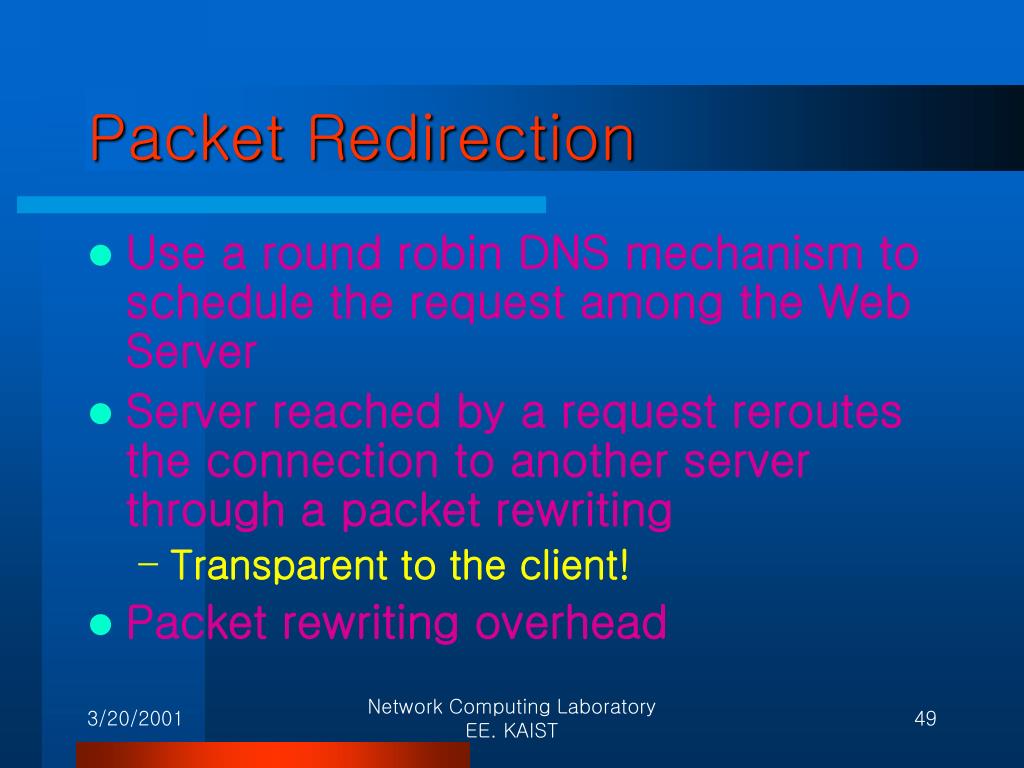

Packet Redirection
  • Use a round robin DNS mechanism to schedule the request among the Web Server
  • Server reached by a request reroutes the connection to another server through a packet rewriting
    • Transparent to the client!
  • Packet rewriting overhead

Network Computing Laboratory EE. KAIST

reference
Reference

[1] A reference architecture for Web Server

Reverse Engineering, 2000. Proceedings. Seventh Working Conference on , 2000 , Page(s): 150 -159

[2] Dynamic load balancing on Web-server systemsCardellini, V.; Colajanni, M.; Yu, P.S.IEEE Internet Computing Volume: 3 3 , May-June 1999 , Page(s): 28 -39

[3] Design and practice of a dispatch server architectureHong, H.C.; Chen, Y.C.Distributed Computing Systems, 1999. Proceedings. 7th IEEE Workshop on Future Trends of , 1999 , Page(s): 246 -251

[4] Scalable Web server architecturesMourad, A.; Huiqun LiuComputers and Communications, 1997. Proceedings., Second IEEE Symposium on , 1997 , Page(s): 12 -16

Network Computing Laboratory EE. KAIST

slide51
[5] TCP/IP Illustrated, Volume1W. Richard Strevens Addison Wesley

[6] TCP/IP Illustrated, Volume3W. Richard Strevens Addison Wesley

[7] Netcraft. The Netcraft WWW server surveyAvailable at http://www.netcraft.co.uk/Survey

Network Computing Laboratory EE. KAIST
