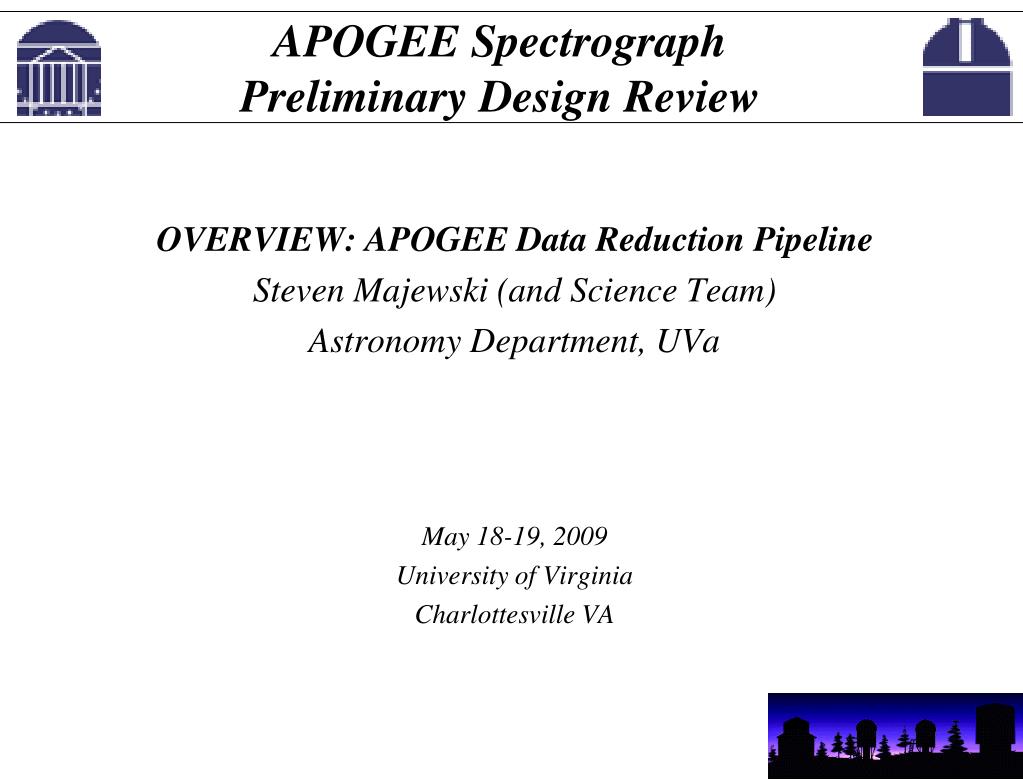

APOGEE Spectrograph

Preliminary Design Review

OVERVIEW: APOGEE Data Reduction Pipeline

Steven Majewski (and Science Team)

Astronomy Department, UVa

May 18-19, 2009

University of Virginia

Charlottesville VA

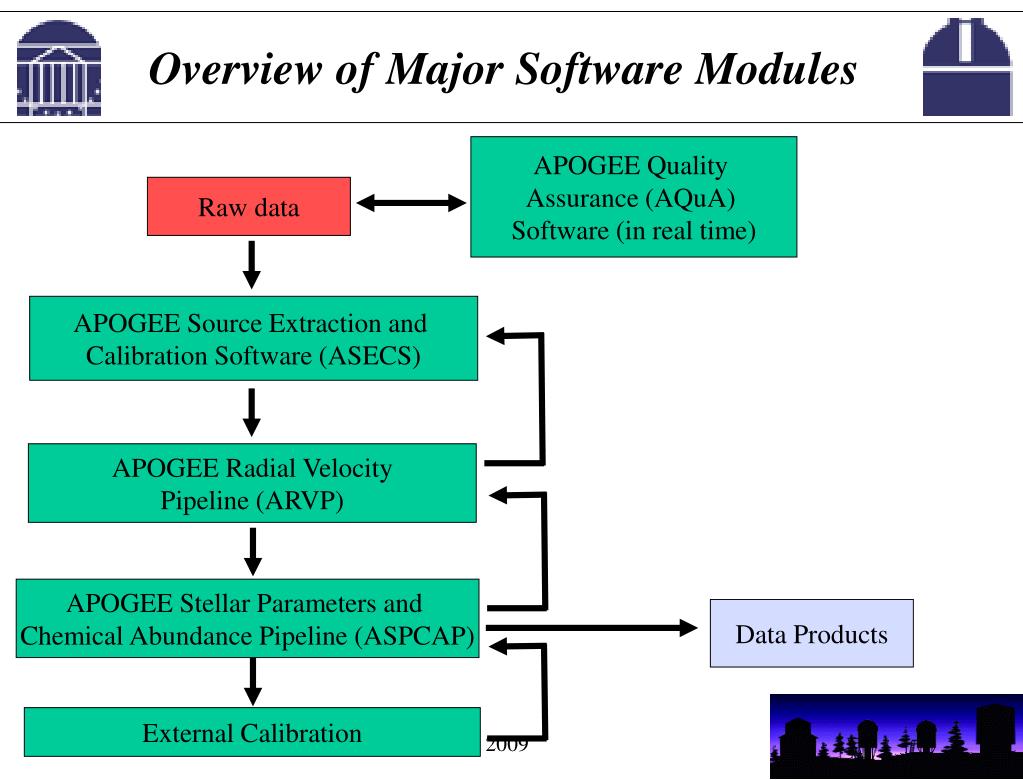

Overview of Major Software Modules

APOGEE Quality Assurance (AQuA) Software (in real time)

Raw data

APOGEE Source Extraction and Calibration Software (ASECS)

APOGEE Radial VelocityPipeline (ARVP)

APOGEE Stellar Parameters and Chemical Abundance Pipeline (ASPCAP)

Data Products

External Calibration


Overview of Pipeline Personnel


Steven Majewski

Project/Business ManagerFred Hearty

SDSS3 Employee

Science Team

Science WorkingGroup

Survey Scientist

Ricardo Schiavon


Matthew Shetrone


Dmitry Bizyaev


Carlos Allende-Prieto


Peter Frinchaboy

Software Postdoc 2Ana Elia Garcia Perez

Software Postdoc 1David Nidever


Pipeline Operator (BS1)Not hired yet


May 18, 2009

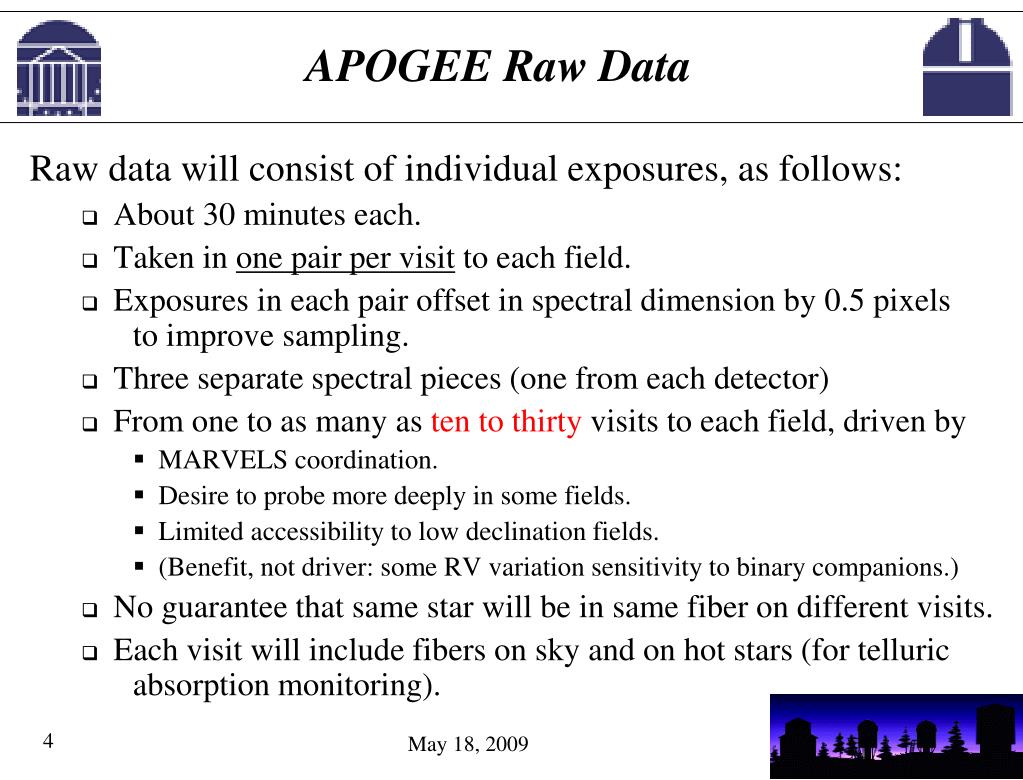

Raw data will consist of individual exposures, as follows:

About 30 minutes each.

Taken in one pair per visit to each field.

Exposures in each pair offset in spectral dimension by 0.5 pixels to improve sampling.

Three separate spectral pieces (one from each detector)

From one to as many as ten to thirty visits to each field, driven by

MARVELS coordination.

Desire to probe more deeply in some fields.

Limited accessibility to low declination fields.

(Benefit, not driver: some RV variation sensitivity to binary companions.)

No guarantee that same star will be in same fiber on different visits.

Each visit will include fibers on sky and on hot stars (for telluric absorption monitoring).



May 18, 2009

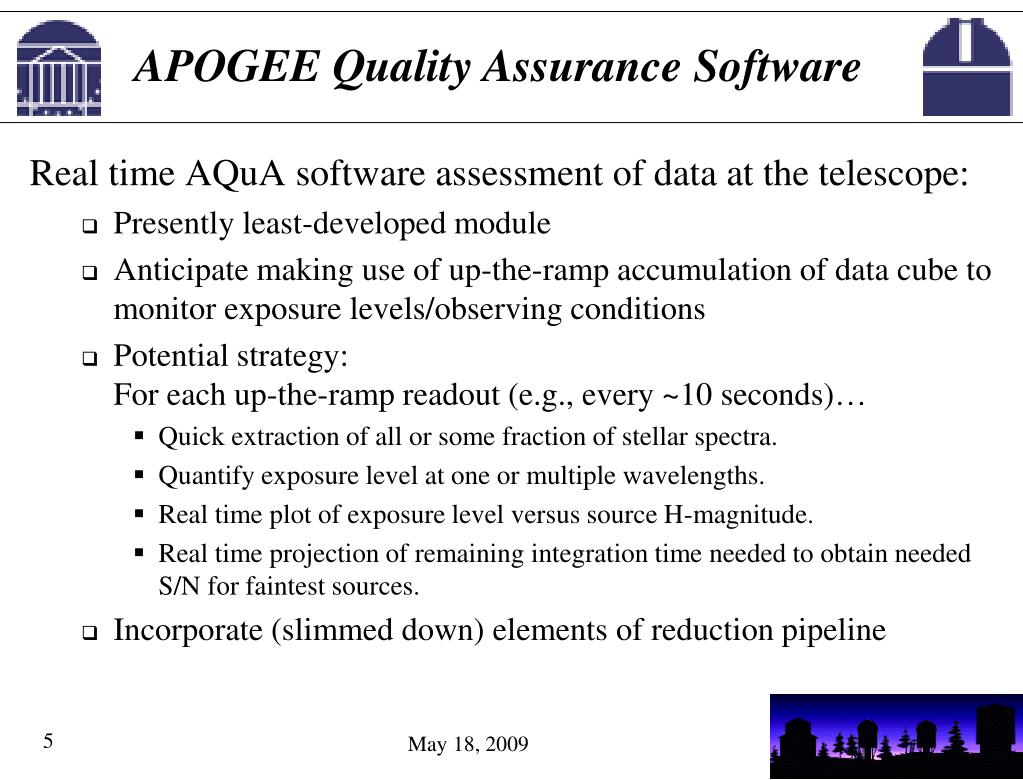

Real time AQuA software assessment of data at the telescope:

Presently least-developed module

Anticipate making use of up-the-ramp accumulation of data cube tomonitor exposure levels/observing conditions

Potential strategy: For each up-the-ramp readout (e.g., every ~10 seconds)…

Quick extraction of all or some fraction of stellar spectra.

Quantify exposure level at one or multiple wavelengths.

Real time plot of exposure level versus source H-magnitude.

Real time projection of remaining integration time needed to obtain neededS/N for faintest sources.

Incorporate (slimmed down) elements of reduction pipeline

APOGEE Quality Assurance Software


May 18, 2009

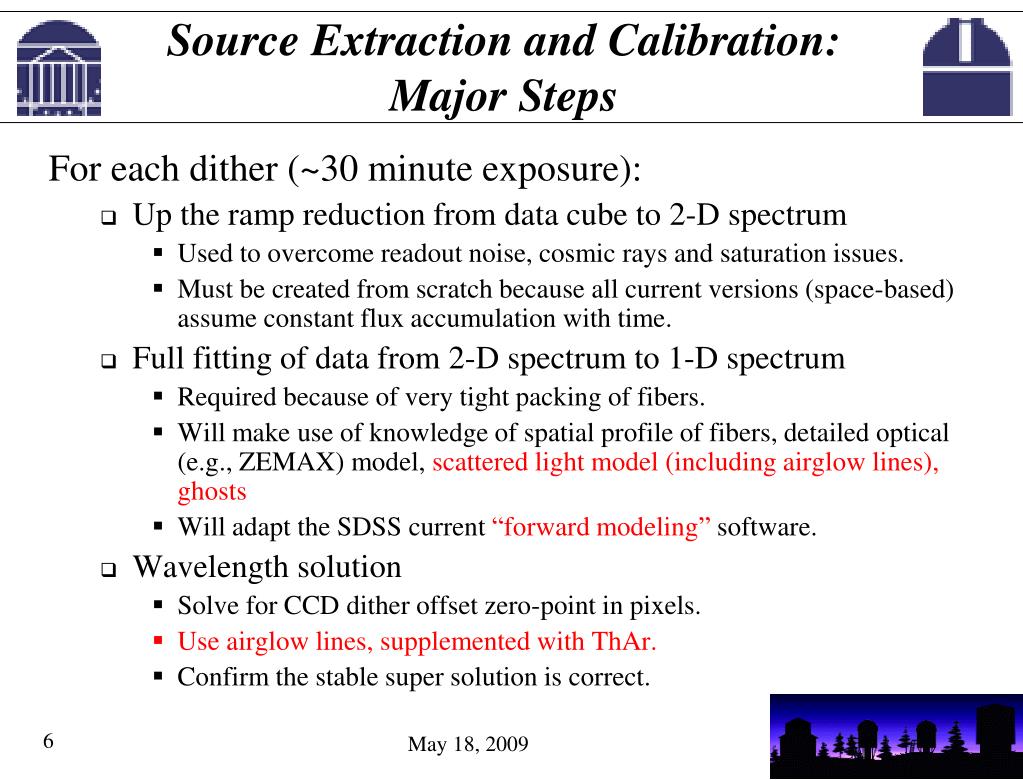

For each dither (~30 minute exposure):

Up the ramp reduction from data cube to 2-D spectrum

Used to overcome readout noise, cosmic rays and saturation issues.

Must be created from scratch because all current versions (space-based) assume constant flux accumulation with time.

Full fitting of data from 2-D spectrum to 1-D spectrum

Required because of very tight packing of fibers.

Will make use of knowledge of spatial profile of fibers, detailed optical(e.g., ZEMAX) model, scattered light model (including airglow lines), ghosts

Will adapt the SDSS current “forward modeling” software.

Wavelength solution

Solve for CCD dither offset zero-point in pixels.

Use airglow lines, supplemented with ThAr.

Confirm the stable super solution is correct.

Source Extraction and Calibration:Major Steps


May 18, 2009

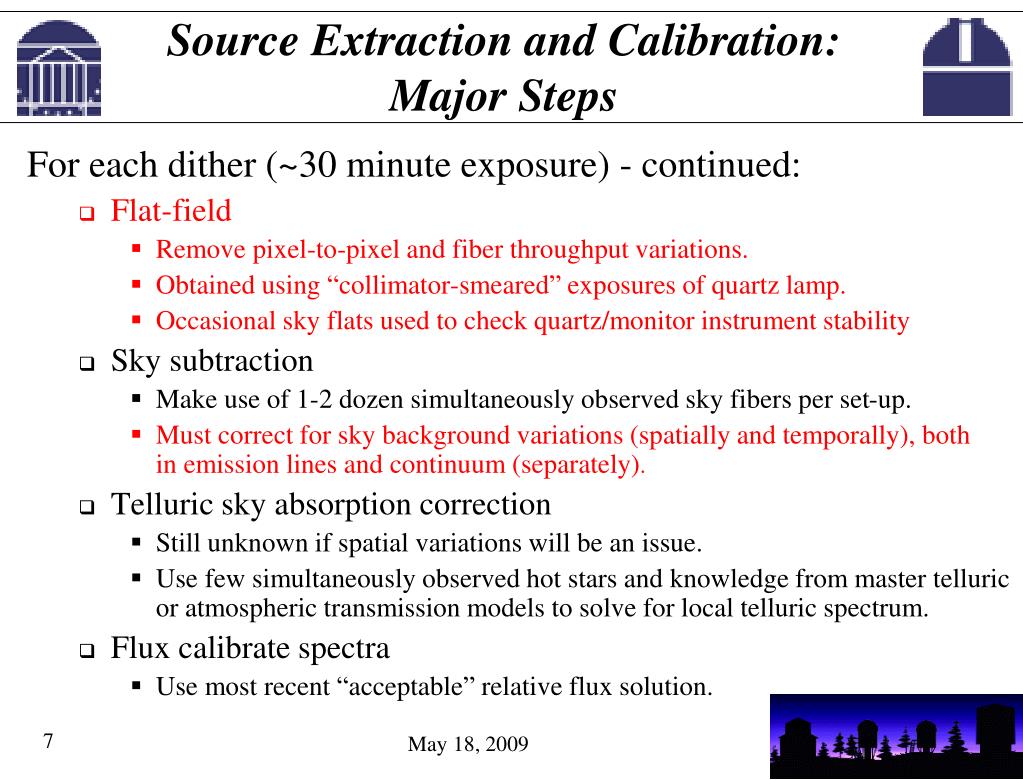

For each dither (~30 minute exposure) - continued:


Remove pixel-to-pixel and fiber throughput variations.

Obtained using “collimator-smeared” exposures of quartz lamp.

Occasional sky flats used to check quartz/monitor instrument stability

Sky subtraction

Make use of 1-2 dozen simultaneously observed sky fibers per set-up.

Must correct for sky background variations (spatially and temporally), bothin emission lines and continuum (separately).

Telluric sky absorption correction

Still unknown if spatial variations will be an issue.

Use few simultaneously observed hot stars and knowledge from master telluric or atmospheric transmission models to solve for local telluric spectrum.

Flux calibrate spectra

Use most recent “acceptable” relative flux solution.

Source Extraction and Calibration:Major Steps


May 18, 2009

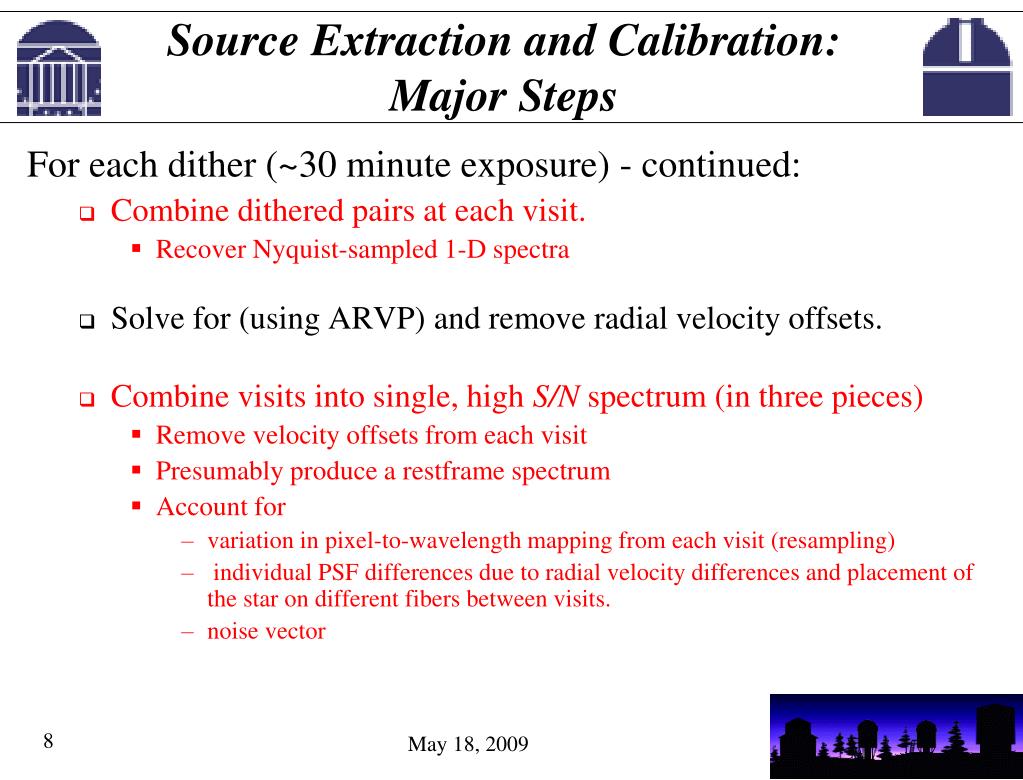

For each dither (~30 minute exposure) - continued:

Combine dithered pairs at each visit.

Recover Nyquist-sampled 1-D spectra

Solve for (using ARVP) and remove radial velocity offsets.

Combine visits into single, high S/N spectrum (in three pieces)

Remove velocity offsets from each visit

Presumably produce a restframe spectrum

Account for

variation in pixel-to-wavelength mapping from each visit (resampling)

individual PSF differences due to radial velocity differences and placement of the star on different fibers between visits.

noise vector

Source Extraction and Calibration:Major Steps


May 18, 2009

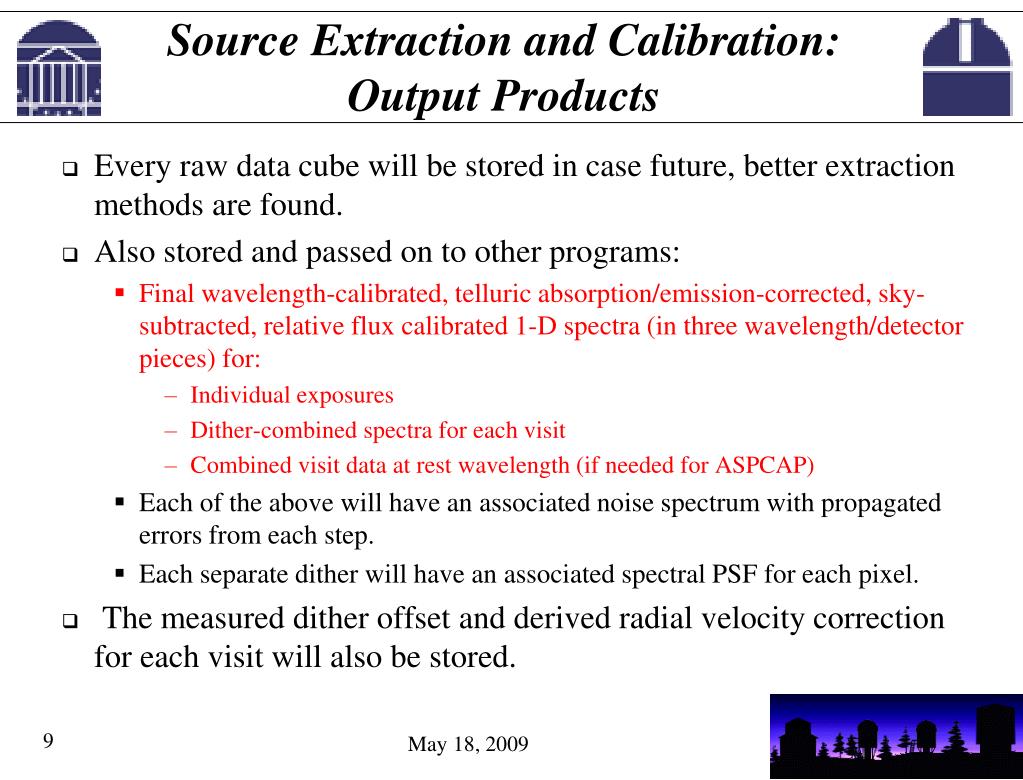

Every raw data cube will be stored in case future, better extraction methods are found.

Also stored and passed on to other programs:

Final wavelength-calibrated, telluric absorption/emission-corrected, sky-subtracted, relative flux calibrated 1-D spectra (in three wavelength/detector pieces) for:

Individual exposures

Dither-combined spectra for each visit

Combined visit data at rest wavelength (if needed for ASPCAP)

Each of the above will have an associated noise spectrum with propagated errors from each step.

Each separate dither will have an associated spectral PSF for each pixel.

The measured dither offset and derived radial velocity correction for each visit will also be stored.

Source Extraction and Calibration:Output Products


May 18, 2009

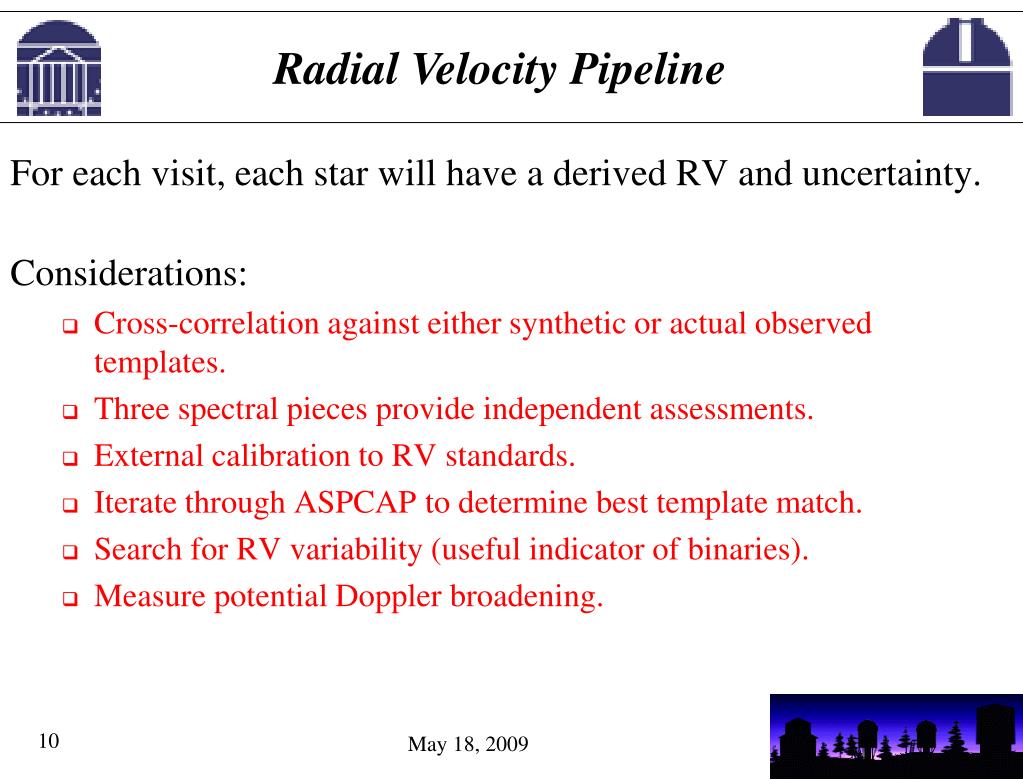

For each visit, each star will have a derived RV and uncertainty.


Cross-correlation against either synthetic or actual observed templates.

Three spectral pieces provide independent assessments.

External calibration to RV standards.

Iterate through ASPCAP to determine best template match.

Search for RV variability (useful indicator of binaries).

Measure potential Doppler broadening.

Radial Velocity Pipeline


May 18, 2009

arvp flowchart


2D spectrum




ARVP flowchart

SSECS pipeline: primary reduction, 1D extraction, wavelength calibration


Individual 1D spectrum (from single exposure), w.l. calibrated, S/N ~ 40 per pixel

Estimate relative RVs variations for

different spectra of the same object

(recalculate once new spectra arrived)

Estimate individual absolute

RVs (using a template)

Barycentric correction

Wavelength shift (find the best way)

Combine individual spectra into one

RV variability

and accuracy

ASPCAP pipeline:

stellar parameters, best

matching synthetic spectrum

Combined spectrum, at the end

S/N >= 100 per resolution

Check if synthetic spectra will work better

Mean absolute RV,


Precision from RV


as templates to derive the RV variations

Adjust absolute RV

look for stellar rotation

Orbital parameters

fitting for RV-variable


Possible stellar rotation


basic aspcap structure

Input spectra + RVs


Basic ASPCAP Structure

Coarse characterization





Data pre-processing

(radial velocity correction

resample, filter, mask…)





Determination of

principal parameters

(Teff, logg, [Fe/H], [C/Fe], [O/Fe]

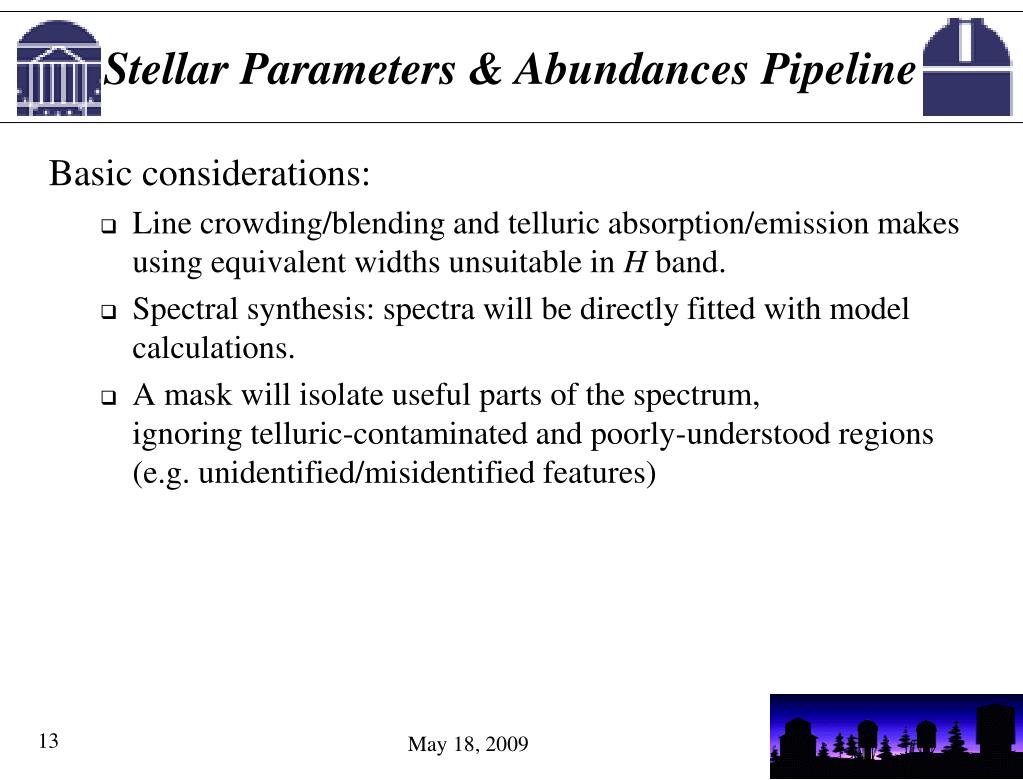

Basic considerations:

Line crowding/blending and telluric absorption/emission makes using equivalent widths unsuitable in H band.

Spectral synthesis: spectra will be directly fitted with model calculations.

A mask will isolate useful parts of the spectrum, ignoring telluric-contaminated and poorly-understood regions (e.g. unidentified/misidentified features)

Stellar Parameters & Abundances Pipeline


May 18, 2009

Spectral Synthesis:

An optimization code will constrain relevant parameters from the spectra.

Precise optimization code currently under study using four existing codesand a series of blind tests (selection criteria will be accuracy and speed).

Results from first tests expected within two weeks.

Analysis to be carried out in two steps:

Derive principal atmospheric parameters: Teff , log g, [Fe/H], C/O abundances

Other abundances: less abundant elements (e.g., Na, Si, Ca, Ti, Mg, …) having negligible feedback on atmospheric structure.

Analysis will choose better of 1-D plane-parallel vs. spherical model atmospheres.

Fluxes consistently computed with the same background opacities used for the atmospheric structures (but more detailed line opacities)

Line opacities refined by:

literature compilation

laboratory work + theoretical calculations (rare earths)

empirical matching of Arcturus/solar spectra

Stellar Parameters & Abundances Pipeline


May 18, 2009

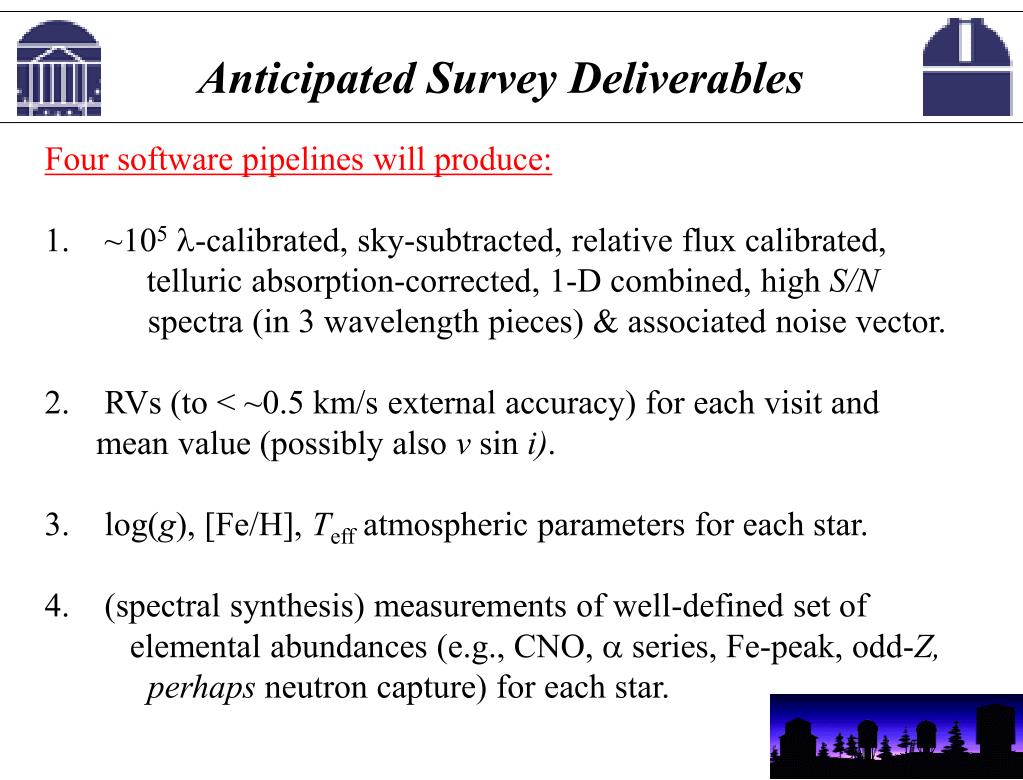

Anticipated Survey Deliverables

  • Four software pipelines will produce:
  • ~105l-calibrated, sky-subtracted, relative flux calibrated, telluric absorption-corrected, 1-D combined, high S/N spectra (in 3 wavelength pieces) & associated noise vector.
  • RVs (to < ~0.5 km/s external accuracy) for each visit and mean value (possibly also v sin i).
  • log(g), [Fe/H], Teff atmospheric parameters for each star.
  • (spectral synthesis) measurements of well-defined set of elemental abundances (e.g., CNO, a series, Fe-peak, odd-Z, perhaps neutron capture) for each star.
