Presentation Transcript

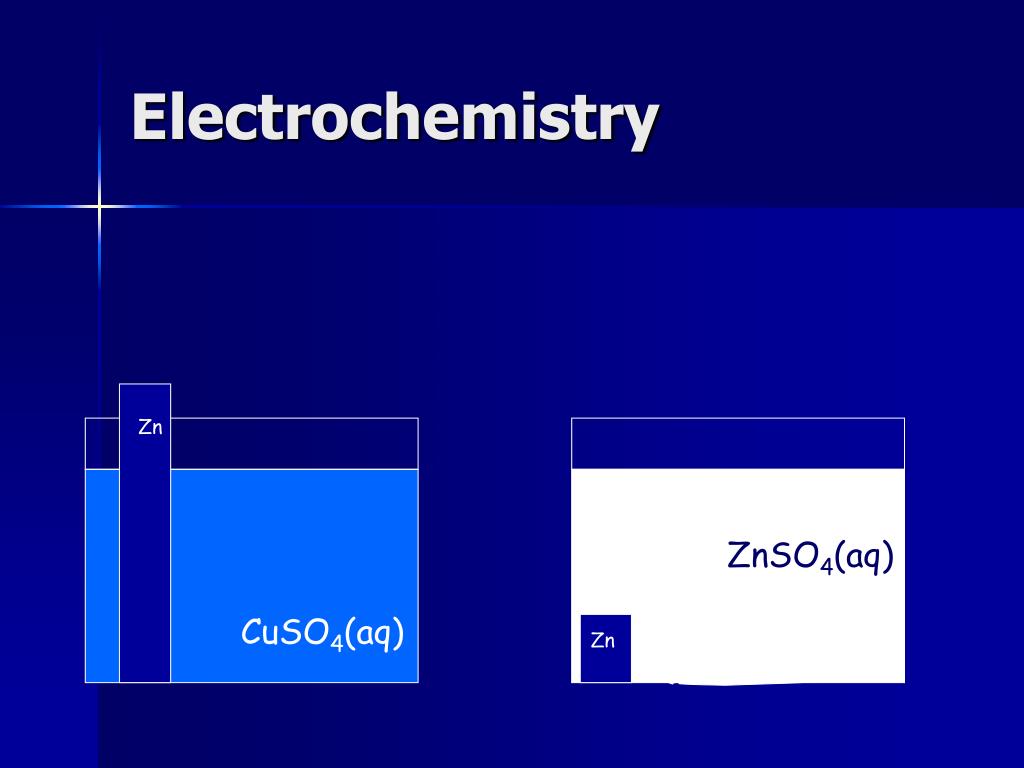

  1. Zn ZnSO4(aq) CuSO4(aq) Zn Cu Electrochemistry

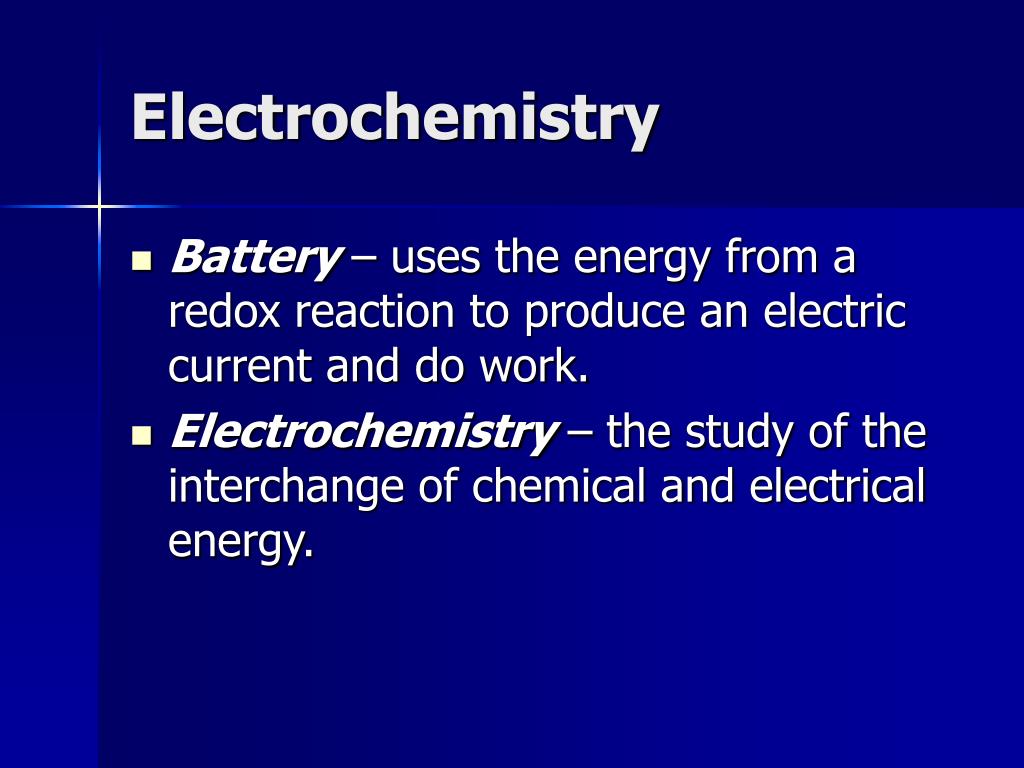

  2. Electrochemistry • Battery – uses the energy from a redox reaction to produce an electric current and do work. • Electrochemistry – the study of the interchange of chemical and electrical energy.

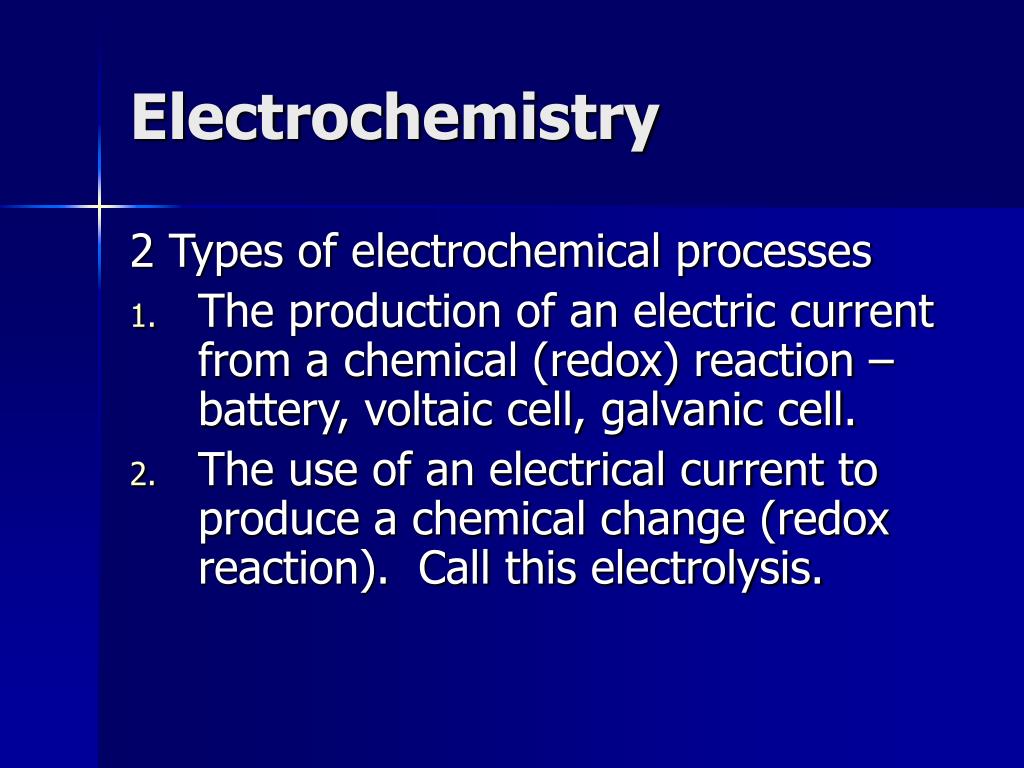

  3. Electrochemistry 2 Types of electrochemical processes • The production of an electric current from a chemical (redox) reaction – battery, voltaic cell, galvanic cell. • The use of an electrical current to produce a chemical change (redox reaction). Call this electrolysis.

  4. Electrochemistry • How do we capture the energy? • Separate the oxidizing agent (electron acceptor) from the reducing agent (electron donor) • Requires the electron transfer to occur through a wire or an electric motor!

  5. Figure 18.1: Schematic for separating the oxidizing and reducing agents in a redox reaction. Why is there no flow of electrons here? 8H+ + MnO4- + 5e- Mn2+ + 4H20 ; Fe2+  Fe3+ + e-

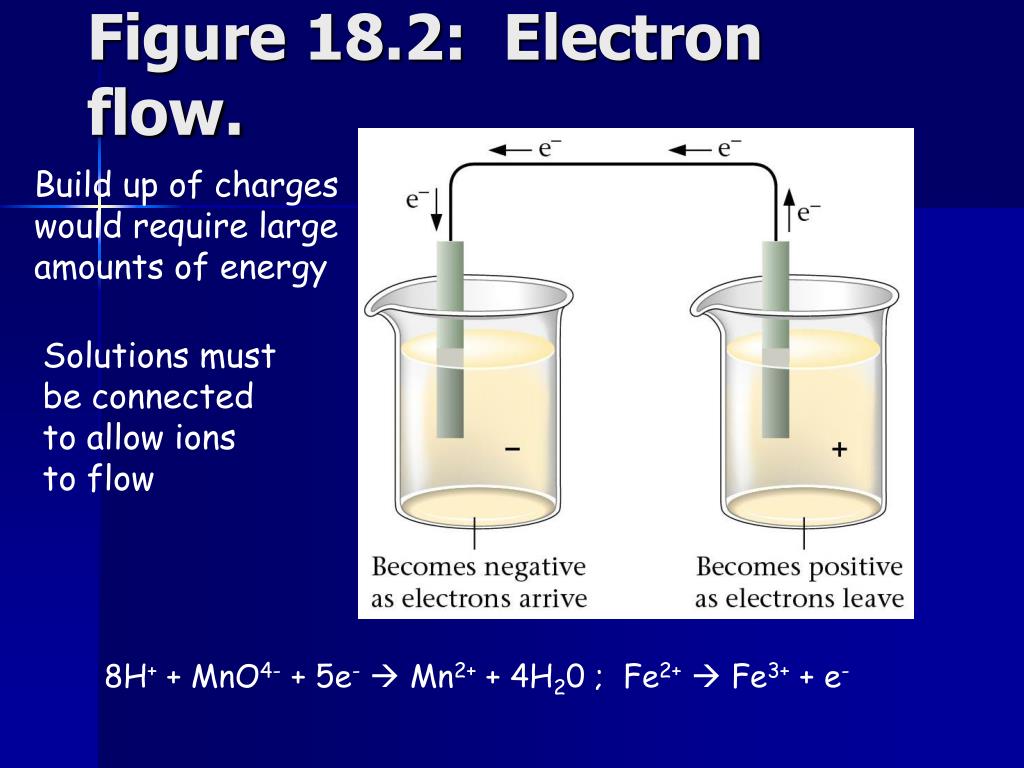

  6. Figure 18.2: Electron flow. Build up of charges would require large amounts of energy Solutions must be connected to allow ions to flow 8H+ + MnO4- + 5e- Mn2+ + 4H20 ; Fe2+  Fe3+ + e-

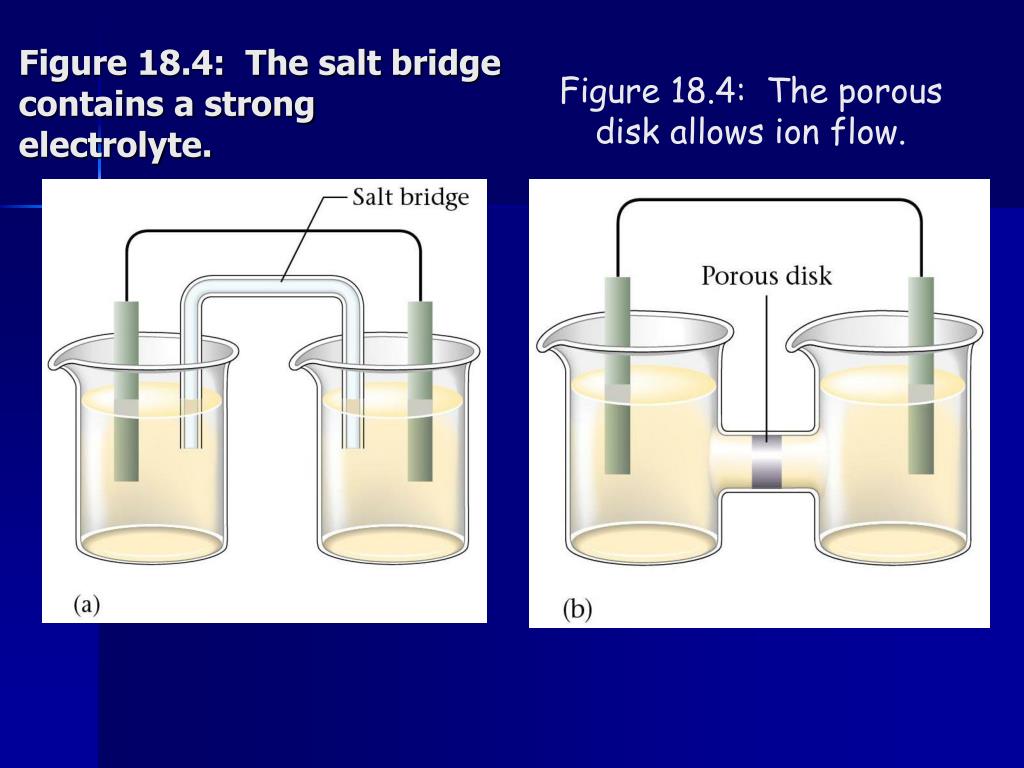

  7. Figure 18.4: The salt bridge contains a strong electrolyte. Figure 18.4: The porous disk allows ion flow.

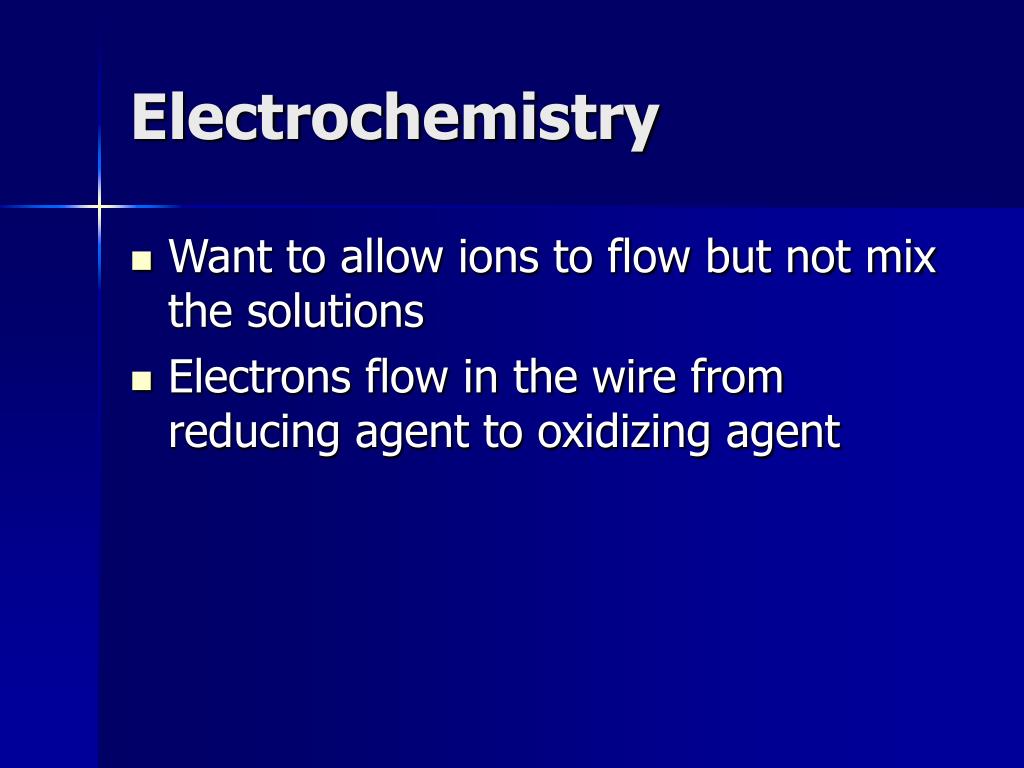

  8. Electrochemistry • Want to allow ions to flow but not mix the solutions • Electrons flow in the wire from reducing agent to oxidizing agent

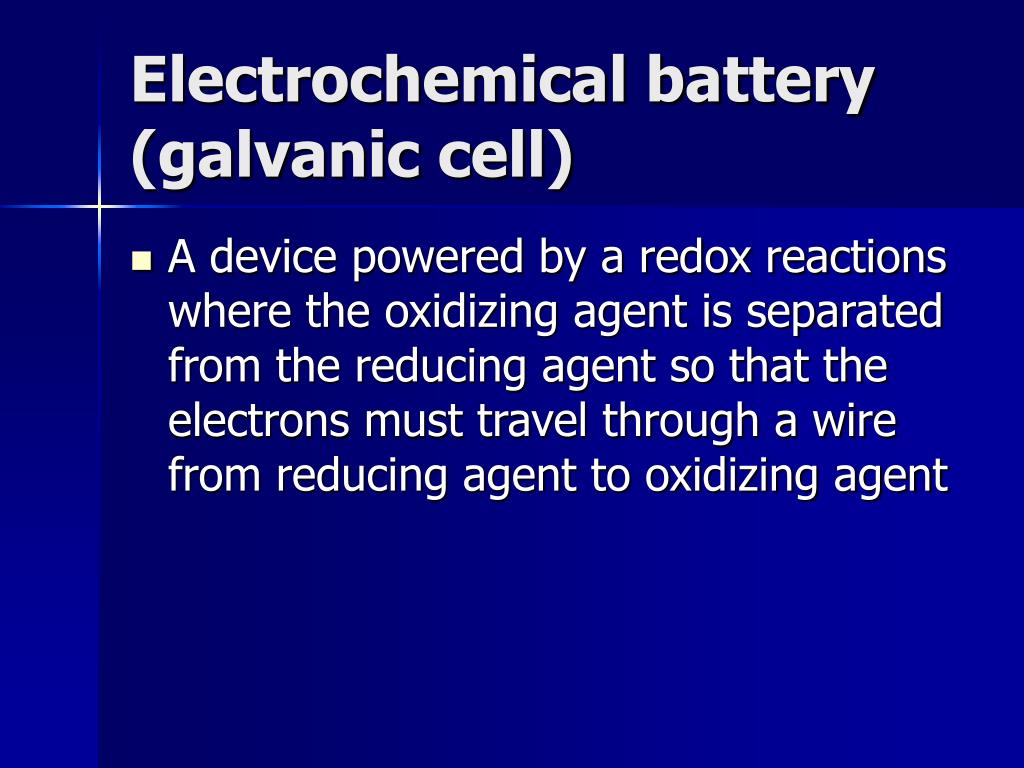

  9. Electrochemical battery (galvanic cell) • A device powered by a redox reactions where the oxidizing agent is separated from the reducing agent so that the electrons must travel through a wire from reducing agent to oxidizing agent

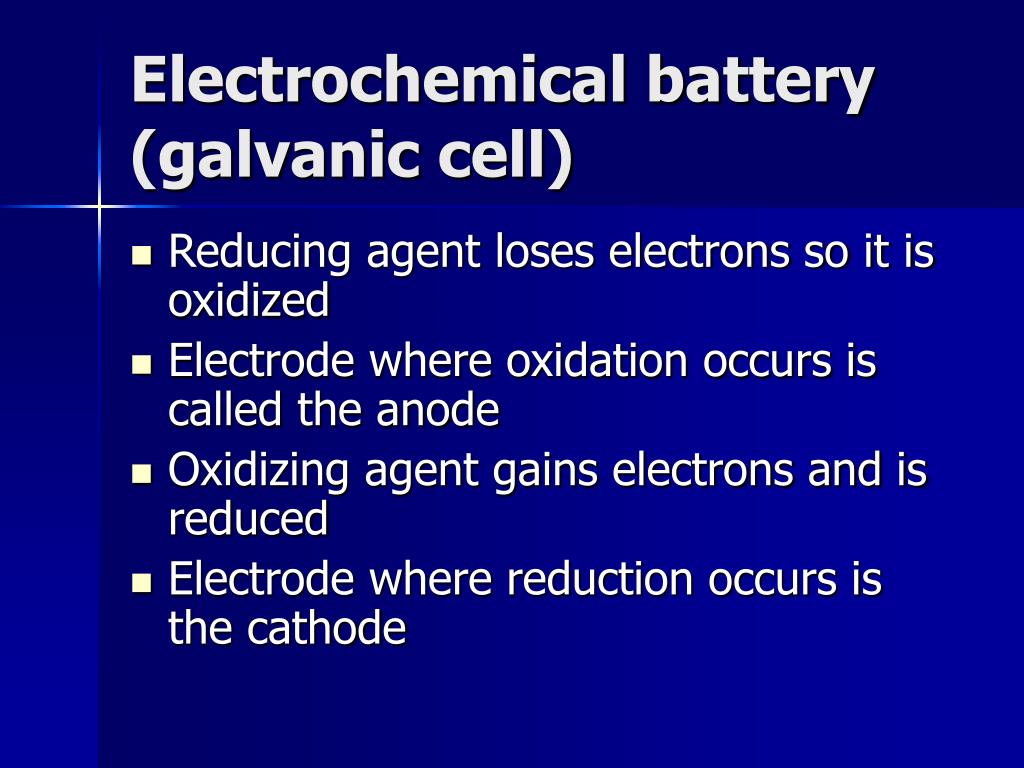

  10. Electrochemical battery (galvanic cell) • Reducing agent loses electrons so it is oxidized • Electrode where oxidation occurs is called the anode • Oxidizing agent gains electrons and is reduced • Electrode where reduction occurs is the cathode

  11. Figure 18.5: Schematic of a battery. Anode - electrode where oxidation occurs Cathode – electrode where reduction occurs Electron flow anode to cathode oxidation to reduction

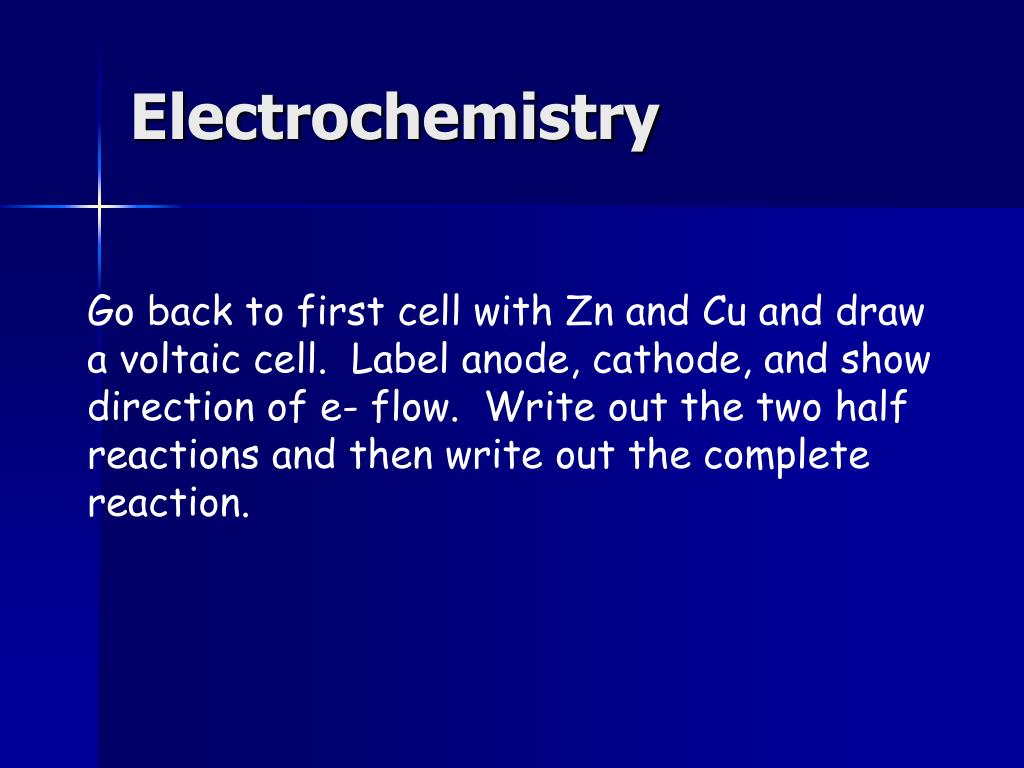

  12. Electrochemistry Go back to first cell with Zn and Cu and draw a voltaic cell. Label anode, cathode, and show direction of e- flow. Write out the two half reactions and then write out the complete reaction.

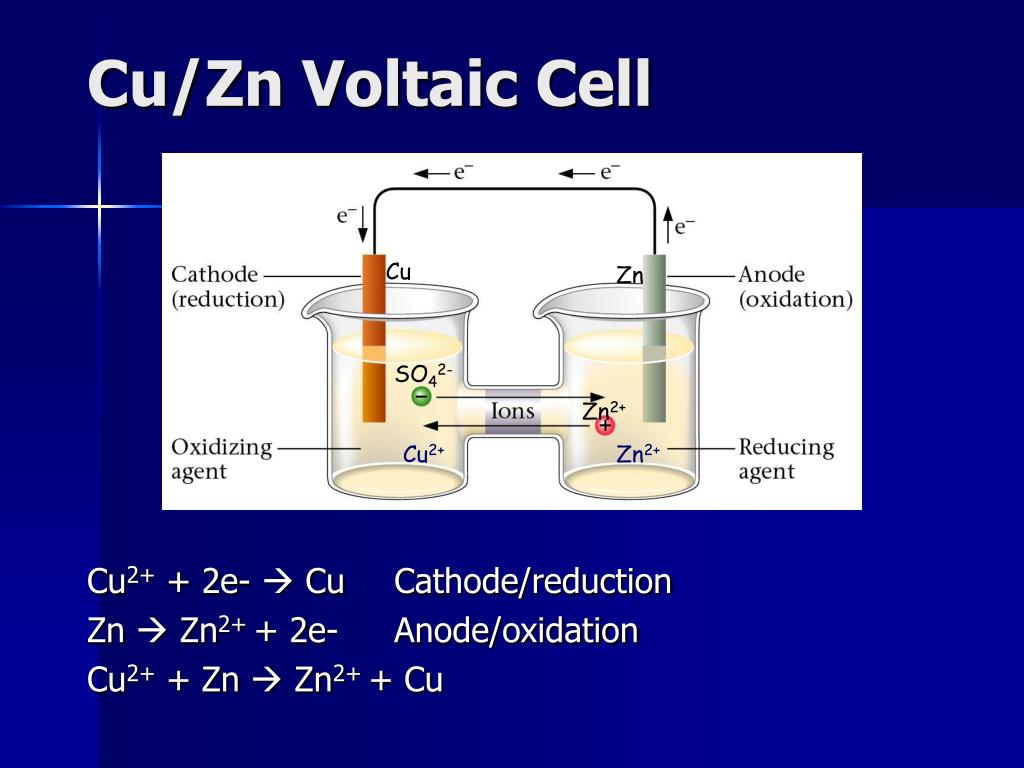

  13. Cu/Zn Voltaic Cell Cu2+ + 2e-  Cu Cathode/reduction Zn  Zn2+ + 2e- Anode/oxidation Cu2+ + Zn  Zn2+ + Cu Cu Zn SO42- Zn2+ Cu2+ Zn2+

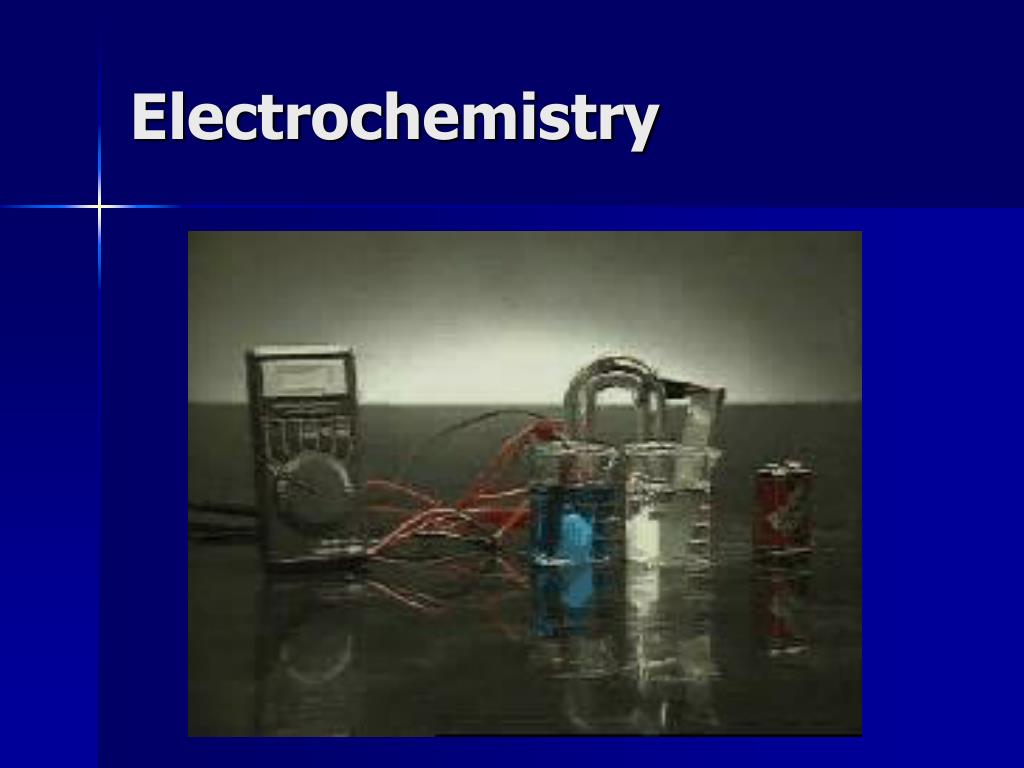

  14. Electrochemistry
