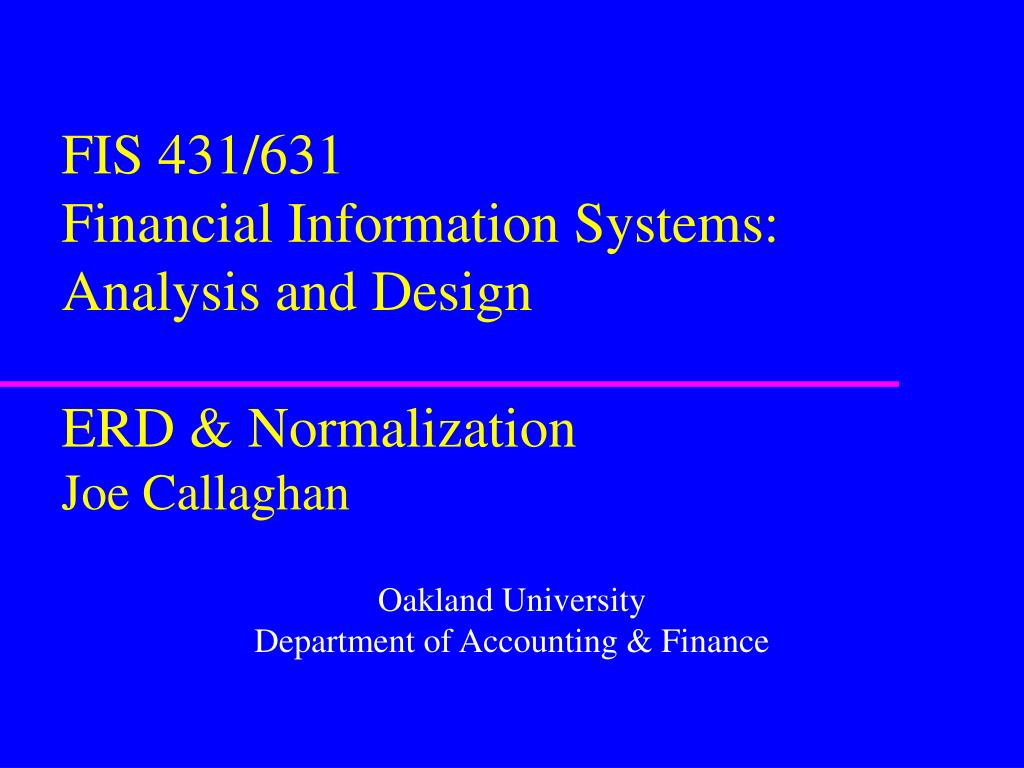

FIS 431/631Financial Information Systems: Analysis and DesignERD & NormalizationJoe Callaghan

Oakland University

Department of Accounting & Finance

data modeling

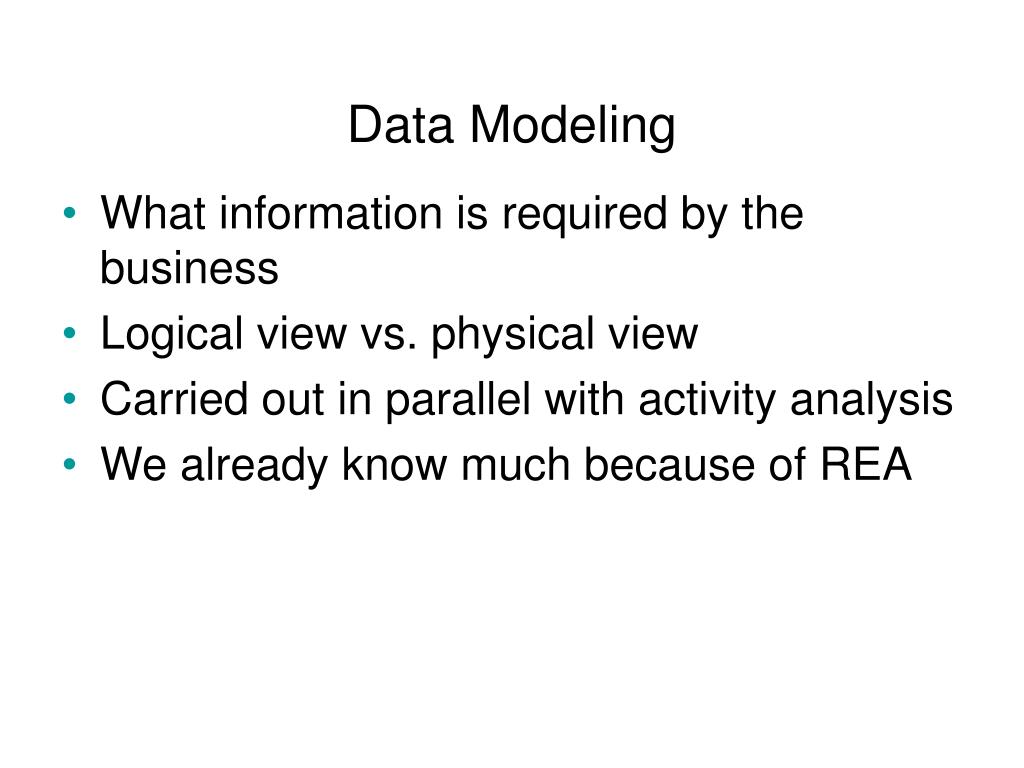

Data Modeling
  • What information is required by the business
  • Logical view vs. physical view
  • Carried out in parallel with activity analysis
  • We already know much because of REA
analysis steps

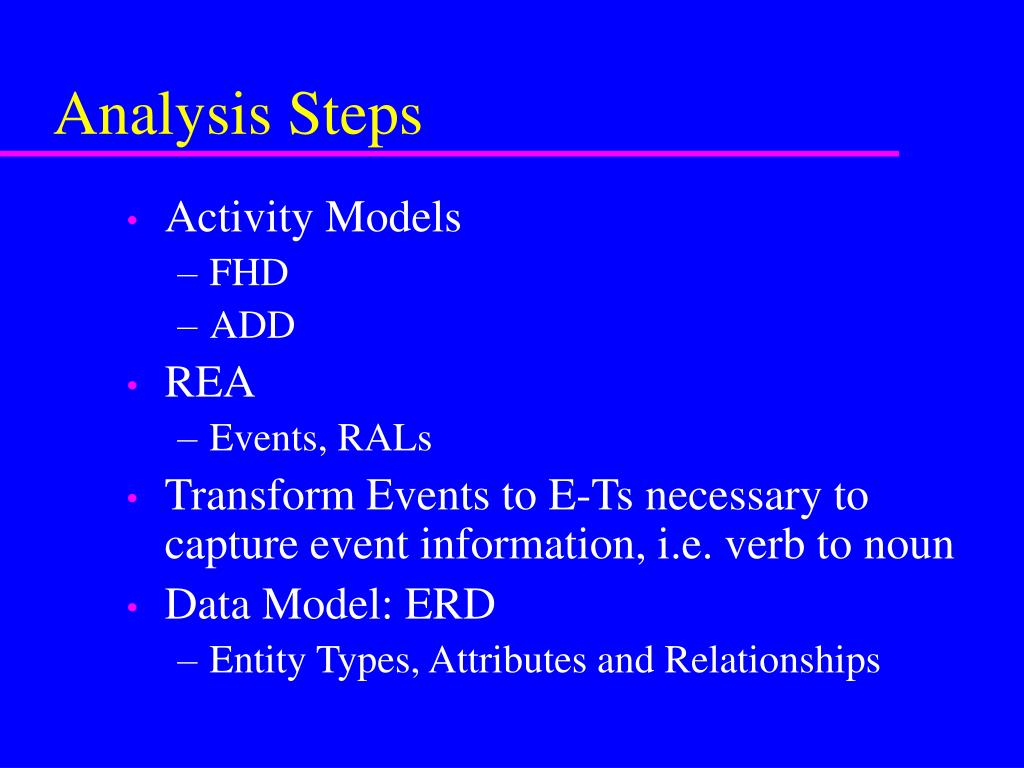

Analysis Steps
  • Activity Models
    • FHD
    • ADD
  • REA
    • Events, RALs
  • Transform Events to E-Ts necessary to capture event information, i.e. verb to noun
  • Data Model: ERD
    • Entity Types, Attributes and Relationships

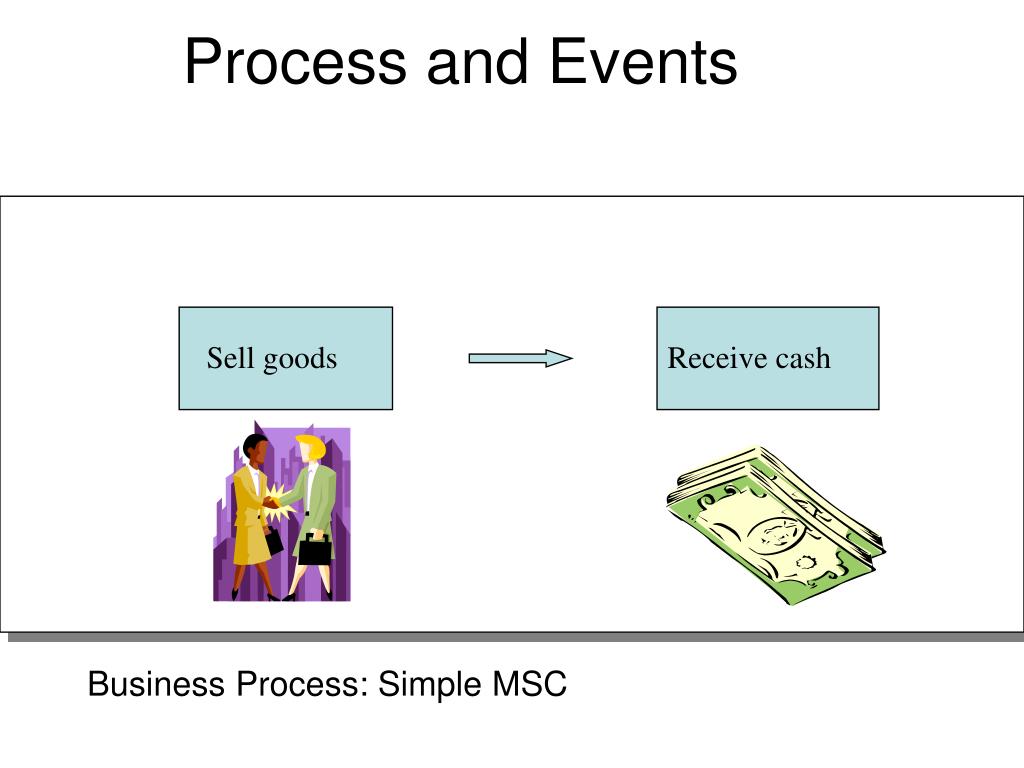

process and events
Process and Events

Sell goods

Receive cash

Business Process: Simple MSC

a rea interaction model for msc function

Salesperson

Department

Sell Goods

Customer

Inventory

Receive Cash

Store

Cashier

Cash

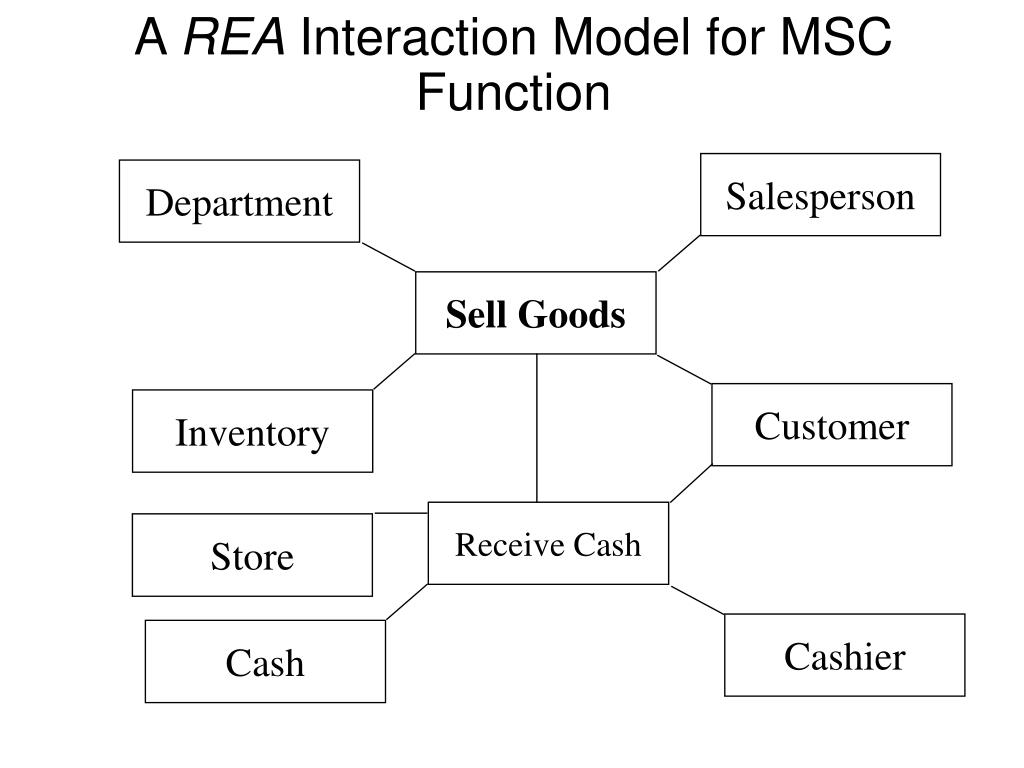

A REA Interaction Model for MSC Function

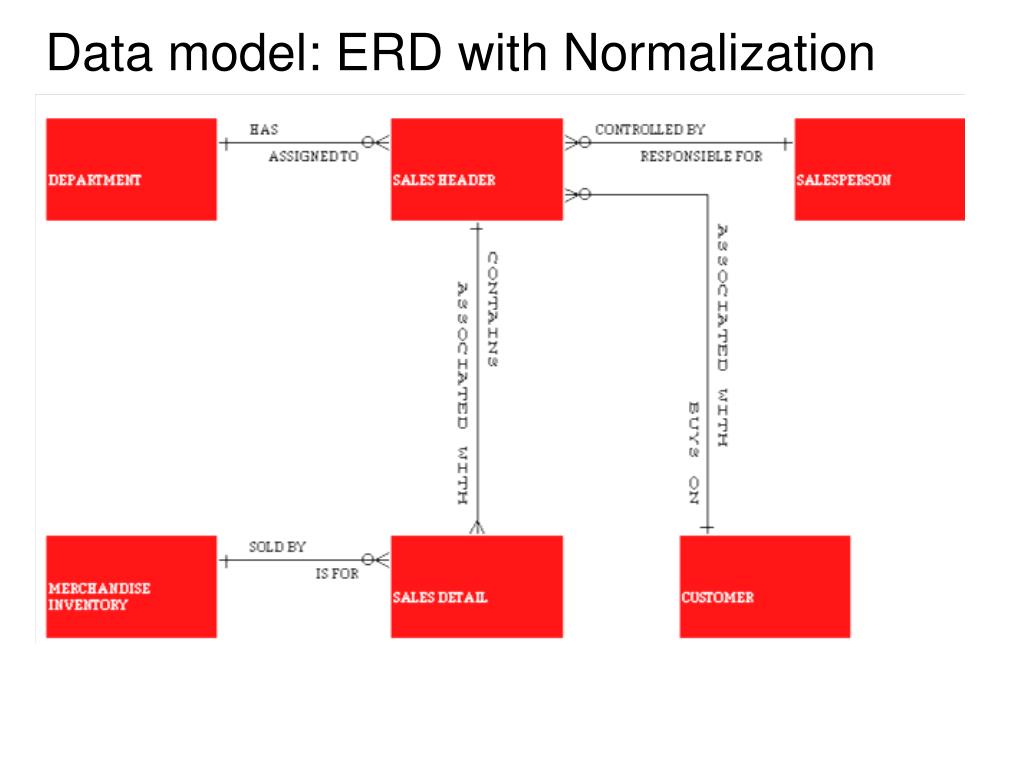

sell goods transformation

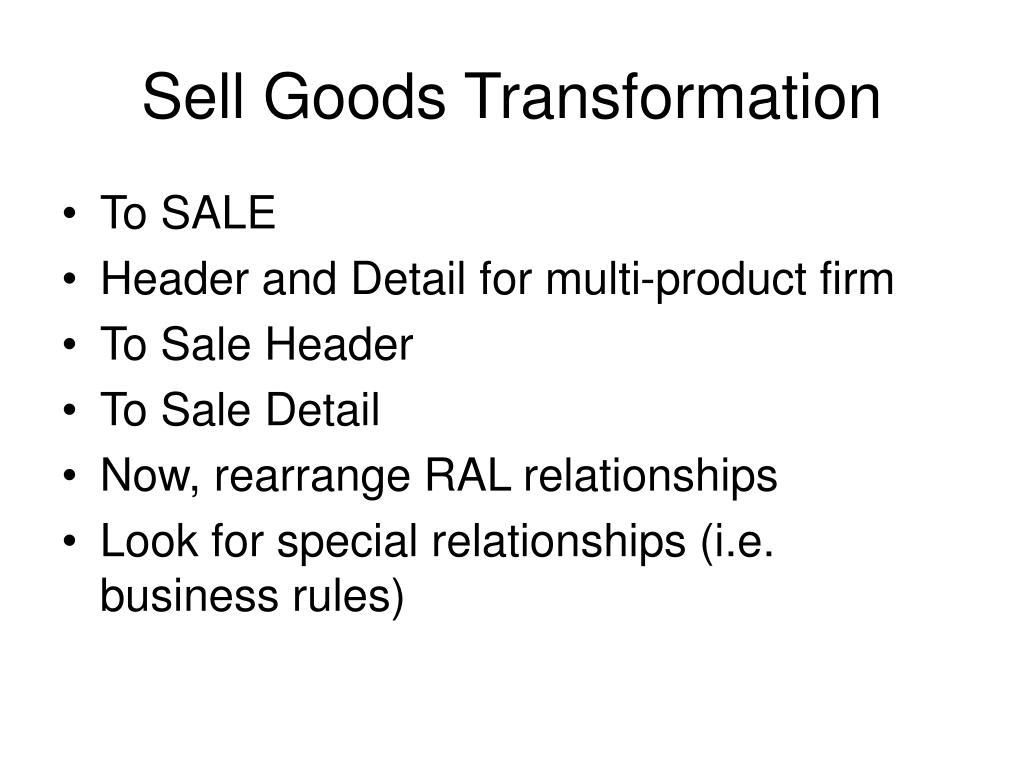

Sell Goods Transformation
  • To SALE
  • Header and Detail for multi-product firm
  • To Sale Header
  • To Sale Detail
  • Now, rearrange RAL relationships
  • Look for special relationships (i.e. business rules)

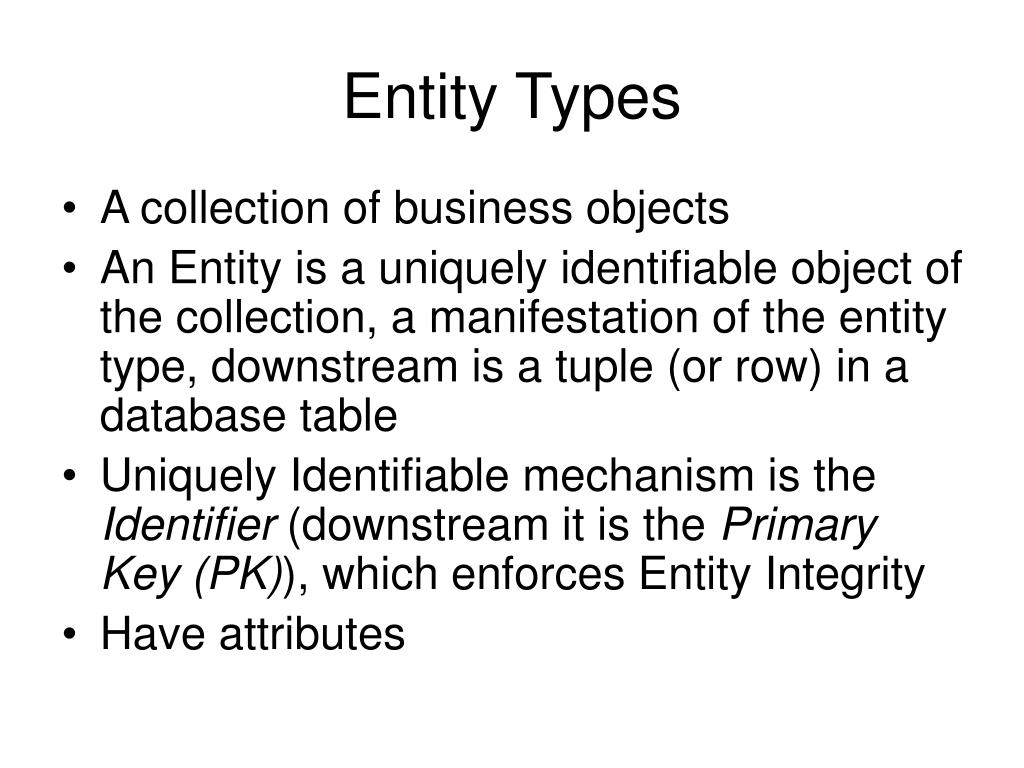

entity types
Entity Types
  • A collection of business objects
  • An Entity is a uniquely identifiable object of the collection, a manifestation of the entity type, downstream is a tuple (or row) in a database table
  • Uniquely Identifiable mechanism is the Identifier (downstream it is the Primary Key (PK)), which enforces Entity Integrity
  • Have attributes
attributes

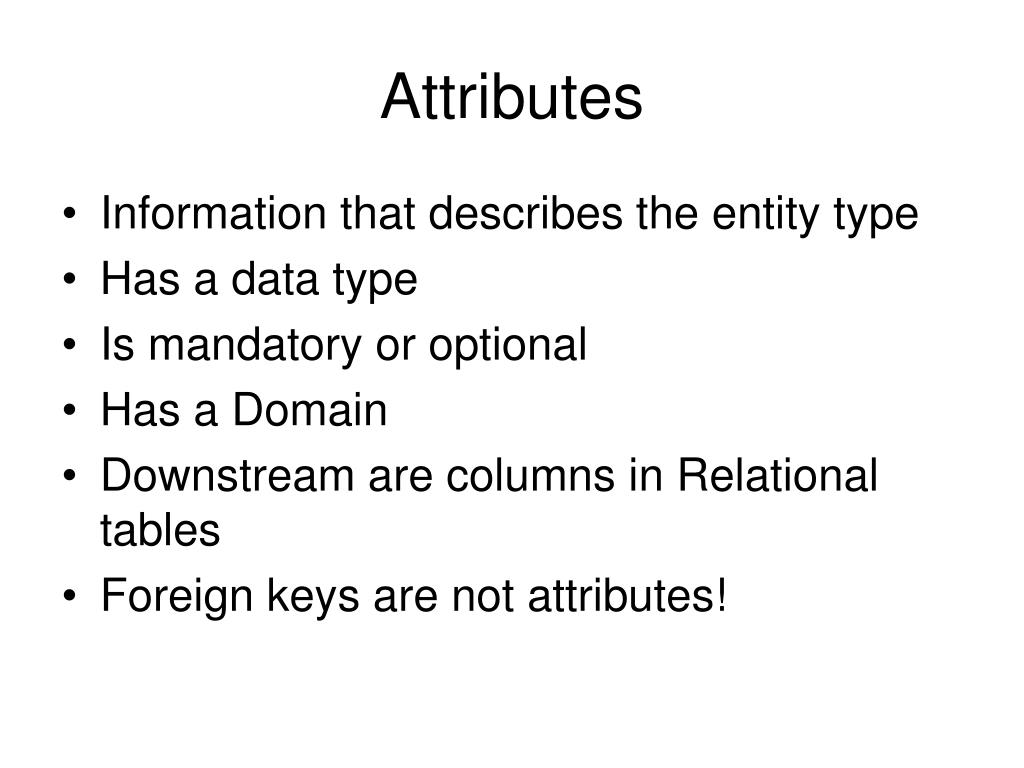

Attributes
  • Information that describes the entity type
  • Has a data type
  • Is mandatory or optional
  • Has a Domain
  • Downstream are columns in Relational tables
  • Foreign keys are not attributes!
relationships

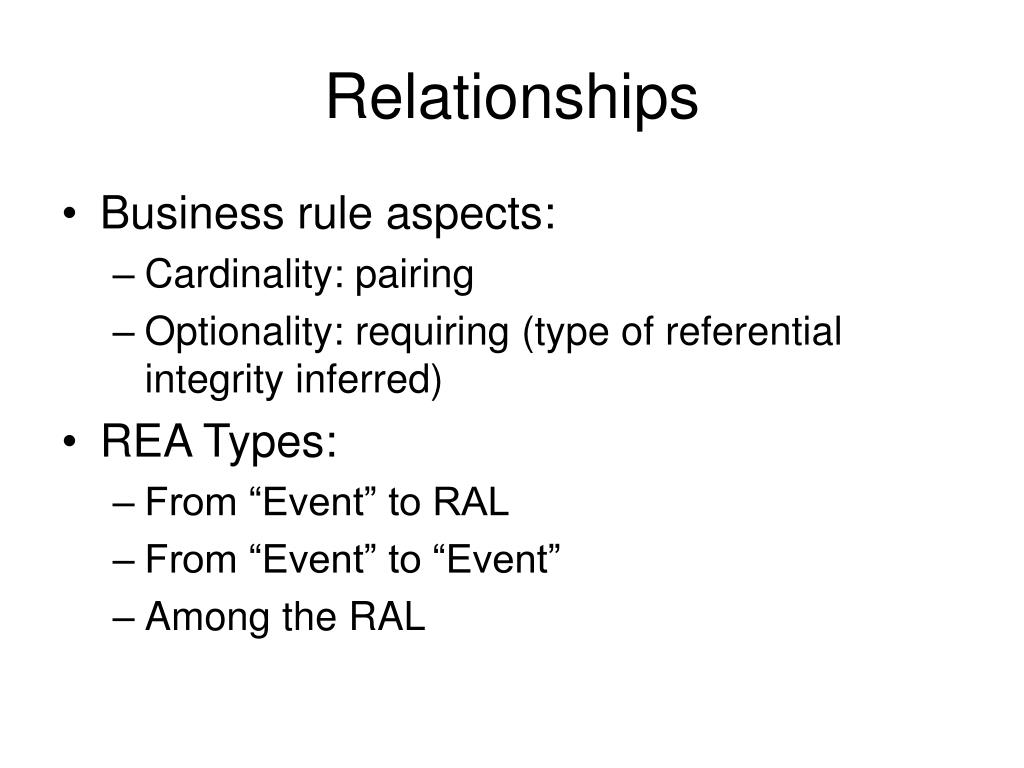

Relationships
  • Business rule aspects:
    • Cardinality: pairing
    • Optionality: requiring (type of referential integrity inferred)
  • REA Types:
    • From “Event” to RAL
    • From “Event” to “Event”
    • Among the RAL
entity subtypes
Entity Subtypes

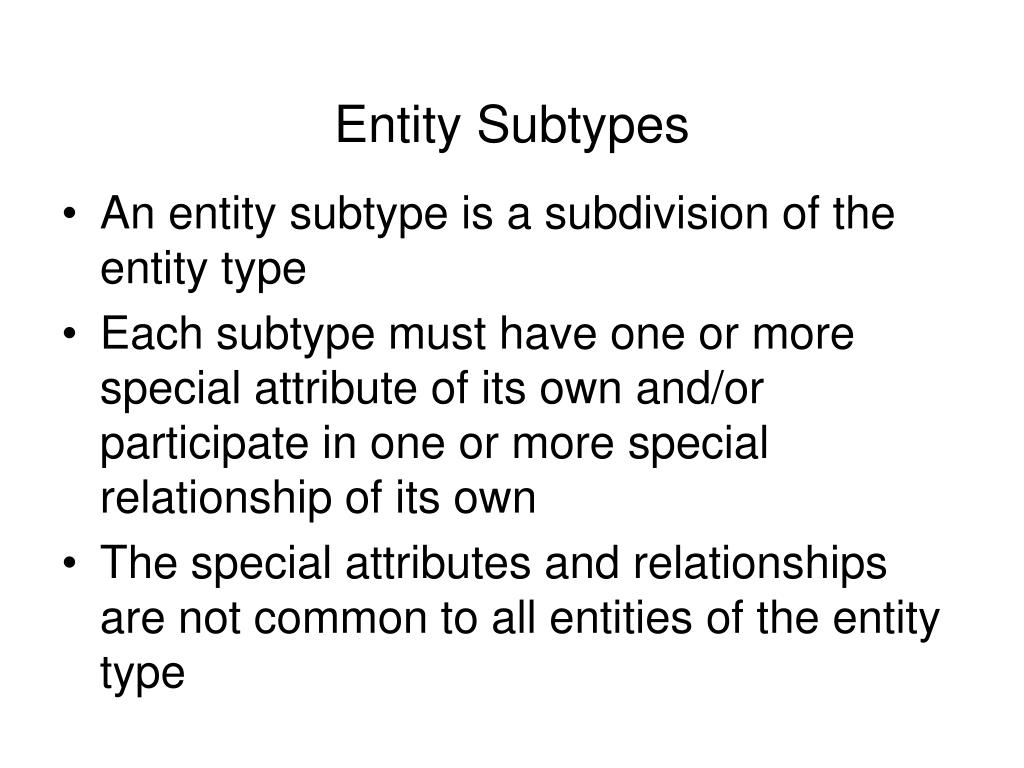

  • An entity subtype is a subdivision of the entity type
  • Each subtype must have one or more special attribute of its own and/or participate in one or more special relationship of its own
  • The special attributes and relationships are not common to all entities of the entity type
partitioning

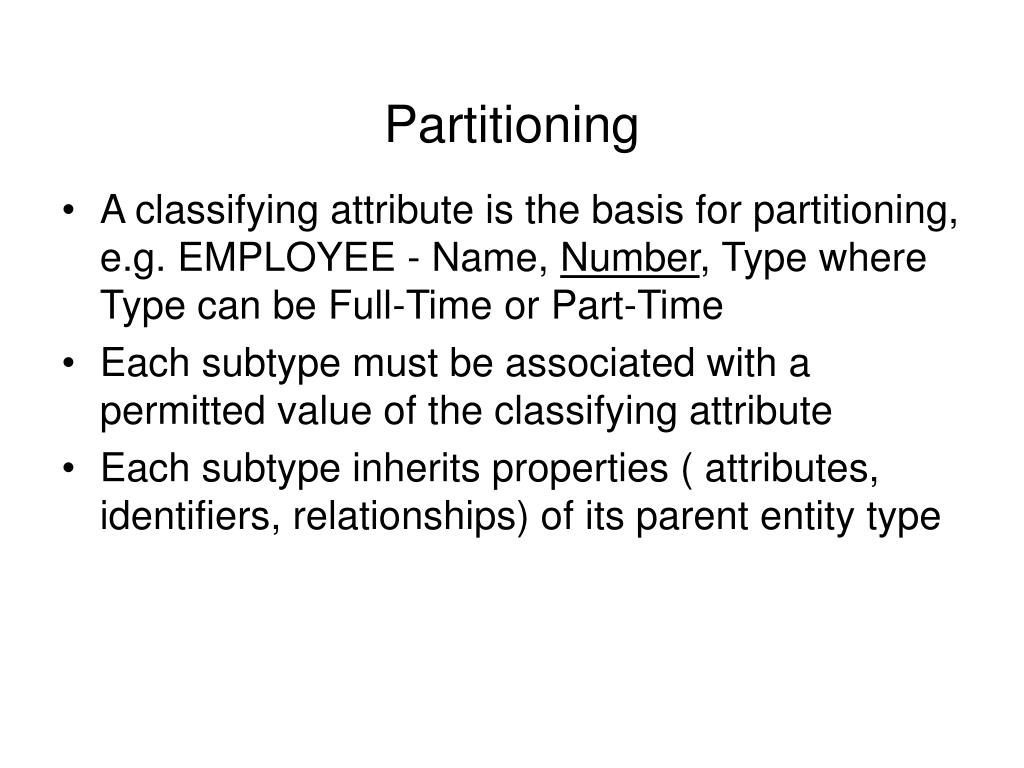

Partitioning
  • A classifying attribute is the basis for partitioning, e.g. EMPLOYEE - Name, Number, Type where Type can be Full-Time or Part-Time
  • Each subtype must be associated with a permitted value of the classifying attribute
  • Each subtype inherits properties ( attributes, identifiers, relationships) of its parent entity type

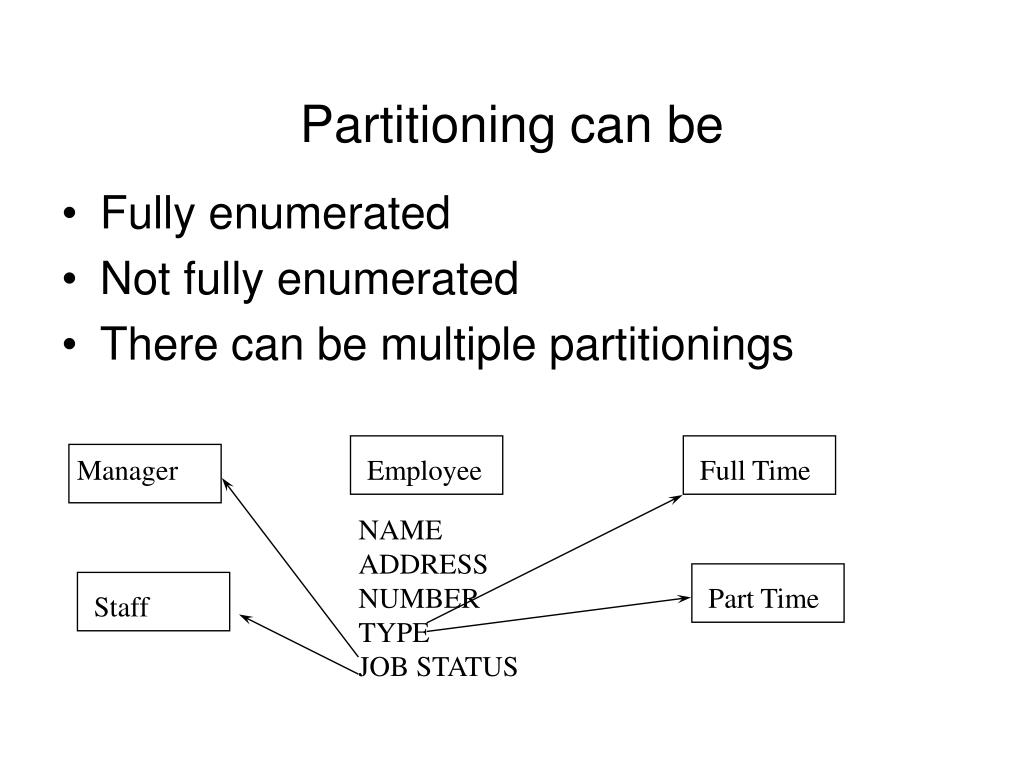

partitioning can be
Partitioning can be
  • Fully enumerated
  • Not fully enumerated
  • There can be multiple partitionings

Manager

Employee

Full Time

NAME

ADDRESS

NUMBER

TYPE

JOB STATUS

Part Time

Staff

rules for partitioning and subtypes

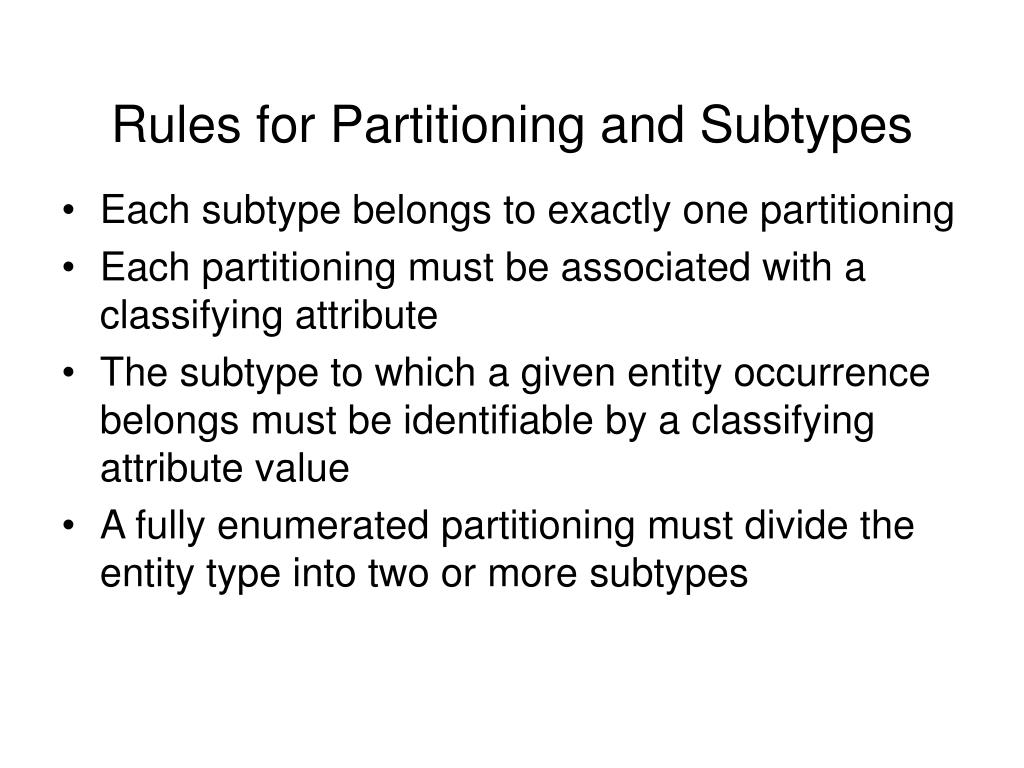

Rules for Partitioning and Subtypes
  • Each subtype belongs to exactly one partitioning
  • Each partitioning must be associated with a classifying attribute
  • The subtype to which a given entity occurrence belongs must be identifiable by a classifying attribute value
  • A fully enumerated partitioning must divide the entity type into two or more subtypes

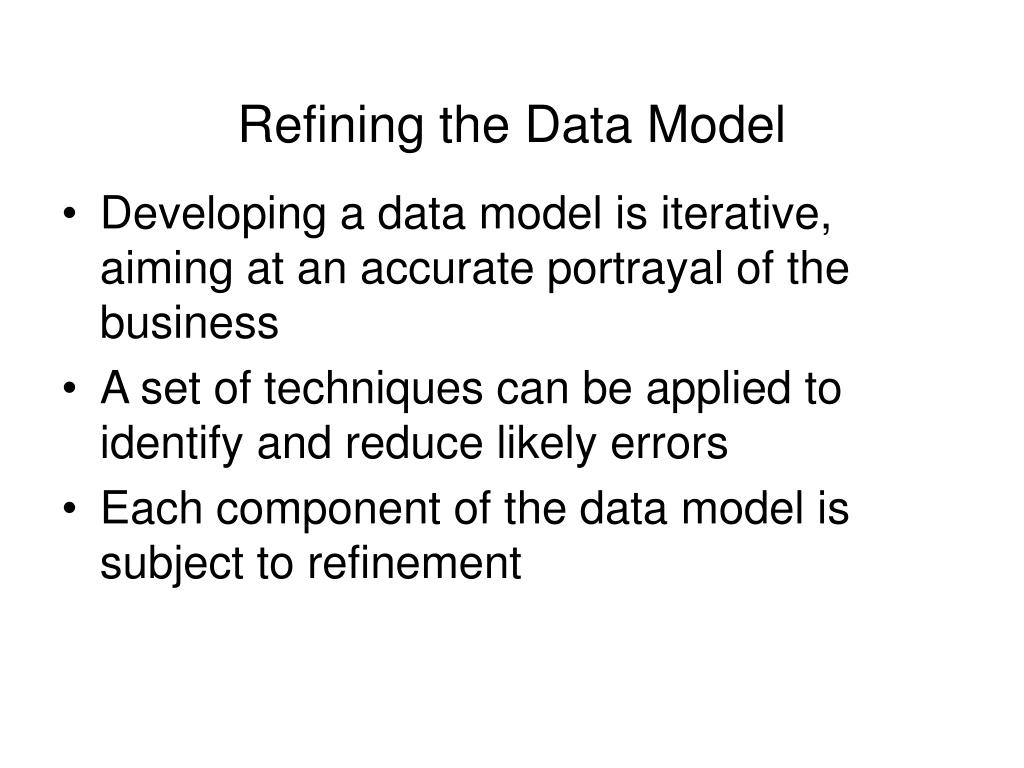

refining the data model
Refining the Data Model
  • Developing a data model is iterative, aiming at an accurate portrayal of the business
  • A set of techniques can be applied to identify and reduce likely errors
  • Each component of the data model is subject to refinement
identifiers to be primary keys pks

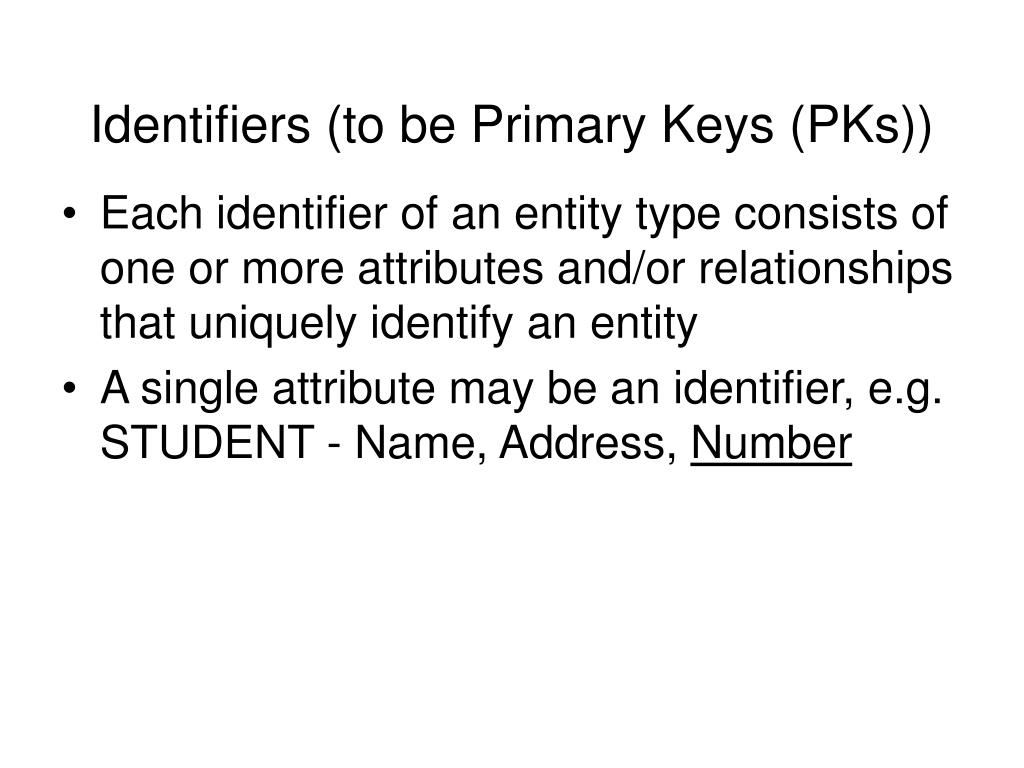

Identifiers (to be Primary Keys (PKs))
  • Each identifier of an entity type consists of one or more attributes and/or relationships that uniquely identify an entity
  • A single attribute may be an identifier, e.g. STUDENT - Name, Address, Number

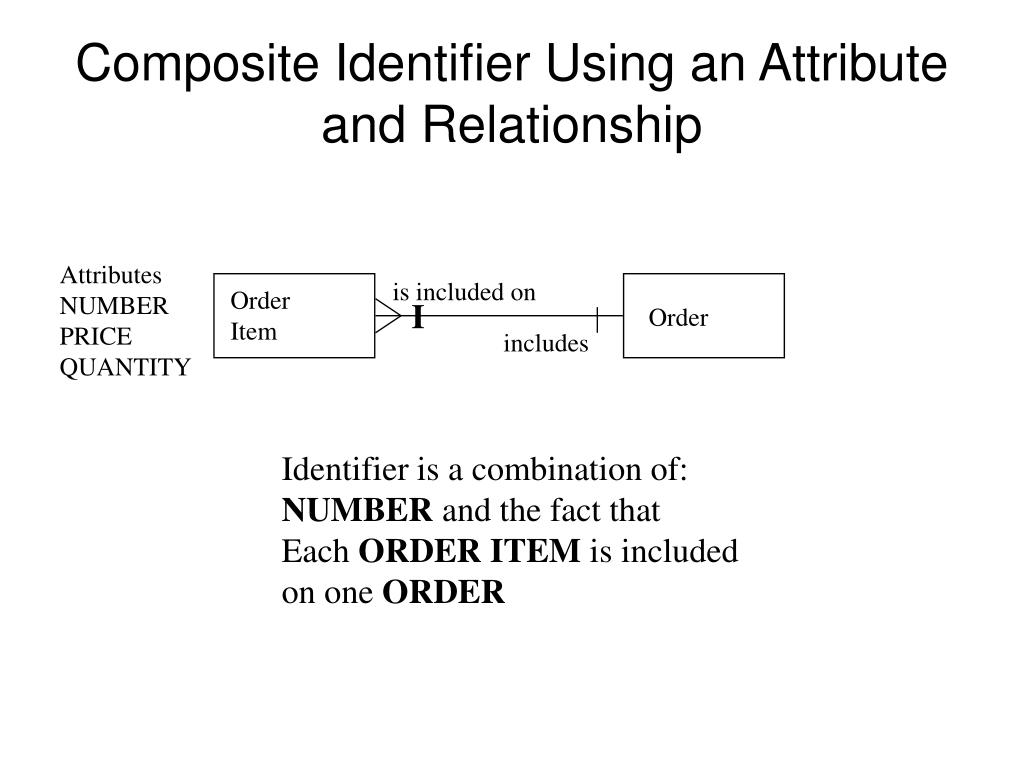

composite identifier using an attribute and relationship
Composite Identifier Using an Attribute and Relationship

Attributes

NUMBER

PRICE

QUANTITY

is included on

Order

Item

I

Order

includes

Identifier is a combination of:

NUMBER and the fact that

Each ORDER ITEM is included

on one ORDER

composite identifier using relationships
Composite Identifier Using Relationships

Product

Warehouse

holds

stores

is stored in

Stock

Item

I

o

o

I

is held for

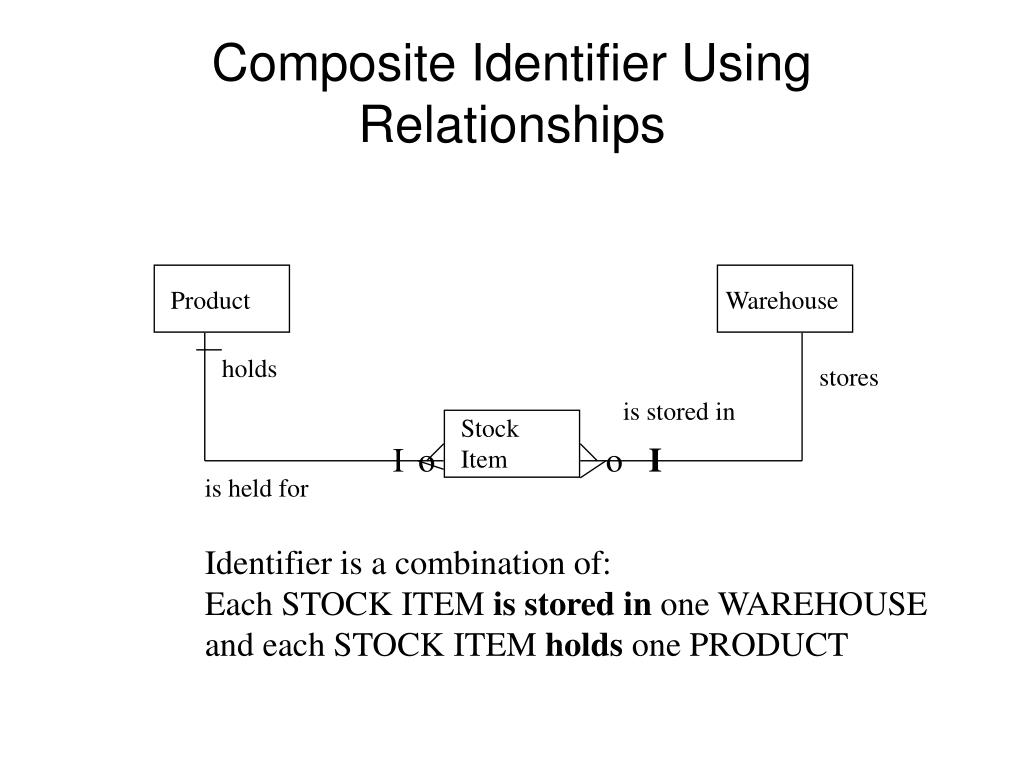

Identifier is a combination of:

Each STOCK ITEM is stored in one WAREHOUSE

and each STOCK ITEM holds one PRODUCT

identifiers summary

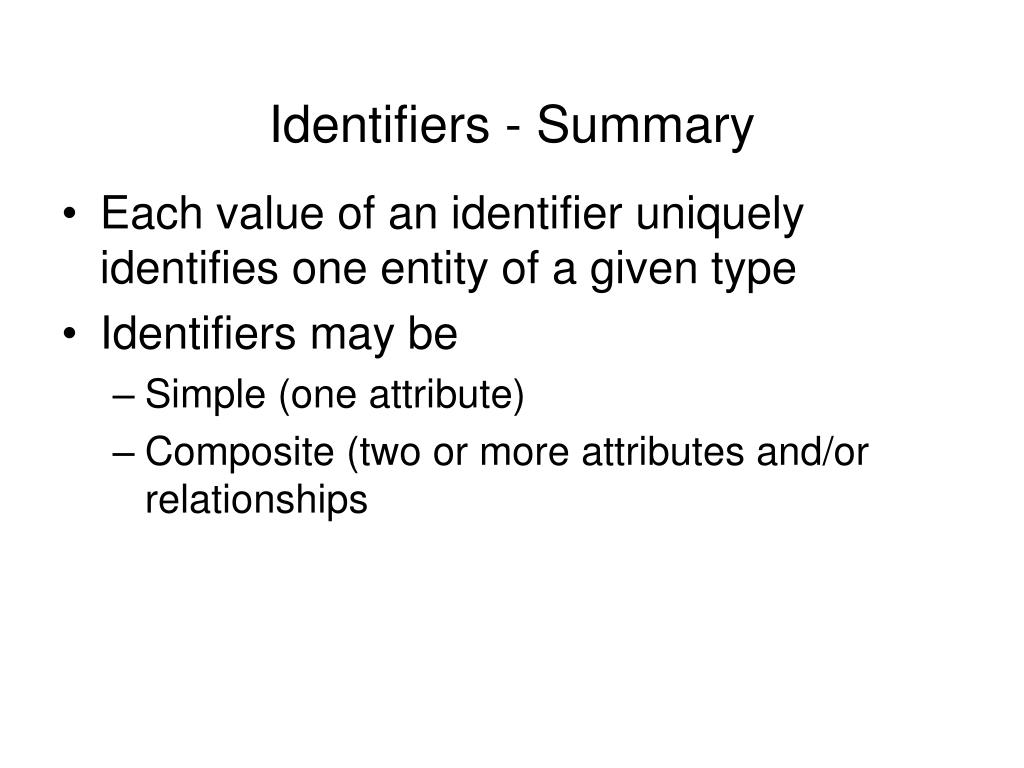

Identifiers - Summary
  • Each value of an identifier uniquely identifies one entity of a given type
  • Identifiers may be
    • Simple (one attribute)
    • Composite (two or more attributes and/or relationships
identifiers summary continued
Identifiers - Summary (continued)
  • Identifiers may consist of an entity type’s own:
    • Attributes
    • Relationship memberships
    • Mixture of both
  • An entity type must have at least one identifier
  • An entity type may have more than one identifier
slide22

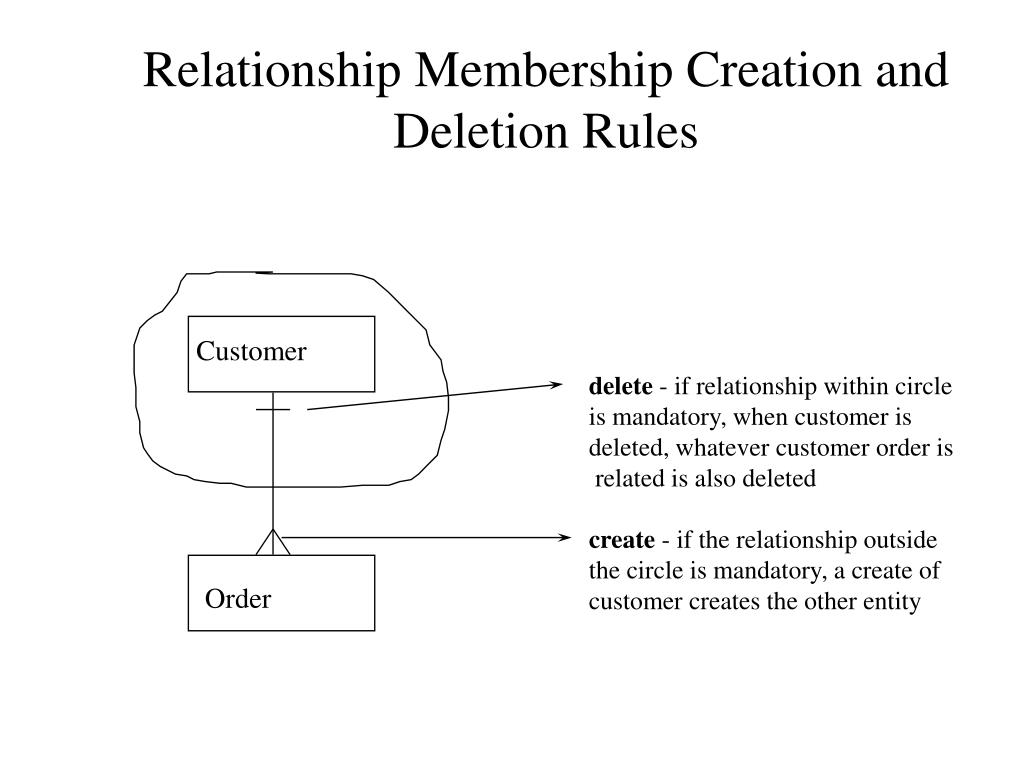

Relationship Membership Creation and Deletion Rules

Customer

delete - if relationship within circle

is mandatory, when customer is

deleted, whatever customer order is

related is also deleted

create - if the relationship outside

the circle is mandatory, a create of

customer creates the other entity

Order

refining 1 1 relationships

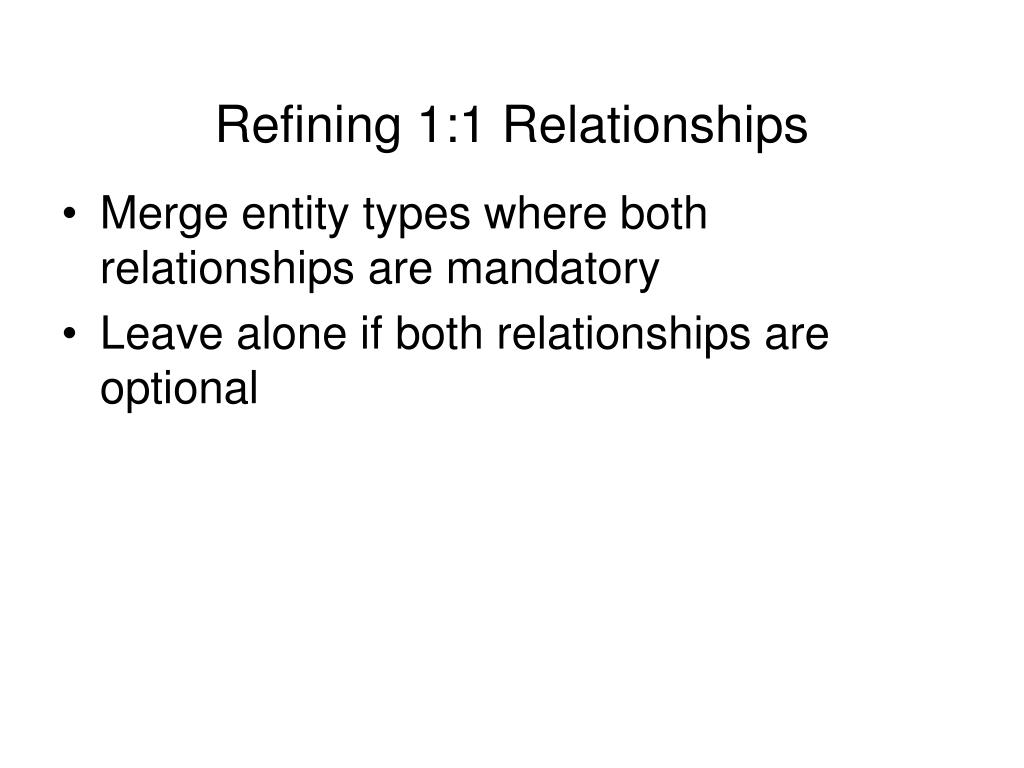

Refining 1:1 Relationships
  • Merge entity types where both relationships are mandatory
  • Leave alone if both relationships are optional
refining m n relationships

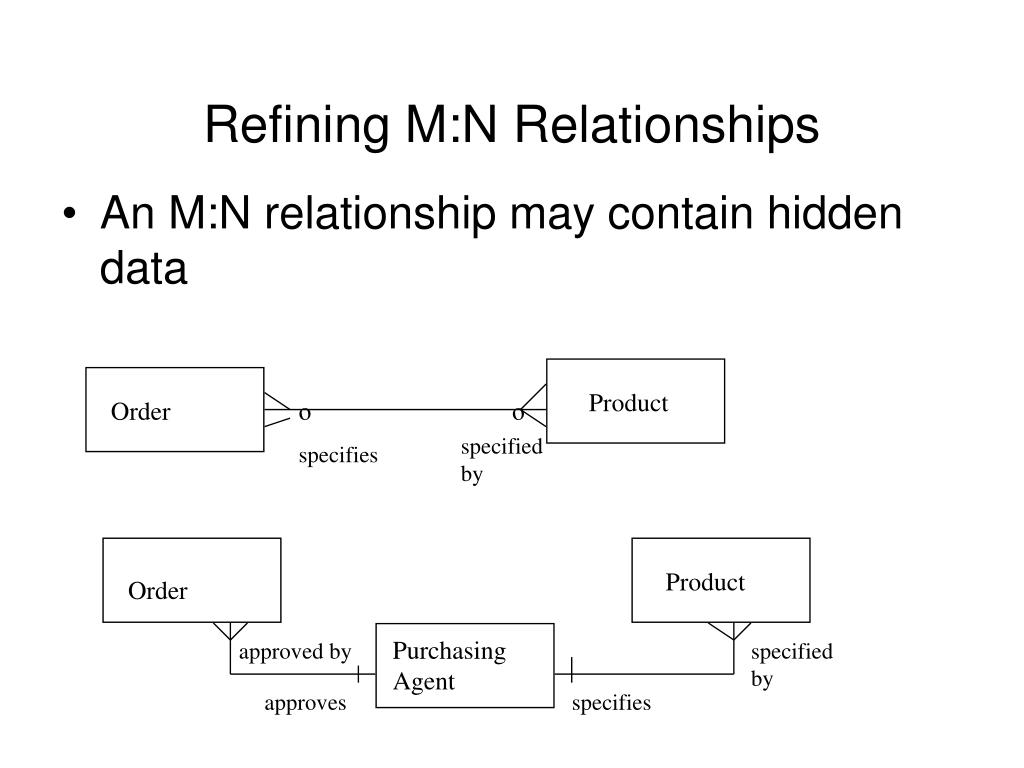

Refining M:N Relationships
  • An M:N relationship may contain hidden data

Product

Order

o

o

specified

by

specifies

Product

Order

Purchasing

Agent

approved by

specified

by

approves

specifies
