고휘도 LED 유도등 도입 ( 案 )

고휘도 LED 유도등 도입 ( 案 ). 2009. 10. Ⅰ. 취 지. 소방용 유도등 고효율 제품 (LED) 도입을 통한 에너지 절감 ※ 기존 냉음극관 유도등을 LED 형으로 대체 검토. Ⅱ. 유도등 비교. Ⅲ. 전사 유도등 설치 현황. Ⅳ. 도입 검토 ( 案 ). ※ 산출기준 : 24 시간 / 일 , 360 일 / 년 기준 , 단가 100 원 /kwh 적용

callia
Download Presentation

고휘도 LED 유도등 도입 ( 案 )

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

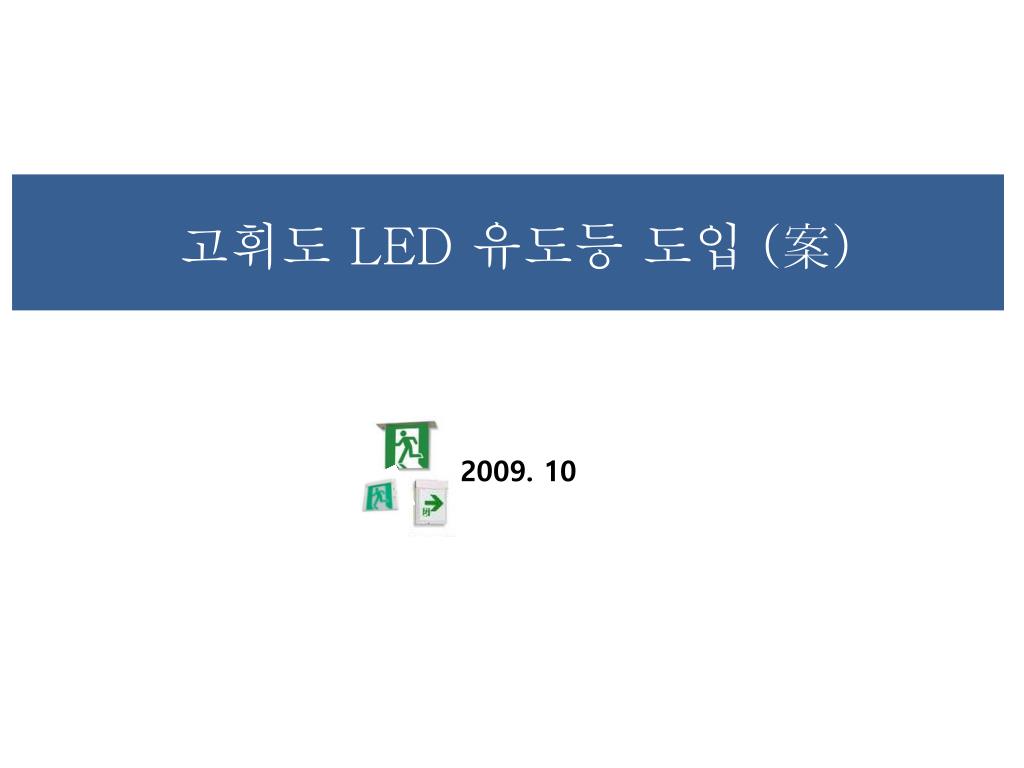

  1. 고휘도 LED 유도등 도입 (案) 2009. 10

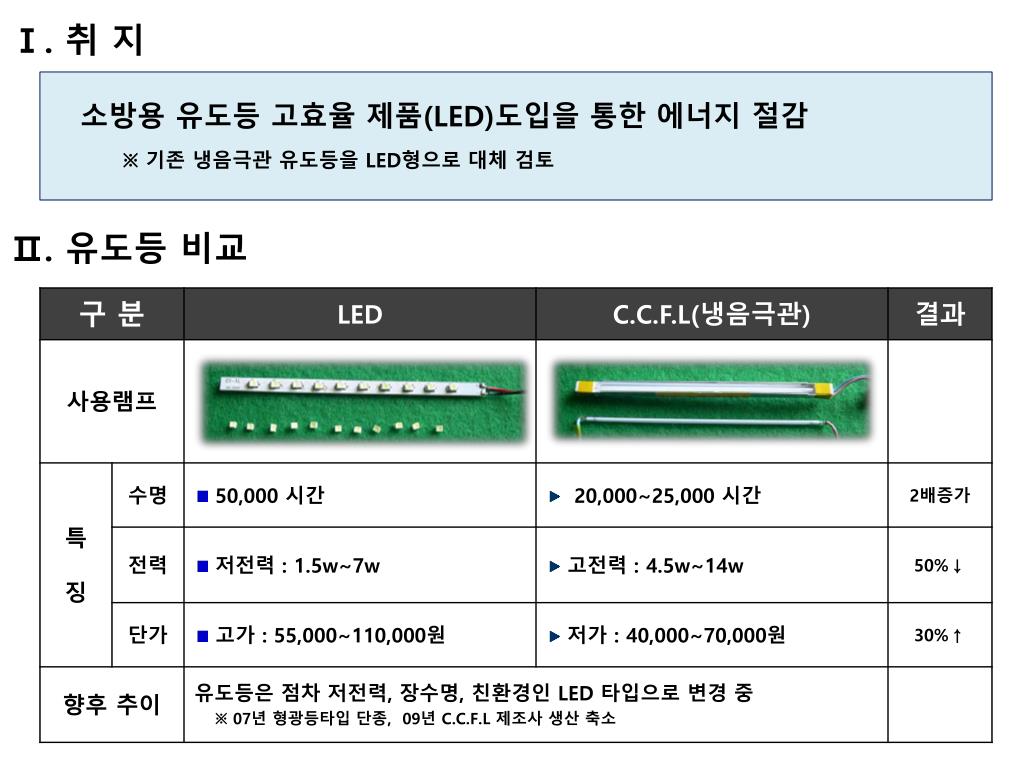

  2. Ⅰ. 취 지 소방용 유도등 고효율 제품(LED)도입을 통한 에너지 절감 ※ 기존 냉음극관 유도등을 LED형으로 대체 검토 Ⅱ. 유도등 비교

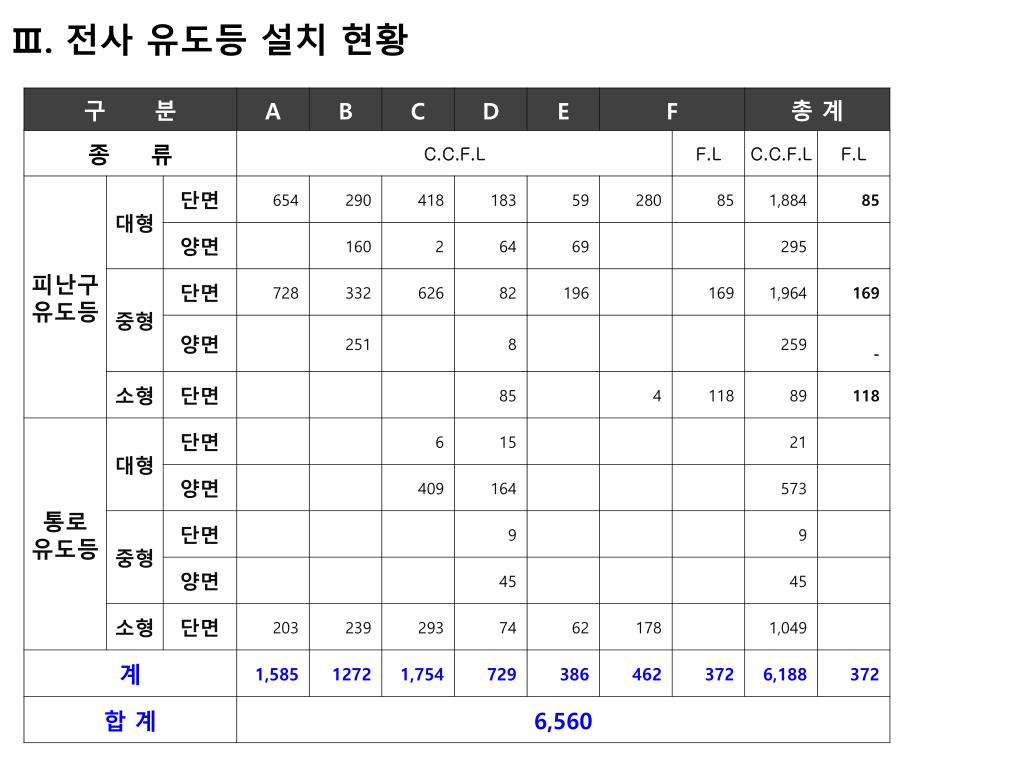

  3. Ⅲ. 전사 유도등 설치 현황

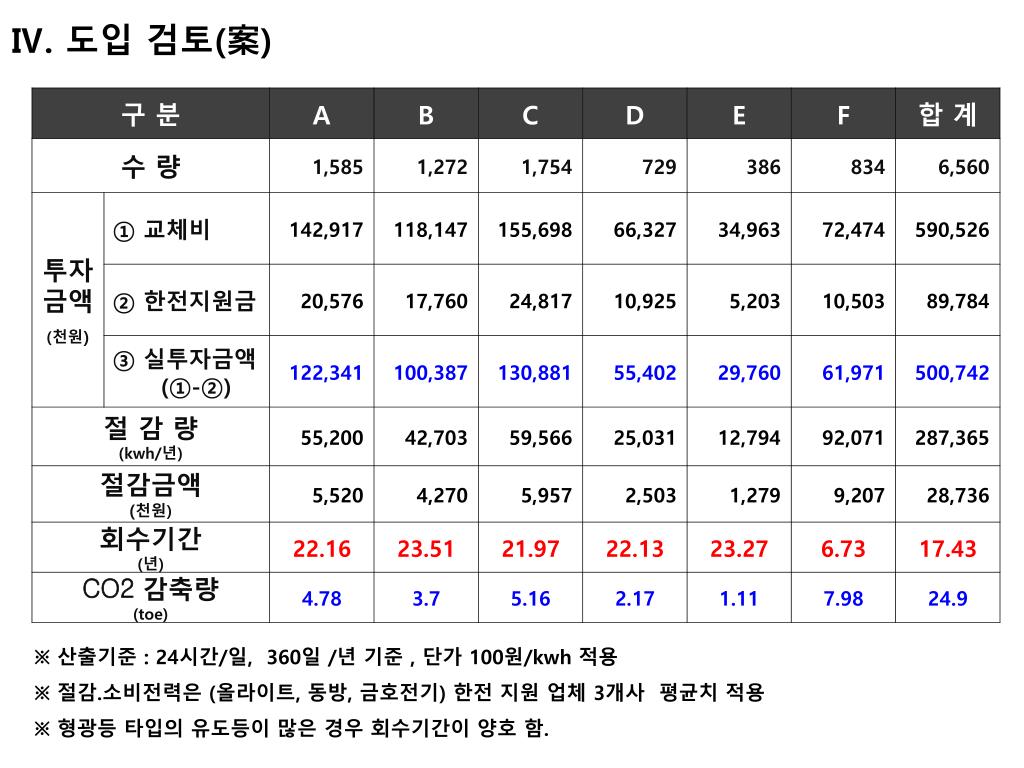

  4. Ⅳ. 도입 검토(案) ※ 산출기준 : 24시간/일, 360일 /년 기준 , 단가 100원/kwh 적용 ※ 절감.소비전력은 (올라이트, 동방, 금호전기) 한전 지원 업체 3개사 평균치 적용 ※ 형광등 타입의 유도등이 많은 경우 회수기간이 양호 함.

  5. Ⅴ. 기타 ■ 한전지원 : 금호전기(주)(19개 품목), 올라이트라이프(주)(18개 품목), 동방전자산업 (12개 품목)등의 고효율 인증 제품 교체 시 지원

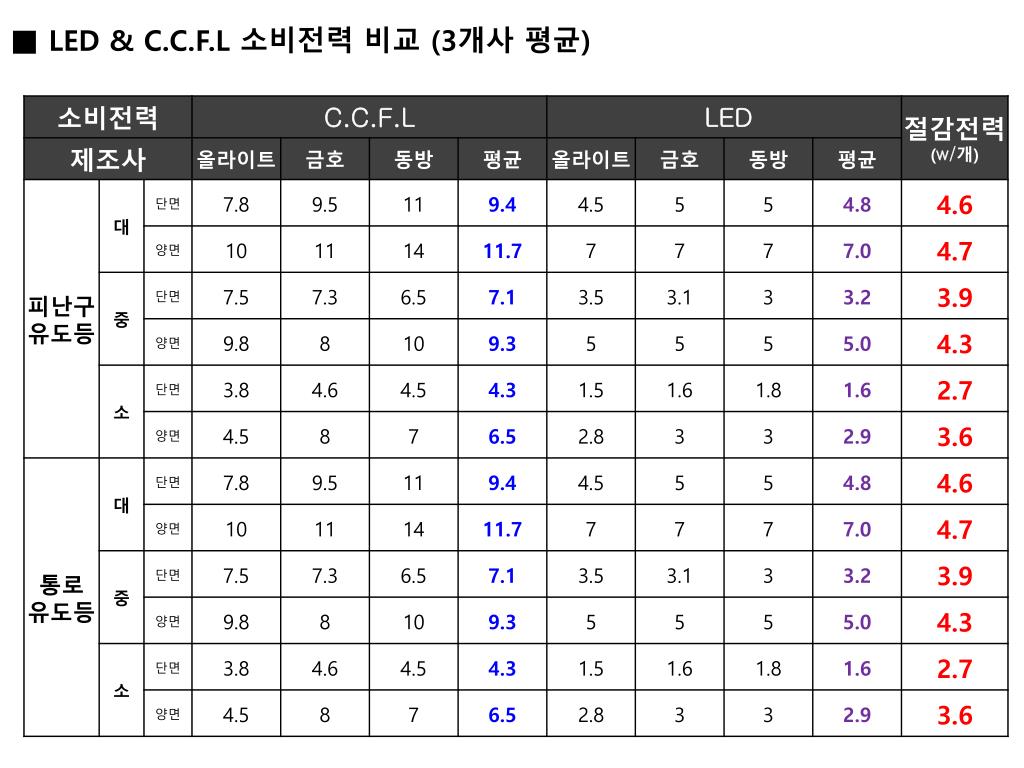

  6. ■ LED & C.C.F.L 소비전력 비교 (3개사 평균)
