  1. Lecture 2A RTL Design Methodology Transition from Pseudocode & Interface to a Corresponding Block Diagram

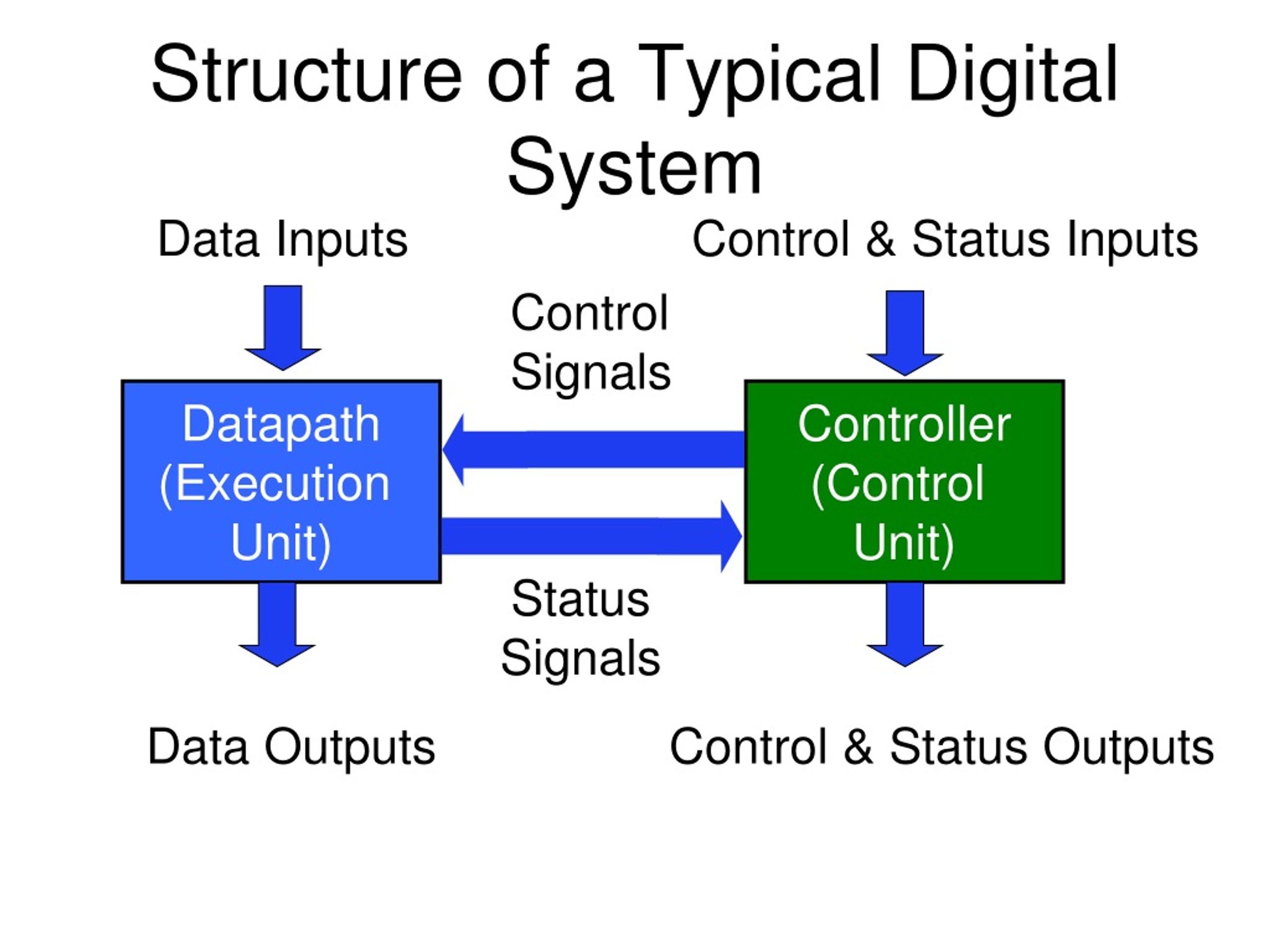

  2. Structure of a Typical Digital System Data Inputs Control & Status Inputs Control Signals Datapath (Execution Unit) Controller (Control Unit) Status Signals Data Outputs Control & Status Outputs

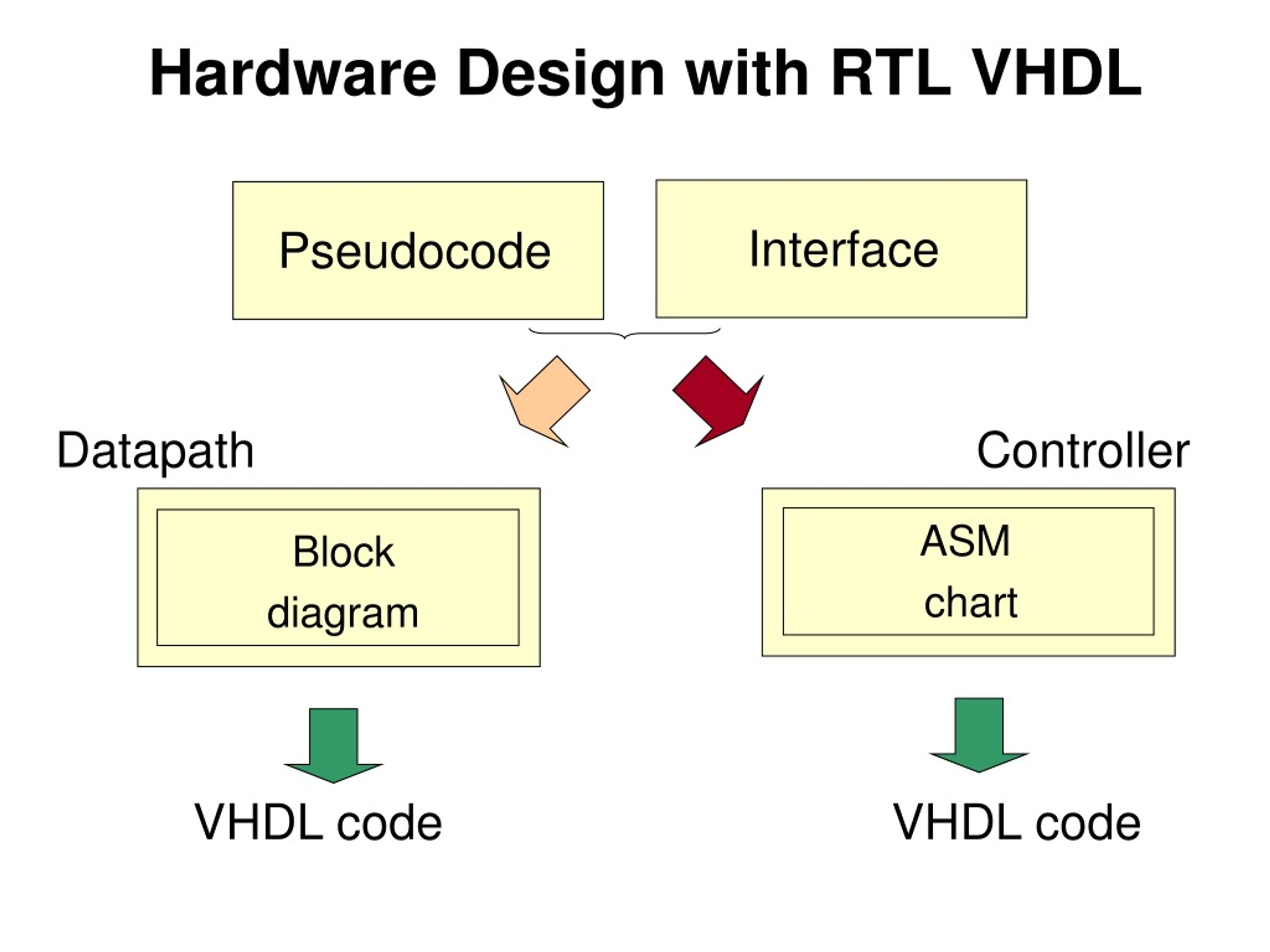

  3. Hardware Design with RTL VHDL Interface Pseudocode Datapath Controller ASM chart Block diagram VHDL code VHDL code

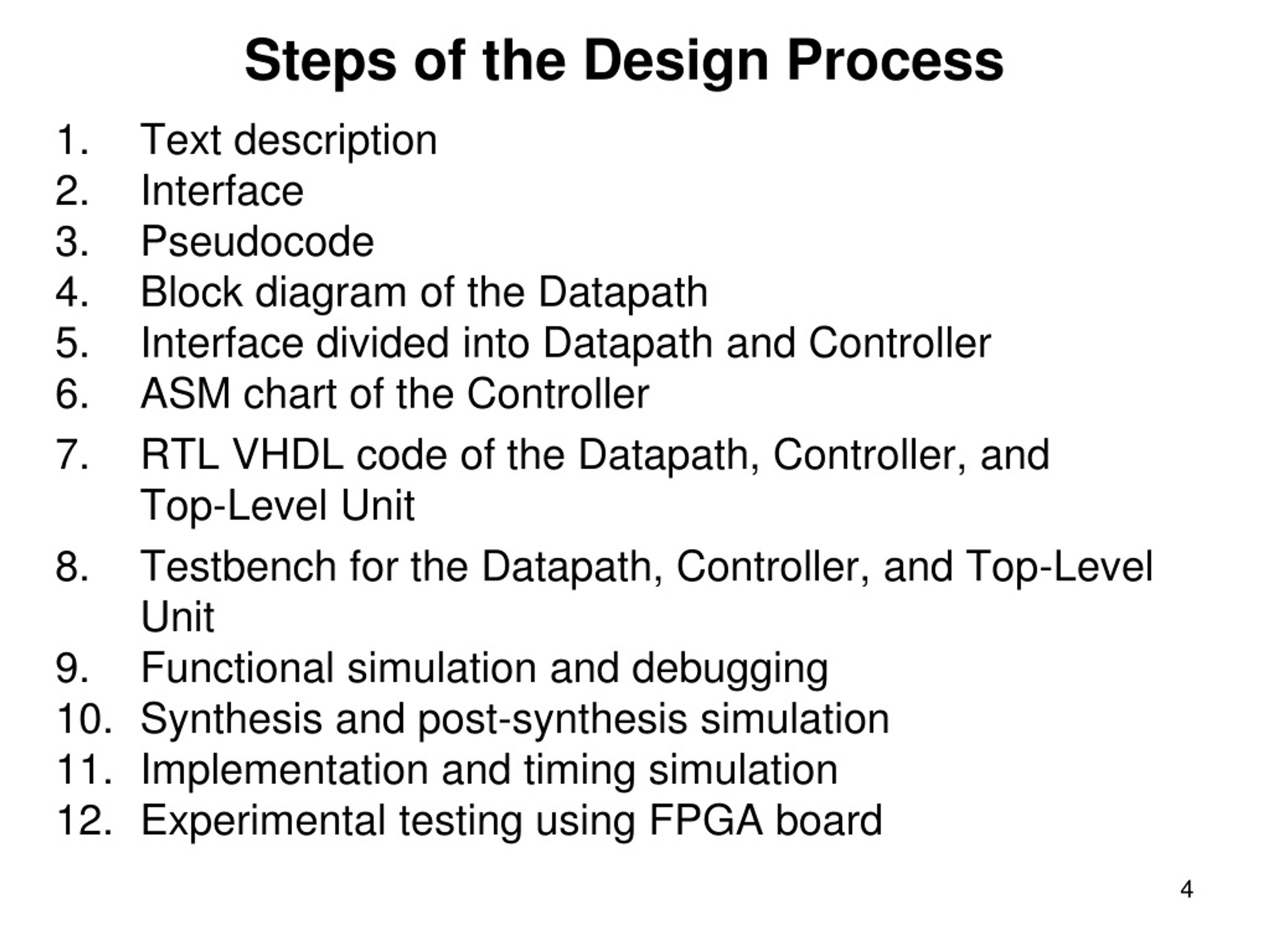

  4. Steps of the Design Process • Text description • Interface • Pseudocode • Block diagram of the Datapath • Interface divided into Datapath and Controller • ASM chart of the Controller • RTL VHDL code of the Datapath, Controller, and Top-Level Unit • Testbench for the Datapath, Controller, and Top-Level Unit • Functional simulation and debugging • Synthesis and post-synthesis simulation • Implementation and timing simulation • Experimental testing using FPGA board

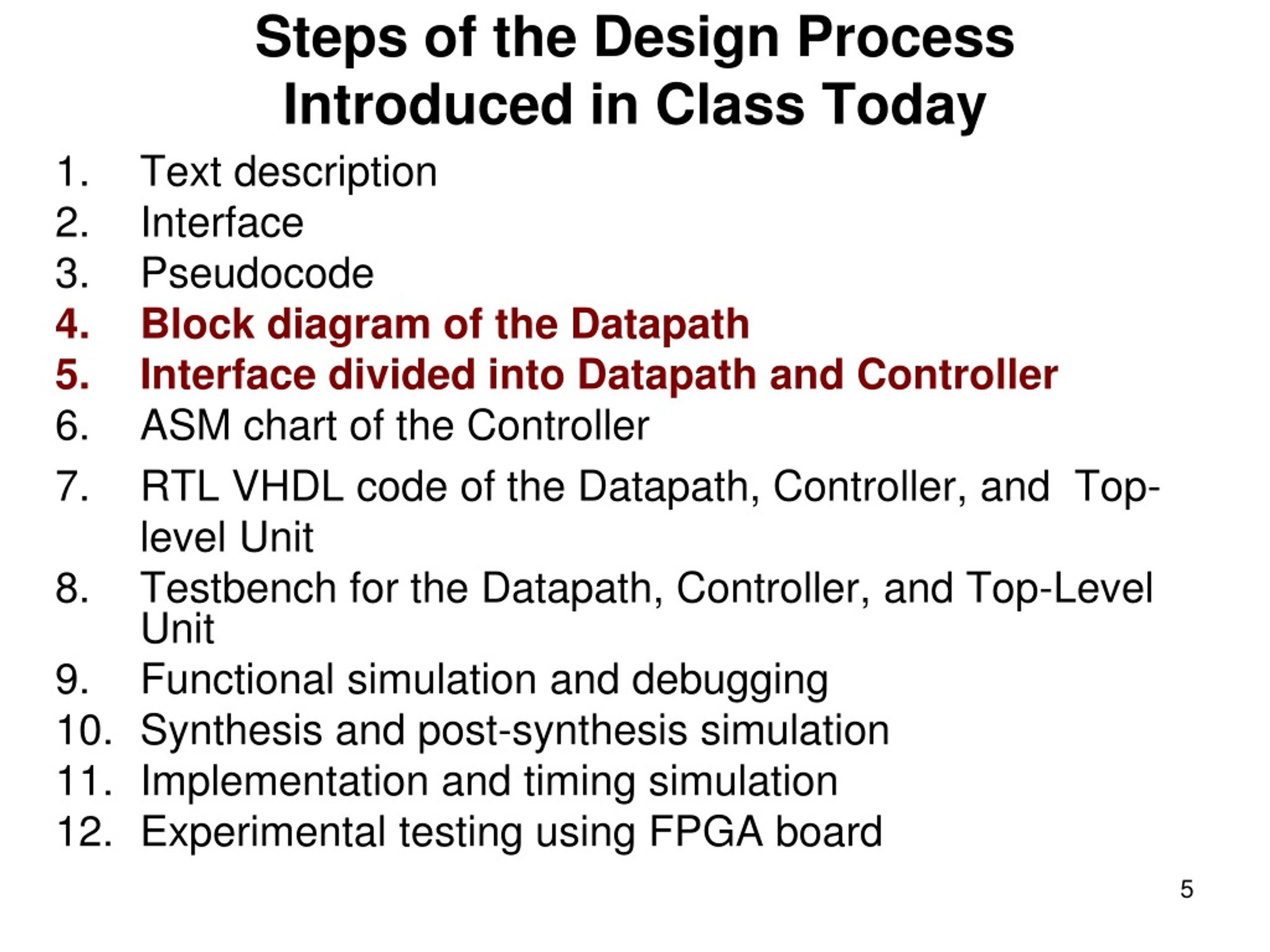

  5. Steps of the Design ProcessIntroduced in Class Today • Text description • Interface • Pseudocode • Block diagram of the Datapath • Interface divided into Datapath and Controller • ASM chart of the Controller • RTL VHDL code of the Datapath, Controller, and Top-level Unit • Testbench for theDatapath, Controller, and Top-Level Unit • Functional simulation and debugging • Synthesis and post-synthesis simulation • Implementation and timing simulation • Experimental testing using FPGA board

  6. Class Exercise 1 STATISTICS

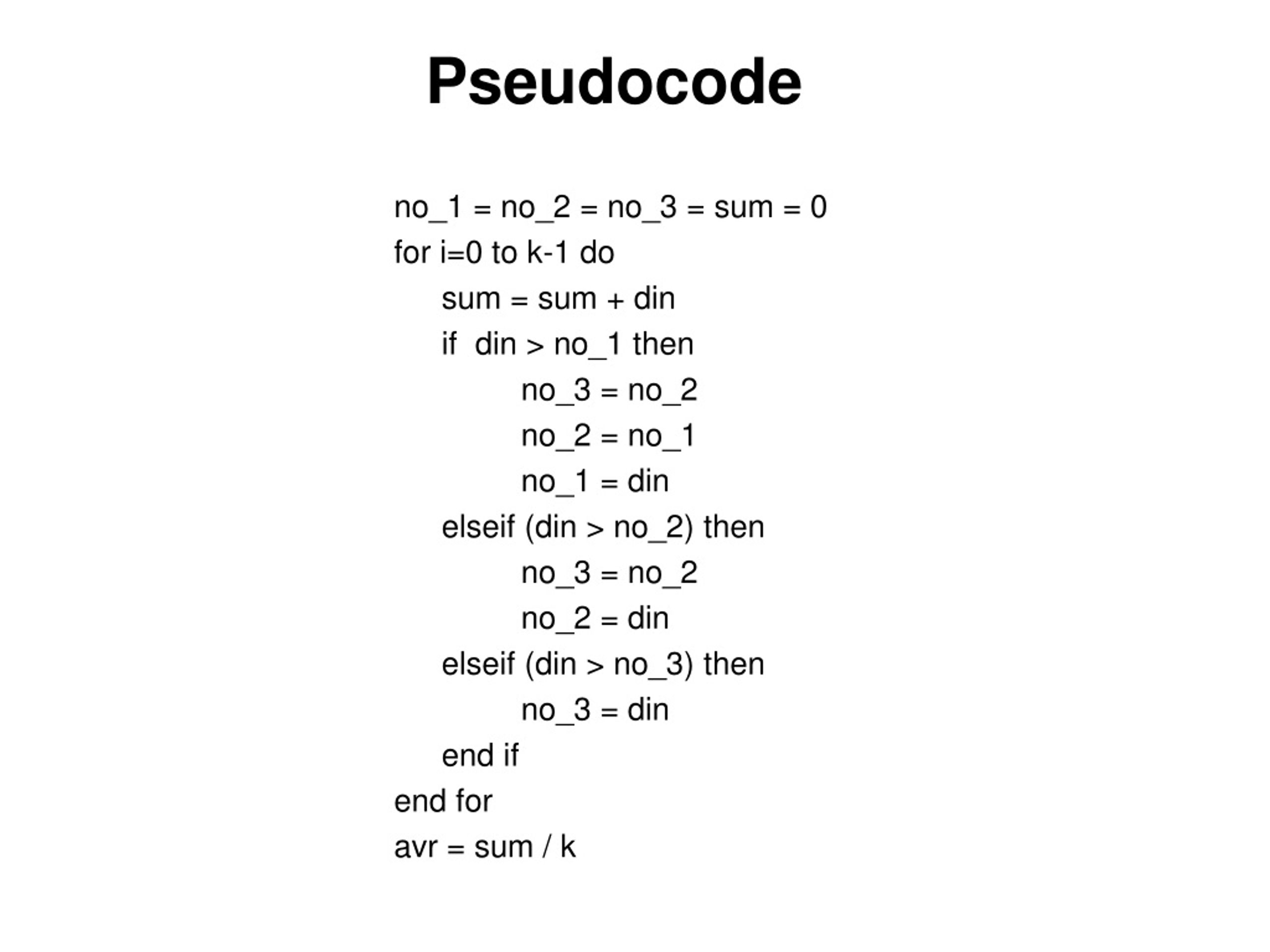

  7. Pseudocode no_1 = no_2 = no_3 = sum = 0 for i=0 to k-1 do sum = sum + din if din > no_1 then no_3 = no_2 no_2 = no_1 no_1 = din elseif (din > no_2) then no_3 = no_2 no_2 = din elseif (din > no_3) then no_3 = din end if end for avr = sum / k

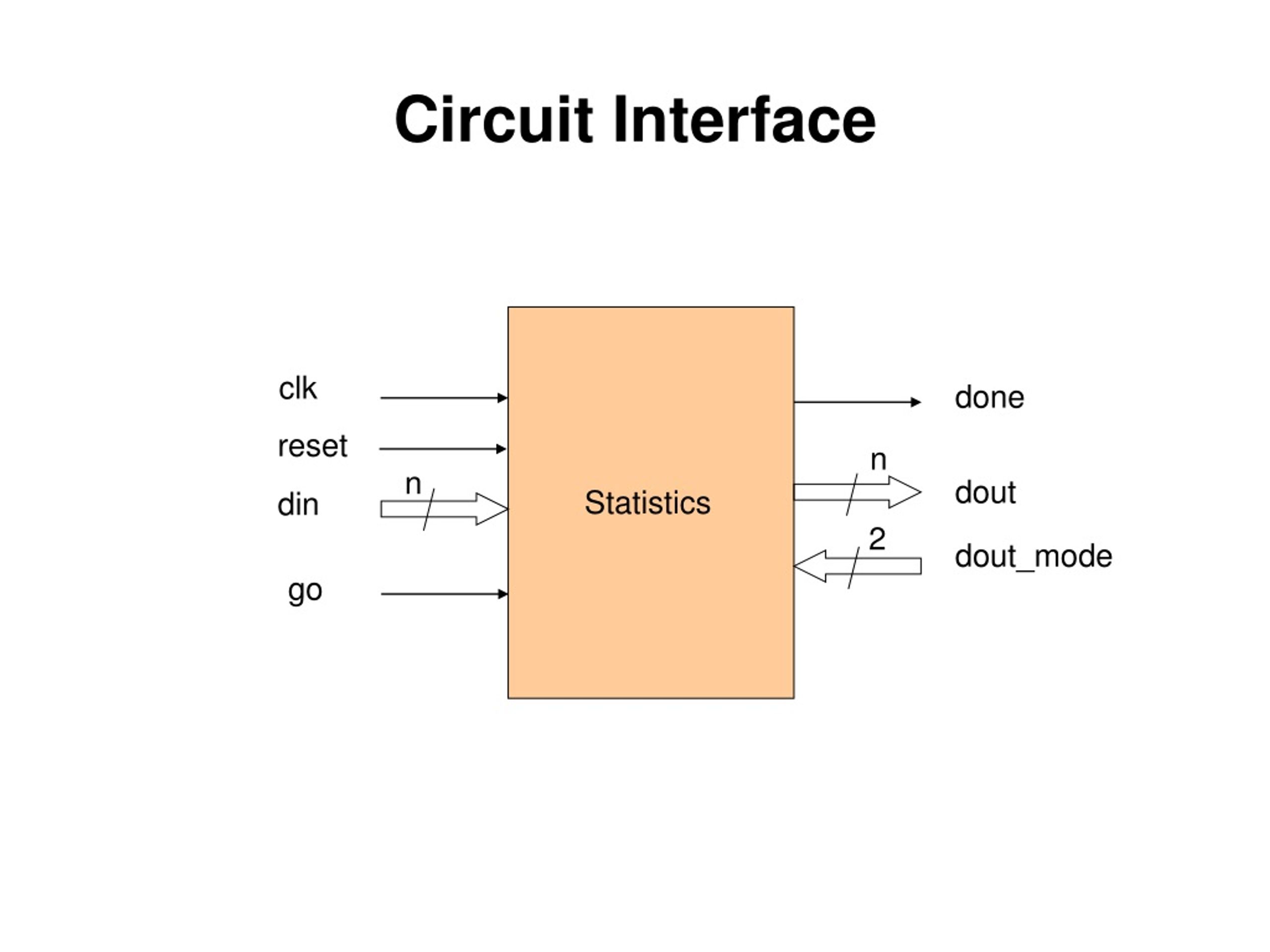

  8. Circuit Interface clk done reset n n dout Statistics din 2 dout_mode go

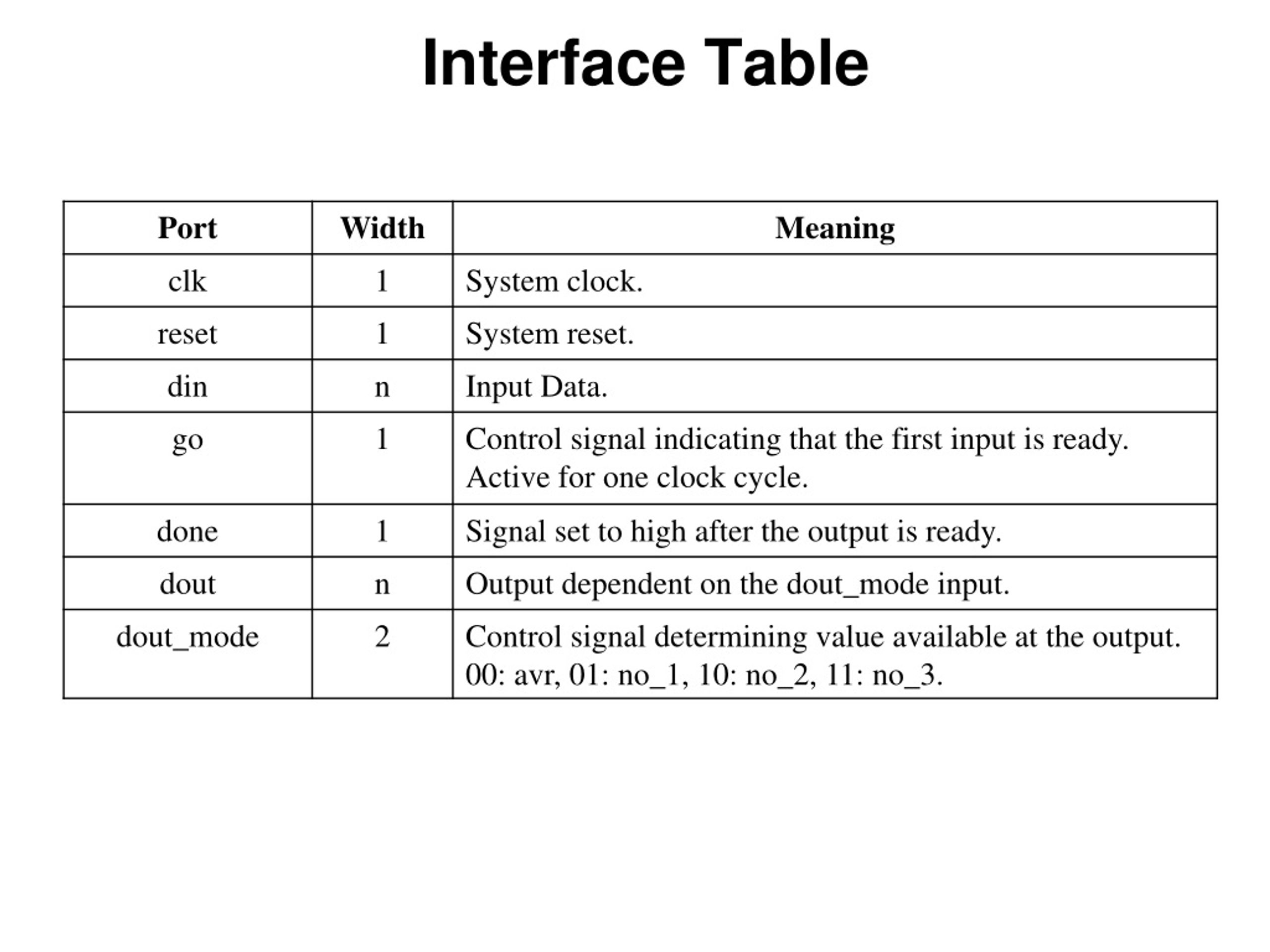

  9. Interface Table

  10. STATISTICS: Solutions

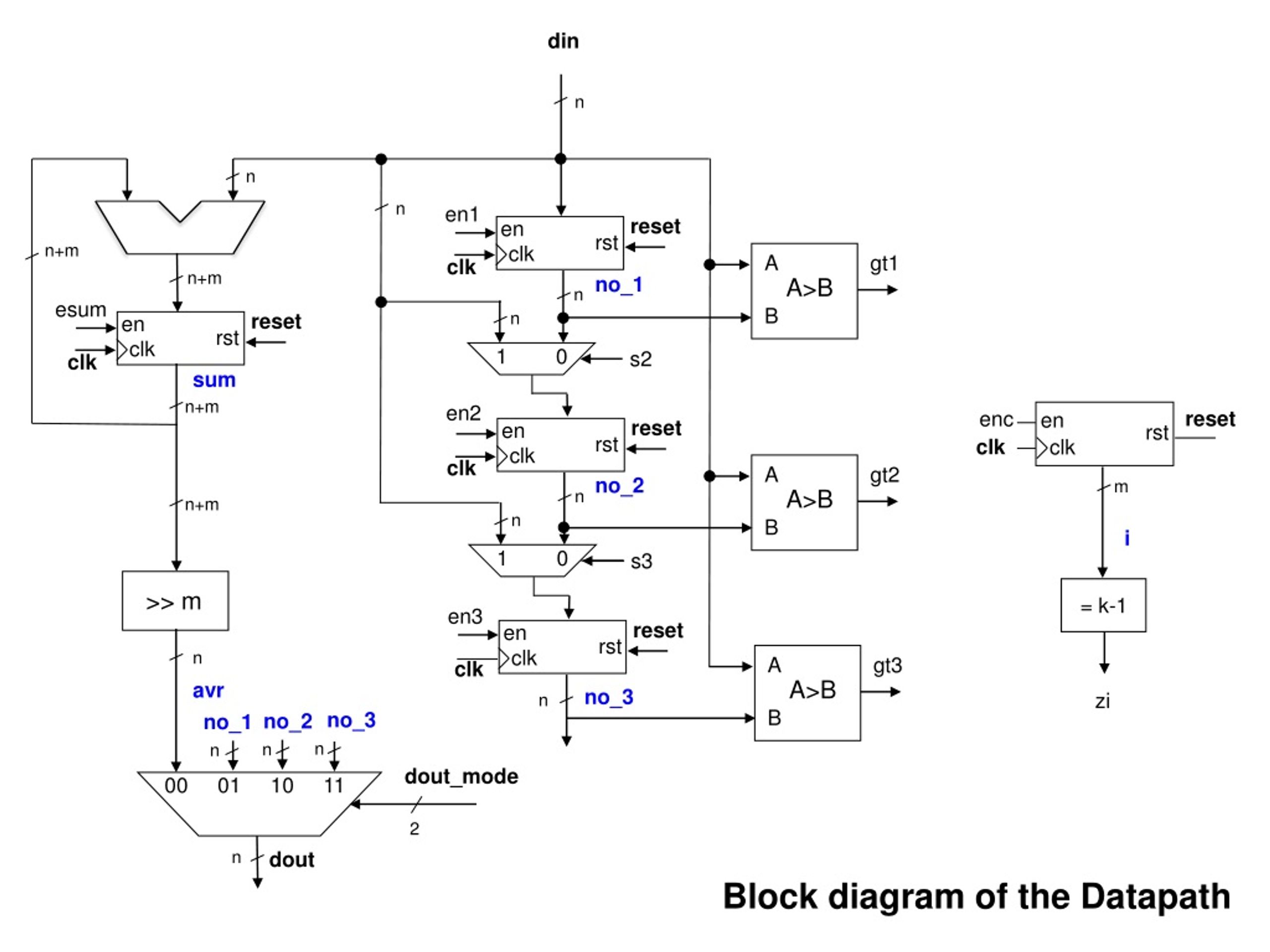

  11. din n n n en1 reset en rst n+m clk A gt1 clk n+m no_1 A>B n esum B n reset en rst clk 1 0 s2 clk sum n+m en2 reset enc en reset en rst rst clk clk clk clk A gt2 no_2 m A>B n n+m n B i 1 0 s3 >> m = k-1 en3 reset en rst clk n A gt3 clk A>B avr no_3 zi n B no_3 no_2 no_1 n n n dout_mode 00 01 10 11 2 n dout Block diagram of the Datapath

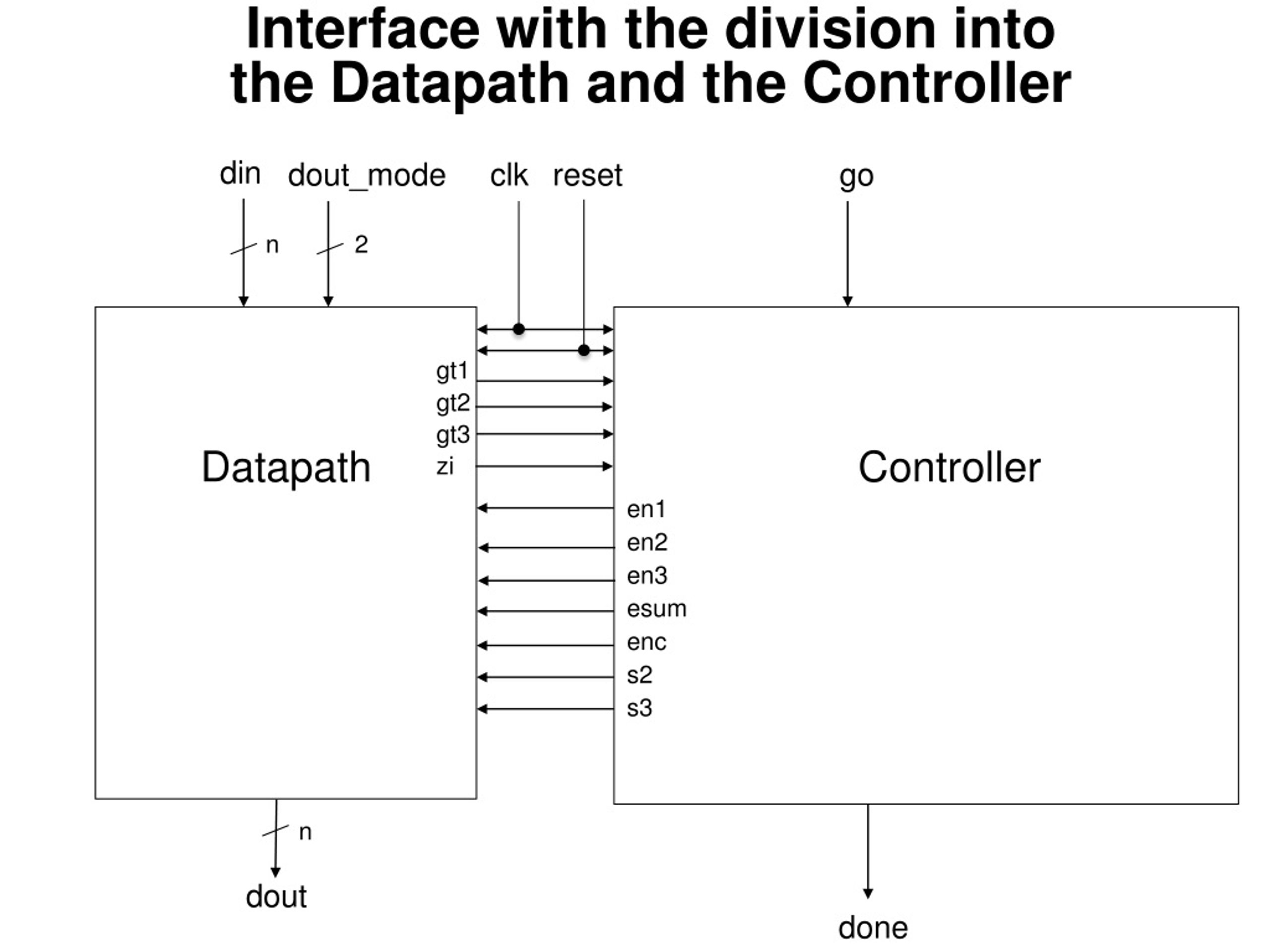

  12. Interface with the division into the Datapath and the Controller din dout_mode clk reset go n 2 gt1 gt2 gt3 Datapath Controller zi en1 en2 en3 esum enc s2 s3 n dout done
