thermodynamic processes

Thermodynamic Processes

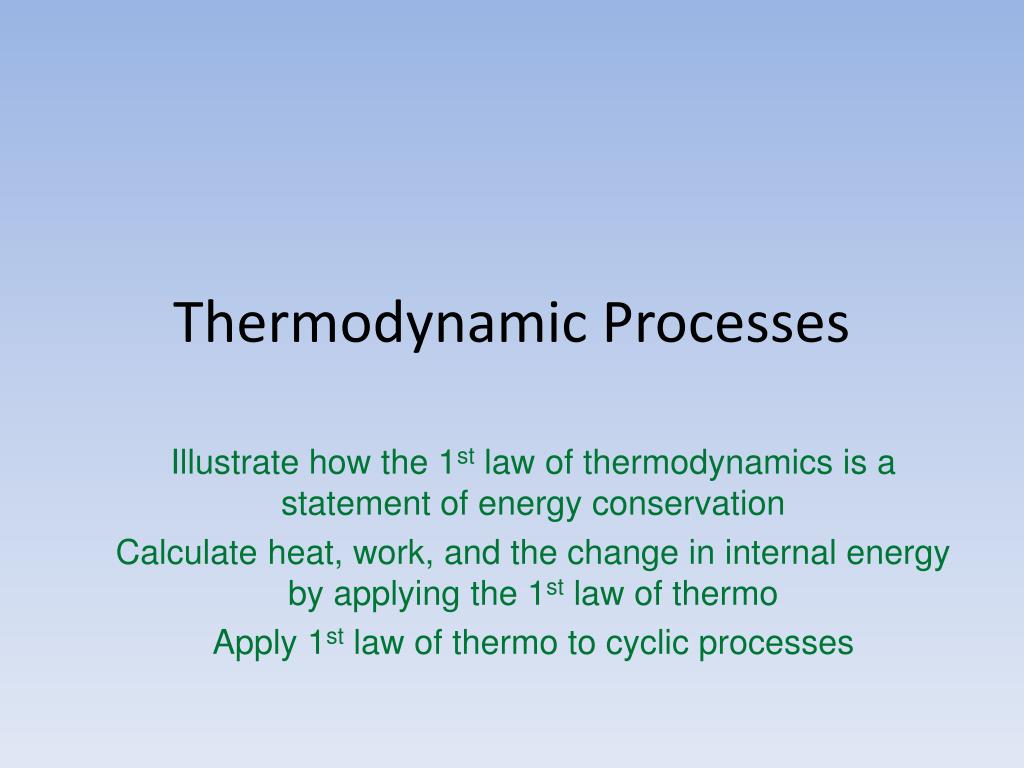

Illustrate how the 1st law of thermodynamics is a statement of energy conservation

Calculate heat, work, and the change in internal energy by applying the 1st law of thermo

Apply 1st law of thermo to cyclic processes

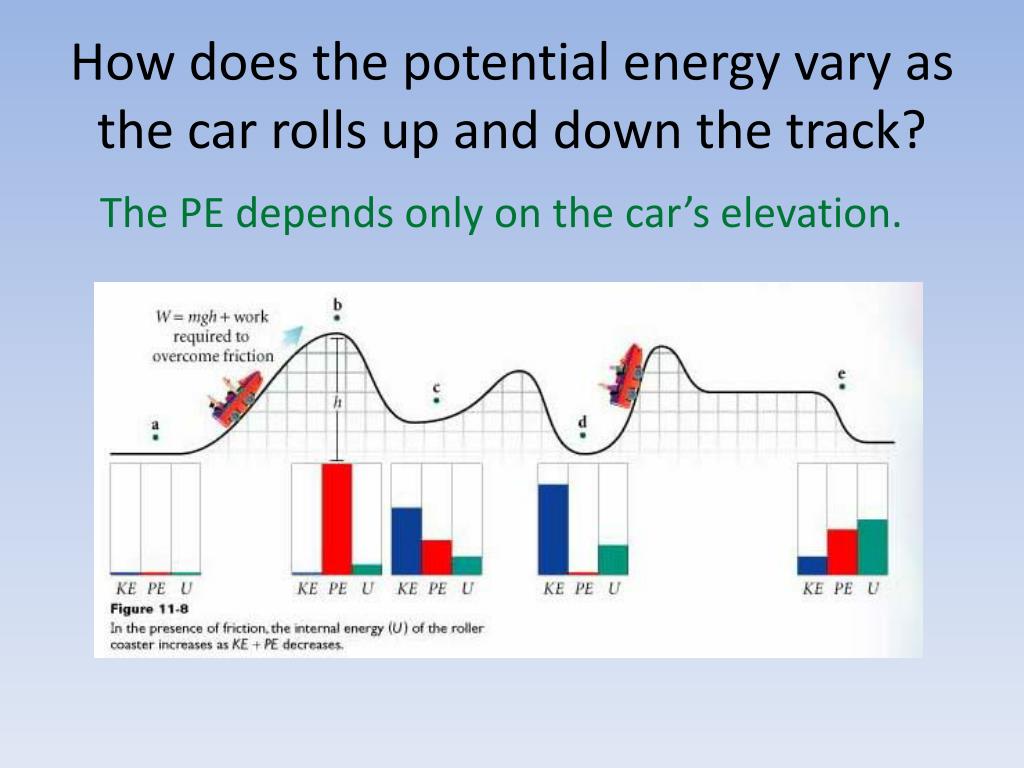

how does the potential energy vary as the car rolls up and down the track
How does the potential energy vary as the car rolls up and down the track?

The PE depends only on the car’s elevation.

how would a 4 th bar representing me relate to the u bars

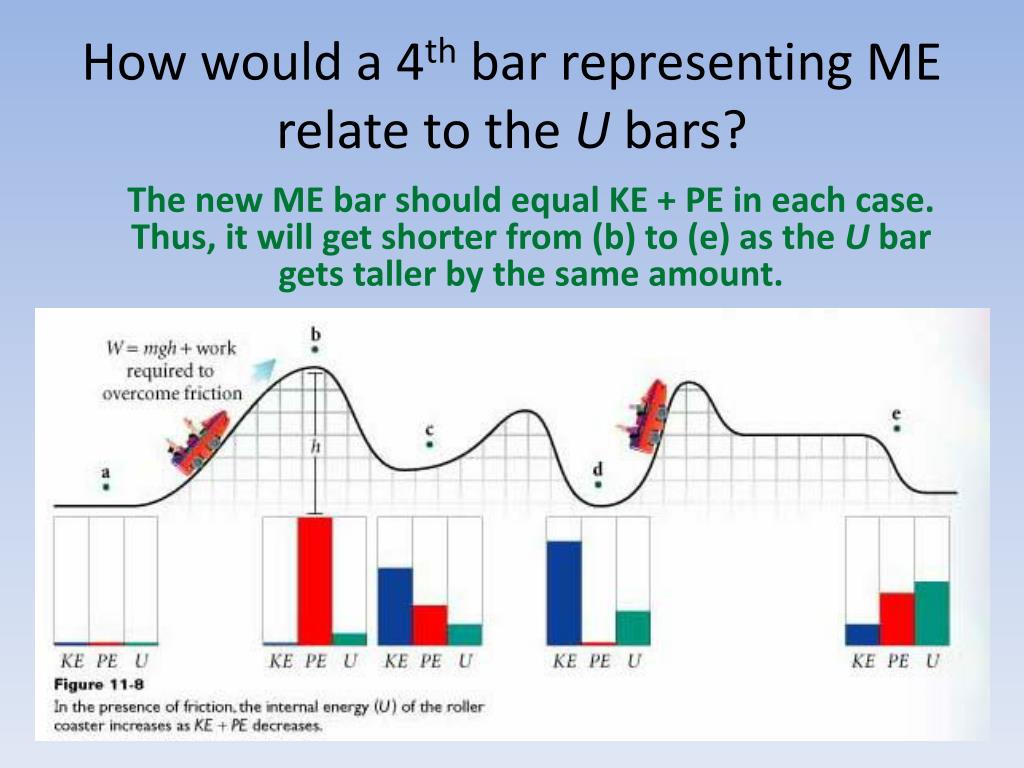

How would a 4th bar representing ME relate to the U bars?

The new ME bar should equal KE + PE in each case. Thus, it will get shorter from (b) to (e) as the U bar gets taller by the same amount.

the first law of thermodynamics

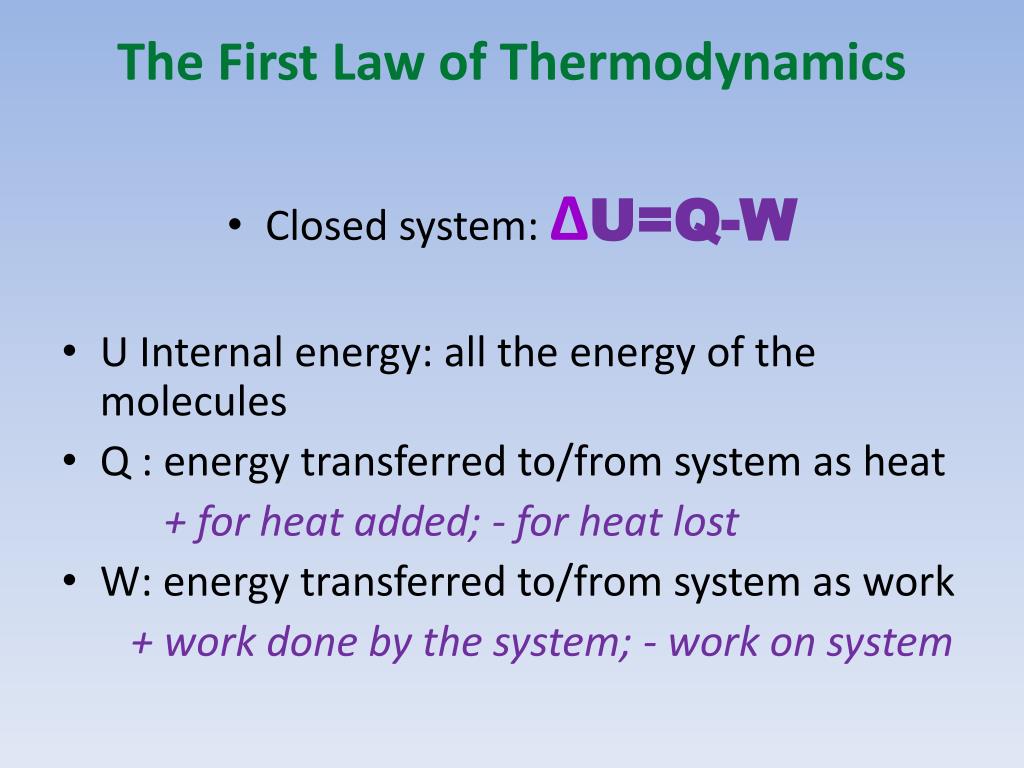

The First Law of Thermodynamics
  • Closed system: ΔU=Q-W
  • U Internal energy: all the energy of the molecules
  • Q : energy transferred to/from system as heat

+ for heat added; - for heat lost

  • W: energy transferred to/from system as work

+ work done by the system; - work on system

1 st law of thermodynamics mathematically

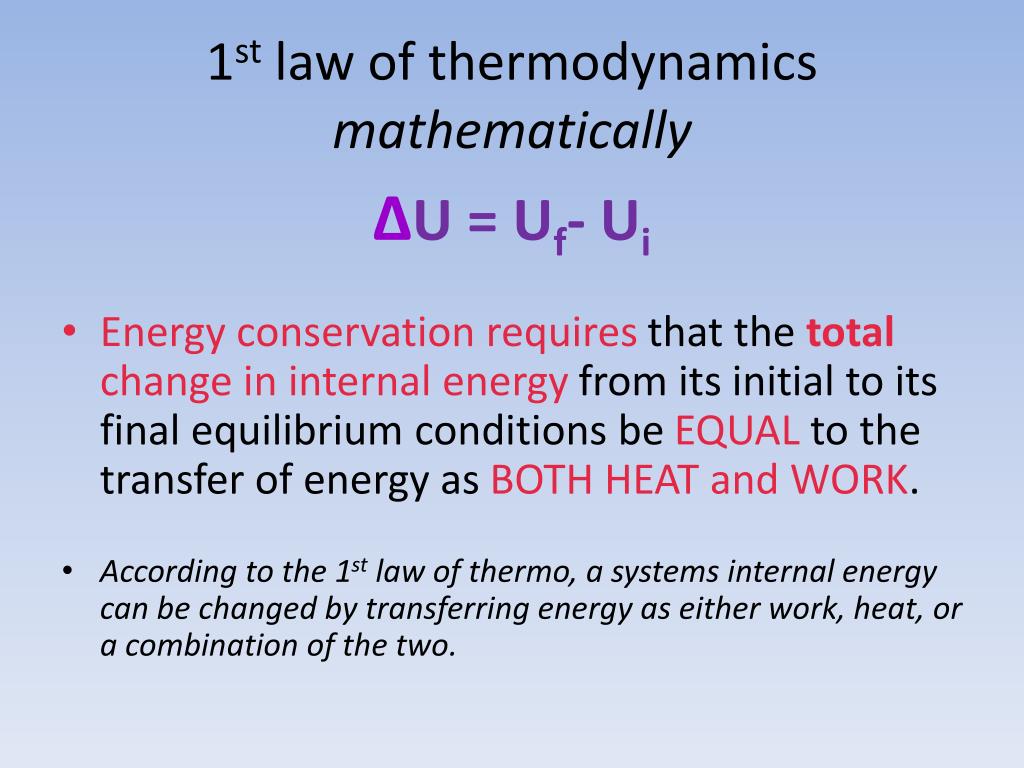

1st law of thermodynamics mathematically

ΔU = Uf- Ui

  • Energy conservation requires that the totalchange in internal energy from its initial to its final equilibrium conditions be EQUAL to the transfer of energy as BOTH HEAT and WORK.
  • According to the 1st law of thermo, a systems internal energy can be changed by transferring energy as either work, heat, or a combination of the two.
slide7

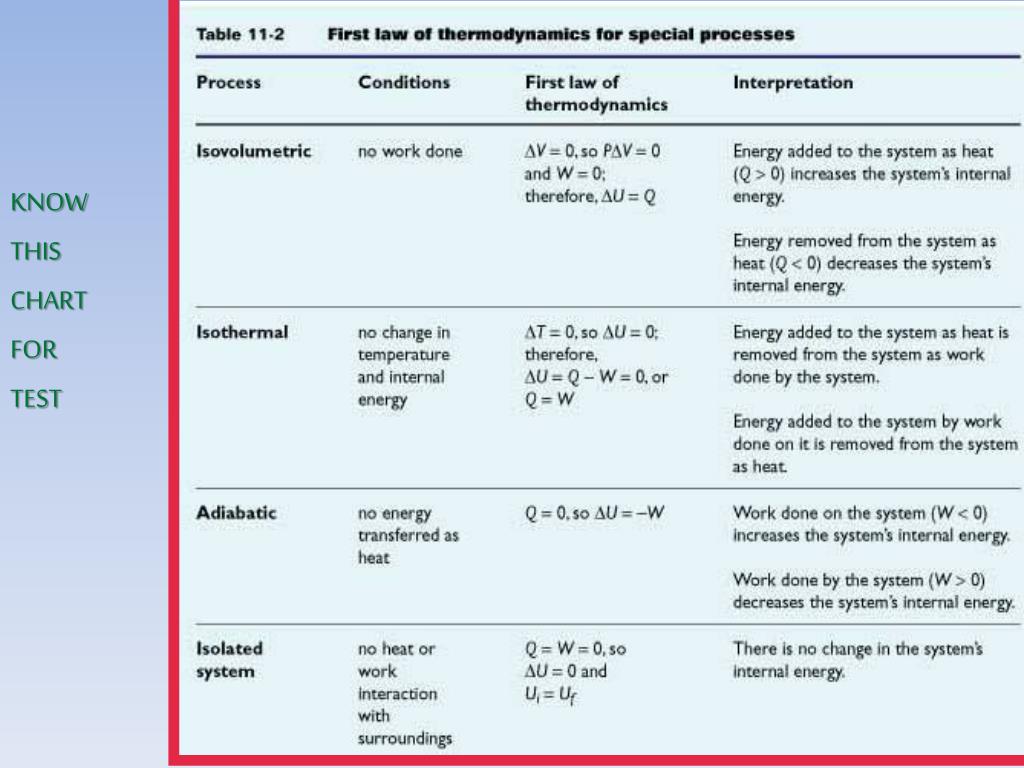

KNOW

THIS

CHART

FOR

TEST

thermodynamic processes1
Thermodynamic Processes

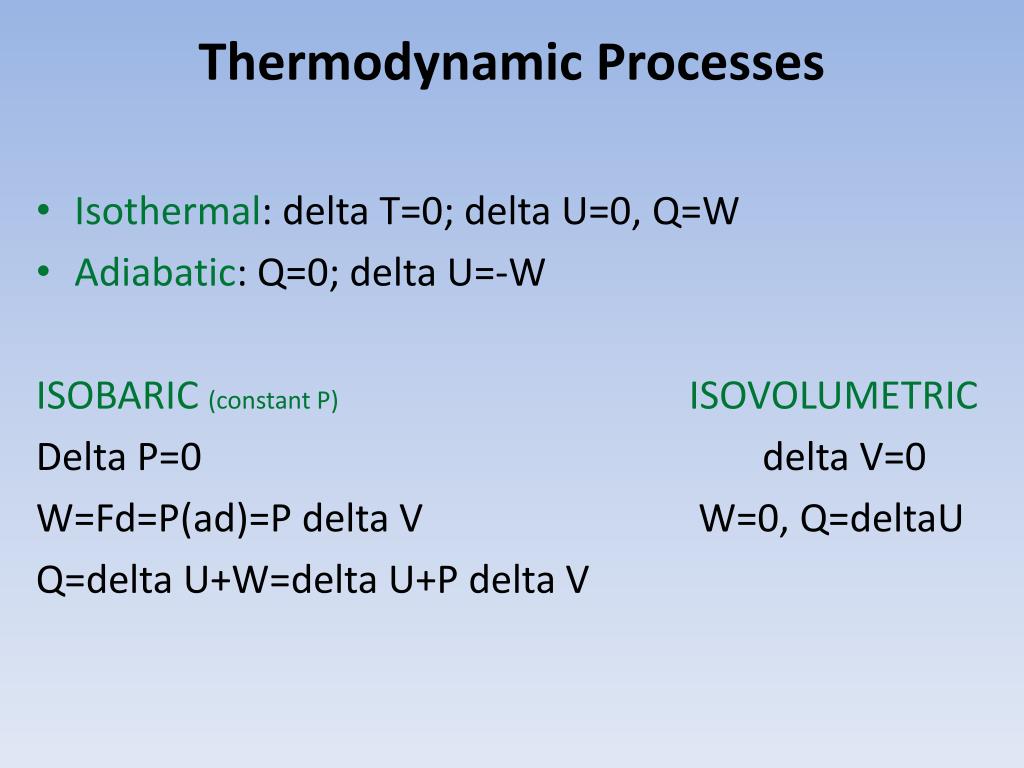

  • Isothermal: delta T=0; delta U=0, Q=W
  • Adiabatic: Q=0; delta U=-W

ISOBARIC (constant P) ISOVOLUMETRIC

Delta P=0 delta V=0

W=Fd=P(ad)=P delta V W=0, Q=deltaU

Q=delta U+W=delta U+P delta V

cyclic processes
CYCLIC PROCESSES

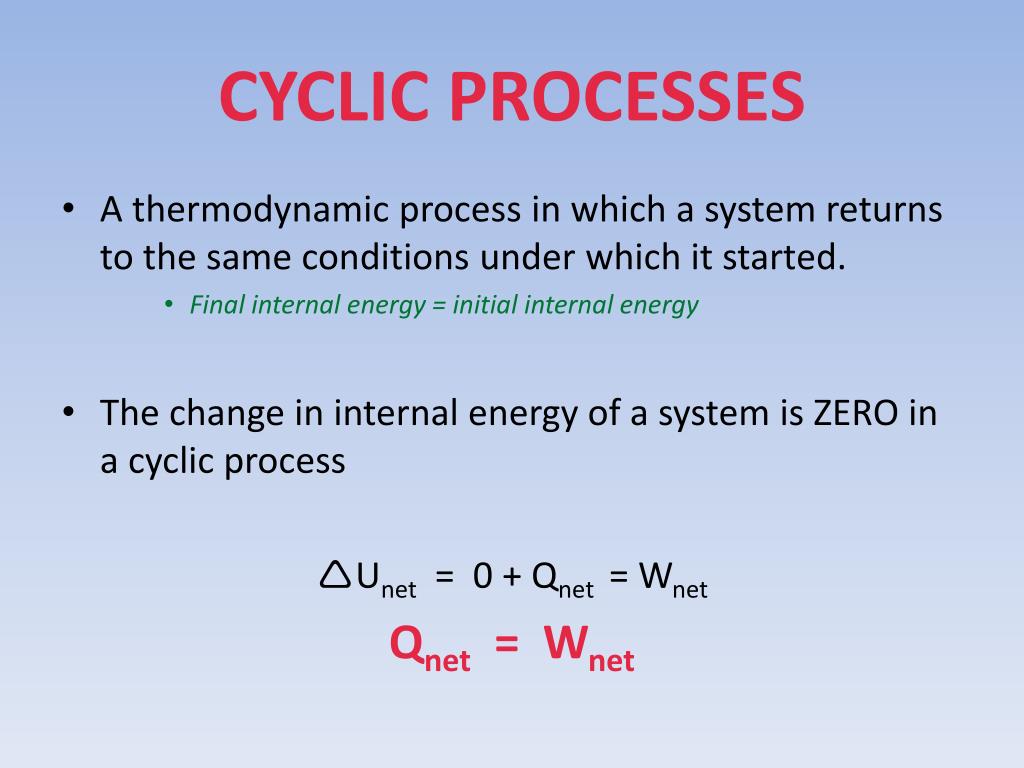

  • A thermodynamic process in which a system returns to the same conditions under which it started.
      • Final internal energy = initial internal energy
  • The change in internal energy of a system is ZERO in a cyclic process

Unet = 0 + Qnet = Wnet

Qnet = Wnet

cyclic process
CYCLIC PROCESS

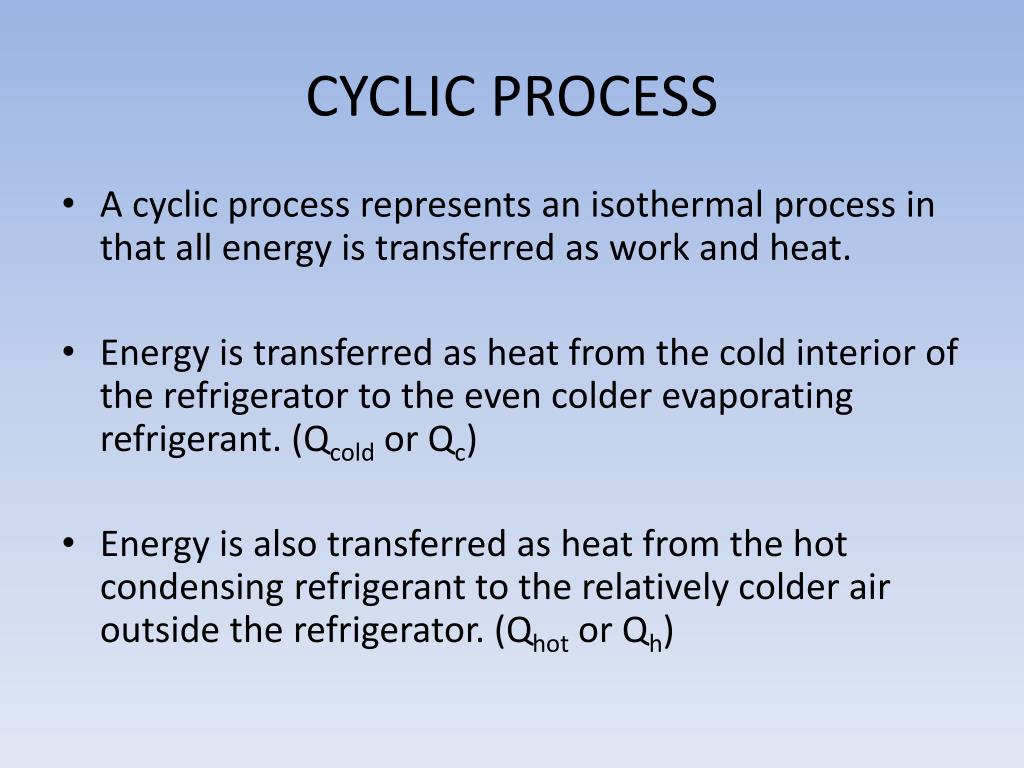

  • A cyclic process represents an isothermal process in that all energy is transferred as work and heat.
  • Energy is transferred as heat from the cold interior of the refrigerator to the even colder evaporating refrigerant. (Qcold or Qc)
  • Energy is also transferred as heat from the hot condensing refrigerant to the relatively colder air outside the refrigerator. (Qhot or Qh)
cyclic process1
Cyclic Process

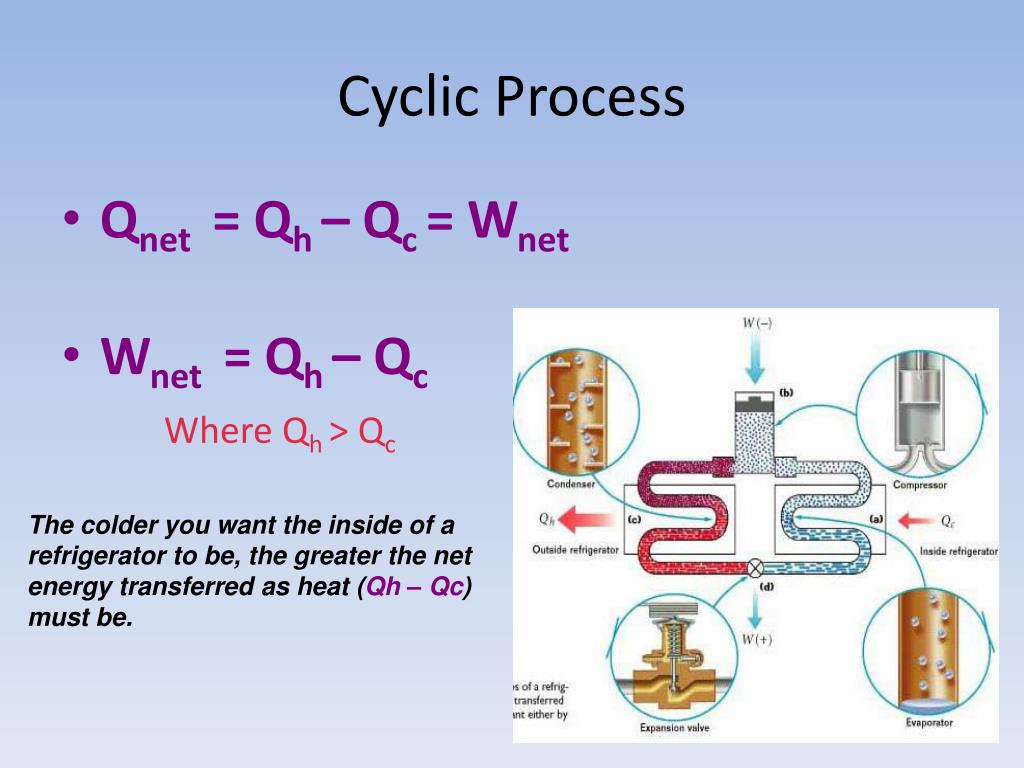

  • Qnet = Qh – Qc = Wnet
  • Wnet = Qh – Qc

Where Qh > Qc

The colder you want the inside of a refrigerator to be, the greater the net energy transferred as heat (Qh – Qc) must be.

cyclic process2
Cyclic Process

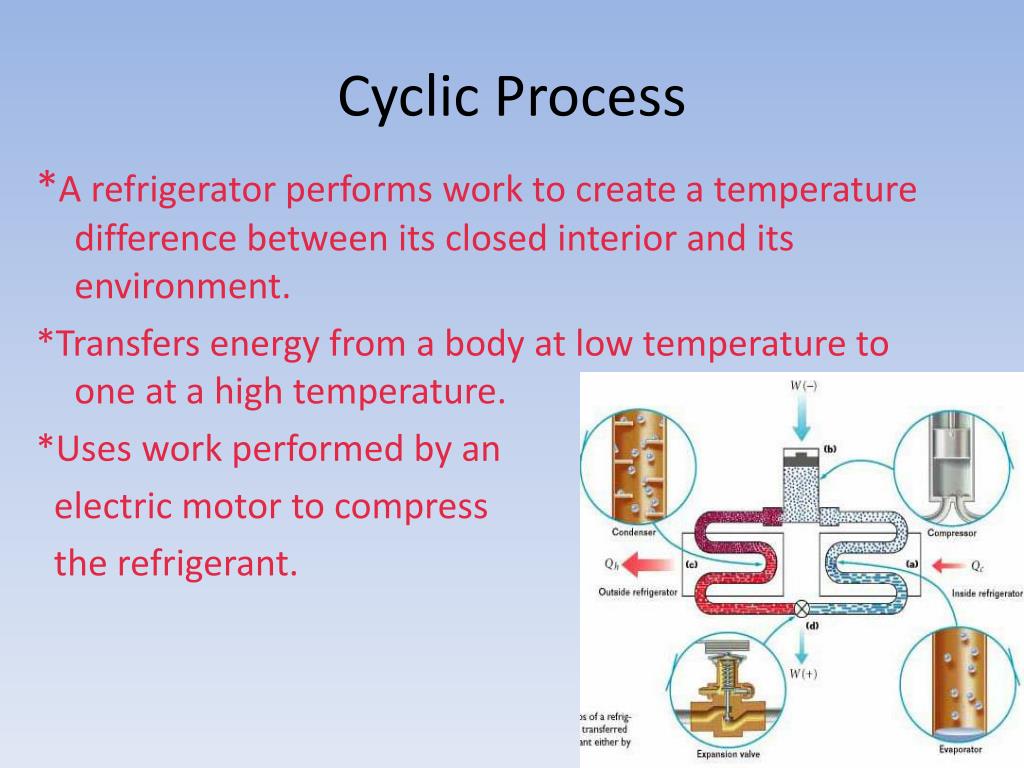

*A refrigerator performs work to create a temperature difference between its closed interior and its environment.

*Transfers energy from a body at low temperature to one at a high temperature.

*Uses work performed by an

electric motor to compress

the refrigerant.

cyclic process3
Cyclic Process

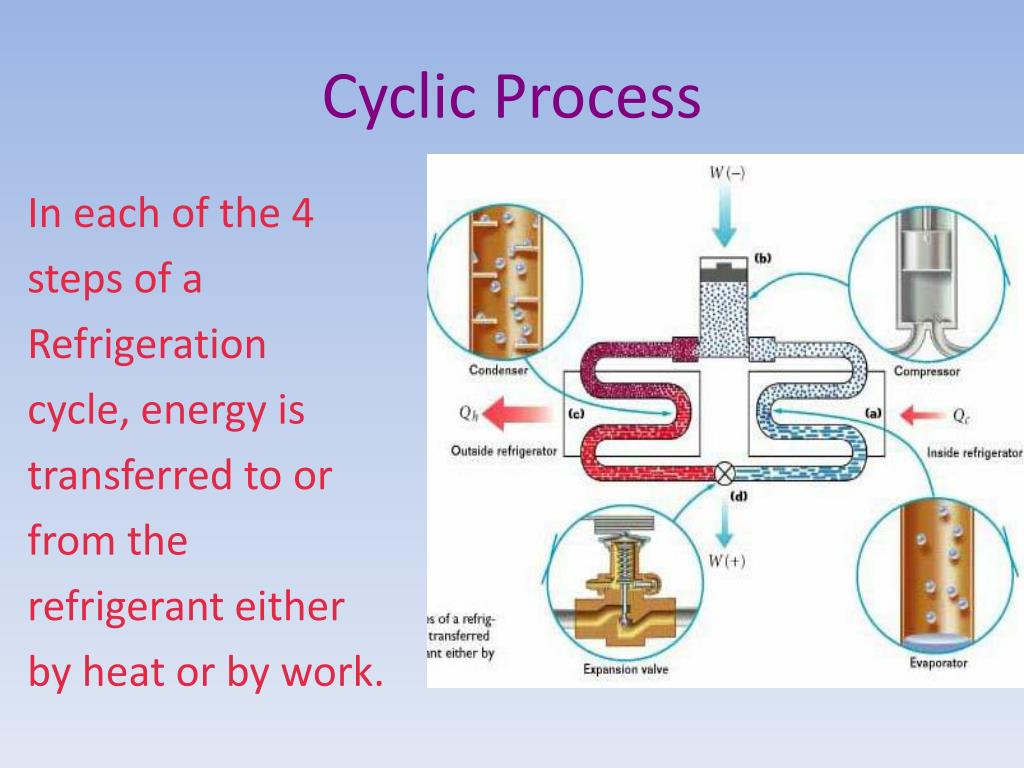

In each of the 4

steps of a

Refrigeration

cycle, energy is

transferred to or

from the

refrigerant either

by heat or by work.

refrigerator cyclic process
Refrigerator Cyclic Process

1: Electrically-run compressor does work on the Freon gas, increasing the pressure of the gas.

High Pressure and High Temperature

2: High Pressure Freon Gas released into external heat enters exchange coil on the outside of the refrigerator

3: Heat flows from High Temperature gas to the lower-temperature air of the room surrounding the coil. This heat loss causes the Freon to condense to a liquid releasing heat to outside of the refrigerator. (space behind the frige)

4: As Freon passes through the expansion valve it expands and evaporates

now at low pressure and low temperature

5: Evaporating Freon absorbs heat from inside the refrigerator. This causes the refrigerator to cool as its heat is absorbed by the evaporating Freon in the internal coils. Thus, temperature inside refrigerator is reduced

6: When all Freon changes to gas, the CYLCE REPEATS

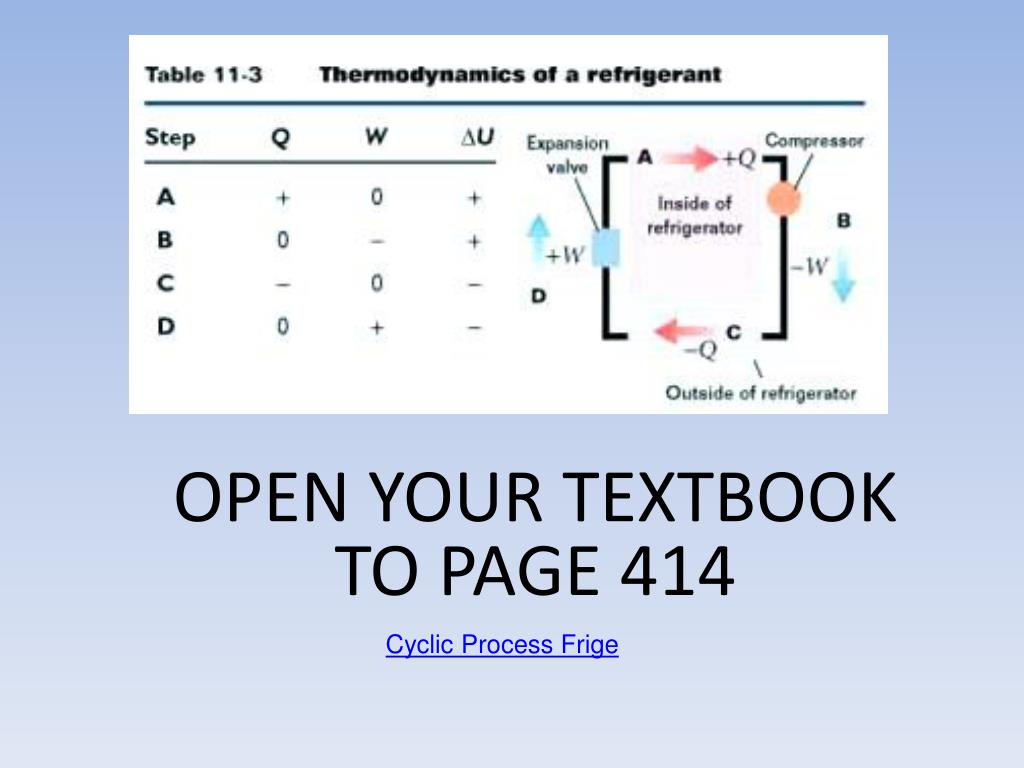

cyclic process4
Cyclic Process

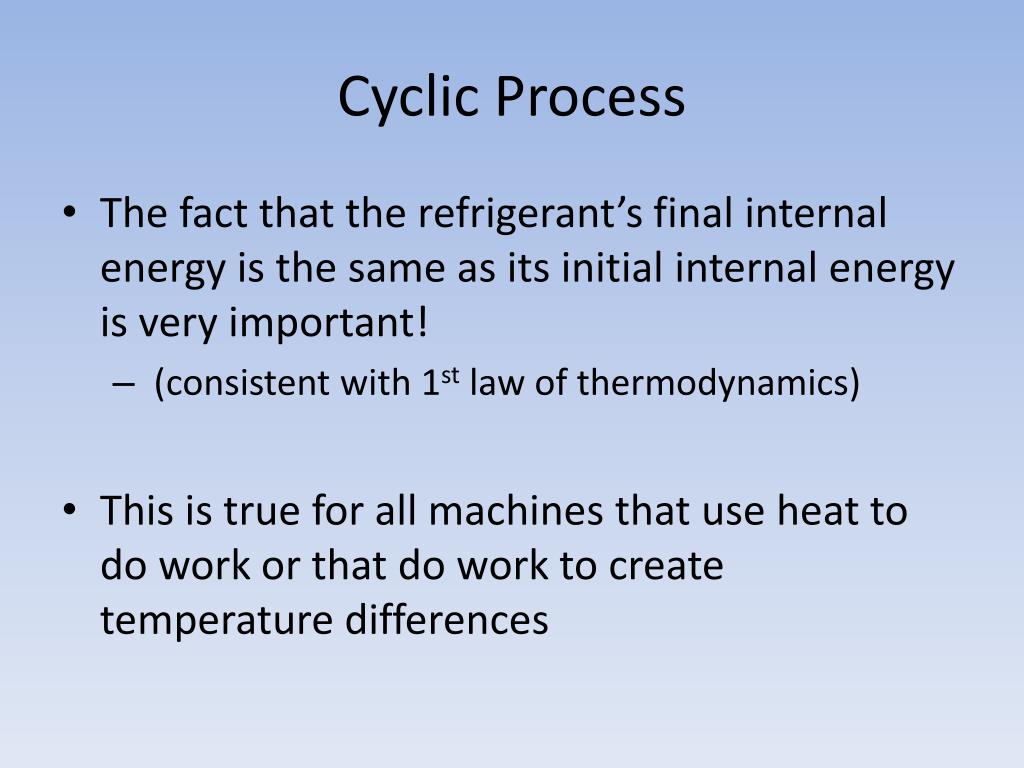

  • The fact that the refrigerant’s final internal energy is the same as its initial internal energy is very important!
    • (consistent with 1st law of thermodynamics)
  • This is true for all machines that use heat to do work or that do work to create temperature differences
heat engine

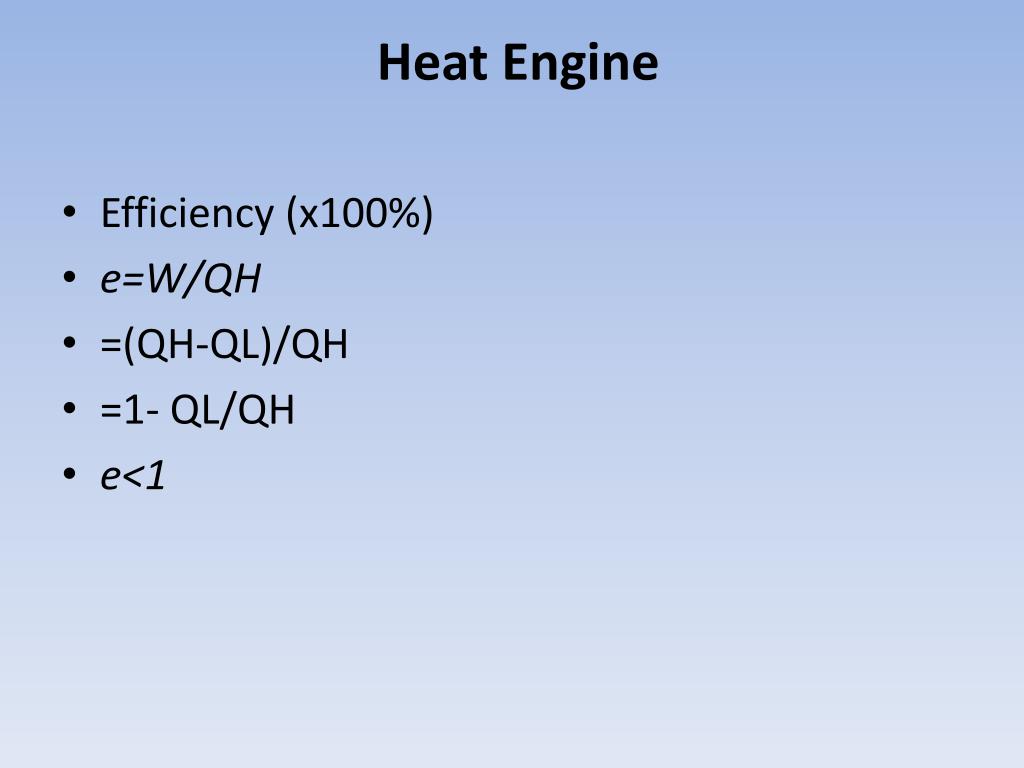

Heat Engine
  • Efficiency (x100%)
  • e=W/QH
  • =(QH-QL)/QH
  • =1- QL/QH
  • e<1
