Physics III TAKS Review

1. Physics IIITAKS Review Objective 5 – Motion Forces and Energy (IPC 4) Information originally found from Midway ISD webpage

2. IPC (4) (A) – Calculate speed, momentum, acceleration, work and power

3. One way to describe the motion of an object is by its speed. Speed is the distance an object moves in a given time interval. As an equation it is

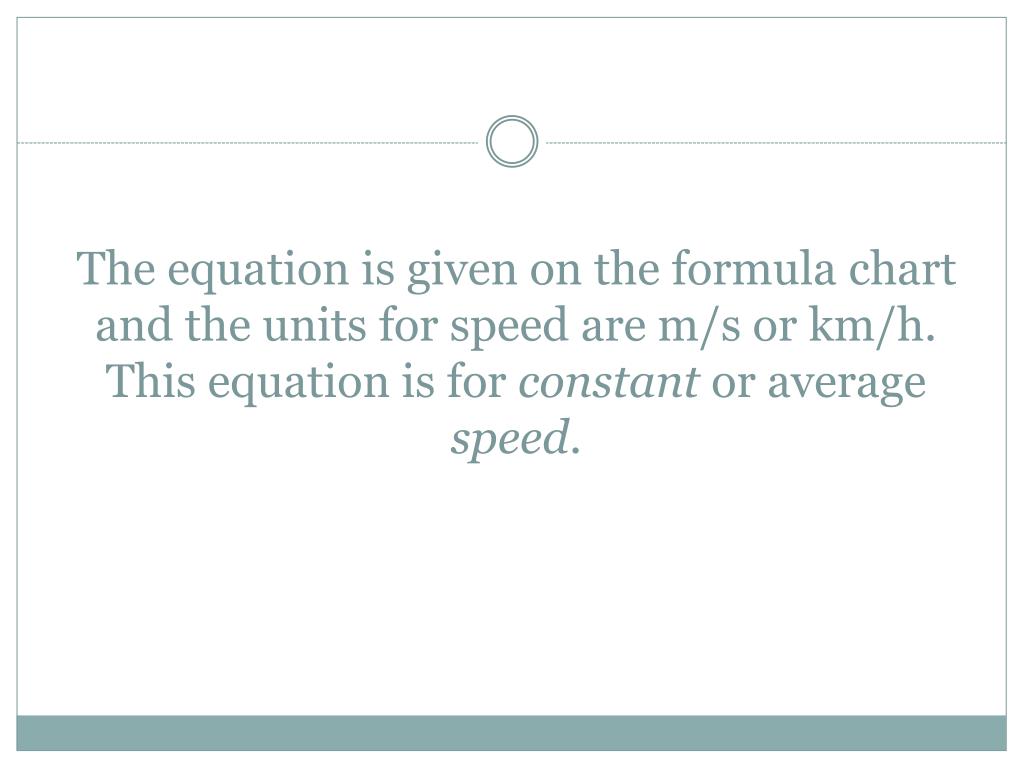

4. The equation is given on the formula chart and the units for speed are m/s or km/h. This equation is for constant or average speed.

5. Ex. An alien being driving a VW bug travels 150 km in 2 hours. What is the speed?

6. Note, km is a measure of distance and hours is a measure of time. Use the units to help you make substitutions into the formula.

7. Now, you try this one (it is a little different)An orangutan runs with a speed of 5 m/s for 10 s. How far does the orangutan travel?

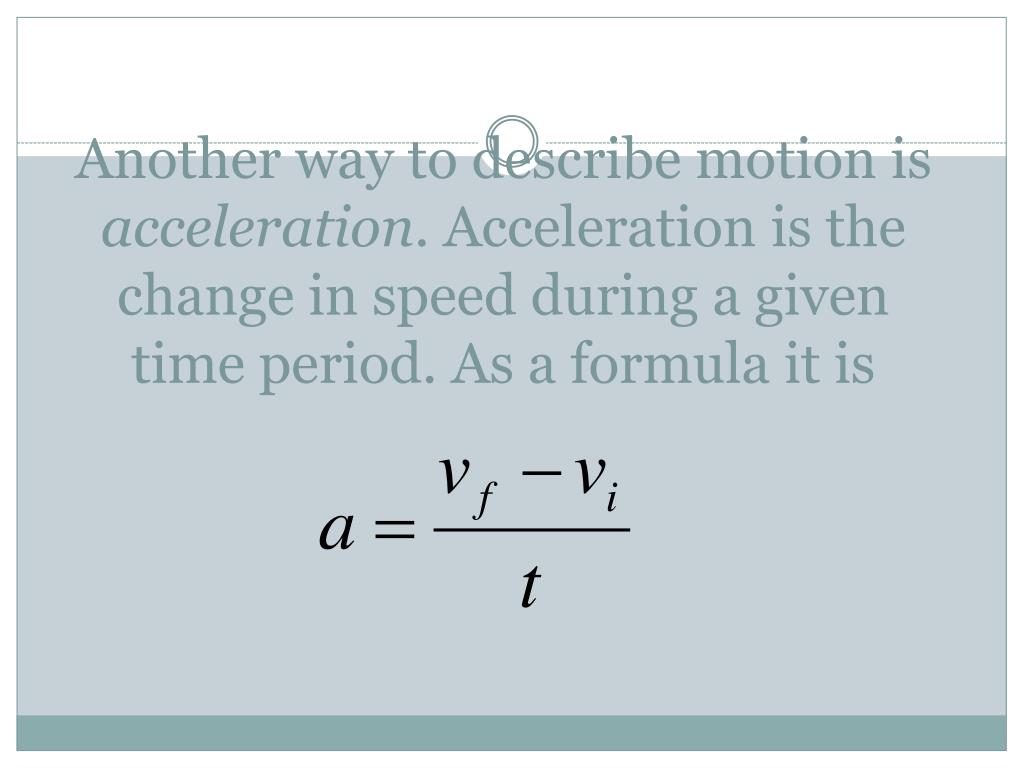

8. Another way to describe motion is acceleration. Acceleration is the change in speed during a given time period. As a formula it is

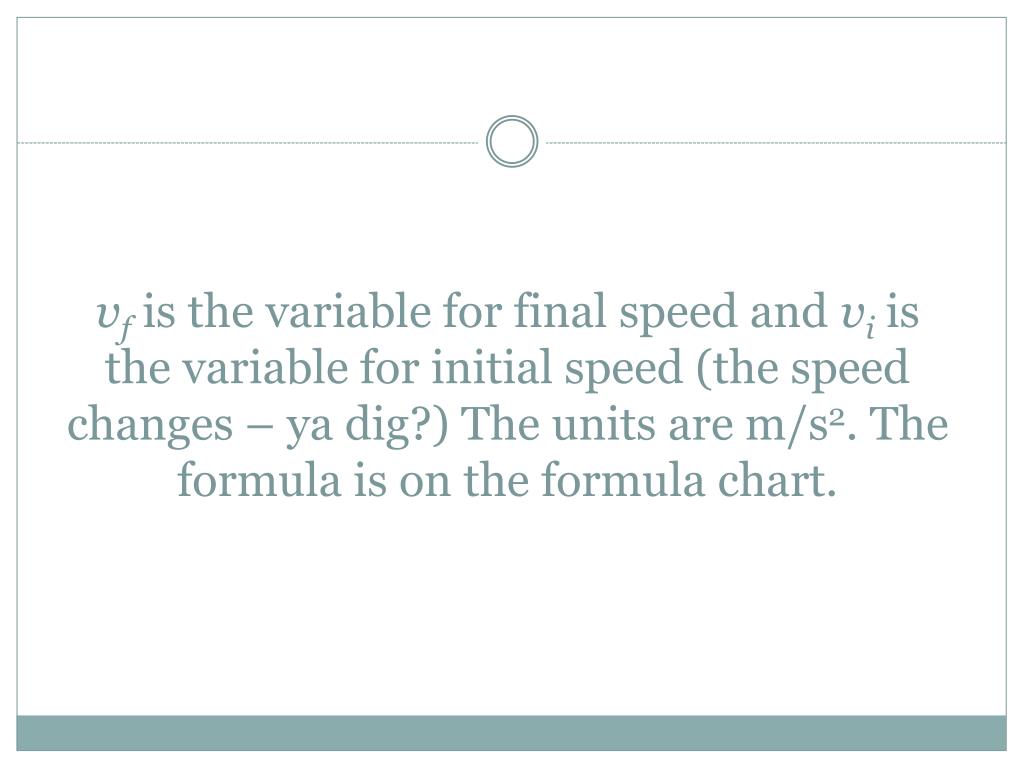

9. vf is the variable for final speed and vi is the variable for initial speed (the speed changes – ya dig?) The units are m/s2. The formula is on the formula chart.

10. A Cro-Magnon man jogs at a speed of 4 m/s. He spots a saber toothed tiger and increases his speed to 6 m/s in a time period of 2 s. What is his acceleration?

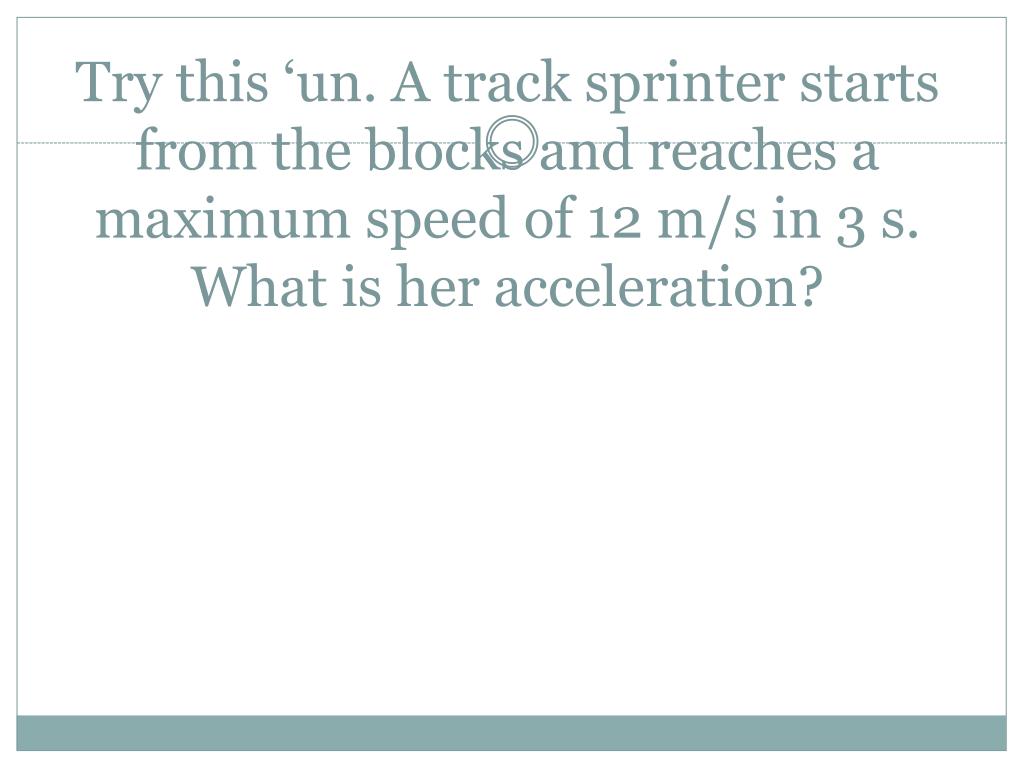

11. Try this ‘un. A track sprinter starts from the blocks and reaches a maximum speed of 12 m/s in 3 s.What is her acceleration?

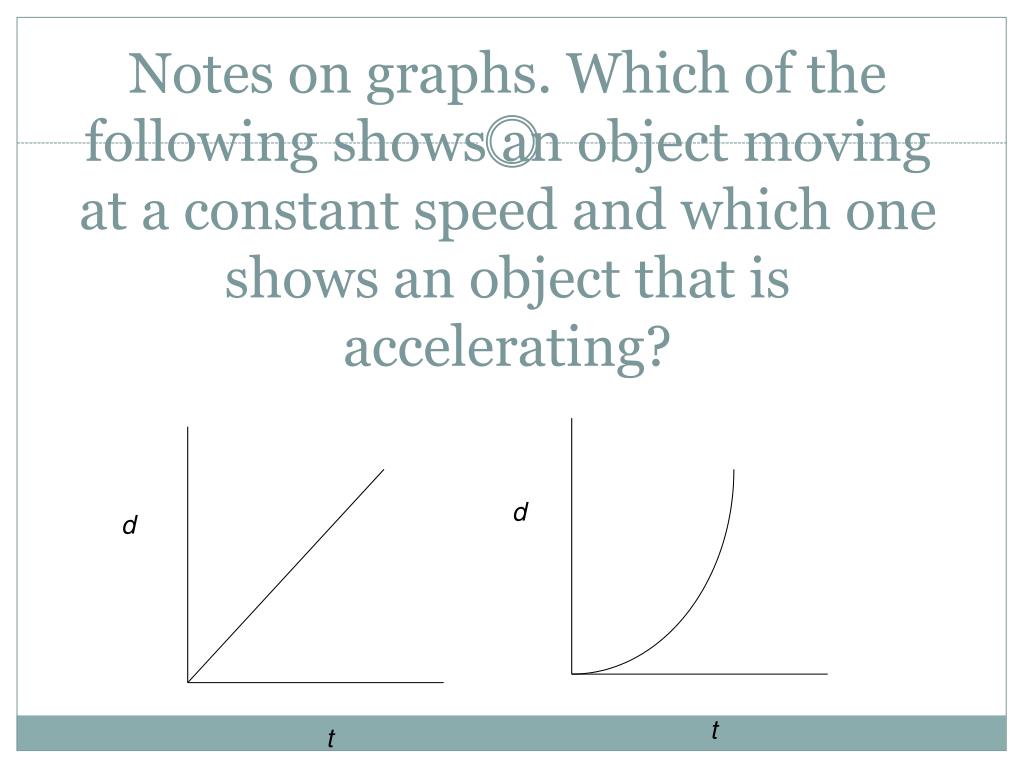

12. t Notes on graphs. Which of the following shows an object moving at a constant speed and which one shows an object that is accelerating? d d t

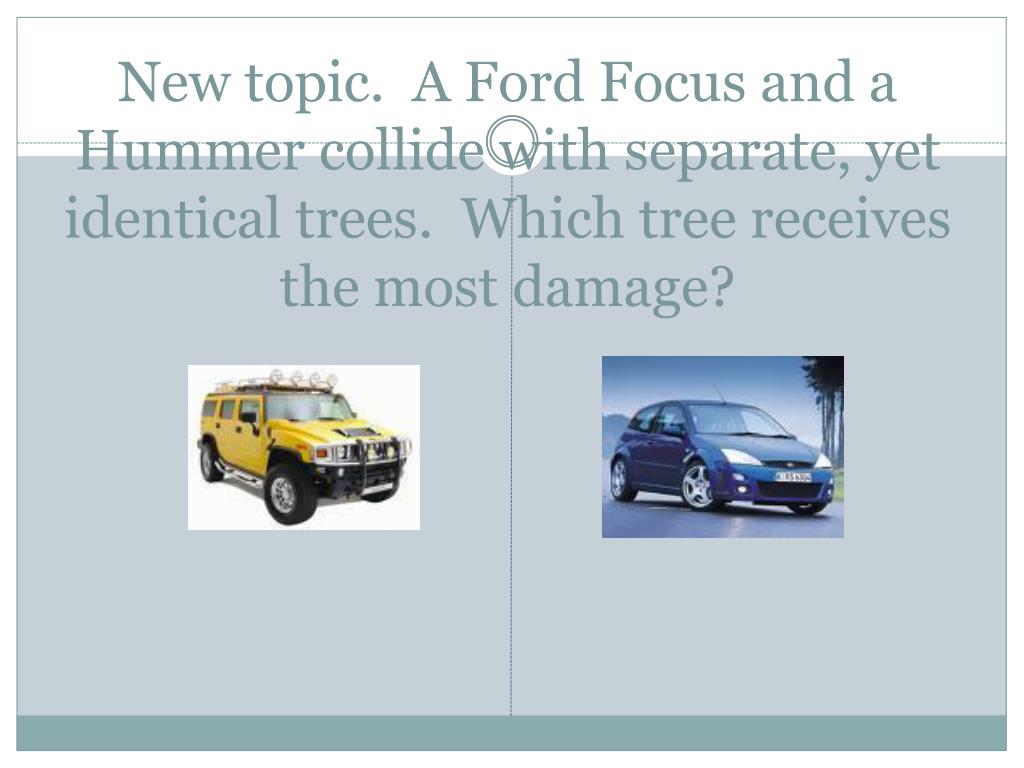

13. New topic. A Ford Focus and a Hummer collide with separate, yet identical trees. Which tree receives the most damage?

14. Mass and speed can be combined to describe momentum. Momentum is the product of mass and speed. The form-you-lah is

15. p is momentum, m is mass and v is speed. The unit is kg·m/s and the formula is on the chart.

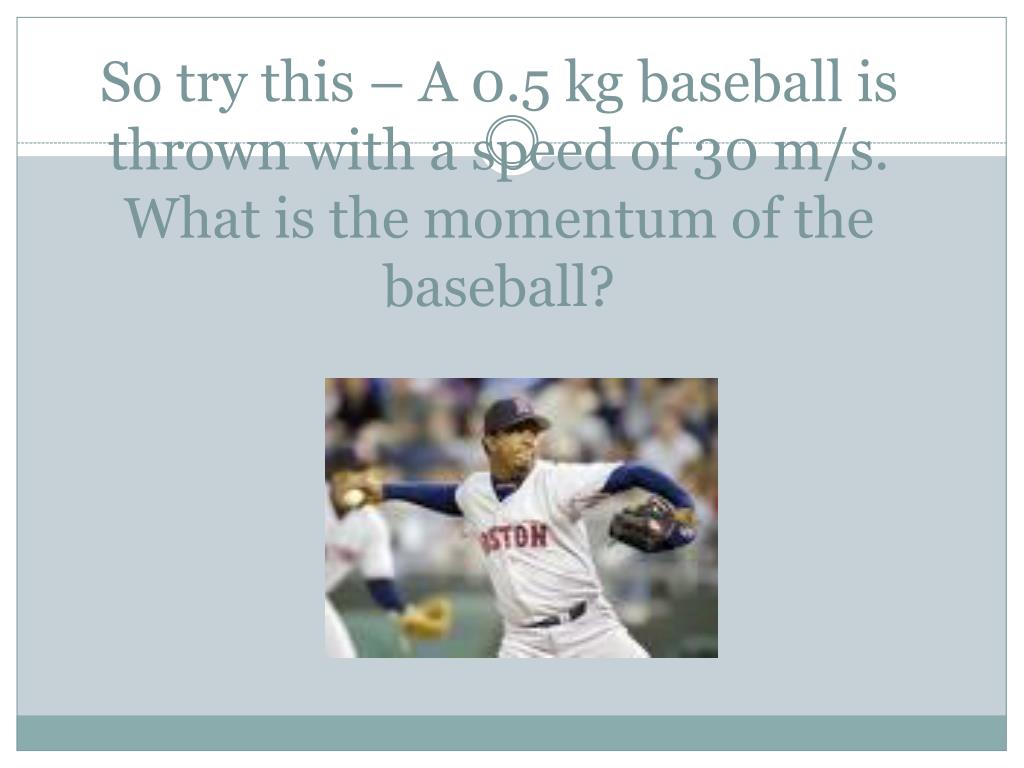

16. So try this – A 0.5 kg baseball is thrown with a speed of 30 m/s. What is the momentum of the baseball?

17. Conservation of Linear Momentum is one of four conservation laws in physics.

18. It simply means that the momentum a system of objects has after a collision must be the same momentum a system has before the collision.

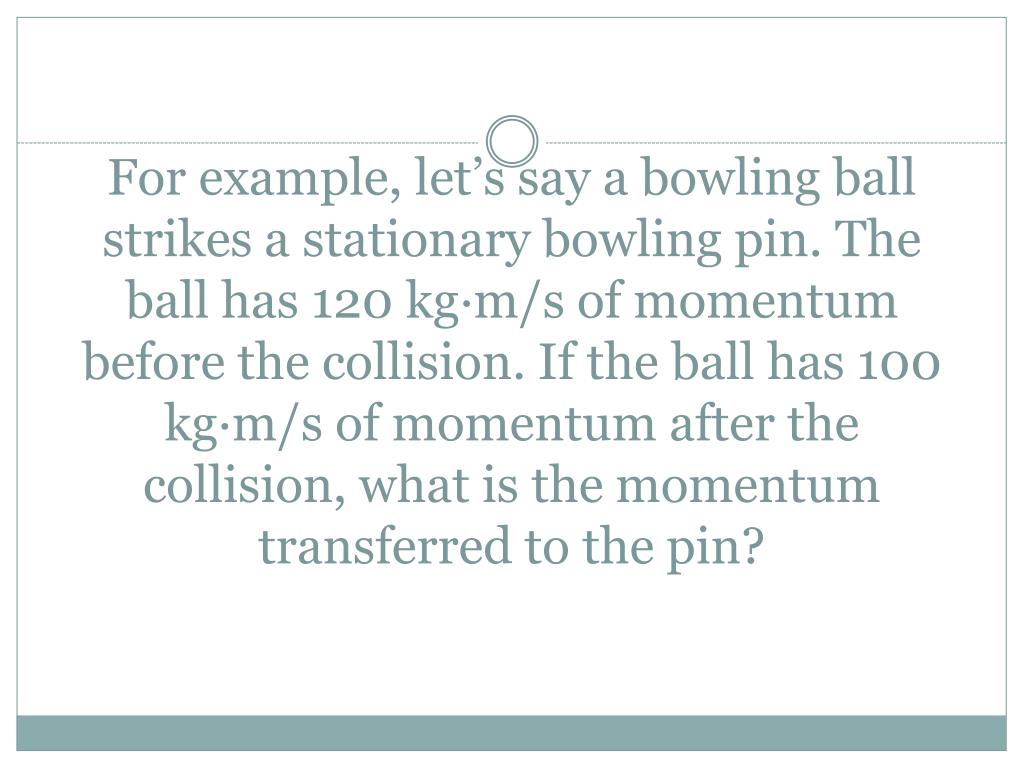

19. For example, let’s say a bowling ball strikes a stationary bowling pin. The ball has 120 kg·m/s of momentum before the collision. If the ball has 100 kg·m/s of momentum after the collision, what is the momentum transferred to the pin?

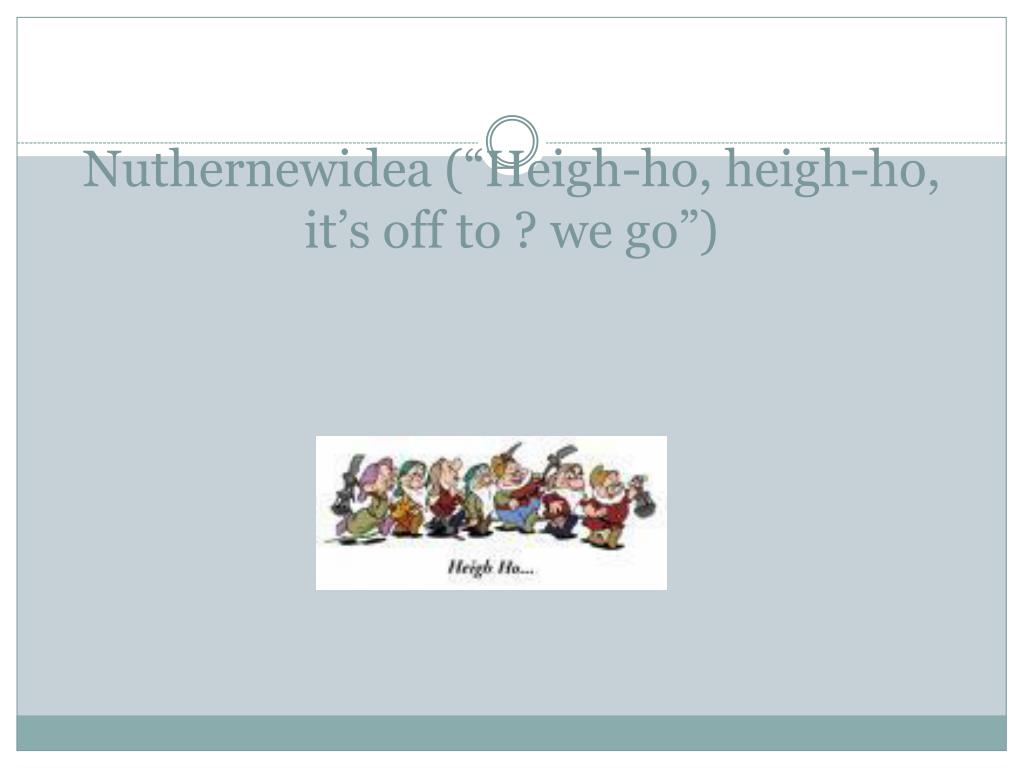

20. Nuthernewidea (“Heigh-ho, heigh-ho, it’s off to ? we go”)

21. Work means many things in everyday usage but has a specific meaning in physics. Work is a force applied on an object over a given distance. Symbolically

22. On the chart again. The unit for work is a N·m which is also known as a Joule (J)

23. A student presses against a stationary chalkboard with her hand. An intergalactic spacecraft coasts through space. Three students push a disabled car across a parking lot. Is work done in the following cases? ‘Splain.

24. Example – An extremely buff toddler applies a force of 550 N to drag a 220 kg comatose alligator 3 m across the kitchen floor. How much work does superchild do on the alligator?

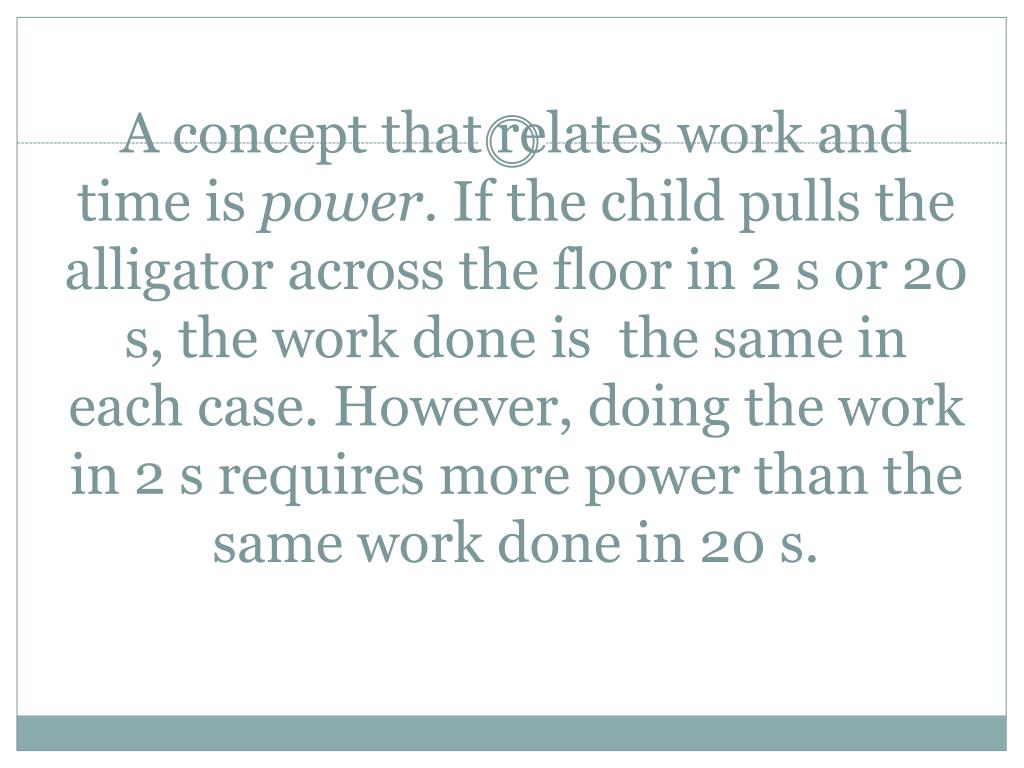

25. A concept that relates work and time is power. If the child pulls the alligator across the floor in 2 s or 20 s, the work done is the same in each case. However, doing the work in 2 s requires more power than the same work done in 20 s.

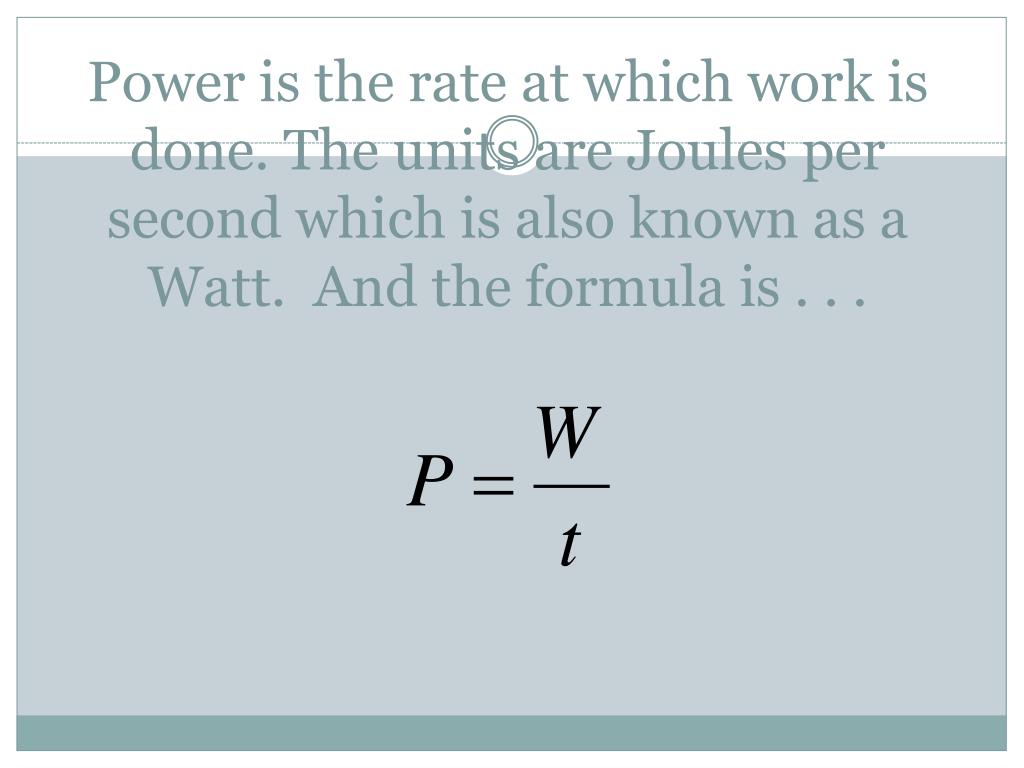

26. Power is the rate at which work is done. The units are Joules per second which is also known as a Watt. And the formula is . . .

27. Ex. Find the power required for the child to do the work describe on the alligator (a few screens ago) in 2 s and 20 s.

28. IPC (4) (B) – The student investigates and describes applications of Newton’s Laws

29. The First Law. Suppose a hockey puck slides across frictionless ice (you can buy this at Sam’s if you know where to look). What are the horizontal forces acting on the puck? And the answer is . . .

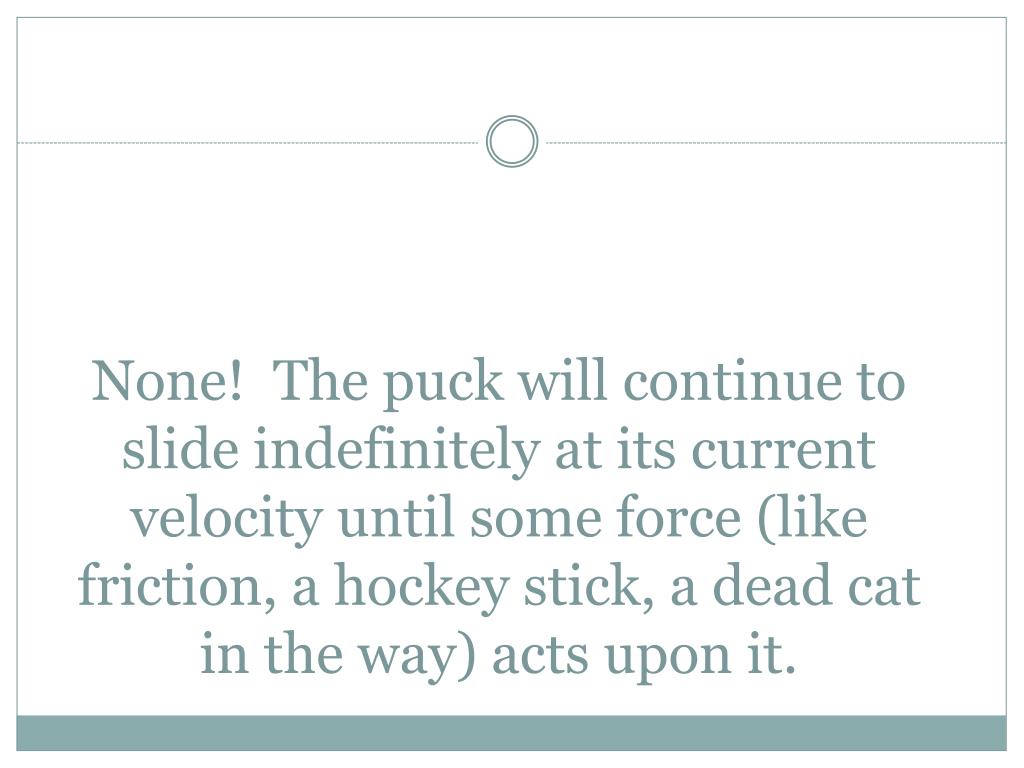

30. None! The puck will continue to slide indefinitely at its current velocity until some force (like friction, a hockey stick, a dead cat in the way) acts upon it.

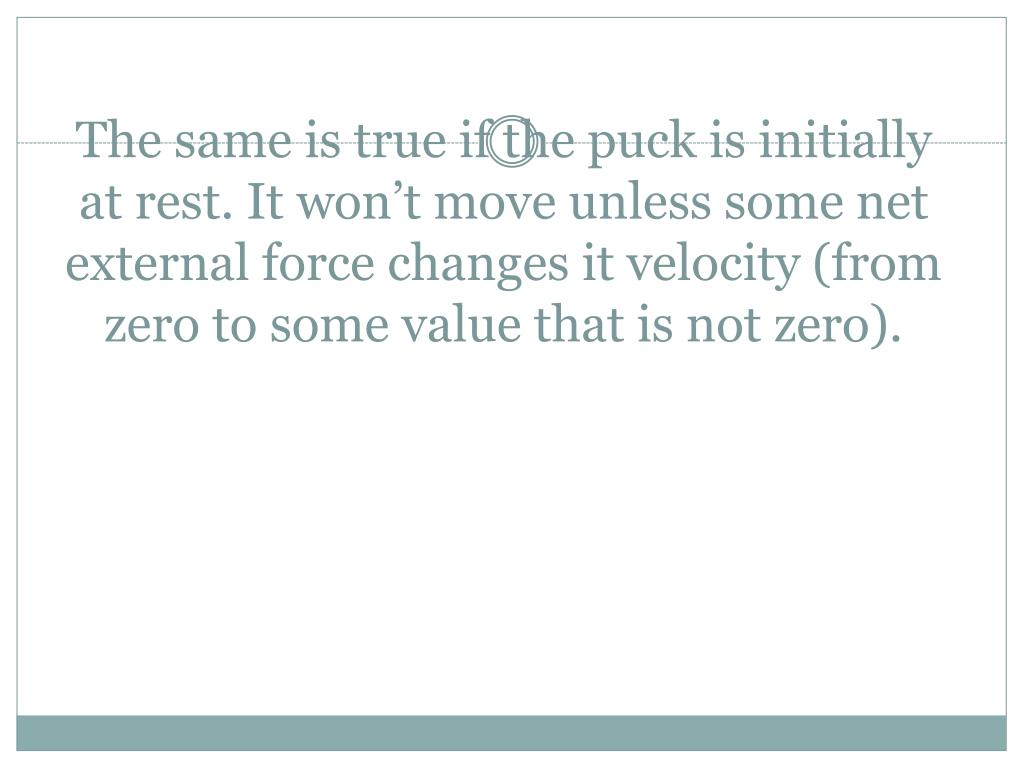

31. The same is true if the puck is initially at rest. It won’t move unless some net external force changes it velocity (from zero to some value that is not zero).

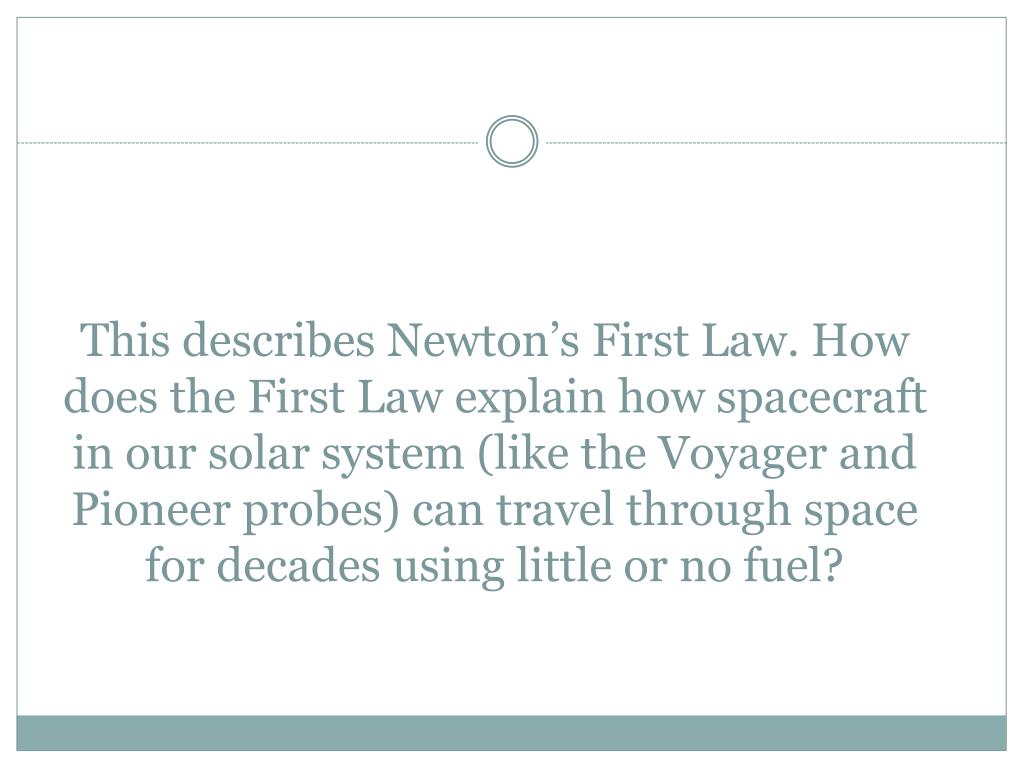

32. This describes Newton’s First Law. How does the First Law explain how spacecraft in our solar system (like the Voyager and Pioneer probes) can travel through space for decades using little or no fuel?

33. Suppose you kick a soccer ball and a bowling ball (ouch!) with equal forces. Which one will experience the greatest acceleration (change in velocity, remember?)?

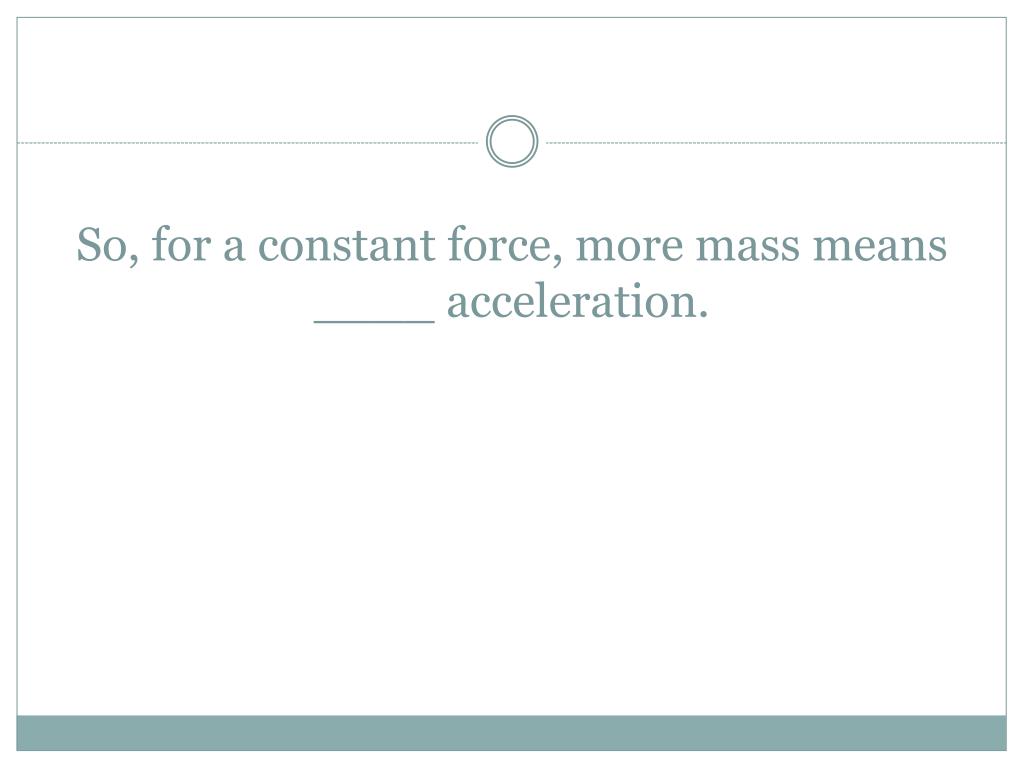

34. So, for a constant force, more mass means ____ acceleration.

35. Now, suppose you have soccer balls of equal mass and you kick them with different forces. Which one will experience the greatest acceleration (the one kicked with the larger or smaller force?)?

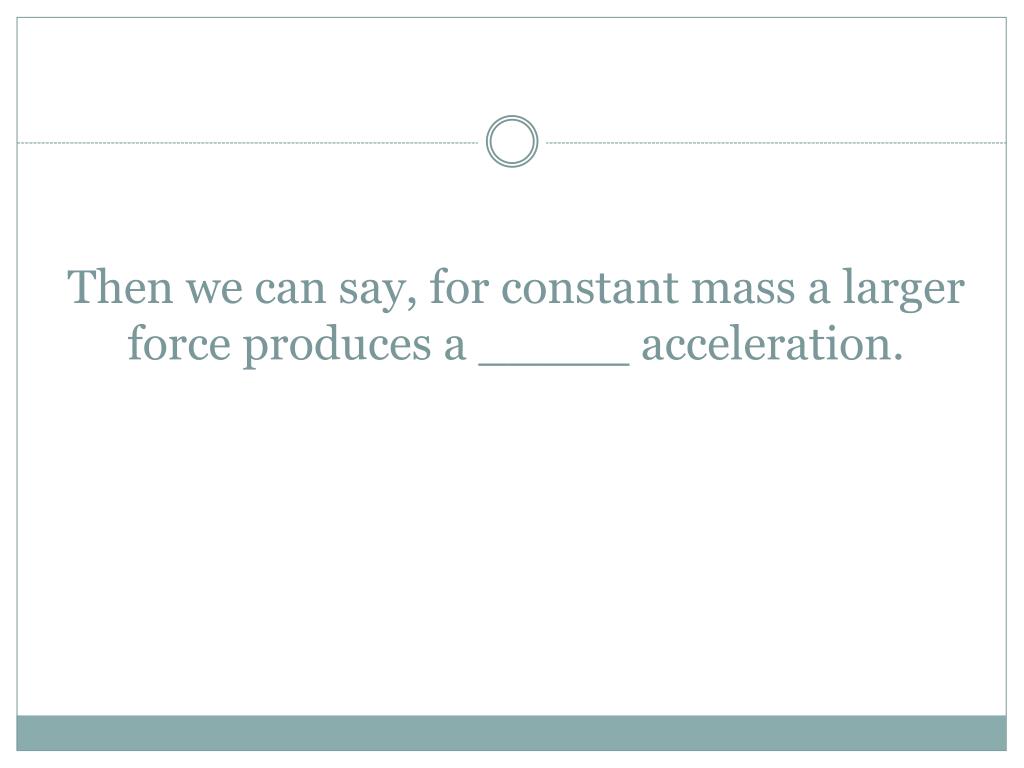

36. Then we can say, for constant mass a larger force produces a _____ acceleration.

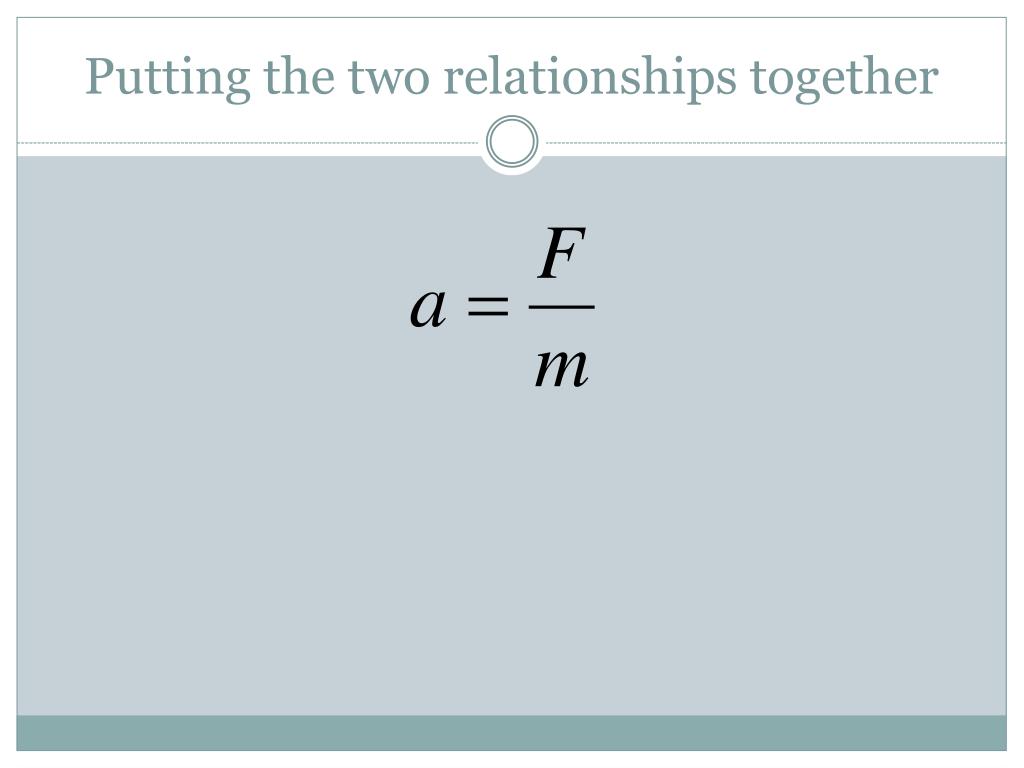

37. Putting the two relationships together

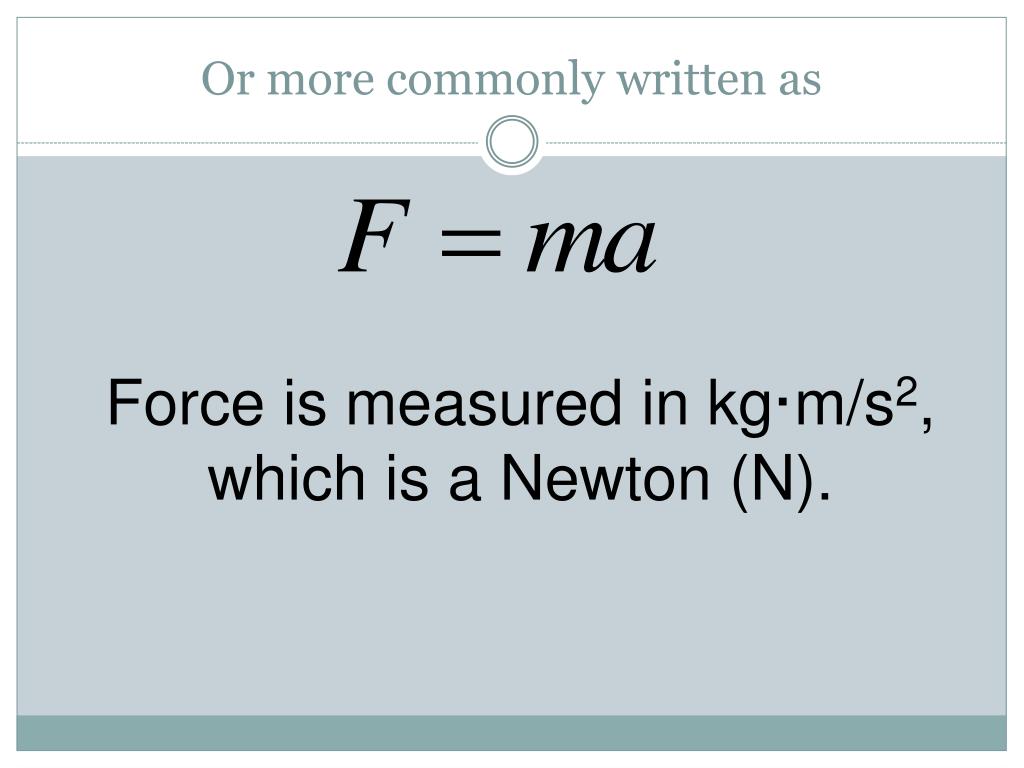

38. Or more commonly written as Force is measured in kg·m/s2, which is a Newton (N).

39. Keerful Podnahs - the force used in Newton’s 2nd Law is the net force. The net force is the is the sum of the forces acting on an object.

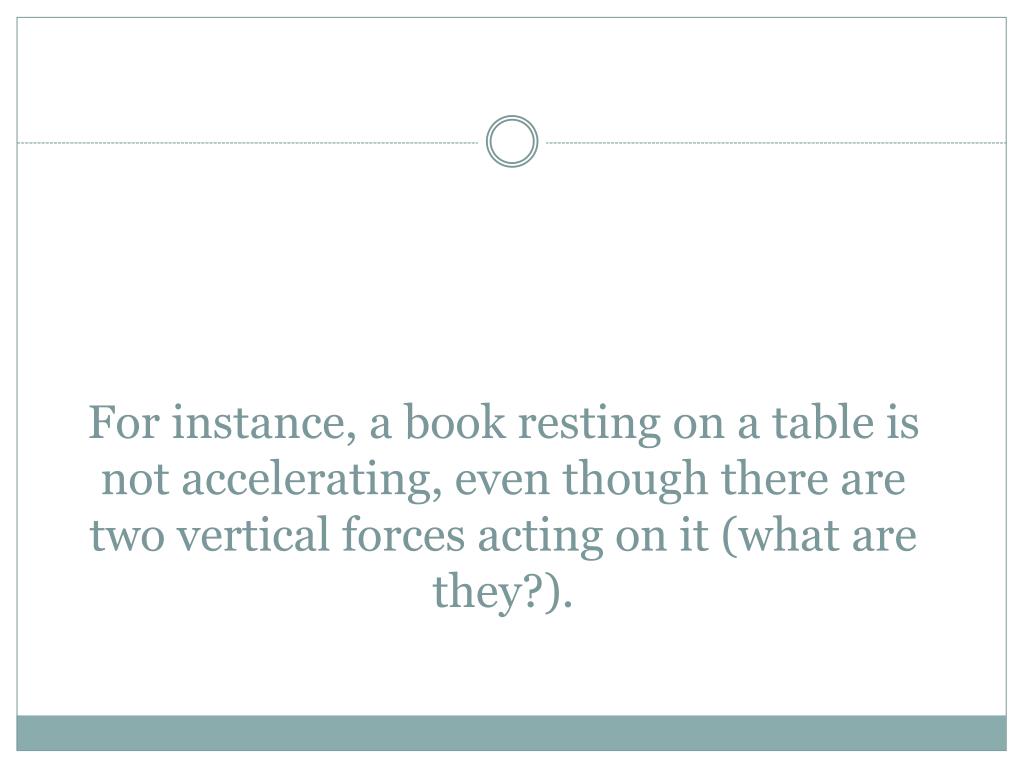

40. For instance, a book resting on a table is not accelerating, even though there are two vertical forces acting on it (what are they?).

41. The forces are equal, but in opposite directions, therefore there is no net force (the sum is 0) and consequently no acceleration.

42. Ex. A 2 kg object starts from rest and reaches a final velocity of 10 m/s in 5 s. What is the acceleration of the object? What is the net force acting on the object?

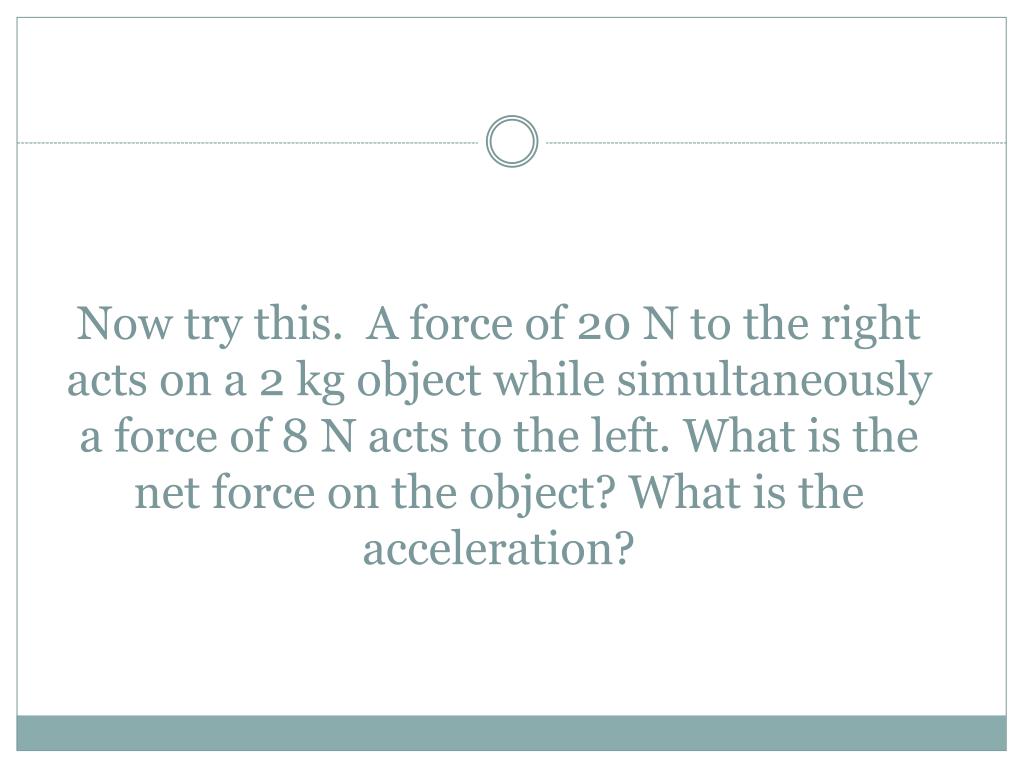

43. Now try this. A force of 20 N to the right acts on a 2 kg object while simultaneously a force of 8 N acts to the left. What is the net force on the object? What is the acceleration?

44. The Third Law. Try this at home without adult supervision. Have a friend, neighbor or total stranger hold a piece of paper vertically. Punch it with your fist as hard as you can.

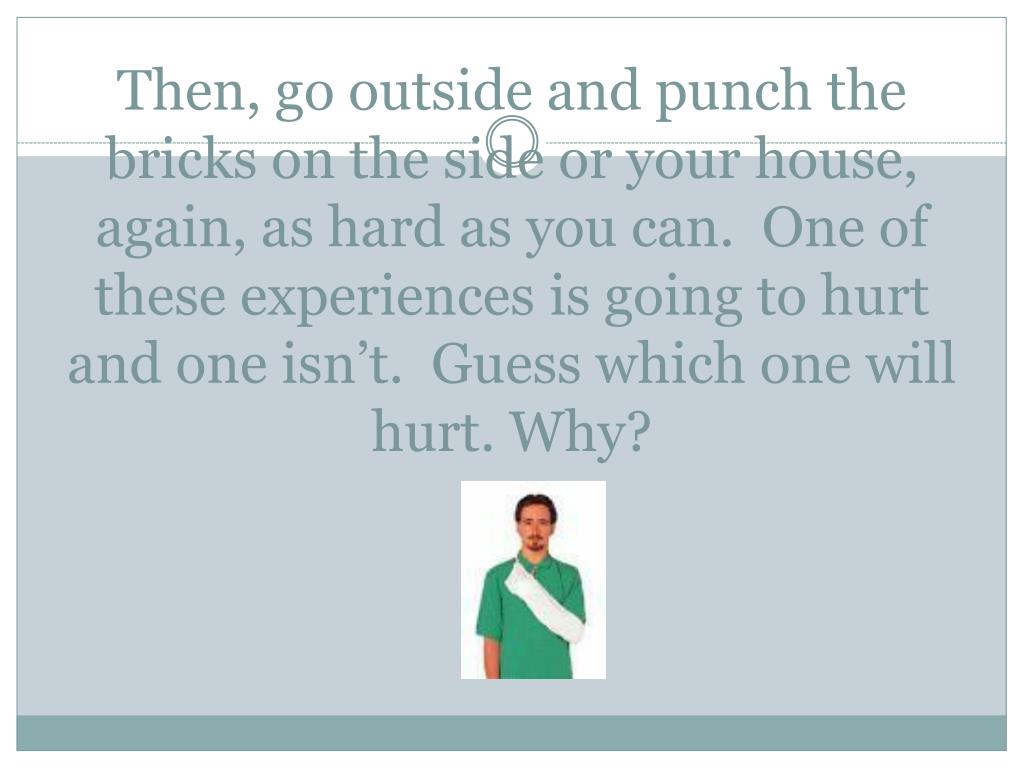

45. Then, go outside and punch the bricks on the side or your house, again, as hard as you can. One of these experiences is going to hurt and one isn’t. Guess which one will hurt. Why?

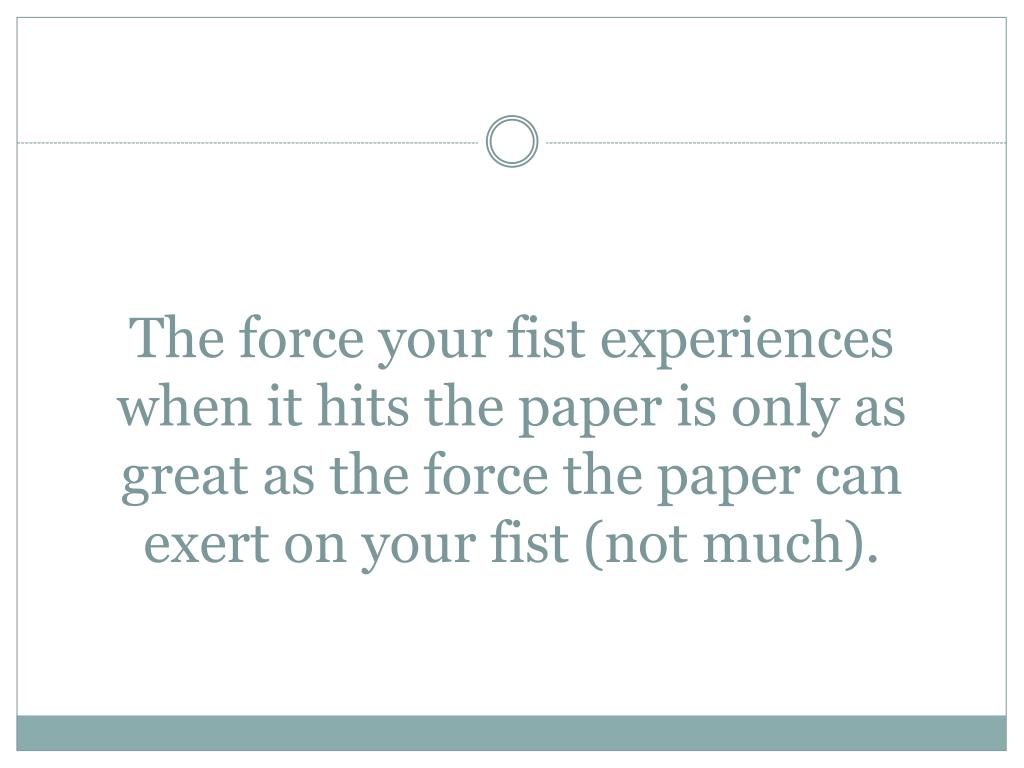

46. The force your fist experiences when it hits the paper is only as great as the force the paper can exert on your fist (not much).

47. Likewise, the force the brick wall exerts on your fist is the same (only in the opposite direction) as the force your fist exerts on the wall. So when you get mad and punch the wall, it gets mad an punches back at you. So be nice.

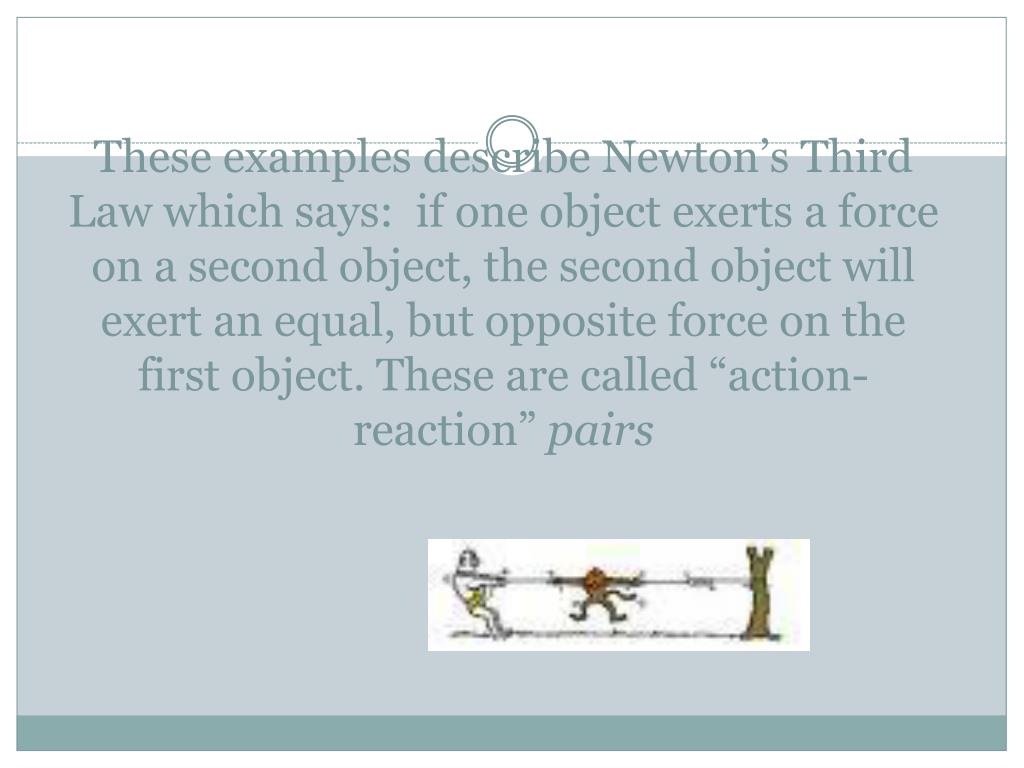

48. These examples describe Newton’s Third Law which says: if one object exerts a force on a second object, the second object will exert an equal, but opposite force on the first object. These are called “action-reaction” pairs

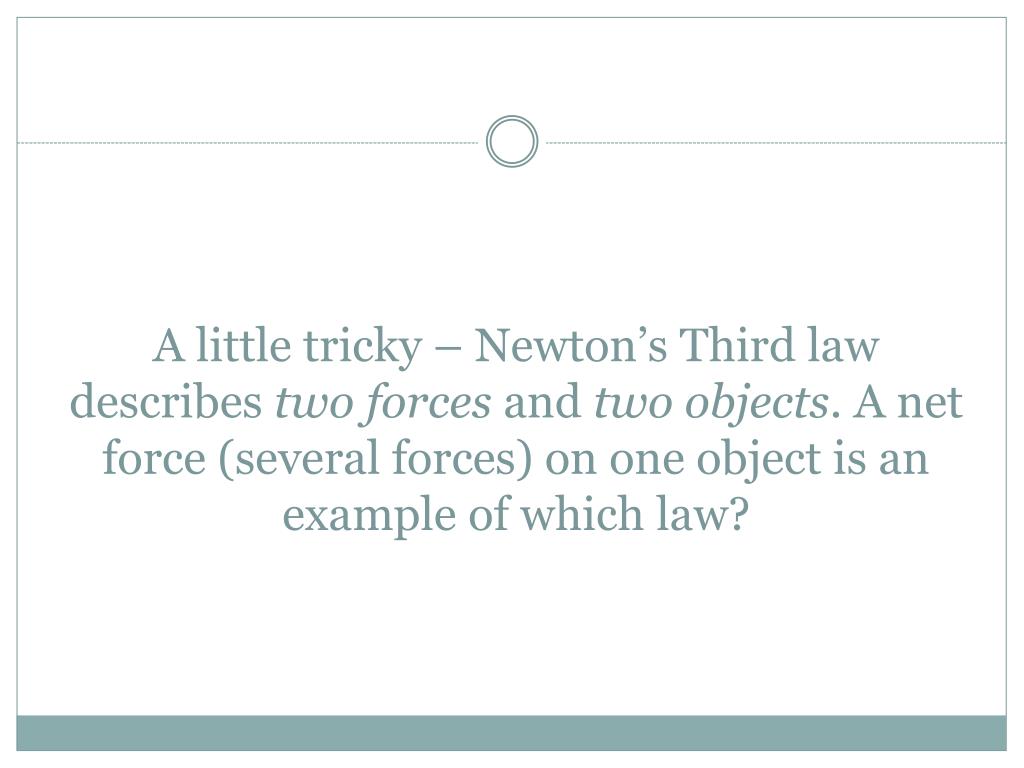

49. A little tricky – Newton’s Third law describes two forces and two objects. A net force (several forces) on one object is an example of which law?

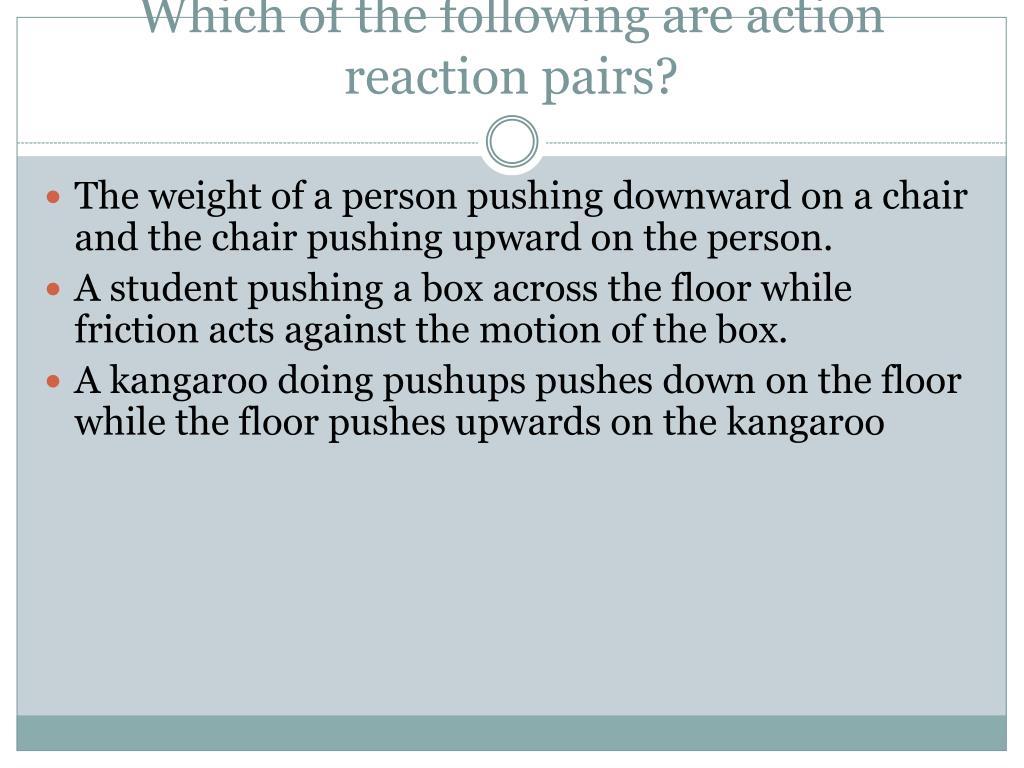

50. Which of the following are action reaction pairs? • The weight of a person pushing downward on a chair and the chair pushing upward on the person. • A student pushing a box across the floor while friction acts against the motion of the box. • A kangaroo doing pushups pushes down on the floor while the floor pushes upwards on the kangaroo
