chapter overview
Chapter 4: BACKING UP AND RESTORING DATACHAPTER OVERVIEW
  • Describe the various types of hardware used to perform backups.
  • Understand the difference between full, incremental, and differential backup jobs.
  • List the capabilities of the Windows Server 2003 Backup program.
  • Back up and restore an Active Directory database.
  • Use volume shadow copies.
backing up data
Chapter 4: BACKING UP AND RESTORING DATABACKING UP DATA
  • Why do we back up data?
  • Why do we need to back up data?
backup solution
Chapter 4: BACKING UP AND RESTORING DATABACKUP SOLUTION
  • Backup hardware
  • Backup medium
  • Backup software
  • Data to be backed up
cd rom and dvd rom

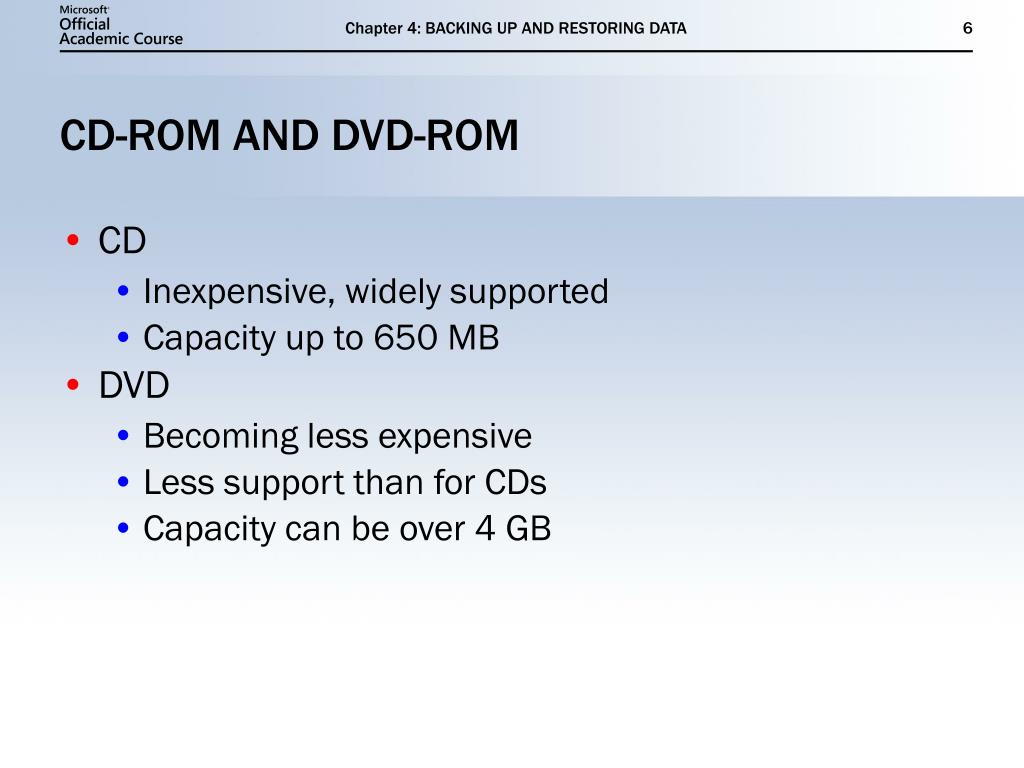

Chapter 4: BACKING UP AND RESTORING DATACD-ROM AND DVD-ROM
  • CD
    • Inexpensive, widely supported
    • Capacity up to 650 MB
  • DVD
    • Becoming less expensive
    • Less support than for CDs
    • Capacity can be over 4 GB
cartridge drives
Chapter 4: BACKING UP AND RESTORING DATACARTRIDGE DRIVES
  • Proprietary technology
  • Zip (Up to 750-MB capacity)
  • Jaz (2-GB capacity)
magnetic tape drives

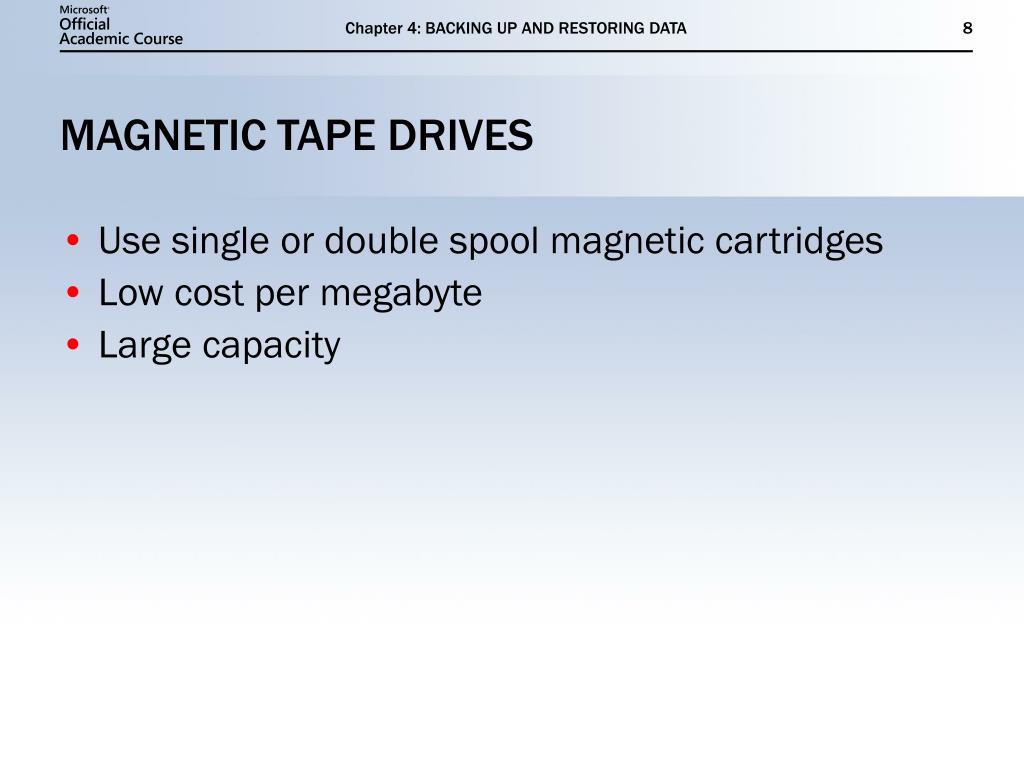

Chapter 4: BACKING UP AND RESTORING DATAMAGNETIC TAPE DRIVES
  • Use single or double spool magnetic cartridges
  • Low cost per megabyte
  • Large capacity
autochangers
Chapter 4: BACKING UP AND RESTORING DATAAUTOCHANGERS
  • Reduce the need for manual intervention in backups
  • Allow you to back up more data
  • Preserves investment in media
selecting a drive interface

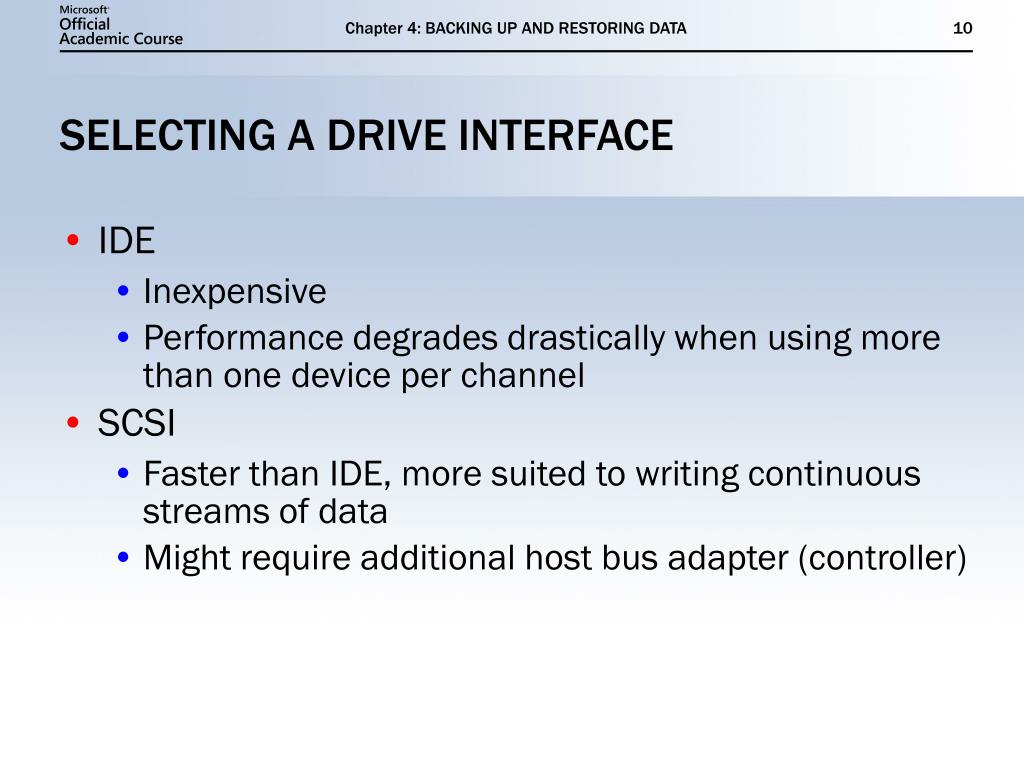

Chapter 4: BACKING UP AND RESTORING DATASELECTING A DRIVE INTERFACE
  • IDE
    • Inexpensive
    • Performance degrades drastically when using more than one device per channel
  • SCSI
    • Faster than IDE, more suited to writing continuous streams of data
    • Might require additional host bus adapter (controller)
backup software

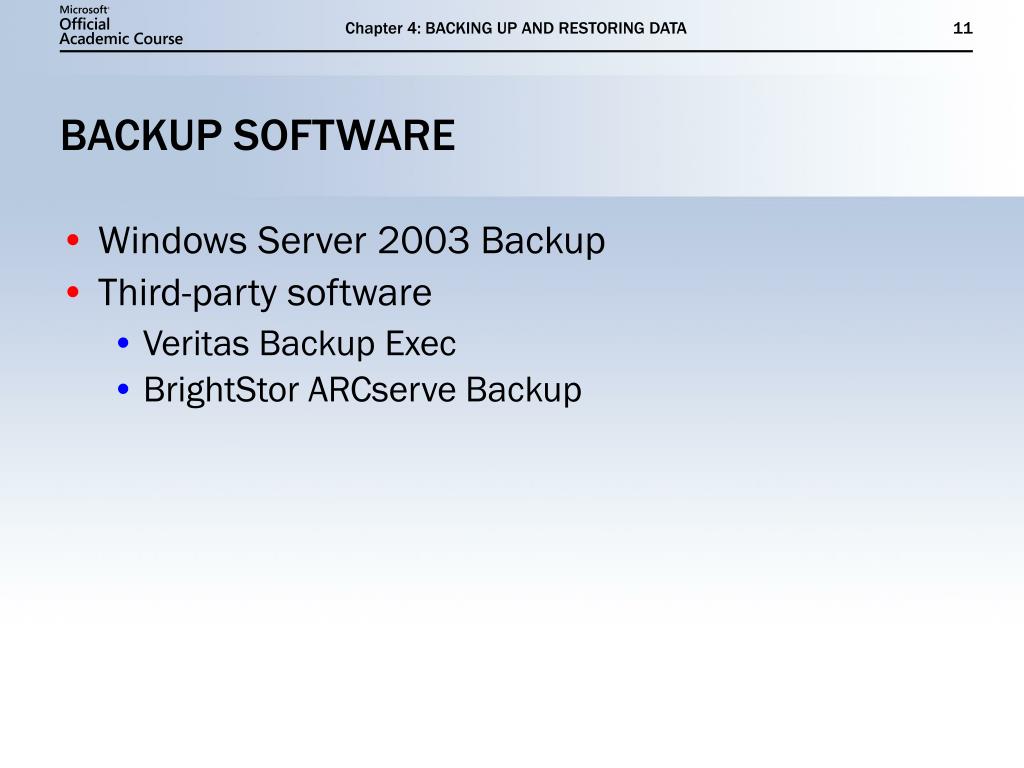

Chapter 4: BACKING UP AND RESTORING DATABACKUP SOFTWARE
  • Windows Server 2003 Backup
  • Third-party software
    • Veritas Backup Exec
    • BrightStor ARCserve Backup
target selection
Chapter 4: BACKING UP AND RESTORING DATATARGET SELECTION
  • Anything that is to be backed up is considered a backup target, including:
    • Single file or folder
    • Entire drive
    • Entire system
    • Another system on the network
using filters
Chapter 4: BACKING UP AND RESTORING DATAUSING FILTERS
  • Filter on file creation date/time, size, or type
  • Allows you to perform customized backups
  • Can reduce the time needed to back up and the amount of media required
backup job types normal
Chapter 4: BACKING UP AND RESTORING DATABACKUP JOB TYPES: NORMAL
  • Backs up all files
  • Clears the archive bit
  • Can require large data storage capacity
backup job types incremental
Chapter 4: BACKING UP AND RESTORING DATABACKUP JOB TYPES: INCREMENTAL
  • Backs up only files that have been modified or created since the last full or incremental backup
  • Clears the archive bit
  • Can require considerably less storage space than a normal backup
  • Faster to backup than differential, longer restore
backup job types differential

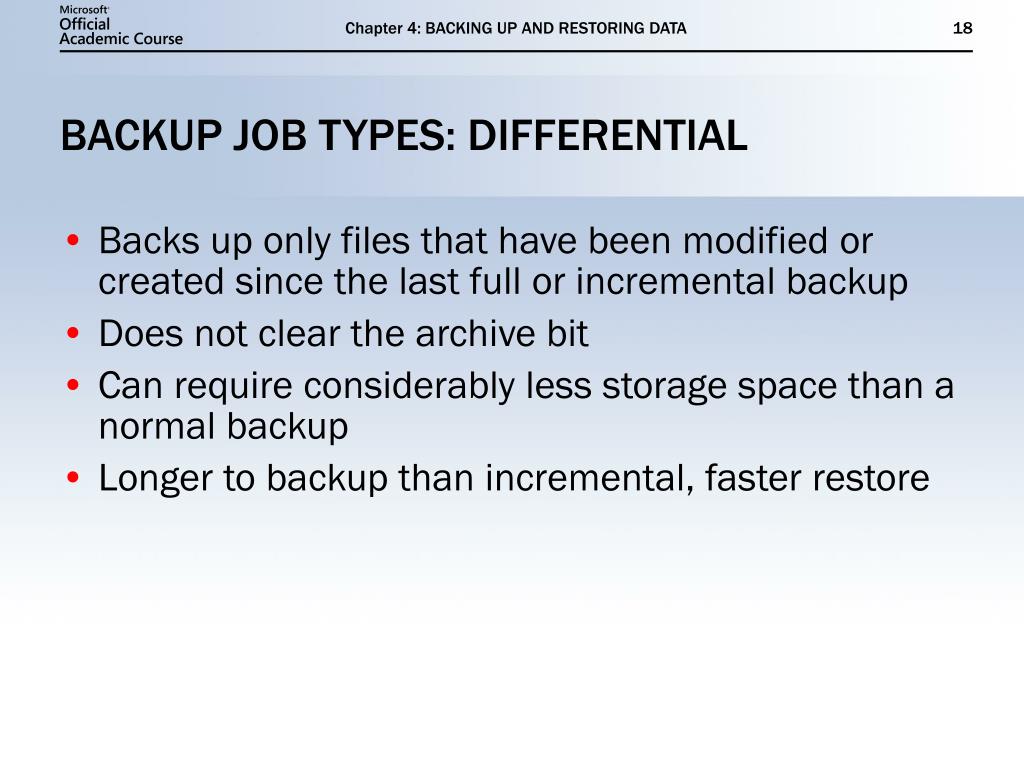

Chapter 4: BACKING UP AND RESTORING DATABACKUP JOB TYPES: DIFFERENTIAL
  • Backs up only files that have been modified or created since the last full or incremental backup
  • Does not clear the archive bit
  • Can require considerably less storage space than a normal backup
  • Longer to backup than incremental, faster restore
copy jobs and daily jobs

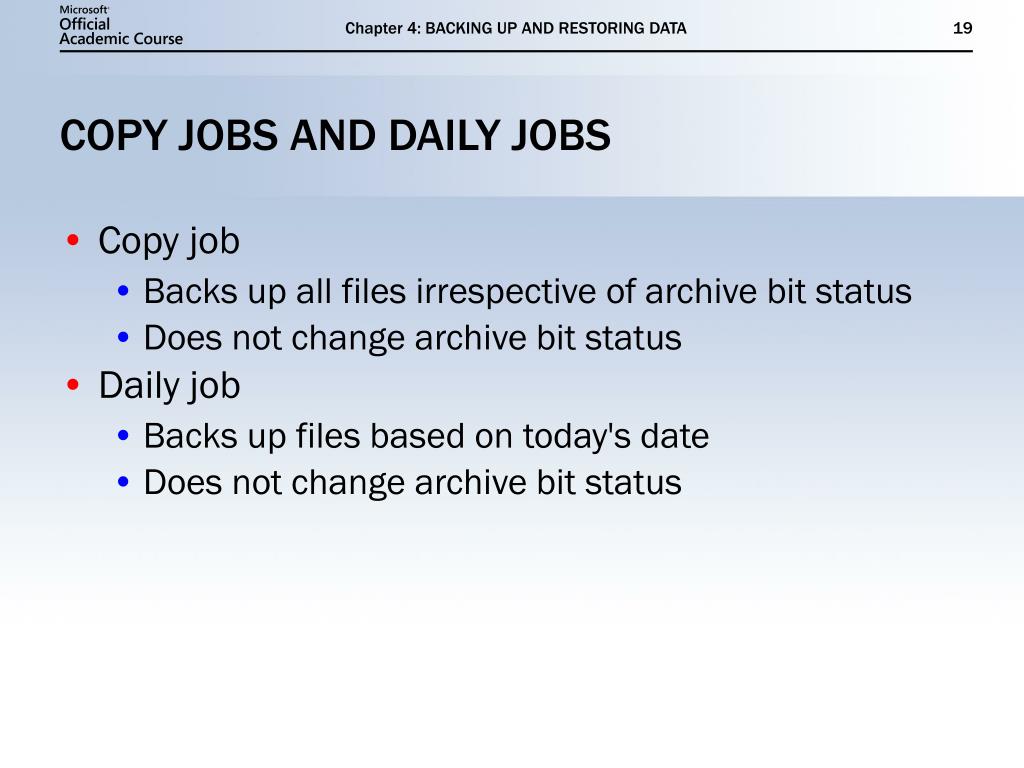

Chapter 4: BACKING UP AND RESTORING DATACOPY JOBS AND DAILY JOBS
  • Copy job
    • Backs up all files irrespective of archive bit status
    • Does not change archive bit status
  • Daily job
    • Backs up files based on today's date
    • Does not change archive bit status
job scheduling
Chapter 4: BACKING UP AND RESTORING DATAJOB SCHEDULING
  • Allows backups to be performed during off-hours
  • Reduces potential for administrative error
maintaining backup logs

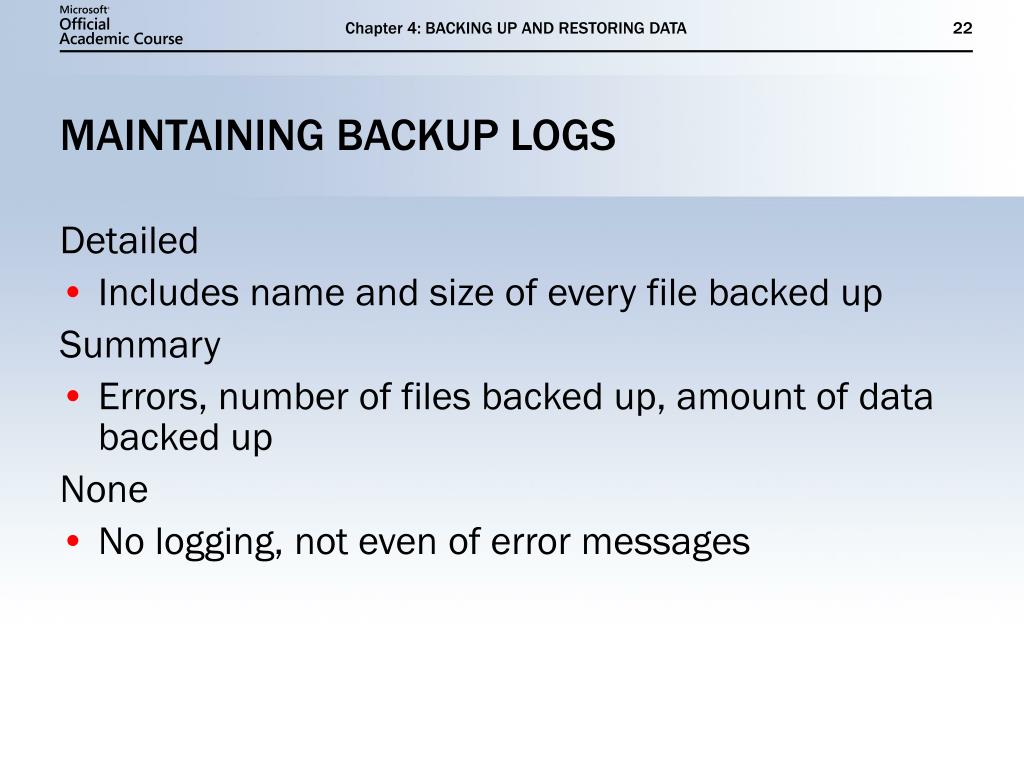

Chapter 4: BACKING UP AND RESTORING DATAMAINTAINING BACKUP LOGS

Detailed

  • Includes name and size of every file backed up

Summary

  • Errors, number of files backed up, amount of data backed up

None

  • No logging, not even of error messages
cataloging

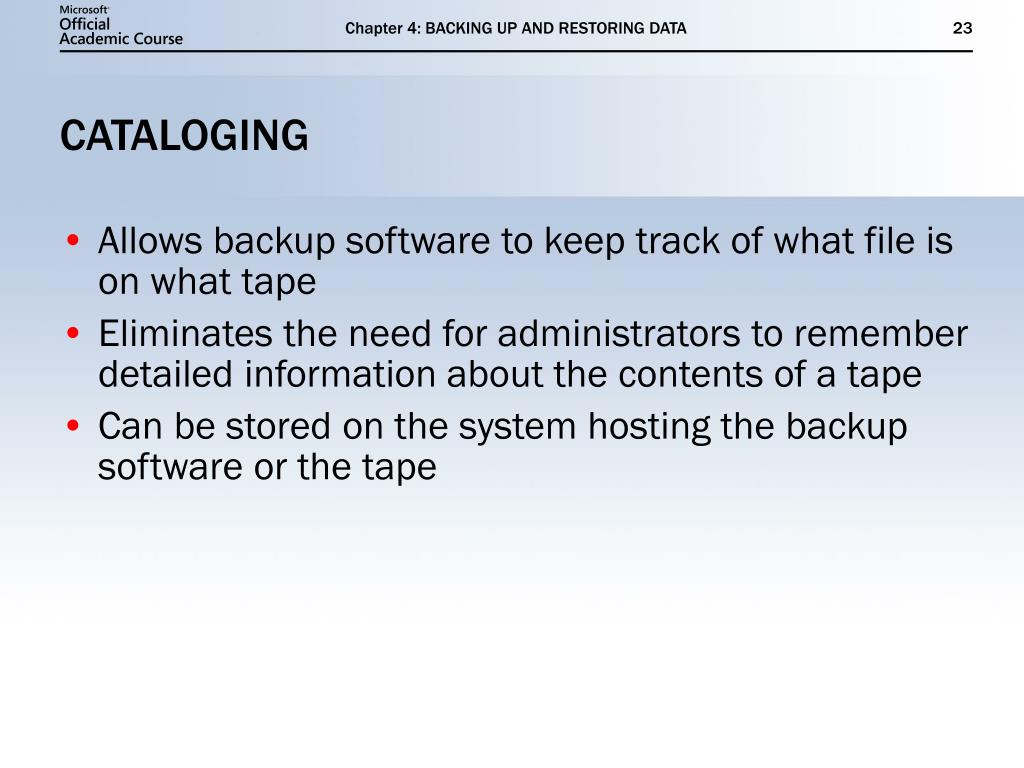

Chapter 4: BACKING UP AND RESTORING DATACATALOGING
  • Allows backup software to keep track of what file is on what tape
  • Eliminates the need for administrators to remember detailed information about the contents of a tape
  • Can be stored on the system hosting the backup software or the tape
media rotation

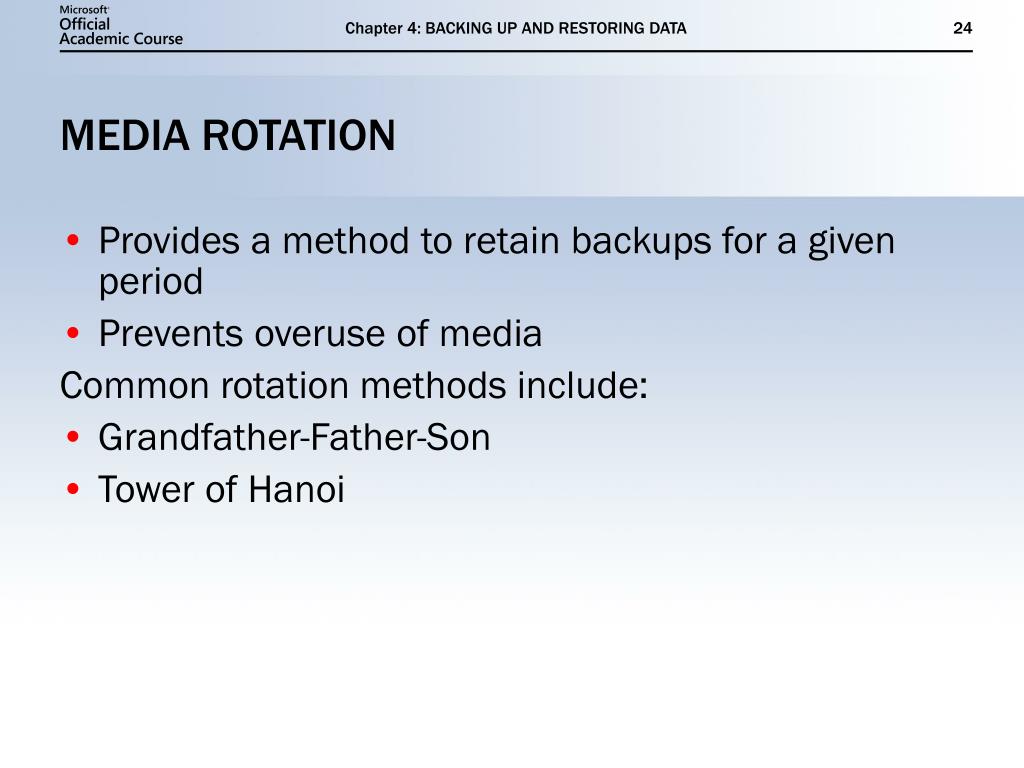

Chapter 4: BACKING UP AND RESTORING DATAMEDIA ROTATION
  • Provides a method to retain backups for a given period
  • Prevents overuse of media

Common rotation methods include:

  • Grandfather-Father-Son
  • Tower of Hanoi
device configuration

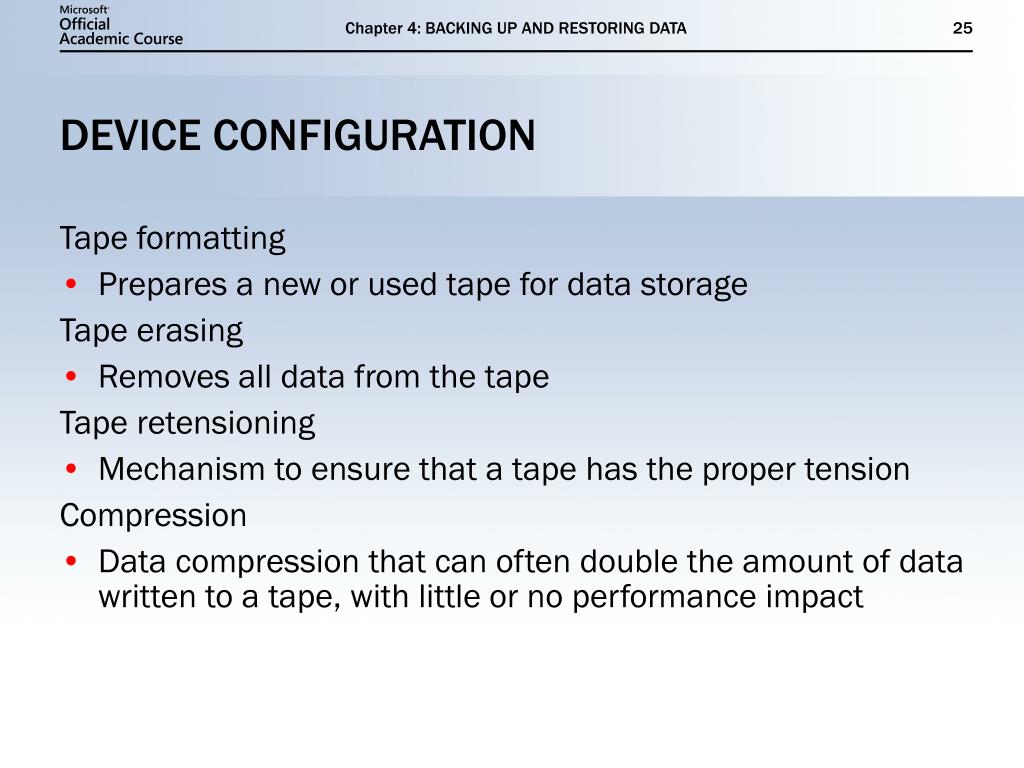

Chapter 4: BACKING UP AND RESTORING DATADEVICE CONFIGURATION

Tape formatting

  • Prepares a new or used tape for data storage

Tape erasing

  • Removes all data from the tape

Tape retensioning

  • Mechanism to ensure that a tape has the proper tension

Compression

  • Data compression that can often double the amount of data written to a tape, with little or no performance impact
performing restores

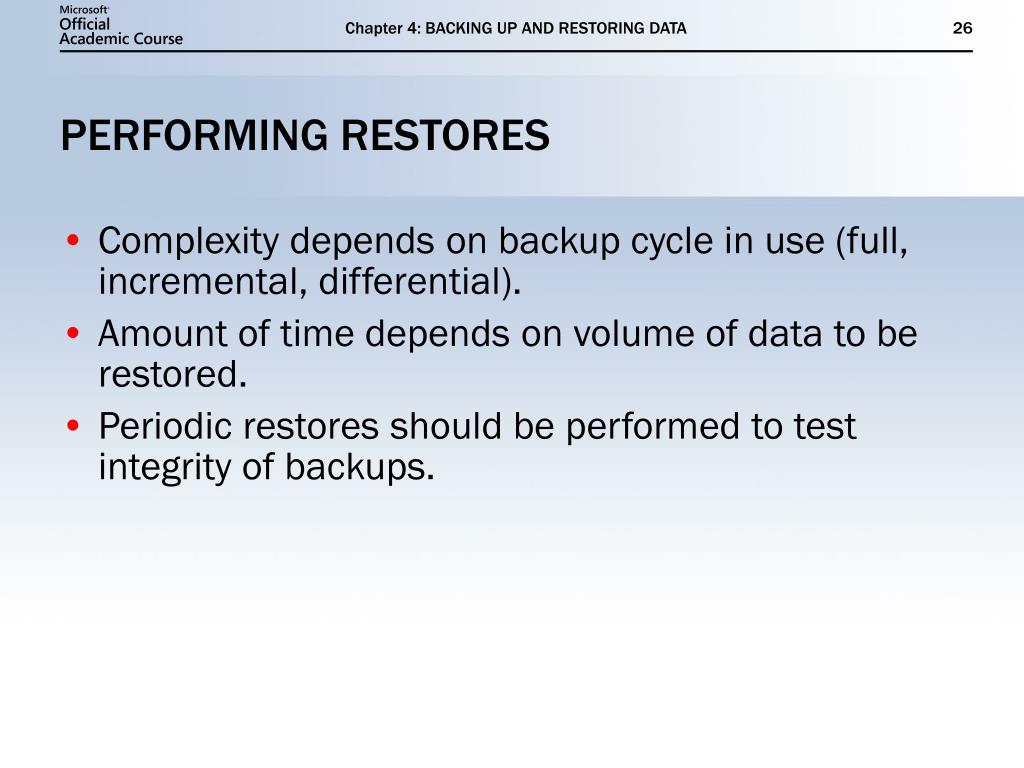

Chapter 4: BACKING UP AND RESTORING DATAPERFORMING RESTORES
  • Complexity depends on backup cycle in use (full, incremental, differential).
  • Amount of time depends on volume of data to be restored.
  • Periodic restores should be performed to test integrity of backups.
restoring full backups
Chapter 4: BACKING UP AND RESTORING DATARESTORING FULL BACKUPS
  • Easiest of all backup methods to restore
  • Restores latest full backup
restoring full and incremental backups
Chapter 4: BACKING UP AND RESTORING DATARESTORING FULL AND INCREMENTAL BACKUPS
  • Restores the latest full backup
  • Restores incremental backups from oldest to most recent
  • Number of restore steps depends on the time since the last full backup
restoring full and differential backups

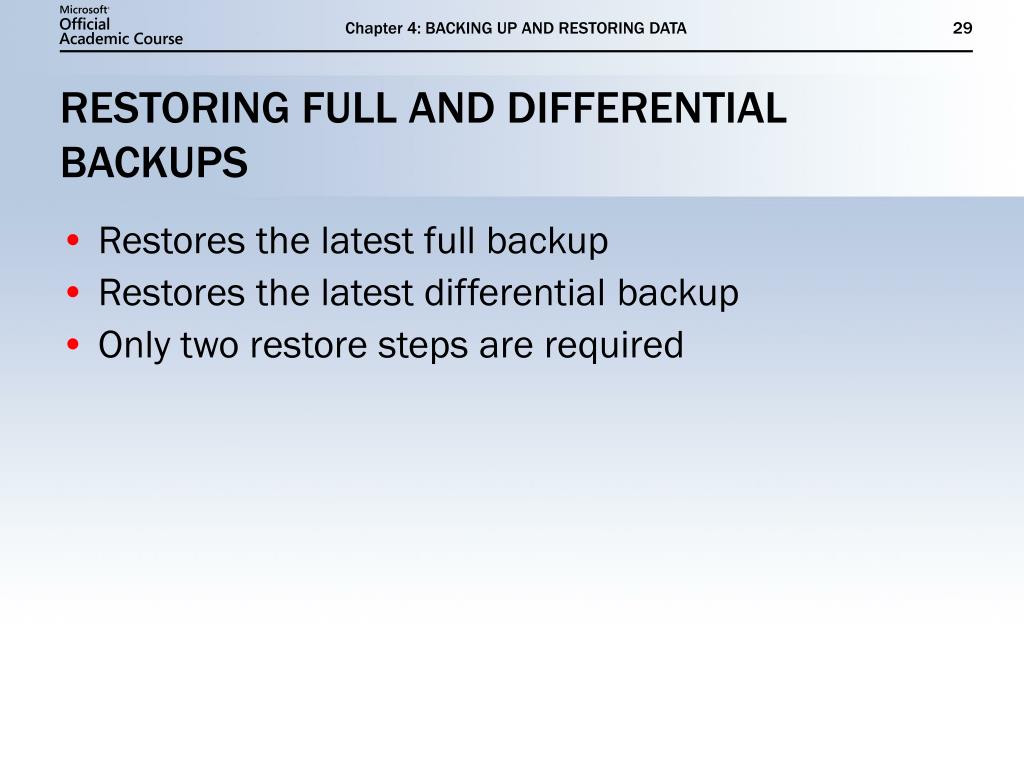

Chapter 4: BACKING UP AND RESTORING DATARESTORING FULL AND DIFFERENTIAL BACKUPS
  • Restores the latest full backup
  • Restores the latest differential backup
  • Only two restore steps are required
backup security

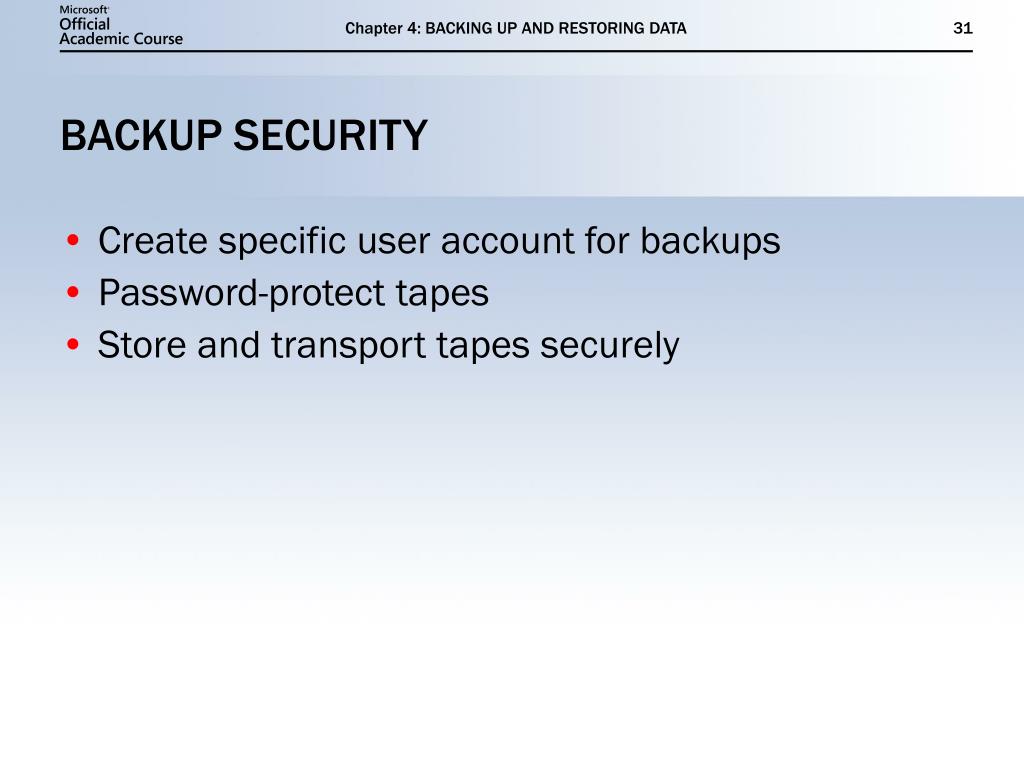

Chapter 4: BACKING UP AND RESTORING DATABACKUP SECURITY
  • Create specific user account for backups
  • Password-protect tapes
  • Store and transport tapes securely
volume shadow copy

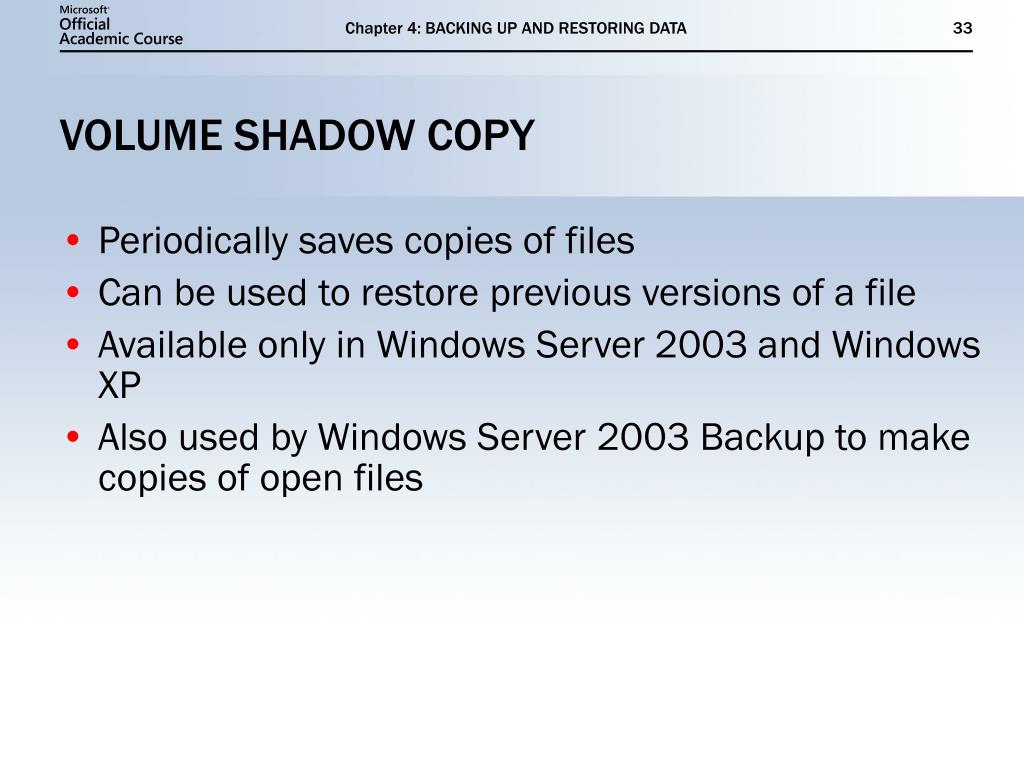

Chapter 4: BACKING UP AND RESTORING DATAVOLUME SHADOW COPY
  • Periodically saves copies of files
  • Can be used to restore previous versions of a file
  • Available only in Windows Server 2003 and Windows XP
  • Also used by Windows Server 2003 Backup to make copies of open files
restoring active directory

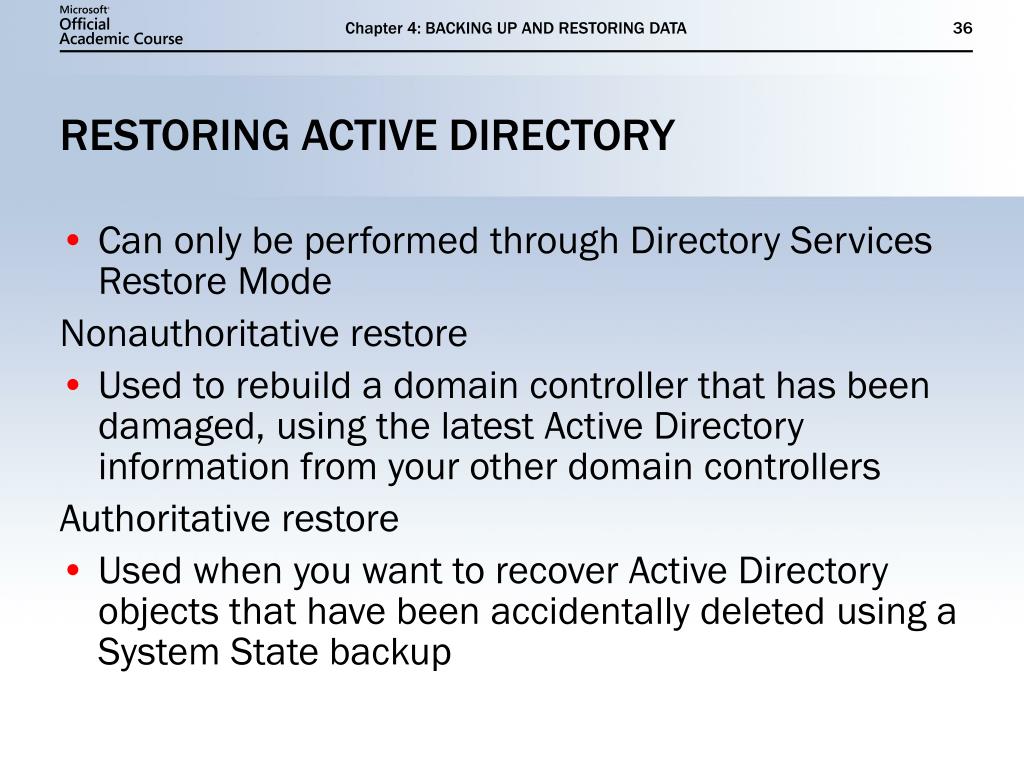

Chapter 4: BACKING UP AND RESTORING DATARESTORING ACTIVE DIRECTORY
  • Can only be performed through Directory Services Restore Mode

Nonauthoritative restore

  • Used to rebuild a domain controller that has been damaged, using the latest Active Directory information from your other domain controllers

Authoritative restore

  • Used when you want to recover Active Directory objects that have been accidentally deleted using a System State backup
summary

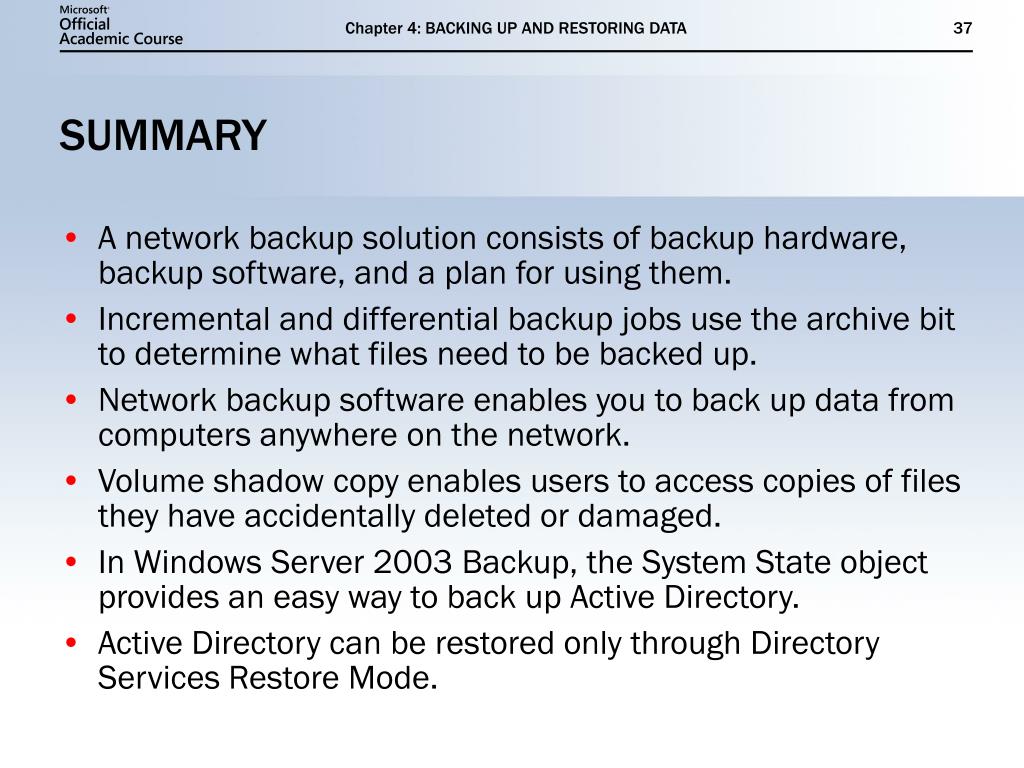

Chapter 4: BACKING UP AND RESTORING DATASUMMARY
  • A network backup solution consists of backup hardware, backup software, and a plan for using them.
  • Incremental and differential backup jobs use the archive bit to determine what files need to be backed up.
  • Network backup software enables you to back up data from computers anywhere on the network.
  • Volume shadow copy enables users to access copies of files they have accidentally deleted or damaged.
  • In Windows Server 2003 Backup, the System State object provides an easy way to back up Active Directory.
  • Active Directory can be restored only through Directory Services Restore Mode.
