crescando predictable performance for unpredictable workloads

Crescando: Predictable Performance forUnpredictableWorkloads

G. Alonso, D. Fauser, G. Giannikis, D. Kossmann, J. Meyer, P. Unterbrunner

Amadeus S.A.

ETH Zurich, Systems Group

(Fundedby Enterprise Computing Center)

overview
Overview
  • Background & Problem Statement
  • Approach
  • Experiments & Results
amadeus workload
Amadeus Workload
  • Passenger-Booking Database
    • ~ 600 GB of rawdata (twoyears of bookings)
    • singletable, denormalized
    • ~ 50 attributes: flight-no, name, date, ..., manyflags
  • Query Workload
    • up to 4000 queries / second
    • latencyguarantees: 2 seconds
    • today: onlypre-cannedqueriesallowed
  • Update Workload
    • avg. 600 updates per second (1 update per GB per sec)
    • peak of 12000 updates per second
    • datafreshnessguarantee: 2 seconds
amadeus query examples
Amadeus Query Examples
  • Simple Queries
    • Printpassenger list of Flight LH 4711
    • Giveme LH honcirclefrom Frankfurt to Delhi
  • ComplexQueries
    • Giveme all Heathrow passengersthatneedspecialassistance (e.g., afterterrorwarning)
  • Problems withState-of-the Art
    • Simple queriesworkonlybecause of mat. views
      • multi-monthproject to implementnewquery / process
    • Complexqueries do notwork at all

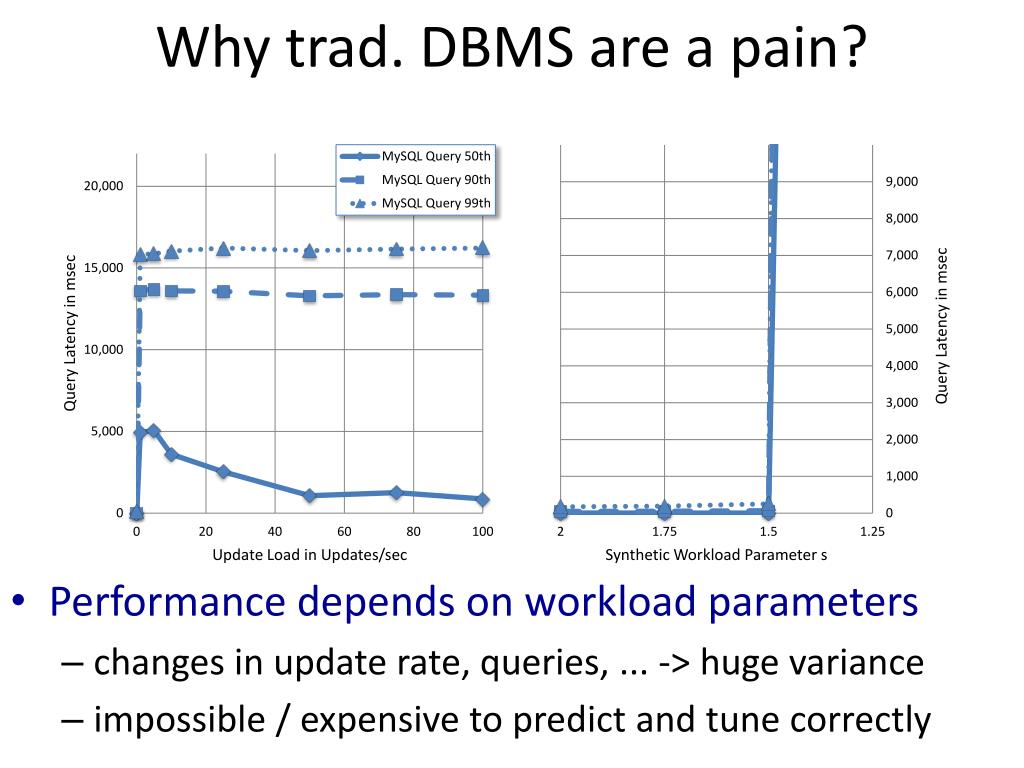

why trad dbms are a pain
Why trad. DBMS are a pain?
  • Performance depends on workloadparameters
    • changes in update rate, queries, ... -> hugevariance
    • impossible / expensive to predict and tune correctly
goals
Goals
  • Predictable (= constant) Performance
    • independent of updates, querytypes, ...
  • MeetSLAs
    • latency, datafreshness
  • AffordableCost
    • ~ 1000 COTS machinesare okay
    • (compare to mainframe)
  • MeetConsistencyRequirements
    • monotonicreads (ACID notneeded)
  • Respect Hardware Trends
    • main-memory, NUMA, large datacenters

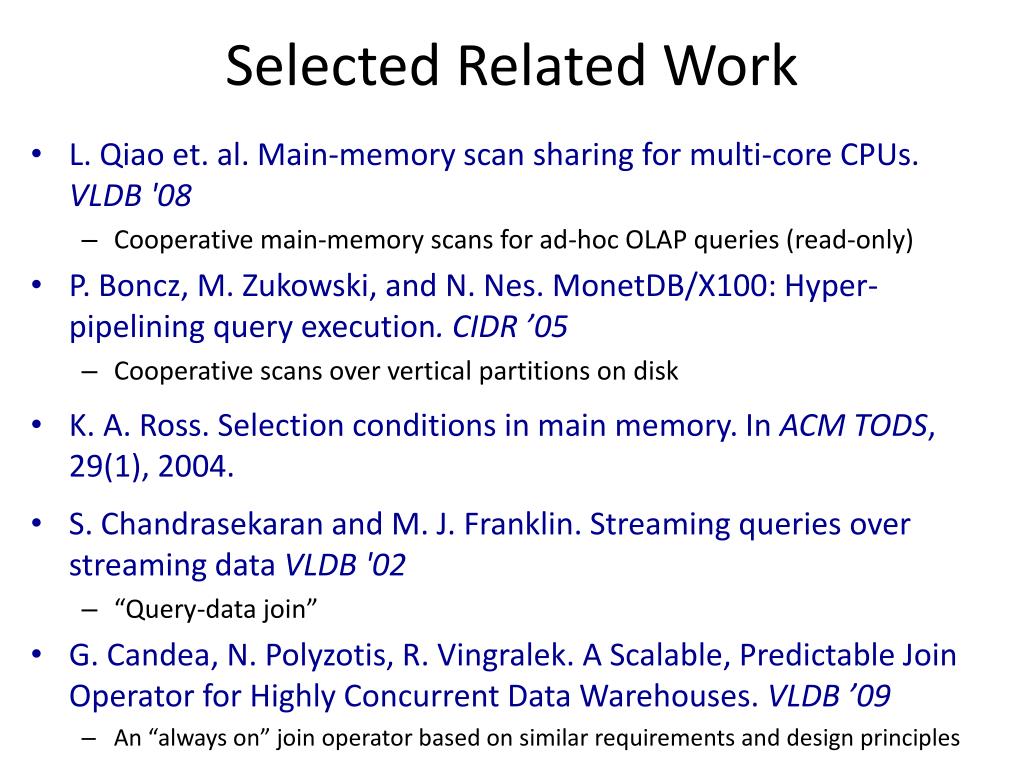

selected related work
SelectedRelatedWork
  • L. Qiao et. al. Main-memory scan sharing for multi-core CPUs. VLDB '08
    • Cooperative main-memory scans for ad-hoc OLAP queries (read-only)
  • P. Boncz, M. Zukowski, and N. Nes. MonetDB/X100: Hyper-pipelining query execution. CIDR ’05
    • Cooperative scans over vertical partitions on disk
  • K. A. Ross. Selection conditions in main memory. In ACM TODS, 29(1), 2004.
  • S. Chandrasekaran and M. J. Franklin. Streaming queries over streaming data VLDB '02
    • “Query-data join”
  • G. Candea, N. Polyzotis, R. Vingralek. A Scalable, Predictable Join Operator for Highly Concurrent Data Warehouses. VLDB ’09
    • An “always on” join operator based on similar requirements and design principles

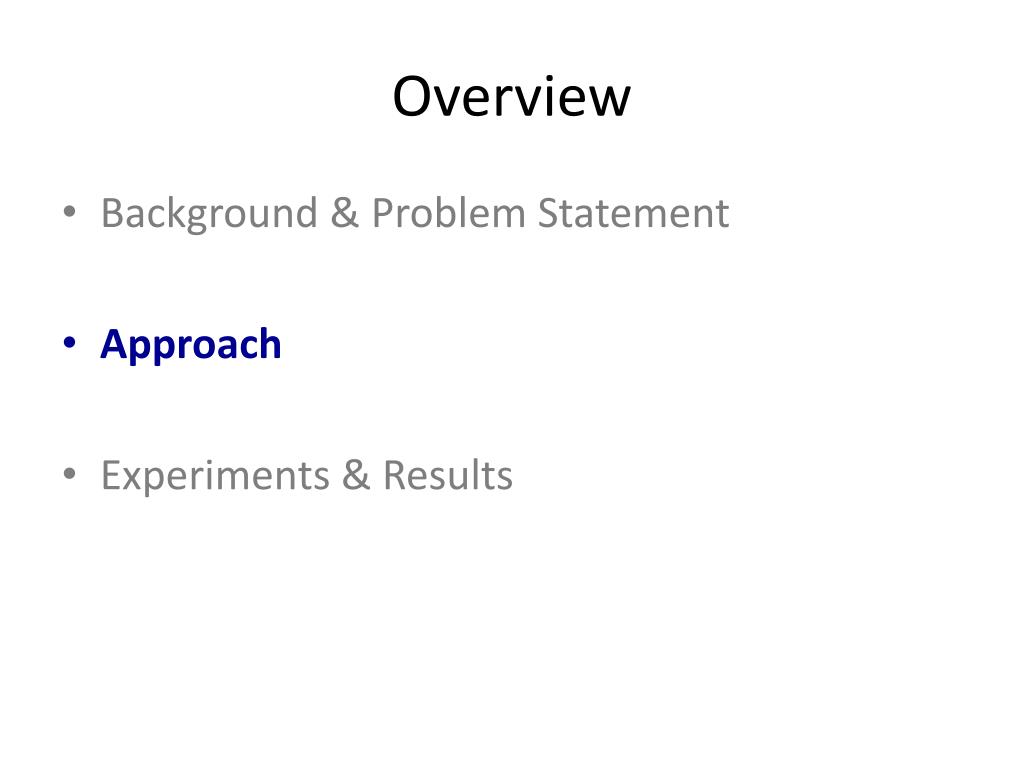

overview1
Overview
  • Background & Problem Statement
  • Approach
  • Experiments & Results

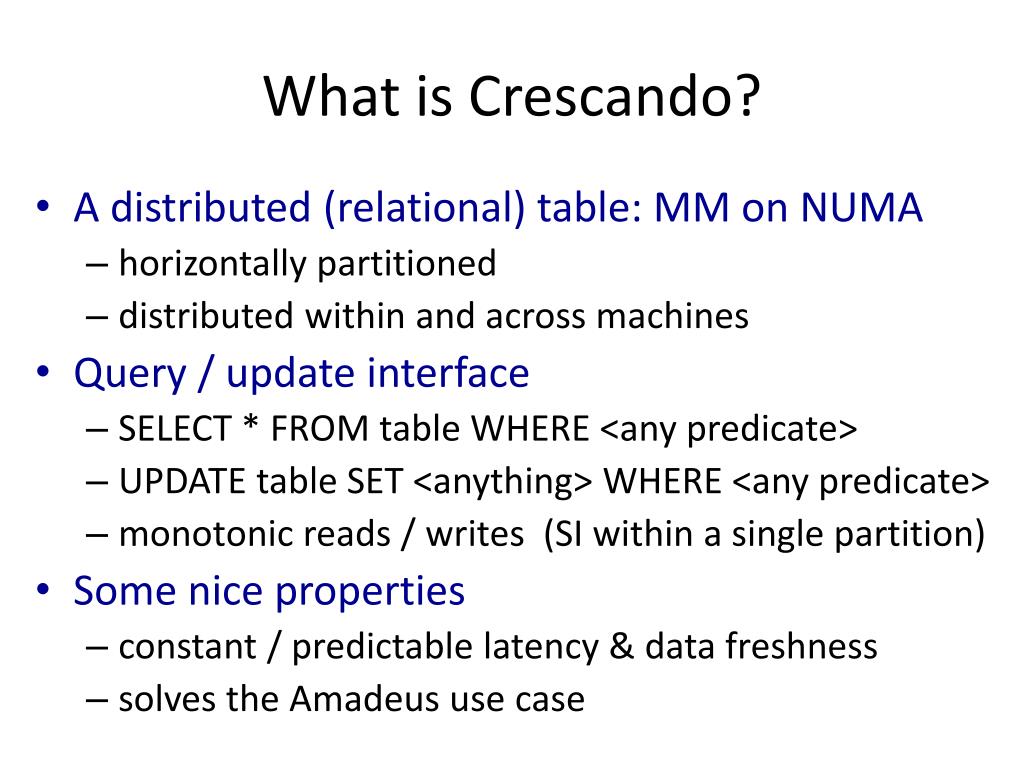

what is crescando
WhatisCrescando?
  • A distributed (relational) table: MM on NUMA
    • horizontallypartitioned
    • distributedwithin and acrossmachines
  • Query / update interface
    • SELECT * FROM table WHERE <anypredicate>
    • UPDATE table SET <anything> WHERE <anypredicate>
    • monotonicreads / writes (SI within a singlepartition)
  • Someniceproperties
    • constant / predictablelatency & datafreshness
    • solvesthe Amadeus usecase

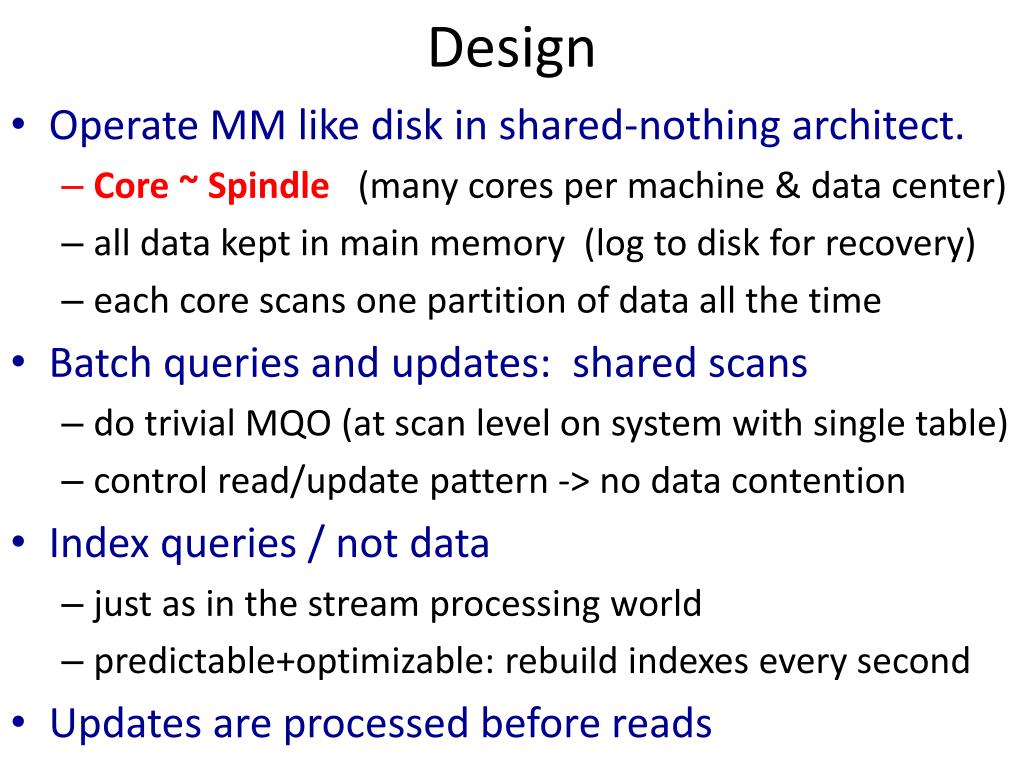

design
Design
  • Operate MM likedisk in shared-nothingarchitect.
    • Core ~ Spindle(manycores per machine & datacenter)
    • all datakept in mainmemory (log to diskforrecovery)
    • eachcorescansonepartition of data all the time
  • Batchqueries and updates: sharedscans
    • do trivial MQO (at scanlevel on systemwithsingletable)
    • controlread/updatepattern -> no datacontention
  • Index queries / notdata
    • just as in thestreamprocessingworld
    • predictable+optimizable: rebuildindexesevery second
  • Updates areprocessedbeforereads
slide13

{record, {query-ids} }

results

Queries + Upd.

records

Crescando on 1 Core

datapartition

slide16

Scanning a Partition

Build indexes

for next batch of

queries and updates

Merge

cursors

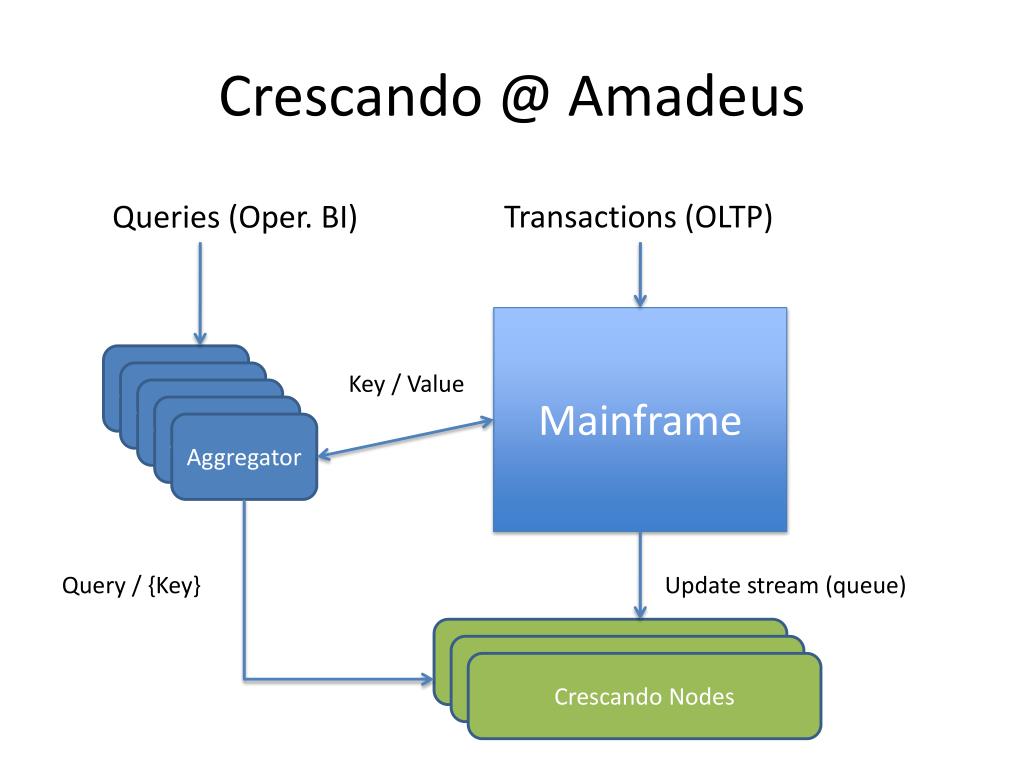

crescando @ amadeus
Crescando @ Amadeus

Transactions (OLTP)

Queries (Oper. BI)

Mainframe

Aggregator

Aggregator

Key / Value

Aggregator

Aggregator

Aggregator

Query / {Key}

Update stream (queue)

Store (e.g., S3)

Store (e.g., S3)

CrescandoNodes

implementation details
Implementation Details
  • Optimization
    • decideforbatch of querieswhichindexes to build
    • runsonceevery second (mustbe fast)
  • Query + update indexes
    • different indexesfor different kinds of predicates
    • e.g., hashtables, R-trees, tries, ...
    • must fit in L2 cache (better L1 cache)
  • Probe indexes
    • Updates in right order, queries in any order
  • Persistence & Recovery
    • Log updates / inserts to disk (not a bottleneck)

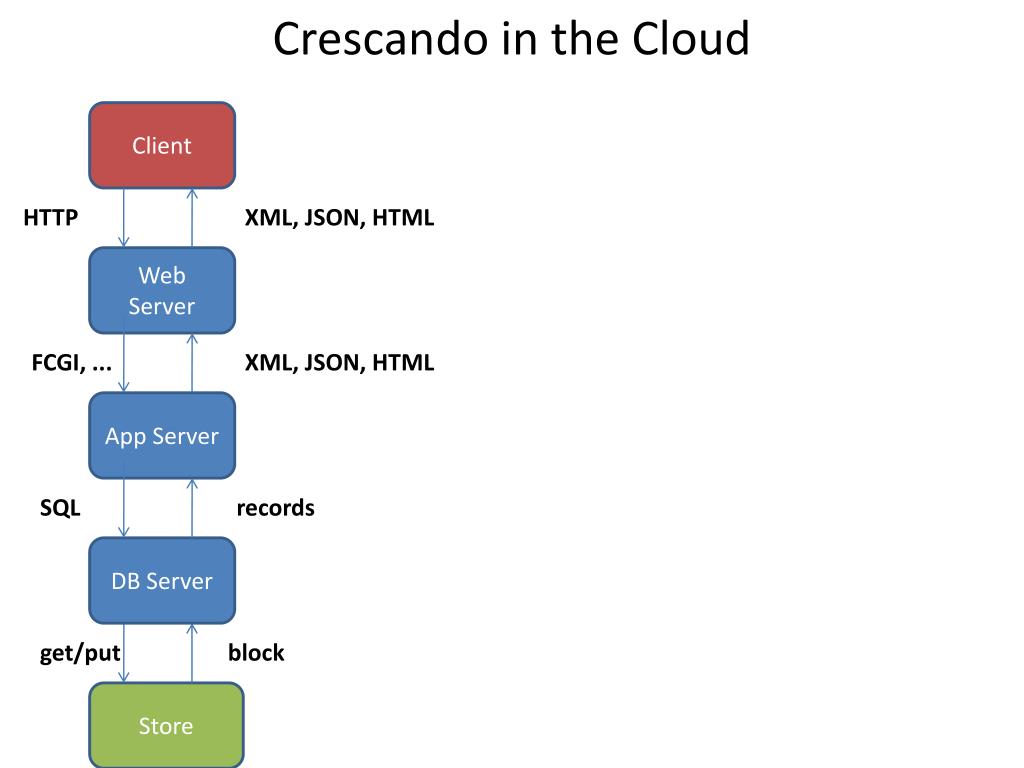

crescando in the cloud
Crescando in the Cloud

Client

HTTP

XML, JSON, HTML

Web Server

FCGI, ...

XML, JSON, HTML

App Server

SQL

records

DB Server

get/put

block

Store

crescando in the cloud1
Crescando in the Cloud

Client

Client

Client

Client

HTTP

XML, JSON, HTML

Web Server

Workload Splitter

XML, JSON, HTML

FCGI, ...

XML, JSON, HTML

Web/AppAggregator

Web/AppAggregator

App Server

queries/updates <-> records

SQL

records

Store (e.g., S3)

Store (e.g., S3)

CrescandoNodes

DB Server

get/put

block

Store

overview2
Overview
  • Background & Problem Statement
  • Approach
  • Experiments & Results

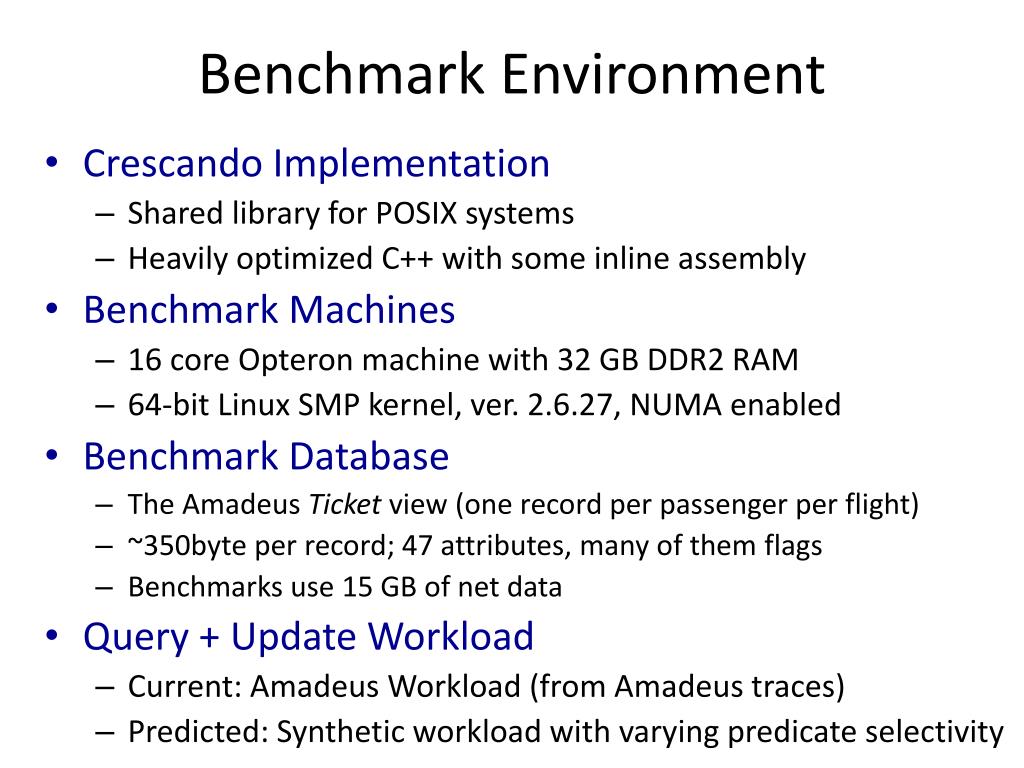

benchmark environment
Benchmark Environment
  • Crescando Implementation
    • Shared library for POSIX systems
    • Heavily optimized C++ with some inline assembly
  • Benchmark Machines
    • 16 core Opteron machine with 32 GB DDR2 RAM
    • 64-bit Linux SMP kernel, ver. 2.6.27, NUMA enabled
  • Benchmark Database
    • The Amadeus Ticket view (one record per passenger per flight)
    • ~350byte per record; 47 attributes, many of them flags
    • Benchmarks use 15 GB of net data
  • Query + Update Workload
    • Current: Amadeus Workload (from Amadeus traces)
    • Predicted: Synthetic workload with varying predicate selectivity

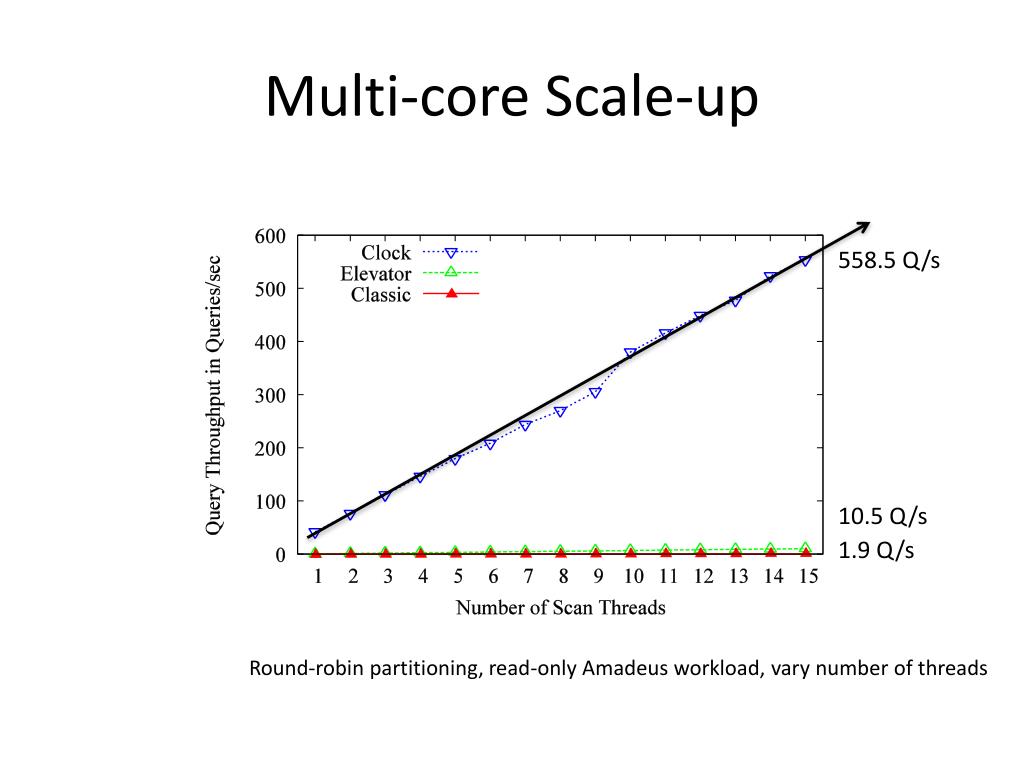

multi core scale up
Multi-core Scale-up

558.5 Q/s

10.5 Q/s

1.9 Q/s

Round-robin partitioning, read-only Amadeus workload, vary number of threads

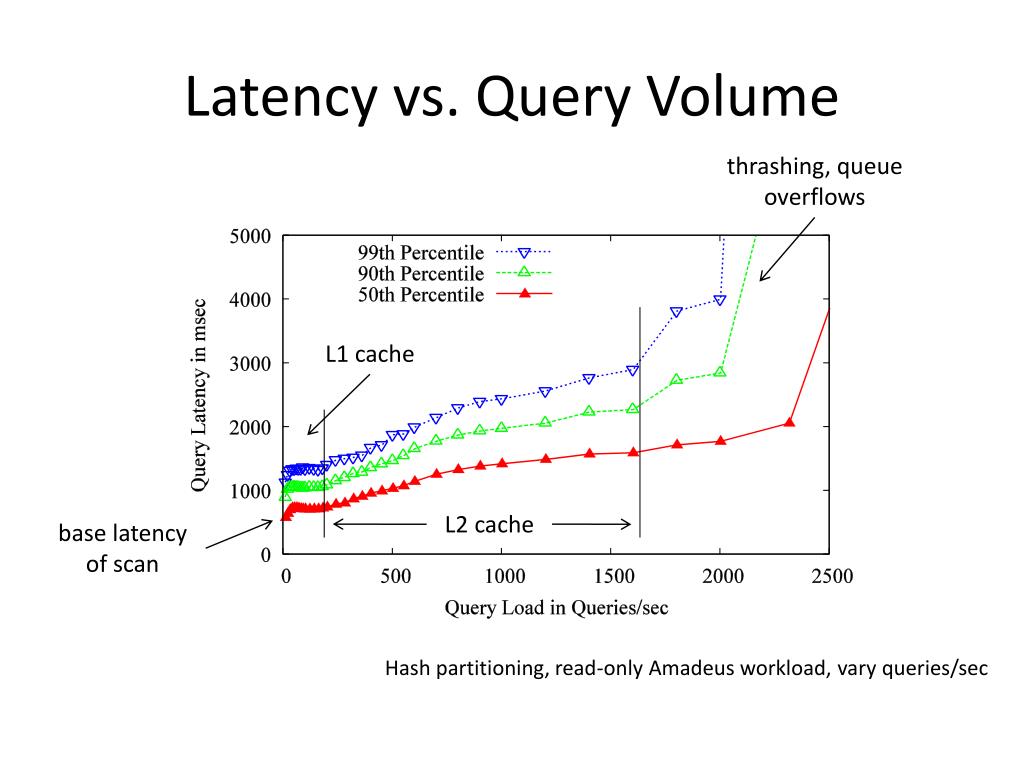

latency vs query volume
Latency vs. Query Volume

thrashing, queueoverflows

L1 cache

L2 cache

base latencyof scan

Hash partitioning, read-only Amadeus workload, vary queries/sec

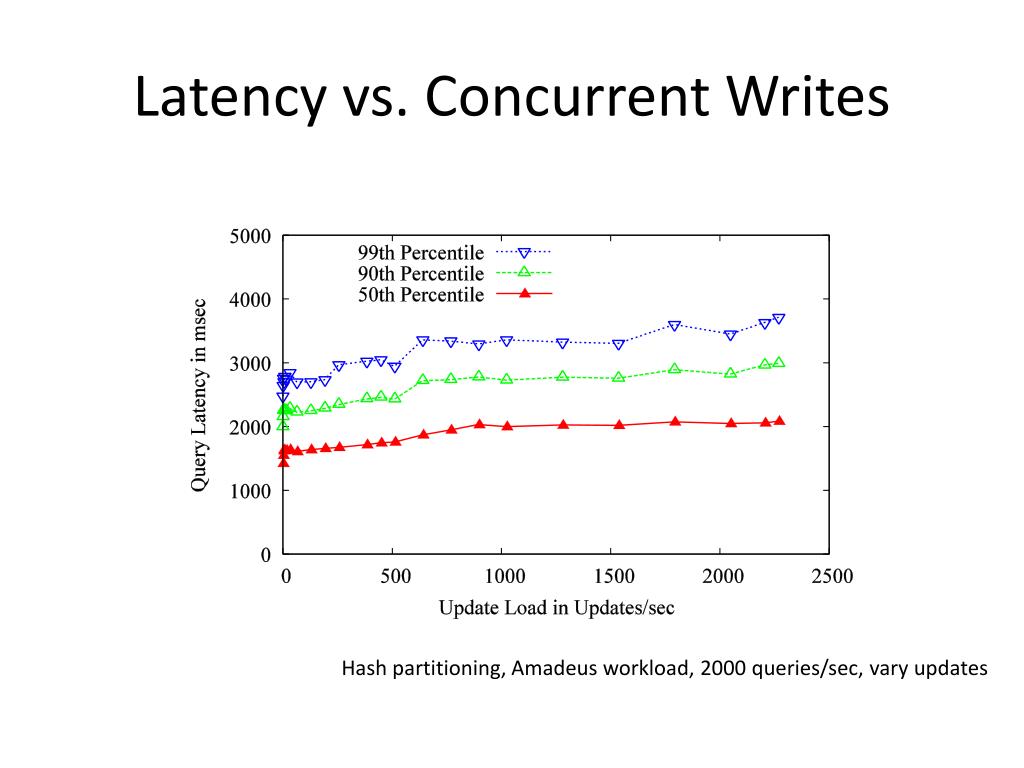

latency vs concurrent writes
Latency vs. Concurrent Writes

Hash partitioning, Amadeus workload, 2000 queries/sec, vary updates

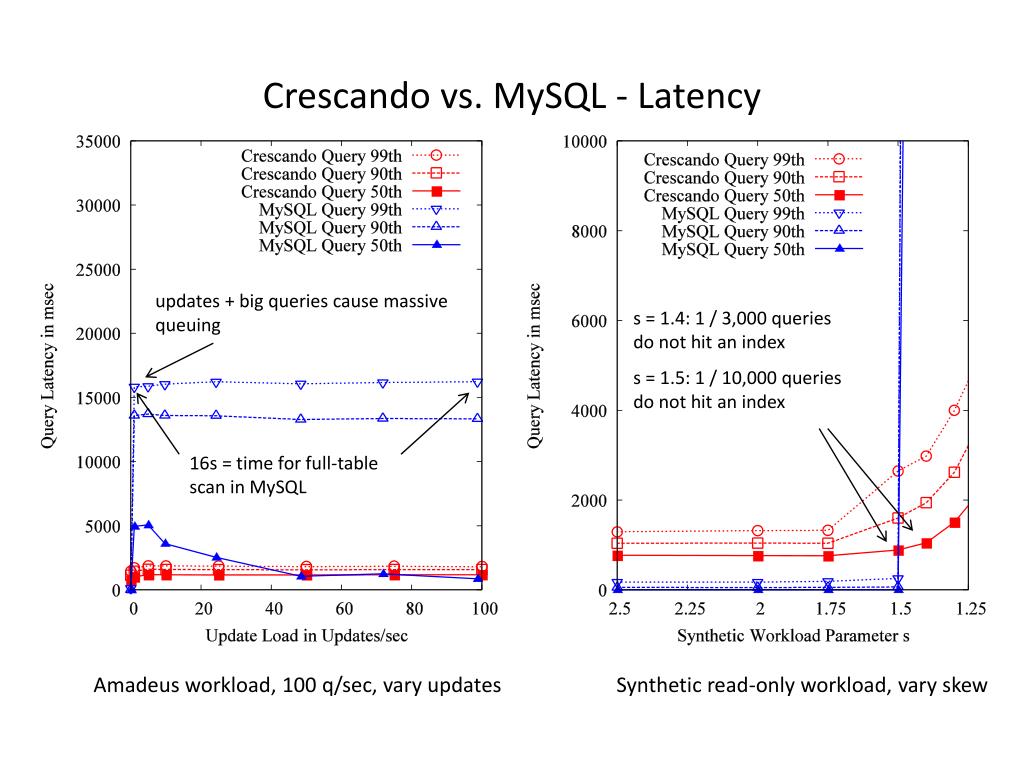

crescando vs mysql latency
Crescando vs. MySQL - Latency

updates + big queries cause massive queuing

s = 1.4: 1 / 3,000 queriesdo not hit an index

s = 1.5: 1 / 10,000 queriesdo not hit an index

16s = time for full-tablescan in MySQL

Amadeus workload, 100 q/sec, vary updates

Synthetic read-only workload, vary skew

crescando vs mysql throughput
Crescando vs. MySQL - Throughput

read-only workload!

Amadeus workload, vary updates

Synthetic read-only workload, vary skew

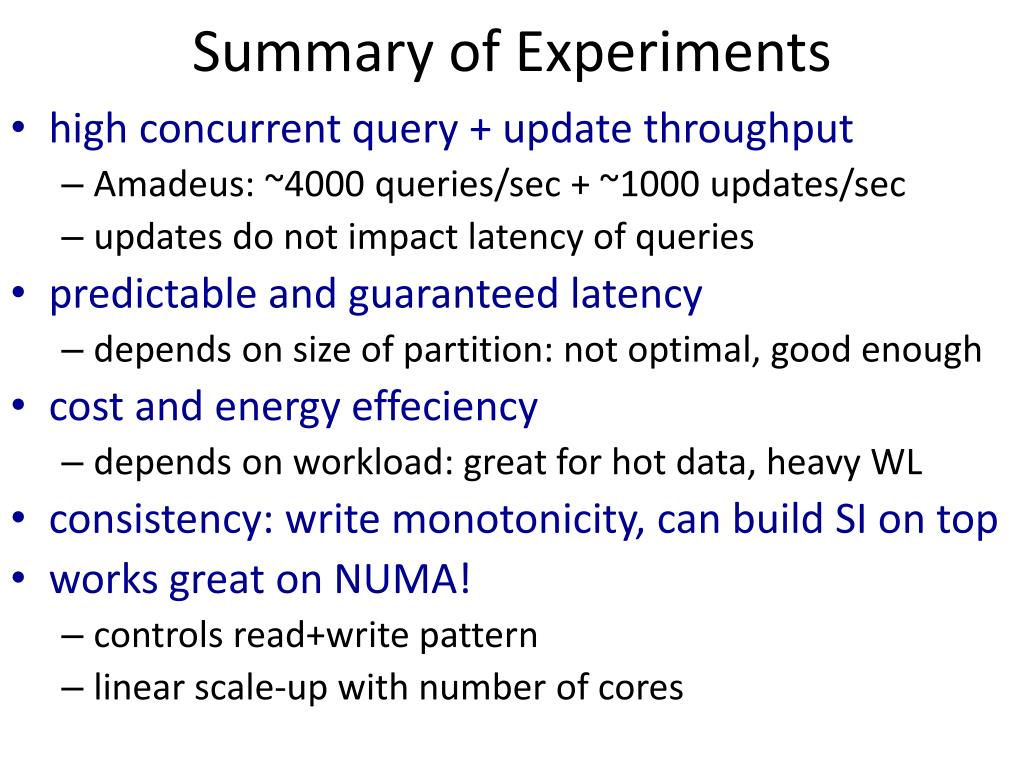

summary of experiments
Summary of Experiments
  • high concurrent query + update throughput
    • Amadeus: ~4000 queries/sec + ~1000 updates/sec
    • updates do not impact latency of queries
  • predictable and guaranteed latency
    • depends on size of partition: not optimal, good enough
  • cost and energy effeciency
    • depends on workload: great for hot data, heavy WL
  • consistency: write monotonicity, can build SI on top
  • works great on NUMA!
    • controls read+write pattern
    • linear scale-up with number of cores
status outlook
Status & Outlook
  • Status
    • Fully operational system
    • Extensive experiments at Amadeus
    • Production: Summer 2011 (planned)
  • Outlook
    • Columnstorevariant of Crescando
    • Compression
    • E-cast: flexible partitioning & replication
    • Joinsovernormalizeddata, Aggregation, ...
conclusion
Conclusion
  • A new way to processqueries
    • Massively parallel, simple, predictable
    • Not always optimal, butalways good enough
  • Ideal for operational BI
    • High querythroughput
    • Concurrentupdateswithfreshnessguarantees
  • Great building block formanyscenarios
    • Rethinkdatabase and storagesystemarchitecture
