ece 15b computer organization spring 2010 dmitri strukov

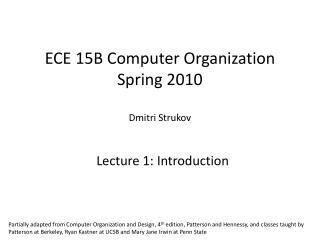

ECE 15B Computer OrganizationSpring 2010Dmitri Strukov

Lecture 1: Introduction

Partially adapted from Computer Organization and Design, 4th edition, Patterson and Hennessy, and classes taught by Patterson at Berkeley, Ryan Kastner at UCSB and Mary Jane Irwin at Penn State

course logistics instructor
Course Logistics : Instructor

Dmitri Strukov strukov@ece.ucsb.edu

Office : HFH 5153

Office hours: Tuesday – Thursday

6:45 – 7:45 pm (right after class) or by appointment

ECE 15B Spring 2010

mmt simulator
Features

Assembler & Debug

Cycle-accurate simulation

GUI and Script support

Detailed statistics including runtime conflicts

Implementation

C - 35 K lines of code

TCL - 7 K lines of code

My Own Background...

MMT Simulator

Memory latency reduction with fine-grain migrating threads in NUMA shared-memory multiprocessors” (with M. Dorojevets)

in: Proc. PDCS’02, Cambridge, MA, Nov. 2002, pp. 762-767

ECE 15B Spring 2010

course logistics tas
Course Logistics : TAs

Vivek Nandakumar vivek@ece.ucsb.edu

Office hours: Phelps 1435, Tuesday 2:00-3:00 pm (tentative)

Discussion session: Phelps 1425, Monday 5:00-5:50 pm

Isai Michel isai@umail.ucsb.edu

Office hours: Phelps 1435, Wednesday 2:00-3:00 pm

Discussion session: Phelps 1445, Friday 9:00-9:50 pm

ECE 15B Spring 2010

course logistics material
Course Logistics: Material
  • URL
    • Go to my web page www.ece.ucsb.edu/~dimastrukov/ and click on ECE 15B link at the bottom
  • Software: MIPS-32bit simulator (“SPIM”)
    • Both software and documentation available online for free
    • Can be installed on any common platform
    • See instructions on web for MACs
    • Try to install that software early

ECE 15B Spring 2010

course logistics textbooks
Course Logistics: Textbooks
  • Required: Computer Organization and Design: The Hardware/Software Interface, Fourth Edition, Patterson and Hennessy (COD). The third edition is also accepted.
  • Recommended: MIPS Assembly Language Programming, Robert L. Britton, 2003.
  • Additional (not required): The C Programming Language, Kernighan and Ritchie (K&R), 2nd edition
  • C language manual webpage from Stanford University
  • UCSB book store should have them all

ECE 15B Spring 2010

course logistics grading
Course Logistics: Grading
  • Homework Assignments (excluding HW #0): 10%
  • Projects: 20%
  • Quiz 1: 15%
  • Quiz 2: 15%
  • Final: 40%
  • Class Participation: 5%
    • Attendance & discussion in class

ECE 15B Spring 2010

course logistics approximate schedule
Course Logistics: Approximate Schedule
  • Approximate schedule on class syllabus
    • 1 hw/project/quiz per week
    • Hw/projects due Fridays at 11:00 pm in HFH, 3rd floor (box labeled ECE15B)
  • Last year lecture viewgraphs will be replaced with newest one on the day of lecture
  • Hw, projects description, and solutions will be posted on the web

(check website for HW#0 today)

ECE 15B Spring 2010

course problems cheating
Course Problems: Cheating
  • What is cheating?
    • Turned-in work must be completely your own however studying together in groups is encouraged
    • Common examples of cheating: running out of time on assignment and then pick up output, take hw from box and copy, person asks to borrow solution “just to take a look”, copying and exam question etc.
    • Cheating on HWs: negative points for that assignments (e.g. if it is worth 10 points, you get -10)
    • Cheating on projects/exams: At least, negative points for that project/exam. In most cases, F in the course
    • Any instance of cheating will be referred to Office of Student Judicial Affairs

http://kiosk.ucsb.edu/AcademicServices/cheatingAtUCSB.aspx

ECE 15B Spring 2010

the computer revolution
The Computer Revolution
  • Progress in computer technology
    • Underpinned by Moore’s Law
  • Makes novel applications feasible
    • Computers in automobiles
    • Cell phones
    • Human genome project
    • World Wide Web
    • Search Engines
  • Computers are pervasive

Market size?

Semiconductor industry >$1000B

Microprocessor (w. embedded) > $100B

USA GDP ~ $14000B (24% of worlds total)

ECE 15B Spring 2010

the rise of embedded computers
The Rise of Embedded Computers

In millions

What is next?

Population 6.4B in 2004, i.e. ~ 1PC, 2.2 cell phones, and 2.5 televisions for every 8 people on the planet

ECE 15B Spring 2010

different approaches to computation

computer engineers

users

problem

need

architecture

Computing platform

I want to

solve equation

I want to sort numbers

Let’s make

circuits which will

compute anything

we want

general purpose

algorithm

code

need

algorithm

problem

Let’s make

circuits which will

solve a particular

problem

application specific

architecture

problem

need

I want to

denoise

my image

I want to

denoise

my image

Humans are better

than computers.

Let’s emulate

the brain

results

results

results

neuromorphic

input data

input data

input data

training

I want to

predict the future

I want to find

search for a face on the web

Different Approaches to Computation

Computing platform

Computing platform

ECE 15B Spring 2010

von neumann computer
“Von-Neumann” Computer

Store –programmed concept

was not invented by John von

Neumann only

Other inventors Presper Eckert

and John Mauchly ENIAC 1943

University of Pensilvania

Keyboard, Mouse

Computer

Processor

Memory

(where

programs,

data

live when

running)

Devices

Disk(where

programs,

data

live when

not running)

Input

Control

Datapath

Output

Display, Printer

ECE 15B Spring 2010

layers of abstractions
Layers of Abstractions

Application (ex: browser)

Operating

Compiler

System

(Mac OSX)

Software

Assembler

Instruction Set

Architecture

Hardware

Processor

Memory

I/O system

Datapath & Control

Digital Design

Circuit Design

transistors

Computation is implemented using many layers of abstractions – WHY?

ECE 15B Spring 2010

moore s law
Moore’s Law

Predicts: 2X Transistors / chip every 2 years

Gordon MooreIntel CofounderB.S. Cal 1950!

# of transistors on an integrated circuit (IC)

Year

en.wikipedia.org/wiki/Moore's_law

ECE 15B Spring 2010

technology scaling road map itrs
Technology Scaling Road Map (ITRS)
  • Fun facts about 45nm transistors
    • 30 million can fit on the head of a pin
    • You could fit more than 2,000 across the width of a human hair
    • If car prices had fallen at the same rate as the price of a single transistor has since 1968, a new car today would cost about 1 cent
technology trends uniprocessor performance specint
Technology Trends: Uniprocessor Performance (SPECint)

3X

“Sea change” in chip design: multiple “cores” or processors per chip

1.20x/year

1.52x/year

Performance (vs. VAX-11/780)

1.25x/year

  • VAX : 1.25x/year 1978 to 1986
  • RISC + x86: 1.52x/year 1986 to 2002
  • RISC + x86: 1.20x/year 2002 to present

ECE 15B Spring 2010

computer technology growth
Computer Technology - Growth!
  • Processor
    • Speed 2x / 1.5 years (since ’85) [slowing!]
    • 100X performance last decade
  • Memory (DRAM)
    • Capacity: 2x / 2 years (since ’96)
    • 64x size last decade.
  • Disk
    • Capacity: 2x / 1 year (since ’97)
    • 250X size last decade.

Kilo (103) & Kibi (210)

Mega (106) & Mebi (220)

Giga (109) & Gibi (230)

Tera (1012) & Tebi (240)

Peta (1015) & Pebi (250)

Exa (1018) & Exbi (260)

Zetta (1021) & Zebi (270)

Yotta (1024) & Yobi (280)

ECE 15B Spring 2010

amd s barcelona multicore chip
AMD’s Barcelona Multicore Chip
  • Four out-of-order cores on one chip
  • 1.9 GHz clock rate
  • 65nm technology
  • Three levels of caches (L1, L2, L3) on chip
  • Integrated Northbridge

Core1

Core 2

512KB L2

512KB L2

Northbridge

2MB shared L3 Cache

512KB L2

512KB L2

Core 3

Core 4

ECE 15B Spring 2010

http://www.techwarelabs.com/reviews/processors/barcelona/

need many layers to handle complexity

Layers of Abstraction

Need Many Layers to Handle Complexity

This class is about

this region

Application (ex: browser)

Operating

Compiler

System

(Mac OSX)

Software

Assembler

Instruction Set

Architecture

Hardware

Processor

Memory

I/O system

Datapath & Control

Digital Design

Circuit Design

transistors

ECE 15B Spring 2010

below the program
Below the Program

Applications software

Systems software

  • System software
    • Operating system – supervising program that interfaces the user’s program with the hardware (e.g., Linux, MacOS, Windows)
      • Handles basic input and output operations
      • Allocates storage and memory
      • Provides for protected sharing among multiple applications
    • Compiler – translate programs written in a high-level language (e.g., C, Java) into instructions that the hardware can execute

Hardware

ECE 15B Spring 2010

below the program1

C compiler

assembler

Below the Program
  • High-level language program (in C)

swap (int v[], int k)

(int temp;

temp = v[k];

v[k] = v[k+1];

v[k+1] = temp;

)

  • Assembly language program (for MIPS)

swap: sll $2, $5, 2

add $2, $4, $2

lw $15, 0($2)

lw $16, 4($2)

sw $16, 0($2)

sw $15, 4($2)

jr $31

  • Machine (object, binary) code (for MIPS)

000000 00000 00101 0001000010000000

000000 00100 00010 0001000000100000

. . .

one-to-many

one-to-one

ECE 15B Spring 2010

below the program2
Below the Program

temp = v[k];

v[k] = v[k+1];

v[k+1] = temp;

lw $t0, 0($2)

lw $t1, 4($2)

sw $t1, 0($2)

sw $t0, 4($2)

High Level Language Program (e.g., C)

Compiler

Assembly Language Program (e.g.,MIPS)

Assembler

0000 1001 1100 0110 1010 1111 0101 1000

1010 1111 0101 1000 0000 1001 1100 0110

1100 0110 1010 1111 0101 1000 0000 1001

0101 1000 0000 1001 1100 0110 1010 1111

Machine Language Program (MIPS)

Machine Interpretation

Hardware Architecture Description (e.g., block diagrams)

Architecture Implementation

Logic Circuit Description(Circuit Schematic Diagrams)

advantages of higher level languages
Advantages of Higher-Level Languages ?
  • Allow the programmer to think in a more natural language and for their intended use (Fortran for scientific computation, Cobol for business programming, Lisp for symbol manipulation, Java for web programming, …)
  • Improve programmer productivity – more understandable code that is easier to debug and validate
  • Improve program maintainability
  • Allow programs to be independent of the computer on which they are developed (compilers and assemblers can translate high-level language programs to the binary instructions of any machine)
  • Emergence of optimizing compilers that produce very efficient assembly code optimized for the target machine
  • Higher-level languages
  • As a result, very little programming is done today at the assembler level

ECE 15B Spring 2010

ece 15b so what s in it for me
ECE 15B: So what’s in it for me?
  • Learning computer systems from a programmer’s point of view
    • What the programmer writes
    • How it is converted to something the computer understands
    • How computer interprets the program
    • What makes programs go slow

ECE 15B Spring 2010

ece 15b so what s in it for me1
ECE 15B: So what’s in it for me?
  • Learn big ideas in computer engineering
    • Principle of abstraction used to build systems as layers
    • 5 classic components of a computer
    • Data can be anything (integers, floating point, characters): program determines what it is
    • Stored program concept: instructions just data
    • Principle of locality, exploited via memory hierarchy
    • Greater performance by exploiting parallelism

ECE 15B Spring 2010

ece 15b can also help you
ECE 15B: can also help you
  • Assembly Language Programming
    • This is a skill you will pick up as a side effect of understanding big ideas
  • Hardware Design
    • Hardware at the abstract level with only a little bit of physical implementation details to give perspective
  • Understand Language Concept
    • If you know one, you should be able to learn another “low” level programming language on your own
    • C constructs used in many other “higher” level programming languages

ECE 15B Spring 2010

ece 15b does not teach
ECE 15B: Does Not Teach
  • A specific assembler language
    • 486 instruction set
    • ARM instruction set
    • PowerPC instruction set
  • Because technologies change so dramatically
    • Learning the concepts is more important that learning the language
    • Learning abstract ideas is more important that learning the specific features

ECE 15B Spring 2010

summary
Summary
  • Continued rapid improvement in computing
    • May end up soon but new paradigms and concept will likely inherit a lot from traditional computer implantation, e.g. multi core
    • The market for computing systems is huge
  • Hardware/software interface is important layer in the hierarchy to understand how computing is implemented

ECE 15B Spring 2010

questions
Questions?

ECE 15B Spring 2010
