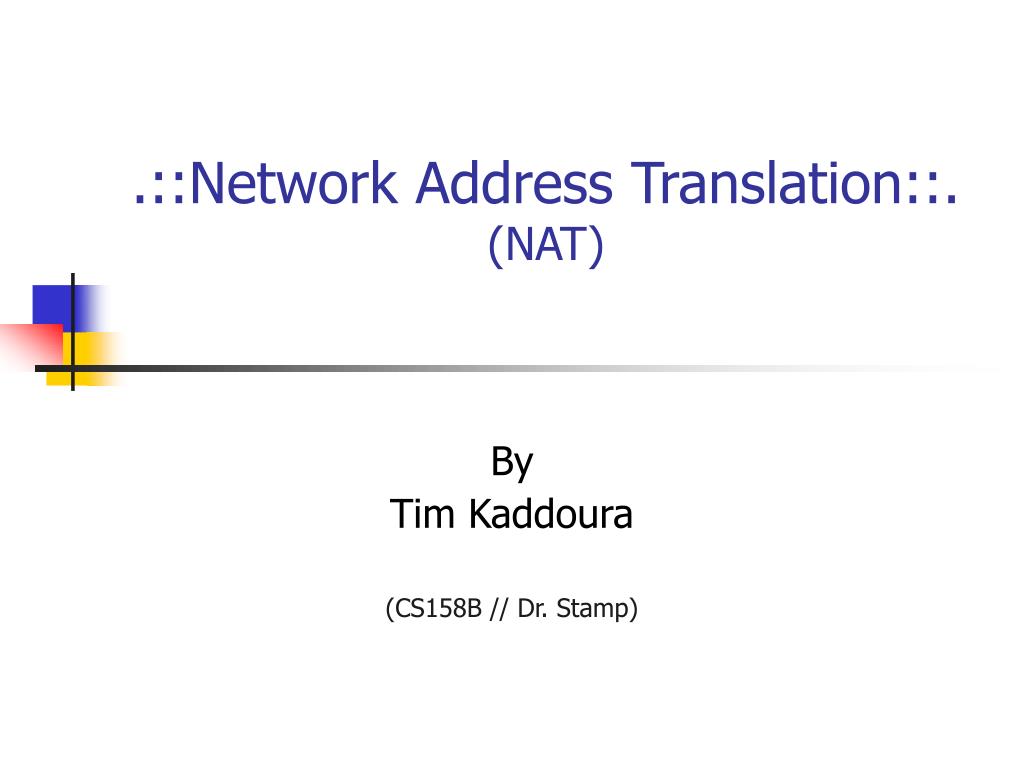

  1. .::Network Address Translation::.(NAT) By Tim Kaddoura (CS158B // Dr. Stamp)

  2. IP Address Allocation Overview • IPv4 – address length is 4 bytes long. • IPv6 – address length is 16 bytes long. • 232V.S 2128

  3. Got NAT?! • NAT operates at the network layer of the OSI reference model • NAT is a hotel receptionist • NAT allows for a “one to one”, “one to many”, or “many to many” mapping

  4. NAT in Different Flavors • Static NAT: (one to one) from unregistered (local) to registered (global). • Dynamic NAT: (one to one) similar to Static Nat, but assigns from a pool of registered IP addresses. • Overloading: (many to one) Most common NAT at homes and small businesses. • Overlapping: (many to many) Most common in organizations.

  5. NAT Operation GENERAL View Overloading View

  6. NAT Operation (using a table)

  7. NAT and Built-In Security • NAT acts as a firewall. • Trudy will have trouble if she is outside the network. • How about Trudy being inside the network?!

  8. NAT and SNMP • Problem, problem, and some more problems! • SNMP’s crucial IP information is no longer known. • Solution: IBM’s Comprehensive Network Address Translator (CNAT).

  9. To NAT or not to NAT!? • NAT is a good interim solution. • NAT is scalable. • NAT offers some security. • … To NAT!
