  1. ORTHOGRAPHIC PROJECTIONSIX VIEWS

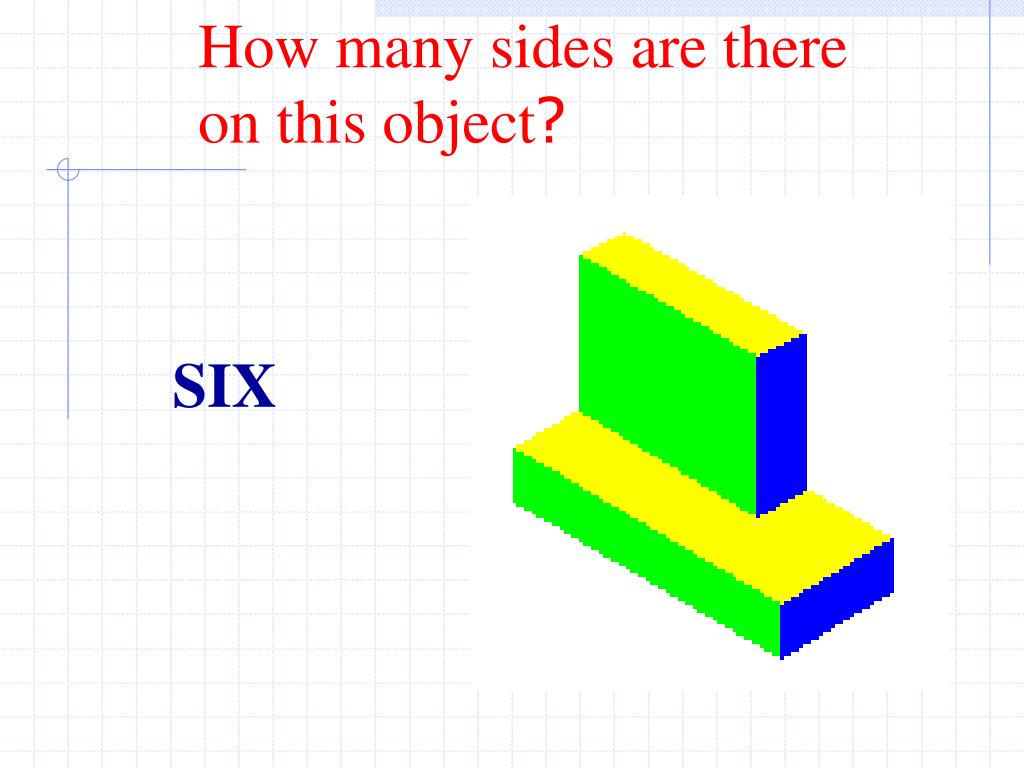

  2. How many sides are there on this object? SIX

  3. Select the front view Front

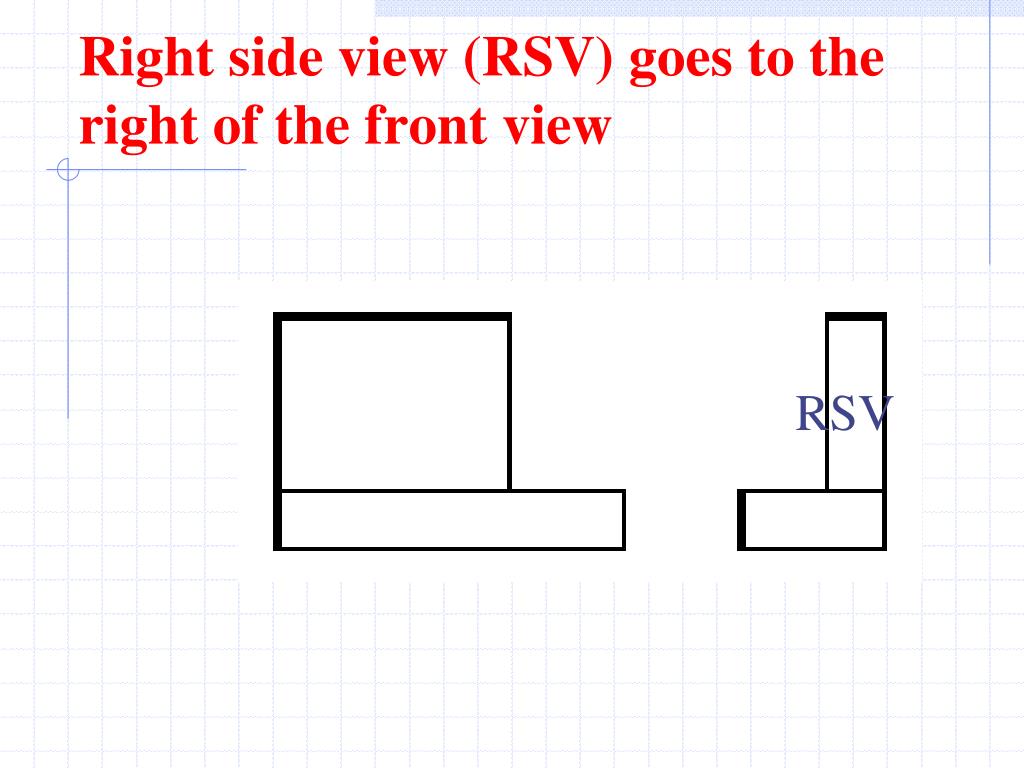

  4. Right side view (RSV) goes to the right of the front view RSV

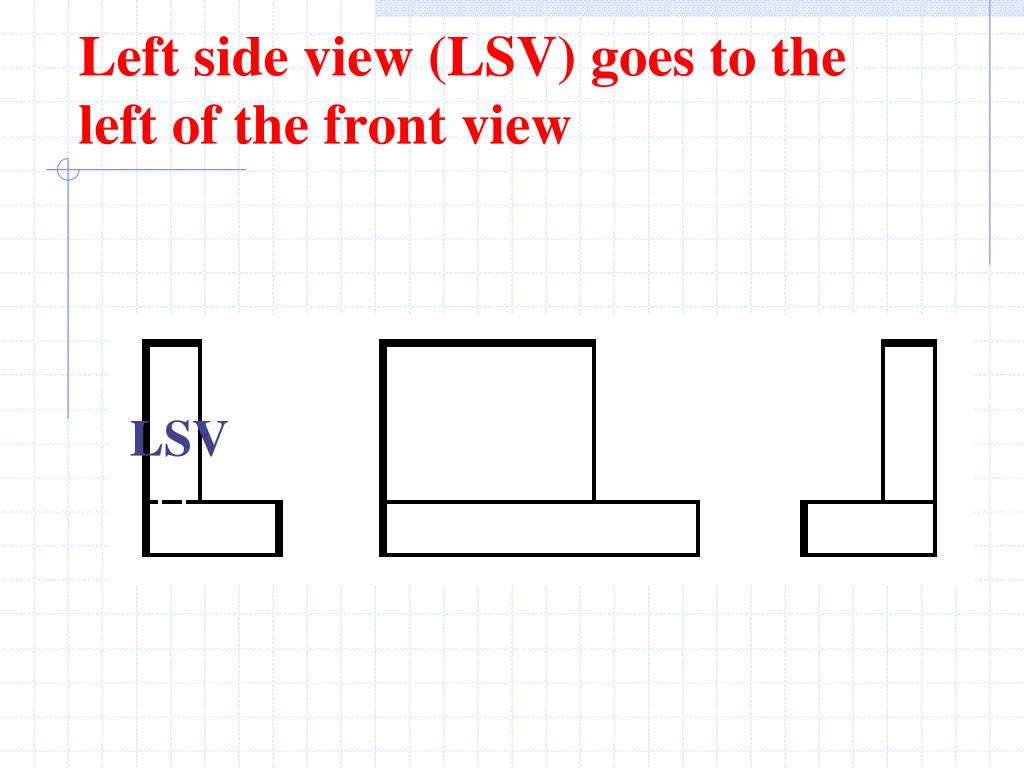

  5. Left side view (LSV) goes to the left of the front view LSV

  6. Top view goes above the front view TOP

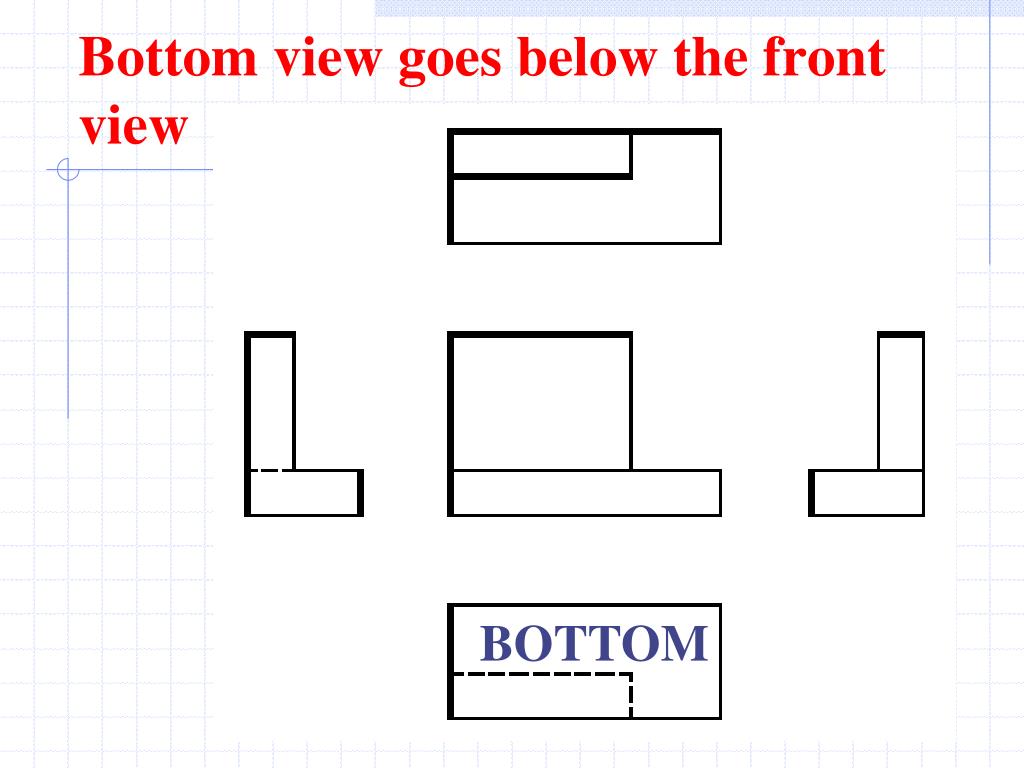

  7. Bottom view goes below the front view BOTTOM

  8. Back view goes to the left of the left side view BACK

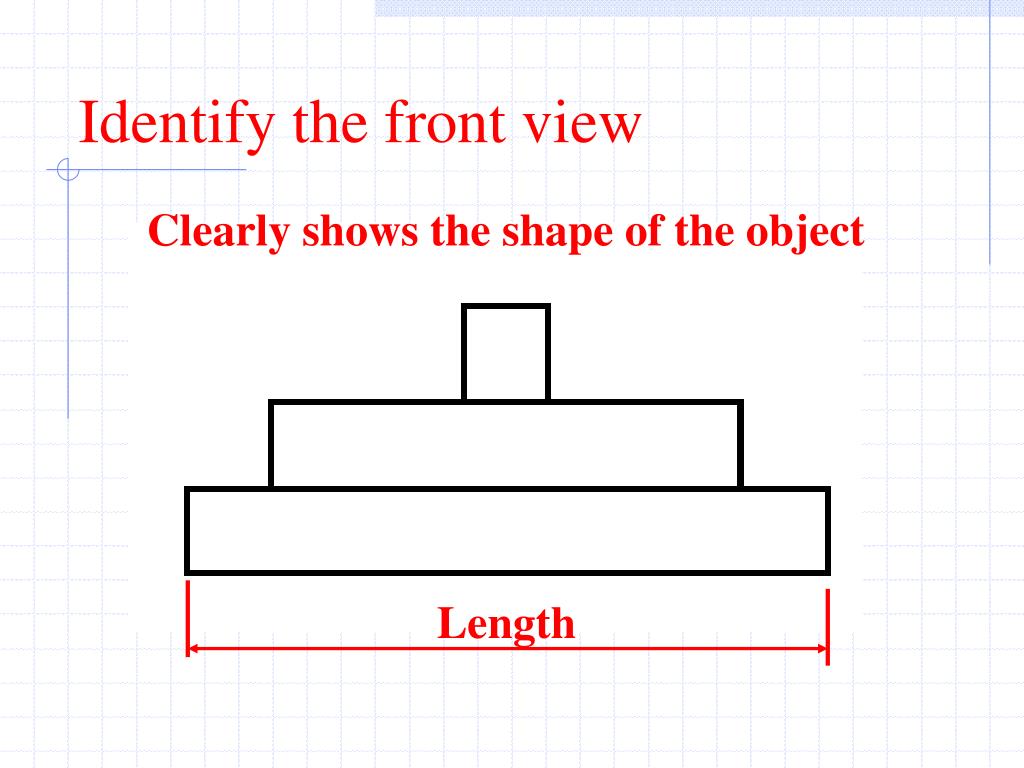

  9. Length Identify the front view Clearly shows the shape of the object

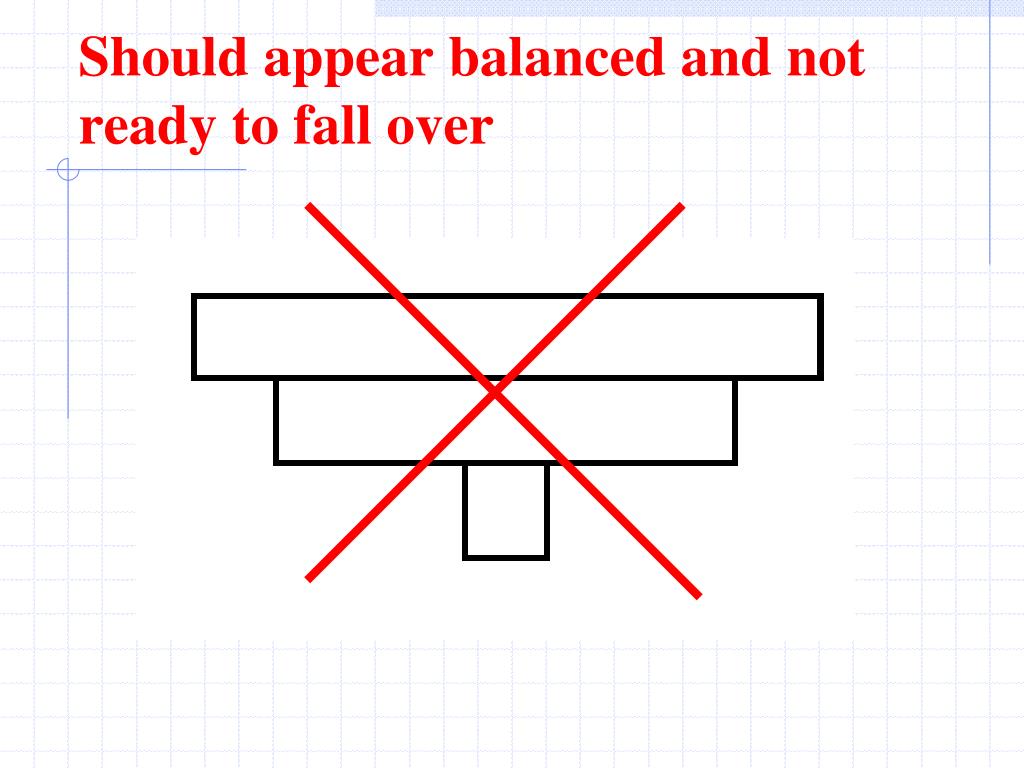

  10. Should appear balanced and not ready to fall over

  11. Correct positioning of the front view

  12. ORTHOGRAPHIC PROJECTION – SIX VIEWS

  13. ORTHOGRAPHIC PROJECTION –THREE VIEWS TOP VIEW RIGHT SIDE VIEW FRONT VIEW
