Nanonics SPM Probes

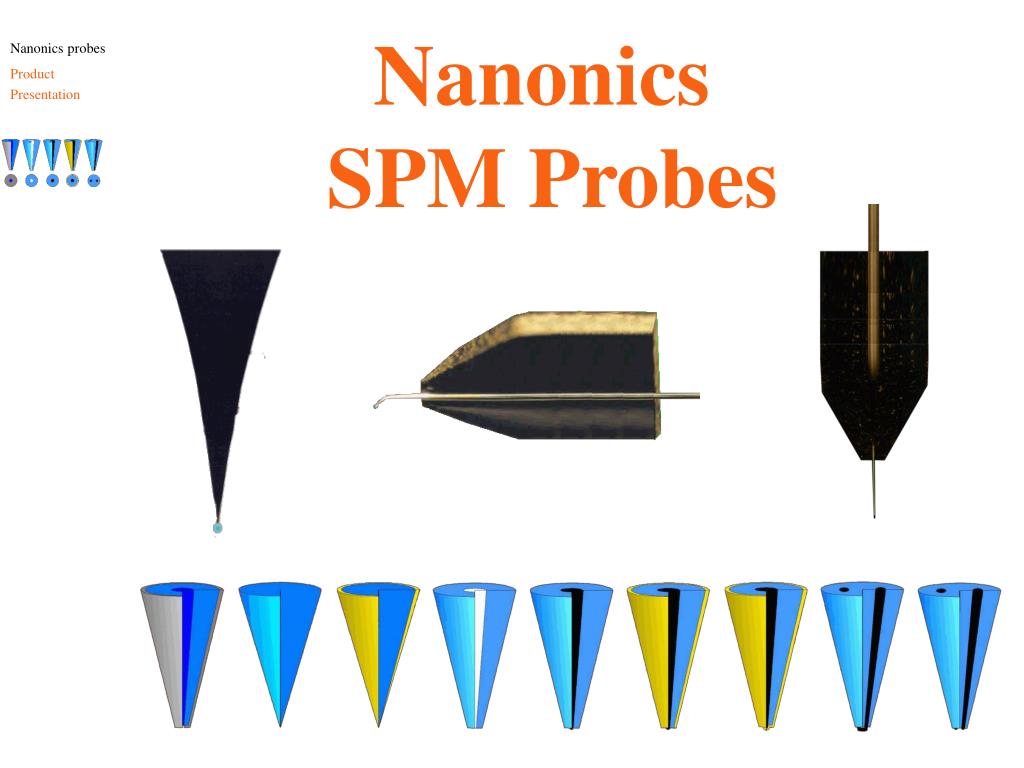

1. Nanonics probes Product Presentation Nanonics SPM Probes

2. AFM / NSOM Probes (transmission mode) Nanonics probes Product Presentation AFM / NSOM probe AFM Topography (left) & Transmission NSOM (right) of 30 nm gold balls (Scansize: 1x1 mm)

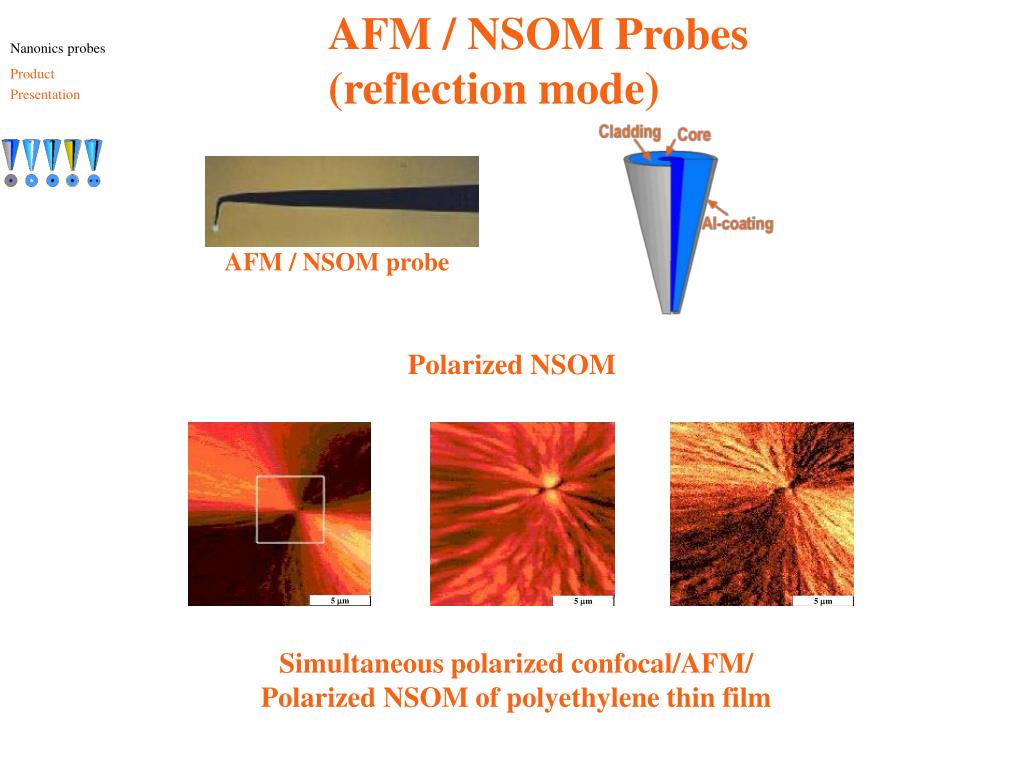

3. AFM / NSOM Probes (reflection mode) Nanonics probes Product Presentation 5 mm 5 mm 5 mm AFM / NSOM probe Polarized NSOM Simultaneous polarized confocal/AFM/ Polarized NSOM of polyethylene thin film

4. AFM / NSOM Probes (collection mode) Nanonics probes Product Presentation AFM / NSOM probe Collage AFM topography & Light Distribution of a fiber lens Collage AFM topography & Light Distribution of a diode laser

5. AFM / NSOM Probes (reflection mode) Electrical Probes ( Resistance) Nanonics probes Product Presentation AFM / Resistance probe AFM / NSOM probe AFM (left) reflection NSOM (middle) & simultaneous spreading resistance image (right) of a chemically mechanically polished SRAM

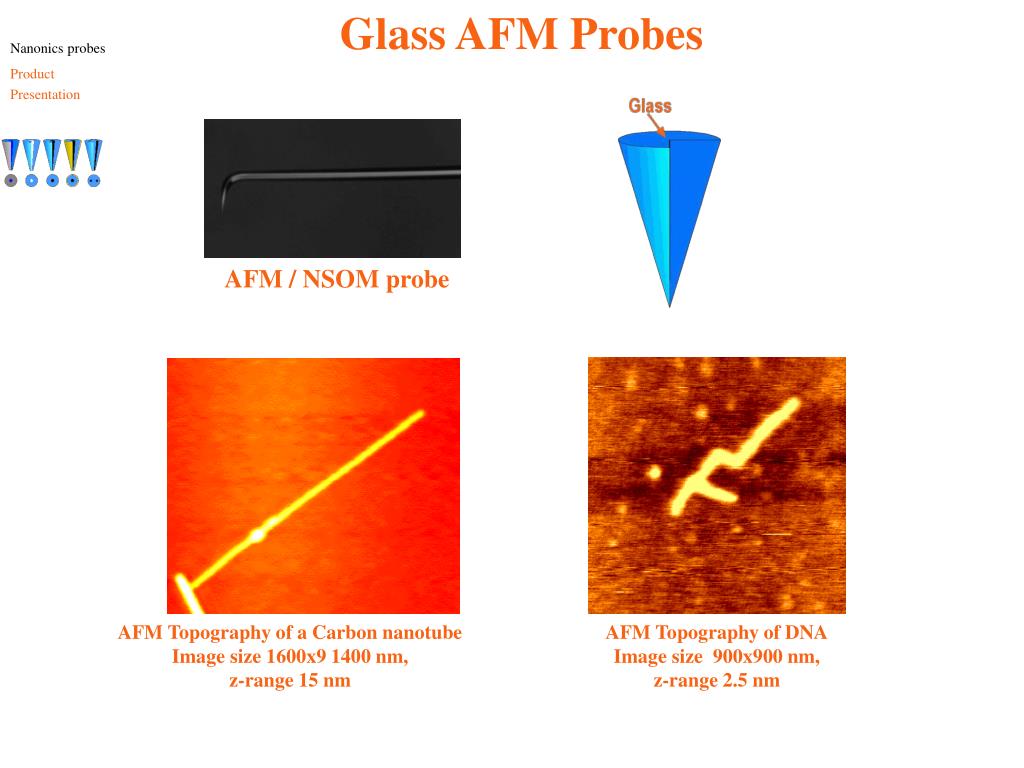

6. Glass AFM Probes Nanonics probes Product Presentation AFM / NSOM probe AFM Topography of a Carbon nanotube Image size 1600x9 1400 nm, z-range 15 nm AFM Topography of DNA Image size 900x900 nm, z-range 2.5 nm

7. Deep Trench AFM Probes Nanonics probes Product Presentation X Z Deep Trench AFM / NSOM probe Schematic of deep trench AFM image Schematic of side wall AFM image 10 x 10 mm AFM image of a 10 mm deep/2 mm wide trench (Z-range 10 mm) 1 x 1 mm AFM image of the bottom of the deep trench (Z-range 100 nm) 5 x 5 mm X-Z scan of the sidewall of the deep trench (Y-range 150 nm)

8. Nanopipette Probes (chemical delivery) Nanonics probes Product Presentation Nanopipette probe 4x4 mm image o protein dots printed using a Nanopipette 34x34 mm image o protein lines printed using a Nanopipette

9. Polished Nanopipette Probes (laser ablation) Nanonics probes Product Presentation Defect before and after repair using laser ablation

10. Nanonics probes Product Presentation Glass Insulated Nanowire Probes Coaxial Nanoelectrode Dual wire Nanoelectrode Single wire Nanoelectrode

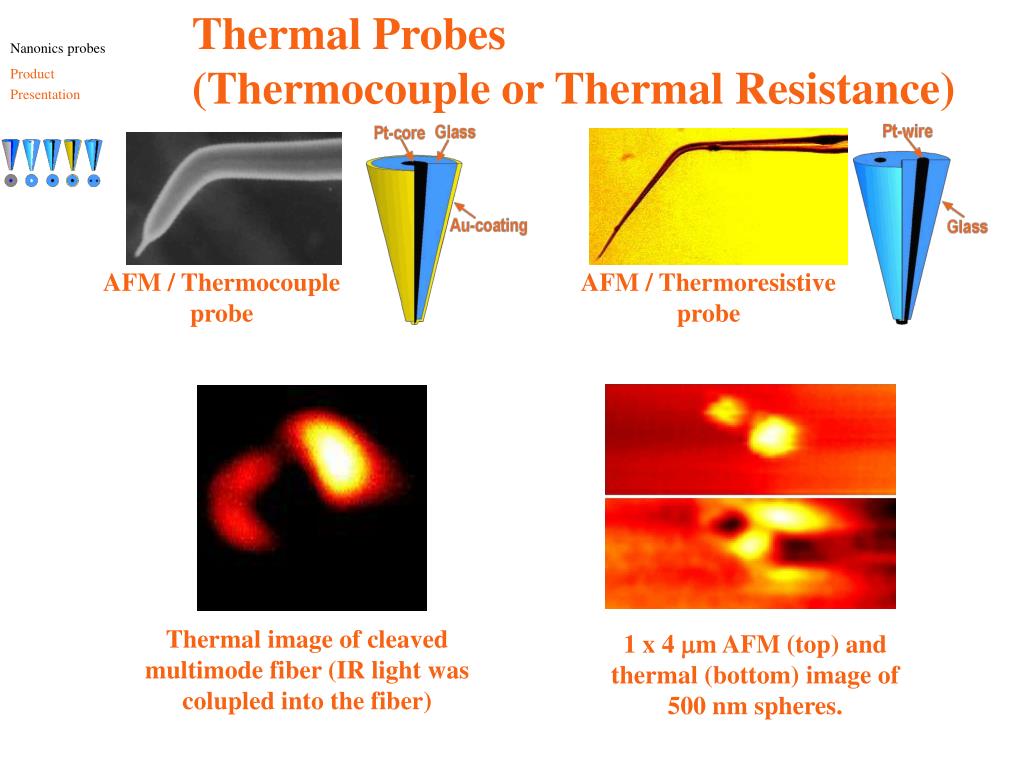

11. Thermal Probes (Thermocouple or Thermal Resistance) Nanonics probes Product Presentation AFM / Thermocouple probe AFM / Thermoresistive probe Thermal image of cleaved multimode fiber (IR light was colupled into the fiber) 1 x 4 mm AFM (top) and thermal (bottom) image of 500 nm spheres.

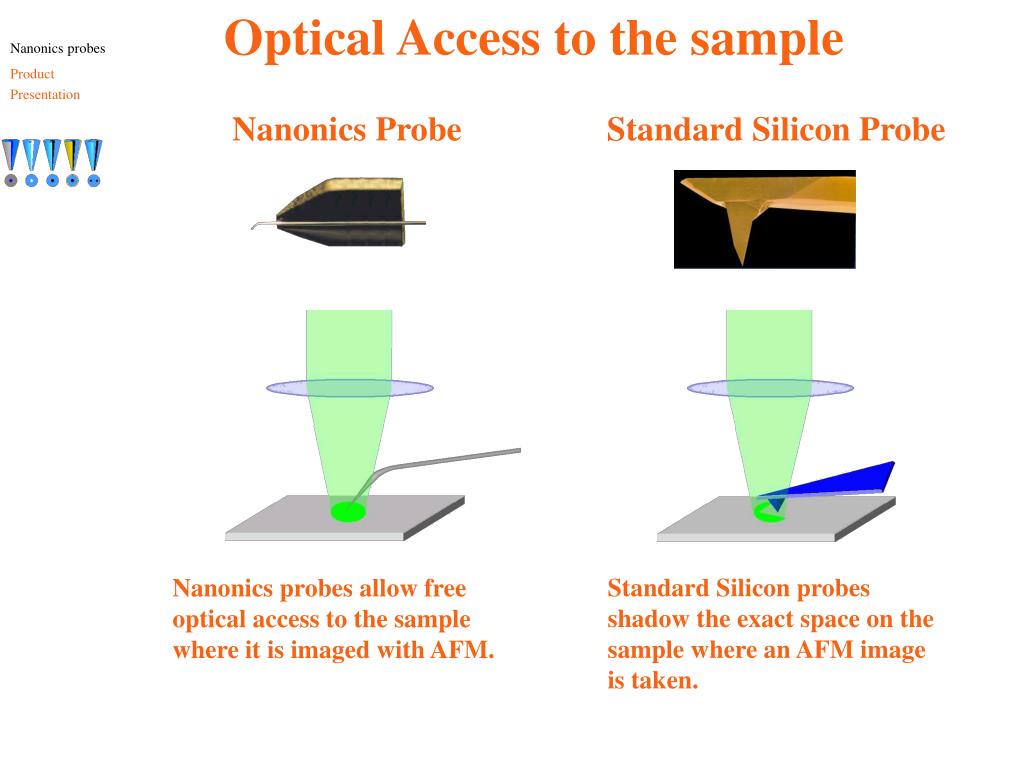

12. Optical Access to the sample Nanonics probes Product Presentation Nanonics Probe Standard Silicon Probe Standard Silicon probes shadow the exact space on the sample where an AFM image is taken. Nanonics probes allow free optical access to the sample where it is imaged with AFM.

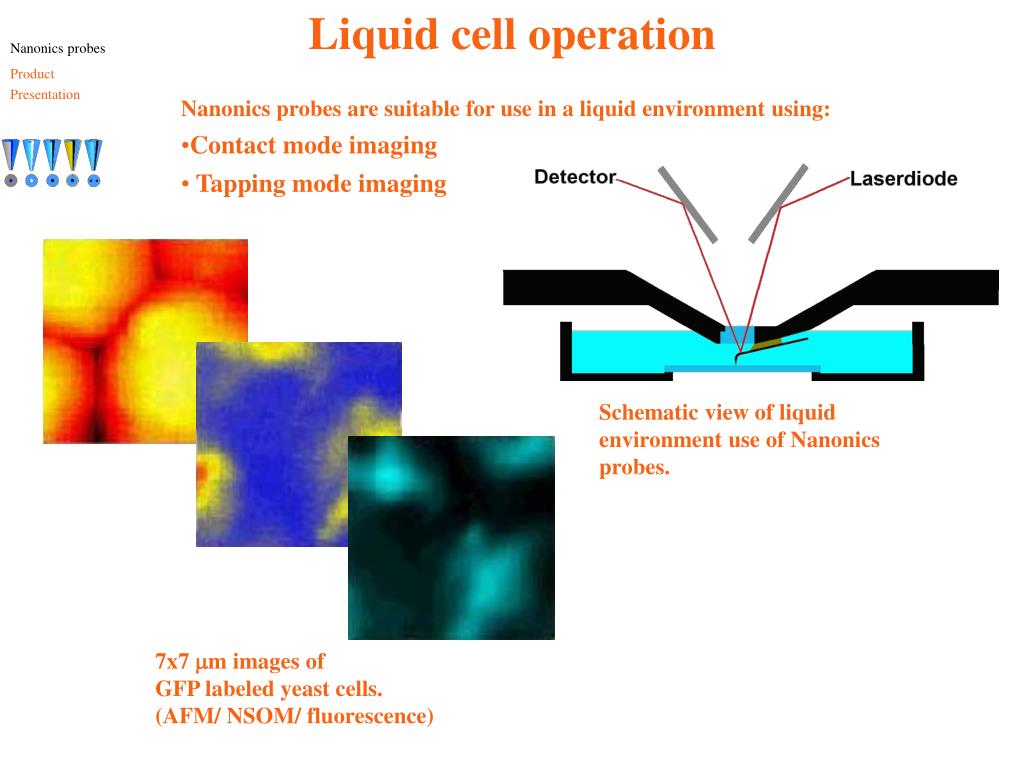

13. Liquid cell operation Nanonics probes Product Presentation • Nanonics probes are suitable for use in a liquid environment using: • Contact mode imaging • Tapping mode imaging Schematic view of liquid environment use of Nanonics probes. 7x7 mm images of GFP labeled yeast cells. (AFM/ NSOM/ fluorescence)

14. Nanonics probes Product Presentation 300 – 1000 mm 50 – 1500 mm 30 – 500 mm Probe Characteristics • All probes are available either cantilevered or straight. • Dimensions of the cantilevered probes: • All probes are available as Contact Mode or Intermittent Contact Mode probes • All probes are available as Deep Trench probes. • Custom made probes are also available. • Material: glass / Quartz glass • Frequency range:50 – 390 kHz (20 – 350kHz for AFM probes) • Wavelength range for NSOM probes: 200 – 1500 nm • Aperture size for NSOM probes: 50 – 5000 nm • Aperture size for Nanopipettes: >20 nm • Metal cores for electrical probes: Pt, Au, Ag • Thermal resistors sensitivity: <10 milli-degree (up to 700°C)
