playground design

Playground Design

Problem 1.5.9

Climbing Wall

climbing wall

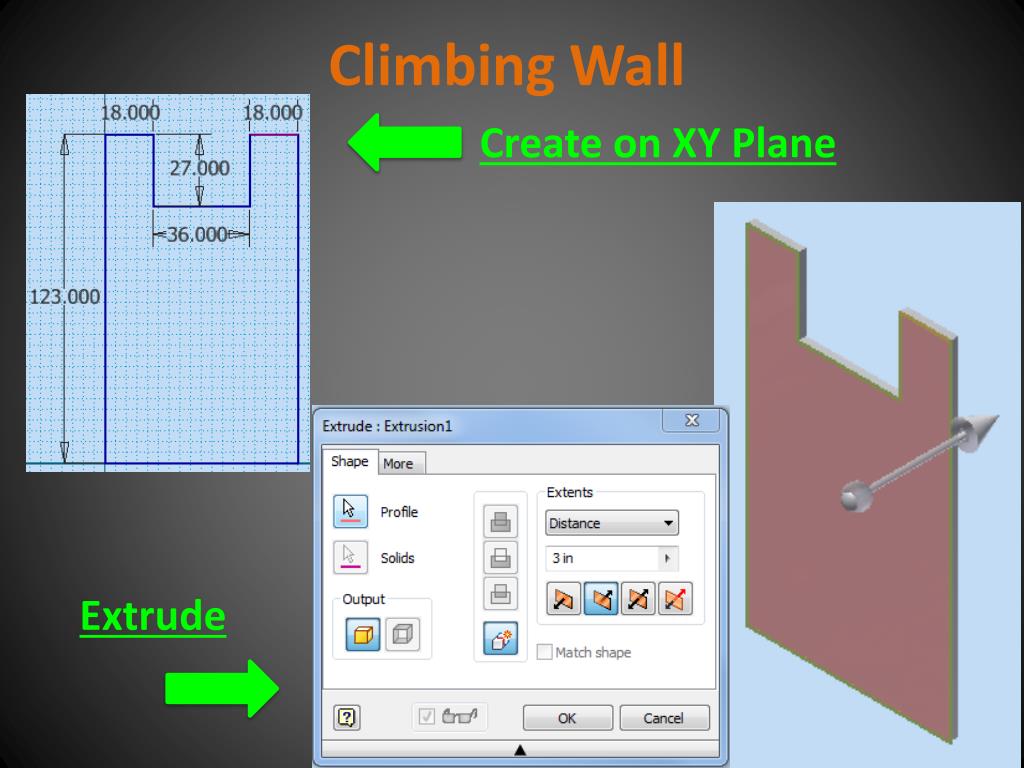

Climbing Wall

Create on XY Plane

Extrude

climbing wall1

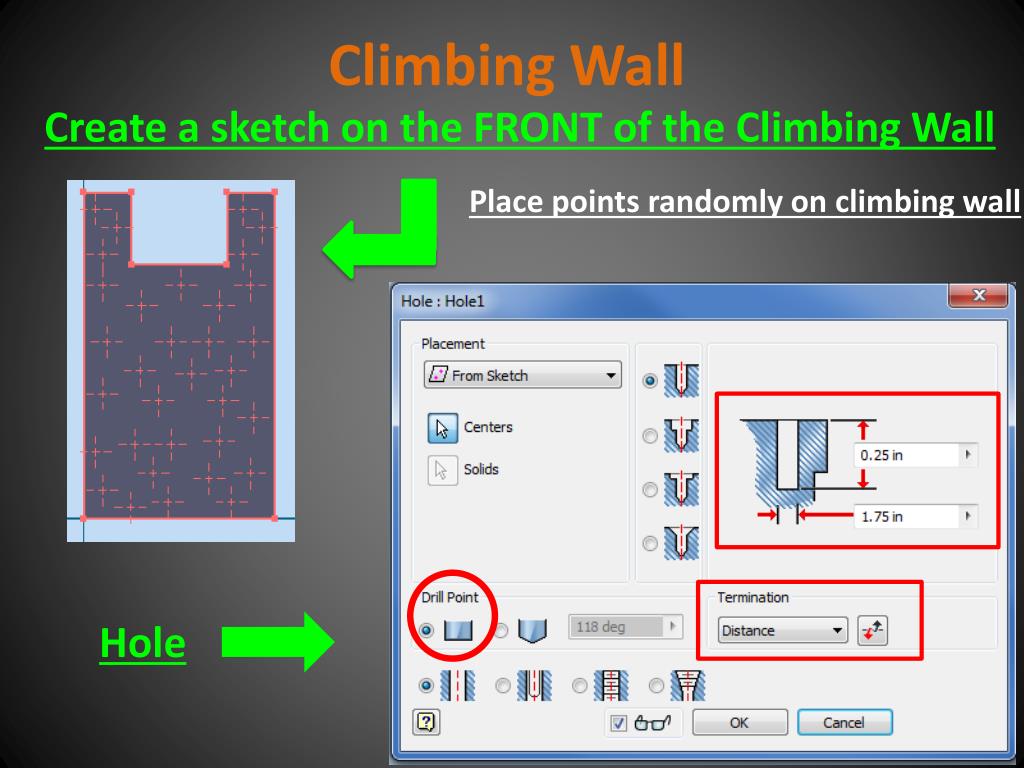

Climbing Wall

Create a sketch on the FRONT of the Climbing Wall

Place points randomly on climbing wall

Hole

wall handle

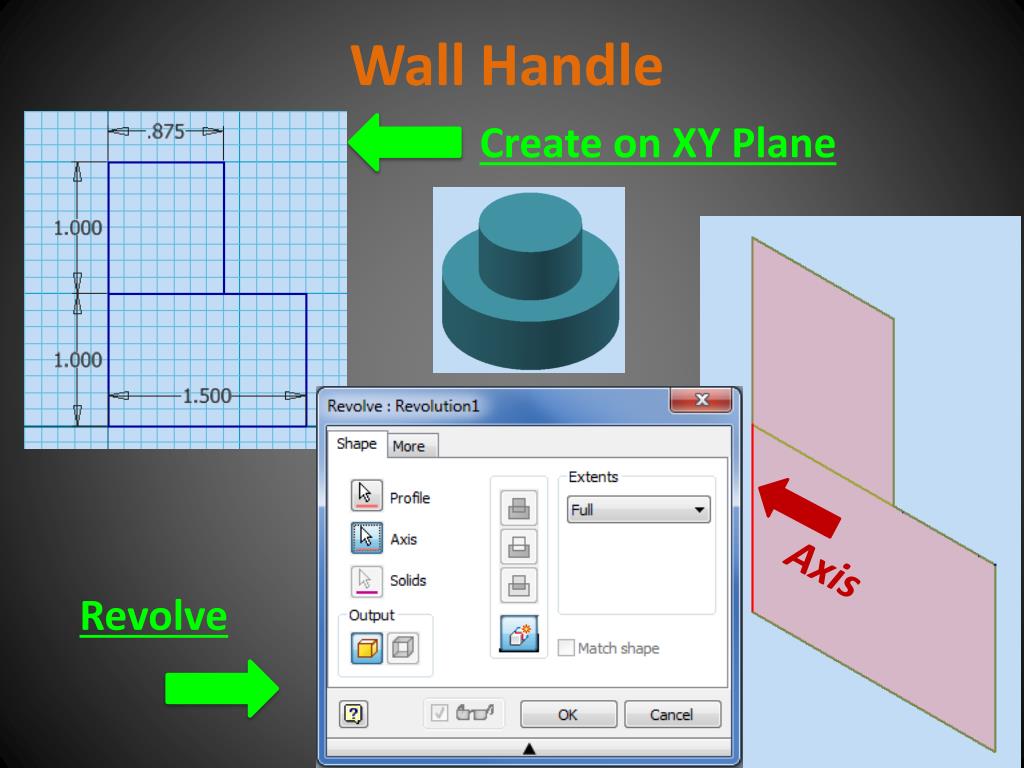

Wall Handle

Create on XY Plane

Axis

Revolve

climbing wall assembly

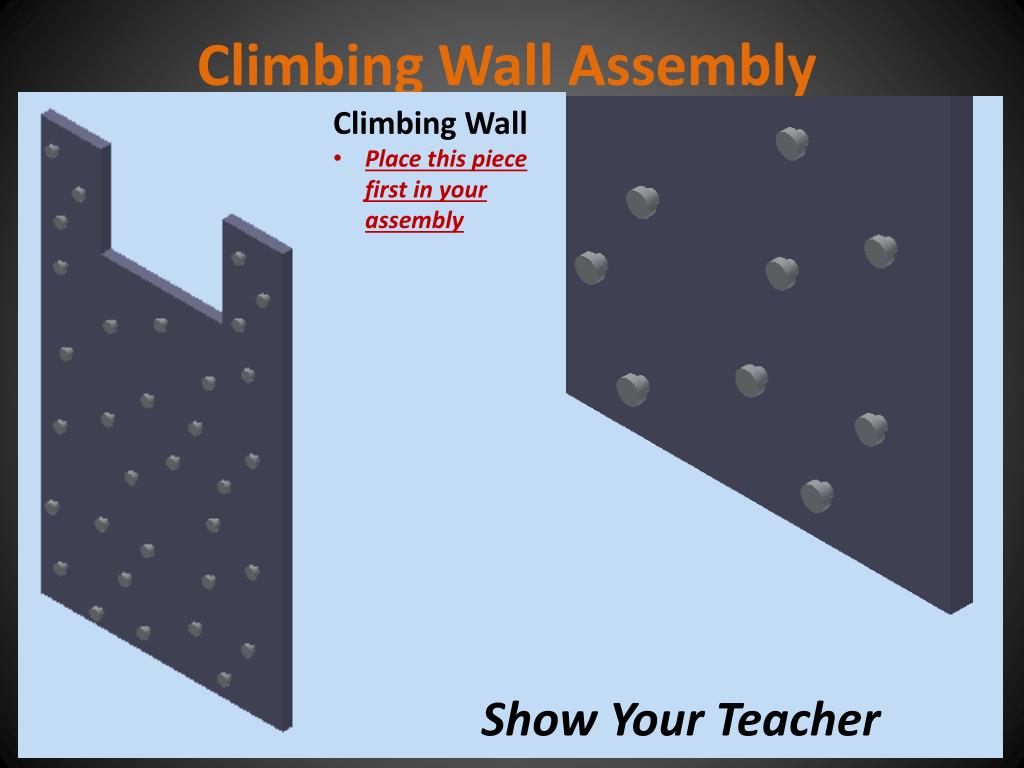

Climbing Wall Assembly
  • Climbing Wall
  • Place this piece first in your assembly

Show Your Teacher
