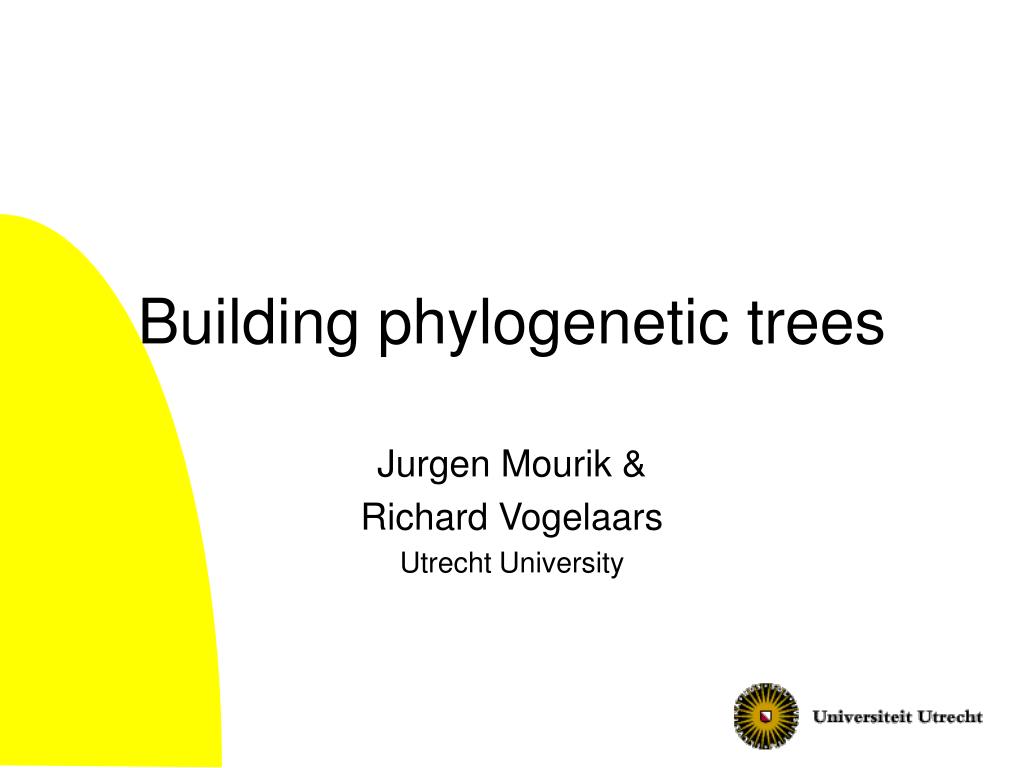

Building phylogenetic trees

Building phylogenetic trees

Jurgen Mourik &

Richard Vogelaars

Utrecht University

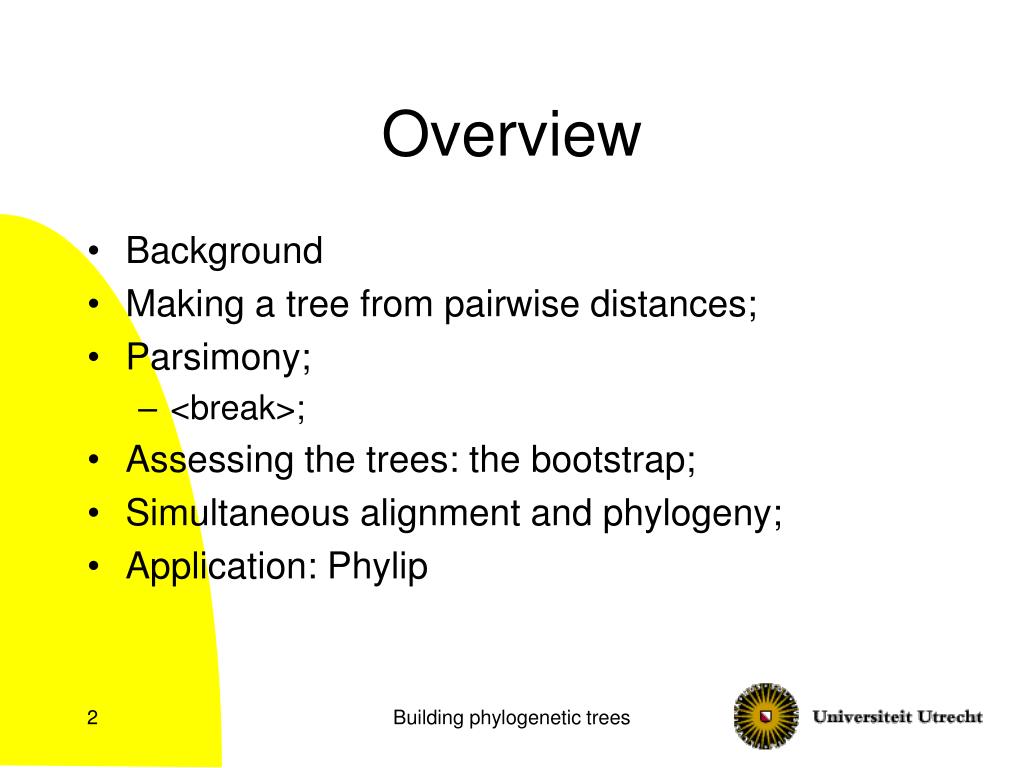

Overview
Overview

  • Background

  • Making a tree from pairwise distances;

  • Parsimony;

    • <break>;

  • Assessing the trees: the bootstrap;

  • Simultaneous alignment and phylogeny;

  • Application: Phylip

Building phylogenetic trees


Background
Background

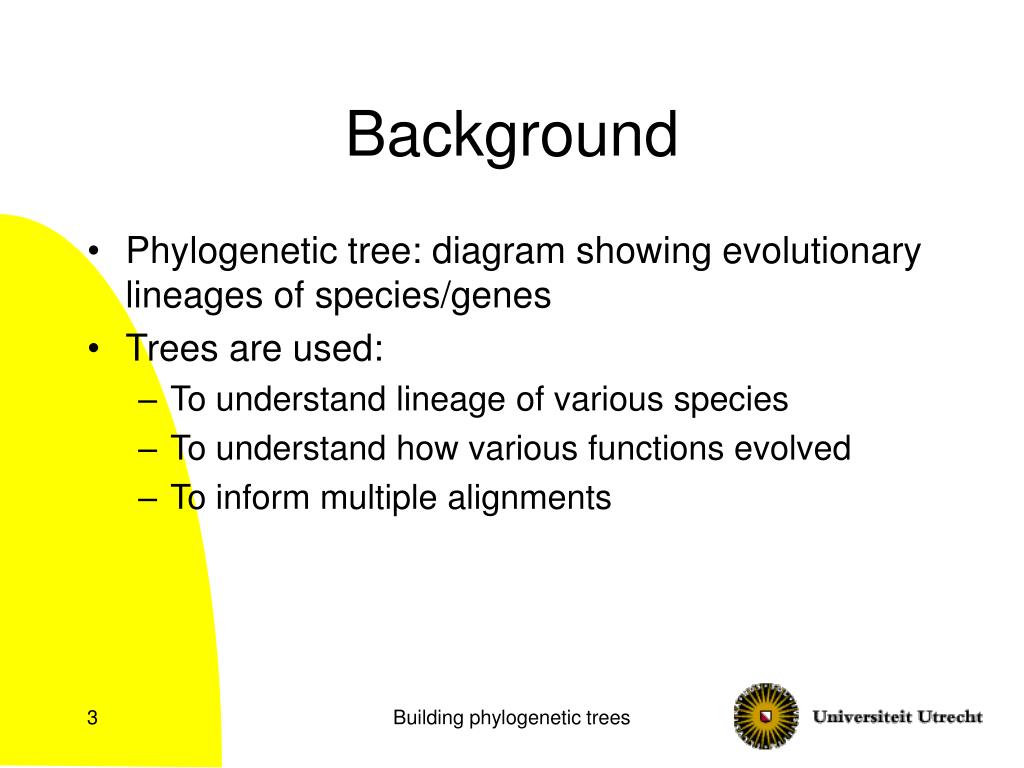

  • Phylogenetic tree: diagram showing evolutionary lineages of species/genes

  • Trees are used:

    • To understand lineage of various species

    • To understand how various functions evolved

    • To inform multiple alignments

Building phylogenetic trees


Phylogenetic tree approaches

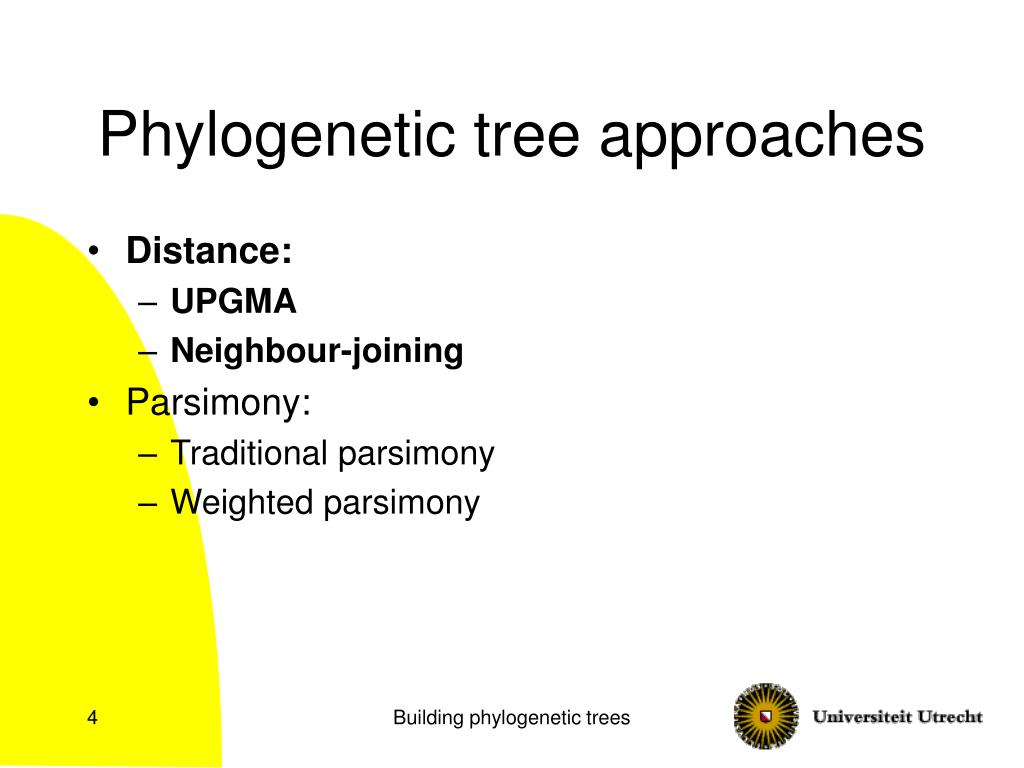

Phylogenetic tree approaches

  • Distance:

    • UPGMA

    • Neighbour-joining

  • Parsimony:

    • Traditional parsimony

    • Weighted parsimony

Building phylogenetic trees


Making a tree from pairwise distances
Making a tree from pairwise distances

  • Given a set of sequences you want to build a tree.

  • Compute the distances dijbetween each pair i, j of the sequences.

  • There are many different distance measures.

  • Average distance between pairs of sequences from each cluster.

Building phylogenetic trees


Upgma
UPGMA

  • Unweighted Pair Group Method using arithmetic Averages.

  • It works by clustering the sequences, at each stage combining two clusters and at the same time creating a new node in a tree, using a distance measure.

Building phylogenetic trees


Distance between points
Distance between points

  • |Ci| and |Cj| denote the number of sequences in clusters i and j.

l

3

j

4

2

i

Building phylogenetic trees


Distance between clusters
Distance between clusters

  • Let Ckbe the union of clusters Ci and Cj,then dkl

  • Where Cl is any other cluster.

l

3

j

4

k

i

Building phylogenetic trees


Building the tree upgma

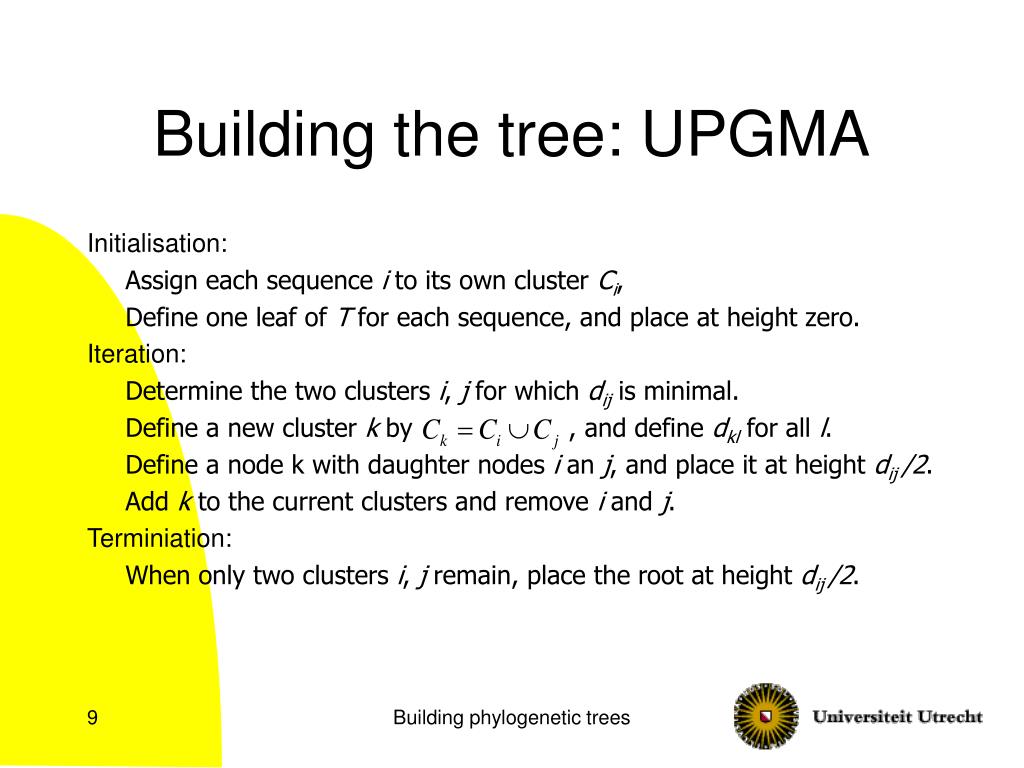

Building the tree: UPGMA

Initialisation:

Assign each sequence i to its own cluster Ci,

Define one leaf of T for each sequence, and place at height zero.

Iteration:

Determine the two clusters i, j for which dij is minimal.

Define a new cluster k by , and define dkl for all l.

Define a node k with daughter nodes i an j, and place it at height dij /2.

Add k to the current clusters and remove i and j.

Terminiation:

When only two clusters i, j remain, place the root at height dij /2.

Building phylogenetic trees


Upgma initialisation
UPGMA: Initialisation

Building phylogenetic trees

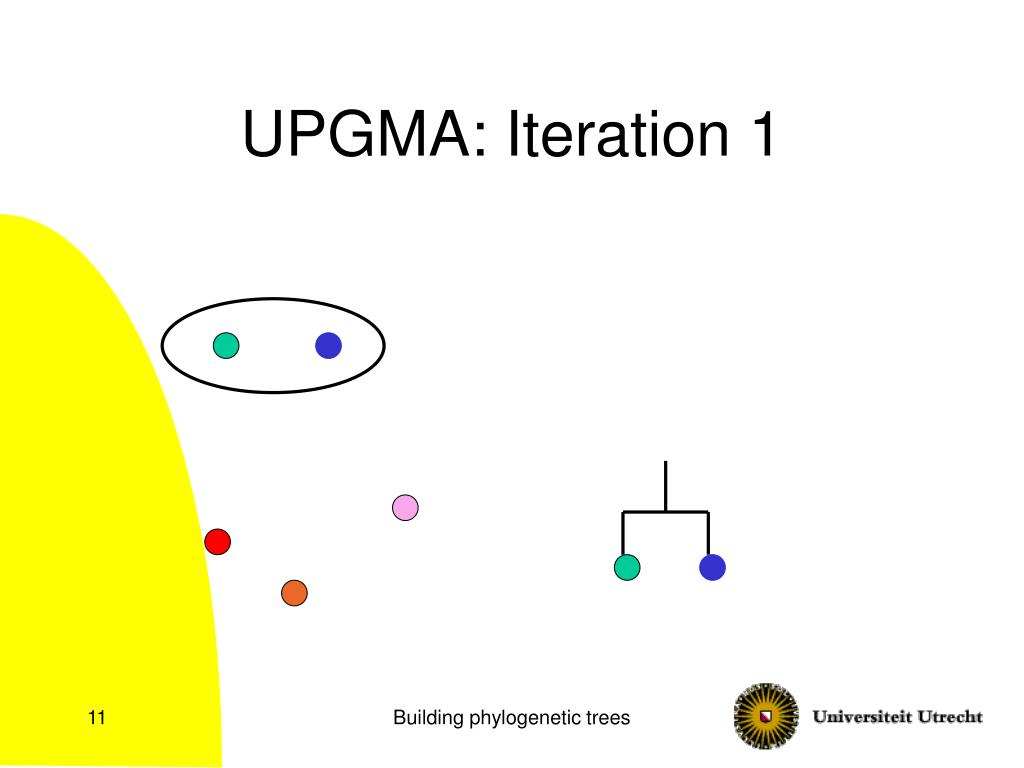

Upgma iteration 1
UPGMA: Iteration 1

Building phylogenetic trees


Upgma iteration 2

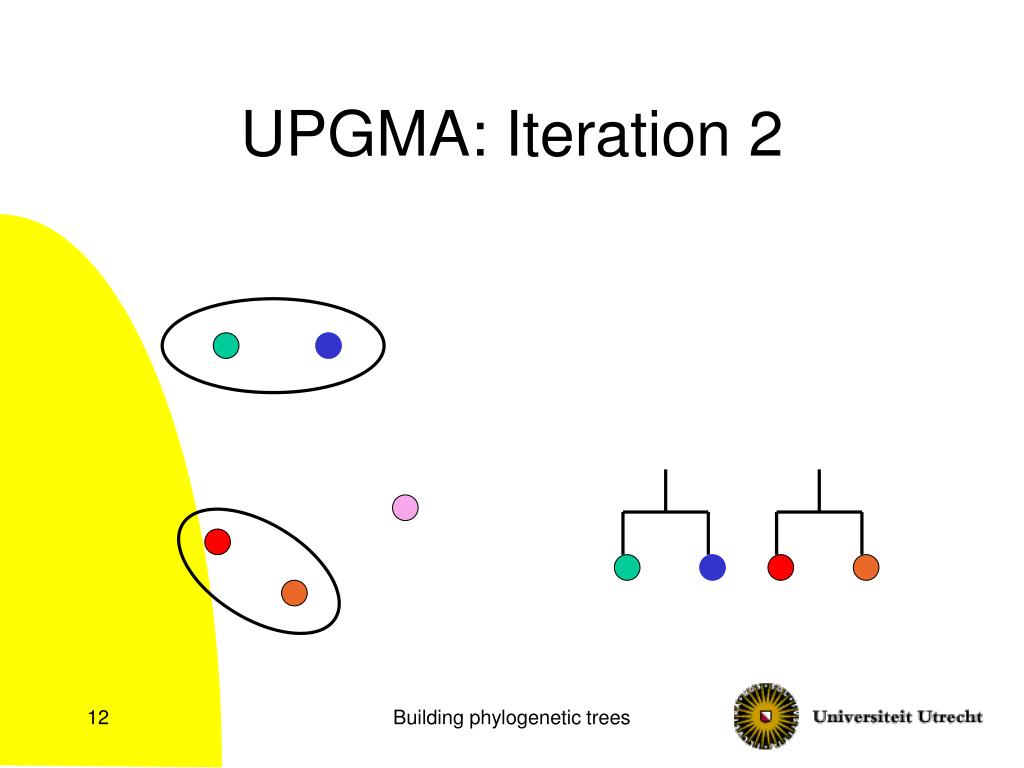

UPGMA: Iteration 2

Building phylogenetic trees


Upgma iteration 3

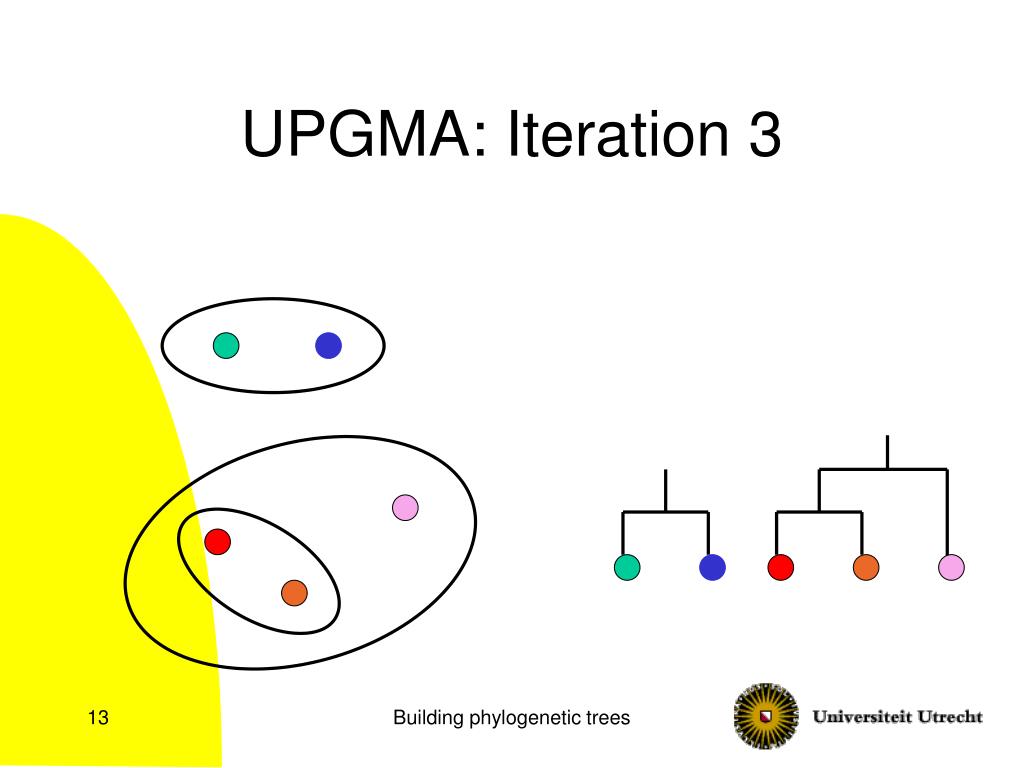

UPGMA: Iteration 3

Building phylogenetic trees

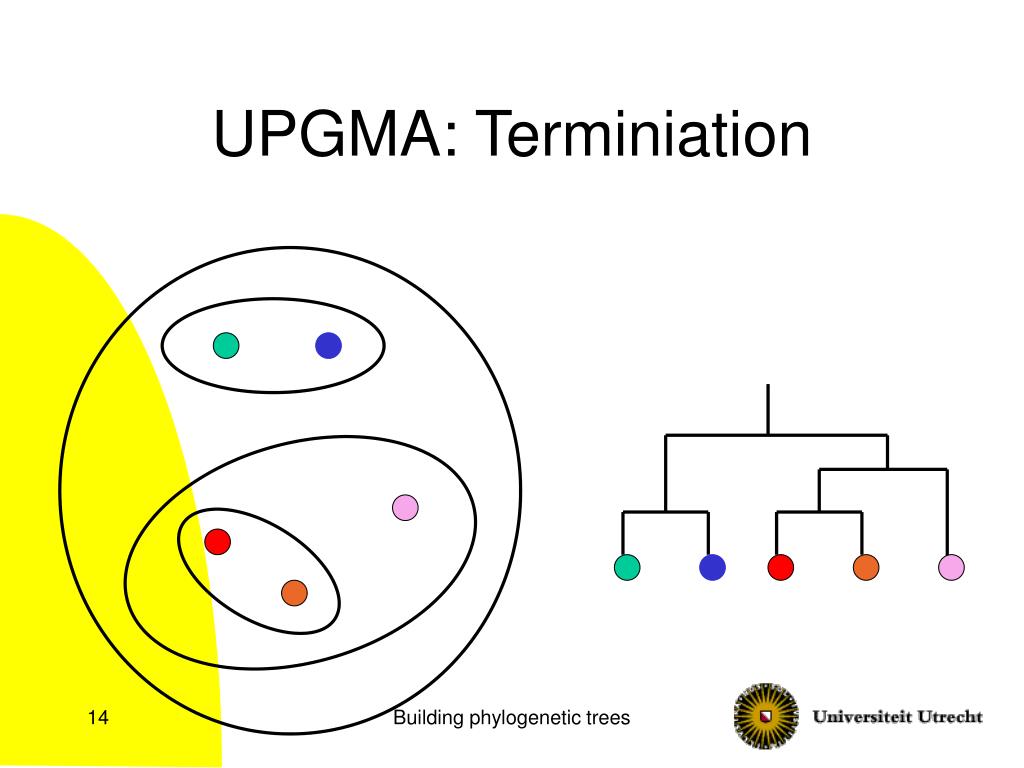

Upgma terminiation
UPGMA: Terminiation

Building phylogenetic trees


Properties of upgma

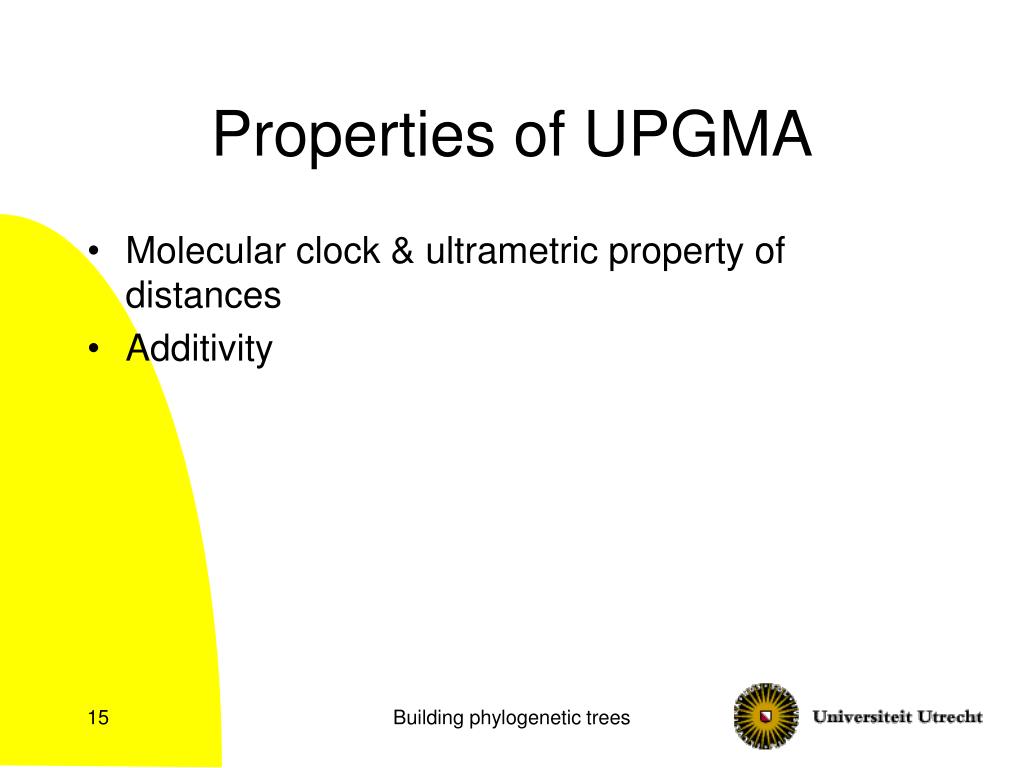

Properties of UPGMA

  • Molecular clock & ultrametric property of distances

  • Additivity

Building phylogenetic trees


Properties of upgma molecular clock ultrametric

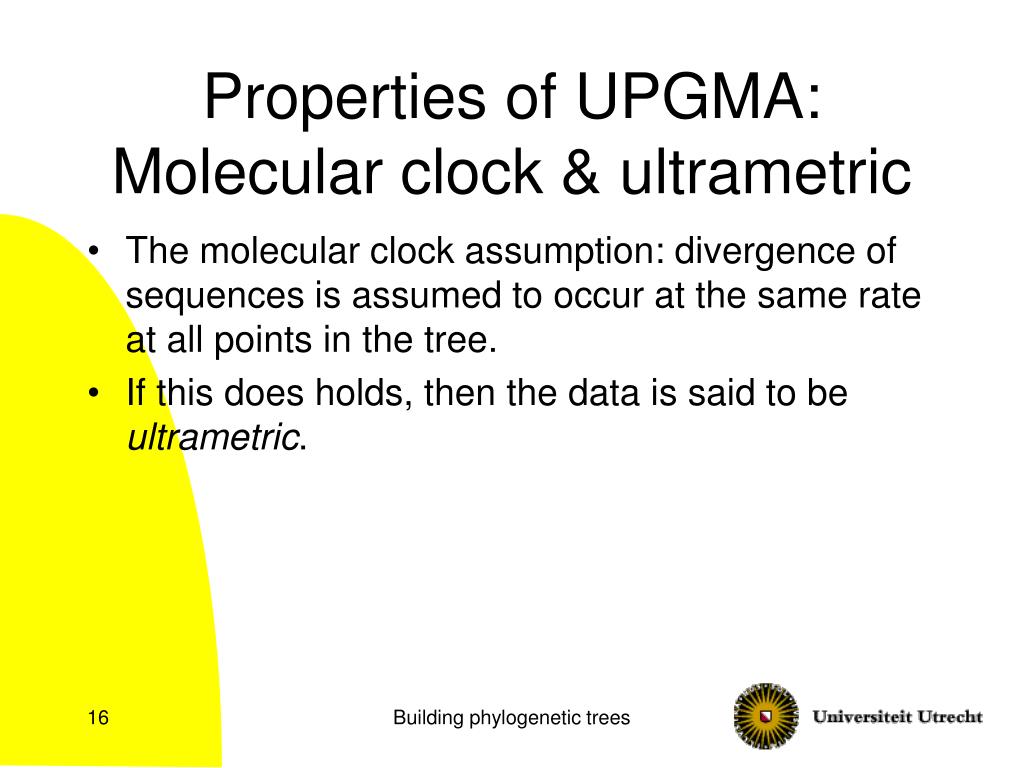

Properties of UPGMA:Molecular clock & ultrametric

  • The molecular clock assumption: divergence of sequences is assumed to occur at the same rate at all points in the tree.

  • If this does holds, then the data is said to be ultrametric.

Building phylogenetic trees


Properties of upgma additivity

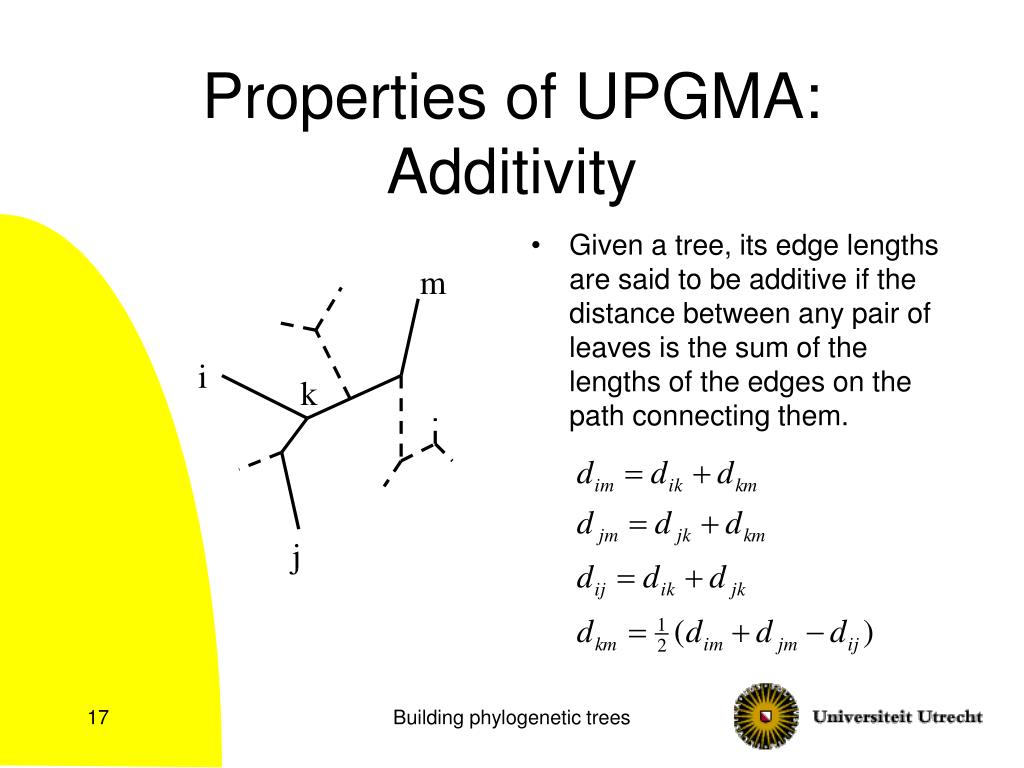

Properties of UPGMA:Additivity

  • Given a tree, its edge lengths are said to be additive if the distance between any pair of leaves is the sum of the lengths of the edges on the path connecting them.

m

i

k

j

Building phylogenetic trees


Neighbour joining
Neighbour-joining

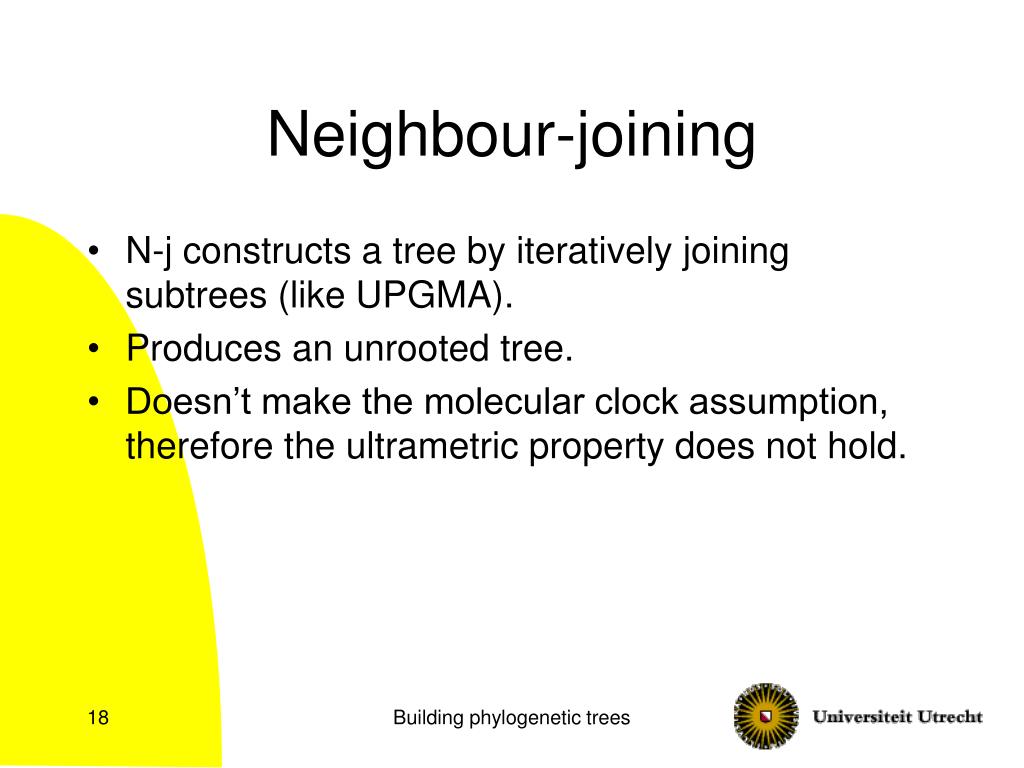

  • N-j constructs a tree by iteratively joining subtrees (like UPGMA).

  • Produces an unrooted tree.

  • Doesn’t make the molecular clock assumption, therefore the ultrametric property does not hold.

Building phylogenetic trees


Distances in neighbour joining

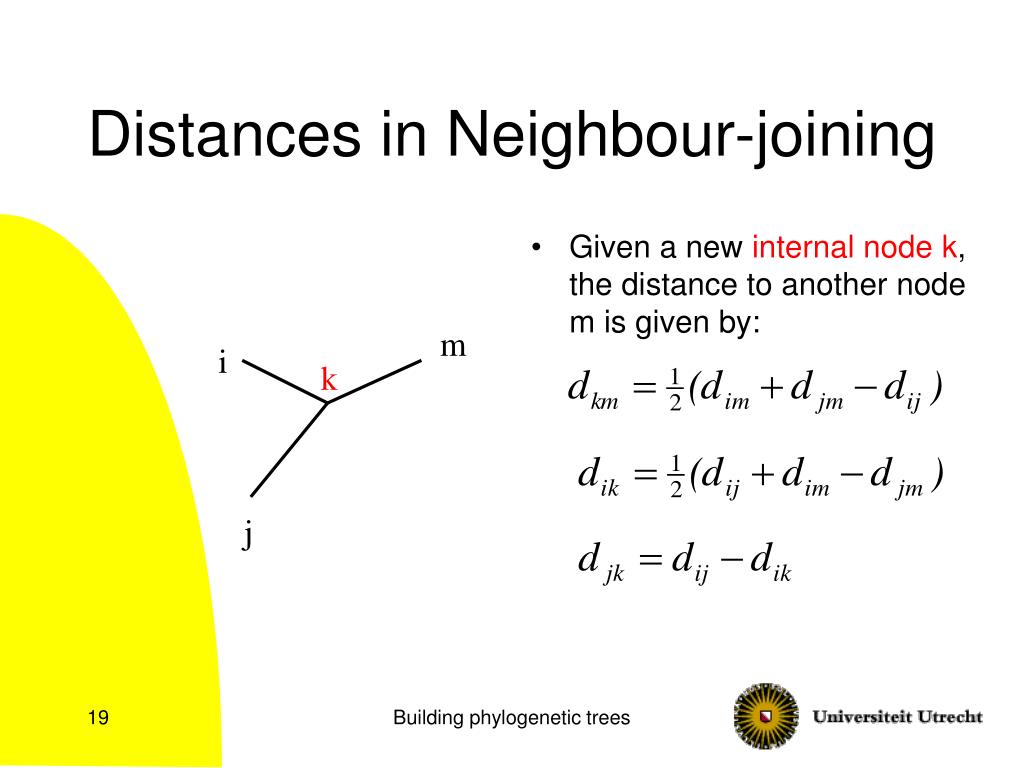

Distances in Neighbour-joining

  • Given a new internal nodek, the distance to another node m is given by:

m

i

k

j

Building phylogenetic trees

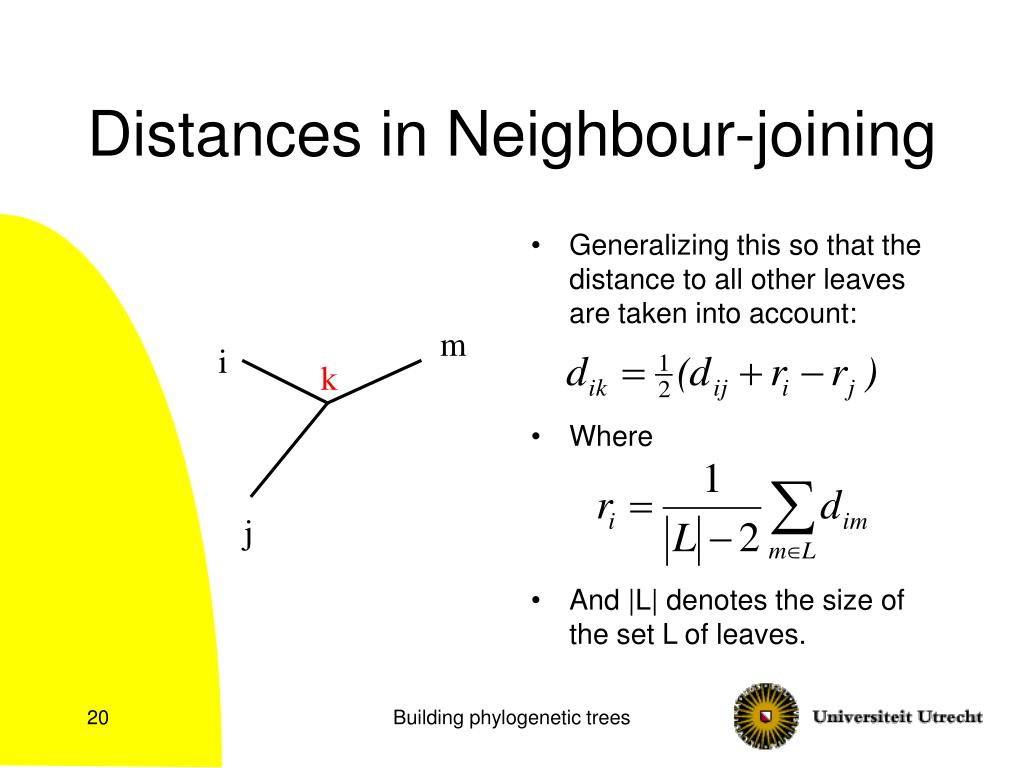

Distances in neighbour joining1
Distances in Neighbour-joining

  • Generalizing this so that the distance to all other leaves are taken into account:

  • Where

  • And |L| denotes the size of the set L of leaves.

m

i

k

j

Building phylogenetic trees


Building the tree neighbour joining

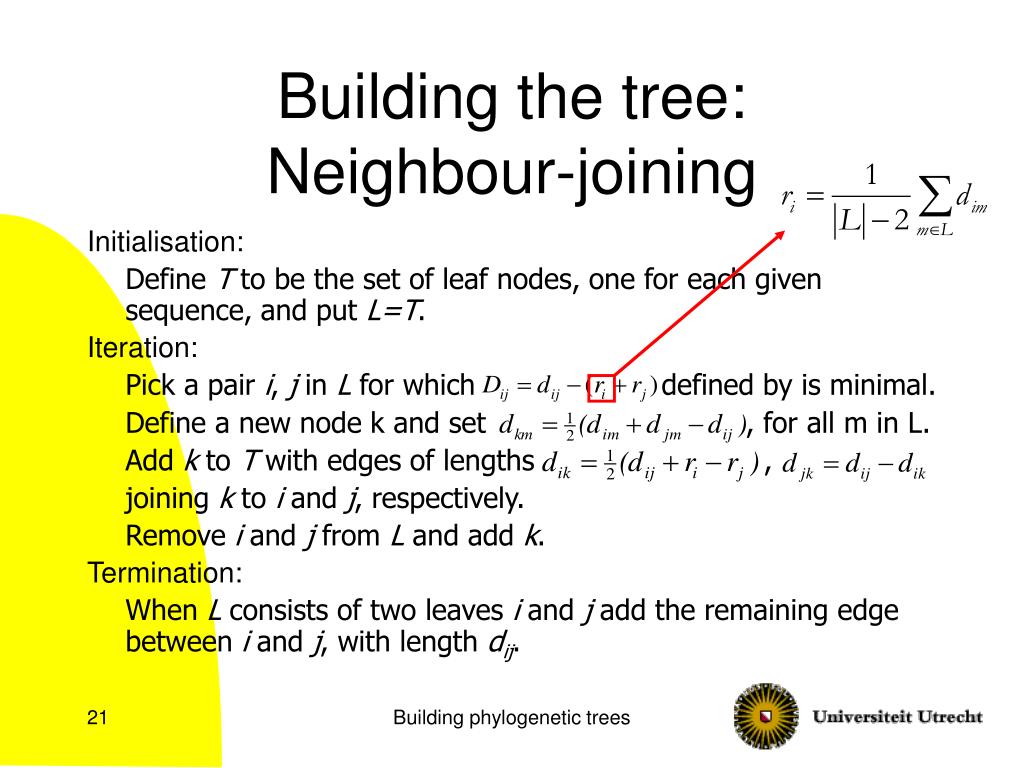

Building the tree:Neighbour-joining

Initialisation:

Define T to be the set of leaf nodes, one for each given sequence, and put L=T.

Iteration:

Pick a pair i, j in L for which defined by is minimal.

Define a new node k and set , for all m in L.

Add k to T with edges of lengths ,

joining k to i and j, respectively.

Remove i and j from L and add k.

Termination:

When L consists of two leaves i and j add the remaining edge between i and j, with length dij.

Building phylogenetic trees

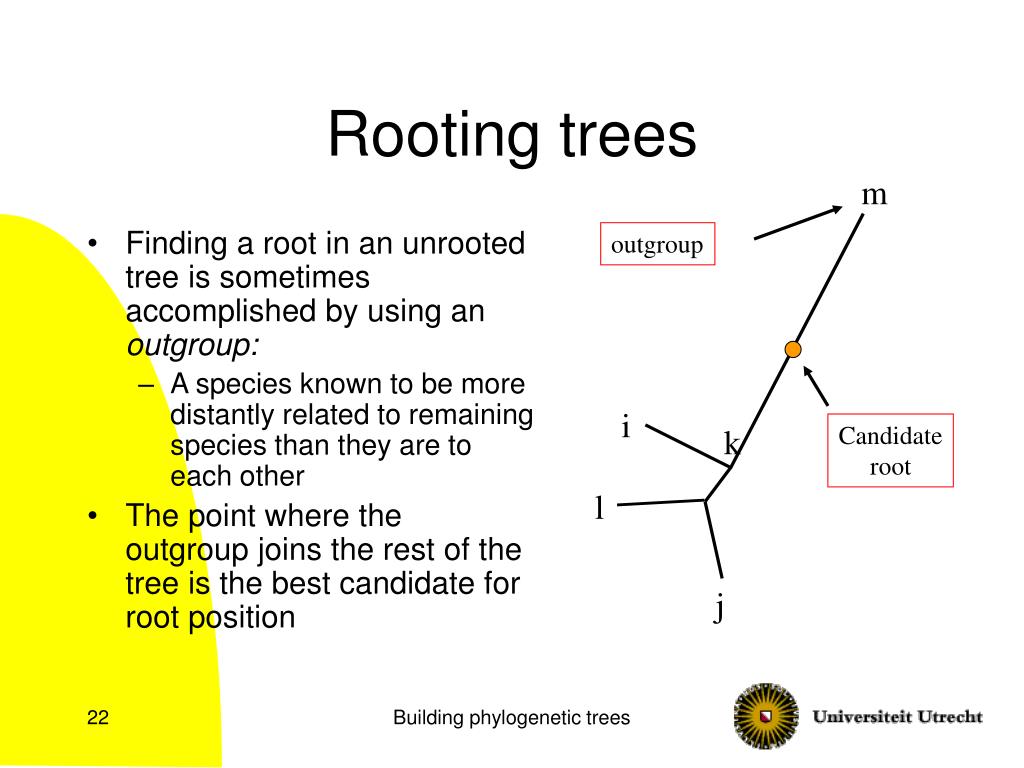

Rooting trees

outgroup

Candidateroot

Rooting trees

m

  • Finding a root in an unrooted tree is sometimes accomplished by using an outgroup:

    • A species known to be more distantly related to remaining species than they are to each other

  • The point where the outgroup joins the rest of the tree is the best candidate for root position

i

k

l

j

Building phylogenetic trees


Comments on distance based methods
Comments on distance based methods

  • If the given data is ultrametric (and these distances represent real distances), then UPGMA will identify the correct tree.

  • If the data is additive (and these distances represent real distances), then Neighbour-joining will identify the correct tree.

  • Otherwise, the methods may not recover the correct tree, but they may still be reasonable heuristics.

Building phylogenetic trees


Phylogenetic tree approaches1

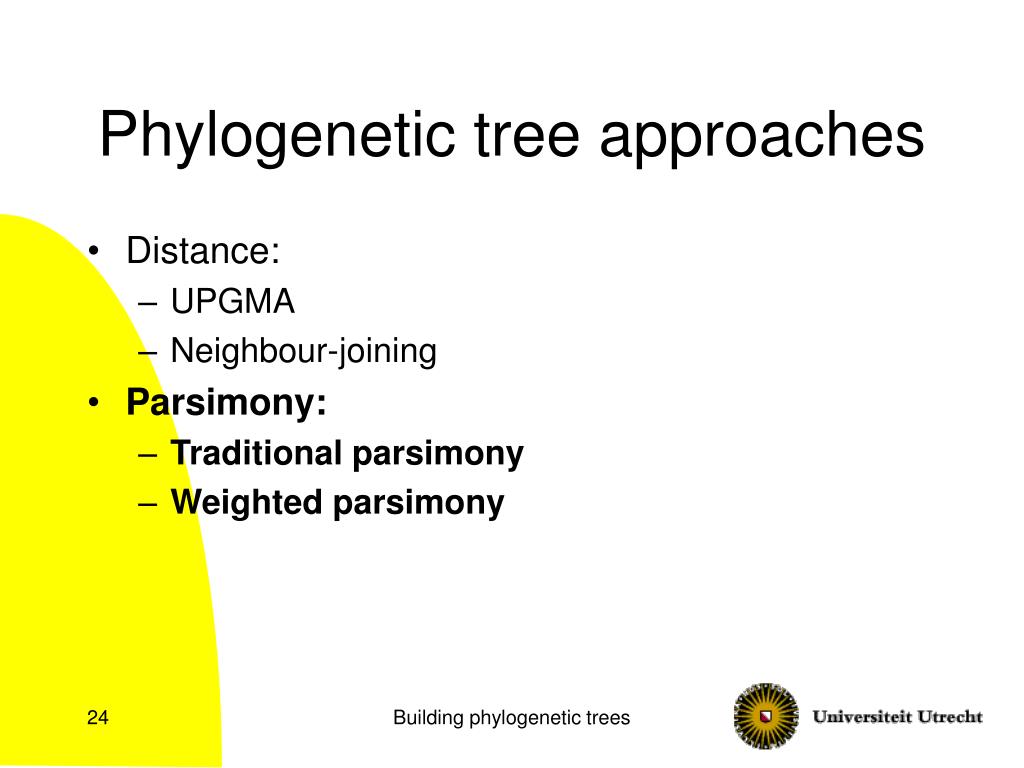

Phylogenetic tree approaches

  • Distance:

    • UPGMA

    • Neighbour-joining

  • Parsimony:

    • Traditional parsimony

    • Weighted parsimony

Building phylogenetic trees


Parsimony
Parsimony

  • Most widely used tree building algorithm(?).

  • Finds the tree that explains the data with a minimal number of changes.

  • Instead of building atree, it assigns a cost to a given tree.

  • Two components of the parsimony algorithm can be distinguished:

    • The computation of a cost for a given tree;

    • A search through all trees, to find the overall minimum of this cost.

Building phylogenetic trees


Parsimony example

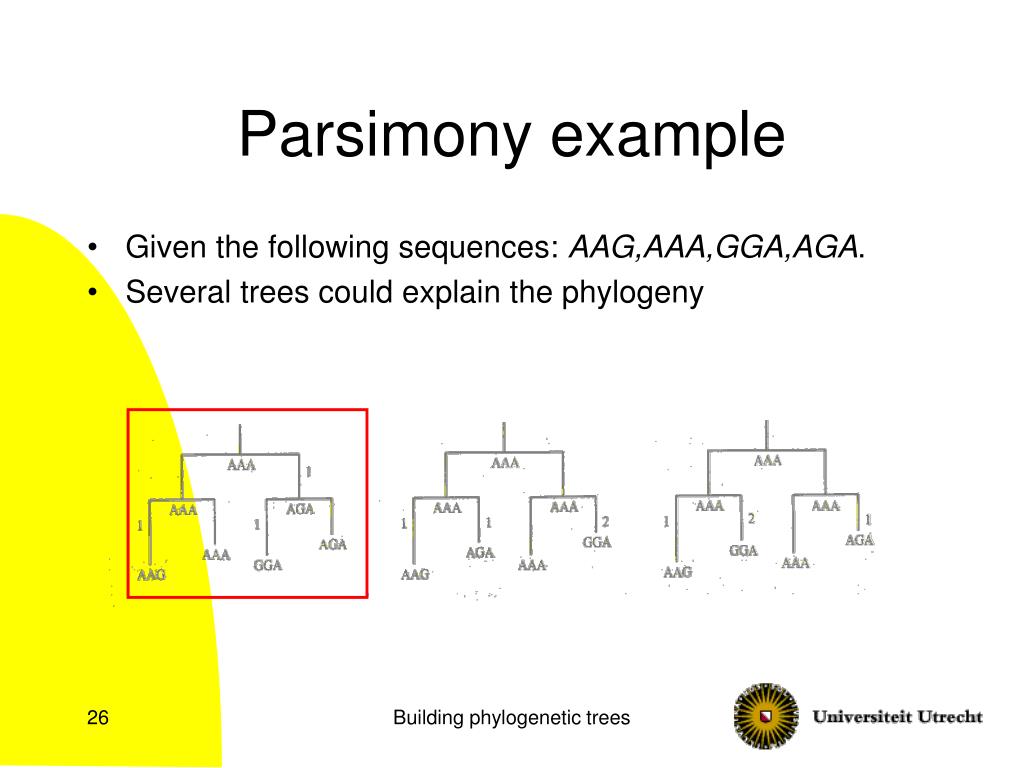

Parsimony example

  • Given the following sequences: AAG,AAA,GGA,AGA.

  • Several trees could explain the phylogeny

Building phylogenetic trees


Traditional parsimony

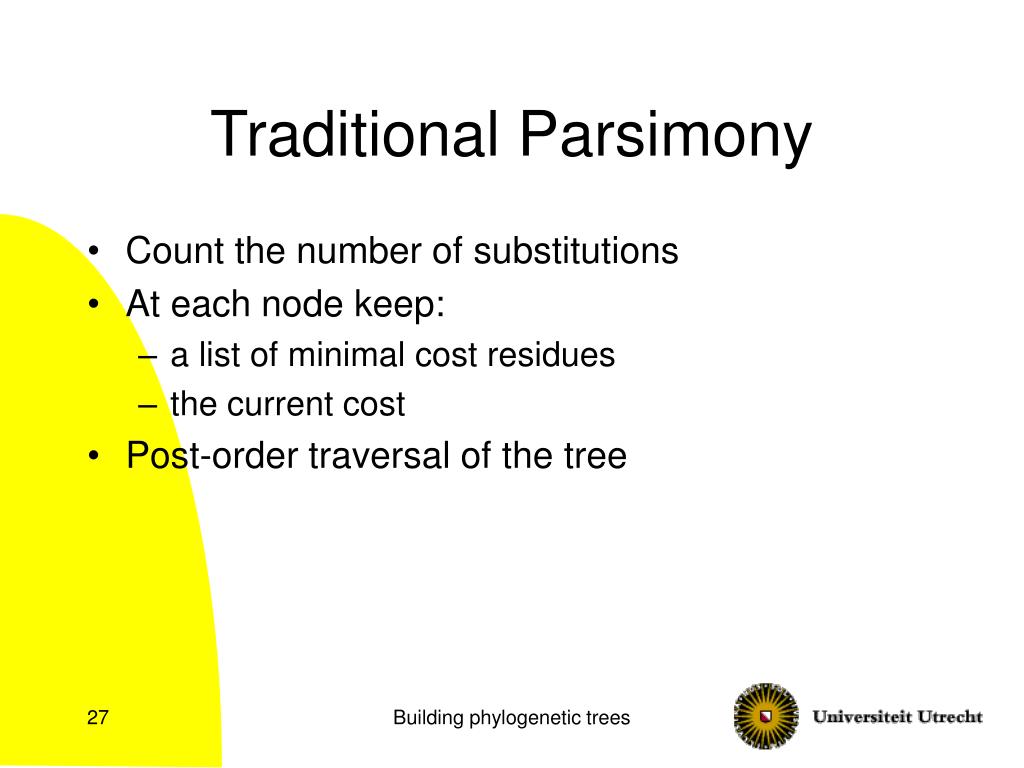

Traditional Parsimony

  • Count the number of substitutions

  • At each node keep:

    • a list of minimal cost residues

    • the current cost

  • Post-order traversal of the tree

Building phylogenetic trees


Traditional parsimony1
Traditional Parsimony

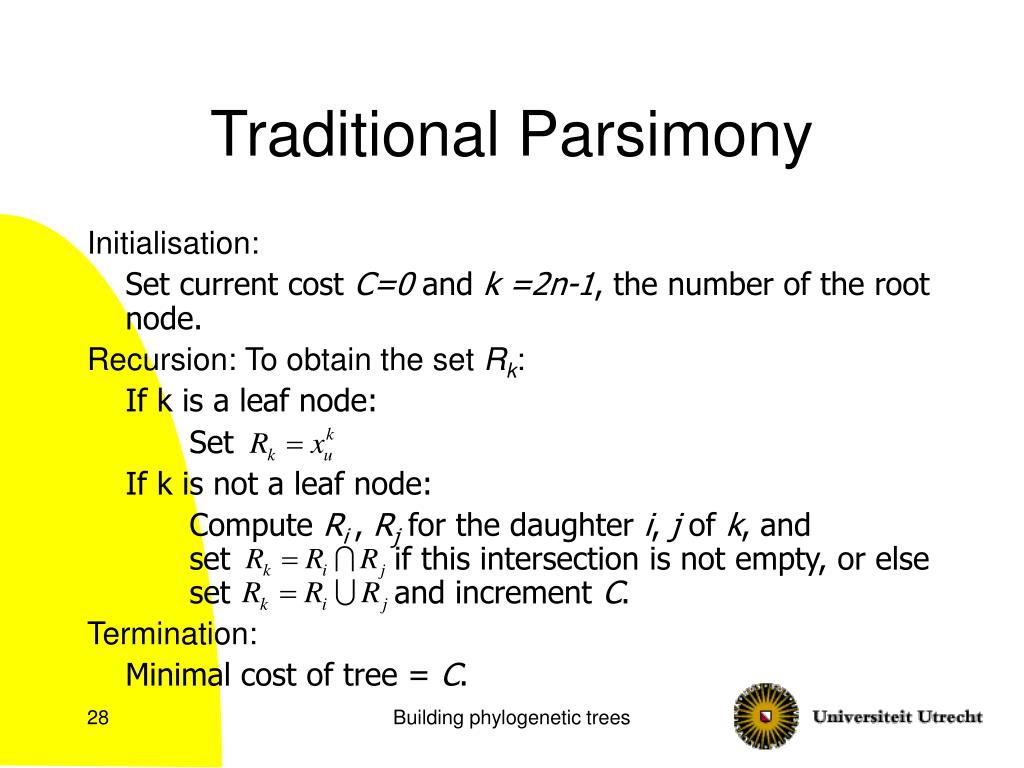

Initialisation:

Set current cost C=0 and k =2n-1, the number of the root node.

Recursion: To obtain the set Rk:

If k is a leaf node:

Set

If k is not a leaf node:

Compute Ri , Rj for the daughter i, j of k, and set if this intersection is not empty, or else set and increment C.

Termination:

Minimal cost of tree = C.

Building phylogenetic trees


Weighted parsimony

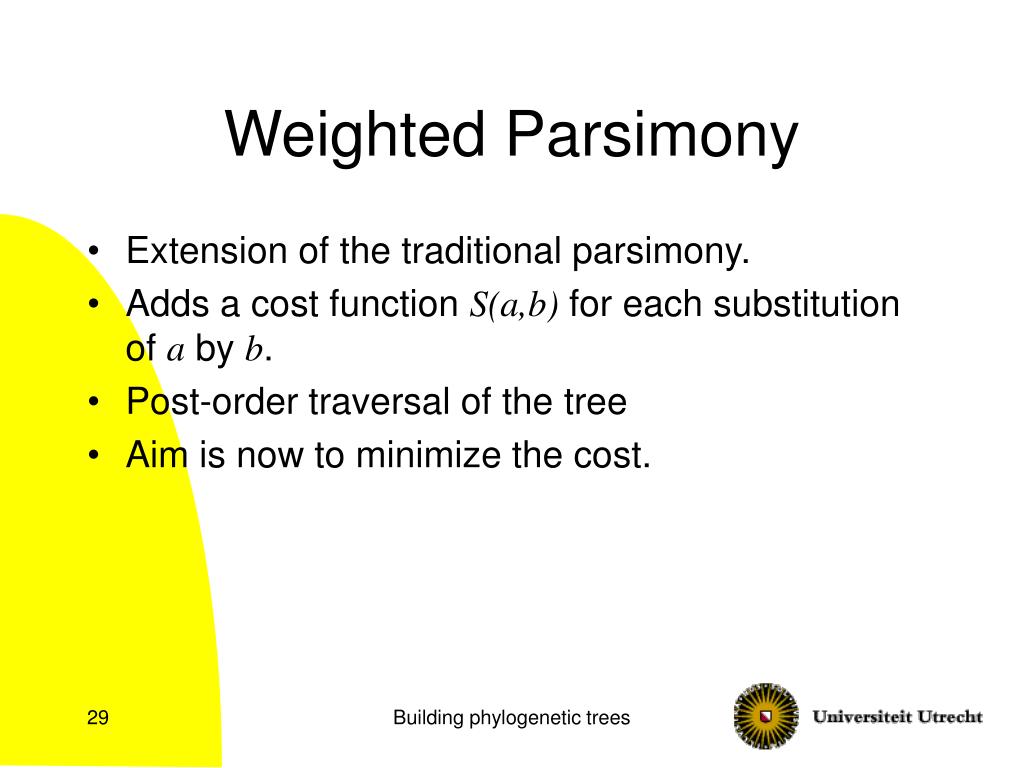

Weighted Parsimony

  • Extension of the traditional parsimony.

  • Adds a cost function S(a,b) for each substitution of a by b.

  • Post-order traversal of the tree

  • Aim is now to minimize the cost.

Building phylogenetic trees


Weighted parsimony1
Weighted Parsimony

Initialisation:

Set k =2n-1, the number of the root node

Recursion: Compute Sk(a) for all a as follows:

If k is a leaf node:

Set , otherwise

If k is not a leaf node:

Compute Si(a), Sj(a) for all a at the daughter i, j and define

Termination:

Minimal cost of tree = minaS2n-1(a).

Building phylogenetic trees


Break

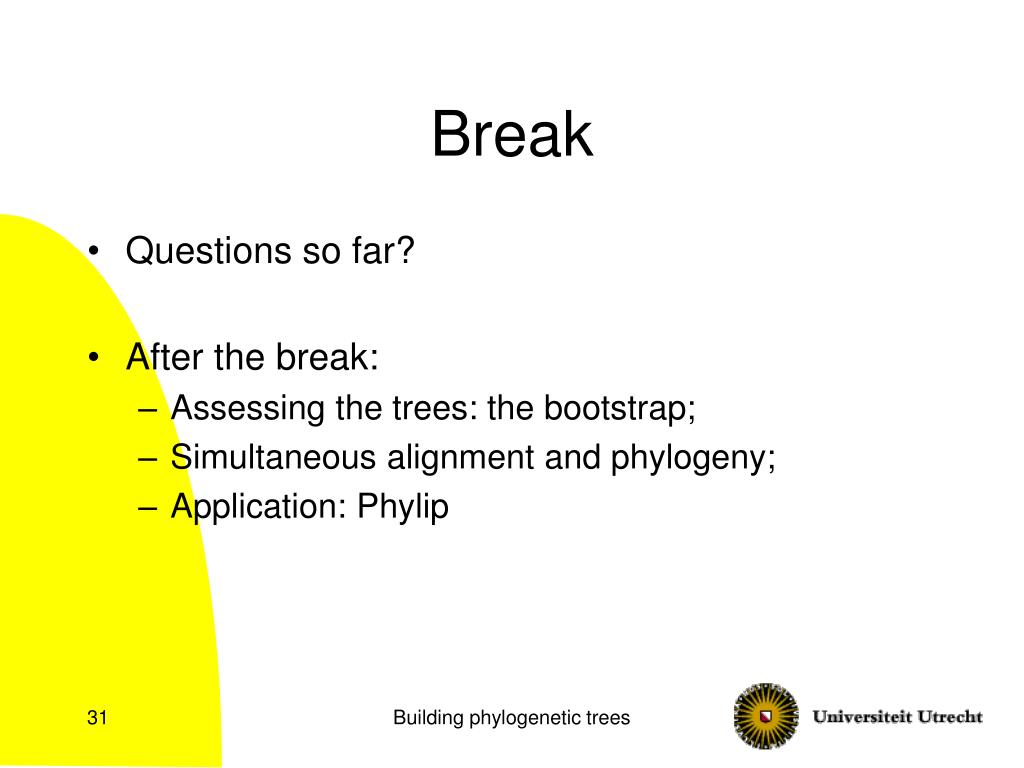

Break

  • Questions so far?

  • After the break:

    • Assessing the trees: the bootstrap;

    • Simultaneous alignment and phylogeny;

    • Application: Phylip

Building phylogenetic trees

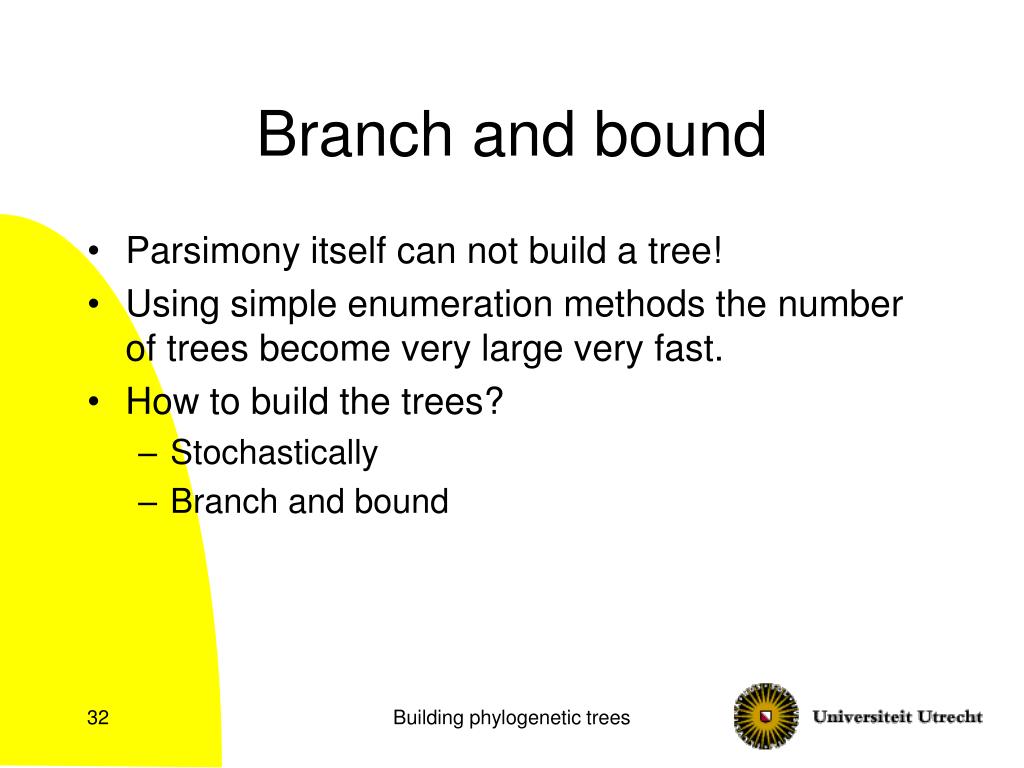

Branch and bound
Branch and bound

  • Parsimony itself can not build a tree!

  • Using simple enumeration methods the number of trees become very large very fast.

  • How to build the trees?

    • Stochastically

    • Branch and bound

Building phylogenetic trees


Branch and bound1
Branch and bound

  • B&B uses the parsimony algorithm.

  • It guarantees to find the overall best tree.

  • It systematically builds trees by increasing the number of leaves.

  • Abandons a particular avenue of tree building whenever the current incomplete tree (T*) has a cost(T*)>cost(Tmin).

Building phylogenetic trees

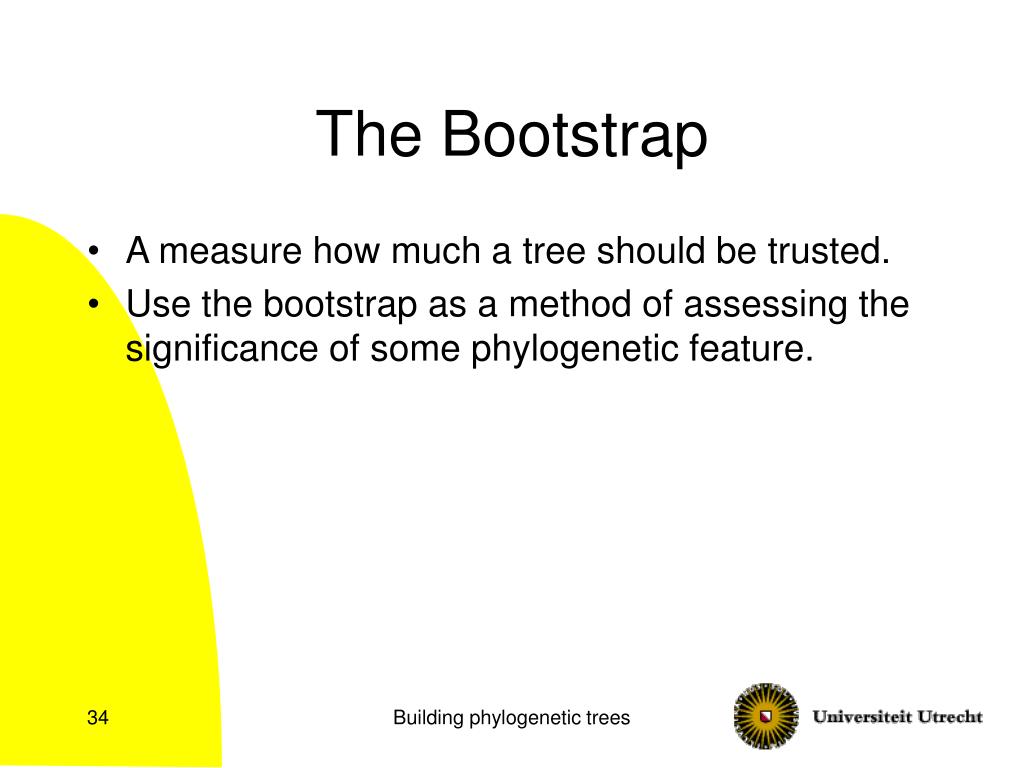

The bootstrap
The Bootstrap

  • A measure how much a tree should be trusted.

  • Use the bootstrap as a method of assessing the significance of some phylogenetic feature.

Building phylogenetic trees


The bootstrap 2

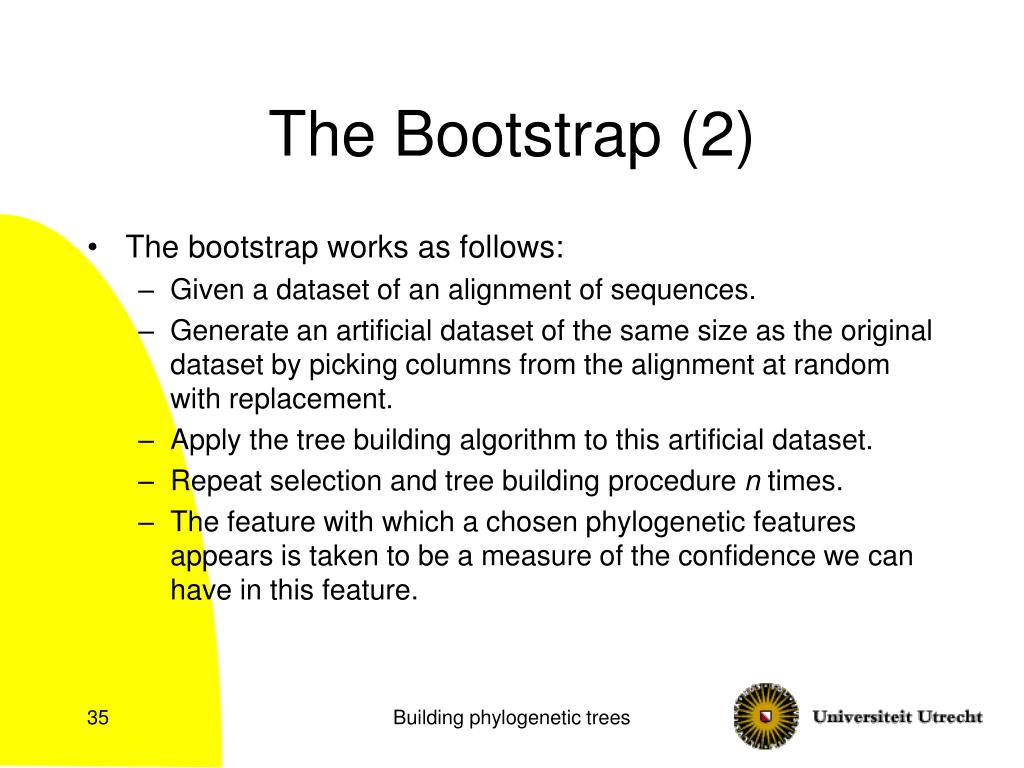

The Bootstrap (2)

  • The bootstrap works as follows:

    • Given a dataset of an alignment of sequences.

    • Generate an artificial dataset of the same size as the original dataset by picking columns from the alignment at random with replacement.

    • Apply the tree building algorithm to this artificial dataset.

    • Repeat selection and tree building procedure n times.

    • The feature with which a chosen phylogenetic features appears is taken to be a measure of the confidence we can have in this feature.

Building phylogenetic trees

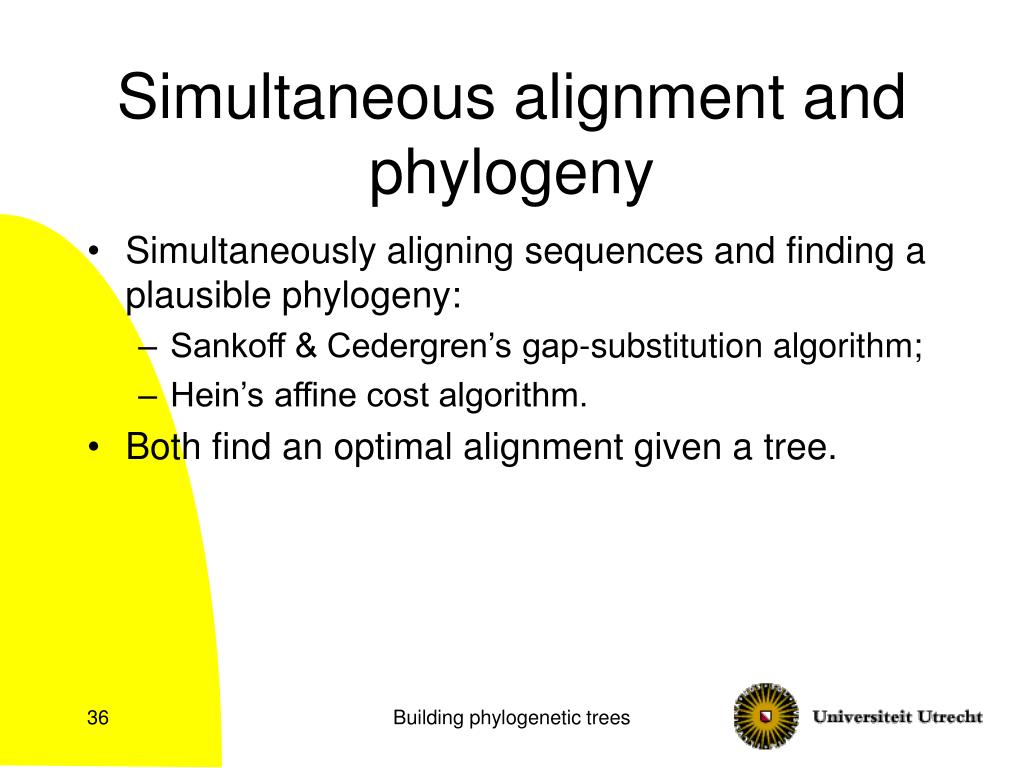

Simultaneous alignment and phylogeny
Simultaneous alignment and phylogeny

  • Simultaneously aligning sequences and finding a plausible phylogeny:

    • Sankoff & Cedergren’s gap-substitution algorithm;

    • Hein’s affine cost algorithm.

  • Both find an optimal alignment given a tree.

Building phylogenetic trees


Sankoff cedergren s gap substitution algorithm
Sankoff & Cedergren’s gap-substitution algorithm

  • Guarantees to find ancestral sequences, and alignments of them and the leaf sequences.

  • It uses a character-substitution model of gaps

  • Together this minimizes a tree-based parsimony-type cost.

  • The algorithm is a combination of two known methods:

    • Dynamic programming method (Chapter 6);

    • Weighted Parsimony algorithm.

Building phylogenetic trees


Hein s affine cost algorithm

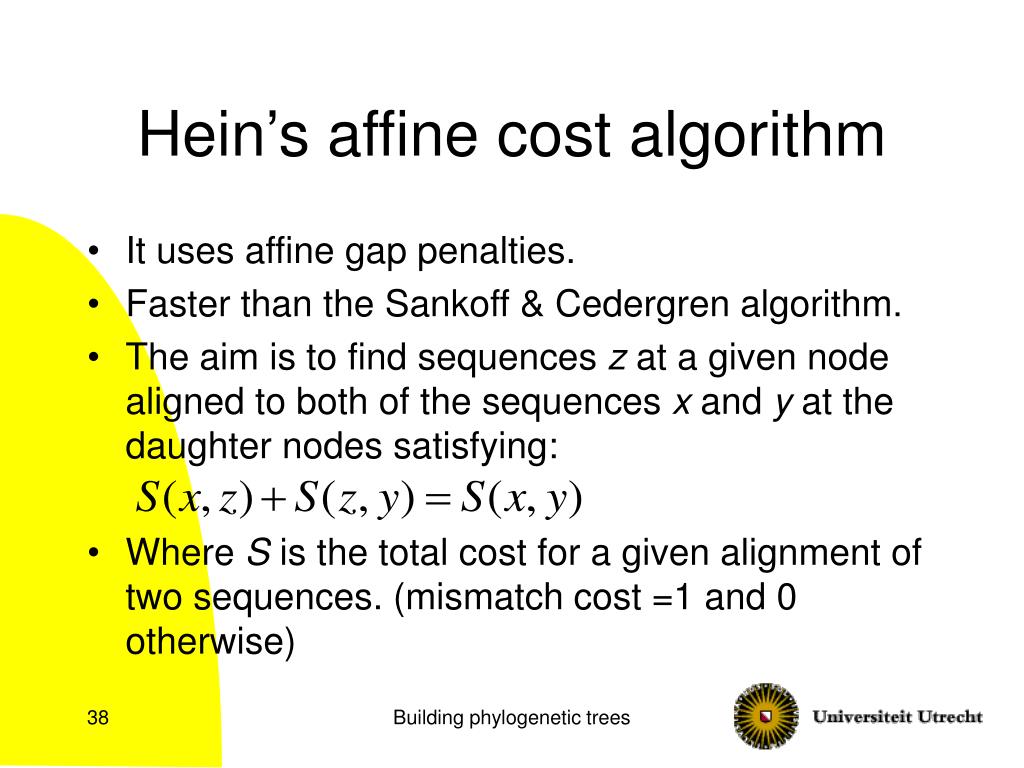

Hein’s affine cost algorithm

  • It uses affine gap penalties.

  • Faster than the Sankoff & Cedergren algorithm.

  • The aim is to find sequences z at a given node aligned to both of the sequences x and y at the daughter nodes satisfying:

  • Where S is the total cost for a given alignment of two sequences. (mismatch cost =1 and 0 otherwise)

Building phylogenetic trees


Hein s affine cost algorithm1
Hein’s affine cost algorithm

  • Compared to equation (2.16) (alignment with affine gap scores) here the algorithm searches for the minimal cost path.

  • The affine gap cost for a gap of length k isd+(k-1)e, where e<=d.

Building phylogenetic trees


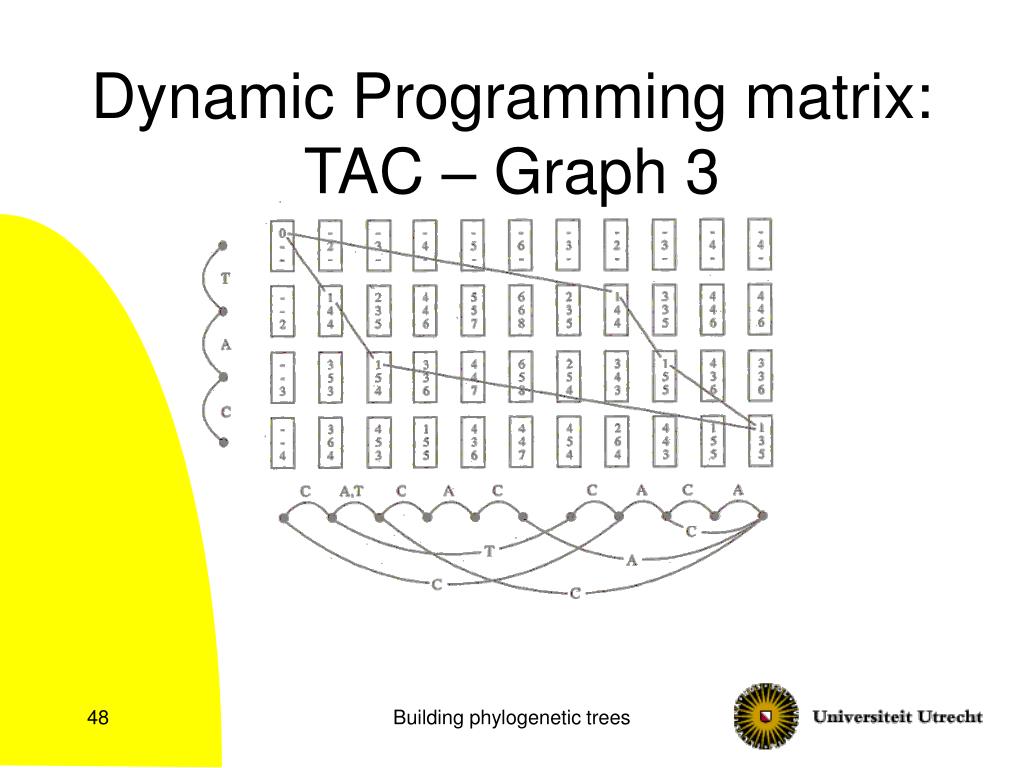

Dynamic programming matrix for two sequences

VM

VX

VY

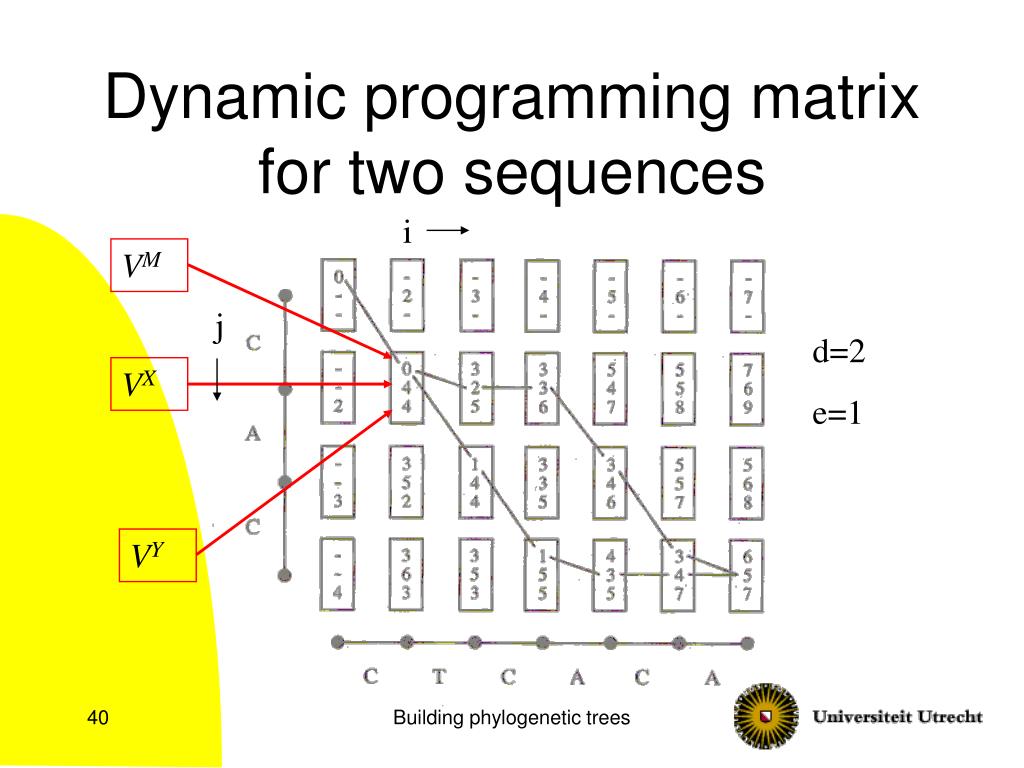

Dynamic programming matrix for two sequences

i

j

d=2

e=1

Building phylogenetic trees


Hein s affine cost algorithm2

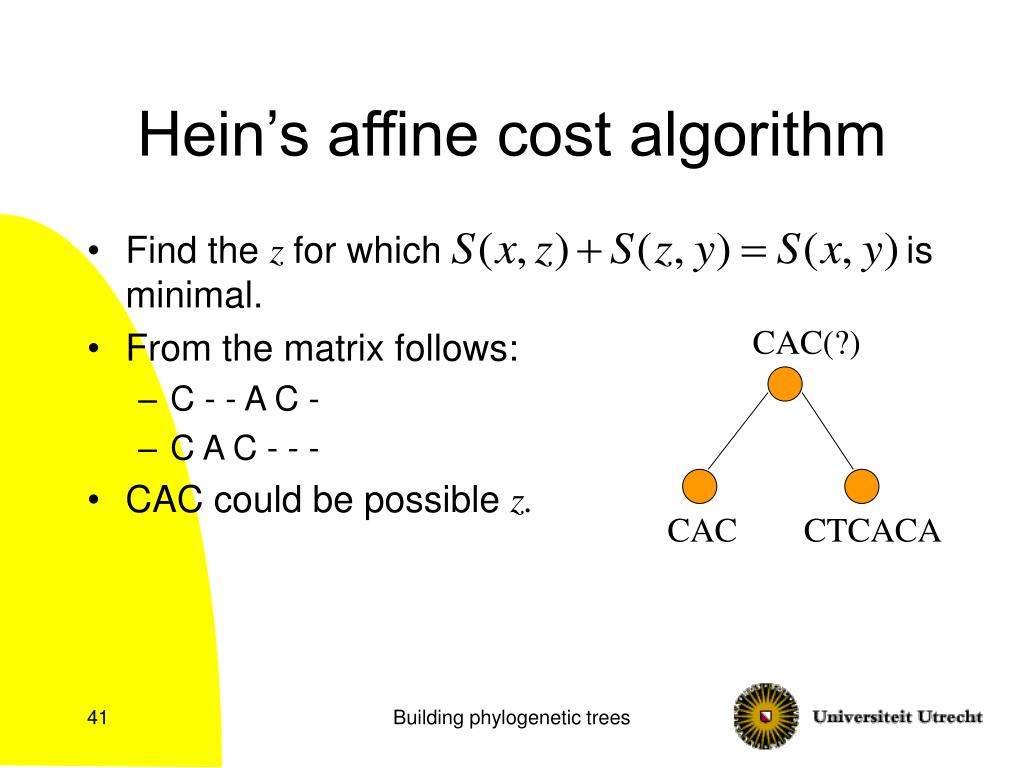

Hein’s affine cost algorithm

  • Find the zfor which is minimal.

  • From the matrix follows:

    • C - - A C -

    • C A C - - -

  • CAC could be possible z.

CAC(?)

CAC

CTCACA

Building phylogenetic trees


Hein s affine cost algorithm3

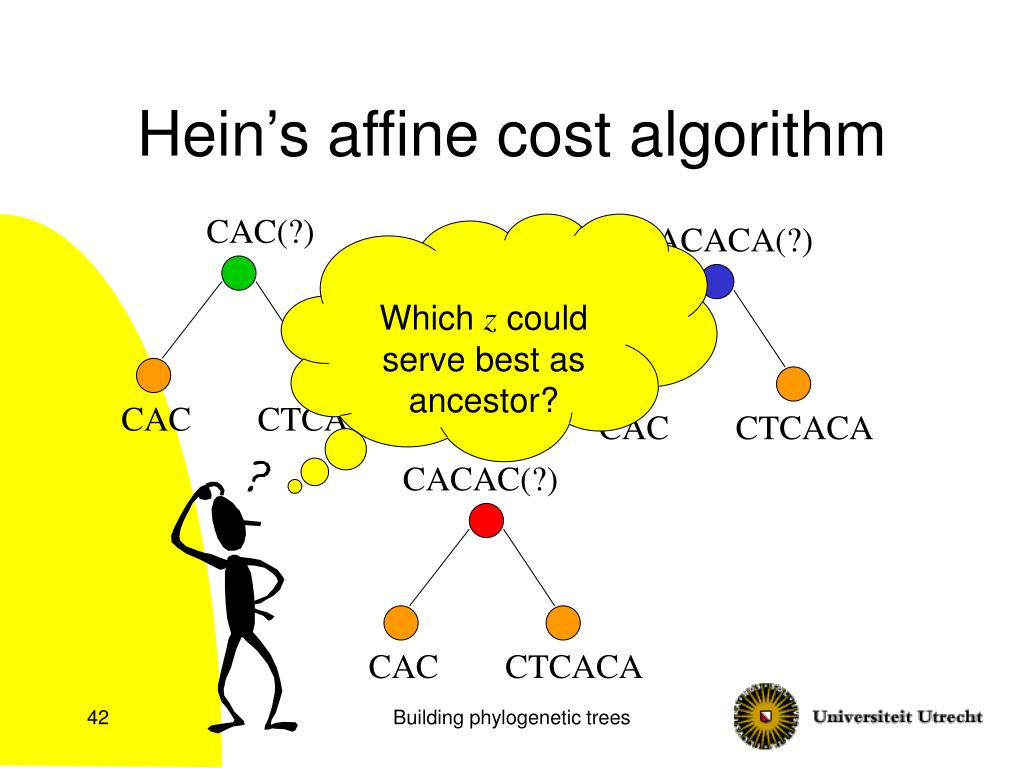

Which zcould serve best as ancestor?

Hein’s affine cost algorithm

CAC(?)

CACACA(?)

CAC

CTCACA

CAC

CTCACA

CACAC(?)

CAC

CTCACA

Building phylogenetic trees


Hein s affine cost algorithm4
Hein’s affine cost algorithm

CAC

CACACA

CACAC

Building phylogenetic trees

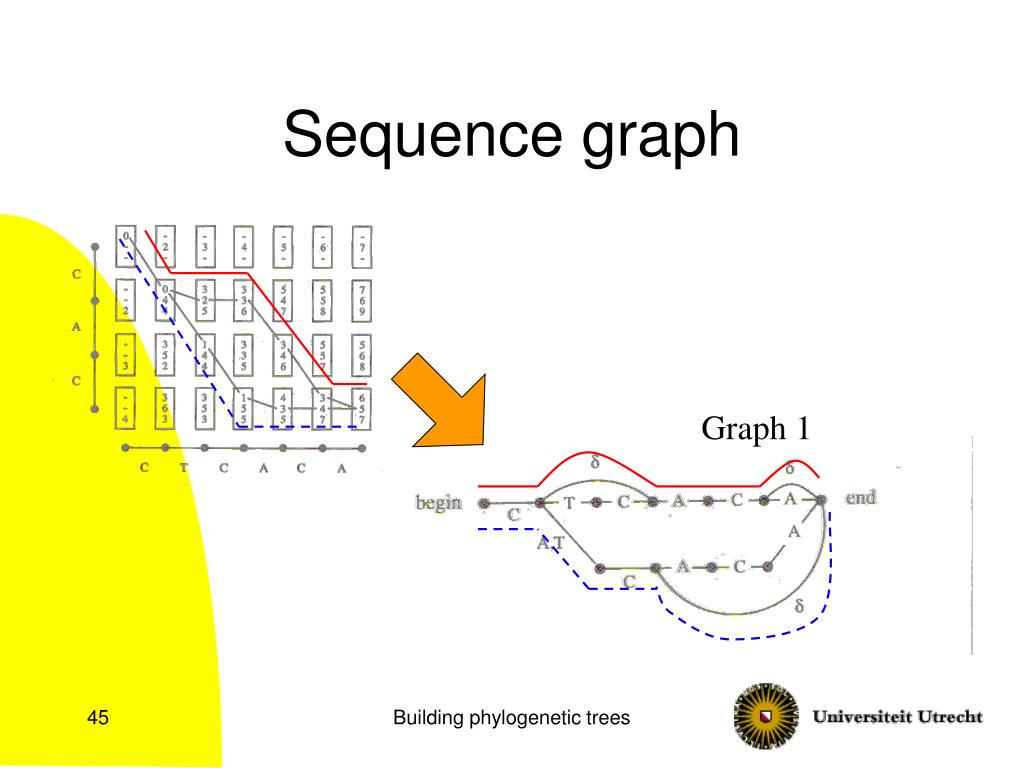

Sequence graph

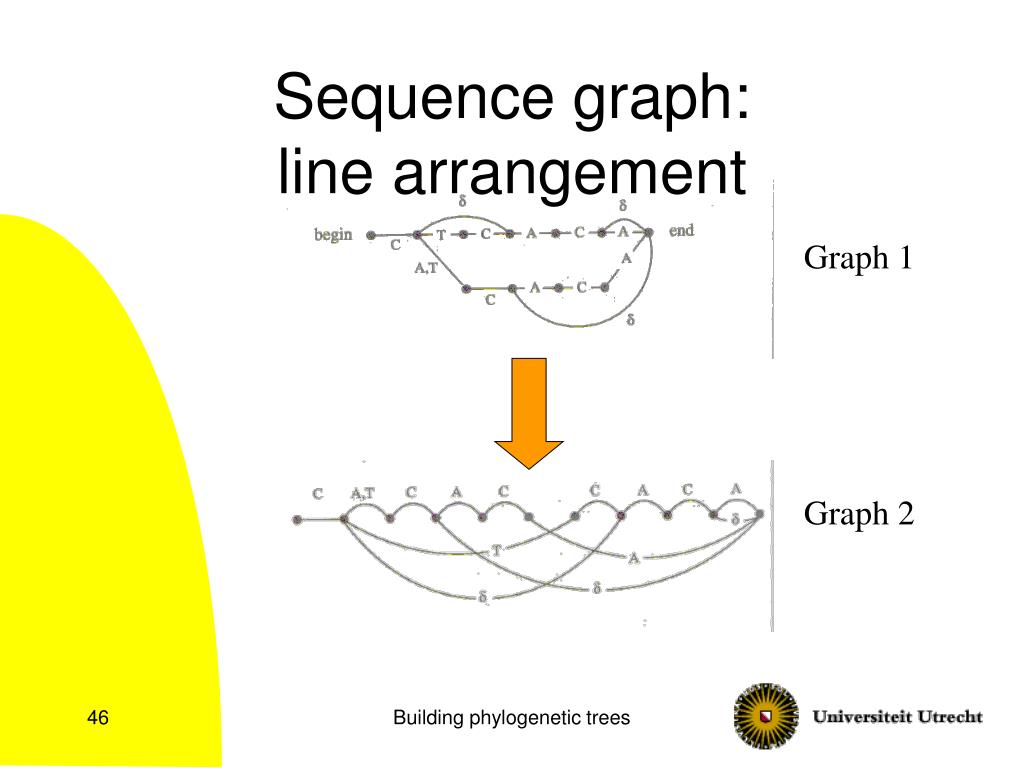

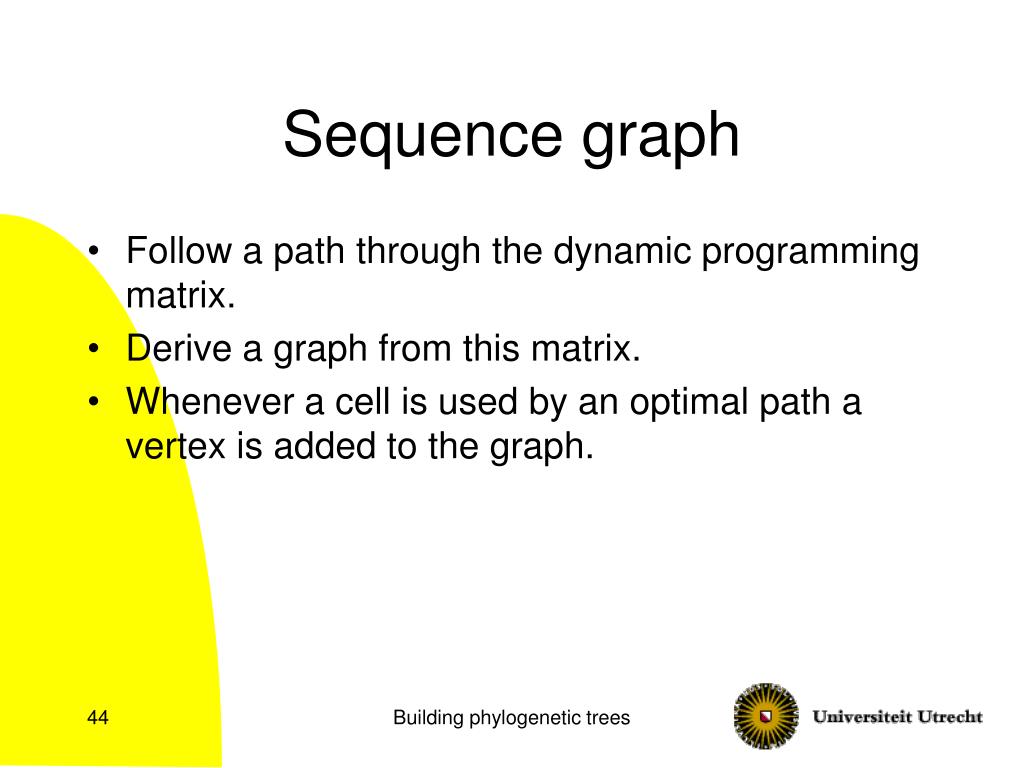

Sequence graph

  • Follow a path through the dynamic programming matrix.

  • Derive a graph from this matrix.

  • Whenever a cell is used by an optimal path a vertex is added to the graph.

Building phylogenetic trees


Sequence graph1

Graph 1

Sequence graph

Building phylogenetic trees


Sequence graph line arrangement

Graph 2

Sequence graph:line arrangement

Graph 1

Building phylogenetic trees


Sequence graph replacing the dummy edges

Graph 3

Sequence graph:replacing the dummy edges

Graph 2

Building phylogenetic trees


Dynamic programming matrix tac graph 3
Dynamic Programming matrix:TAC – Graph 3

Building phylogenetic trees


Ancestors
Ancestors

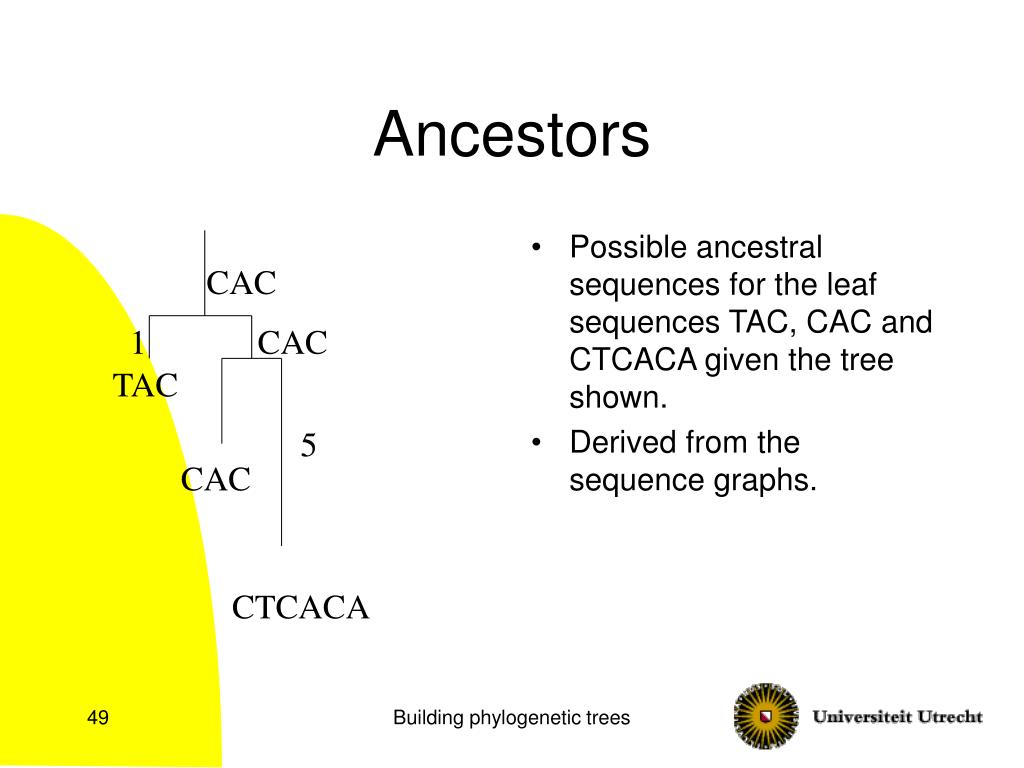

  • Possible ancestral sequences for the leaf sequences TAC, CAC and CTCACA given the tree shown.

  • Derived from the sequence graphs.

CAC

1

CAC

TAC

5

CAC

CTCACA

Building phylogenetic trees


Limitations of hein s model
Limitations of Hein’s model

  • Hein’s algorithm takes the minimal cost sequences at each node upward.

  • This can fail to give the overall optimum.

  • Suppose the cost for a gap of length k is:

    • 13+3(k-1)

  • Mismatch:

    • 4

  • Suppose the leaves G and GTT.

Building phylogenetic trees


Limitations of hein s model1
Limitations of Hein’s model

  • A eligible ancestor of G and GTT would be themselves, since they both have a cost of 13+3=16.

  • GT would not be eligible because of the total cost of 2*13=26.

  • Now we want to branch to the ancestor of G and GTT and there is a third leave GT.

    • The total cost for ineligible GT would be lower than for either G or GTT.

Building phylogenetic trees


Application phylip phylogeny inference package
Application: PHYLIP (Phylogeny Inference Package)

  • Many features, among:

    • Traditional (unrooted) parsimony

    • Branch and bound to find all most parsimonious trees

Building phylogenetic trees


Application phylip
Application: PHYLIP

  • Test dataset:

    Jurgen AACGUGGCCAAAU

    Alpha ACCGCCGCCAAAU

    Beta AAGGUCGCCAAAC

    Gamma CAUUUCGUCACAA

    Delta GGUAUCUCGGCCU

    Epsilon GAAAUCUCGAUCC

    Richard GGGCUCUCGGCUC

Building phylogenetic trees
