increased safety and productivity butt fusing hdpe pipe

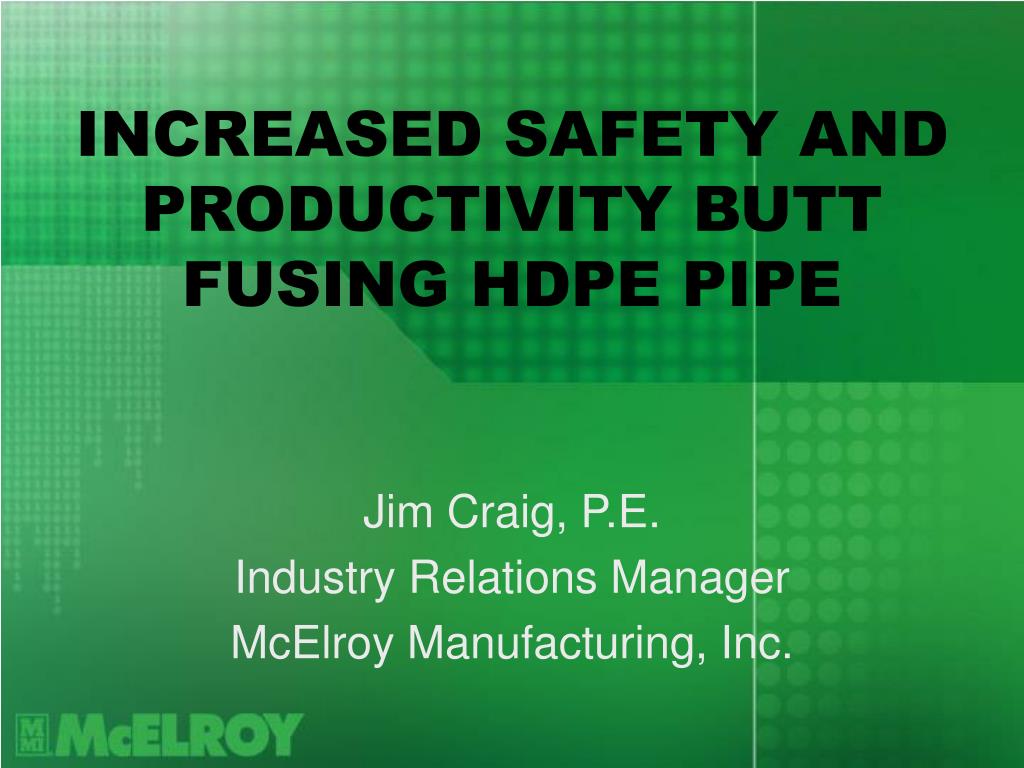

INCREASED SAFETY AND PRODUCTIVITY BUTT FUSING HDPE PIPE

Jim Craig, P.E.

Industry Relations Manager

McElroy Manufacturing, Inc.

discussion points

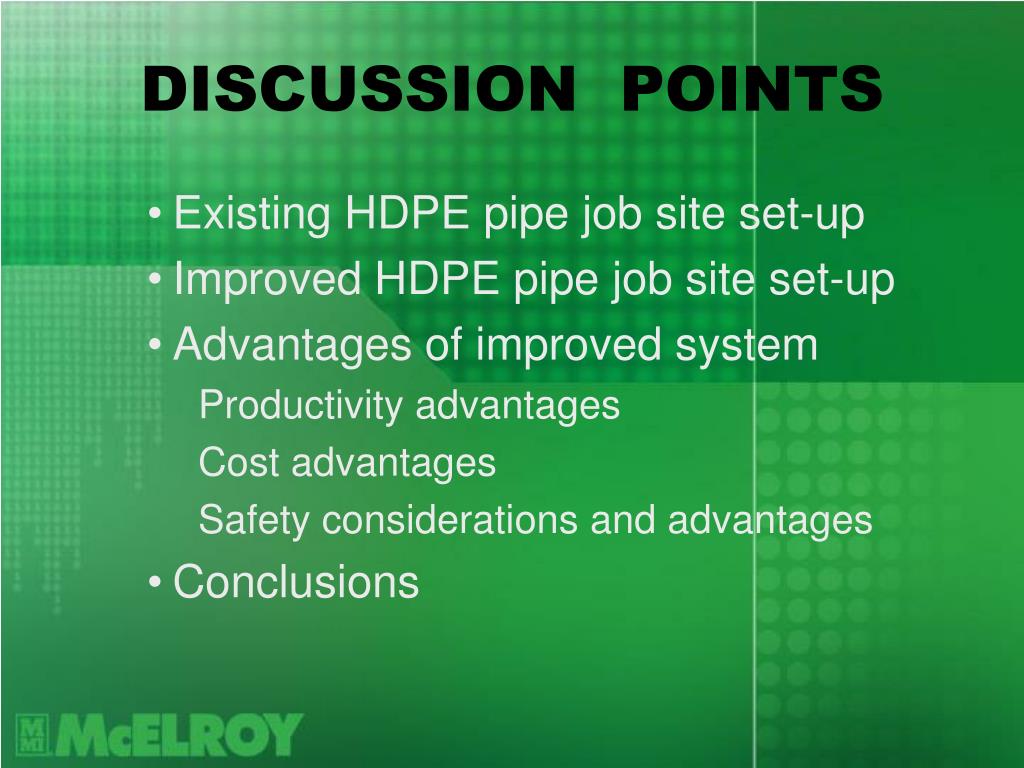

DISCUSSION POINTS
  • Existing HDPE pipe job site set-up
  • Improved HDPE pipe job site set-up
  • Advantages of improved system

Productivity advantages

Cost advantages

Safety considerations and advantages

  • Conclusions
advantages of improved pipe handling system
ADVANTAGES OF IMPROVED PIPE HANDLING SYSTEM
  • Low cost and easy to set-up
  • Reduces contamination and damage to pipe
  • Improved productivity
  • Reduces job cost by eliminating equipment and personnel on job
  • Improves safety for the operator and the fusion equipment
handling system productivity analysis
Handling System Productivity Analysis

Existing Improved

4-8” IPS 24-48 40-70

10-18” IPS 12-24 20-34

20-24” IPS 10-16 18-20

Estimated Joints per 10 Hour Day

cost analysis
Cost Analysis

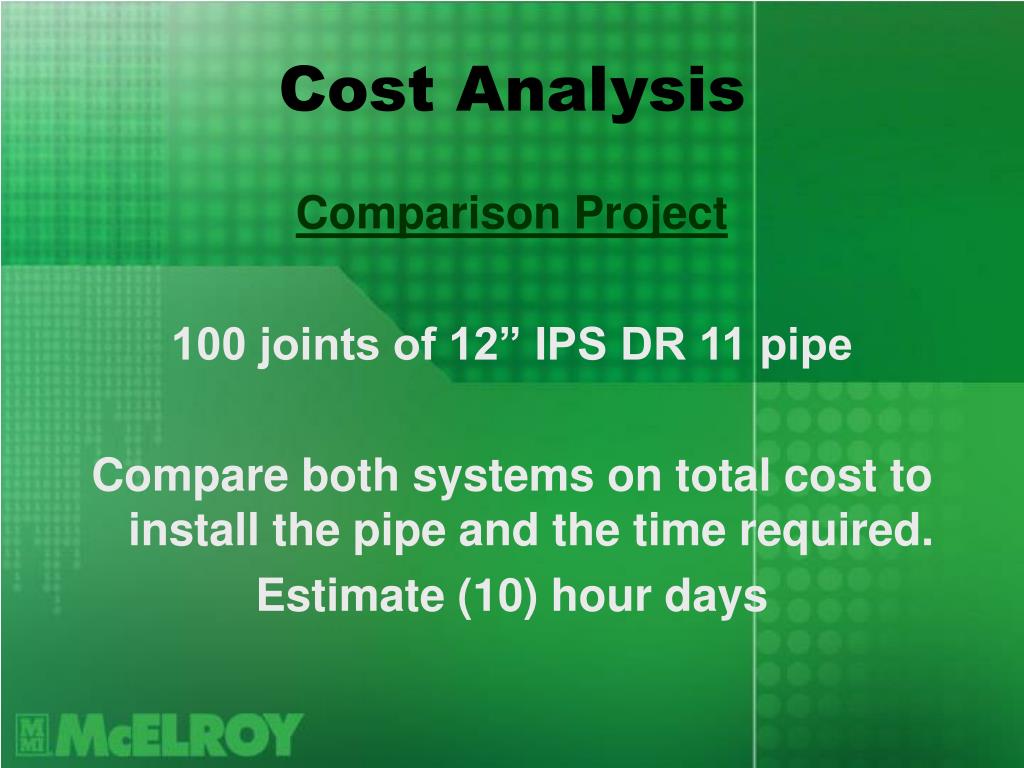

Comparison Project

100 joints of 12” IPS DR 11 pipe

Compare both systems on total cost to install the pipe and the time required.

Estimate (10) hour days

cost analysis8
Cost Analysis

Handling Systems Existing Improved

100 Joints 5 days (20 J/D) 3.45 days (29 J/D)

Fusion Equipment Rental ($275 /day) $1,375 $1,100

Fusion Operator ($480 /day) $2,400 $1,920

Loading/Pulling Equipment ($325 /day) (2) $3,250 (5 days) (1) $1,300 (4 days)

Loading Equipment Operator ($480 /day) (2) $4,800 (5 days) (1) $1,920 (4 days)

Rack System Rental ($100 /day) $ 400 (4 days)

Total Cost $11,825 $6,640

Savings – Cost $5,185

Savings – Time 1.5 days

safety analysis risk reduction
Safety AnalysisRisk Reduction

Existing Pipe Handling System

Pipe loaded on pipe supports-------------------- 101 times

Improved Pipe Handling System

Pipe loaded on pipe racks-------------------------- 4-5 times

Advantages

  • Reduces the risk of personal injury
  • Reduces the risk of equipment damage
  • Reduces personal injury from lifting pipe on the job site.
testimonial

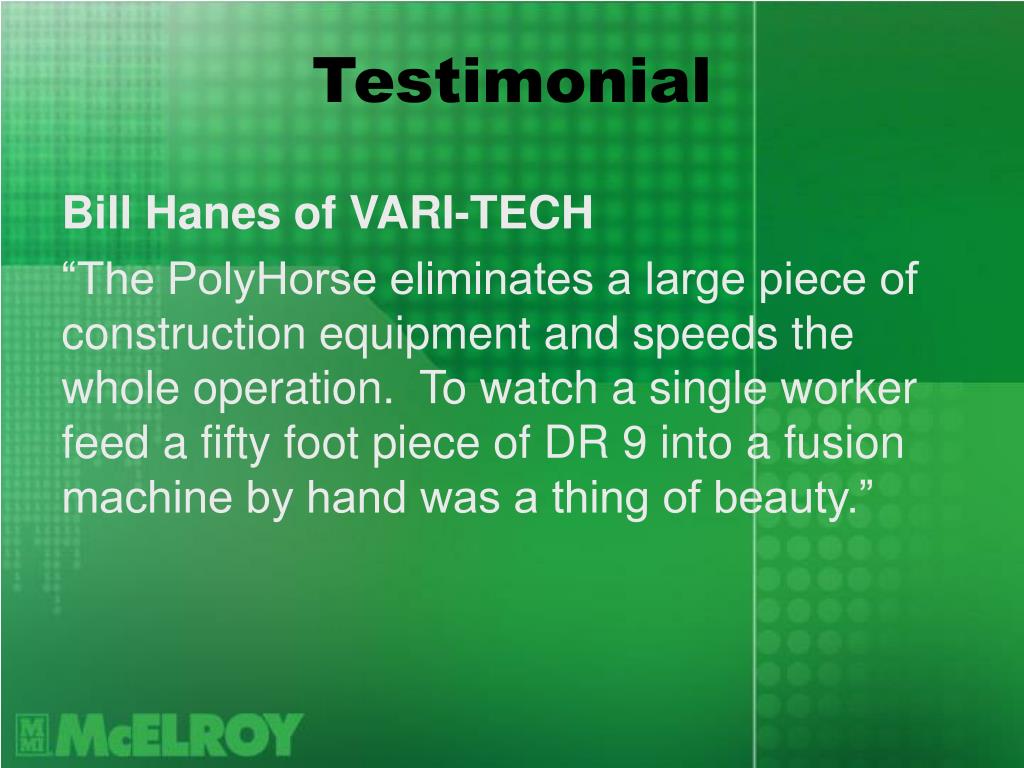

Testimonial

Bill Hanes of VARI-TECH

“The PolyHorse eliminates a large piece of construction equipment and speeds the whole operation. To watch a single worker feed a fifty foot piece of DR 9 into a fusion machine by hand was a thing of beauty.”

additional advantages of improved handling system
Additional Advantages of Improved Handling System

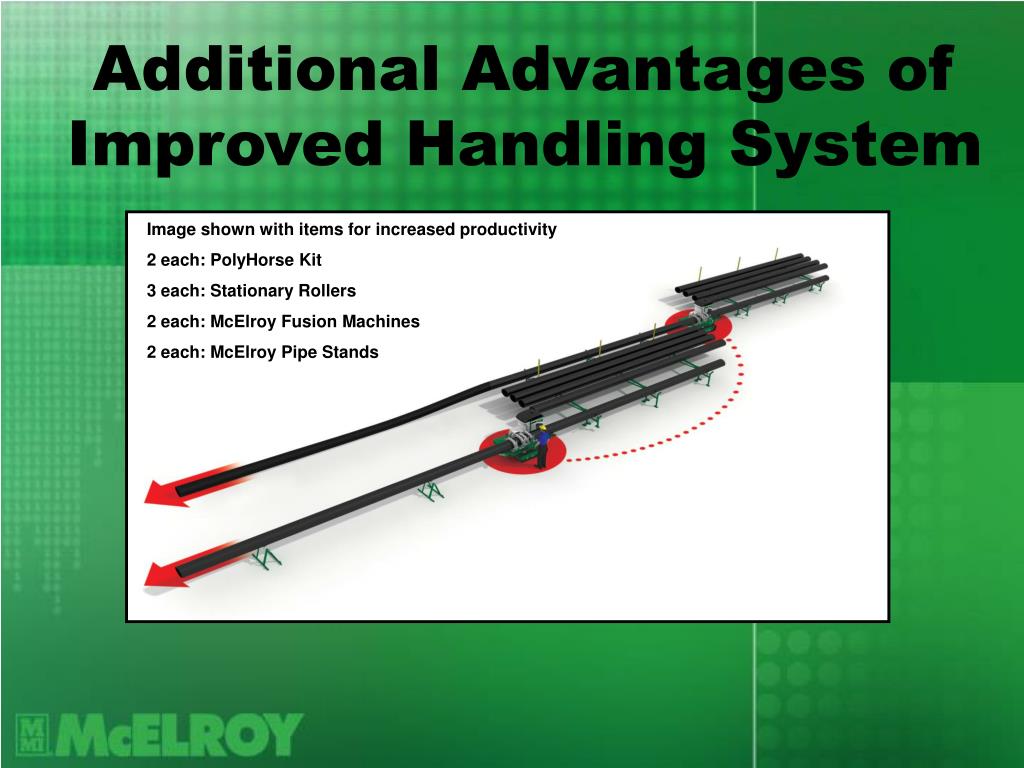

Image shown with items for increased productivity

2 each: PolyHorse Kit

3 each: Stationary Rollers

2 each: McElroy Fusion Machines

2 each: McElroy Pipe Stands

additional advantages of improved handling system13
Additional Advantages of Improved Handling System

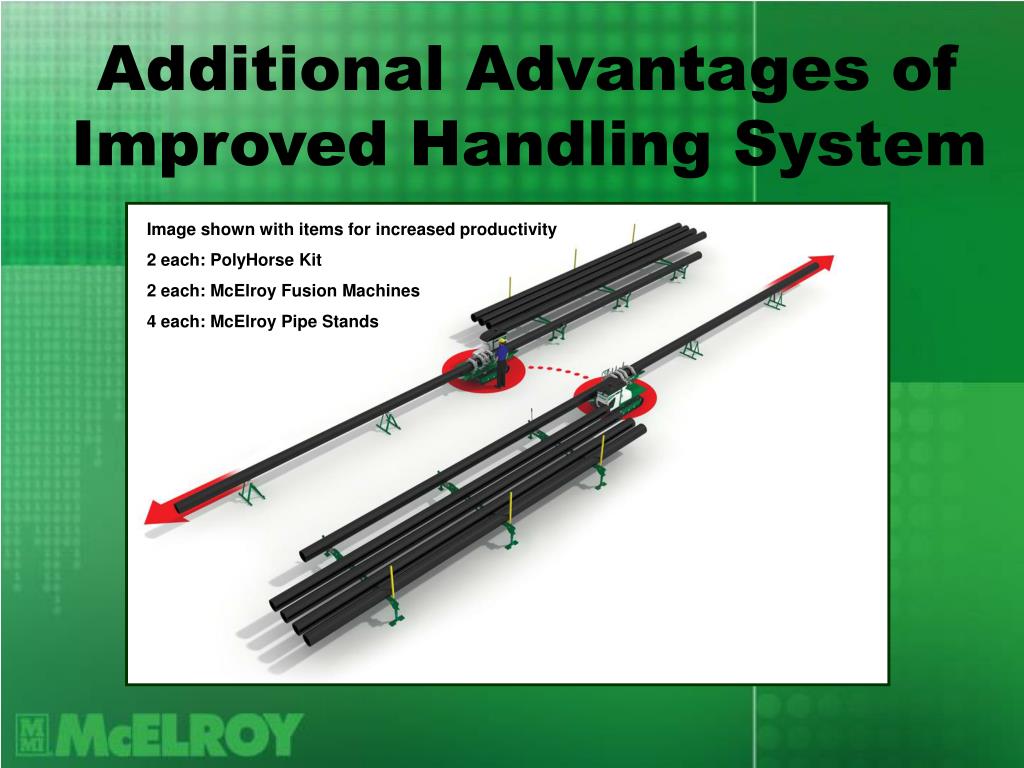

Image shown with items for increased productivity

2 each: PolyHorse Kit

2 each: McElroy Fusion Machines

4 each: McElroy Pipe Stands

conclusions
Conclusions
  • Job site set-up is the key to improved productivity and safety.
  • The improved HDPE pipe handling system not only increases productivity but does it while decreasing project costs.
  • This system is safer and keeps the pipe cleaner with less chance for damage.
  • It also gets projects completed in less time and more efficiently.
