Vehicle Data Entry

This guide provides a detailed, step-by-step process for using a scan tool to diagnose a 2003 Chevrolet Impala. Begin by accessing the scan diagnostics on the vehicle type you are working with, and navigate through the system to select the correct make, model, and year. Follow simple prompts to find the desired computer to diagnose. Learn how to select the right cable and enter demo mode for training purposes. This instructional guide is perfect for automotive technicians and enthusiasts who want to improve their diagnostic skills.

byrd
Download Presentation

Vehicle Data Entry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Vehicle Data Entry

  2. To perform Scan Tool functions scroll to Scan Diagnostics and press Enter Enter Scroll to Scan Diagnostics

  3. Scroll to the vehicle type your are working with and press Enter Enter Scroll to USA 2007 Domestic

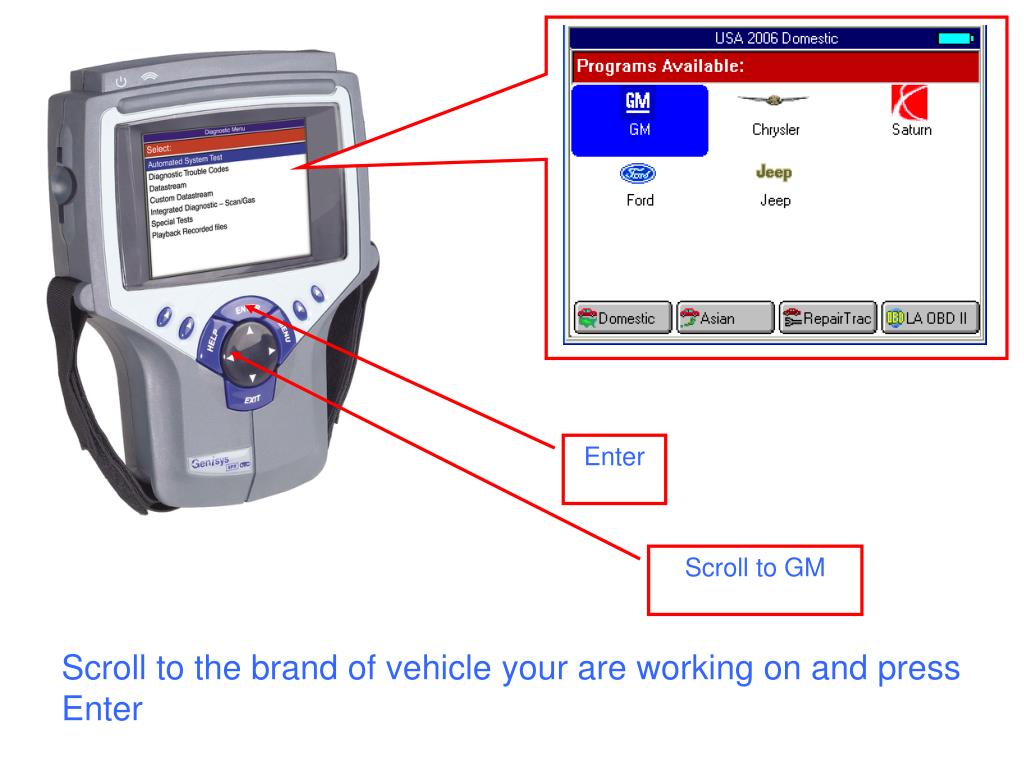

  4. Scroll to the brand of vehicle your are working on and press Enter Enter Scroll to GM

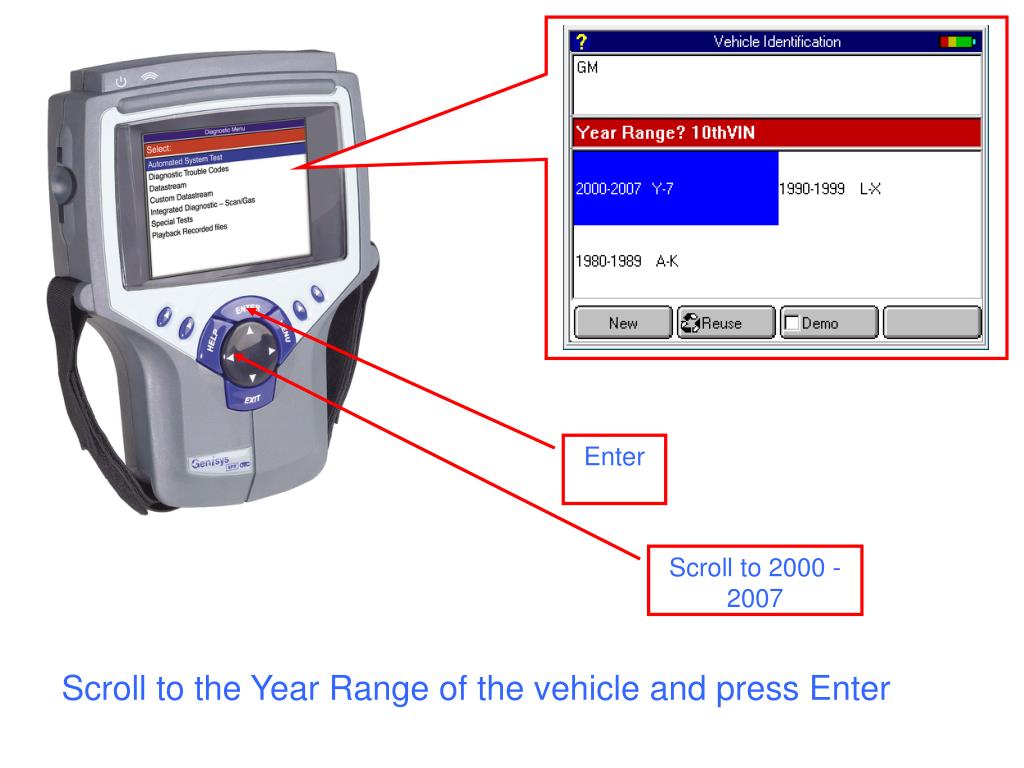

  5. Scroll to the Year Range of the vehicle and press Enter Enter Scroll to 2000 - 2007

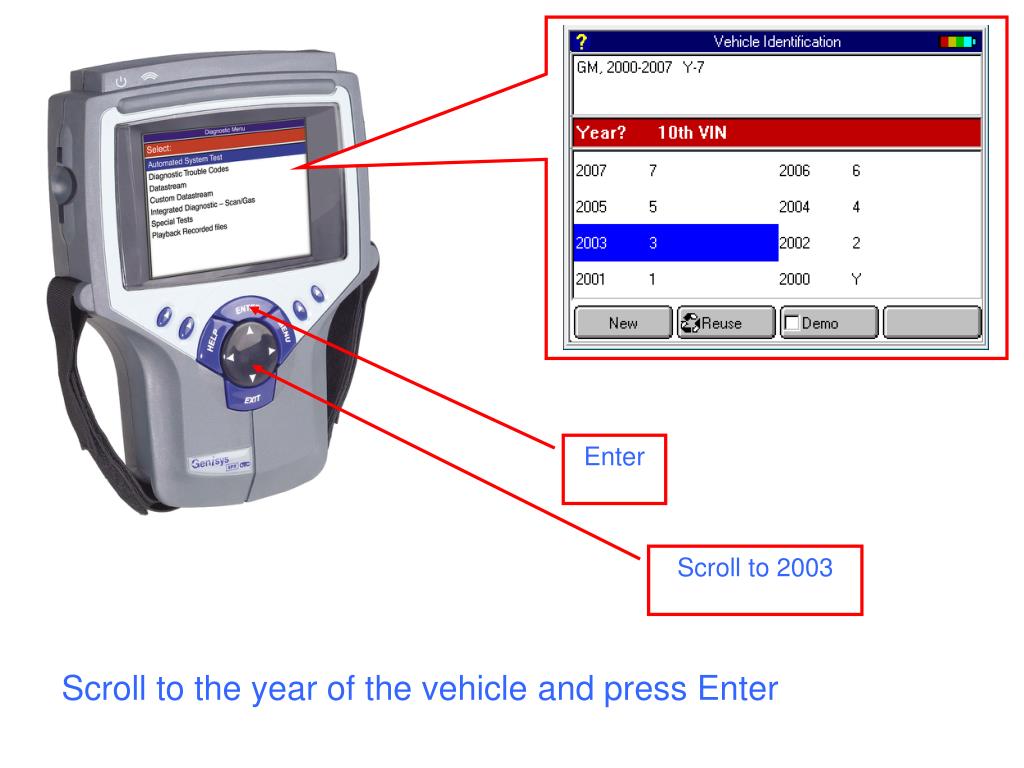

  6. Scroll to the year of the vehicle and press Enter Enter Scroll to 2003

  7. Scroll to the make of the vehicle your are working on and press Enter Enter Scroll to Chevrolet

  8. Select Car or Truck and press Enter Enter Scroll to Car

  9. Scroll to the Carline and press Enter Enter Scroll to Impala

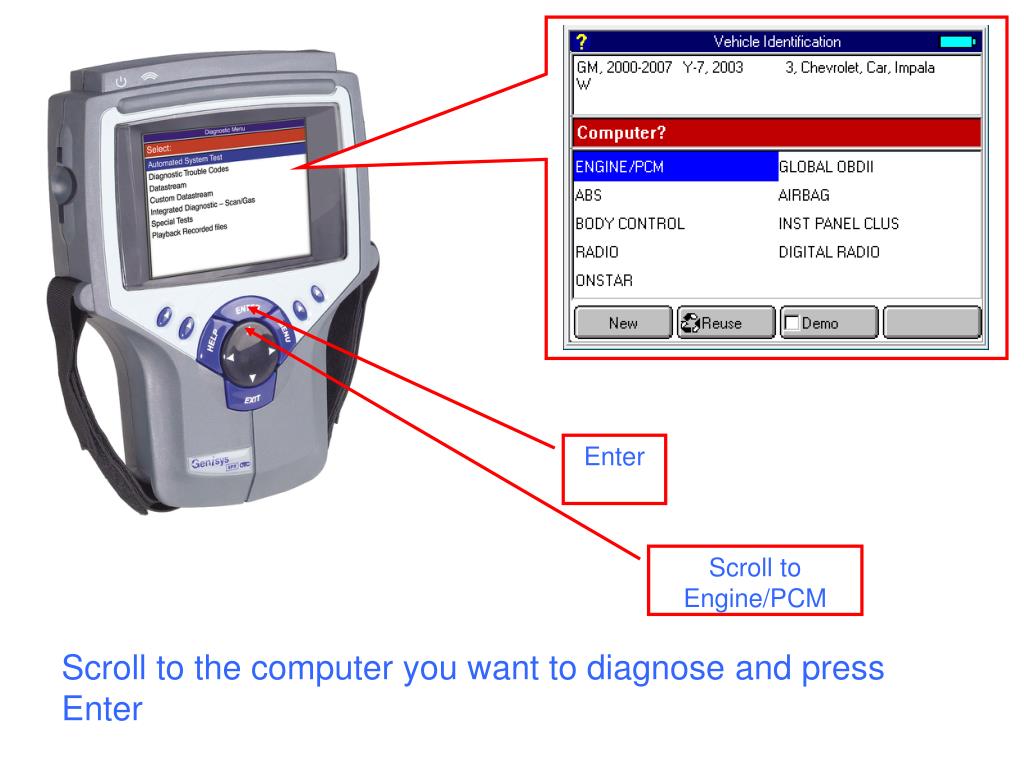

  10. Scroll to the computer you want to diagnose and press Enter Enter Scroll to Engine/PCM

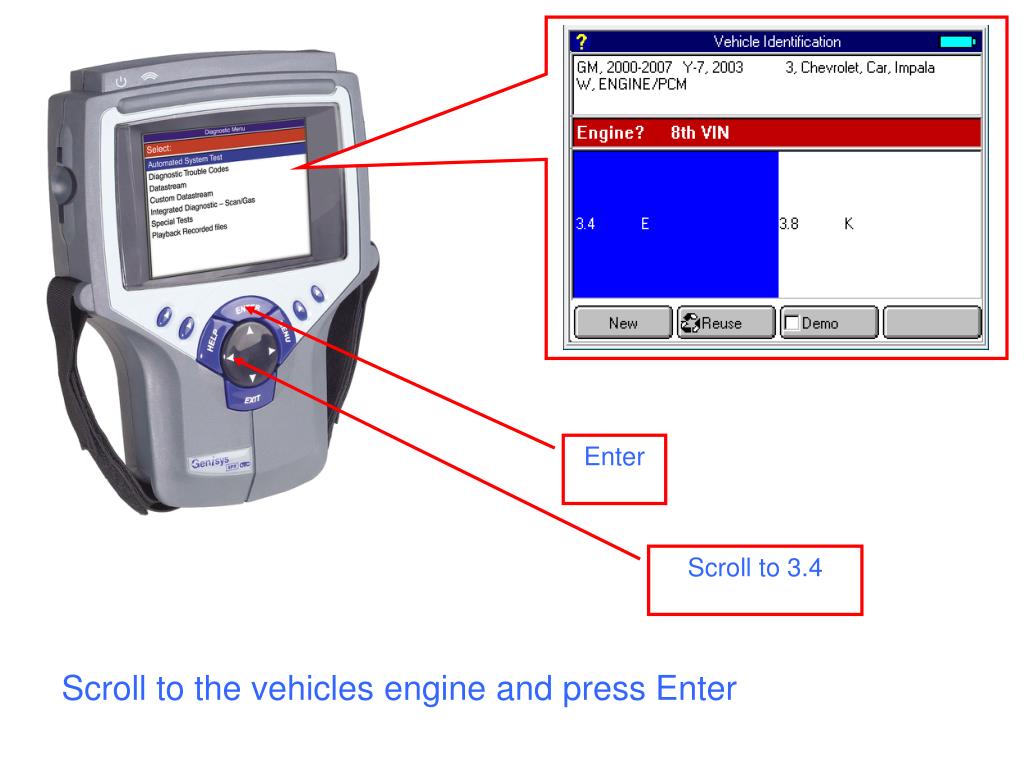

  11. Scroll to the vehicles engine and press Enter Enter Scroll to 3.4

  12. Select the Smart Cable as shown from the tool box, install it on the Scan Tool and to the Vehicle

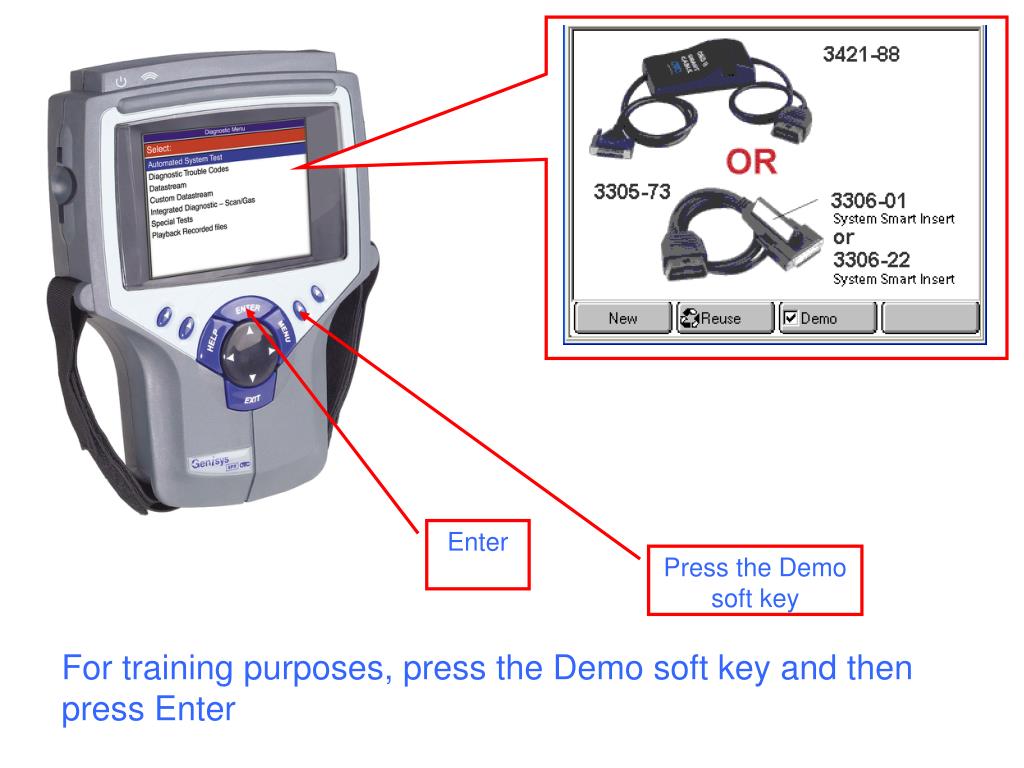

  13. For training purposes, press the Demo soft key and then press Enter Enter Press the Demo soft key
