MuTrig-FEE Status

RIKEN/RBRC

Itaru Nakagawa

install status

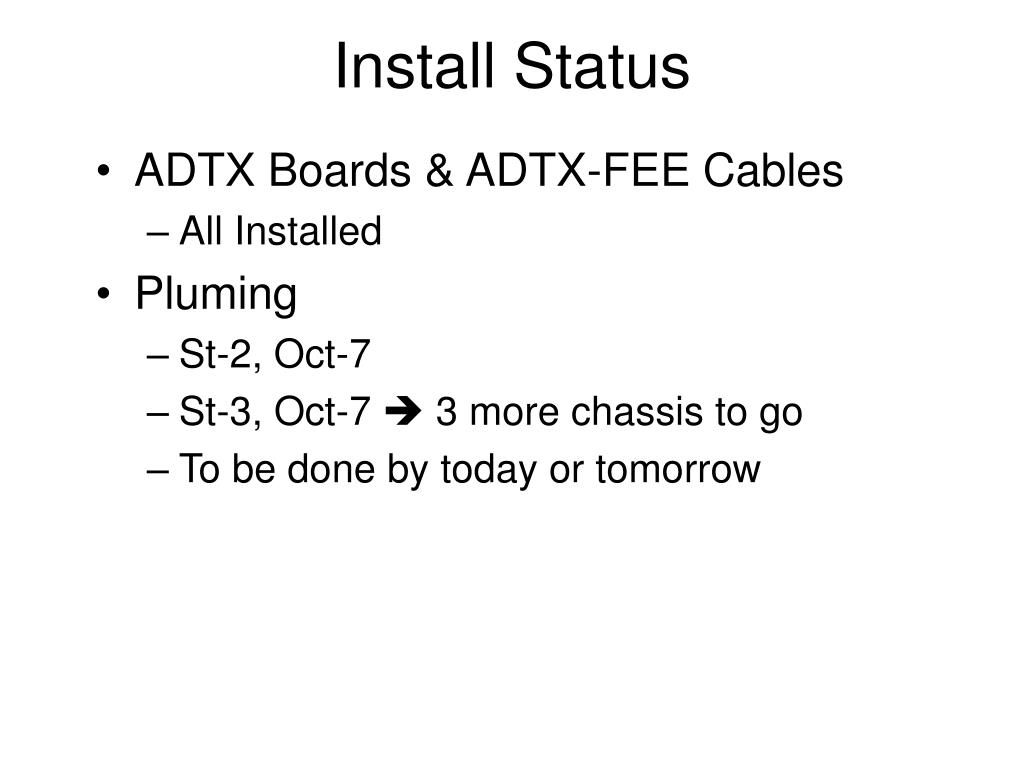

Install Status
  • ADTX Boards & ADTX-FEE Cables
    • All Installed
  • Pluming
    • St-2, Oct-7
    • St-3, Oct-7  3 more chassis to go
    • To be done by today or tomorrow
station 2 cross talk measurement
Station-2 Cross Talk Measurement

Date : 30 Sep 2009

Source : 90Sr

Source Position : Radial 90~130cm

Azimuthal 20~35cm

Probing point : St.2 Oct.6 Gap 3

ATDX Chs.1,2

Oct.5

St.2

20cm

1

2

Strip #

90Sr

・・・

3

35cm

90cm~130cm

Oct.7

Oct.6

(View from St.3)

effect of terminator

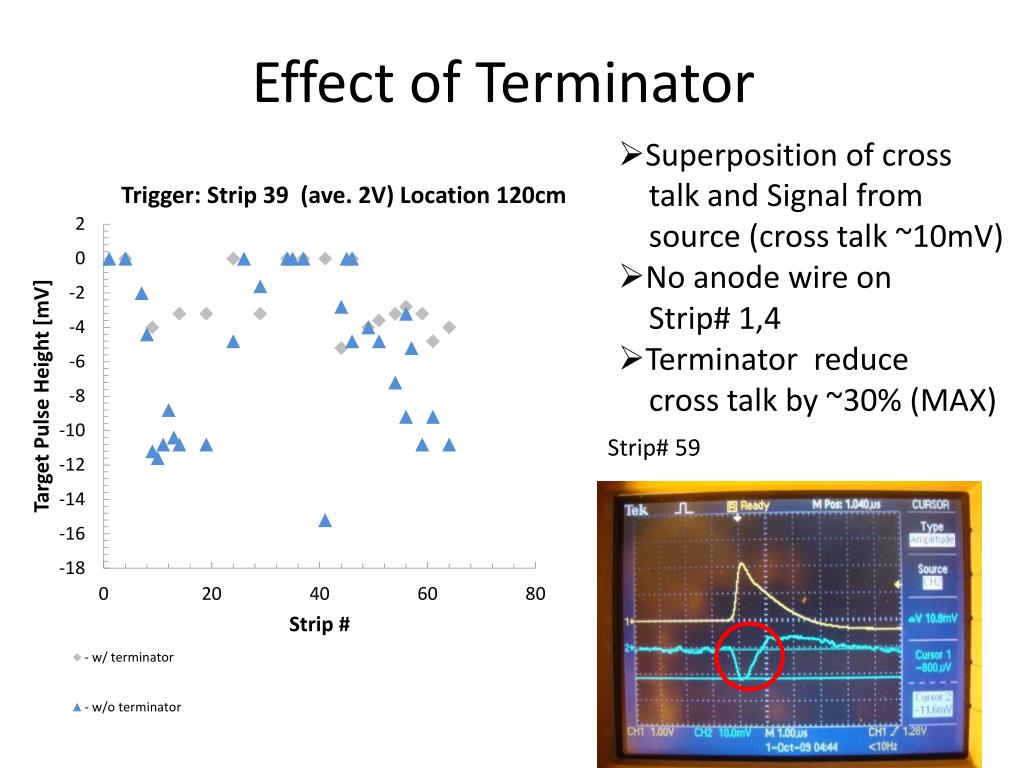

Effect of Terminator
  • Superposition of cross
  • talk and Signal from
  • source (cross talk ~10mV)
  • No anode wire on
  • Strip# 1,4
  • Terminator reduce
  • cross talk by ~30% (MAX)

Strip# 59

re capacitation
Station-1

Octant-5

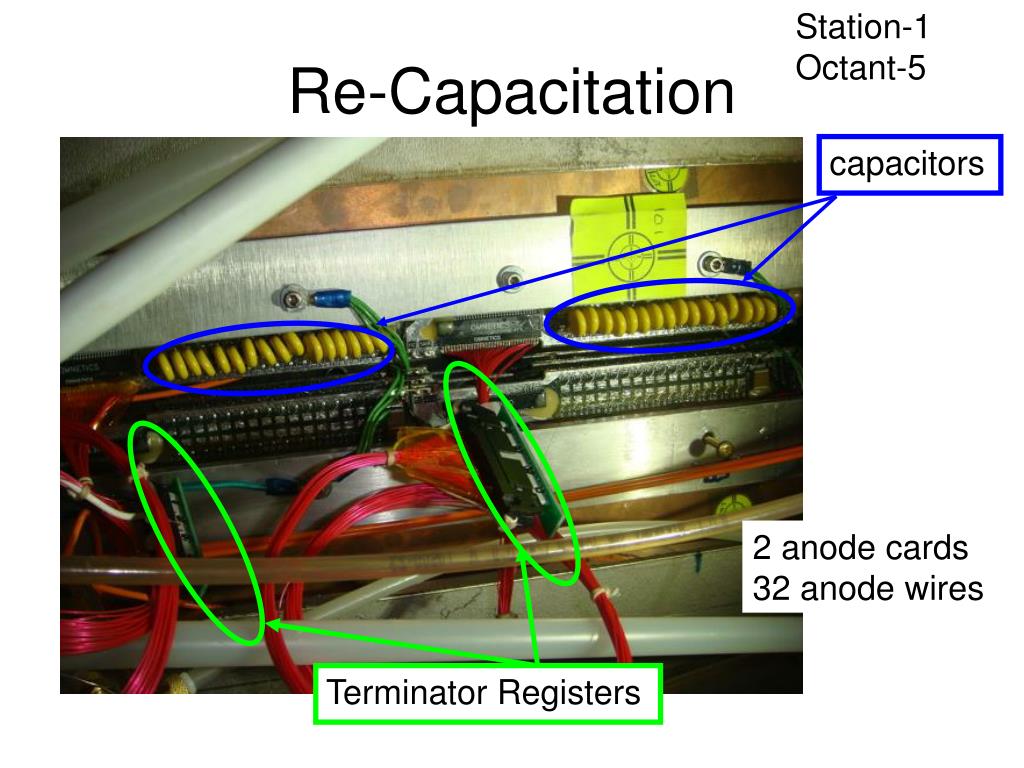

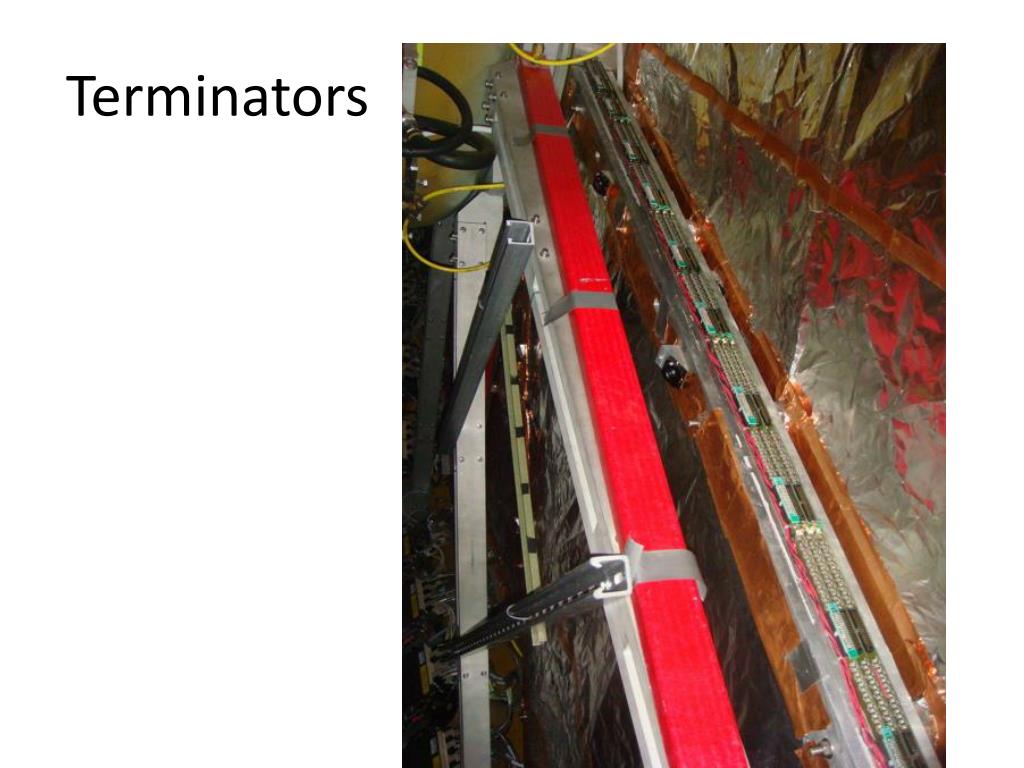

Re-Capacitation

capacitors

2 anode cards

32 anode wires

Terminator Registers

slide7

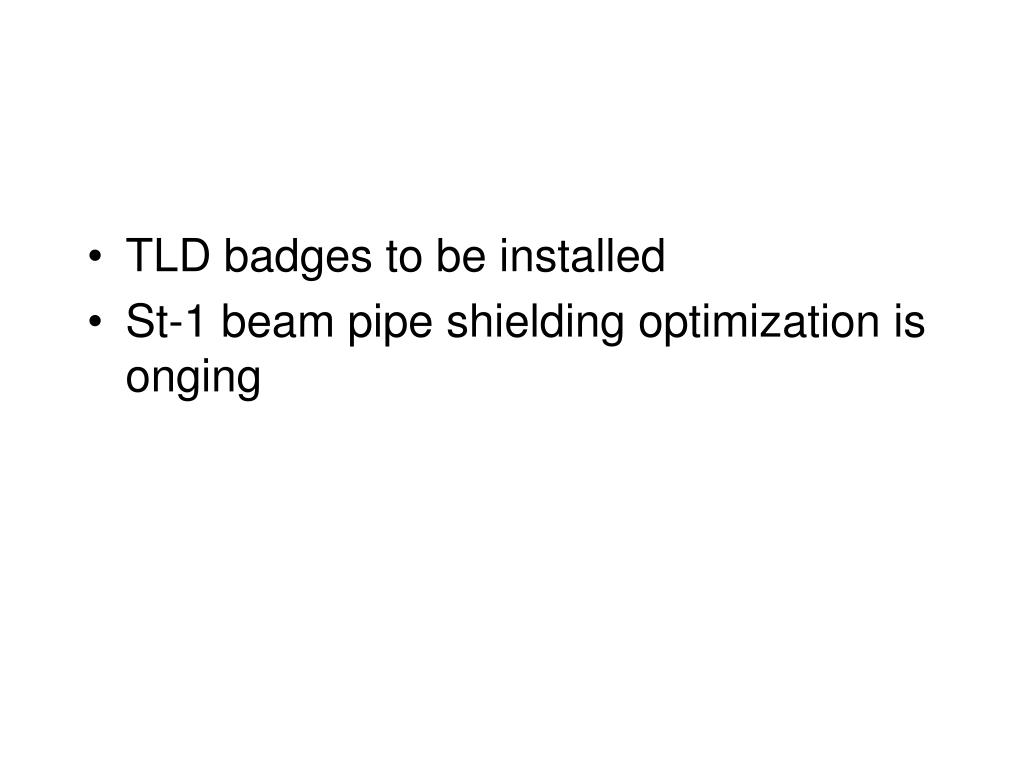

TLD badges to be installed
  • St-1 beam pipe shielding optimization is onging
mrg dcmif installation

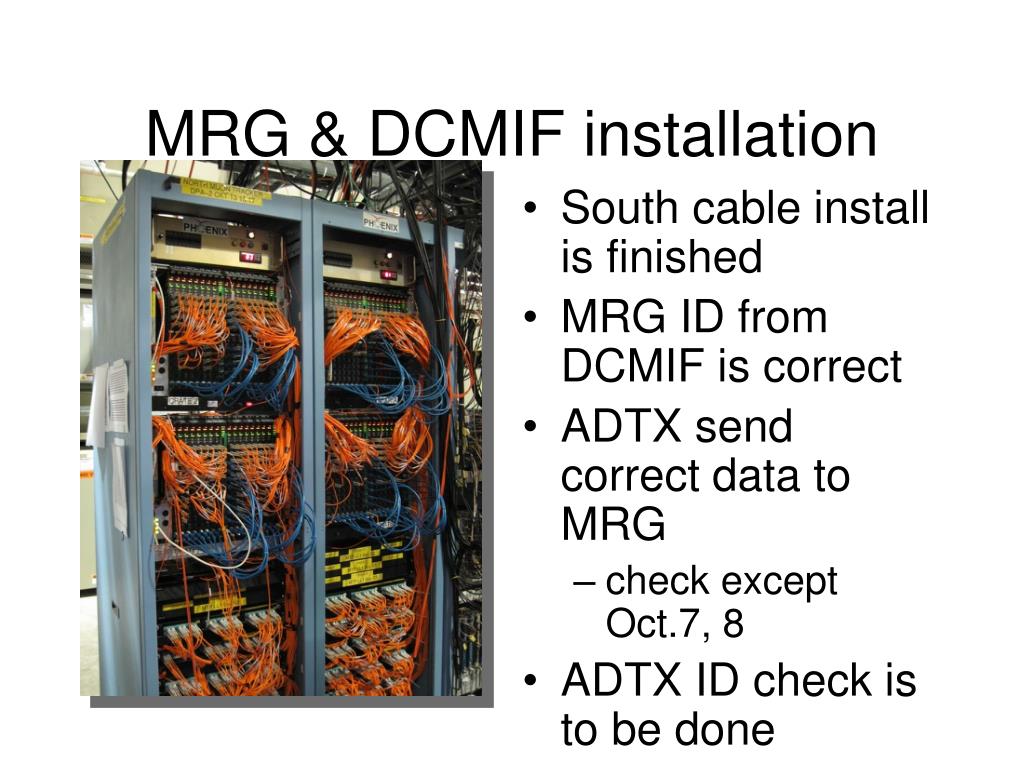

MRG & DCMIF installation
  • South cable install is finished
  • MRG ID from DCMIF is correct
  • ADTX send correct data to MRG
    • check except Oct.7, 8
  • ADTX ID check is to be done
october schedule

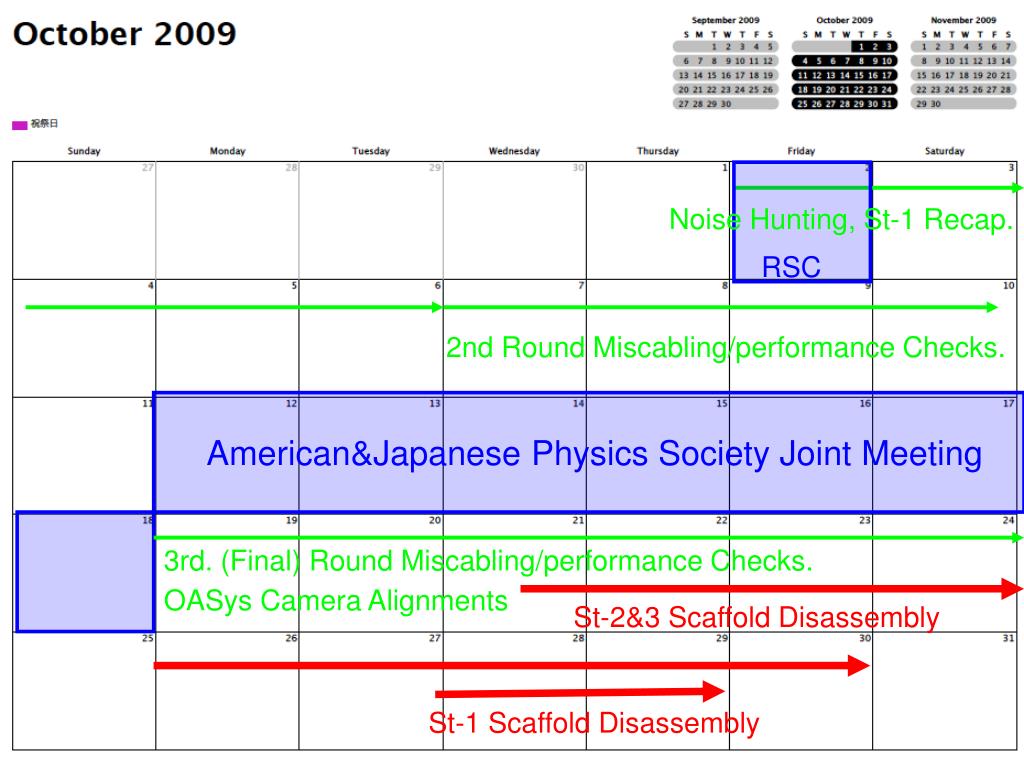

October Schedule

Noise Hunting, St-1 Recap.

RSC

2nd Round Miscabling/performance Checks.

American&Japanese Physics Society Joint Meeting

3rd. (Final) Round Miscabling/performance Checks.

OASys Camera Alignments

St-2&3 Scaffold Disassembly

St-1 Scaffold Disassembly
