Sullivan Algebra and Trigonometry: Section 8.1 Applications Involving Right Triangles

Sullivan Algebra and Trigonometry: Section 8.1 Applications Involving Right Triangles. Objectives of this Section Solve Right Triangles Solve Applied Problems. c. a. b. To solve a right triangle means to find the missing lengths of its sides and the measurements of its angles. c. 4. b.

burton
Download Presentation

Sullivan Algebra and Trigonometry: Section 8.1 Applications Involving Right Triangles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

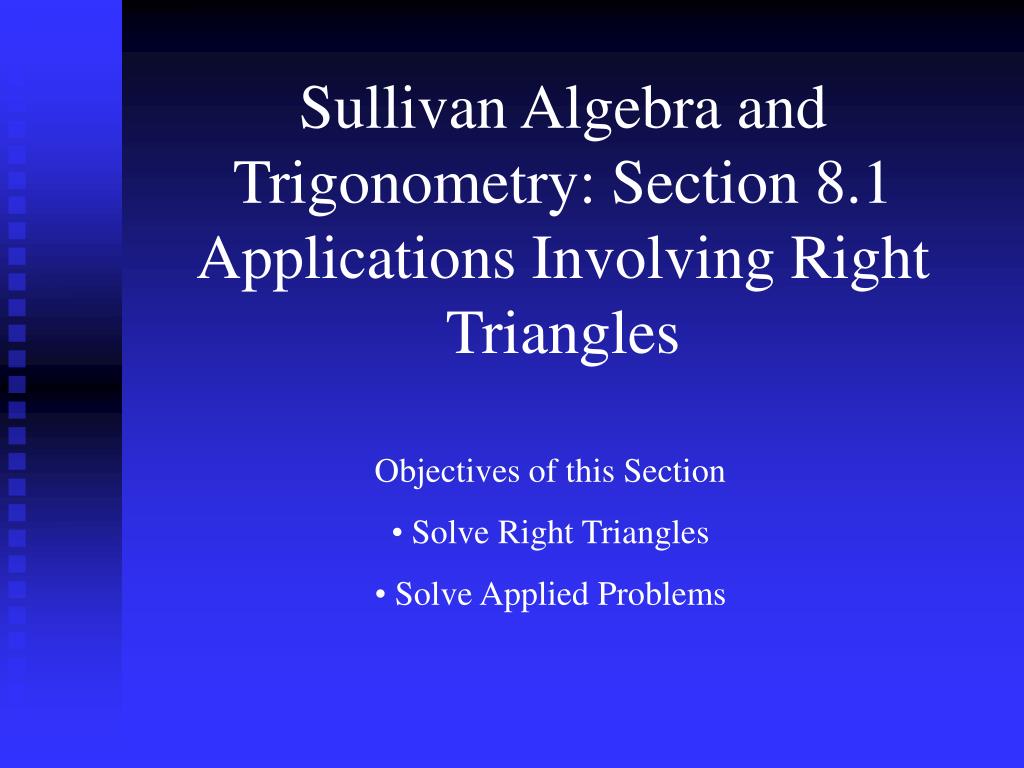

  1. Sullivan Algebra and Trigonometry: Section 8.1Applications Involving Right Triangles • Objectives of this Section • Solve Right Triangles • Solve Applied Problems

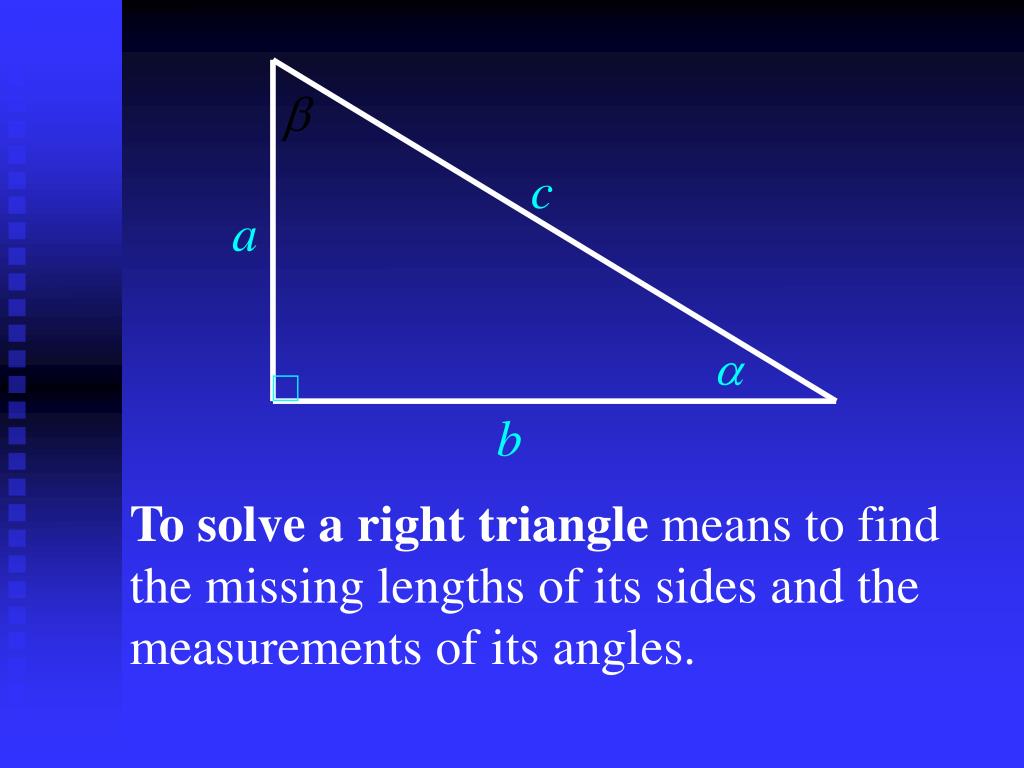

  2. c a b To solve a right triangle means to find the missing lengths of its sides and the measurements of its angles.

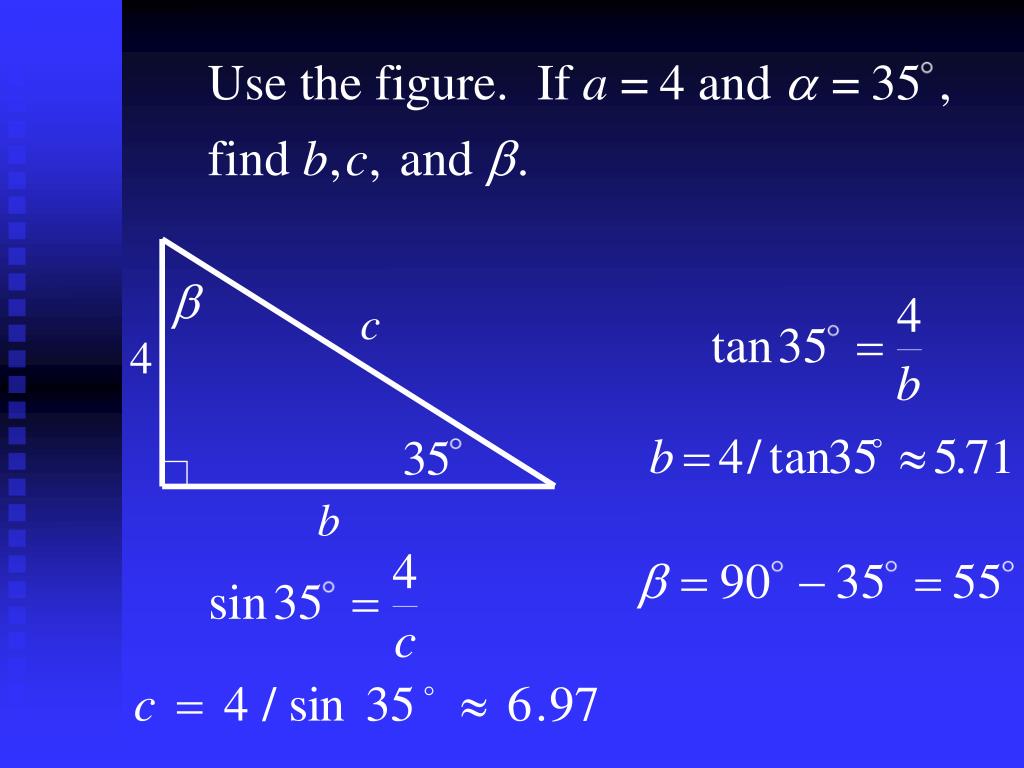

  3. c 4 b

  4. h 25

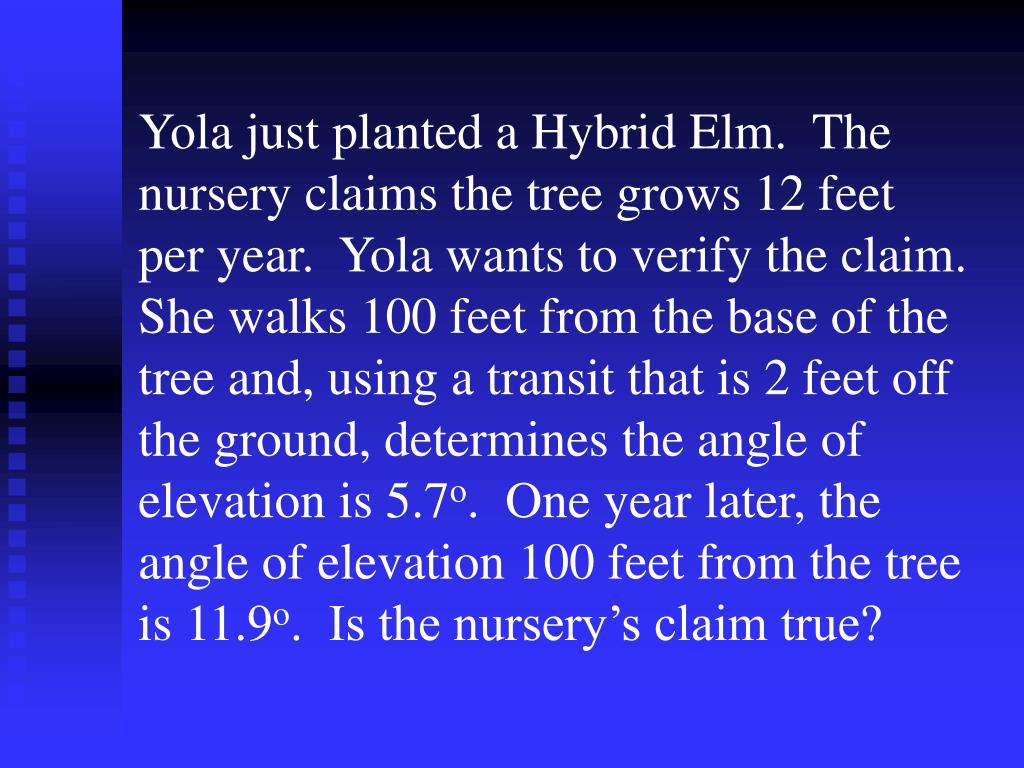

  5. Yola just planted a Hybrid Elm. The nursery claims the tree grows 12 feet per year. Yola wants to verify the claim. She walks 100 feet from the base of the tree and, using a transit that is 2 feet off the ground, determines the angle of elevation is 5.7o. One year later, the angle of elevation 100 feet from the tree is 11.9o. Is the nursery’s claim true?

  6. g h 100 feet 2 feet h = height of tree above transit g = growth of tree during first year

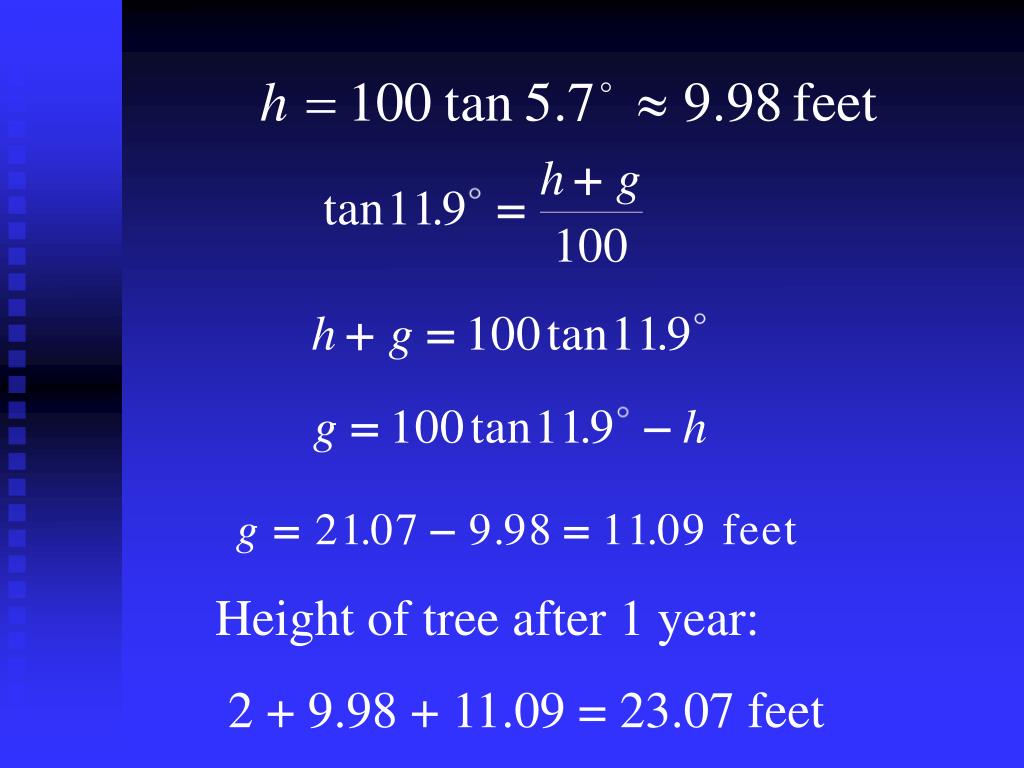

  7. Height of tree after 1 year: 2 + 9.98 + 11.09 = 23.07 feet
