Presentation Transcript

An Introduction to Matching and Layout

Alan HastingsTexas Instruments

overview of matching
Overview of Matching
  • Two devices with the same physical layout never have quite the same electrical properties.
    • Variations between devices are called mismatches.
    • Mismatches may have large impacts on certain circuit parameters, for example common mode rejection ratio (CMRR).
    • By default, simulators such as SPICE do not model mismatches. The designer must deliberately insert mismatches to see their effects.
kinds of mismatch
Kinds of Mismatch
  • Mismatches may be eitherrandomor systematic,or a combination of both.
    • Suppose two matched devices have parameters P1 and P2.
    • Then let the mismatch between the devices equal P = P2 – P1.
    • For a sample of units, measure P .
    • Compute sample mean m(P ) and standard deviation s(P ).
    • m(P ) is a measure of systematic mismatch.
    • s(P) is a measure of random mismatch.
random mismatches
Random Mismatches
  • Random mismatches are usually due to process variation.
    • These process variations are usually manifestations of statistical variation, for example in scattering of dopant atoms or defect sites.
    • Random mismatches cannot be eliminated, but they can be reduced by increasing device dimensions.
    • In a rectangular device with active dimensions W by L, an areal mismatch can be modeled as:
random mismatches continued
Random Mismatches (continued)
  • Random mismatches thus scales as the inverse square root of active device area.
    • To reduce mismatch by a factor of two, increase area by a factor of four.
    • Precision matching requires large devices.
    • Other performance criteria (such as speed) may conflict with matching.
systematic mismatches
Systematic Mismatches
  • Systematic mismatches may arise from imperfect balancing in a circuit.
    • Example: A mismatch VCE between the two bipolar transistors of a differential pair generates an input offset voltage VBE equal to:
  • Simulations will readily show this source of systematic offset.
  • Usually, the circuit can be redesigned to minimize or even to completely eliminate this type of systematic offset.
  • Systematic mismatches may also arise from gradients.
    • Certain physical parameters may vary gradually across an integrated circuit, for example:
      • Temperature
      • Pressure
      • Oxide thickness
    • These types of variations are usually treated as 2D fields, the gradients of which can (at least theoretically) be computed or measured.
    • Because of the way we mathematically treat these variations, they are called gradients.
gradients continued
Gradients (continued)
  • Even subtle gradients can produce large effects.
    • A 1C change in temperature produces a –2mV in VBE, which equates to an 8% variation in IC.
    • Power devices on-board an integrated circuit can easily produce temperature differences of 10–20C.
analyzing gradients
Analyzing Gradients
  • For a simplified analysis of gradients:
    • Make the following assumptions of linearity:
      • The gradient is constant over the area of interest.
      • Electrical parameters depend linearly upon physical parameters.
    • Although neither assumption is strictly true, they are usually approximately true, at least for properly laid out devices.
analyzing gradients continued

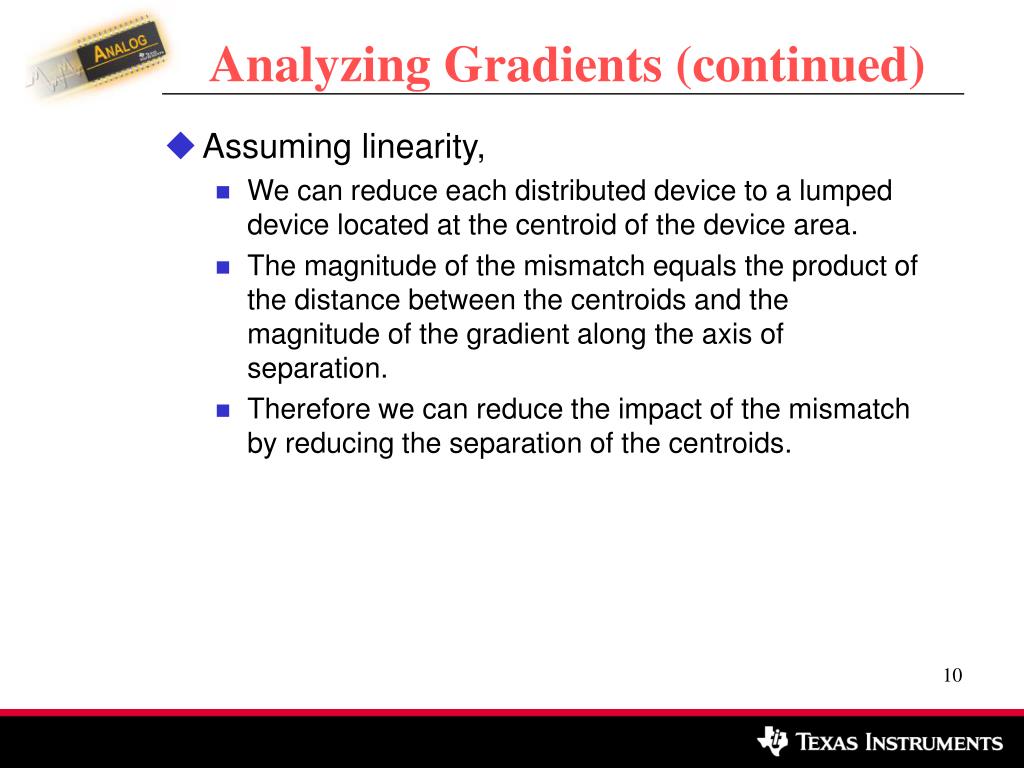

Analyzing Gradients (continued)
  • Assuming linearity,
    • We can reduce each distributed device to a lumped device located at the centroid of the device area.
    • The magnitude of the mismatch equals the product of the distance between the centroids and the magnitude of the gradient along the axis of separation.
    • Therefore we can reduce the impact of the mismatch by reducing the separation of the centroids.
how to find a centroid easily
How to Find a Centroid (Easily)
  • Rules for finding a centroid (assuming linearity):
    • If a geometric figure has an axis of symmetry, then the centroid lies on it.
    • If a geometric figure has two or more axes of symmetry, then the centroid must lie at their intersection.
the centroid of an array
The Centroid of an Array
  • The centroid of an array can be computed from the centroids of its segments.
    • If all of the segments of the array are of equal size, then the location of the centroid of the array is the average of the centroids of the segments:
  • Note that the centroid of an array does not have to fall within the active area of any of its segments.
  • This suggests that two properly constructed arrays could have the same centroid….
common centroid arrays
Common-centroid Arrays
  • Arrays whose centroids coincide are called common-centroid arrays.
    • Theoretically, a common-centroid array should entirely cancel systematic mismatches due to gradients.
    • In practice, this doesn’t happen because the assumptions of linearity are only approximately true.
    • Common-centroids don’t help random mismatches at all. Neither are they a cure for sloppy circuit design!
    • Virtually all precisely matched components in integrated circuits use common centroids.
  • The simplest sort of common-centroid array consists of a series of devices arrayed in one dimension.
    • One-dimensional common-centroid arrays are ideal for long, thin devices, such as resistors.
    • Since the segments of the matched devices are slipped between one another to form the array, the process is often called interdigitation.
interdigitation continued
Interdigitation (continued)
  • Not all interdigitated arrays are made equal!
    • Certain arrays precisely align the centroids of the matched devices (A, C). These provide superior matching.
    • Other arrays only approximately align the centroids (B). These provide inferior matching.
2d cross coupled arrays
2D Cross-coupled Arrays
  • A more elaborate sort of common-centroid array involves devices cross-coupled in a rectangular two-dimensional array.
    • This type of array is ideal for roughly square devices, such as capacitors and bipolars.
2d cross coupled arrays cont d
2D Cross-coupled Arrays (cont’d)
  • The simplest two-dimensional cross-coupled array contains four segments.
    • This type of array is called a cross-coupled pair.
    • For many devices, particularly smaller ones, the cross-coupled pair provides the best possible layout.
    • More complicated 2D arrays containing more segments provide better matching for large devices because they minimize the impact of nonlinearities.
practical common centroid arrays
Practical Common-centroid Arrays
  • Often, the design of a common-centroid array is complicated by layout considerations.
    • Sometimes certain devices can be merged, resulting in a smaller overall array.
    • Unfortunately, such mergers often constrain the layout of the array.
    • The proper design of a cross-coupled array is often quite difficult, and a certain degree of experience is required to obtain good results.
2 1 2 bipolar array
2:1:2 Bipolar Array
  • This array matches a 4X and a 1X bipolar transistor using interdigitation.
4 1 4 bipolar array
4:1:4 Bipolar Array
  • This array matches an 8X and a 1X bipolar transistor using interdigitation.
rules for common centroids
Rules for Common Centroids
  • The following rules summarize good design practices:
    • Coincidence: The centroids of the matched devices should coincide, at least approximately. Ideally, the centroids should exactly coincide.
    • Symmetry: The array should be symmetric about both the X- and the Y-axes. Ideally, this symmetry should arise from the placement of the segments in the array, and not from the symmetry of the individual segments.
    • Dispersion: The array should exhibit the highest possible degree of dispersion; in other words, the segments of each device should be distributed throughout the array as uniformly as possible.
    • Compactness: The array should be as compact as possible. Ideally, it should be nearly square.
