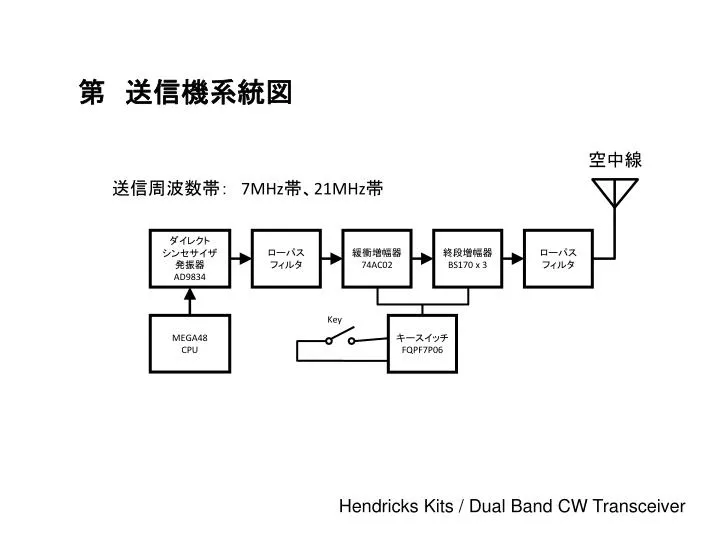

第　送信機系統図. 空中線. 送信周波数帯：　 7MHz 帯、 21MHz 帯. ダイレクト シンセサイザ発振器 AD9834. ローパス フィルタ. 緩衝増幅器 74AC02. 終段増幅器 BS170 x 3. ローパス フィルタ. Key. MEGA48 CPU. キースイッチ FQPF7P06. Hendricks Kits / Dual Band CW Transceiver.
