LINQ

1. LINQ Slides from Gang Luo, XutingZhao and Damien Guard

2. What is LINQ? • Language Integrated Query • Make query a part of the language • Component of .NET Framework 3.5

3. Query without LINQ • Objects using loops and conditionsforeach (Customer c in customers) if (c.Region == "UK") ... • Databases using SQLSELECT * FROM Customers WHERE Region='UK' • XML using XPath/XQuery//Customers/Customer[@Region='UK']

4. ADO without LINQ SqlConnection con = new SqlConnection(...); con.Open(); SqlCommandcmd = new SqlCommand( @"SELECT * FROM Customers WHERE c.Region = @Region", con ); cmd.Parameters.AddWithValue("@Region", "UK"); DataReaderdr = cmd.ExecuteReader(); while (dr.Read()) { string name = dr.GetString(dr.GetOrdinal("Name")); string phone = dr.GetString(dr.GetOrdinal("Phone")); DateTime date = dr.GetDateTime(3); } dr.Close(); con.Close();

5. Query with LINQ C# varmyCustomers = from c in customers where c.Region == "UK" select c;

6. More LINQ queries var goodCusts = (from c in db.Customers where c.PostCode.StartsWith("GY") orderby c.Sales descending select c).Skip(10).Take(10);

7. Local variable type inference • Compiler can infer types from initializer assignments • var keyword indicates compiler inferred type • Still strong-typed • This is not like JavaScript var • Essential when using anonymous types var a = 10; // Simple types var x = new { Blog = “attardi”, Created = DateTime.Now }; // Anonymous types

8. Anonymous Types • Object of new type generated on the fly without first defining it.Useful for projection to select one or more fields of another structure. • The type will be dynamically generated with setters and getters to corresponding members.Some common methods are also provided. • No other methods will be added to this type.But that is already enough! • The object is created and initialized by Anonymous Object Initializer.

9. Advantages • Unified data accessSingle syntax to learn and remember • Strongly typedCatch errors during compilation • IntelliSensePrompt for syntax and attributes • Bindable result sets

10. Architecture

11. LINQ to Objects int[] nums = new int[] {0,4,2,6,3,8,3,1};double average = nums.Take(6).Average();var above = from n in nums where n > average select n;

12. LINQ to Objects • Query any IEnumerable<T> sourceIncludes arrays, List<T>, Dictionary... • Many useful operators availableSum, Max, Min, Distinct, Intersect, Union • Expose your own data with IEnumerable<T> or IQueryable<T> • Create operators using extension methods

13. LINQ operators and others …

14. Query Expression • SQL-like: from s in names wheres.Length == 5 orderbyselect s.ToUpper(); • OO-style: names.Where(s => s.Length==5) .OrderBy(s => s) .Select(s => s.ToUpper()); • Where, OrderBy, and Select are operators. The arguments to these operators are Lambda Expression.

15.  Lambda Expressions • Examples: • s => s.Length == 5 • Executable function • Anonymous functional. Can be assigned to a delegate variable. • No need to indicate the types • Can be passed to methods as parameters. • Expression Tree • Efficient in-memory data representations of lambda expressions • Changing the behaviors of the expressions • Applying your own optimization

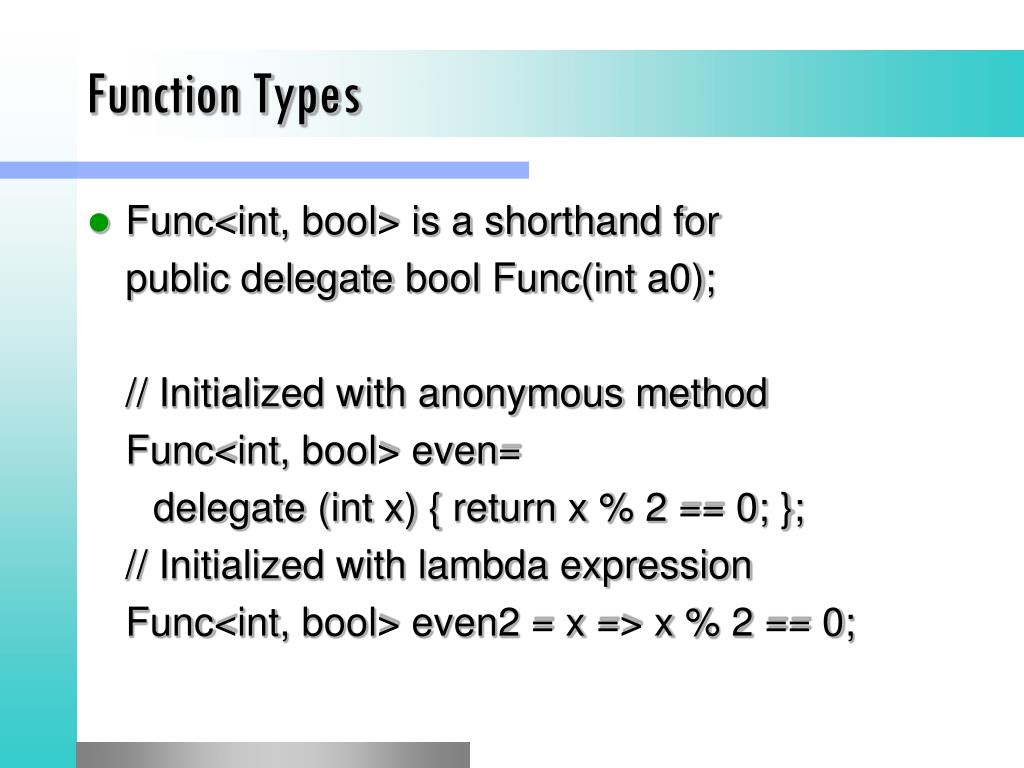

16. Function Types • Func<int, bool> is a shorthand for public delegate boolFunc(int a0); // Initialized with anonymous method Func<int, bool> even= delegate (int x) { return x % 2 == 0; }; // Initialized with lambda expression Func<int, bool> even2 = x => x % 2 == 0;

17. Methods Extension • Control not only by Lambda Expression, but also by methods extension public static class Enumerable { public static IEnumerable<T> Where<T>( this IEnumerable<T> source, Func<T, bool> predicate) { foreach (T item in source) if (predicate(item)) yield return item; } }

18. LINQ Operations • Join • When there is relationship (e.g. foreign key) between two tables, no explicit join operation is needed • Using dot notation to access the relationship properties, and navigate all the matching objects. var q = from o in db.Orders where o.Customer.City == “London” select o; • To join any two data sources on any attribute, you need an explicit join operation. var query = names.Join(people, n => n, p => p.Name, (n, p) => p); The lambda expression for shaping (n, p) => p will be applied on each matching pairs.

19. LINQ Operations (cont.) •  Group Join • The lambda expression for shaping is applied on the outer element and the set of all the inner elements that matches the outer one. • Shape the result at a set level var query = names.GroupJoin(people, n => n, p => p.Name, (n, matching) => new { Name = n, Count = matching.Count() } )

20. LINQ Operations (cont.) • Select Many • Each object in the result set may contain a collection or array • Select many help decompose the structure and flatten the result var query = names.SelectMany(n => people.Where(p => n == p.Name)) • All the elements could be traversed in one foreach loop. • Aggregation • Standard aggregation operators: Min, Max, Sum, Average. inttotalLength=names.Sum(s => s.Length); • General purpose (generic) operator: static U Aggregate<T, U>(this IEnumerable<T> source, U seed, Func<U, T, U> func)

21. LINQ Deferred • A LINQ data source can actually implement one of two interfaces: • IEnumerable<T> • IQueryable<T> • Create deferred query execution plan public interface IQueryable<T> : IEnumerable<T>, IQueryable, IEnumerable { IQueryable<S> CreateQuery<S>(Expression exp); S Execute<S>(Expression exp); }

22. IQueryable • IQueryable<T> interface will defer the evaluation of the query. • An expression tree will represent all the deferred queries as a whole. • Several operations could be “merged”, only one SQL query will be generated and sent to database. • Multi-level defer

23. Lambda Expressions Revisited • Lambda expressionscan represent either IL code or data • Expression<T> makes the difference • Compiler handles Expression<T> types differently • Emits code to generate expression tree instead of usual IL for delegate Func<int, bool> lambdaIL = n => n % 2 == 0; Expression<Func<int, bool>> lambdaTree = n => n % 2 == 0;

24. Expression Trees • Expression tree are hierarchical trees of instructions that compose an expression • Add value of expression trees • Actual creating of IL is deferred until execution of query • Implementation of IL creation can vary • Trees can even be remoted for parallel processing

25. Creating IL from Expression Trees • Right before execution tree is compiled into IL • Implementation of IL generation differs very much for each Linq flavor. • Linq to SQL generates IL that runs SQL commands • Linq to Objects builds IL with Sequence extensions methods Expression<Func<Posting,bool>> predicate = p => p.Posted < DateTime.Now.AddDays(-5); Func<Posting,bool> d = predicate.Compile();

26. Nested defer • Nested defer • What if you want the intermediate result? var q = from c in db.Customers where c.City == “London” select new { c.ContactName, c.Phone } var q2 = from c in q.AsEnumerable() select new { Name = DoNameProcessing(c.ContactName), Phone = DoPhoneProcessing(C.Phone) }; string lastName = “Simpson” var persons = from p in personList where p.LastName = lastName select p; lastName = “Flanders” foreach (Person p in persons) Console.WriteLine(“{0} {1}”, p.FirstName, p.LastName);

27. Deferred Execution • Advantages • Performance! • Query dependency! • Disadvantages • Divide one query into multiple ones • If you iterate over the result set 100 times, the query will be executed 100 times. • Users have to be very careful

28. LINQ to SQL • Data Model • LINQ to SQL helps connect to relational and manipulate the relational data as objects in memory. • It achieves this by translating the operations into SQL statements. [Table(Name=“Customers”)] public class Customer { [Column(Id=true)] public string CustomerID; … private EntitySet<Order> _Orders; [Association(Storage=“_Orders”, OtherKey=“CustomerID”)] public EntitySet<Order> Orders { get { return _Orders; } set { _Orders.Assign(value); } } }

29. LINQ to SQL • Object-relational mappingRecords become strongly-typed objects • Data context is the controller mechanism • Facilitates update, delete & insert • Translates LINQ queries behind the scenes • Type, parameter and injection safe

30. Database mapping • Map tables & fields to classes & properties • Generates partial classes with attributes • Each record becomes an object • Data context represents the database • Utilize tables, views or stored procedures

31. Modifying objects • UpdateSet object properties • Deletecontext.Table.DeleteOnSubmit(object) • Insertcontext.Table.InsertOnSubmit(object) • Commit changes backcontext.SubmitChanges()Transactional - all or nothing

32. Consistency • Every object will be tracked by LINQ the moment it is loaded from database. • The tracking mechanism monitor the manipulation on relationship properties.Once you modify one side of the relationship, LINQ will modify the other to keep it consistent.  • When an object is deleted, it could still exist in memory, but it will not cause inconsistency.

33. Concurrency • Optimistic concurrency • Conflict checking when SubmitChanges() is called • By default, transaction will abort and an exception will be thrown when a conflict is detected. • User can handle the conflict in the exception catch block. • User can set whether or not to detect the conflict when one column get updated.

34. Transaction/Update • When update, first check whether new object is added (by tracking mechanism) if yes, insert statement will be generated.What does Django do here? • Modification will not hit the database until the SubmitChanges() method is called • All operations will be translated into SQL statements • All modifications will be encapsulated into a transaction.

35. Transaction/Update (cont.) • If an exception is throw during the update, all the changes will be rolled back • One SubmitChanges() is actually one transaction. (pros and cons?) • Users can also explicitly indicate a new transaction scope.

36. LINQ to XML Class Hierarchy http://msdn.microsoft.com/en-us/library/bb308960.aspx

37. LINQ to XML • LINQ to XML • XML to LINQ var query = from p in people where p.CanCode select new XElement(“Person”, new XAttribute(“Age”, p.Age), p.Name); var x = new XElement(“People”, from p in people where p.CanCode select new XElement(“Person”, new XAttribute(“Age”, p.Age), p.Name);

38. Performance • LINQ has more control and efficiency in O/R Mapping than NHibernate • LINQ: Externl Mapping or Attribute Mapping • NHibernate: Externl Mapping • Because of mapping, LINQ is slower than database tools such as SqlDataReader or SqlDataAdapter • In large dataset, their performance are more and more similar
