分光光度法 铝含量的测定

分光光度法 铝含量的测定. Spectrophotometry in the Determination of Aluminum. Beer–Lambert L aw. Chrome Azurol S & Aluminum. pH5 ～ 6 铝 与铬天青 S 生 成 紫 红色络合 物. 样品溶液. 称取 0.3~0.4g 样品 , 加水溶解 配 成 250mL 溶液 , 稀释 100x Al 的浓度大约为 0.7~1.0 μ g/mL. 1 μ g/mL 铝标准溶液. 准确称取 Al 粉 0.6250g 加入过量 KOH 溶液 , 加热溶解

buckminster-carroll
Download Presentation

分光光度法 铝含量的测定

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 分光光度法铝含量的测定 Spectrophotometry in the Determination of Aluminum

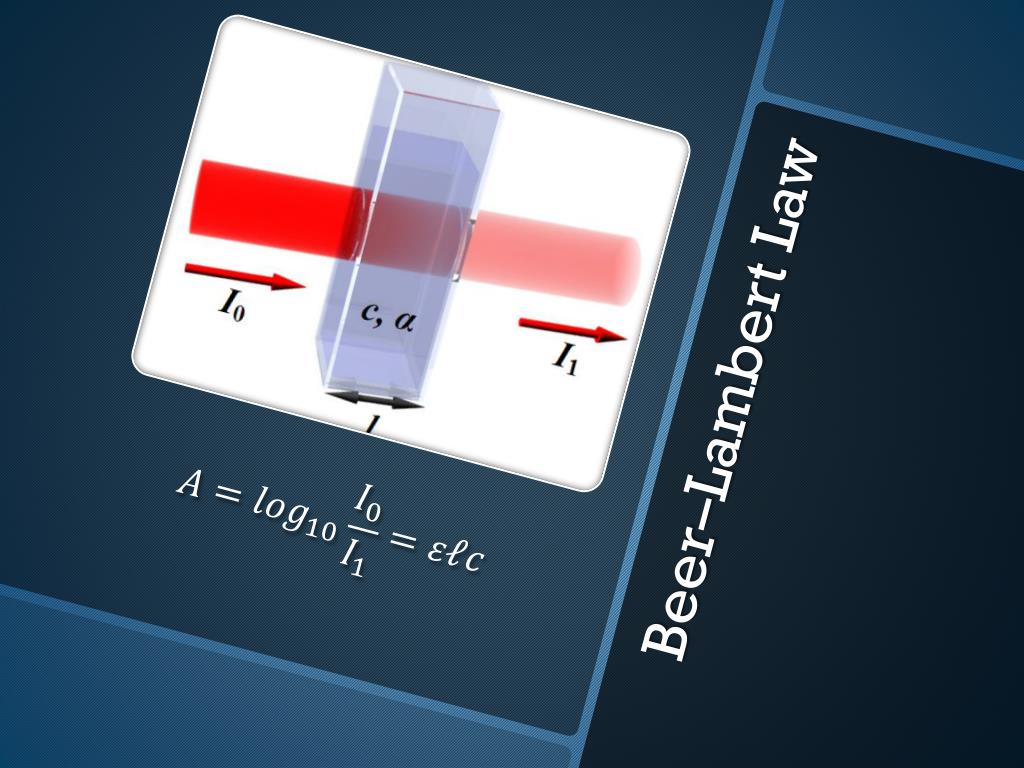

  2. Beer–Lambert Law

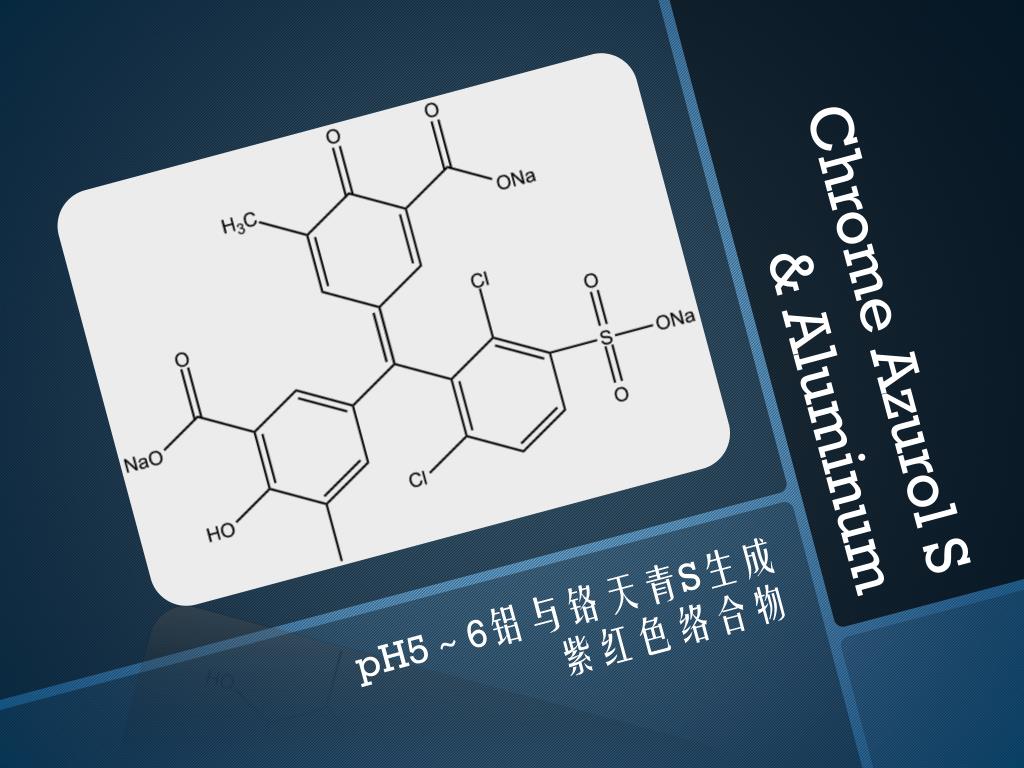

  3. Chrome Azurol S& Aluminum pH5～6铝与铬天青S生成紫红色络合物

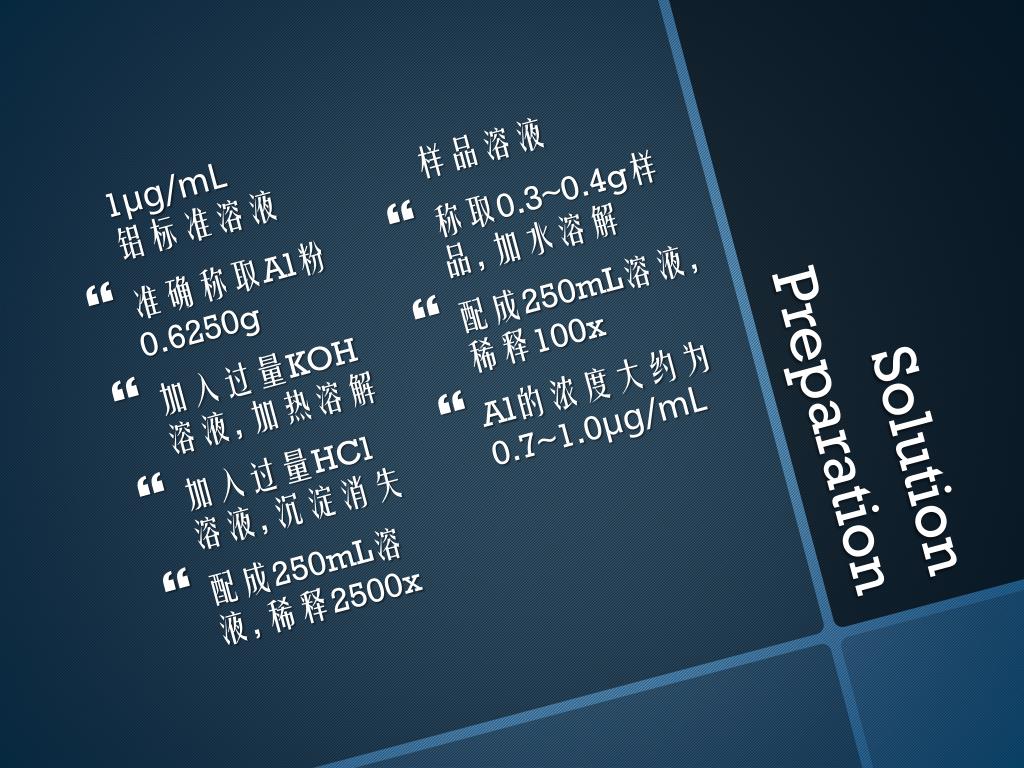

  4. 样品溶液 称取0.3~0.4g样品, 加水溶解 配成250mL溶液, 稀释100x Al的浓度大约为0.7~1.0μg/mL 1μg/mL铝标准溶液 • 准确称取Al粉0.6250g • 加入过量KOH溶液, 加热溶解 • 加入过量HCl溶液, 沉淀消失 • 配成250mL溶液, 稀释2500x Solution Preparation

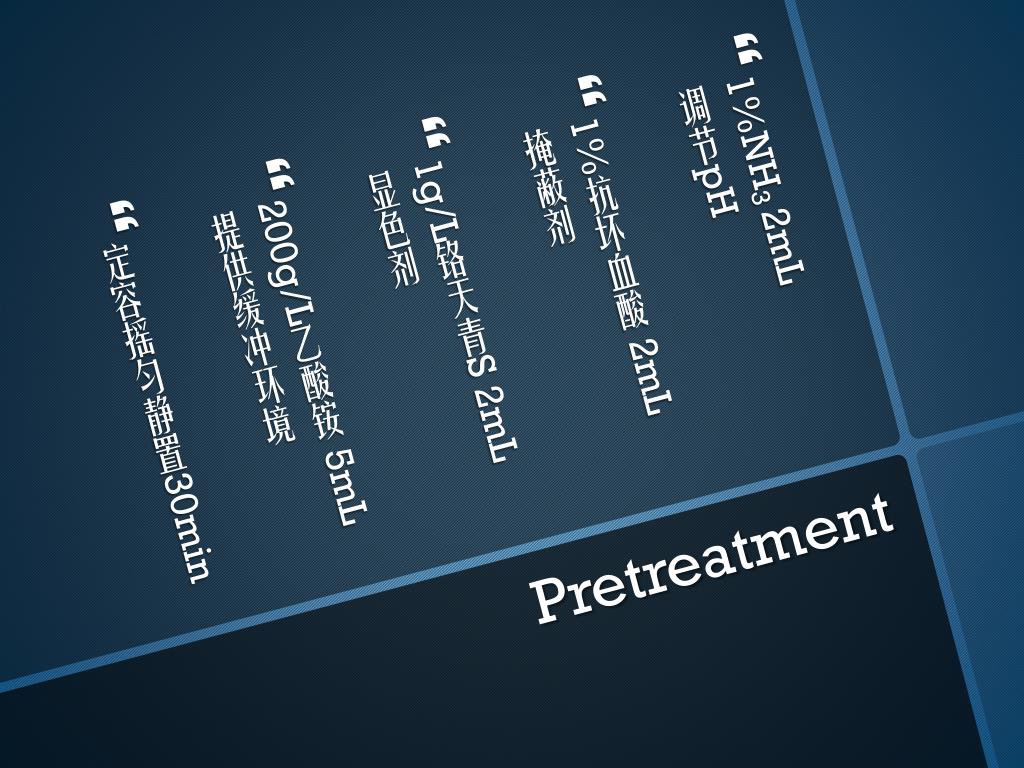

  5. 1%NH3 2mL调节pH • 1%抗坏血酸 2mL掩蔽剂 • 1g/L铬天青S 2mL显色剂 • 200g/L乙酸铵 5mL提供缓冲环境 • 定容摇匀静置30min Pretreatment

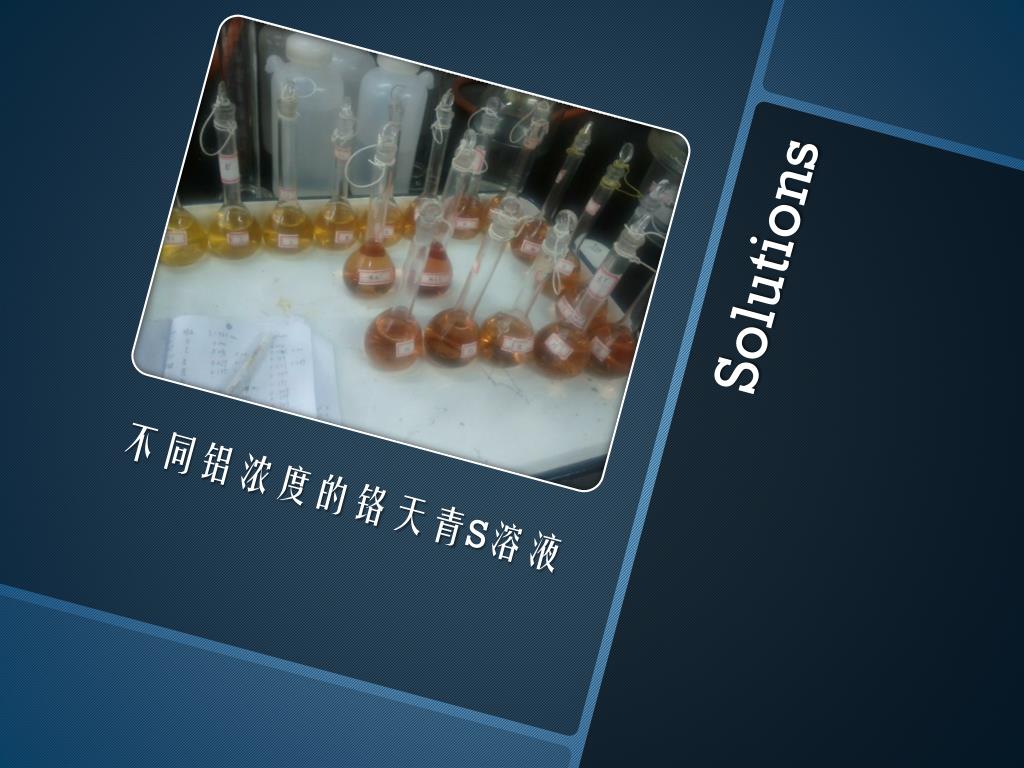

  6. Solutions 不同铝浓度的铬天青S溶液

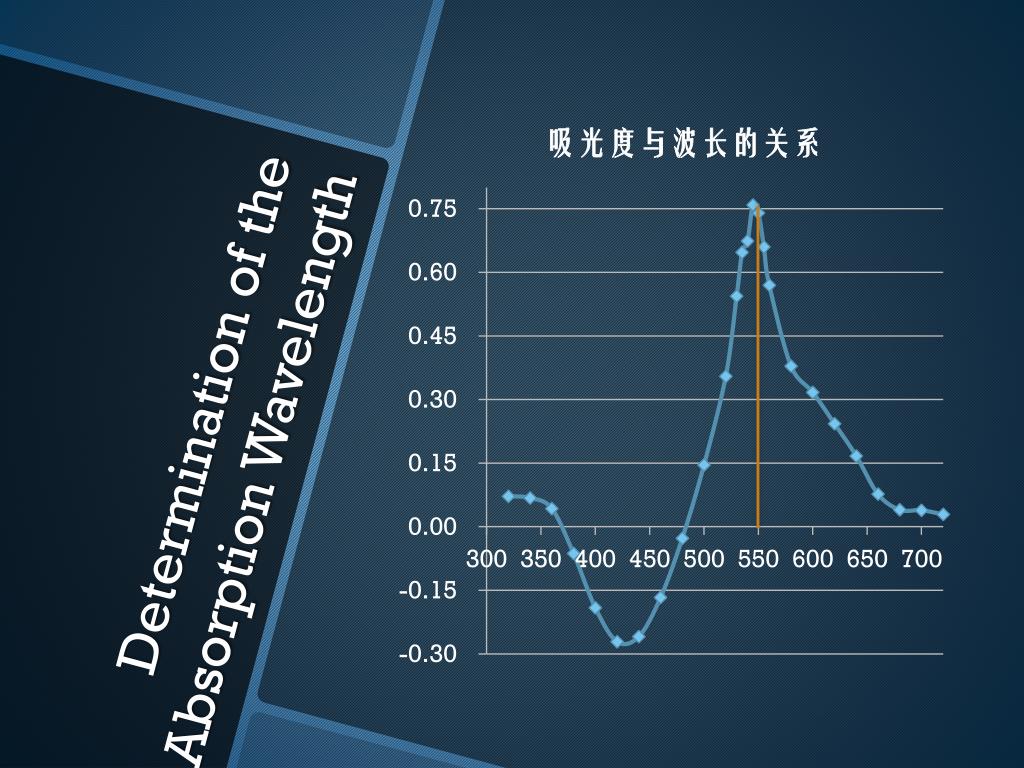

  7. Determination of the Absorption Wavelength

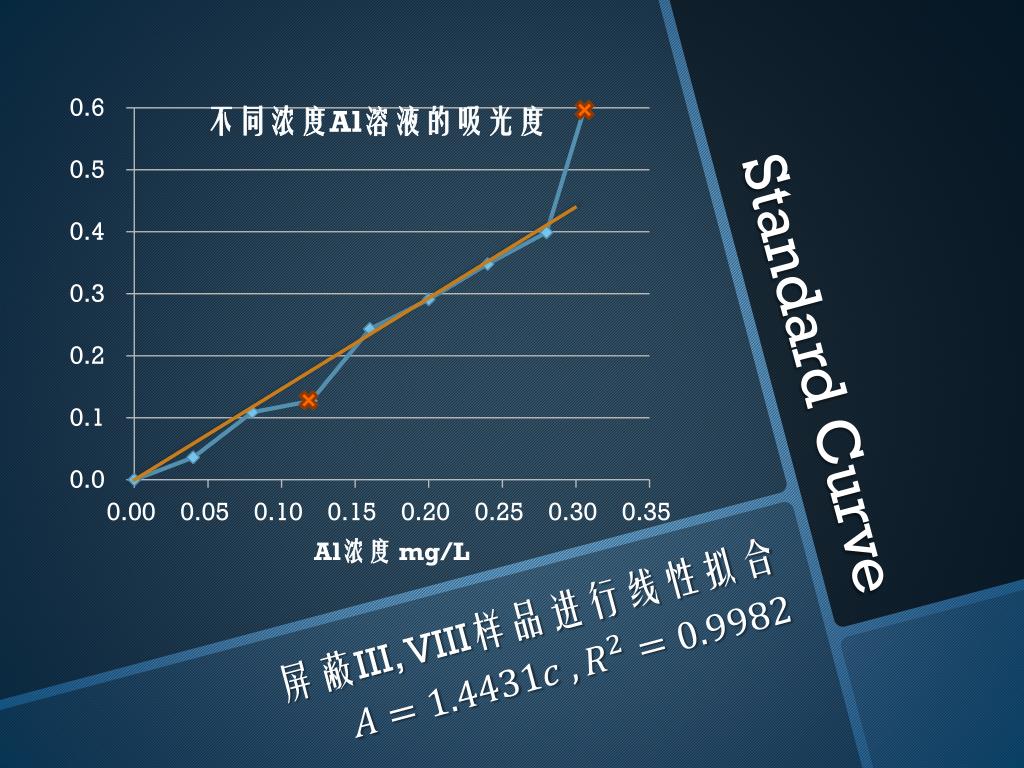

  8. Standard Curve 屏蔽III, VIII样品进行线性拟合

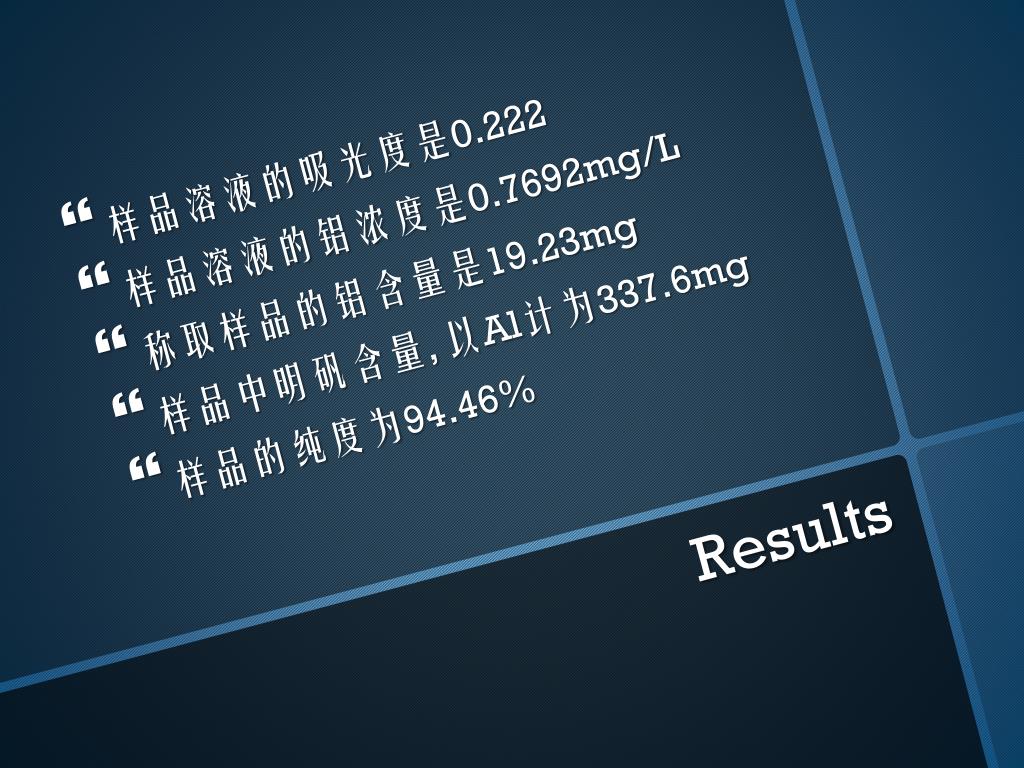

  9. 样品溶液的吸光度是0.222 • 样品溶液的铝浓度是0.7692mg/L • 称取样品的铝含量是19.23mg • 样品中明矾含量, 以Al计为337.6mg • 样品的纯度为94.46% Results

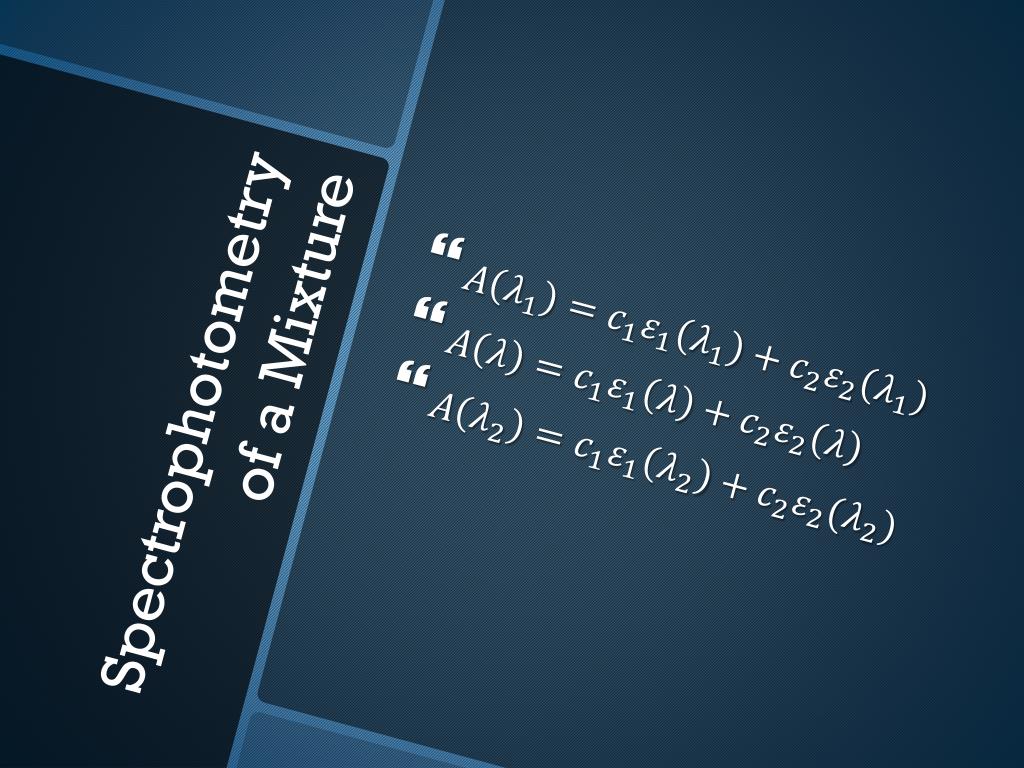

  10. Spectrophotometry of a Mixture

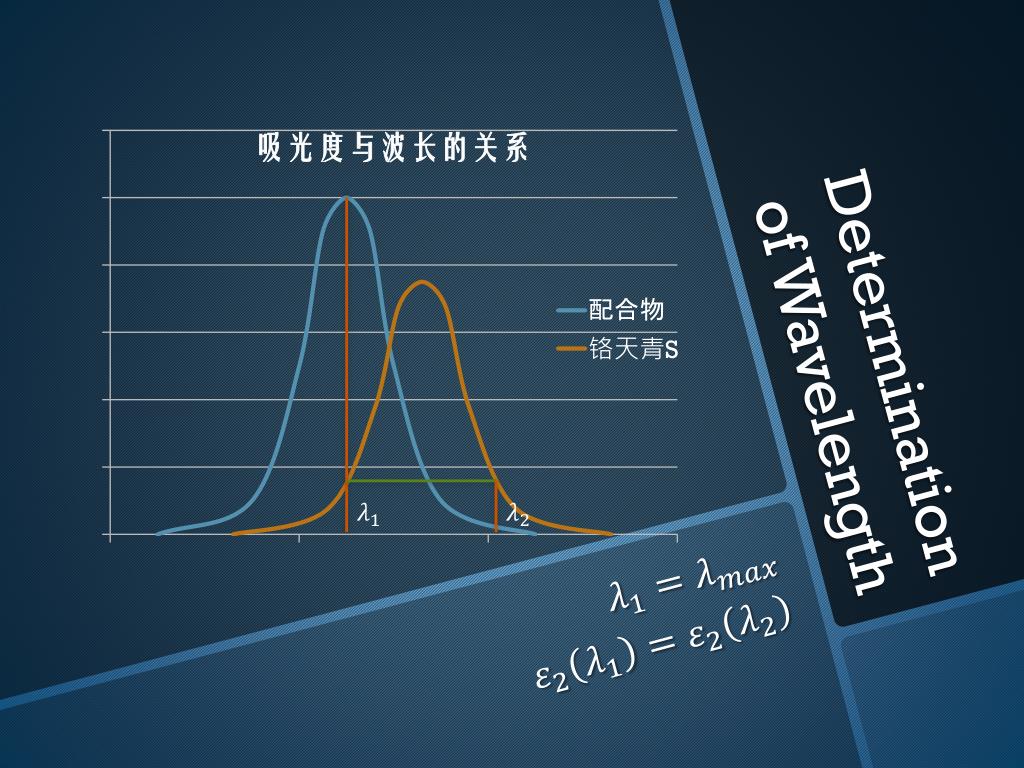

  11. Determinationof Wavelength

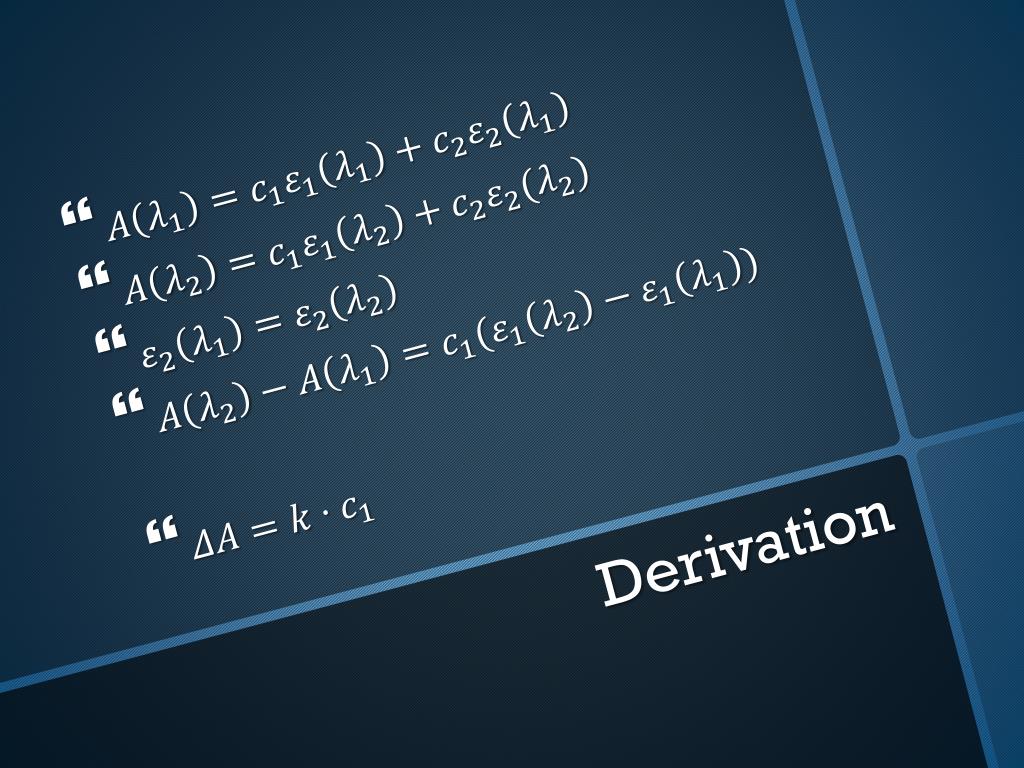

  12. Derivation

  13. Thanks
