  1. Byzantine fault tolerance Jinyang Li Slides adapted from Liskov

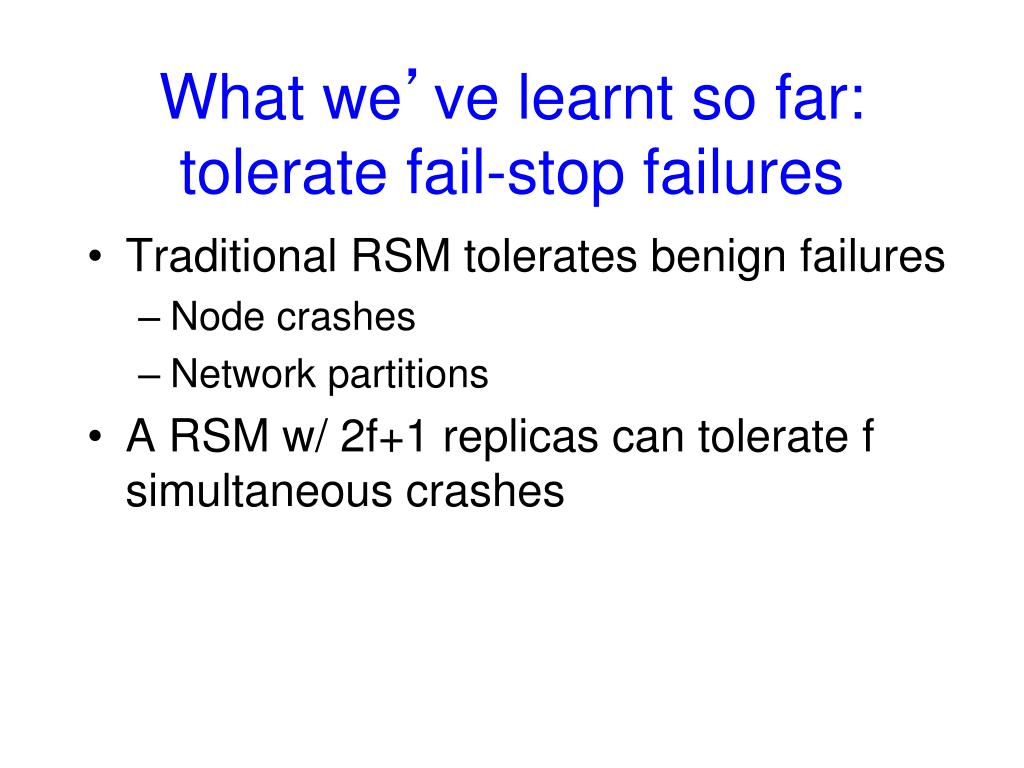

  2. What we’ve learnt so far:tolerate fail-stop failures • Traditional RSM tolerates benign failures • Node crashes • Network partitions • A RSM w/ 2f+1 replicas can tolerate f simultaneous crashes

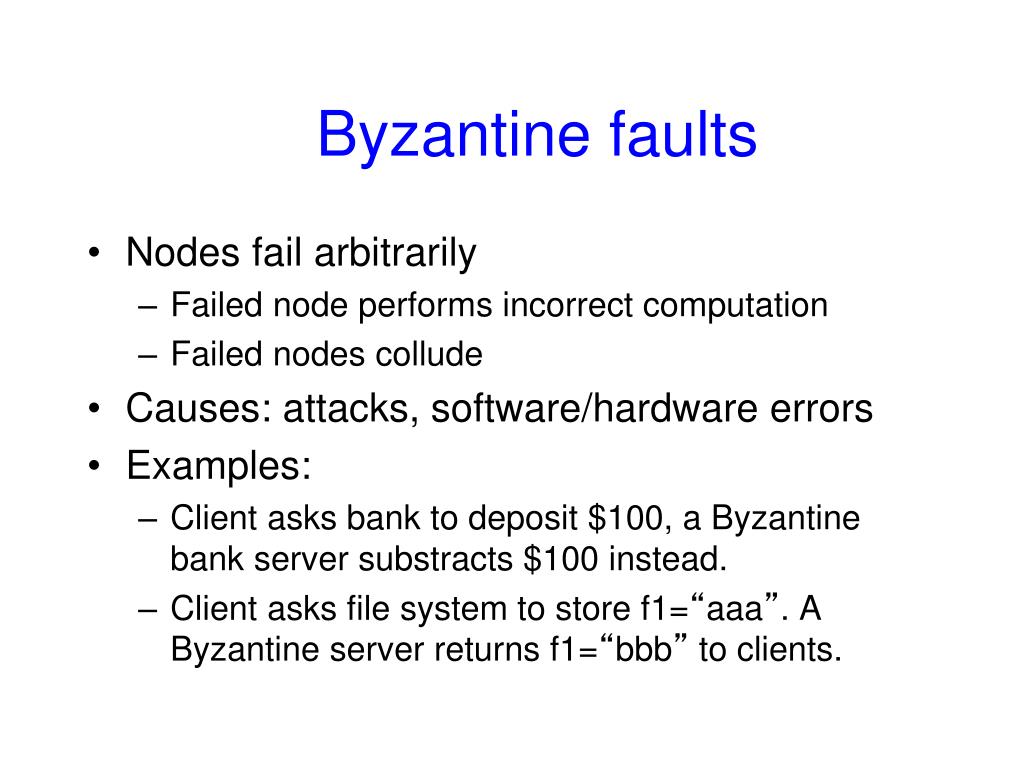

  3. Byzantine faults • Nodes fail arbitrarily • Failed node performs incorrect computation • Failed nodes collude • Causes: attacks, software/hardware errors • Examples: • Client asks bank to deposit $100, a Byzantine bank server substracts $100 instead. • Client asks file system to store f1=“aaa”. A Byzantine server returns f1=“bbb” to clients.

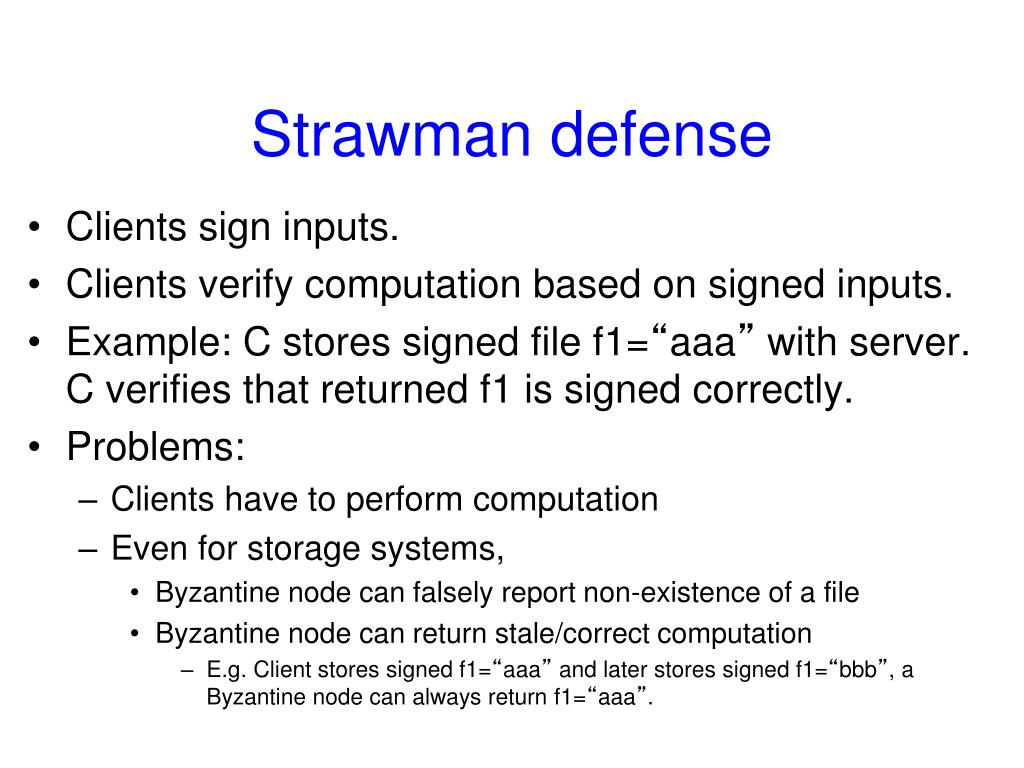

  4. Strawman defense • Clients sign inputs. • Clients verify computation based on signed inputs. • Example: C stores signed file f1=“aaa” with server. C verifies that returned f1 is signed correctly. • Problems: • Clients have to perform computation • Even for storage systems, • Byzantine node can falsely report non-existence of a file • Byzantine node can return stale/correct computation • E.g. Client stores signed f1=“aaa” and later stores signed f1=“bbb”, a Byzantine node can always return f1=“aaa”.

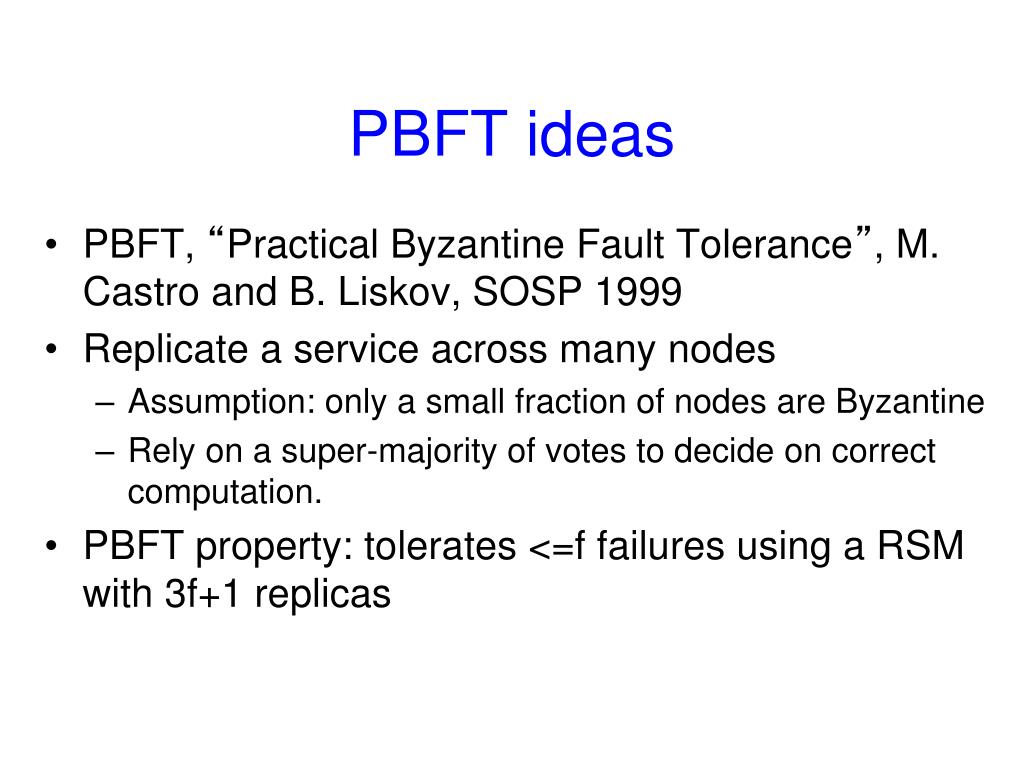

  5. PBFT ideas • PBFT, “Practical Byzantine Fault Tolerance”, M. Castro and B. Liskov, SOSP 1999 • Replicate a service across many nodes • Assumption: only a small fraction of nodes are Byzantine • Rely on a super-majority of votes to decide on correct computation. • PBFT property: tolerates <=f failures using a RSM with 3f+1 replicas

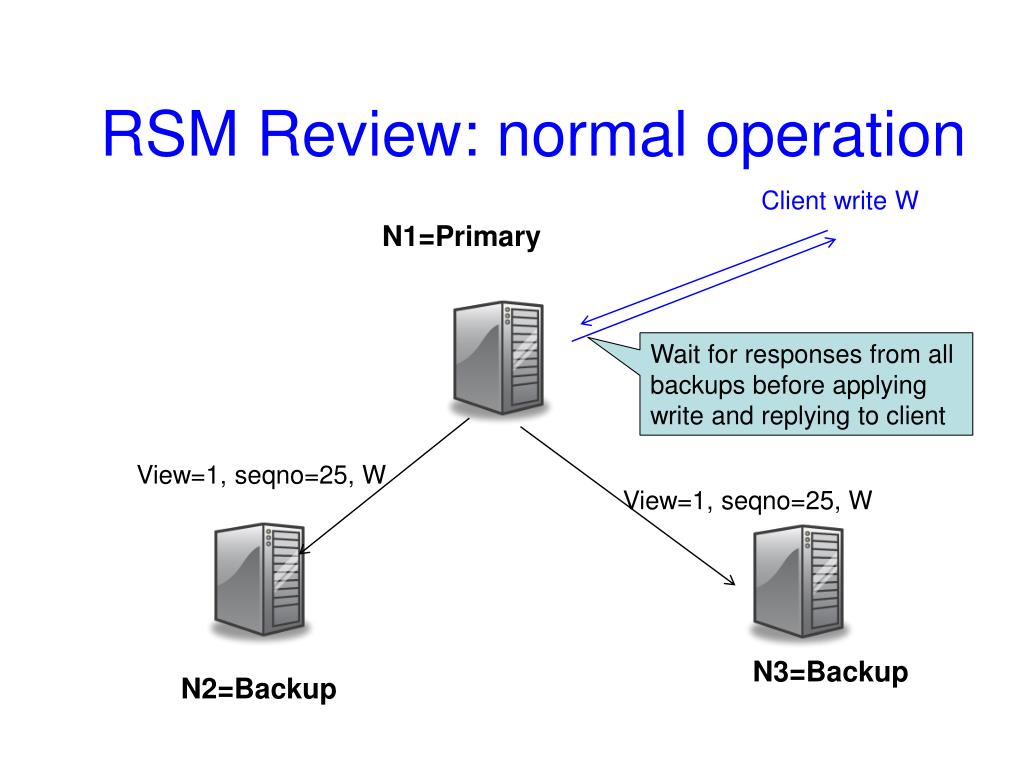

  6. RSM Review: normal operation Client write W N1=Primary Wait for responses from all backups before applying write and replying to client View=1, seqno=25, W View=1, seqno=25, W N3=Backup N2=Backup

  7. RSM review: view change N1=Primary Paxos propose viewno=2, <primary=N2,backup=N3> Paxos propose viewno=2, <primary=N3,backup=N2> N3=Backup N2=Backup

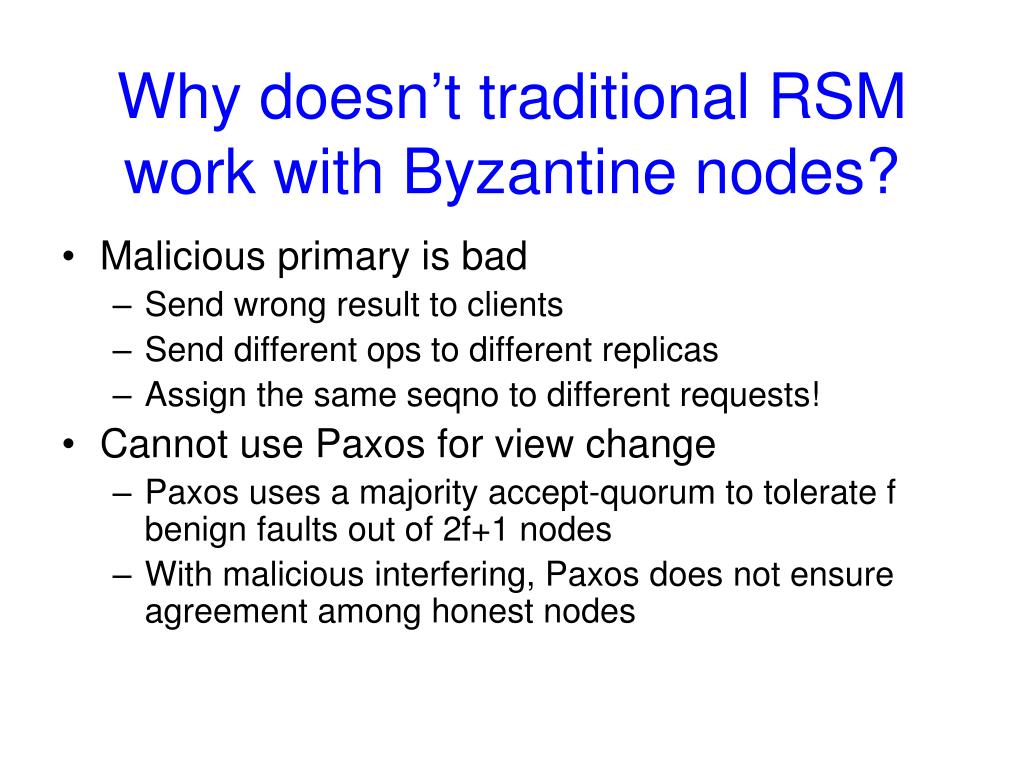

  8. Why doesn’t traditional RSM work with Byzantine nodes? • Malicious primary is bad • Send wrong result to clients • Send different ops to different replicas • Assign the same seqno to different requests! • Cannot use Paxos for view change • Paxos uses a majority accept-quorum to tolerate f benign faults out of 2f+1 nodes • With malicious interfering, Paxos does not ensure agreement among honest nodes

  9. Paxos under Byzantine faults Propose vid=1, myn=N0:1 OK val=null N2 N0 N1 nh=N0:1 nh=N0:1 Propose vid=1, myn=N0:1 OK val=null

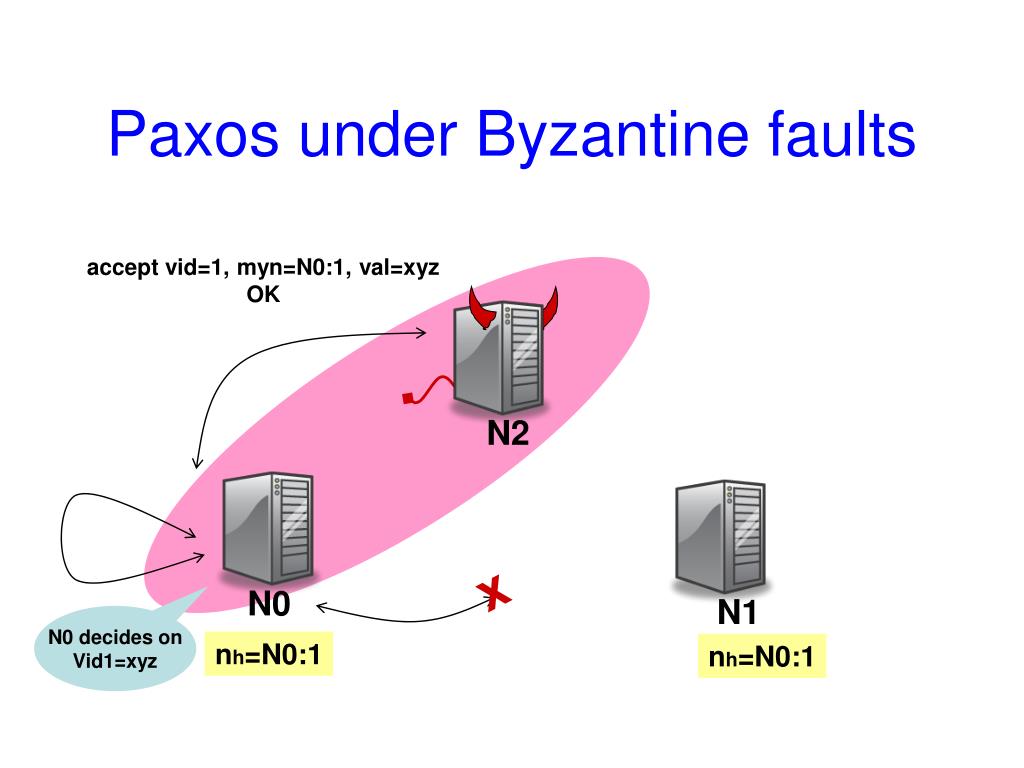

  10. Paxos under Byzantine faults accept vid=1, myn=N0:1, val=xyz OK N2 X N0 N1 N0 decides on Vid1=xyz nh=N0:1 nh=N0:1

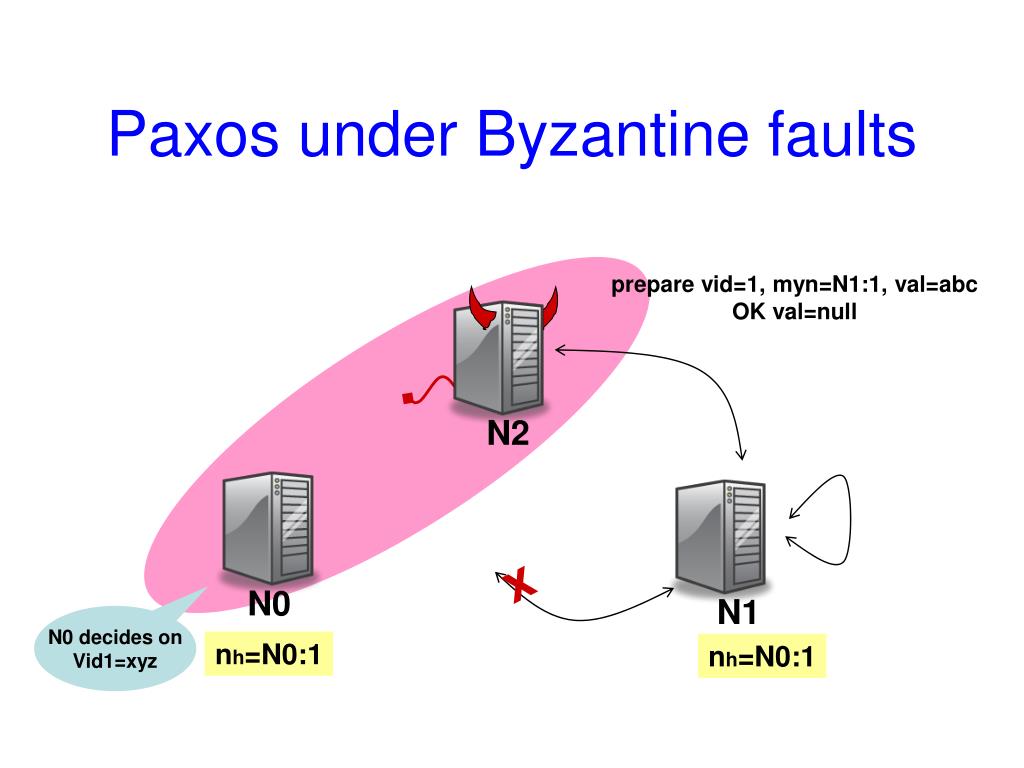

  11. Paxos under Byzantine faults prepare vid=1, myn=N1:1, val=abc OK val=null N2 X N0 N1 N0 decides on Vid1=xyz nh=N0:1 nh=N0:1

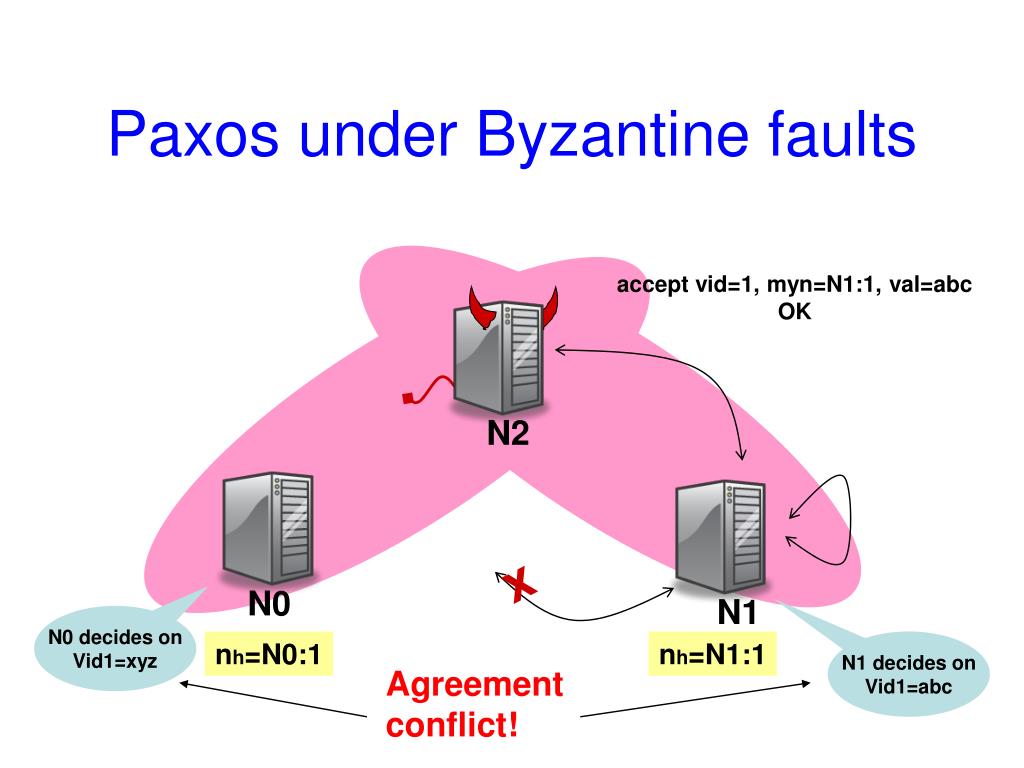

  12. Agreement conflict! Paxos under Byzantine faults accept vid=1, myn=N1:1, val=abc OK N2 X N0 N1 N0 decides on Vid1=xyz nh=N0:1 nh=N1:1 N1 decides on Vid1=abc

  13. PBFT main ideas • Static configuration (same 3f+1 nodes across views) • To deal with malicious primary • Use a 3-phase protocol to agree on sequence number • To deal with loss of agreement • Use a bigger quorum (2f+1 out of 3f+1 nodes) • Need to authenticate communications

  14. BFT requires a 2f+1 quorum out of 3f+1 nodes … … … … 1. State: 2. State: 3. State: 4. State: A A A Servers X write A write A write A write A Clients For liveness, the quorum size must be at most N - f

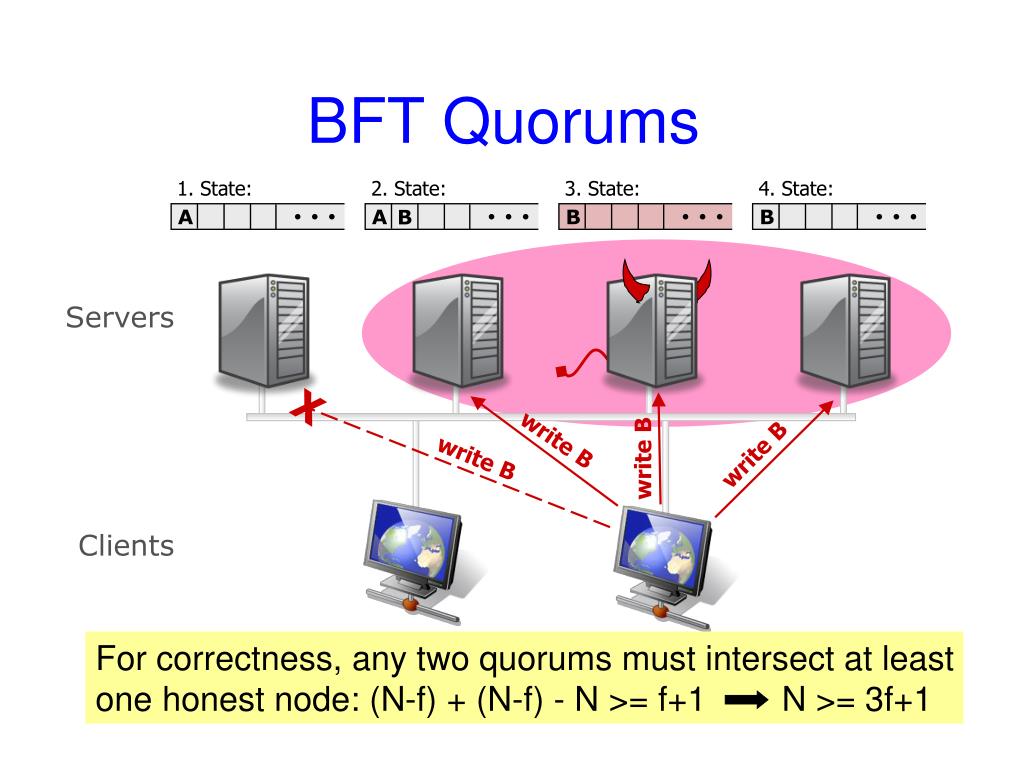

  15. BFT Quorums … … … … 1. State: 2. State: 3. State: 4. State: A A B B B Servers X write B write B write B write B Clients For correctness, any two quorums must intersect at least one honest node: (N-f) + (N-f) - N >= f+1 N >= 3f+1

  16. PBFT Strategy Primary runs the protocol in the normal case Replicas watch the primary and do a view change if it fails

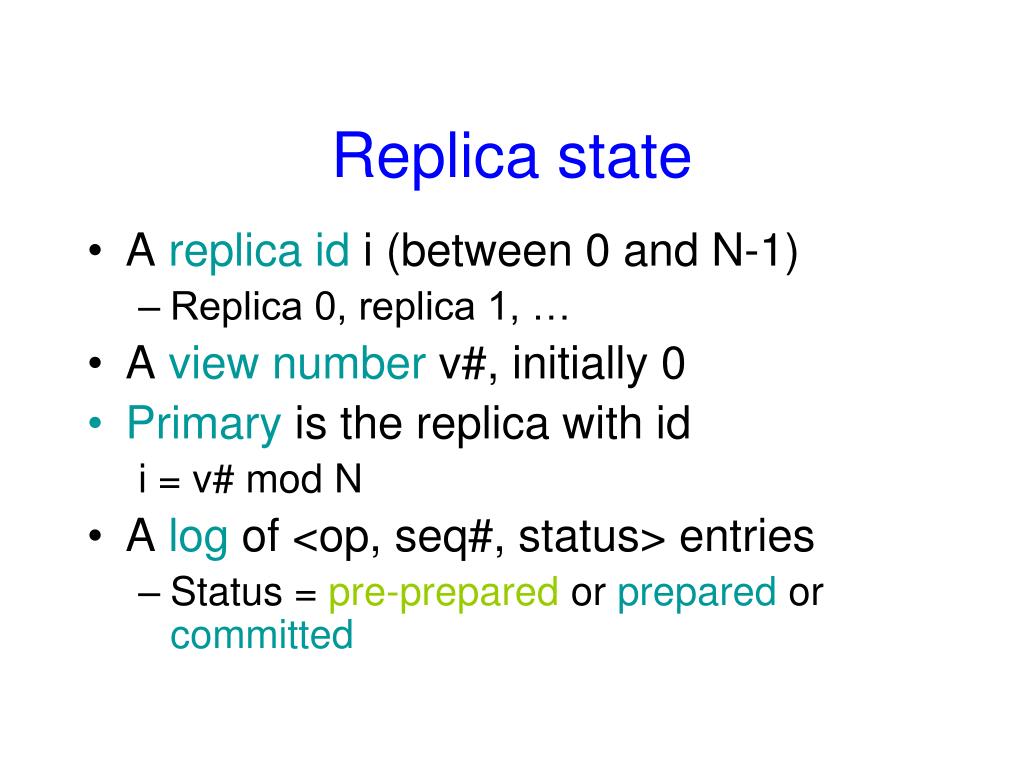

  17. Replica state A replica id i (between 0 and N-1) Replica 0, replica 1, … A view number v#, initially 0 Primary is the replica with id i = v# mod N A log of <op, seq#, status> entries Status = pre-prepared or prepared or committed

  18. Normal Case Client sends signed request to primary or to all

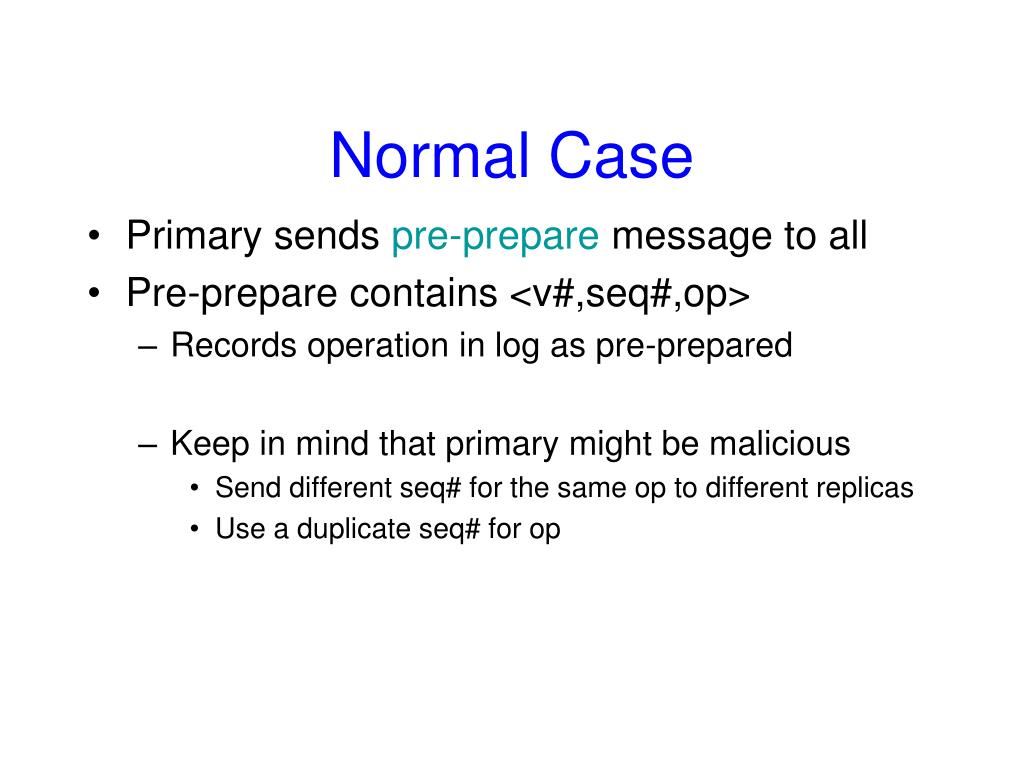

  19. Normal Case Primary sends pre-prepare message to all Pre-prepare contains <v#,seq#,op> Records operation in log as pre-prepared Keep in mind that primary might be malicious Send different seq# for the same op to different replicas Use a duplicate seq# for op

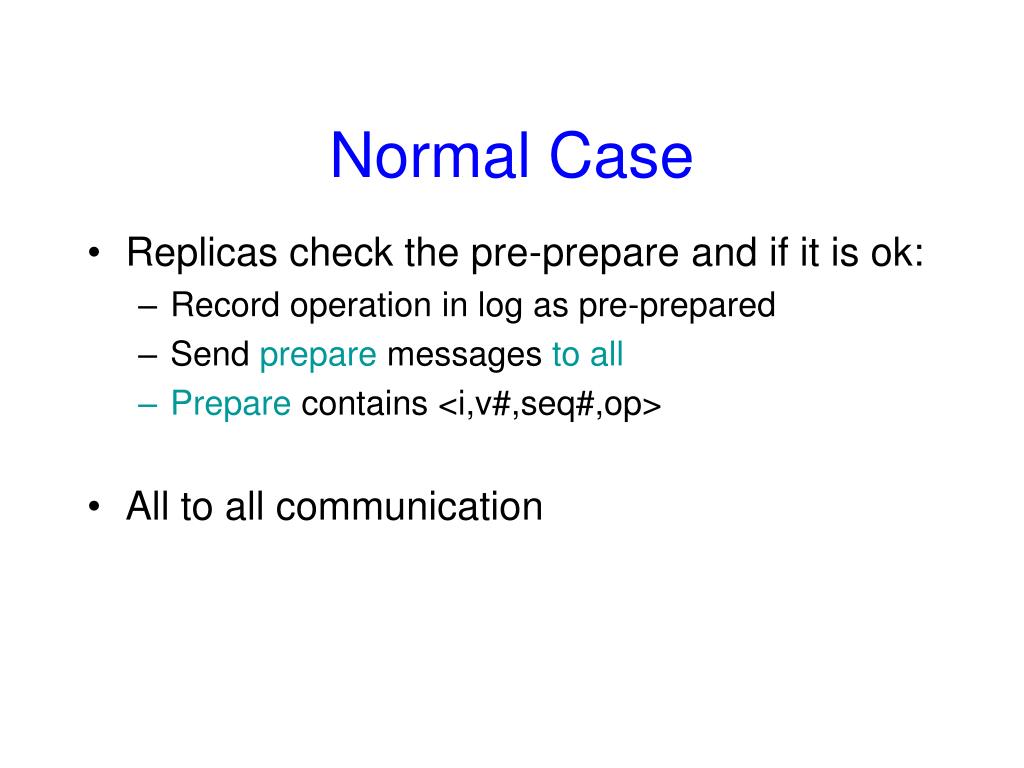

  20. Normal Case Replicas check the pre-prepare and if it is ok: Record operation in log as pre-prepared Send prepare messages to all Prepare contains <i,v#,seq#,op> All to all communication

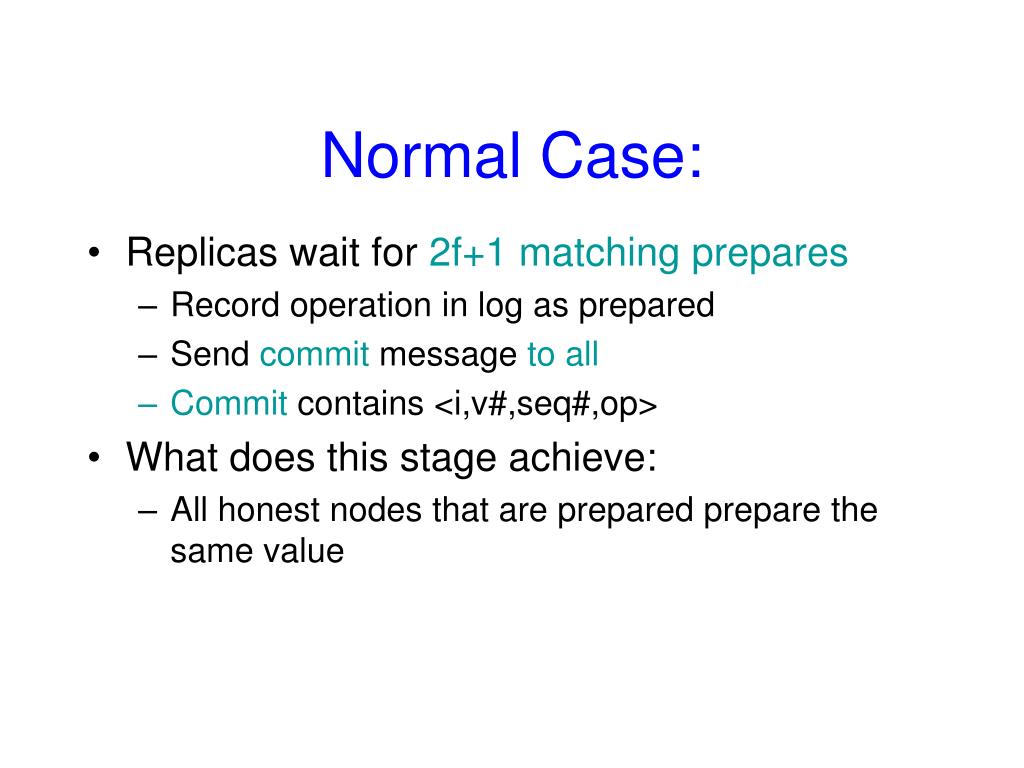

  21. Normal Case: Replicas wait for 2f+1 matching prepares Record operation in log as prepared Send commit message to all Commit contains <i,v#,seq#,op> What does this stage achieve: All honest nodes that are prepared prepare the same value

  22. Normal Case: • Replicas wait for 2f+1 matching commits • Record operation in log as committed • Execute the operation • Send result to the client

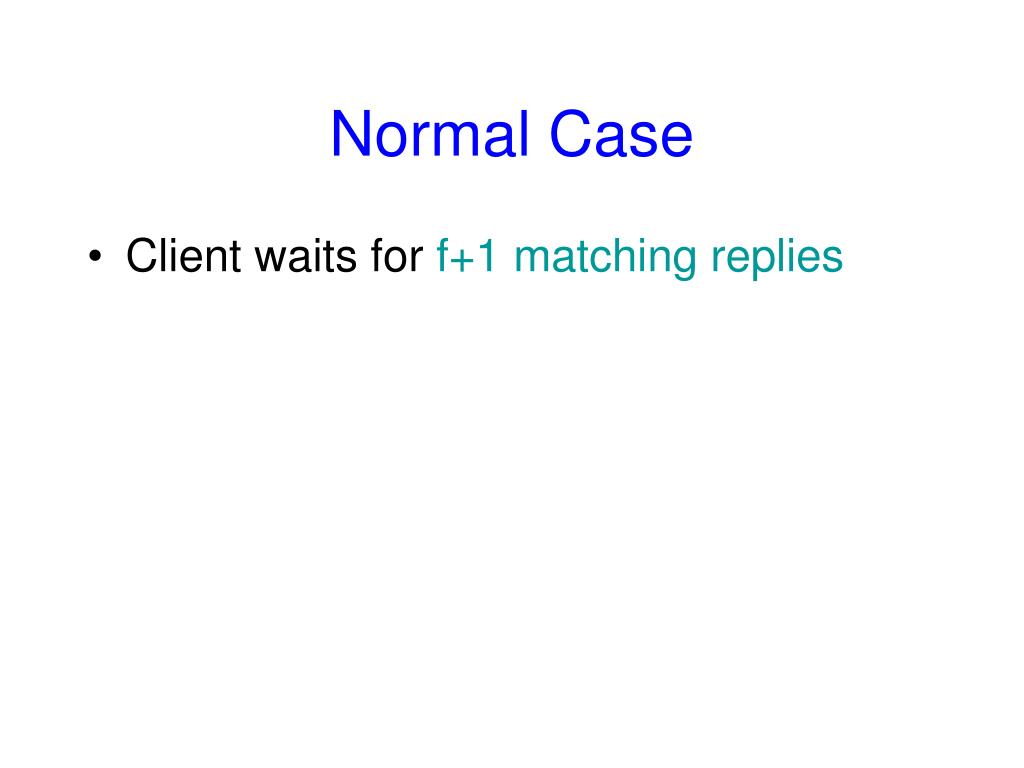

  23. Normal Case • Client waits for f+1 matching replies

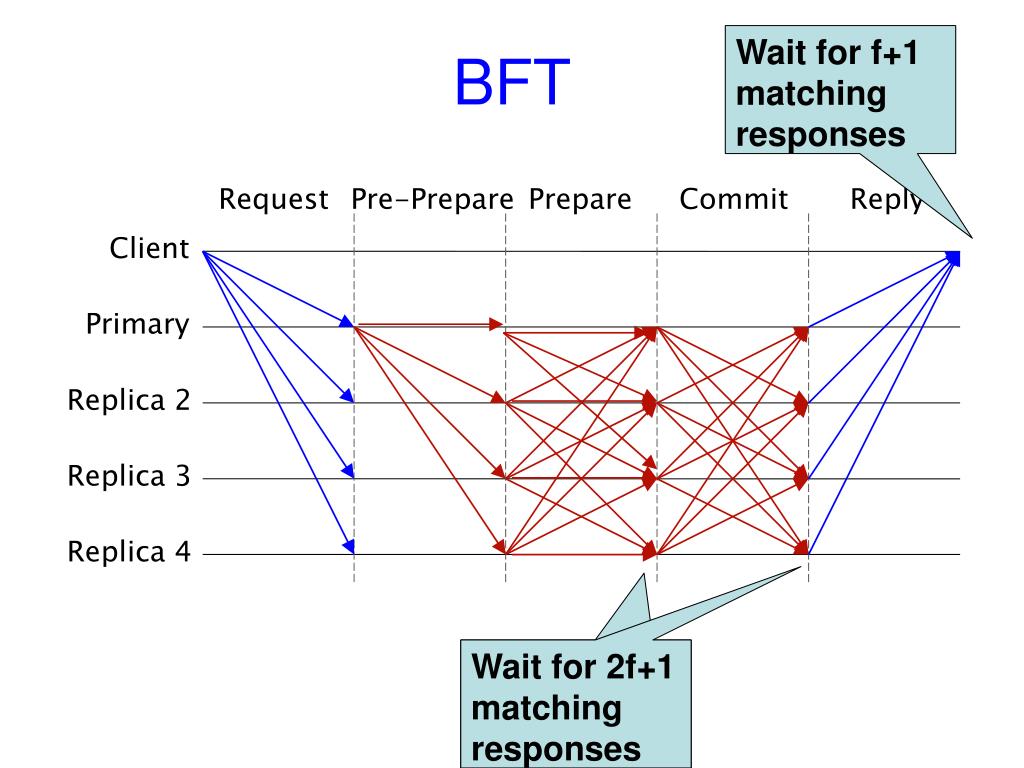

  24. Request Pre-Prepare Prepare Commit Reply Client Primary Replica 2 Replica 3 Replica 4 Wait for f+1 matching responses BFT Wait for 2f+1 matching responses

  25. Request Pre-Prepare Prepare Commit Reply Client Primary Replica 2 Replica 3 Replica 4 BFT • Commit point: when 2f+1 replicas have prepared

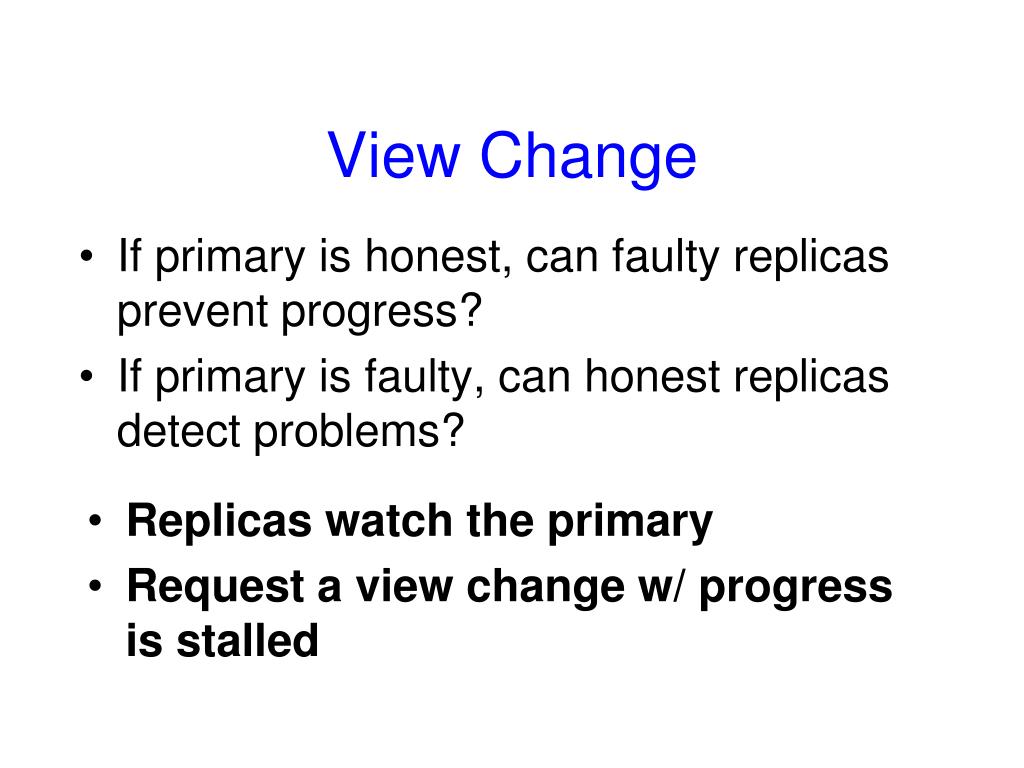

  26. View Change If primary is honest, can faulty replicas prevent progress? If primary is faulty, can honest replicas detect problems? • Replicas watch the primary • Request a view change w/ progress is stalled

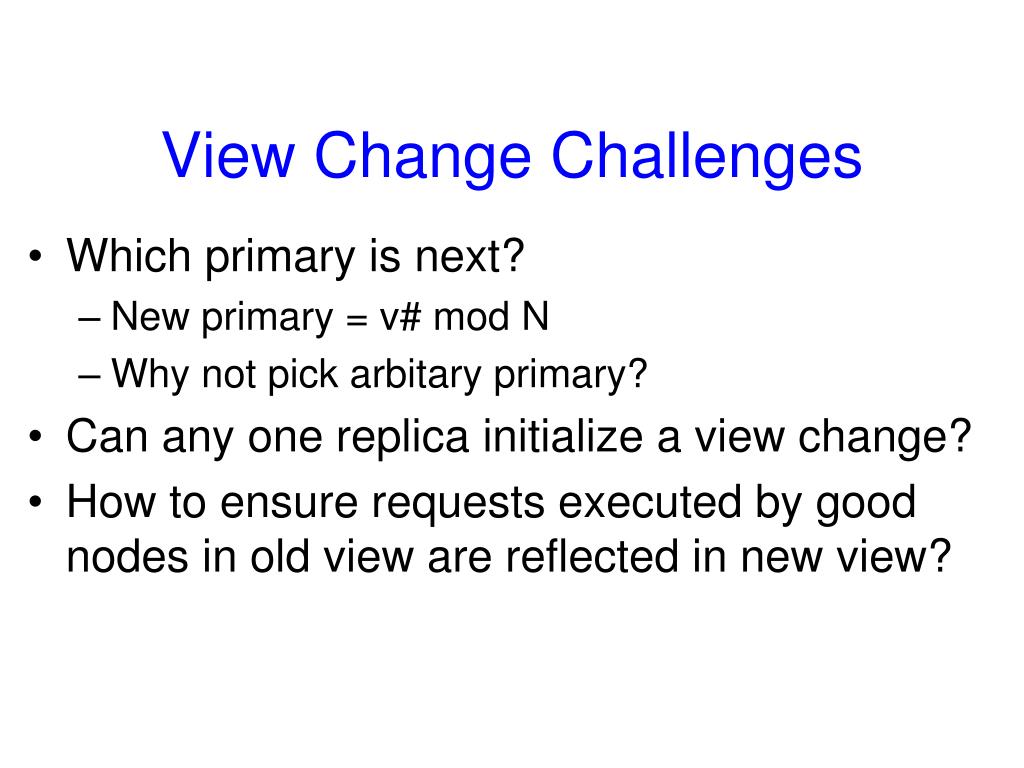

  27. View Change Challenges Which primary is next? New primary = v# mod N Why not pick arbitary primary? Can any one replica initialize a view change? How to ensure requests executed by good nodes in old view are reflected in new view?

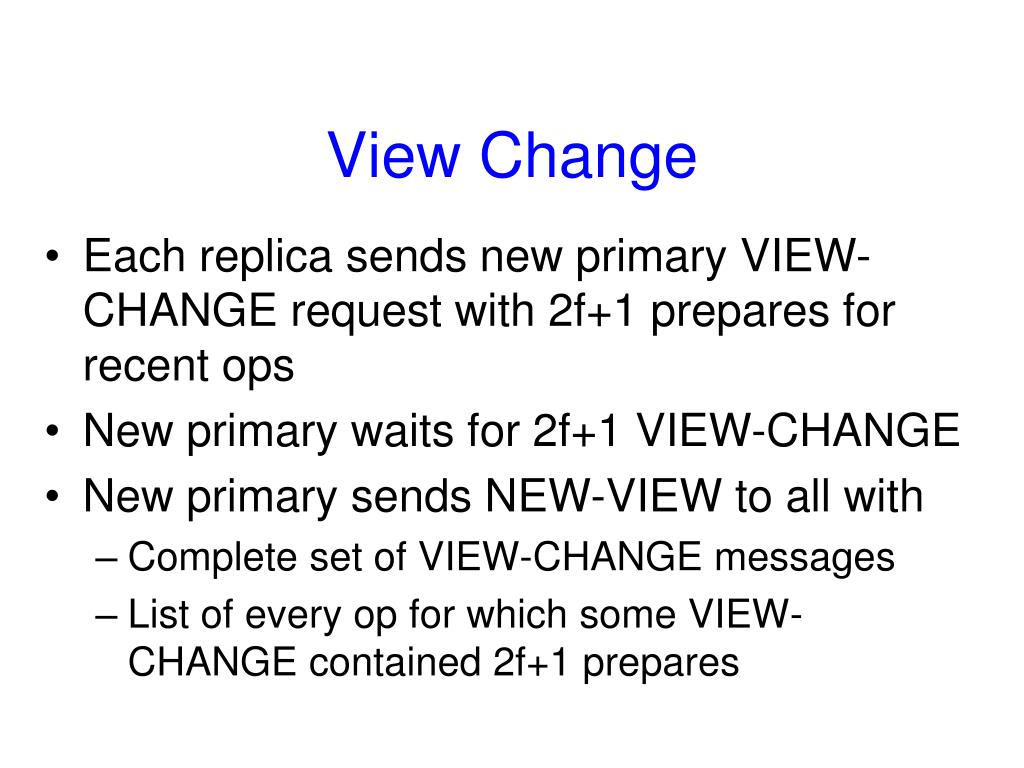

  28. View Change Each replica sends new primary VIEW-CHANGE request with 2f+1 prepares for recent ops New primary waits for 2f+1 VIEW-CHANGE New primary sends NEW-VIEW to all with Complete set of VIEW-CHANGE messages List of every op for which some VIEW-CHANGE contained 2f+1 prepares

  29. Additional Optimizations State transfer Checkpoints (garbage collection of the log) Timing of view changes

  30. Possible improvements • Lower latency for writes (4 messages) • Replicas respond at prepare • Client waits for 2f+1 matching responses • Fast reads (one round trip) • Client sends to all; they respond immediately • Client waits for 2f+1 matching responses

  31. Practical limitations of BFTs • Expensive • Protection is achieved only when <= f nodes fail • Assume independent machine failures • Does not prevent many classes attacks: • Turn a machine into a botnet node • Steal SSNs from servers
