Presentation Transcript
slide1

Workflow in CMPDMinimum-Workflow according to (implicit) business-rules in Community Pharmacy profilesCurrent situation

Jürgen Brandstätter

scenario 1 with padv

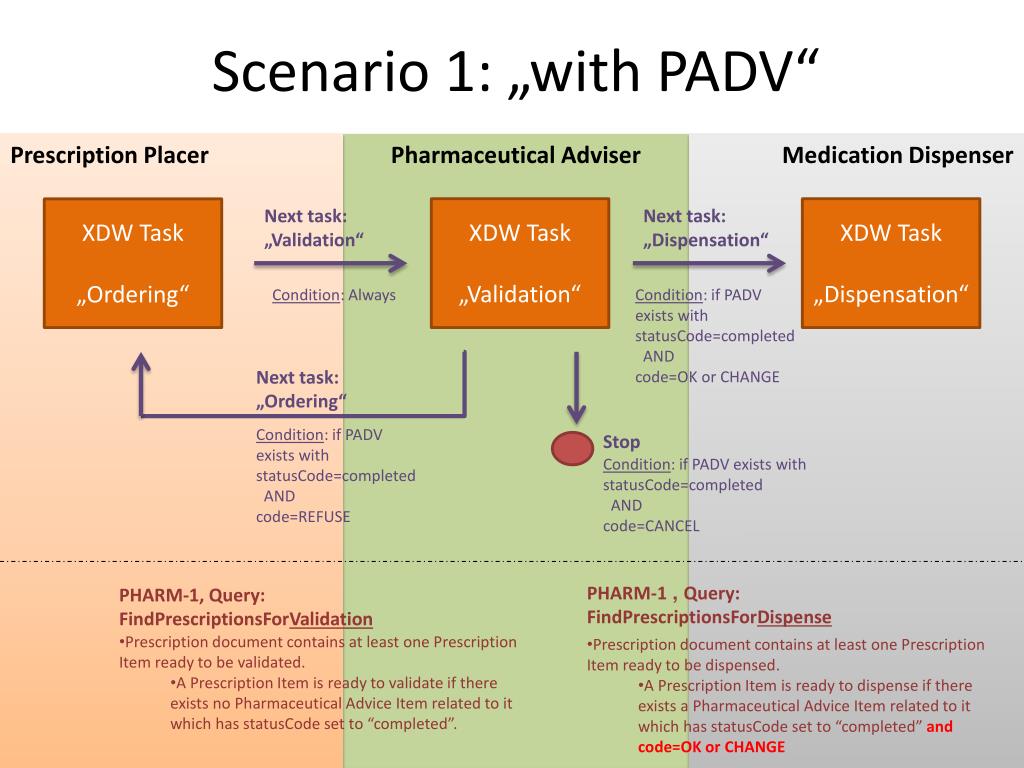

Scenario 1: „with PADV“

PrescriptionPlacer

PharmaceuticalAdviser

MedicationDispenser

Next task:

„Validation“

XDW Task

„Validation“

Next task:

„Dispensation“

XDW Task

„Dispensation“

XDW Task

„Ordering“

Condition: Always

Condition: if PADV exists with

statusCode=completed

AND

code=OK or CHANGE

Next task:

„Ordering“

Condition: if PADV exists with

statusCode=completed

AND

code=REFUSE

Stop

Condition: if PADV exists with

statusCode=completed

AND

code=CANCEL

PHARM-1 , Query:

FindPrescriptionsForDispense

PHARM-1, Query: FindPrescriptionsForValidation

  • Prescription document contains at least one Prescription Item ready to be validated.
    • A Prescription Item is ready to validate if there exists no Pharmaceutical Advice Item related to it which has statusCode set to “completed”.
  • Prescription document contains at least one Prescription Item ready to be dispensed.
    • A Prescription Item is ready to dispense if there exists a Pharmaceutical Advice Item related to it which has statusCode set to “completed” and code=OK or CHANGE
scenario 2 without padv

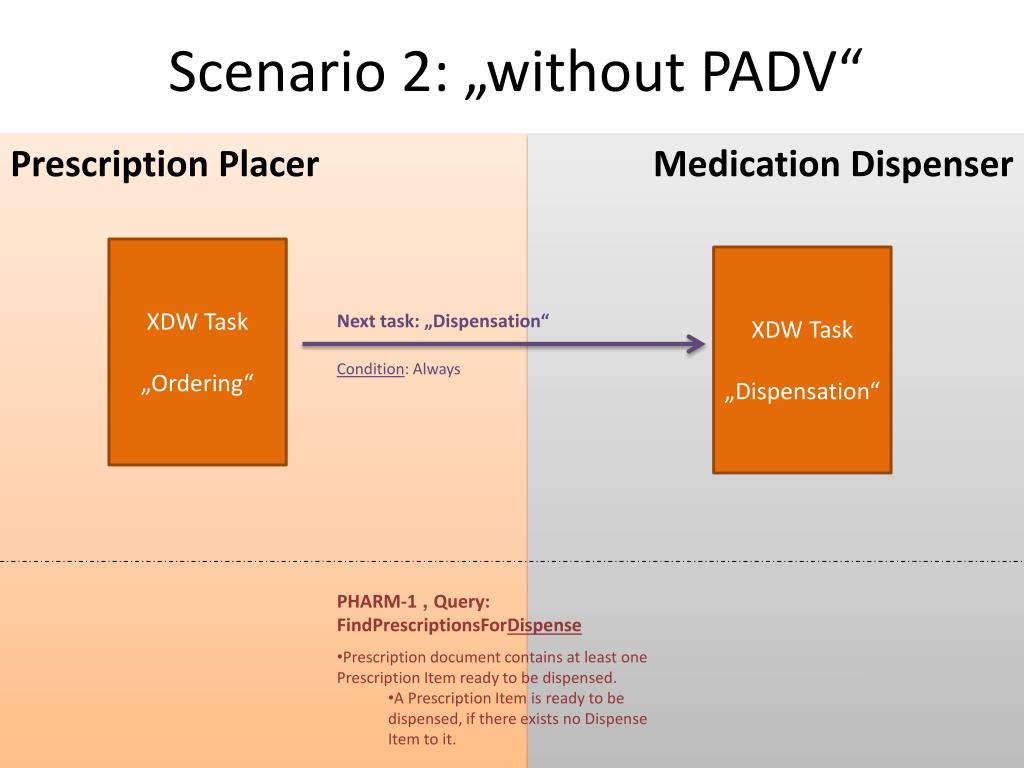

Scenario 2: „without PADV“

PrescriptionPlacer

MedicationDispenser

XDW Task

„Ordering“

XDW Task

„Dispensation“

Next task: „Dispensation“

Condition: Always

PHARM-1 , Query: FindPrescriptionsForDispense

  • Prescription document contains at least one Prescription Item ready to be dispensed.
    • A Prescription Item is ready to be dispensed, if there exists no Dispense Item to it.
