  1. XL Graphics and CCU Grant Hodson

  2. Company Overview • Established 1987, small family owned company • Installed more than 2000 control room systems world wide • Working with Tyco for approx 19 years • Head Office in Brisbane, Australia • Small offices in Newcastle and Sydney, Australia. Tainan, Taiwan. Shenzhen, China.

  3. Company Overview • Electronic Design & Engineering • Manufacture • Assembly: Pick and Place, CNC postive displacement Solder dispensing, Reflow and Vapour Phase Soldering, Transformer Winding, AOI, HALT, HASS • Enclosures: CNC Routers, Mould Making, Folding & Bending, Stamping

  4. Sample Installations - Military • Defense Department (USA) • Oakey Army Aviation Centre • Enoggera Army Barracks • Amberley Airforce Base

  5. Sample Installations - Aviation • Qantas Airlines • Melbourne Airport • Kuala Lumpur International Airport • Dulles International Airport (Washington) • Incheon International Airport (South Korea)

  6. Sample Installations – Transport • Sydney Rail Management Centre • Broadmeadow Train Control Centre • Junee Train Traffic Control • Sydenham Train Signalling Centre • MRT Upgrade Singapore • MTR Hong Kong

  7. Sample Installations – Business & Education • Microsoft HQ Seattle • IBM HQ PoughKeepsie • Unisys HQ • UMC Semiconductor Manufacturing Facility • University of Illinois • Penn State University • University of NSW • El Ain University - UAE

  8. Sample Installations - Landmark • The White House • The Sydney Opera House • Darling Harbour • Disney • KLCC/Petronas Twin Towers (Kuala Lumpur)

  9. Sample Installations - Power • Tarong Power Station • Ningbo Thermal Power Station China • Santa Rita Power Station Phillipines • Stanwell Power Station • Revelstoke Dam Hydro (Canada)

  10. Product Overview VCS XL Graphics CCU

  11. VCS VCS Command Terminal Workstations • Integrates differing communication technologies into a single system. • Operator has same operational procedures regardless of underlying physical communications equipment

  12. Rail Management Centre Control Room

  13. Rail Management Centre

  14. Rail Management Centre

  15. XL Graphics History • 1987 – CGA (4 Colour) MSDOS, Patent Granted on using icons to annunciate fire on graphics screens • 1990 – SVGA (256 Colour) • 1995 – Windows 95 • 2004 – Client Server Windows 2000&XP

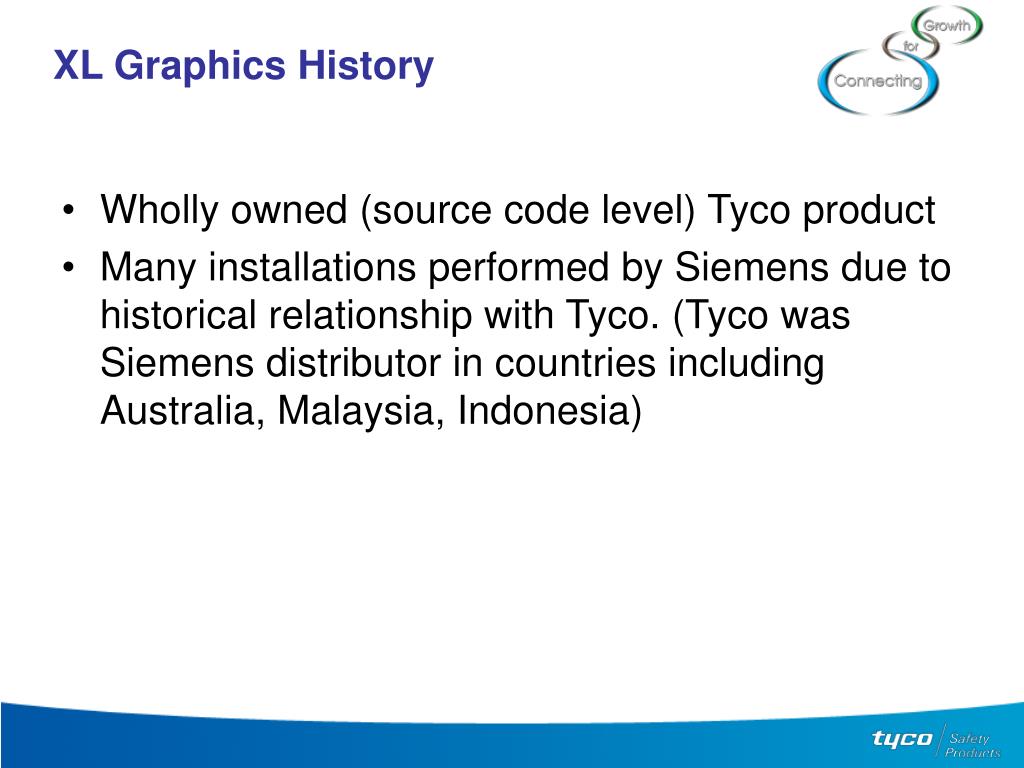

  16. XL Graphics History • Wholly owned (source code level) Tyco product • Many installations performed by Siemens due to historical relationship with Tyco. (Tyco was Siemens distributor in countries including Australia, Malaysia, Indonesia)

  17. XL Graphics Architecture • Client Server Design • Clients communicate via TCP/IP so can be locally or remotely installed • SQL Database Server

  18. XL Graphics C/S • Current version is designed primarily with commissioning and servicing in mind. It incorporates literally hundreds of features suggested by field engineers. Ex: • Detector Locating • Runtime/Deployed Data • Entire site can be copied to laptop and run .. No hidden or complicated registry settings and drivers during installation despite having SQL database server

  19. XL Graphics C/S

  20. XL Graphics C/S

  21. XL Graphics C/S • Bitmap and Vector Support • Support for zooming in to region rather than entire screen • Design allows for future expansion of vector features especially for Autocad

  22. XL Graphics • Suitable for international markets as it is designed as Bilingual system from the ground up • Long history of supporting other languages including • Canadian French (MSDOS) • Korean • Simplified Mandarin • Traditional Mandarin • Russian • German • Spanish • Approx 5-10 Euro languages under development

  23. XL Graphics Future • It is not a static product .. Ongoing development and features added • Client/Server design allows for easy and modular addition of different clients. Ex: South Korea has some requirements for MXF100 interface. This can be done as a specific client to provide these custom features. • Initial version concentrates on technician/site engineer features. Future version will add many unique operator features (based on operator feedback from earlier versions).

  24. XL Graphics Future • Suggestions for other clients have included • Web server (simple prototype of this already done, but not for release)

  25. Enabling Technology which comprises hardware and software • Two primary applications Interfacing Networking

  26. CCU - Interfacing • CCU is used in many niche areas as an interface controller • Modbus – Used to interface 4100U panels to PLCs via Modbus protocol (also TCP/IP) • Allen Bradley • Rockwell Ethernet IP • BMS – Provides FIP interface to some BMS systems

  27. CCU - Interfacing • MXBridge – Provides gateway between Minerva and MX panels • PIU – Pager interface to FIPs providing support for a variety of dial up and direct connect pager protocols • RDM – Remote Diagnostic module for interfacing technicians to FIPs remotely via dialup connections. • PPL – Point to Point Links. Enabling interconnection of FIPS via non standard or unusual physical media • There are also a large variety of interfaces not related directly to Fire (ex: Voice, Wiegand).

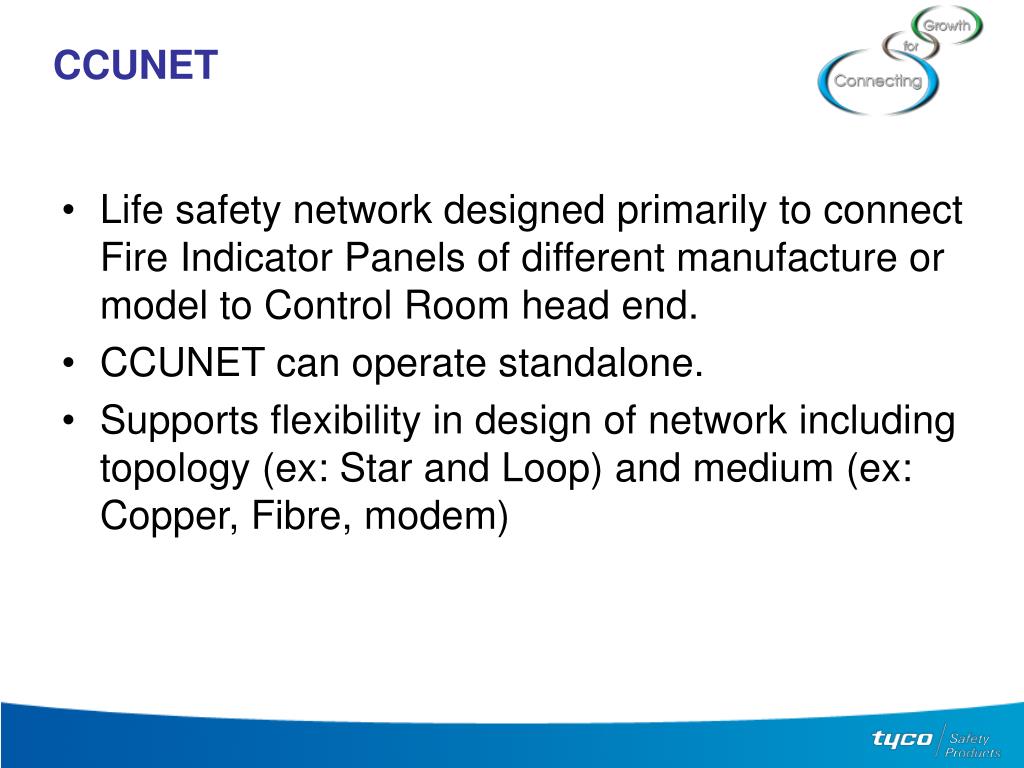

  28. CCUNET • Life safety network designed primarily to connect Fire Indicator Panels of different manufacture or model to Control Room head end. • CCUNET can operate standalone. • Supports flexibility in design of network including topology (ex: Star and Loop) and medium (ex: Copper, Fibre, modem)

  29. CCUNET Pager MXL MX Simplex Conventional A fire has been detected in the building. Whoop, Whoop!! CCUNET Redundant Loop TCP/IP Local XLG C/S Remote XLG C/S

  30. CCUNET – Physical Layer • RS232 • RS485 • RS422 • 4-20Ma Current Loop • Ethernet • Modem • Fibre, 820Nm, 1300Nm multi mode, 1300Nm Single Mode (CCU1 available, CCU3 2nd half 2007) • Wireless, GSM (installed at pilot site, not released)

  31. CCUNET – Datalink, Network & Transport • Ensures data error detection. Two levels of detection including checksum and IBM polynomial. • Data routing capability with network filtering • Allows routing of identical data via different paths simultaneously • Has transport layer analogous to UDP and TCP • Features “parallel” transmission to different hosts for delivery speed.

  32. CCUNET – Application Layer • CCU Network Logic Application • Combinatorial Logic, Timers • CCUNet Protocol • Local interpretation of FIP protocol and conversion to CCUNet Protocol • Annunciation and Control Application • CCU used as network transport medium

  33. CCUNET – Application Layer • CCU Network Logic Application • Combinatorial Logic, Timers • CCUNet Protocol • Local interpretation of FIP protocol and conversion to CCUNet Protocol • Annunciation and Control Application • CCU used as network transport medium

  34. CCU Supports a variety of Fire Networks and Protocols including: • Vigilant • Notifier • Siemens • Simplex • Tyco MX • Minerva • Shinwha • Keltron • Modbus • OPC • TCP/IP

  35. CCU3 • Next generation of CCU hardware • Designed originally to port CCUNET to native TCP/IP network (note that TCP/IP is already supported by CCUNET)

  36. CCU3 Interfaces • Communications • 4 isolated com ports • Seperately programmable for RS232, RS485 or RS422 onboard • Output Relay – Can Indicate • Processor or Supervision Failure • Alarm annunciation • Control via CCUNET Logic

  37. CCU3 interfaces • Supervised (Alarm) Input (4-20mA) • Power • 10-16VDC • 18-30VDC • 5W • Temperature • -40 to +80°C

  38. GSM • I/O • Ethernet, TCP/IP • Fibre • Modem • High Speed networking for Digital Voice and Video

  39. CCUNET Example

  40. CCU - OPC • OPC – Object Linking and Embedding for Process Control • Defined by a consortium of companies including Microsoft • Increasingly specified on large campus and industrial sites

  41. CCU - OPC • OPC defines a method of publishing events for use by other applications. • For example on a large industrial site, the fire system might publish its status and events via an OPC server. A PLC system might include these events in its logic and take action with the plant based on detected fire alarms. • Alternatively, a university site may want to use a specific or even proprietary Graphical Information System. The central system could receive events and status from the Fire, Electrical, Air conditioning and other systems via the OPC interface.

  42. CCU-OPC • The CCU-OPC leverages on XL Graphics and CCUNET to provide an OPC server. • The advantage of this design is that all Fire Indicator Panels (including conventional panels) which have a CCU interface, can be published on the OPC interface. Ex: Supports Simplex, Minerva, MX, Vigilant, Notifier etc • OPC Server utilises DCOM technology

  43. CCU – OPC Example Solution

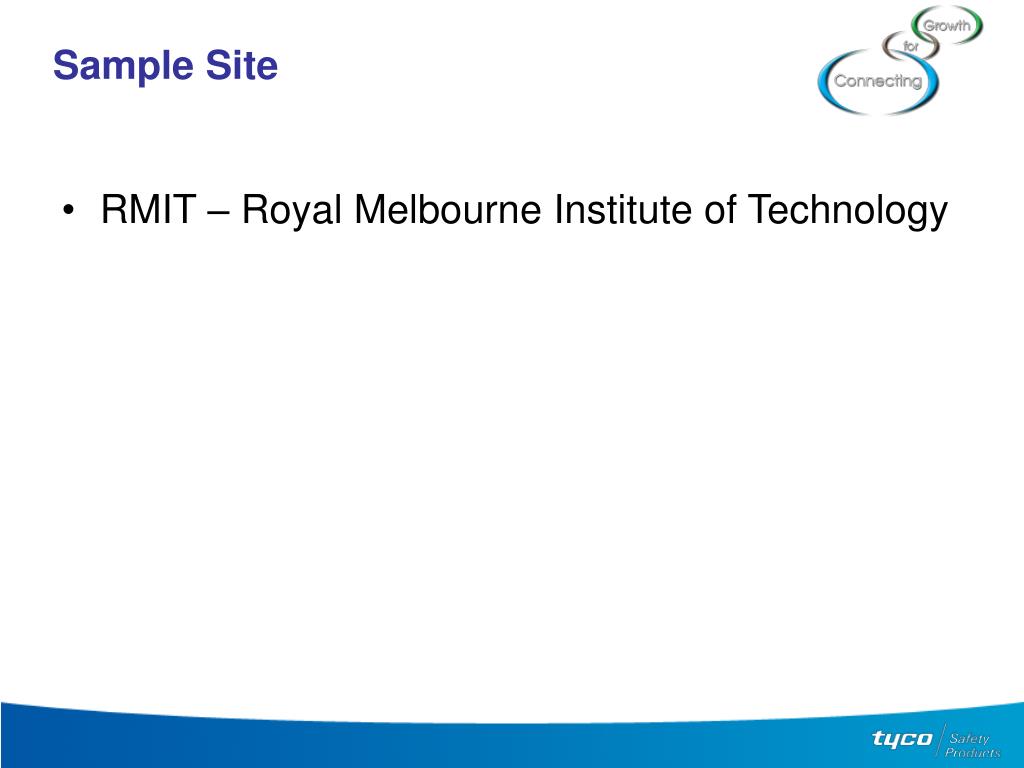

  44. Sample Site • RMIT – Royal Melbourne Institute of Technology

  45. Sample Site • Tornado Demo

  46. Sample Site • Creating a new site
