analysis of the increase and decrease algorithms for congestion avoidance in computer networks

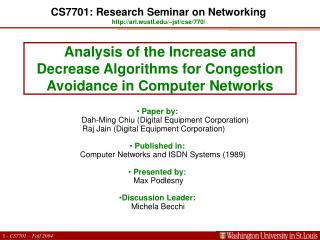

CS7701: Research Seminar on Networking

http://arl.wustl.edu/~jst/cse/770/

Analysis of the Increase and Decrease Algorithms for Congestion Avoidance in Computer Networks

Paper by:

Dah-Ming Chiu (Digital Equipment Corporation)

Raj Jain (Digital Equipment Corporation)

Published in:

Computer Networks and ISDN Systems (1989)

Presented by:

Max Podlesny

Discussion Leader:

Michela Becchi

outline
Outline
  • Problem
  • Linear Controls
  • Optimizing the Control Schemes
  • Nonlinear Controls
  • Conclusion
problem
Problem
  • Mismatch of arrival and service rates
    • Increased queuing in a buffer of a router
    • Packet drops
  • Does TCP congestion control scheme have a theoretical basis?
criteria for selecting controls
Criteria for selecting controls
  • Distributedness
  • Efficiency
  • Fairness
  • Convergence
control system model
Control system model
  • n users share the resource
  • Time is divided into small slots
  • The i-th user’s load is xi(t)at time slot t
control system model1
Control system model
  • The total load at the bottleneck resource is  xi(t)
  • The state of the system is characterized by

x(t)={x1(t), x2(t), …, xn(t)}

  • Xgoal is the desired load level
control system model2
Control system model
  • Users receive the same feedback
  • Users receive feedback at the same time
control system model3
Control system model
  • Binary feedback y(t),
  • xi(t+1) = xi(t) + f(xi(t), y(t))
control system model4
Control system model

User 1

x1

x2

xi > Xgoal?

User 2

xn

User n

y

control functions
Control functions
  • MIMD (Multiple Increase/Multiple Decrease)
    • bI> 1, 0 < bD,< 1
  • AIAD (Additive Increase/Additive Decrease)
    • aI > 0, aD,< 0
control functions1
Control functions
  • AIMD (Additive Increase/Multiple Decrease)
    • aI > 0, 0 < bD,< 1
  • MIAD (Multiple Increase/Additive Decrease)
    • bI > 0, aD,< 0
distributedness
Distributedness
  • System does the minimum amount of feedback
  • The following information is assumed to be unknown:
    • The desired load level
    • The number of users sharing the resource
efficiency
Efficiency
  • X(t) > Xgoal or X(t) < Xgoal are considered to be inefficient
fairness
Fairness
  • 1/n<=F(x)<=1
  • Independent of scale(unit measurement)
  • A continuous function
  • Equal sharing by k users of n users, k-n users do not receive any resource, F(x)=k/n
convergence
Convergence
  • Time taken till the system approaches the goal state from any starting state
    • Characterized by:
      • Responsiveness
      • Smoothness
    • Tradeoff between responsiveness and smoothness
vector representation
Vector representation
  • 2 users, so n=2
  • x0={x10,x20}
  • The fairness at any point (x1,x2) is equal to

Fairness Line

x0

User 2’s

allocation

Efficiency Line

User 1’s allocation

slide18
AIAD

Fairness Line

User 2’s

allocation

x0

x2

Efficiency Line

User 1’s allocation

x1

slide19
AIMD

x1

Fairness Line

User 2’s

allocation

x0

x2

x2

Efficiency Line

User 1’s allocation

x1

how to find control function
How to find control function?
  • Convergence to efficiency
    • The principle of negative feedback:
      • if y(t) = 0 then xi(t+1) >  xi(t)
      • if y(t) = 1 then xi(t+1) <  xi(t)
  • Convergence to fairness
    • F(x(t))  1 as t , so:

F(x(t+1)) = F(x(t)) + (1-F(x(t)))  (1-  xi2(t) /  (c+xi(t))2), where c = a/b

  • Distributedness
    • if y(t) = 0 then xi(t+1) > xi(t) i
    • if y(t) = 1 then xi(t+1) < xi(t) i
requirements for control function
Requirements for control function
  • The linear increase policy should have an additive component, and optionally, a multiplicative component
    • aI> 0
    • bI 1
  • The linear decrease policy should be multiplicative
    • aD= 0
    • 0 bD < 1
optimal convergence to efficiency
Optimal Convergence to Efficiency
  • Given
    • n states for n users, i.e. xi(t+1) = a + bxi(t),

i = 1, 2, …, n.

    • State of the system X(t) = xi(t)
    • X(0) - initial state
    • Xgoal – optimal state
  • One can calculate
    • te - responsiveness
    • se - smoothness
  • te, se are decreasing functions of a and b
optimal convergence to fairness
Optimal Convergence to Fairness
  • F(x(t+1)) – F(x(t)) is a monotonically increasing function of c = a/b
  • aD= 0, so decrease steps have no affect on Fairness
  • The optimal value of bI is its minimum value, i.e. bI =1
linear control conditions
Linear control conditions
  • Increase policy should be additive
  • Decrease policy should be multiplicative

Fairness Line

x0

x2

Efficiency Line

x1

nonlinear controls
Nonlinear Controls
  • Control function
  • A lot of complexity
conclusion
Conclusion
  • Best control condition is AIMD within the described model
  • AIMD is used in TCP congestion control
  • It is not the case in real networks
  • MIMD can also be a good decision
