Presentation Transcript

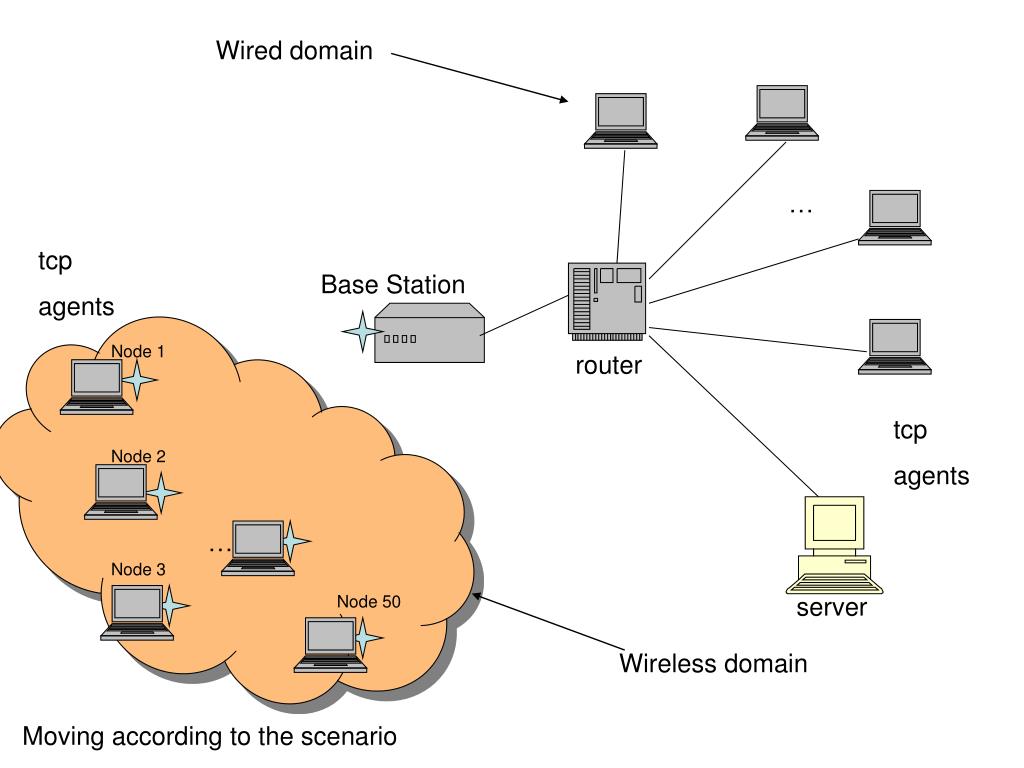

  1. Wired domain … tcp agents Base Station Node 1 router tcp agents Node 2 … Node 3 Node 50 server Wireless domain Moving according to the scenario

  2. This is how the topology described above looks in the NAM

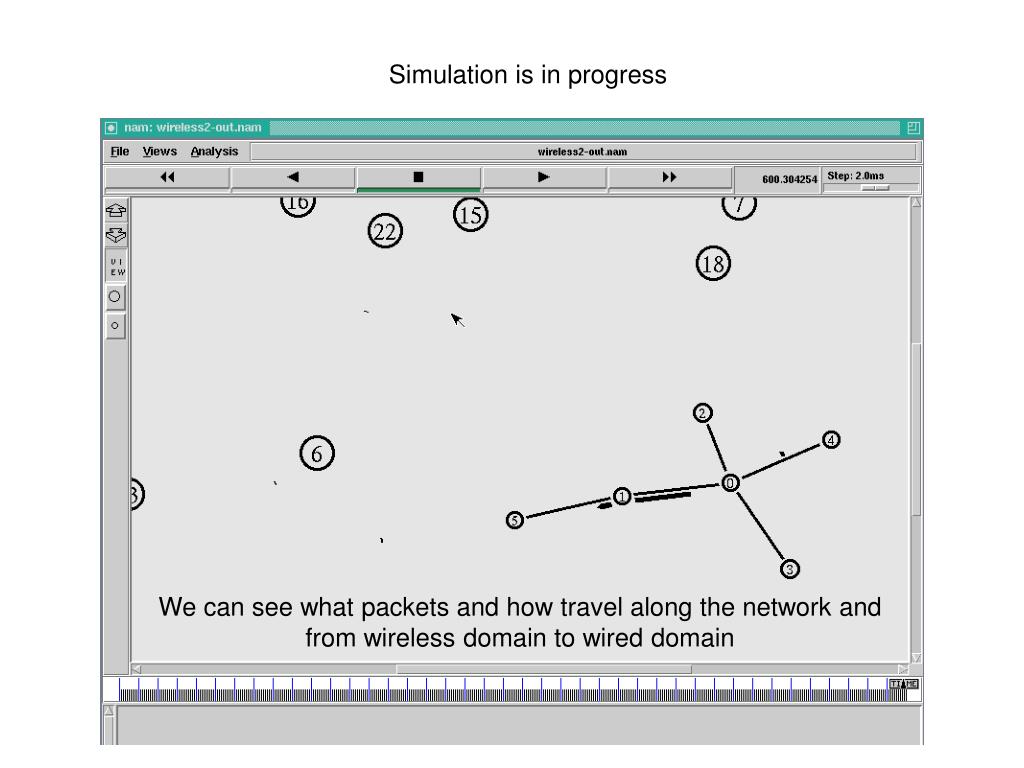

  3. Simulation is in progress We can see what packets and how travel along the network and from wireless domain to wired domain
