section 4 6

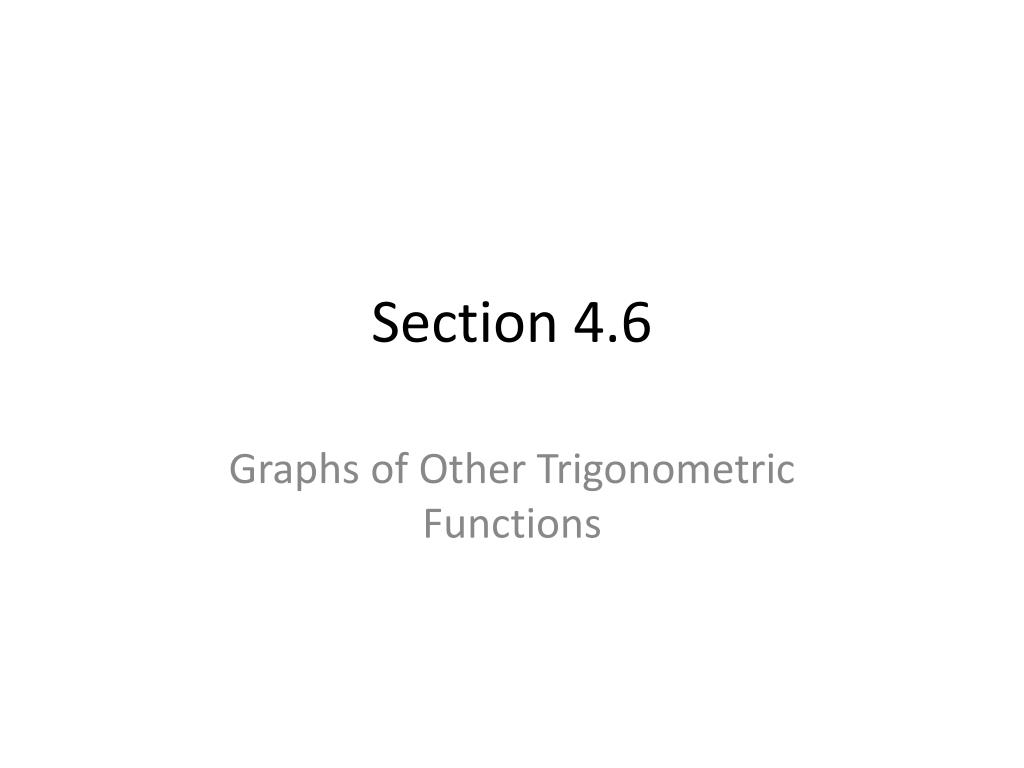

Section 4.6

Graphs of Other Trigonometric Functions

overview

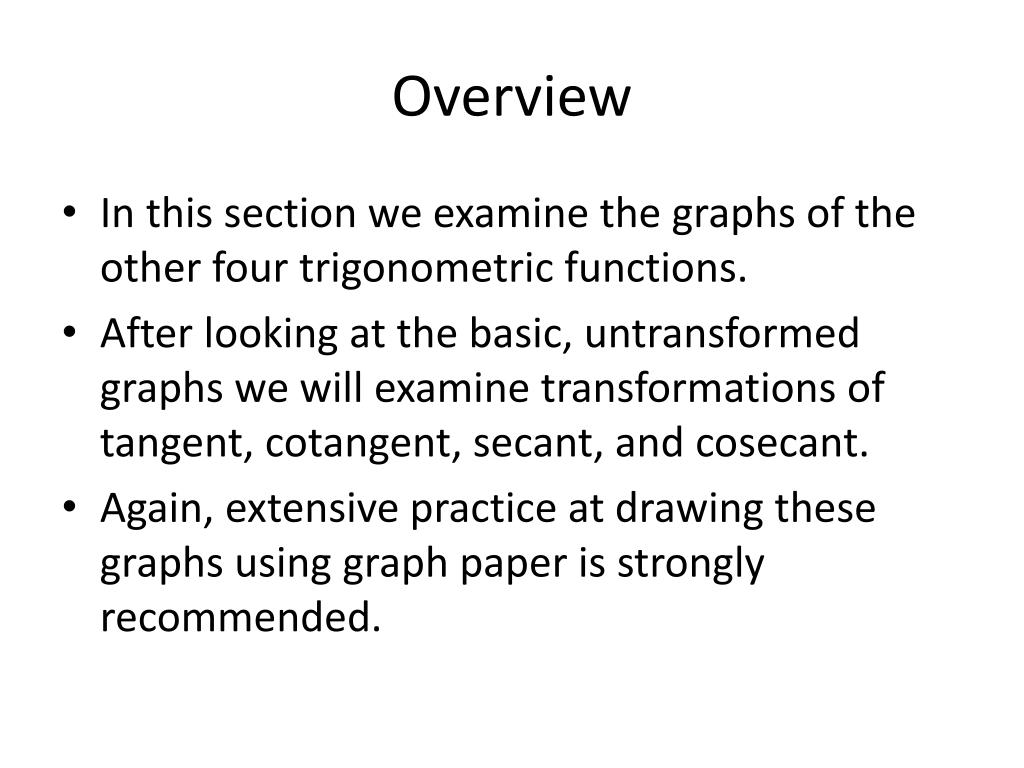

Overview
  • In this section we examine the graphs of the other four trigonometric functions.
  • After looking at the basic, untransformed graphs we will examine transformations of tangent, cotangent, secant, and cosecant.
  • Again, extensive practice at drawing these graphs using graph paper is strongly recommended.
tangent and cotangent

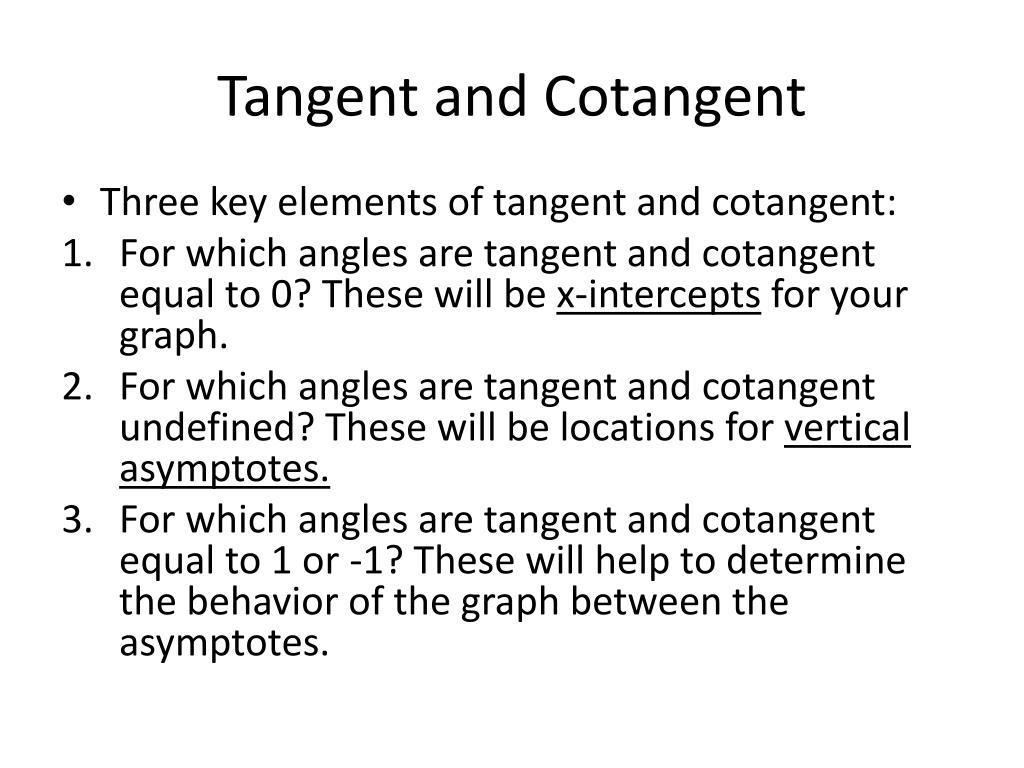

Tangent and Cotangent
  • Three key elements of tangent and cotangent:
  • For which angles are tangent and cotangent equal to 0? These will be x-intercepts for your graph.
  • For which angles are tangent and cotangent undefined? These will be locations for vertical asymptotes.
  • For which angles are tangent and cotangent equal to 1 or -1? These will help to determine the behavior of the graph between the asymptotes.
transformations

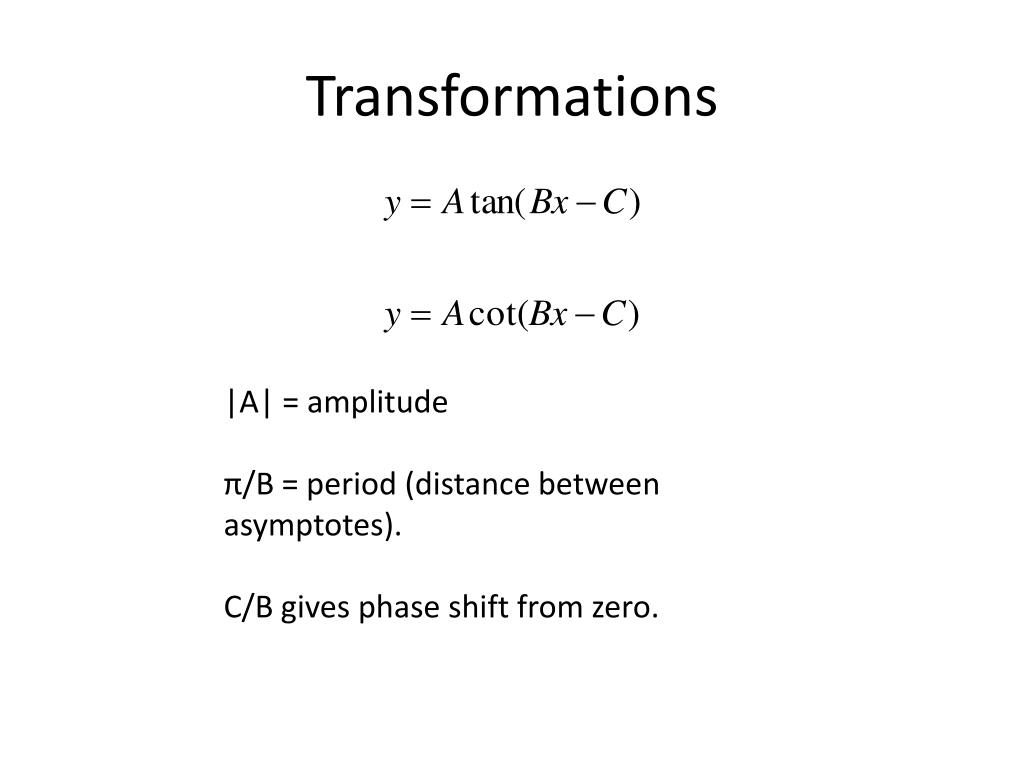

Transformations

|A| = amplitude

π/B = period (distance between asymptotes).

C/B gives phase shift from zero.

secant and cosecant
Secant and Cosecant

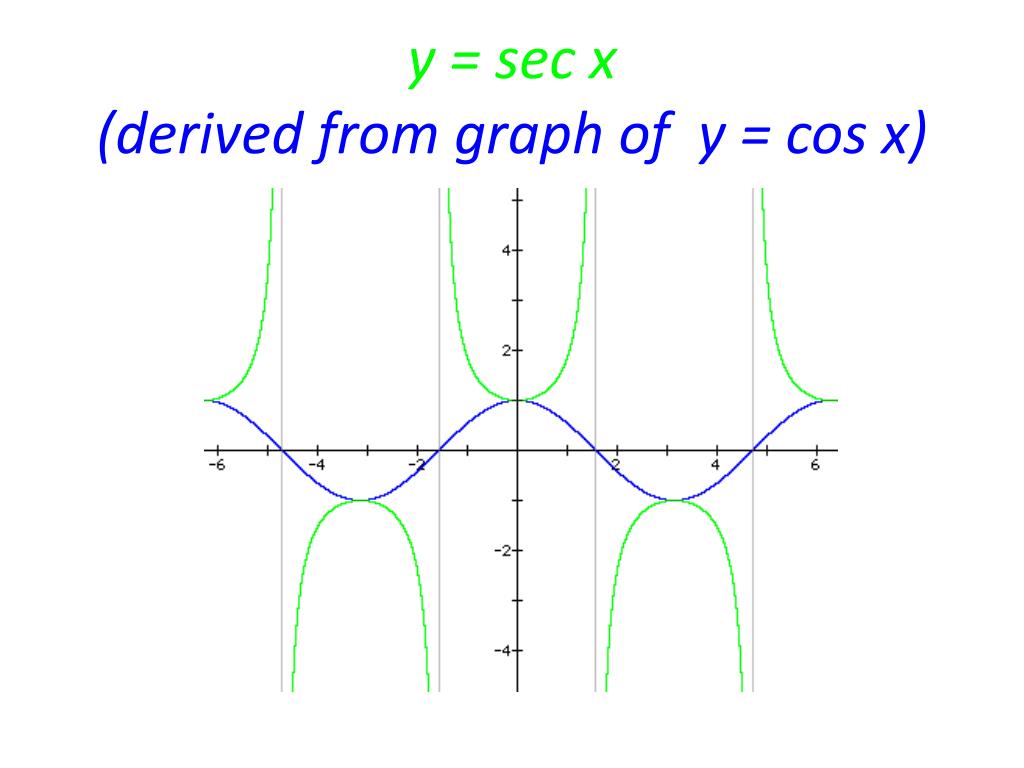

  • The graphs of secant and cosecant are derived from the graphs of cosine and sine, respectively:
  • Where sine and cosine are 0, cosecant and secant are undefined (location of vertical asymptotes).
  • Where sine and cosine are 1, cosecant and secant are also 1.
  • Where sine and cosine are -1, cosecant and secant are also -1.
transformations1

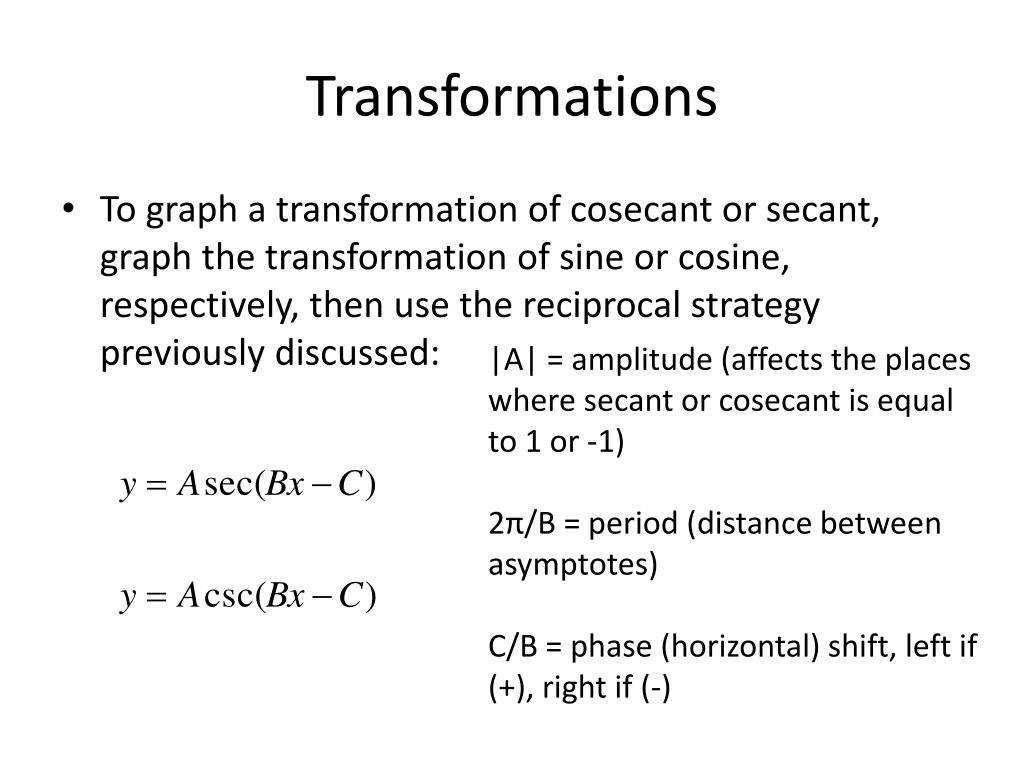

Transformations
  • To graph a transformation of cosecant or secant, graph the transformation of sine or cosine, respectively, then use the reciprocal strategy previously discussed:

|A| = amplitude (affects the places where secant or cosecant is equal to 1 or -1)

2π/B = period (distance between asymptotes)

C/B = phase (horizontal) shift, left if (+), right if (-)
