  1. DAL DT Technologies Presentsimes-icore Mills When your volumes require milling capacity, DAL DT Technologies has the machine to suit your dental laboratory.

  2. CORiTEC 250i • Rigid, industrial, heavy duty steel-aluminum table top design • Lifting closed aluminum door with an integrated security circuit • 5-Axis processing, NC-controlled (simultaneous or 3+2) • Easiest connection and using with CAM software • Micro-Step-Controller and motors on all axis with look ahead path generator • Material holder for blanks (98 mm) with NC-controlled automatic 360 degree axis and real 4-axis-processing • Rotation axis with Harmonic Drive gears for high stability and precision in 4. / 5. axis • HF-spindle with up to 60.000 rpm • Cooling vent integrated into spindle holder • Integrated water cooling / filtering system for dry and wet processing (grinding and milling) • Suction adapter for optimized absorbing • Automatic 10-time direct tool-changer • Using tools with 3 mm shaft • Integrated tool length measurement sensor with up to 2µm • Control – PC, with NC control software “REMOTE” • Automatic air pressure control • 115 V/230 V-versions • Compressed air consumption app. 50 l/min (min. 7 bar) • Weight: 188 lbs. • Dimensions: 27 in. x 22 in. x 21 in. (L x H x W)

  3. CORiTEC 140i • Rigid, industrial, heavy duty steel-aluminum table top design • Lifting closed aluminum door with an integrated security circuit • 4-Axis-Processing (NC-controlled) • Easiest connection and using with CAM software • Micro-Step-Controller and motors on all axis with look ahead path generator • Material holder for blocks (max. 65 x 35 x 25 mm) with NC-controlled automatic 360 degree axis and real 4-axis-processing • Rotation axis with Harmonic Drive gear for high stability and precision • HF-spindle with up to 60.000 rpm • Cooling vent integrated into spindle holder • Integrated water cooling / filtering system for dry and wet processing (grinding and milling) • Suction adapter for optimized absorbing • Automatic 6-time direct tool-changer • Using tools with 3 mm shaft • Integrated tool length measurement sensor with up to 2µm • Control – PC, with NC control software “REMOTE” • Automatic air pressure control • 115 V/230 V-versions • Compressed air consumption app. 50 l/min (min. 7 bar) • Weight: 122 lbs. • Dimensions: 21 in. x 15 in. x 17 in. (L x H x W)

  4. Suction Units & Compressors Both available suction units are developed especially for the requirements of the imes-icore milling machines. Each unit is built to last and requires very little maintenance. CORiTECiVAC eco The iVAC eco is designed for a high standard within a small space and requires little maintenance. The eco captures dust in a specially developed filter bag that needs to be regularly replaced. CORiTECiCompVAC The CORiTECiCompVAC is a suction unit and compressor all in one. This strong suction and oil free compressor can be used to operate each of the imes-icoreCORiTEC 340i, 440i and 450i milling machines.

  5. Sintering Furnaces Below are the available sintering furnaces for zirconia and alumina materials, both of which produce high strength and high density products with the desired tooth shade. HT-S (MihmVogt) High temperature furnace : This high temperature furnace by Mihm Constable is particularly suitable for laboratories with parallel milling systems and for laboratories with a low number of restorations. With programmable presets, both HT-S and HAT-S are designed for the sintering of all zirconia ceramics available in the market. This device offers the following benefits:

  6. HT-S Speed (MihmVogt) High temperature furnace This high temperature furnace by Mihm Constable is particularly suitable for laboratories with parallel milling systems and for laboratories with a low number of restorations. With programmable presets, both HT-S and HAT-S are designed for the sintering of all zirconia ceramics available in the market. This device offers the following benefits:

  7. ICAM V5 Software The high end CAM solution from imes-icore, the CORiTECiCAM V5 delivers high precision calculations of 5-axis, simultaneous milling data for best surface quality and fit. This is especially evident when milling harder materials, such as glass ceramics and chrome cobalt. Furthermore, the iCAM V5 software offers essential advantages and features; such as fully automated cutting of support bars, automated creation of sinter bars for zirconia and a total flexibility to embed further milling tools or your own milling strategies.

  8. ICAM V4 Software CORiTECiCAM V4 is a highly reputable 5-axis Profi-CAM-System, which matured out of many years of development. The software’s easy, fast and safe handling sets it apart from any other CAM software. It is the perfect user software for the automated fabrication of high end dental restorations. Due to optimized and safe milling strategies, which were developed after eight years of constant improvements with all dental constructions and materials, the iCAM V4 is able to calculate milling data in no time. A menu guided user interface, easy to operate surfaces, and multiple fully automated functions result in a reliable and simple operation. iCAM V4 guides beginners and experts automatically and safely through the entire milling program.

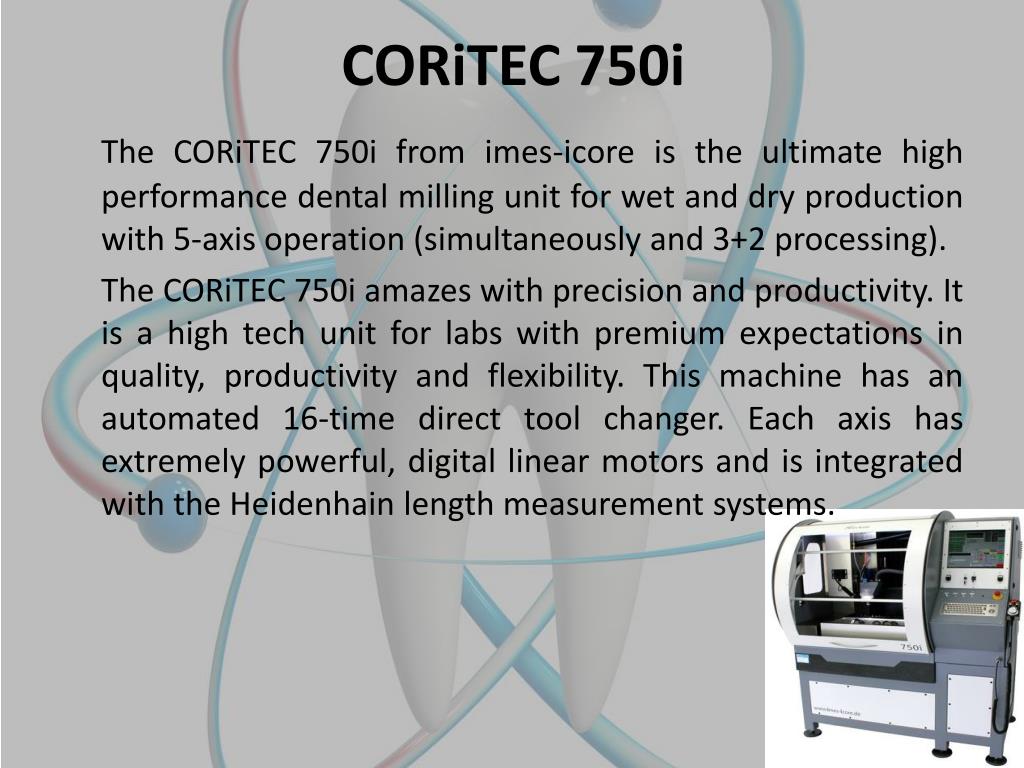

  9. CORiTEC 750i The CORiTEC 750i from imes-icore is the ultimate high performance dental milling unit for wet and dry production with 5-axis operation (simultaneously and 3+2 processing). The CORiTEC 750i amazes with precision and productivity. It is a high tech unit for labs with premium expectations in quality, productivity and flexibility. This machine has an automated 16-time direct tool changer. Each axis has extremely powerful, digital linear motors and is integrated with the Heidenhain length measurement systems.

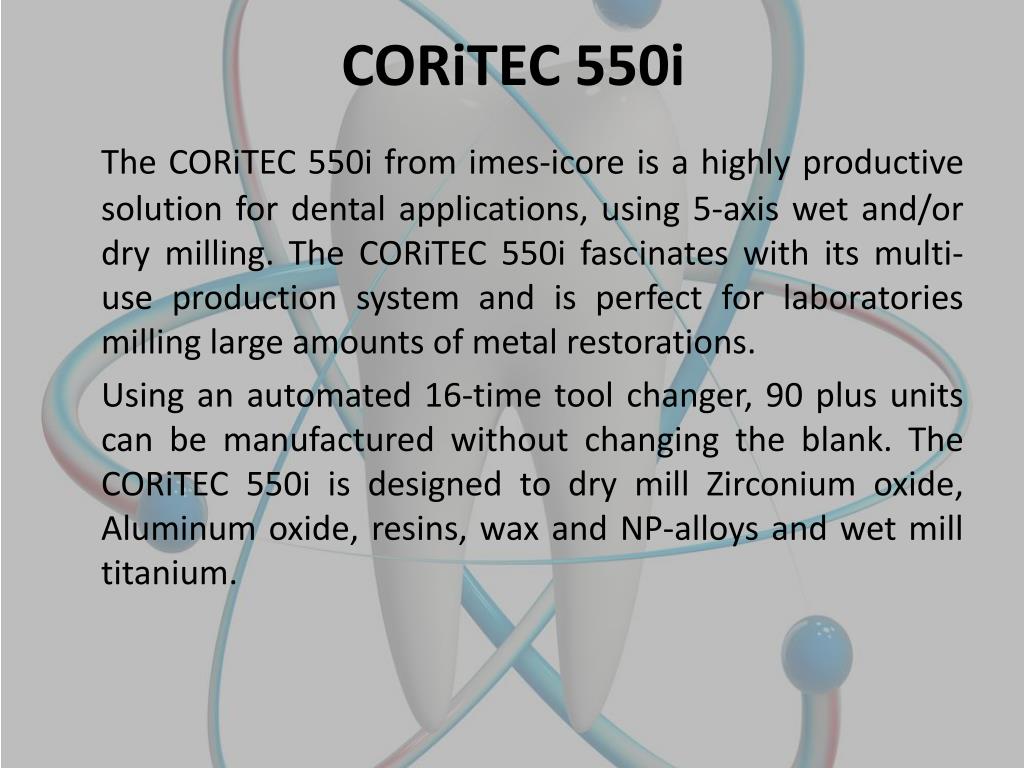

  10. CORiTEC 550i The CORiTEC 550i from imes-icore is a highly productive solution for dental applications, using 5-axis wet and/or dry milling. The CORiTEC 550i fascinates with its multi-use production system and is perfect for laboratories milling large amounts of metal restorations. Using an automated 16-time tool changer, 90 plus units can be manufactured without changing the blank. The CORiTEC 550i is designed to dry mill Zirconium oxide, Aluminum oxide, resins, wax and NP-alloys and wet mill titanium.

  11. CORiTEC 450i + Blank Changer The CORiTEC 450i is the latest development from imes-icore and offers 5-axis milling of all non-metal material, as a compact table version! The CORiTEC 450i is convincing due to its rigid tabletop, steelaluminum construction. With an automated 12-time tool changer and NC-controlled axis, 45 plus units can be manufactured without changing the blank. Furthermore, the optional automatic blank/disc changer gives you the ability to operate the CORiTEC 450i system automatically. The CORiTEC 450i is designed to dry mill Zirconium oxide, Aluminum oxide, resins and wax. By purchasing the wet mill option, you can also mill glass ceramics, lithium disilicates and chrome cobalt and titanium. The 5-axis milling of the 450i eliminates undercuts and multiple insert directions.

  12. CORiTEC 440i The legendary CORiTEC 440i from imes-icore is your entry into the world of industrialized dental manufacturing. The CORiTEC 440i is convincing due to its rigid tabletop steel aluminum construction. With an automated 8-time tool changer and 4-axis processing, 90 plus units can be manufactured without changing the blank. The CORiTEC 440i is designed to dry mill Zirconium oxide, Aluminum oxide, resins, wax and Chrome-Cobalt.

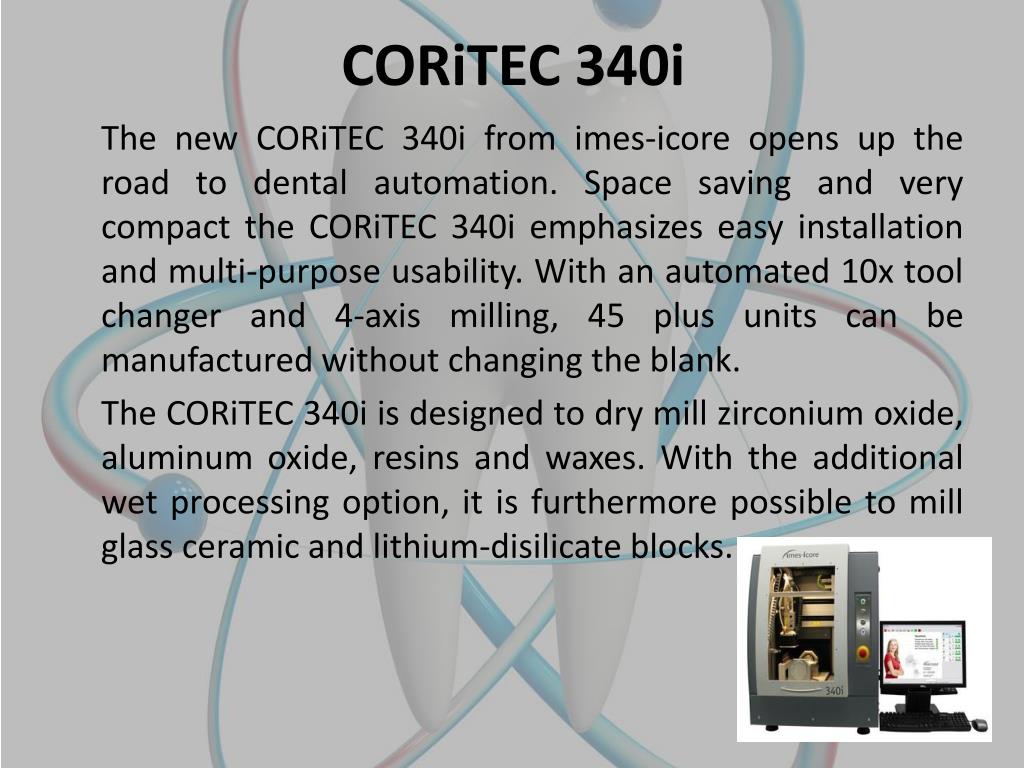

  13. CORiTEC 340i The new CORiTEC 340i from imes-icore opens up the road to dental automation. Space saving and very compact the CORiTEC 340i emphasizes easy installation and multi-purpose usability. With an automated 10x tool changer and 4-axis milling, 45 plus units can be manufactured without changing the blank. The CORiTEC 340i is designed to dry mill zirconium oxide, aluminum oxide, resins and waxes. With the additional wet processing option, it is furthermore possible to mill glass ceramic and lithium-disilicate blocks.

  14. CORiTEC 240i The new CORiTEC 240i from imes-icore opens up the road to dental CAD/CAM automation. Space saving and very compact, the CORiTEC 240i emphasizes easy installation and multi-purpose usability. With an automated 10x tool changer and 4-axis milling, 45 plus units can be manufactured without changing the blank. The CORiTEC 240i is designed to dry mill Zirconium oxide, Aluminum oxide, resins and waxes. With the additional wet processing option, it is furthermore possible to mill glass ceramic and lithium-disilicate blocks.

  15. Thank You By: DAL DT Technologies http://www.daltechsystems.com
