The Sine Rule قاعدة الجيب

The Sine Rule قاعدة الجيب. *To use the sine rule to find the side of a triangle. * To use the sine rule to find the angle of a triangle. L.I:. S.C:. write down the sine rule formula. Find the side and the angle using the sine rule. G. B. 2. 1. 53 º. 41 º. x. 62 º. A. x.

Download Presentation

The Sine Rule قاعدة الجيب

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Sine Ruleقاعدة الجيب Wassim Al Meniem

  2. *To use the sine rule to find the side of a triangle.* To use the sine rule to find the angle of a triangle. L.I: S.C: • write down the sine rule formula. • Find the side and the angle • using the sine rule. Wassim Al Meniem

  3. G B 2. 1. 53º 41º x 62º A x 5 cm º 76º C H 26 mm I 2. 1. 82º 47º 5 cm 8.2 cm xº xº 6 cm Wassim Al Meniem

  4. a sinA b sinB c sinC = = The Sine Rule can be used for any triangle: تستخدم مع أي مثلث C b The sides are labelled to match their opposite angles a A B c The Sine Rule: Wassim Al Meniem

  5. a sinA b sinB c sinC = = The Sine Rule can be used for any triangle: C The sides are labelled to match their opposite angles b a A B c The Sine Rule: Wassim Al Meniem

  6. A Example 1: Find the length of BC 76º c 7cm b 63º C x B a a sinA c sinC = Draw arrows from the sides to the opposite angles to help decide which parts of the sine rule to use. x sin76º 7 sin63º sin76º × = × sin76º 7 sin63º ارسم مستقيم من الضلع للزاوية المقابلة له ليساعدك على التعويض بالقاعدة. x = ×sin76º x = 7.6 cm Wassim Al Meniem

  7. P Example 2: Find the length of PR 82º x r q 43º 55º Q 15cm R p p sinP q sinQ = Draw arrows from the sides to the opposite angles to help decide which parts of the sine rule to use. 15 sin82º x sin43º sin43º × = × sin43º 15 sin82º = x sin43º × x = 10.33 cm Wassim Al Meniem

  8. G B 3. 1. 2. F 53º 13 cm 41º x x 62º A x 130º 28º D E 5 cm 63º 76º C H 26 mm I 4. 5.2 cm 5. x 61º R 6. P 37º 66º 57º 10 m 35º x 77º 62º Q 12 cm 6 km 85º 7. x 65º 86º x Wassim Al Meniem

  9. G B 3. 1. 2. F 53º 13 cm 41º x 8.0 35.3 5.5 x 62º A x 130º 28º D E 5 cm 63º 76º C H 26 mm I 10.7 4. 5.2 cm 5. x 61º R 6. P 37º 66º 57º 10 m 35º x 5.2 77º 62º Q 12 cm 6 km 85º 7. x 6.6 65º 86º x Wassim Al Meniem 6.9

  10. Remember:تذكر • Draw a diagramارسم الشكل • Label the sides سمّي الأضلاع • Set out your working exactly as you have been shownاجعل عملك منسقا كالذي رأيته بالعرض التقديمي • Check your answers regularlyand ask for help if you need it تحقق من اجاباتك بشكل منتظم واسأل المدرس للمساعدة Wassim Al Meniem

  11. sinA a sinB b sinC c = = Finding an Angleإيجاد الزاوية The Sine Rule can also be used to find an angle, but it is easier to use if the rule is written upside-down! يمكن استخدام قاعدة الجيب لإيجاد الزاوية Alternative form of the Sine Rule: Wassim Al Meniem

  12. C Example 1: Find the size of angle ABC 6cm a 4cm b x º 72º A B c sinA a sinB b = Draw arrows from the sides to the opposite angles to help decide which parts of the sine rule to use. sin72º 6 sin xº 4 4× = × 4 sin72º 6 = sin xº 4× sin xº = 0.634 x = sin-1 0.634 = 39.3º Wassim Al Meniem

  13. P Example 2: Find the size of angle PRQ 85º q 7cm r x º R p 8.2cm Q sinP p sinR r = sin85º 8.2 sin xº 7 7× = × 7 sin85º 8.2 = sin xº 7× sin xº = 0.850 x = sin-1 0.850 = 58.3º Wassim Al Meniem

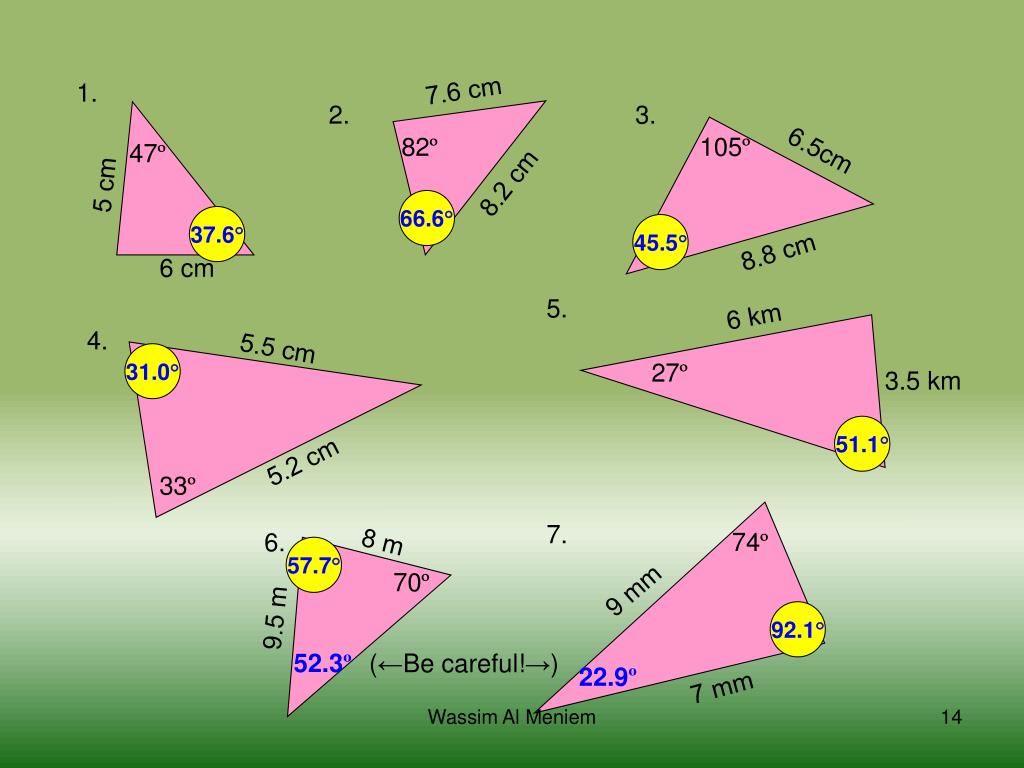

  14. 7.6 cm 1. 2. 3. 82º 105º 6.5cm 47º 5 cm 8.2 cm 66.6° xº 37.6° xº 45.5° xº 8.8 cm 6 cm 5. 6 km 4. 5.5 cm 31.0° xº 27º 3.5 km 51.1° xº 5.2 cm 33º 7. 6. 8 m 74º 57.7° xº 70º 9 mm 9.5 m 92.1° xº 52.3º (←Be careful!→) 22.9º 7 mm Wassim Al Meniem

  15. Remember: • Draw a diagramارسم الشكل • Label the sidesسمّي الأضلاع • Set out your working exactly as you have been shown اجعل عملك منسقا كالذي رأيته بالعرض التقديمي • Check your answers regularlyand ask for help if you need it تحقق من إجاباتك بشكل منتظم واسأل المدرس للمساعدة Wassim Al Meniem

  16. Wassim Al Meniem
